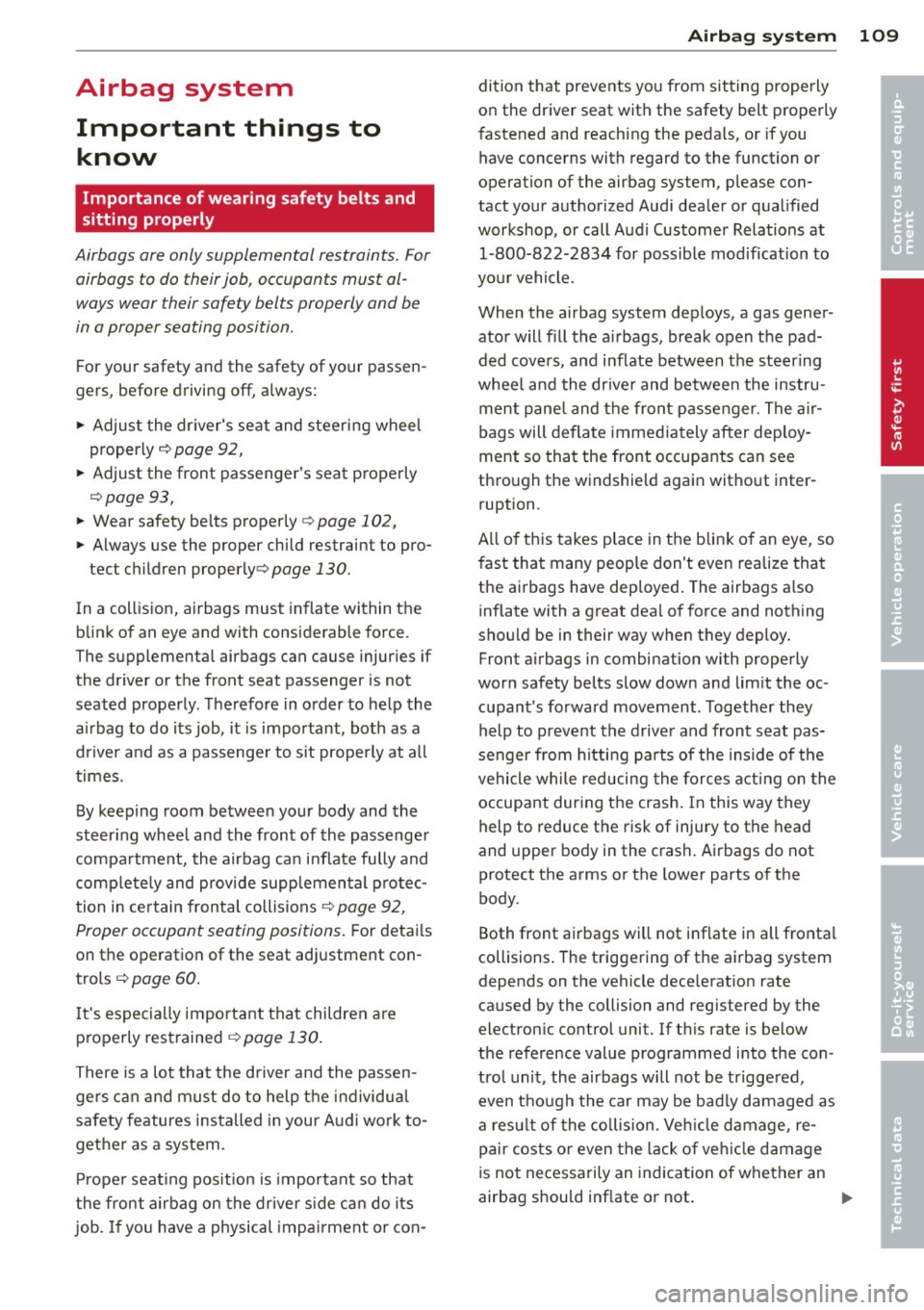

Airbag system Important things to know
Importance of wearing safety belts and
sitting properly
Airbags are only supplemental restraints. For
airbags to do their job , occupants must al­
ways wear their safety belts properly and be
in a proper seating position.
For your safety and the safety of your passen­
gers, before driving off, always:
"" Adjust the driver's seat and steering wheel
properly
q page 92,
"" Adjust the front passenger's seat properly
¢page 93,
"" Wear safety be lts properly ¢ page 102,
"" Always use the proper child restraint to pro-
tect children properlyq
page 130.
In a collision, airbags must inflate within the
blink of an eye and with considerable force.
The supplemental airbags can cause injuries
if
the driver or the front seat passenger is not
seated properly . Therefore in order to help the
a ir bag to do its job, it is important, both as a
driver and as a passenge r to s it properly at all
times.
By keeping room between your body and the
steer ing whee l and the front of the passenger
compartment, the airbag can inflate fully and
comp letely and provide supplemental protec ­
tion in certain frontal collisions
q page 92,
Proper occupant seating positions. For details
on the operation of the seat adjustment con­
trols
q page 60.
It's especially important that children are
properly restrained
q page 130.
There is a lot that the driver and the passen­
gers can and must do to help the individual
safety features installed in your Aud i work to­
gether as a system.
Proper seating pos ition is important so that
the front airbag on the driver side can do its
job. If you have a physical impairment or con-
Airbag system 109
dition that prevents you from sitting properly
on the driver s eat with the safety belt properly
fastened and reaching the peda ls, or if you
have concerns with regard to the function or
operation o f the airbag system, please con­
tact your authorized Audi dealer or qualified
workshop , or call Audi Customer Relations at
1-800-822-2834 for possible modification to
your vehicle.
When the airbag system dep loys, a gas gener ­
ator will f ill the a irbags, break open the pad­
ded covers, and inflate between the steer ing
whee l and the driver and between the instru­
ment panel and the front passenger. The air­
bags will deflate immediately after deploy­
ment so that the front occupants can see
through the windshie ld again without inter­
ruption .
A ll of th is takes place in the blink of an eye, so
fast that many people don't even realize that
the airbags have deployed. The airbags a lso
inflate with a great dea l of force and nothing
should be in their way when they deploy.
Front airbags in comb ination with properly
worn safety belts slow down and lim it the oc­
cupant's forward movement . Together they
help to prevent the driver and front seat pas­
senger from hitting parts of the inside of the
vehicle while reducing the forces acting on the
occupant during the crash. In this way they
help to reduce the risk of injury to the head
and upper body in the crash. Airbags do not
protect the arms or the lower parts of the
body.
Both front airbags wi ll not inflate in all fronta l
collisions . The triggering of the airbag system
depends on the vehicle de ce lerat ion rate
caused by the collision and regis te red by the
elec tron ic control uni t. If th is rate is below
the reference value programmed into the con ­
trol unit, the airbags will not be trigge red ,
even though the car may be badly damaged as
a result of the collision . Ve hicl e damage, re­
pair costs or even the lack of ve hicle dama ge
is not necessarily an indication of whether an
airbag should inflate or not . •
•
...

110 Airbag sys te m

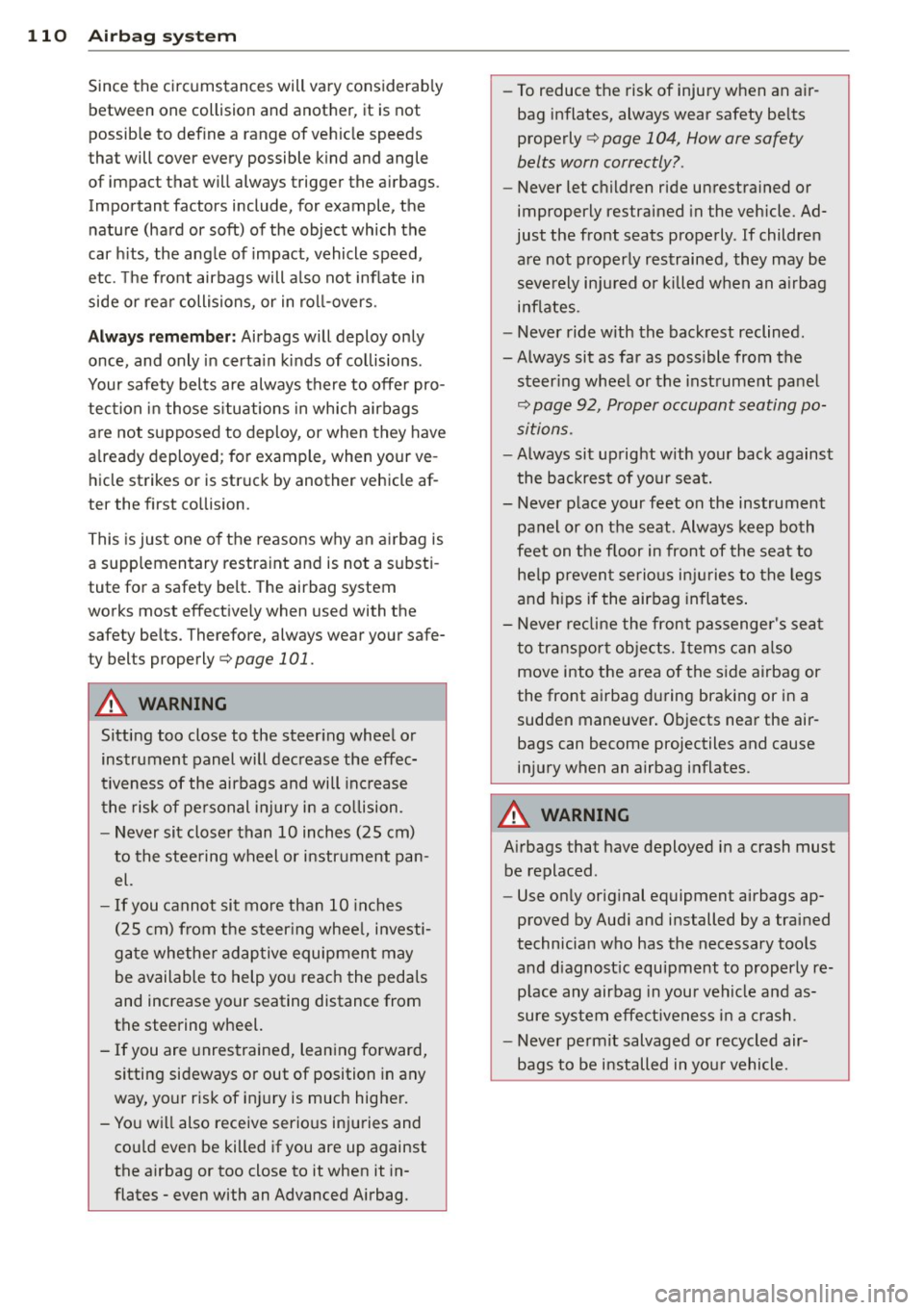

Since the cir cumstances will vary considerab ly
between one collision and anot her, it is not
possib le to def ine a range of vehicle speeds
that will cover every possible k ind and angle
of impact t hat will always trigger the airbags.
Important factors include, for example, the
nature (hard or soft) of the object which the
car h its, the ang le of impact, vehicle speed,
etc. The front airbags will also not inflate in
side or rea r collisions, or in ro ll-overs.
Al ways rememb er: Airbags will deploy only
once, and only in certa in k inds of co llisions.
Your safety belts are always there to offer pro­
tection in those s ituations in which airbags
a re not supposed to deploy, or when they have
a lready deployed; for example, when your ve­
hicle strikes or is struck by another vehicle af­
ter the first co llision.
This is just one of the reasons why an airbag is
a supplementary restraint and is not a substi­
tute for a safety belt . The airbag system
works most effect ively when used with the
safety belts. Therefore, always wear your safe­
ty belts properly¢
page 101.
A WARNING
Sitting too close to the steer ing wheel or
instrument panel will dec rease the effec­
tiveness of the airbags and will increase
t he risk of personal injury in a co llision.
- Never sit closer than 10 inches (2S cm)
to the stee ring wheel or instrument pan­
el.
- If you cannot sit more than 10 inches
( 2 5 cm) from the steer ing whee l, investi­
ga te whethe r adaptive equipmen t may
be available to help you reach the pedals
and increase your seating distance from
the steering wheel.
- If you are unrestrained, lean ing fo rward,
sitting sideways or out of position in any
way, your risk of in jury is much higher.
- You will also receive serio us inj uries and
cou ld even be killed if you are up against
the airbag or too close to it when it in­
flates - even with an Advanced Airbag. -
To reduce the risk of injury when an a ir­
bag inflates, always wear safety be lts
properly¢
page 104, How are safety
belts worn correctly? .
-Never let children ride unrestrained or
improperly restrained in the vehicle. Ad­
just the front seats properly . If children
are not p roperly restrained, they may be
seve rely in ju red or killed when an a irbag
infla tes.
- Never ride with the back rest reclined.
-Always sit as far as possible from the steer ing whee l or the instrument pane l
¢ page 92, Proper occupant seating po­
sitions.
- Always sit up right with your back against
the backres t of your seat.
- Never p lace your feet on the instrument
panel or on the seat. Always keep both
feet on the f loor in front of the sea t to
he lp preven t serio us in juries to the legs
and h ips if the airbag infla tes .
- Never re cline the front passenger 's sea t
to tra nspor t ob jec ts. Items c an al so
move into the a rea of the s ide airbag or
the front airbag during braking or in a
sudden maneuver . Objects near the air­
bags can become projectiles and cause
in ju ry when an airbag inflates.
A WARNING
Airbags that have deployed in a crash must
be replaced.
- Use on ly orig inal equipment airbags ap­
proved by Aud i and installed by a trained
technician who has the necessary tools and d iagnost ic equipment to properly re­
p lace any airbag in your vehicle and as­
sure sy stem effe ctive ness in a crash.
- Never permit salvaged or recycled air­
bags to be installed in you r vehicle.

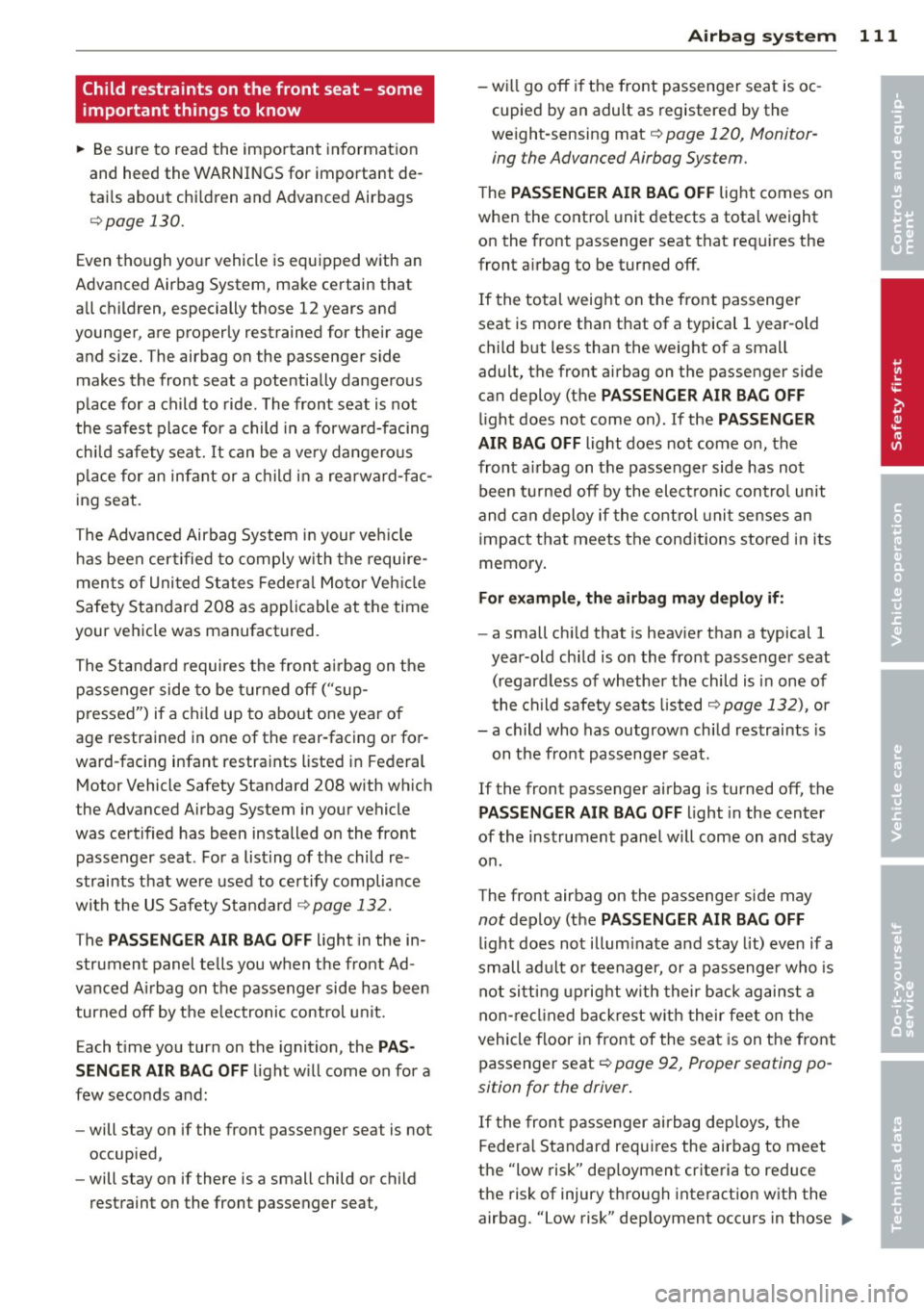

Child restraints on the front seat - some
important things to know
.. Be sure to read the important information
and heed the WARNINGS for important de­
tails about chi ldren and Advanced Airbags
~ page 130.
Even though your vehicle is equipped with an
Advanced Airbag System, make certain that
a ll chi ldren, especially those 12 years and
younger, are properly restrained for their age and s ize. The airbag on the passenger side
makes the front seat a potentially dangerous
p lace for a child to ride. The front seat is not
the safest place for a child in a forwa rd-facing
chi ld safety seat. It can be a very dangero us
p lace for an infant or a c hild in a rearward-fac ­
ing seat.
The Advanced Airbag System i n your veh icle
has been cert ified to comp ly with the require­
men ts of United States Federa l Mo to r Veh icle
Safety Standard
208 as applicable at the time
your vehicle was manufactured.
The Standard requires the front a irbag on the
passenger side to be t urned off ("sup­
p ressed") if a chi ld up to about one year of
age restrained in one of the rear -facing or for­
ward -facing infant restraints listed i n Federal
Motor Vehicle Safety Standard
208 with wh ich
the Advanced Airbag System in your vehicle
was certified has been installed o n the front
passenger seat . For a listing of the child re­
straints that were used to certify compliance
with the US Safety Sta ndard
~ page 132.
The PASSENG ER AIR BAG OFF light in the in­
strument panel te lls you when the front Ad­
vanced A irbag on the passenger side has been
turned off by the e lectronic control u nit.
Each t ime you turn on the ignition, the
PAS­
SENGER AIR BAG OFF
light w ill come on for a
few seconds and:
- will stay on if the front passenger seat is not
occupied ,
- will stay on if there is a small child or child
restraint on the front passenger seat,
A irbag sys tem 111
- w ill go off if the front passenger seat is oc ­
cupied by an adult as registered by the
weight -sensing mat ¢
page 120, Monitor­
ing the Advanced Airbag System.
T he PASSENGER AIR BAG OFF light comes on
whe n the contro l unit detects a tota l weight
on the front passenger seat that req uires the
front a irbag to be turned off.
If the total weight on the front passenger
seat is more than that of a typical
1 year-o ld
c h ild but less than the weight of a small
adult, the front airbag on the passenger side
can deploy (the
PASSENGER AIR BAG OFF
li ght does not come on). If the PASSENG ER
AIR BAG OFF
light does not come on, the
front a irbag on t he passenger side has not
been t urned off by the elect ronic con trol unit
and can deploy if the control unit senses an
impact that meets the cond itions stored in its
memory .
For exampl e, th e airb ag may deplo y if:
- a small ch ild that is heav ie r than a typical 1
year-old ch ild is o n the front passenger seat
(regard less of whether the child is in one of
the child safety seats listed
~ page 132), or
- a child who has outgrown child restraints is
on the front passenger seat.
If the front passenger airbag is turned off, the
PASSENGER AIR BAG OFF light in the center
of the instrument panel will come on and stay
o n.
The front airbag on the passenger side may
not deploy (the PASSENGER AIR BAG OFF
light does not illum inate and stay lit) ev en if a
small ad ult o r teenager, or a passenger who is
not si tt ing uprig ht w ith their back against a
non-re clined ba ck rest w ith their feet on the
vehicle floor in front of the sea t is on the front
passenger seat ¢
page 92, Proper seating po­
sition for the driver .
If the front passenger airbag dep loys, the
Federa l Standard requ ires the airbag to meet
the "low risk" dep loyment criteria to reduce
the risk of injury th ro ugh interaction with the
airbag. "Low risk" dep loyment occ urs in those ..,. •
•

112 Airbag sys te m
cr ashes that take place a t lower decelerations
as defined in the electronic control u nit
c:::> page 120, PASSENGER AIR BAG OFF light.
A lways remember, a chi ld safety seat or infant
carrier insta lled on the front seat may be
struck and knocked o ut of position by the rap­
id ly inf lating passenger's a irbag in a frontal
coll is ion. The airbag cou ld greatly reduce the
effectiveness of the child restraint and even
seriously inju re the child during inflat ion .
A WARNING
A child in a rearward-facing child safety
s e at insta lled on the front passenger seat
w ill be seriously injured and can be k illed if
t he front a irbag inflates -even with an Ad­
vanced Airbag System.
- T he inflating a irbag will hit the child
safe ty seat or infant car rier wit h great
f orce and w ill smash the ch ild safety seat
and child against the backrest, door or
roof .
- Never install a rearward facing child
safety seat on the front passenger seat
unless the PASSENGER AIR BAG OFF
light comes on and stays on. If the PAS­
SENGER AIR BAG OFF
light does not
come o n and stay on the inflating airbag
wi ll hit the child safe ty seat or infant car­
rie r with great fo rce and will smash the
c hild s afety seat and child against the
backres t, door or roo f. Have the airbag
system inspe cted immedia tely by your
authorized Audi dealer.
- F orward-fac ing ch ild safety sea ts inst al­
led on the front passenger 's seat may in ­
terfere with the deployment of the air­
bag and cause serious personal injury to
the ch ild.
A WARNING
If, in exceptional c ircumstances, you must
install a forward-facing child restra int on
the front passenger's seat:
- Always make sure the forward-fac ing
seat has been des igned and certified by its manufacturer fo
r use on a front seat
wit h a passenger front and s ide a irbag.
- Never put the fo rward-facing child re­
straint up against or very near the instru­
ment panel.
- Always move the passenge r seat into its
rearmost pos ition in the seat's fore and
aft ad justment range, as far away from
the airbag as possible before installing
the forward-fac ing ch ild restra int. The
backrest must be ad justed to an up right
position .
- Make sure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays on all the
time wheneve r the ig nit ion is switched
on.
A WARNING
To reduce the risk of serio us inju ry, ma ke
sure that the
PASSENGER AIR BAG OFF
light wi ll be displayed whenever a child re­
straint is insta lled on the front passenger
seat and the ignition is sw itched on.
- If the
PASSENGER AIR BAG OFF light
does not stay on, per form the checks de­
scribed
c:::> page 120 , Monitoring the Ad ­
vanced Airbag System.
- Never install a rearward facing child
safety seat on the front passenger seat
un less t he
PASSENGER AIR BAG OFF
lig ht comes on and stays on. If the PAS­
SENGER AIR BAG OFF
li ght does not
come on and stay on, the inf lating ai rbag
will hit the child safety seat or in fant car­
rier w ith great force and w ill sm ash the
child safety seat and child against t he
backrest, door or roof. Have the a irbag
system inspected immediately by your
author ized Audi dealer.
- Always carefu lly follow instr uctions from
child restraint manufacturers when in­
stalling c hild restra ints .
A WARNING
-If, in except ional circumstances, you m ust
i nstall a forward or rearward-facing child
restra int on the front passenger 's seat : "'

- Improper installation of child restraints can reduce the ir effectiveness or even
prevent them from prov iding any protec­
t ion.
- An improperly installed child restraint can interfere with the airbag as it de­
ploys a nd serio usly injure or even kill the
child -even with an Advanced Airbag
System.
-Always follow the manufacturer's in­
struct ions provided with the child saf ety
seat or car rier carefully.
- Never place additional items on the seat
that can increase the to tal weight regis­
tered by the weight-sens ing mat a nd can
c a use i nju ry in a c rash.

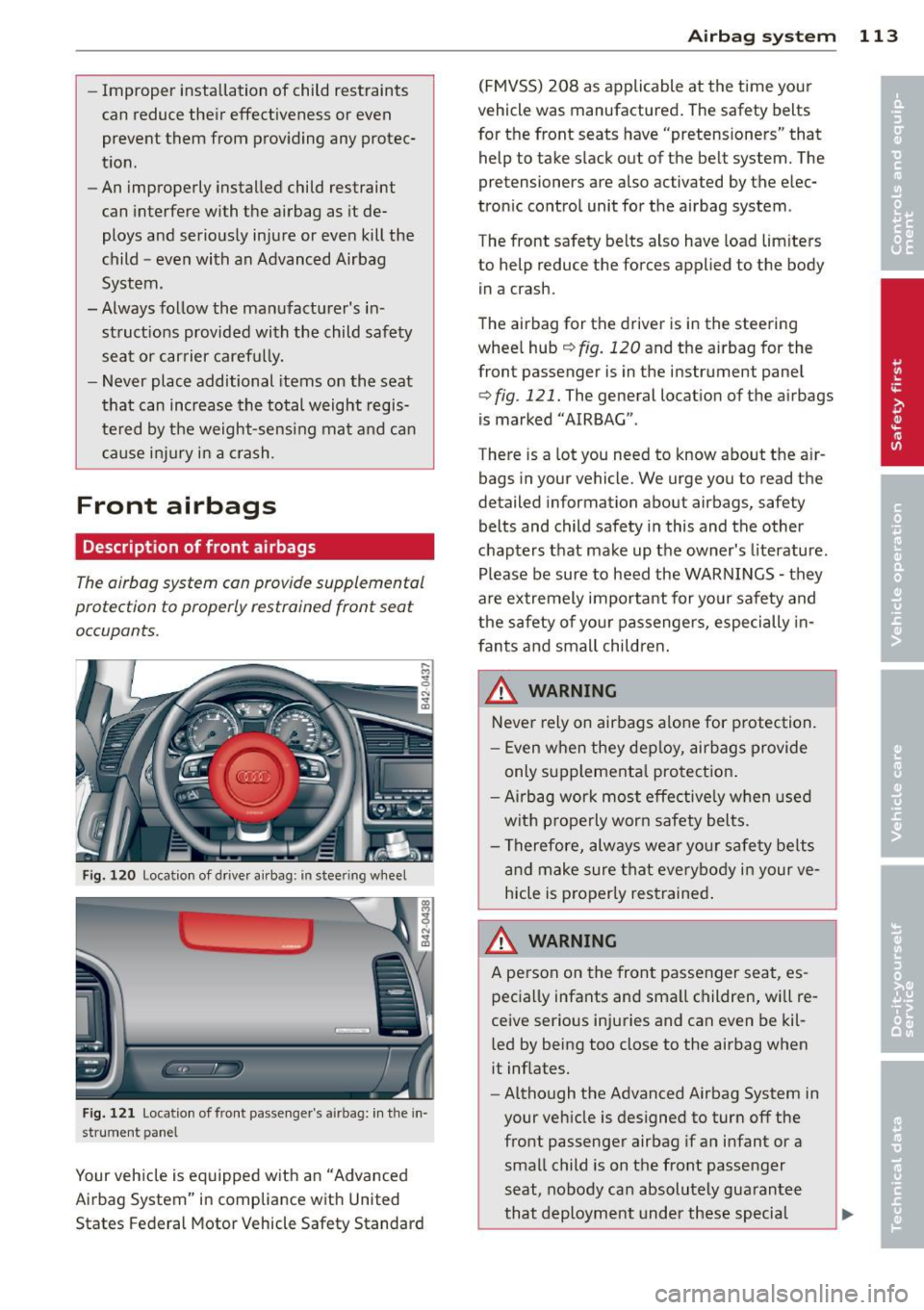

Front airbags
Descript ion of front airbags
The airbag system con provide supplemental
protection to properly restrained front seat occupants.
Fig. 120 Locatio n of drive r air bag: in steer ing wheel
F ig. 121 Location of fro nt passe nger 's a irbag: in th e in­
strument panel
Your veh icle is equipped w ith an "Advanced
Airbag System" in compliance with United
States Federal Motor Vehicle Safety Standard
A irba g sy stem 113
(FMVSS) 208 as applicable at the time you r
vehicle was manufactured . The safety belts
for the front seats have "pretensioners" that help to take slack out of the be lt system. The
pretensioners are also activated by the e lec­
tron ic contro l unit for the airbag system .
The front safety belts a lso have load lim iters
to help reduce the forces applied to the body
in a crash.
The airbag for the driver is in the steering
whee l hub
c> fig. 120 and the airbag for the
front passenger is in the instr ument panel
c> fig . 121. The general locat ion of the a irbags
is marked "AIRBAG" .
There is a lot you need to know about the a ir­
bags in your vehicle. We urge you to read the
detailed information about airbags, safety
belts and child safety in this and the other
c hapters that make up t he owner's literature.
Please be sure to heed the WARNINGS - they
a re extremely important for your safety and
the safety of yo ur passengers, especially in ­
fants and small children .
& WARNING
=
Neve r rely on airbags alone for protection.
- Even w hen they deploy, airbags provide
only s upp lementa l protect ion .
- Airbag work most effe ctive ly w hen used
with p roperly worn safety belts.
- Therefore, alw ays wea r yo ur safety belts
an d make sure that eve ry bo dy in y our
ve ­
hicle is p roperly restrained .
A WARNING
A person on the fron t passenger seat, es­
pec ia lly infants and sma ll children, will re­
ceive serio us injuries and can even be kil­
led by being too close to the airbag when
it inflates.
- Altho ugh the Advanced Airbag System in
your veh icle is designed to tur n off the
front passenger airbag if an infant or a small child is on the front passenger
seat, nobody can absolutely gua ran tee
-
-
that deployment under these specia l 11-

114 Airbag sys te m
conditio ns is impossible in a ll conceiva­
ble situations t hat may happen during
t h e usef ul lif e of your vehicle.
- The Adva nced Airbag System can deploy
in accor dance with the "low risk" opt ion
under the U.S. Federal Sta ndard if a child
that is heavier than the typical one-year old child is on the front passenger seat
and the othe r cond itions for airbag de­
ployment are met.
- For their own safety, all children, espe­
cially 1 2 yea rs and younger, should a l­
ways ride p roperly rest rained for their
age and size.
Advanced front airbag system
Your veh icle is equipped wit h a front Advanced
Airbag System in compliance with United
States Federal Motor Vehicle Safety Standard
208 as applicab le at the time your vehicle was
manufactured.
The front Advanced Airbag System supp le­
ments the safety belts to provide addit iona l
protection for the driver's and front passeng­
er's heads and upper bodies in frontal crashes.
The airbags inflate only in frontal impacts
when the vehicle decelerat io n is high enough .
The front Advanced Airbag System for the
front seat occupants is not a substitute for
your safety belts. Rather, it is part of t he over­
all occupant restraint system in your ve hicle.
A lways remember that the airbag system can
on ly help to protect you, if you are s itting up­
r ight, wearing yo ur safety belt and wea ring it
p roperly. This is w hy you and yo ur passenge rs
must always be properly restrained , not just
beca use the law requires you to be.
The Advanced Airbag System in your veh icle
has been cer tified to meet the " low r is k " re­
qu irements for 3 and 6 year -o ld children on
the passenger side and very small adu lts on
the driver side. The low risk deployment crite ­
ria are intended to he lp red uce the risk of in­
jury through interaction with the front airbag that can occur, fo r example, by be ing too close to the steering wheel and instrument
pane
l when the airbag inflates .
In add ition, the system has been certified to
comply wi th the "s uppression" re qu iremen ts
of the Sa fe ty Standard, to turn off the front
airbag for infants 12 months o ld and younger
who are restrained on the front passenger
seat in child restraints that are listed in the
Standard
¢ page 132, Child restraints and
Advanced Airbags .
"Suppression" requires the front a irbag on the
passenger side to be turned off if:
- a child up to abo ut one year o f age is re ­
strained on the front passenger seat i n one
of the rear-fac ing or forward -facing infant
restraints listed in Federal Motor Vehicle
Safety Standard
208 with which the Ad­
vanced Airbag System in your vehicle was
cert ified . For a listing of the ch ild res traints
that were used to certify your vehicle 's com­
plia nce w it h t he US Safety Standa rd
¢ page 132,
-we ight less than a threshold level stored in
the co ntrol uni t is de te cted on the fron t pas­
senger seat.
When a person is detected on the front pas­ senger seat, weighing more than t he total
we ight of a ch ild that is about 1 year old re ­
stra ined in one of the rear-fac ing o r forward­
f acing infant res traints ( listed in Fede ral Mo­
tor Vehicle Safety Standar d
208 with which
the Advanced Airbag System in yo ur vehicle
was certif ied), the front airbag on the passen­
ger side may or may not deploy.
The
PASSENGER AIR BAG OFF light comes on
when the electronic contro l unit detects a to­
ta l we ight on the front passenger seat that re ­
quires t he front airbag to be t urned off. If the
PASSENGER AIR BAG OFF light does not
come on, the front a irbag on the passenger
s ide has not been t urned off by the cont ro l
u ni t and ca n dep loy if the control un it senses
an impact that meets the cond itions store d in
i ts memory.
If the total weight on the fro nt passenge r
seat is more than that of a typ ical 1 yea r-old , .,.

but less than the weight of a small adult, the
front airbag on the passenger side may deploy (the
PASSENG ER AIR BAG OF F light does not
come on).
For example, the a irb ag may depl oy if:
- a small child that is heavier than a typical 1
year-o ld child is on the front passenger seat
(regardless of whether the child is in one of
the chi ld safety seats listed
¢ page 132),
-a ch ild who has outgrown child rest raints is
on the front passenger seat.
I f the front passenger airbag is turned off, the
PA SSENGER AIR B AG OFF light in the center
of the inst rument panel w il l come on and stay
on.
The front a irbag on the passenger side may
not deploy (the PASSENGER AIR BAG OFF
light does not illuminate and stay lit) if:
- a small adult or teenager is on the front pas­
senger seat
- a passenger who is not sitt ing upr ight w ith
their back against a non-reclined backrest
with their feet on the veh icle floo r in front
of the seat is on the front passenge r seat.
If the front passenger airbag deploys, the
Federal Standard requires the airbag to meet
the " low risk " deployment criteria to help re­
duce the risk of inju ry through interaction
with the airbag . "Low risk" deployment occurs
in those crashes that take place at lower de­
celerations as defined in the electronic control unit
¢ page 120.
Please be sure to read the important informa­
tion in the sections that follow and be sure to
heed a ll of the WARNINGS.
_& WARNING
To reduce the risk of injury when an airbag
inflates, a lways wear safety belts properly.
- If you are unrestrained, leaning forward,
sitting sideways or out of position in any
way, your risk of injury is much higher.
- You w ill also receive serio us injuries and
cou ld even be killed if you are up against
the a irbag or too close to it when it in-
A irbag system 11 5
flates - even with an Advanced Airbag
¢page 109.
_& WARNING
A child in a rearward-fac ing ch ild safety
seat installed on the front passenger seat
will be ser ious ly injured and can be killed if
the front airbag inflates - even with an Ad­
vanced A irbag System .
-Although the Advanced Airbag System in your veh icle is designed to turn
off the
front airbag when a rearward-facing child restraint has been instal led on the
front passenger seat, nobody can abso­ lutely guarantee that dep loyment is im­
possible in all conceivable situations that
may happen during the usefu l life of your
vehicle.
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the backrest, door, or roof.
- Never install a rearward facing child
safety seat on the front passenger seat
unless the
PA SSENGER AIR BAG OFF
light comes on and stays on . If the PAS­
SENGER AIR BAG OFF
light does not
come on and stay on the inflating a irbag
will hit the child safety seat or infant car­ rier with great force and wi ll smash the
child safety seat and child against the
backrest, door or roof. Have the a irbag
system inspected immediately by your
author ized Audi dealer.
_& WARNING
If, in except iona l circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
- Always make sure the forward-facing
seat has been designed and certified by
its manufacturer fo r use on a front seat
with a passenger front and s ide a irbag.
- Never put the forward-facing child re­
straint up against or very near the instru- ment panel.
~
•
•

116 Airbag sys te m
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the a irbag as poss ible, before insta lling
the forward-facing child restraint. The backrest must be adjusted to an upr ight
posit ion.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the
t ime w henever the ignition is switched
on.
Advanced Airbag System components
The fron t passenger sea t in your vehicle h as a
lot of very important par ts of the Advanced
Airbag System in it. These parts include t he
weight -sensing mat, sensors, wiring, brack­
ets, and more. The function of the system in
the front passenger seat is checked by the
e lectronic control un it when the ignit ion is on.
The control unit mon itors the Advanced Air­
bag System and turns the airbag indicator
l ight on when a ma lfunction in t he system
components is detected. The func tion of the
a ir bag ind icator light is described in greater
detai l be low . Because the front passenger
seat contains important parts of the Ad­
vanced A irbag System, you m ust take care to
prevent it from be ing damaged. Damage to
the seat may prevent the Advanced Airbag for
the front passenger seat from doing its job in
a crash .
The front Advanced Airb ag Sy stem
consists of the following:
- Crash sensors in the front of the veh icle that
measure veh icle acceleration/deceleration
to provide information to the Advanced Air­
bag System abou t the seve rity of the crash.
- An electron ic co ntrol unit, with integ rated
crash sensors for front and side impacts .
T he cont ro l unit "dec ides " w het her to fire
the front airbags based on the information
received from the crash senso rs . The contro l
unit a lso "decides" whethe r the safety be lt
pretensioners should be activated . -
An Advanced A irbag w ith gas generator for
the driver inside the steering w heel hub.
- An Advanced A irbag w ith gas generato r in­
side the inst rument panel for the front pas­
senger.
- A we ight -sensing mat unde r th e upho ls tery
pa dding of the front passenger seat cushion
that measures the total weight on the seat .
The informat ion registered is sent continu­
ously to the electronic control unit to regu­ late deployment of the front Advanced Air­
bag on the passenger side .
- An airbag monitoring sys tem and indicator
light in t he instrument cluster
c::> page 120.
- The PASSENGER AIR BAG OFF light comes
on and stays on in the center of the instru­
ment panel
c::> page 120, fig. 123 and tells
you when the front Advanced Airbag on the passe nger side has been tu rned off.
- A senso r below the safety be lt latch fo r the
front seat passenger to measure the tension on t he safety be lt. The tension on the safety
be lt a nd the weight regis tered by the
weight-sensing mat he lp the cont rol uni t
"decide" whether the front airbag fo r the
front passenger seat should be turned off or
not
c> page 111, Child restraints on the
fron t seat -some important things to
know.
-A sensor in the safety belt latch fo r the driv­
er and for the front seat passenger that
senses whether t hat safety belt is latched or
not and transmits this information to t he
elect ronic control un it .
,&. WARNING
D amage to the fron t passenger seat can
p revent the fro nt airbag from wor king
properly.
- I mp roper repai r or d isassembly of the
front passenge r and dr ive r sea t will pre­
vent the Advanced Air bag System from
functioning p roperly.
- Repairs to the front passenge r seat m ust
be pe rformed by qualifie d and p roperly
trained workshop personnel.
- Never remove the front passenger o r
d river seat from t he vehicle .
-

-Never remove the upholstery from the
front passenger seat.
- Never disassemble or remove parts from
the seat or disconnect wires from it.
- Never carry sharp objects in your pockets
or place them on the seat. If the weight­
sensing mat in the passenger seat is
punctured it cannot work properly.
- Never carry things on your lap or carry
objects on the passenger seat. Such
items can increase the weight registered
by the weight-sensing mat and send the
wrong information to the airbag control
unit.
- Never store items under the front pas­
senger seat. Parts of the Advanced Air­
bag System under the passenger seat
could be damaged, preventing them and
the airbag system from working proper­ ly.
- Never place seat covers or replacement
upholstery that have not been specifical­
ly approved by Audi on the front seats.
- Seat covers can prevent the Advanced
Airbag System from recognizing child re­
straints or occupants on the front pas­
senger seat and prevent the side airbag
in the seat backrest from deploying prop­
erly.
- Never use cushions, pillows, blankets or
similar items on the front passenger
seat. The additional padding will prevent
the weight-sensing mat in the seat from
accurately registering the child restraint
or person on the seat and prevent the
Advanced Airbag System from function­ ing properly.
- If you must use a child restraint on the
front passenger seat and the child re­
straint manufacturer 's instructions re­
quire the use of a towel, foam cushion or
something else to properly position the
child restraint, make certain that the
PASSENGER AIR BAG OFF light comes
on and stays on whenever the child re­
straint is installed on the front passen­
ger seat .
Airbag system 117
-If the PASSENGER AIR BAG OFF light
does not come on and stay on, the inflat­
ing airbag will hit the child safety seat or
infant carrier with great force and will
smash the child safety seat and child
against the backrest, door or roof. Have
the airbag system inspected immediately by your authorized Audi dealer .
How the Advanced Airbag System
components work together
The front Advanced Airbag System and the
side airbags supplement the protection of­
fered by the front three-point safety belts
with pretensioners and load limiters and the
adjustable head restraints to help reduce the
risk of injury in a wide range of accident and
crash situations. Be sure to read the impor­
tant information about safety and heed the
WARNINGS in this chapter.
Deployment of the Adv a need Airbag System
and the activation of the safety belt preten­
sioners depend on the deceleration measured
by the crash sensors and registered by the
electronic control unit. Crash severity depends
on speed and deceleration as well as the mass
and stiffness of the vehicle or object involved
in the crash.
When the electronic control unit registers a
low severity crash and the safety belt is being
used, the airbag will not deploy. If the safety
belt is not being used, the first stage deploys,
followed by the second stage after a much lat­
er time in the crash sequence.
If the electronic control unit registers a crash
of medium severity, the first stage of the air­
bag deploys followed by the second stage at a
much later time in the crash sequence - re­
gardless of whether the safety belt is being
used or not . In higher severity crashes as reg­
istered by the electronic control unit, both the
first and second stages deploy almost at the
same time .
On the passenger side, regardless of safety
belt use, the airbag will be turned off if the
weight on the passenger seat is less than the
IJII,-
•
•

118 Airbag system
amount programmed in the e lectronic control
unit. The front airbag on the passenger side
will also be turned off if one of the child safe­
ty seats that has been certified under Federa l
Motor Vehicle Safety Standard 208 has been
recogn ized on the seat . The
PASSENGER AIR
BAG OFF
light comes on and stays on to tell
you when the front Advanced Airbag on the
passenger side has been turned off
c::> page 111, Child restraints on the front seat
- some important things to know .
8_ WARNING
To reduce the risk of injury when an airbag
inf lates, always wear safety belts properly.
- If you are unrestrained, leaning forward,
sitting sideways or out of position in any
way, your risk of injury is much higher.
- You will also receive serio us injuries and
cou ld even be killed if you are up against
the airbag or too close to it when it in­
flates -even with an Advanced Airbag
c::> page 109.
More important things to know about
front airbags
Fig . 122 Inflated front a irbags
Safety belts are important to help keep front
seat occupants in the proper seated position
so that airbags can deploy properly and pro­
vide supplemental protection in a frontal col­
lision .
The front airbags are designed to provide ad­ d itional protect ion for the chest and face of
the dr iver and the front seat passenger when:
- safety belts are worn properly, -
the seats have been positioned so that the
occupant is properly seated as far as possi­
ble from the airbag,
- and the head restraints have been properly
adjusted .
Because airbags inflate in the blink of an eye
with great force, things you have on your lap
or have placed on the seat could become dan­
gerous projectiles, and be pushed into you if
the airbag inf lates.
When an airbag deploys, fine dust is released .
This is normal and is not caused by a fire in
the vehicle . This dust is made up mostly of a
powder used to lubricate the airbags as they
deploy. It could irr itate skin.
It is important to remember that whi le the
supplementa l airbag system is designed to re­
duce the like lihood of serious injuries, other
injur ies, for example swelling, bruising and
minor abrasions, can also happen when air­
bags inflate. Airbags do not protect the arms
or the lower parts of the body. Front airbags
supplement the three point safety belts only
in some frontal collisions in which the vehicle
deceleration is high enough to deploy the air­
bags.
Front airbags will not deploy:
- if the ignition is sw itched off when a crash
o ccurs ,
- in side co llisions,
- in rear-end collisions,
- in rollovers,
- when the crash deceleration measured by
the airbag system is less than the min imum
threshold needed for a irbag deployment as
registered by the electronic control unit.
The front passenger airbag also will not
deploy:
- when the front passenger seat is not occu­
pied,
- when the weight on the front passenger
seat as sensed by the Advanced Airbag Sys­
tem ind icates that the front a irbag on the
passenger side has to be turned off by the ..,.
