Phase 1:
p rogramming th e overh ead k eypad
1. Make sure your vehicle is wit hin operating
range of the remote controlled garage
door opener.
2. Set the parking brake
q A in General in­
formation on page 88.
3 . Turn the ignition on . Do not start the en­
g ine!
4. P ress and hold the two outs ide Home­
Link ® buttons
(D and @for approxi­
mately 20 seconds until indicator light @
¢fig. 101 begins to flash . Then release
both buttons. Do not ho ld the buttons for
longer than 30 seconds.
.,. This procedure only needs to be performed
once . It erases the factory-set default codes
and does not have to be repeated to pro­
gram add it ional remote controls.
S. P ress and hold the Home Link ® button
(D ,
® or @ until the indicato r ligh t@
starts flashing
slowly. Re lease the bu tton.
.,. The system will remain in programming
mode for 5 minutes . Co to the front of the
vehicle and proceed with phase 2 .
Phase 2:
programmin g th e bumper mounted tran s
m itter
6. Hold the original remote control at a dis­
tance between 0 -6 in. (0 -15 cm) from the
bumper below the appropriate headlight
for your vehicle
c:!;> fig. 102 (use the short­
est distance possib le).
7 . A im the remote con trol just be low the
driver sid e head light.
8. P ress and hold the activation button on
the remote contro l.
.,. May be different in Canada.
If so, press and
re-press (cycle) the act ivation button on your
remote control every two seconds.
9. The emergency flashers will flash
three
time s
(after about 15-60 seconds) when
the programm ing is successful. Release
the butto n on the remote control.
.,. To program more devices, repeat steps 4 to
9.
Homelink ® 89
10. Press and hold the tra ined Homelink ®
button and observe the indicator light @
qfig. 101 .
.,. If the indicator light is solid/contin uous,
programm ing is complete and your device
should activate when you press and release
the t ra ined Homel ink® button .
.,. If the ind icator light blinks rapidly fo r 2 sec­
onds and is the n a solid/continuous light,
p roceed w ith phase 3 to program a roll ing
code device.
Phase 3: rolling code programming
.,. A second pe rson on a ladder who can safely
reach the garage door opene r motor is rec­
ommended .
11. Lo ca te the "learn" button on the ga rage
doo r opener motor ( re fer to the operating
instructions for the opener, as t he loca­
tion of t his button may vary by man ufac ­
turer).
12. Press and re lease the learn button on the
garage door opener motor .
.,. Not e: once the button is pressed, there are
30 s econds in wh ich to in it iate the next
step.
13. On t he Homelink ® keypad inside the vehi­
cl e, firmly press and ho ld the Homel in k®
bu tton prev iously programmed in phases
1 and 2 for two seconds and release. Re­
peat this sequence
twice.
.,. Some vehicles may require the press/hold/
release sequence up to three times to com­
plete t he trai ning process .
.,. Homelink ® should now activate your rolling
code equipped device.
If the S m inute time limit is exceeded, the
emergency flash ers will flash one time to in­
dicate that the p rocess has been te rm inated.
In this case, repeat steps 4 t hrough 9.
If the emergency flashers do not flash
three
times (after about lS-60 seconds), program­ ming was not successful. In this case, repeat
steps 4 through 9 .
Remote contro l units for garage door openers
in Canada are set to stop transmitting radio
frequency sig nals afte r two seconds. This t ime
Ill-

90 Homelink®
may not be sufficient for the Homelink ® sys­
tem to learn the radio frequency signal. Per­
form all other steps as described above.
Operating the Homelink ® transmitter
The HomeLink ® transmitter works in the
some manner as the original hondheld re­
mote control that come with the system.
1------------------g: g
N :l',
:l!III !
d ..
-~ ~ H ~
i: ...

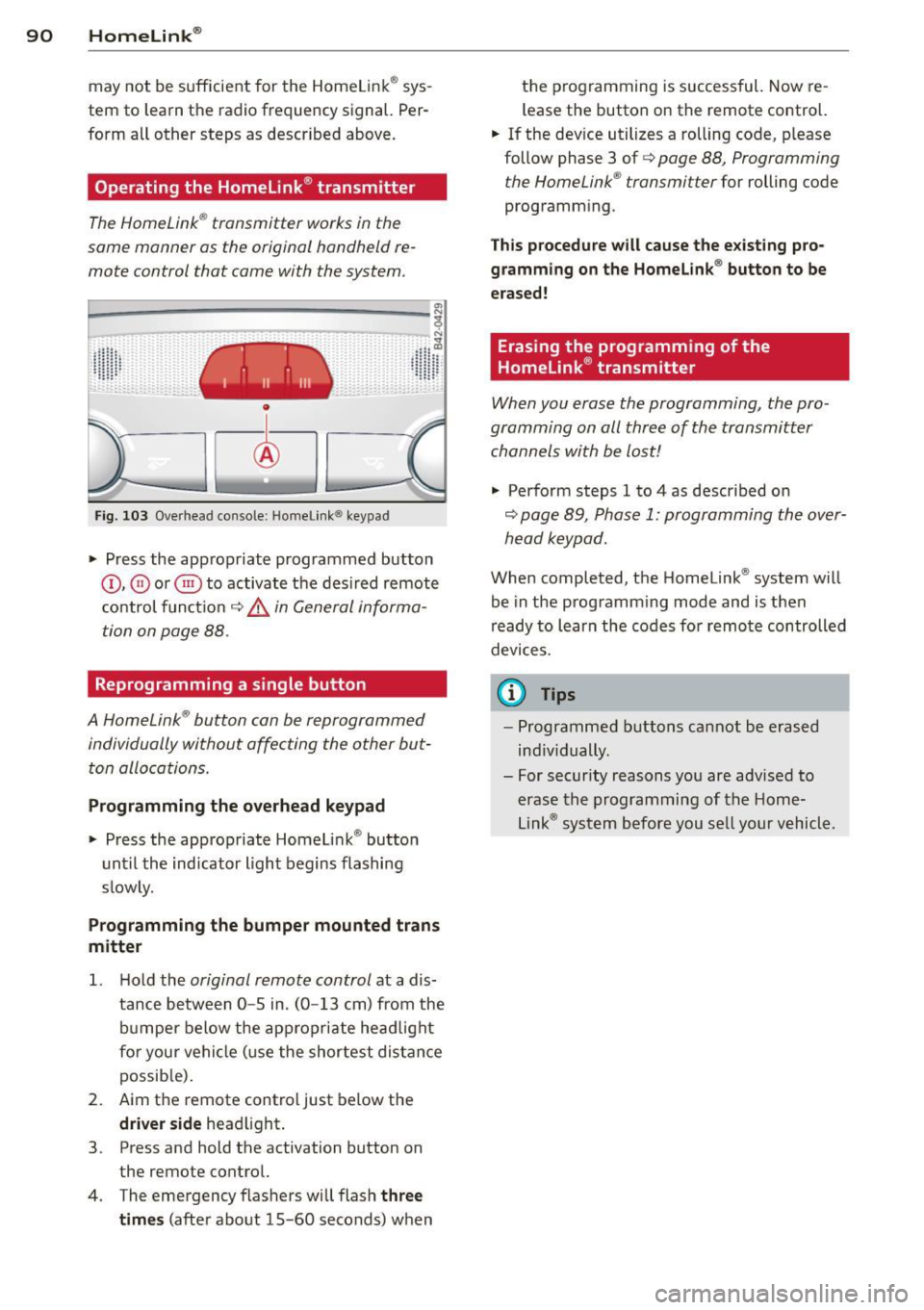

Fig. 1 03 Overhead co nsole: Homelink ® keypad
"" Press the appropriate programmed button
(D , ® or @) to activate the des ired remote
control funct ion
c::> &, in General informa­
tion on page 88.
Reprogramming a single button
A HomeLink ® button can be reprogrammed
individually without affecting the other but­ t on allocations.
Programming the overhead keypad
"" Press the app ropriate Homelink ® button
unt il the ind icator light begins flashing
slowly.
Programming the bumper mounted trans
mitter
1. H old the original remote control at a dis­
tance between
0 -5 in . (0 -13 cm) from the
bumper below the app ropriate head light
fo r your vehicle (use the shortest distance
possib le) .
2 . Aim the remote control just below the
driver side head light .
3. Press and hold the activation button on
the remote control.
4 . The emergency flashers will flash
three
time s
(after about 15-60 seconds) when the p
rogramming is successful. Now re ­
l ease the button on the remote control.
"" If the dev ice utilizes a rolling code, p lease
follow phase 3 of
c::> page 88, Programming
the HomeLink ® transmitter
for rolling code
programm ing .
This p rocedu re will ca use the e xisting pro ­
gramming on the Homelink ® button to be
erased!
Erasing the programming of the
Homelink ® transmitter
When you erase the programming, the pro­
gramming on all three of the transmitter
channels with be lost!
"" Perform steps 1 to 4 as described on
~ page 89, Phase 1: programming the over­
head keypad .
When completed, the Homelink ® system will
be in the prog ramm ing mode and is then
r eady to learn the codes fo r remote controlled
devices.
© Tips
- Programmed buttons ca nnot be erased
ind iv idually .
- For security reasons you are adv ised to
erase the programming of the Home­
Link® sys tem before you se ll you r vehicl e.

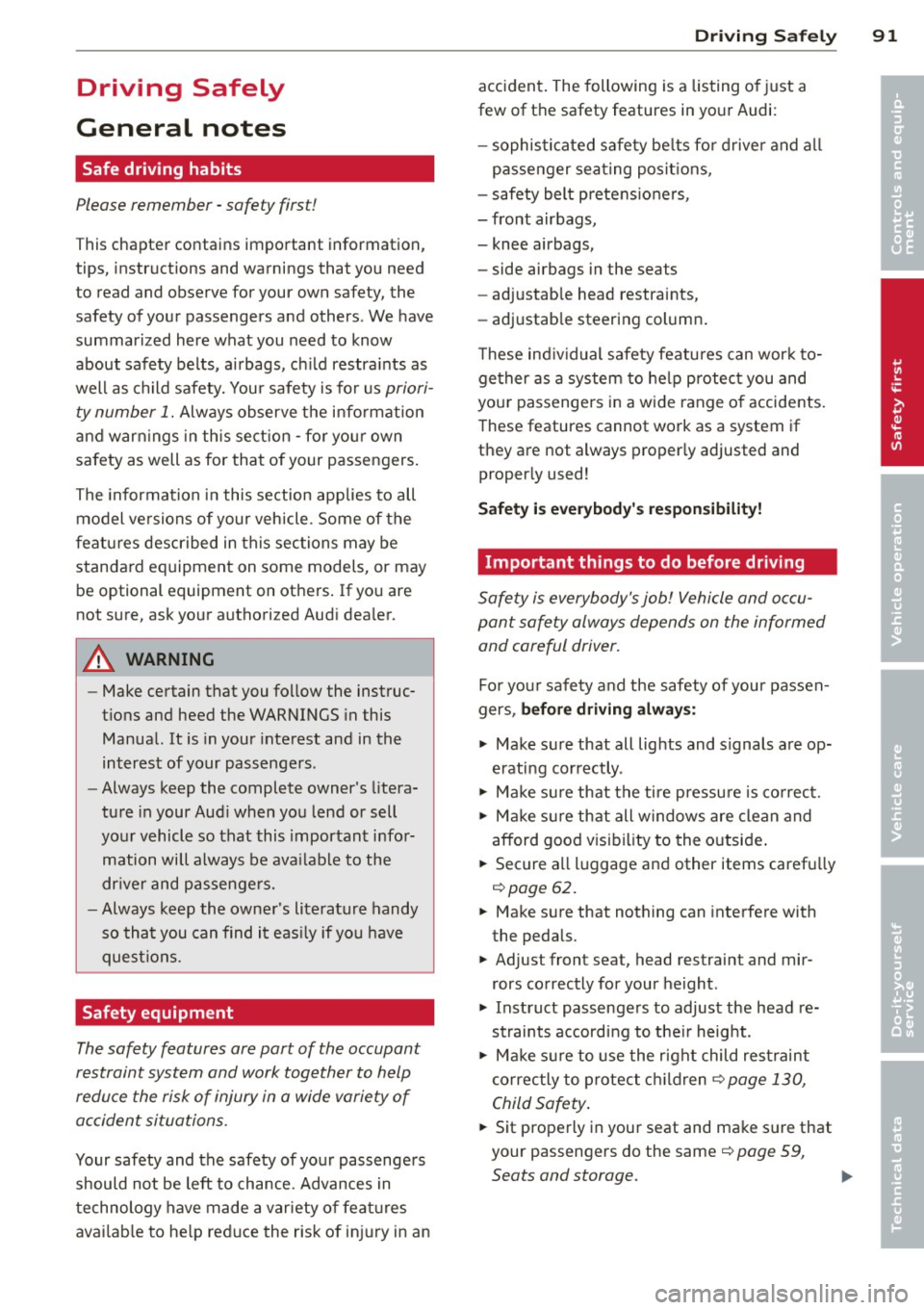

Driving Safely
General notes
Safe driving habits
Please remember -safety first!
This chapter contains important information,
tips, instructions and warnings that you need
to read and observe for your own safety, the
safety of your passengers and others . We have
summarized here what you need to know
about safety belts, airbags, child restraints as
well as child safety. Your safety is for us
priori­
ty number 1.
Always observe the information
and warnings in this section - for your own
safety as well as for that of your passengers.
The information in this section applies to all
model versions of your vehicle . Some of the
features described in this sections may be
standard equipment on some models, or may
be optional equipment on others. If you are
not sure, ask your authorized Audi dealer.
A WARNING
- Make certain that you follow the instruc­
tions and heed the WARNINGS in this
Manual. It is in your interest and in the
interest of your passengers.
- Always keep the complete owner's litera­
ture in your Audi when you lend or sell
your vehicle so that this important infor­
mation will always be available to the
driver and passengers.
- Always keep the owner's literature handy
so that you can find it easily if you have
questions.
Safety equipment
The safety features are part of the occupant
restraint system and work together to help
reduce the risk of injury in a wide variety of
accident situations .
Your safety and the safety of your passengers
should not be left to chance. Advances in
technology have made a variety of features
available to help reduce the risk of injury in an
Driving Safely 91
accident. The following is a listing of just a
few of the safety features in your Audi:
- sophisticated safety belts for driver and all
passenger seating positions,
- safety belt pretensioners ,
- front airbags,
- knee airbags,
- side airbags in the seats
- adjustable head restraints,
- adjustable steering column.
These individual safety features can work to­
gether as a system to help protect you and
your passengers in a wide range of accidents.
These features cannot work as a system if
they are not always properly adjusted and
properly used!
Safety is everybody's responsibility!
Important things to do before driving
Safety is everybody's job! Vehicle and occu­
pant safety always depends on the informed and careful driver.
For your safety and the safety of your passen­
gers,
before driving always:
~ Make sure that all lights and signals are op­
erating correctly .
~ Make sure that the tire pressure is correct.
~ Make sure that all windows are clean and
afford good visibility to the outside.
~ Secure all luggage and other items carefully
c::>page 62.
~ Make sure that nothing can interfere with
the pedals.
~ Adjust front seat, head restraint and mir­
rors correctly for your height .
~ Instruct passengers to adjust the head re­
straints according to their height .
~ Make sure to use the right child restraint
correctly to protect children¢
page 130,
Child Safety.
~ Sit properly in your seat and make sure that
your passengers do the same¢
page 59,
Seats and storage. .,..
•
•

92 Driving Safel y
• Fasten your safety belt and wear it proper ly.
Also instruct your passengers to fasten their
safety belts proper ly
¢ page 101.
What impairs driving safety?
Safe driving is directly related to the condi­
tion of the vehicle, the driver as well as the
driver's ability to concentrate on the rood
without being distracted.
The driver is responsible for the safety of the
vehicle and all of its occupants. If your ability
to drive is impaired, safety risks for everybody
in the vehicle increase and you also become a
hazard to everyone else on the road
¢ .&, .
Therefore:
• Do not let yourself be distracted by passen­
gers or by using a cellular telephone.
• NEVER drive when your dr iving ability is im­
paired (by medicat ions, alcohol, drugs, etc.) .
• Observe all traffic laws, rules of the road
and speed limits and plain common sense .
• ALWAYS adjust your speed to road, traff ic
and weather condit ions.
• Take frequent breaks on long trips . Do not
drive for more than two hours at a stretch .
• Do NOT drive when you are tired , under
pressure or when you are stressed.
A WARNING , .
Impaired driving safety increases the risk
of serious personal injury and death when­
ever a vehicle is being used .
Proper occupant
seating positions
Proper seating position for the driver
The proper driver seating position is impor­
tant for safe, relaxed driving.

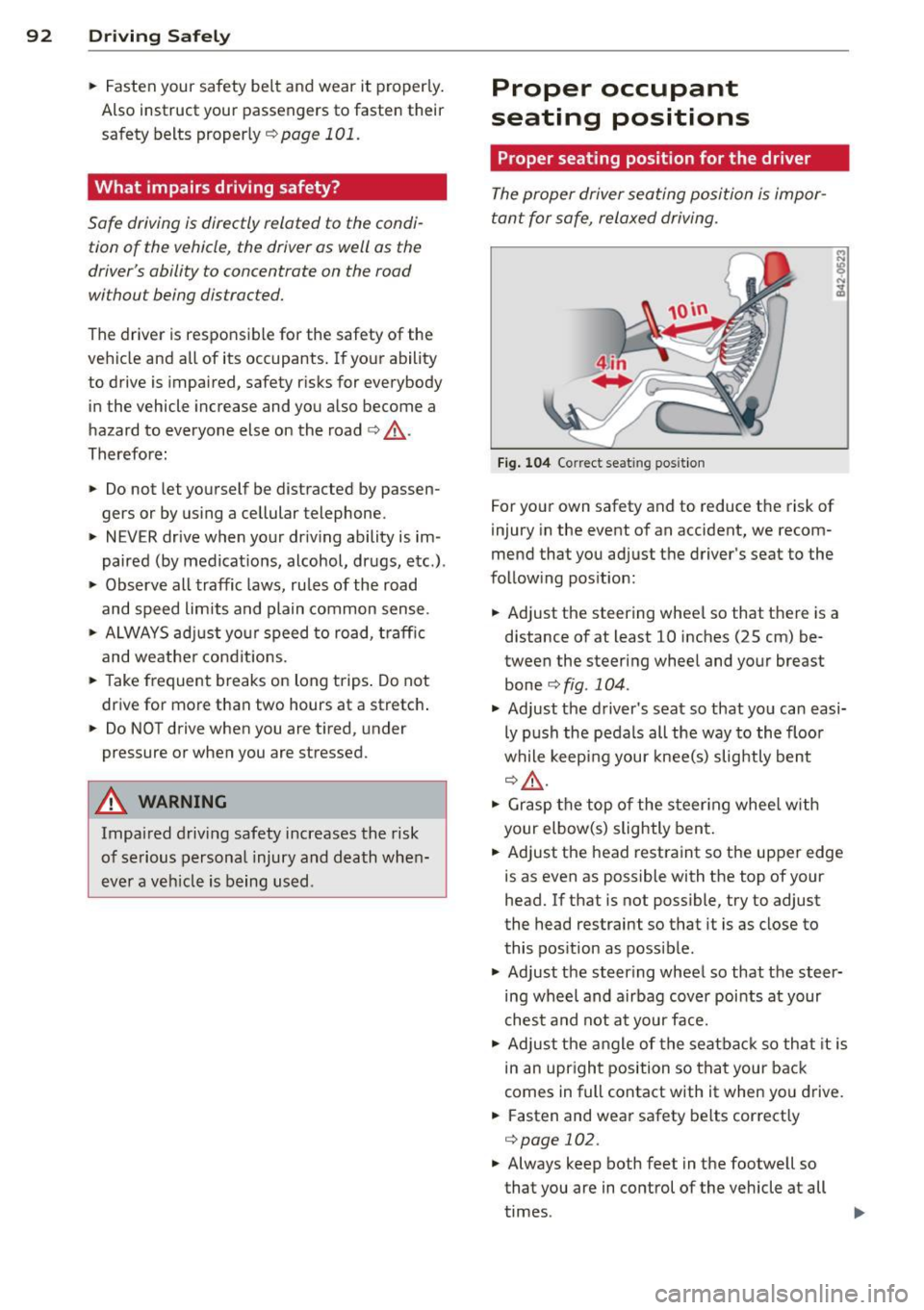

Fig. 104 Correct seat ing posit ion
For your own safety and to reduce the risk of
injury in the event of an accident, we recom­
mend that you adjust the driver's seat to the
following position:
• Adjust the steering wheel so that there is a
distance of at least 10 inches (25 cm) be­
tween the steering wheel and your breast
bone¢
fig . 104 .
• Adjust the driver's seat so that you can easi­
ly push the pedals all the way to the floor
while keeping your knee(s) slightly bent
¢.&, .
• Grasp the top of the steer ing whee l with
your elbow(s) slightly bent.
• Adjust the head restraint so the upper edge
is as even as possible with the top of your
head. If that is not possible, try to adjust
the head restraint so that it is as close to
this position as possible .
• Adjust the steering wheel so that the steer­
ing wheel and airbag cover points at your
chest and not at your face.
• Adjust the angle of the seatback so that it is
in an upright position so that your back
comes in full contact with it when yo u drive.
• Fasten and wear safety be lts correctly
¢ page 102.
• Always keep both feet in the footwell so
that you are in control of the vehicle at all
times .

For detailed information on how to adjust the
dr iver's seat, see
¢ page 59, Seats and stor­
age.
A WARNING
Drivers who are unbelted, out of position
or too close to the airbag can be seriously
injured by an airbag as it deploys. To help
reduce the risk of serious personal injury:
- Always adjust the driver's seat and the
steering wheel so that there are at least
10 inches (25 cm) between your breast­
bone and the steering wheel.
- Always adjust the driver's seat and the
steering wheel so that there are at least
4 inches (10 cm) between the knees and
the lower part of the instrument panel.
- Always hold the steering wheel on the
outside of the steering wheel rim with
your hands at the 9 o'clock and 3 o'clock positions to help reduce the risk of per­
sonal injury if the driver's airbag inflates.
- Never hold the steering wheel at the
12 o'clock position or with your hands at
other positions inside the steering wheel
rim or on the steering wheel hub. Hold­
ing the steering wheel the wrong way
can cause serious injuries to the hands,
arms and head if the driver's airbag in­
flates
- Pointing the steering wheel toward your
face decreases the ability of the supple ­
mental driver's airbag to protect you in a
collision .
- Always sit in an upright position and nev­
er lean against or place any part of your
body too close to the area where the air­
bags are located.
- Before driving, always adjust the front
seats and head restraints properly and
make sure that all passengers are prop­
erly restrained.
- Never adjust the seats while the vehicle
is moving. Your seat may move unexpect­
edly and you could lose control of the ve­
hicle.
- Never drive with the backrest reclined or
tilted far back! The farther the backrests
Driving Safely 93
are tilted back, the greater the risk of in­
jury due to incorrect positioning of the
safety belt and improper seating posi­
tion .
- Children must always ride in child seats
¢ page 130. Special precautions apply
when installing a child seat on the front
passenger seat
¢ page 109.

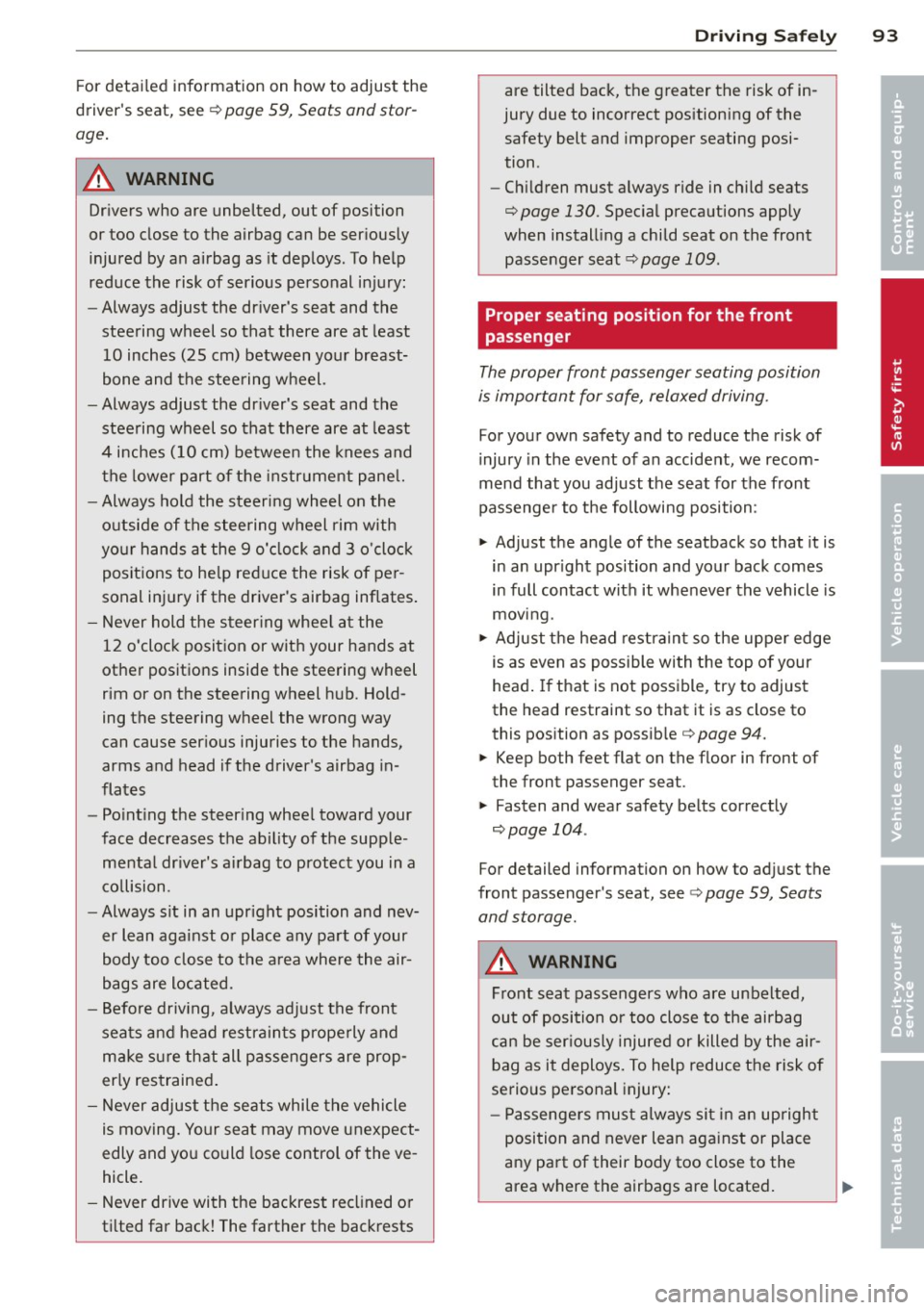

Proper seating position for the front
passenger
The proper front passenger seating position
is important for safe, relaxed driving.
For your own safety and to reduce the risk of
injury in the event of an accident, we recom­
mend that you adjust the seat for the front
passenger to the following position :
"' Adjust the angle of the seatback so that it is
in an upright position and your back comes
in full contact with it whenever the vehicle is
moving.
"' Adjust the head restraint so the upper edge
is as even as possible with the top of your
head. If that is not possible, try to adjust
the head restraint so that it is as close to
this position as possible
¢ page 94.
"' Keep both feet flat on the floor in front of
the front passenger seat .
"' Fasten and wear safety belts correctly
¢ page 104.
For detailed information on how to adjust the
front passenger's seat, see
¢ page 59, Seats
and storage.
A WARNING
Front seat passengers who are unbelted,
out of position or too close to the airbag
can be seriously injured or killed by the air­
bag as it deploys. To help reduce the risk of
serious personal injury:
- Passengers must always sit in an upright
position and never lean against or place
any part of their body too close to the
area where the airbags are located.
•
•

94 Driving Safely
-Passengers who are unbelted, out of po­
sition or too close to the airbag can be
seriously injured by an airbag as it de­
ploys with great force in the blink of an
eye.
- Always make sure that there are at least
10 inches (25 cm) between the front
passenger's breastbone and the instru­
ment panel.
- Always make sure that there are at least
4 inches (10 cm) between the front pas­
senger's knees and the lower part of the
instrument panel.
- Each passenger must always sit on a seat
of their own and properly fasten and
wear the safety belt belonging to that
seat.
- Before driving, always adjust the front
passenger seat and head restraint prop­
erly.
- Always keep your feet on the floor in
front of the seat. Never rest them on the
seat, instrument panel, out of the win­
dow, etc. The airbag system and safety
belt will not be able to protect you prop­
erly and can even increase the risk of in­
jury in a crash.
- Never drive with the backrest reclined or
tilted far back! The farther the backrests
are tilted back, the greater the risk of in­
jury due to incorrect positioning of the
safety belt and improper seating posi­
tion.
- Children must always ride in child seats
r:::;, page 130. Special precautions apply
when installing a child seat on the front
passenger seat
r:::;, page 109.

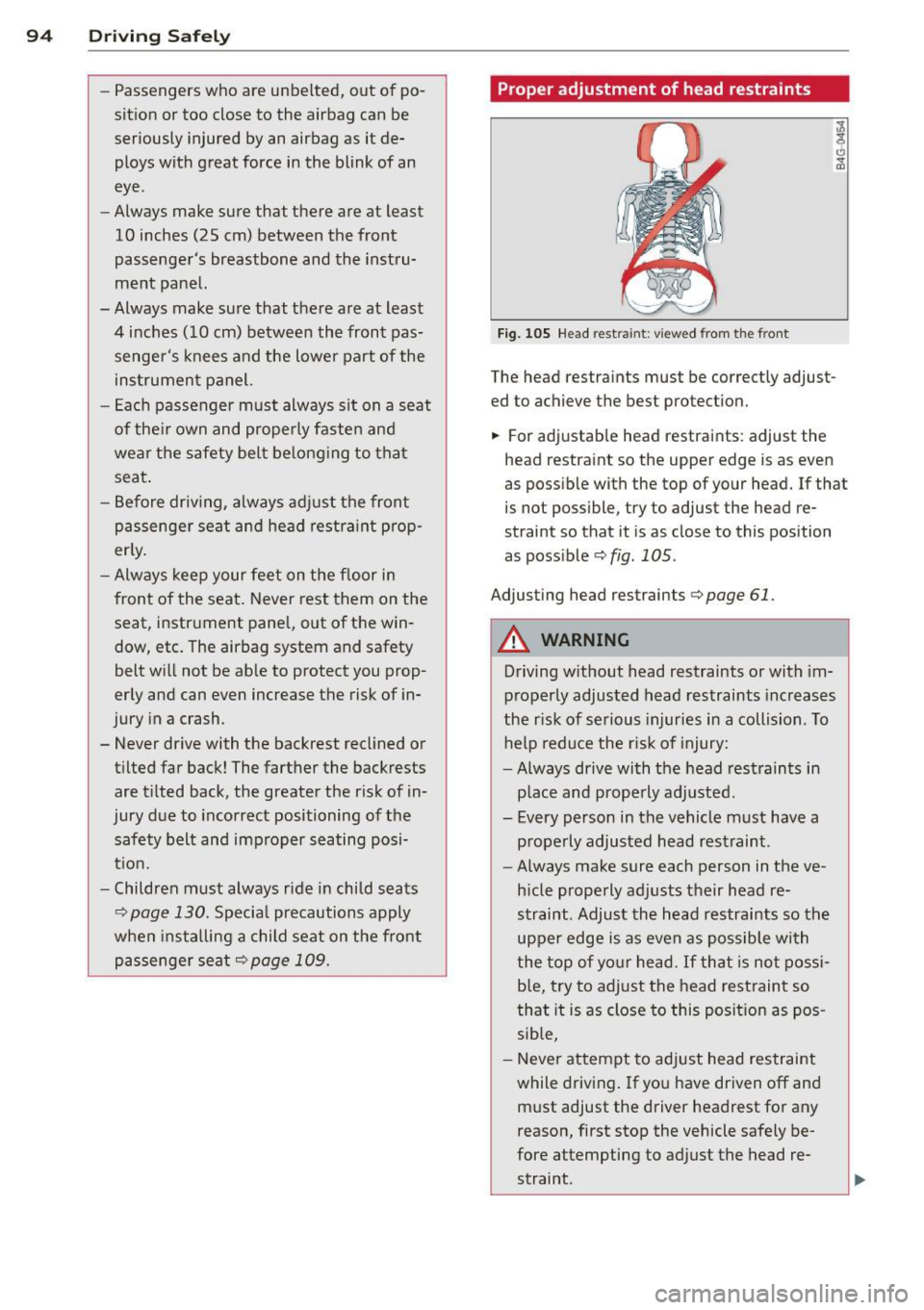

Proper adjustment of head restraints
Fig. 105 Head restra int: v iewed from the front
The head restraints must be correctly adjust­
ed to achieve the best protection.
.,. For adjustable head restraints : adjust the
head restraint so the upper edge is as even
as possible with the top of your head. If that
is not possible, try to adjust the head re­
straint so that it is as close to this position
as possible
r:::;, fig. 1 OS .
Adjusting head restraints<=> page 61.
A WARNING ~
Driving without head restraints or with im-
properly adjusted head restraints increases
the risk of serious injuries in a collision . To
help reduce the risk of injury:
- Always drive with the head restraints in
place and properly adjusted.
- Every person in the vehicle must have a properly adjusted head restraint.
- Always make sure each person in the ve­
hicle properly adjusts their head re­
straint . Adjust the head restraints so the
upper edge is as even as possible with
the top of your head.
If that is not possi­
ble, try to adjust the head restraint so
that it is as close to this position as pos­
sible,
- Never attempt to adjust head restraint
while driving. If you have driven off and
must adjust the driver headrest for any
reason, first stop the vehicle safely be­
fore attempting to adjust the head re­
straint .

-Children must always be properly re­
strained in a child restraint that is appro­
priate for their age and size
c:> page 130.

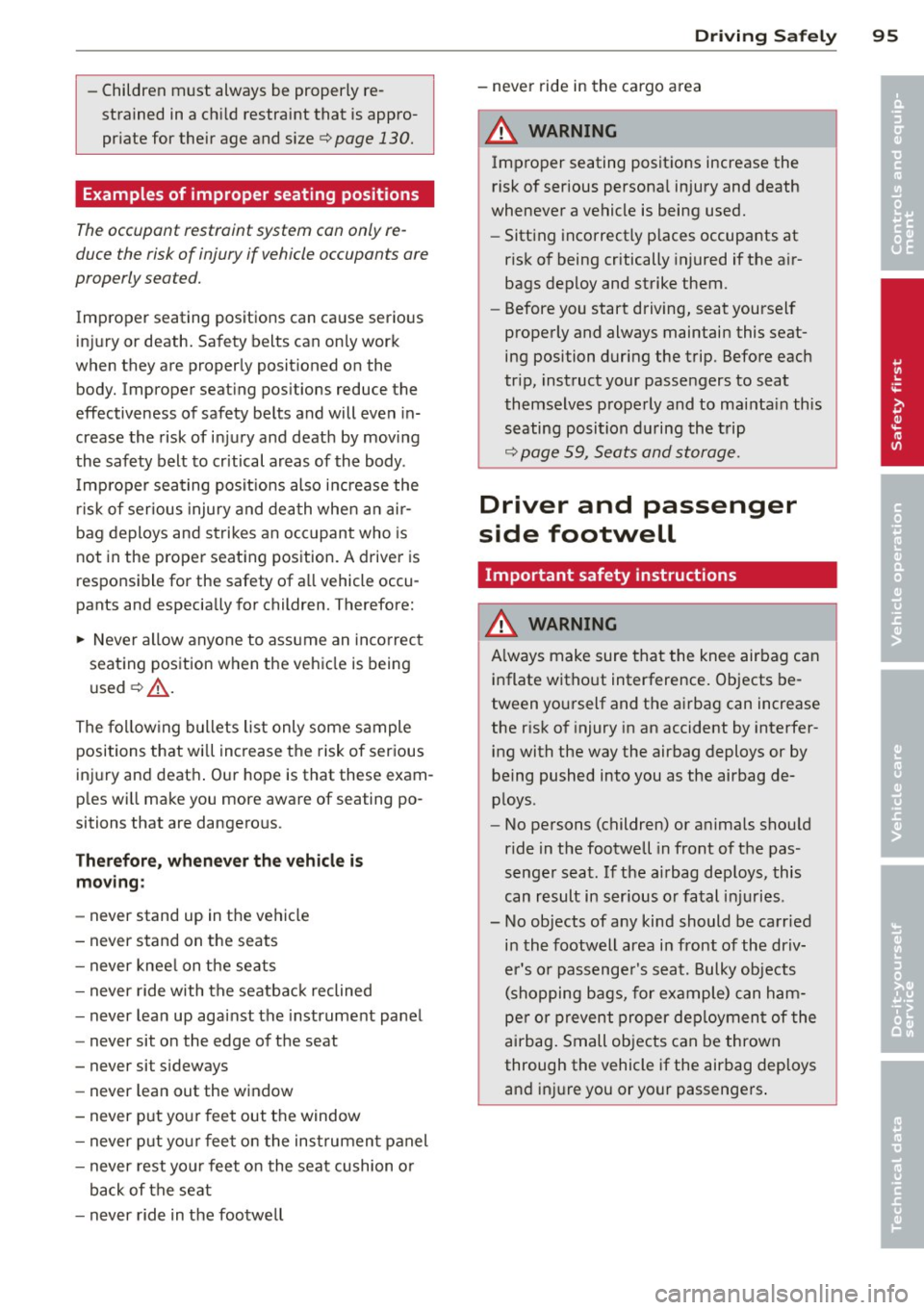

Examples of improper seating positions
The occupant restraint system can only re­
duce the risk of injury if vehicle occupants are
properly seated.
Improper seating positions can cause serious
injury or death. Safety belts can only work
when they are properly positioned on the
body. Improper seating positions reduce the
effectiveness of safety belts and will even in­
crease the risk of injury and death by moving
the safety belt to critical areas of the body .
Improper seating positions also increase the
risk of serious injury and death when an air­
bag deploys and strikes an occupant who is
not in the proper seating position. A driver is
responsible for the safety of all vehicle occu­
pants and especially for children. Therefore:
.,. Never allow anyone to assume an incorrect
seating position when the vehicle is being
used
c:> ,&. .
The following bullets list only some sample
positions that wi ll increase the risk of serious
injury and death . Our hope is that these exam ­
ples will make you more aware of seating po­
sitions that are dangerous.
Therefore, whenever the vehicle is
moving:
- never stand up in the vehicle
- never stand on the seats
- never kneel on the seats
- never ride with the seatback reclined
- never lean up against the instrument panel
- never sit on the edge of the seat
- never sit sideways
- never lean out the window
- never put your feet out the window
- never put your feet on the instrument panel
- never rest your feet on the seat cushion or
back of the seat
- never ride in the footwell
Driving Safely 95
-never ride in the cargo area
A WARNING
Improper seating positions increase the
risk of serious personal injury and death
whenever a vehicle is being used.
- Sitting incorrectly places occupants at
risk of being critically injured if the air­
bags deploy and strike them.
- Before you start driving, seat yourself
properly and always maintain this seat­
ing position during the trip. Before each
trip, instruct your passengers to seat
themselves properly and to maintain this
seating position during the trip
c:> page 59, Seats and storage.
Driver and passenger
side footwell
Important safety instructions
A WARNING
A lways make sure that the knee airbag can
inflate without interference. Objects be­
tween yourself and the airbag can increase
the risk of injury in an accident by interfer­
ing with the way the airbag deploys or by
being pushed into you as the airbag de­
ploys .
- No persons (children) or animals should
ride in the footwell in front of the pas­
senger seat . If the airbag deploys, this
can result in serious or fatal injuries.
- No objects of any kind should be carried
in the footwell area in front of the driv­
er 's or passenger's seat. Bulky objects
(shopping bags, for example) can ham­
per or prevent proper deployment of the
airbag. Small objects can be thrown
through the vehicle if the airbag deploys
and injure you or your passengers .
•
•
-

96 Driving Safely

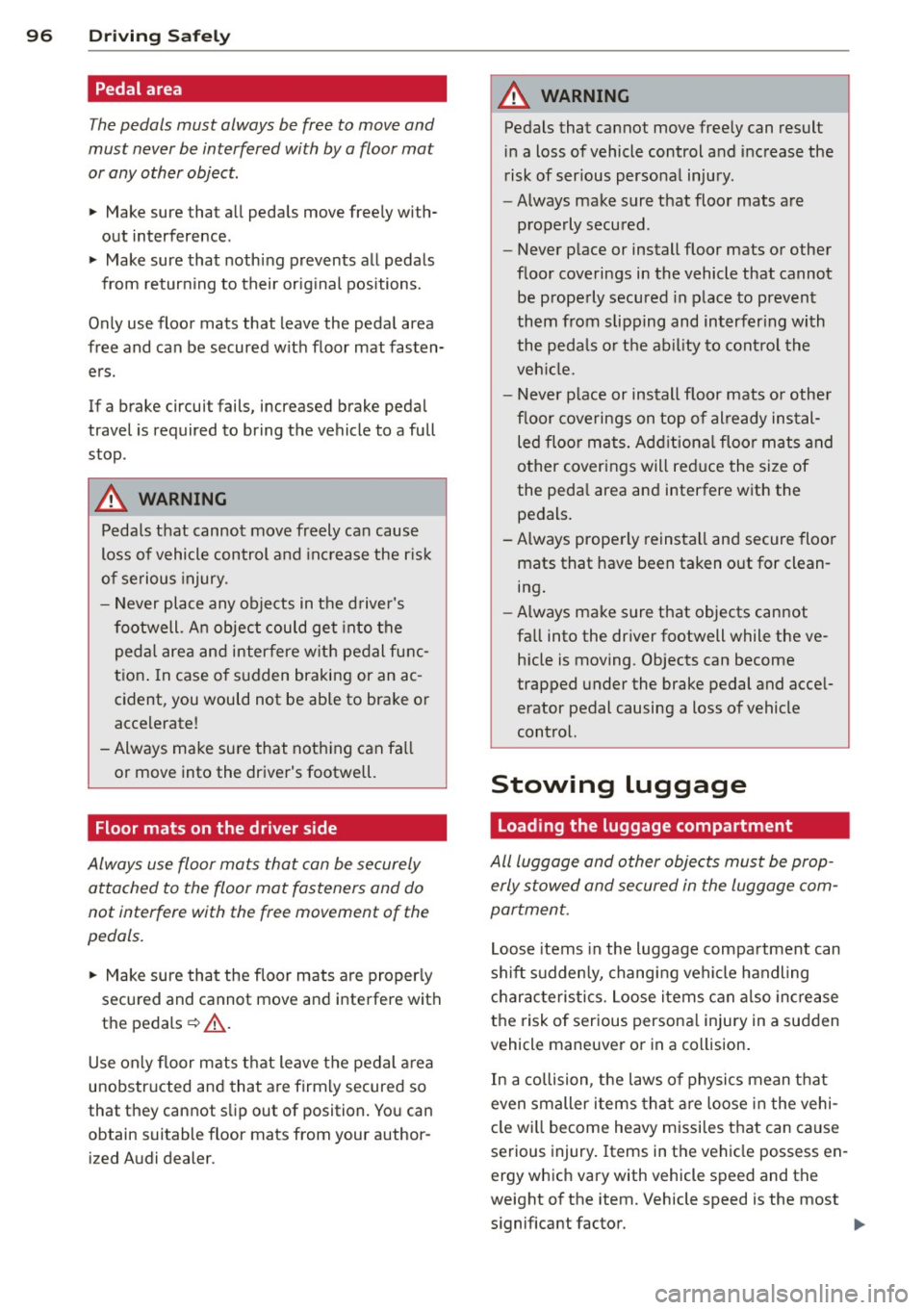

Pedal area
The pedals must always be free to move and
must never be interfered with by a floor mat
or any other object.
• Make sure tha t all pedals move freely with­
out interference.
• Make sure that nothing prevents all pedals
from returning to their original positions.
Only use floor mats that leave the pedal area
free and can be secured with floor mat fasten­
ers.
If a brake circuit fails, increased brake pedal
travel is required to bring the vehicle to a full
stop .
A WARNING ,_
Pedals that cannot move freely can cause
loss of vehicle control and increase the risk
of serious injury.
- Never place any objects in the driver's
footwell. An object could get into the
pedal area and interfere with pedal func ­
tion. In case of sudden braking or an ac­
cident, you would not be able to brake or
accelerate!
-Always make sure that nothing can fall or move into the driver's footwell.
Floor mats on the driver side
Always use floor mats that can be securely attached to the floor mat fasteners and do
not interfere with the free movement of the
pedals.
• Make sure that the floor mats are properly
secured and cannot move and interfere with
the pedals
q .&_ .
Use only floor mats that leave the pedal area
unobstructed and that are firmly secured so
that they cannot slip out of position. You can
obtain suitable floor mats from your author­
ized Audi dealer .
A WARNING
Pedals that cannot move freely can result
in a loss of vehicle control and increase the
risk of serious personal injury.
- Always make sure that floor mats are
properly secured .
- Never place or install floor mats or other
floor coverings in the vehicle that cannot be properly secured in place to prevent
them from slipping and interfering with
the pedals or the ability to control the
vehicle.
- Never place or install floor mats or other
floor coverings on top of already instal­
led floor mats. Additional floor mats and
other coverings will reduce the size of
the pedal area and interfere with the pedals.
- Always properly reinstall and secure floor
mats that have been taken out for clean­
ing.
- Always make sure that objects cannot
fall into the driver footwell while the ve­
hicle is moving. Objects can become
trapped under the brake pedal and accel­
erator pedal causing a loss of vehicle
control.
Stowing luggage
Loading the luggage compartment
All luggage and other objects must be prop­ erly stowed and secured in the luggage com­
partment.
Loose items in the luggage compartment can
shift suddenly, changing vehicle handling
characteristics. Loose items can also increase
the risk of serious personal injury in a sudden
vehicle maneuver or in a collision.
In a collision, the laws of physics mean that
even smaller items that are loose in the vehi­
cle will become heavy missiles that can cause
serious injury. Items in the vehicle possess en­
ergy which vary with vehicle speed and the
weight of the item. Vehicle speed is the most
significant factor.

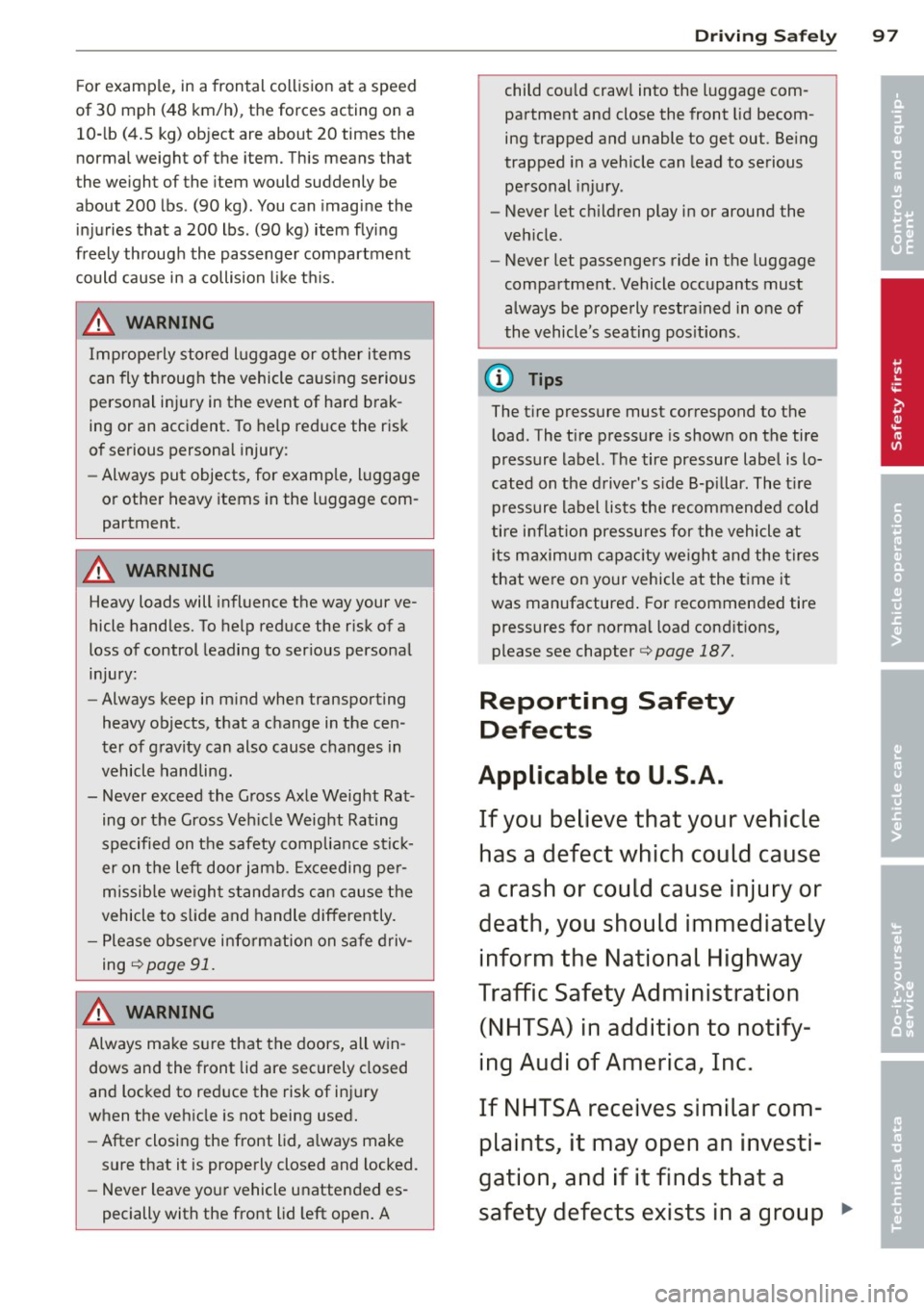

For example, in a frontal collision at a speed
of 30 mph (48 km/h), the forces acting on a 10- lb (4.5 kg) object are about 20 times the
normal weight of the item. This means that
t he we ight of the item would suddenly be
about 200 lbs . (90 kg). You can imagine the
in juries that a 200 lbs. (90 kg) item flyi ng
freely through the passenge r compartment
could cause in a collision like t his.
_& WARNING
Imprope rly stored luggage or other items
can fly through the vehicle ca us ing se rious
personal inj ury in the event of hard b rak ­
ing or an acc ident. To help reduce the r is k
of serious personal injury :
- Always put objects, for examp le, luggage
o r othe r heavy items in the luggage com­
partment .
_& WARNING
Heavy loads will influence the way your ve­
hicle handles. To help reduce the r isk of a
loss of control leading to ser ious personal
injury:
- Always keep in m ind whe n transporting
heavy objects, t hat a change in t he cen ­
ter of g ravity can also cause changes in
vehicl e handling.
- Never exceed the G ross Ax le Weight Rat­
ing or t he Gross Veh icle We ight Rating
spe cified on t he safety compliance stic k­
er on the left door jamb. Exc eeding pe r­
missib le we igh t standa rds can cause the
vehicle to s lide and handle differently.
- Please observe info rm ation on s afe driv­
ing
~ page 91.
_& WARNING ,~ ~
Always make su re that the doors, all win ­
dows and the front lid are securely closed
an d locked to red uce the risk of in jury
when the veh icle is not being used .
- After closing the front lid, a lways make
s u re that it is properly closed and locked.
- Never leave you r vehicle unatten ded es­
pecially with the front lid left open . A
Dr iving S afel y 97
child cou ld craw l into the luggage com­
pa rtment and close the front lid becom­
ing trapped and unable to get out. Be ing
trapped in a veh icle can lead to serious
pe rsonal injury .
- Never let ch ildren play i n or around the
veh icle .
- Never let passengers ride in t he luggage
compartment . Vehicle occupants must
always be prope rly restra ined in one of
the vehicle 's seating pos it ions .
(D Tips
The t ire pressure must correspond to the
l oad . The t ire press ure is shown on the tire
p ressure label. The tire pressure label is lo­
cated on the d river 's s ide B-pillar. The t ire
pressure label lists the recommended cold
tire inflation pressures for the vehicle at
it s m aximum c apac ity we igh t a nd the tires
that we re on your vehicle at the t ime it
was manufacture d. For recommended tire
pressures fo r normal load cond it ions,
pleas@ s@@ chapter c::> page 187.
Reporting Safety
Defects
Applicable to U.S.A.
If you believe that your vehi cle
ha s a defect which could cau se
a crash or could caus e injury or
death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notify­
ing Audi of Amer ica , Inc .
If NHTSA recei ves similar com­
plaints, it may open an investi­
gation , and if it finds that a
s afet y defect s exists in a group .,.
•
•

98 Driving Safely

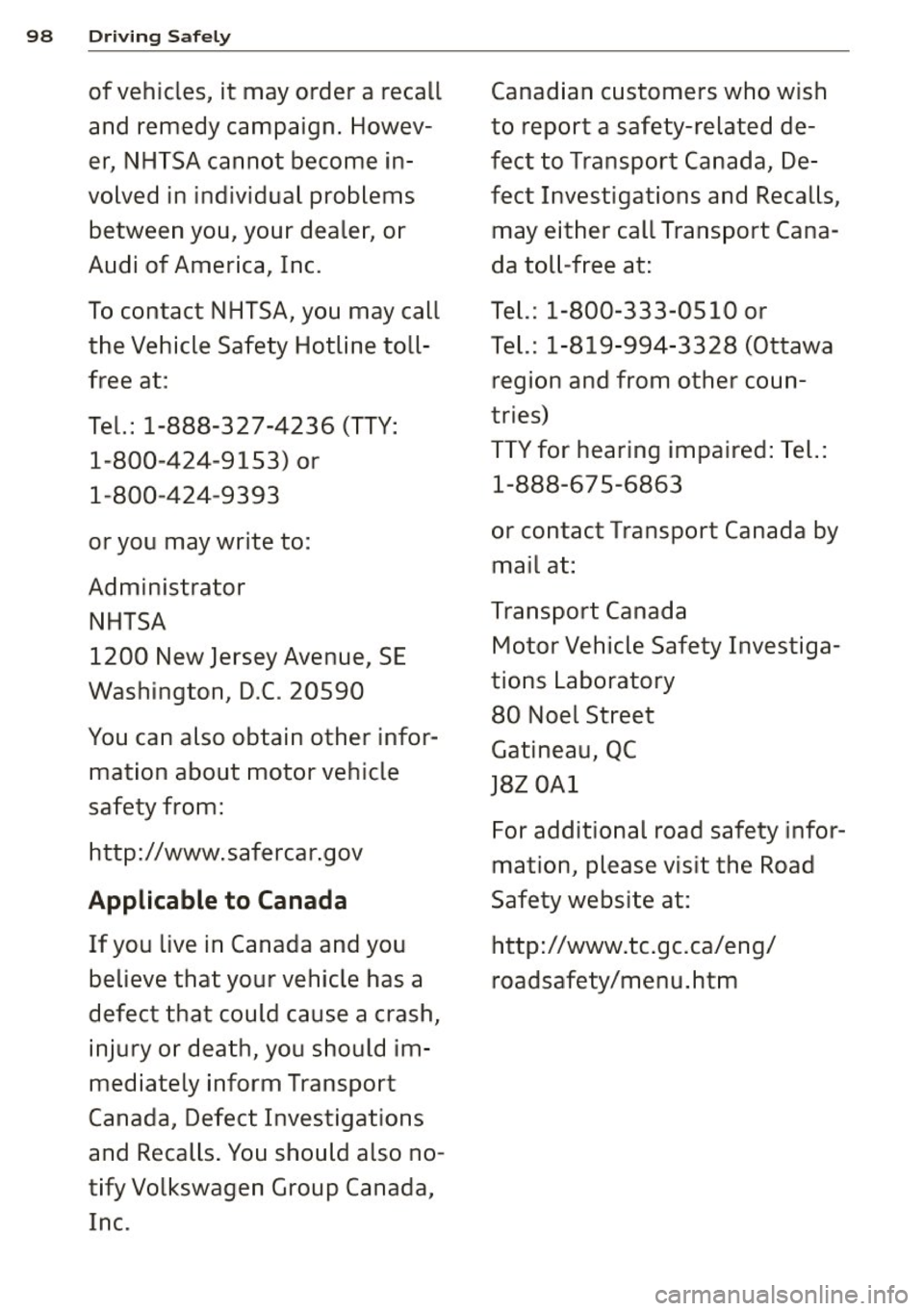

of vehicles, it may order a recall
and remedy campaign. Howev­
er, NHTSA cannot become in­
volved in individual problems
between you, your dealer, or
Audi of America, Inc.
To contact NHTSA, you may call
the Vehicle Safety Hotline toll­
free at:
Tel.: 1-888-327-4236 (TTY:
1-800-424 -9153) or
1-800-424-9393
or you may write to:
Administrator NHTSA
1200 New Jersey Avenue , SE
Washington, D .C . 20590
You can also obtain other infor­ mation about motor vehicle
safety from:
http://www.safercar.gov
Applicable to Canada
If you live in Canada and you
believe that your vehicle has a
defect that could cause a crash,
injury or death, you should im­
mediately inform Transport
Canada, Defect Investigations
and Recalls. You should also no­
tify Volkswagen Group Canada, Inc. Canadian customers who wish
to report a safety-related de­
fect to Transport Canada, De­
fect Investigations and Recalls ,
may either call Transport Cana ­
da toll-free at:
Tel. : 1-800-333-0510 or
Tel. : 1-819-994-3328 (Ottawa
region and from other coun­
tries)
TTY for hearing impaired: Tel.:
1-888-67 5-6863
or contact Transport Canada by
mail at:
Transport Canada
Motor Vehicle Safety Investiga­
tions Laboratory
80 Noel Street
Gatineau, QC
J8Z 0Al
For additional road safety infor­
mation, please visit the Road
Safety website at:
http:/ /www.tc.gc.ca/eng/
roadsafety/menu. htm
