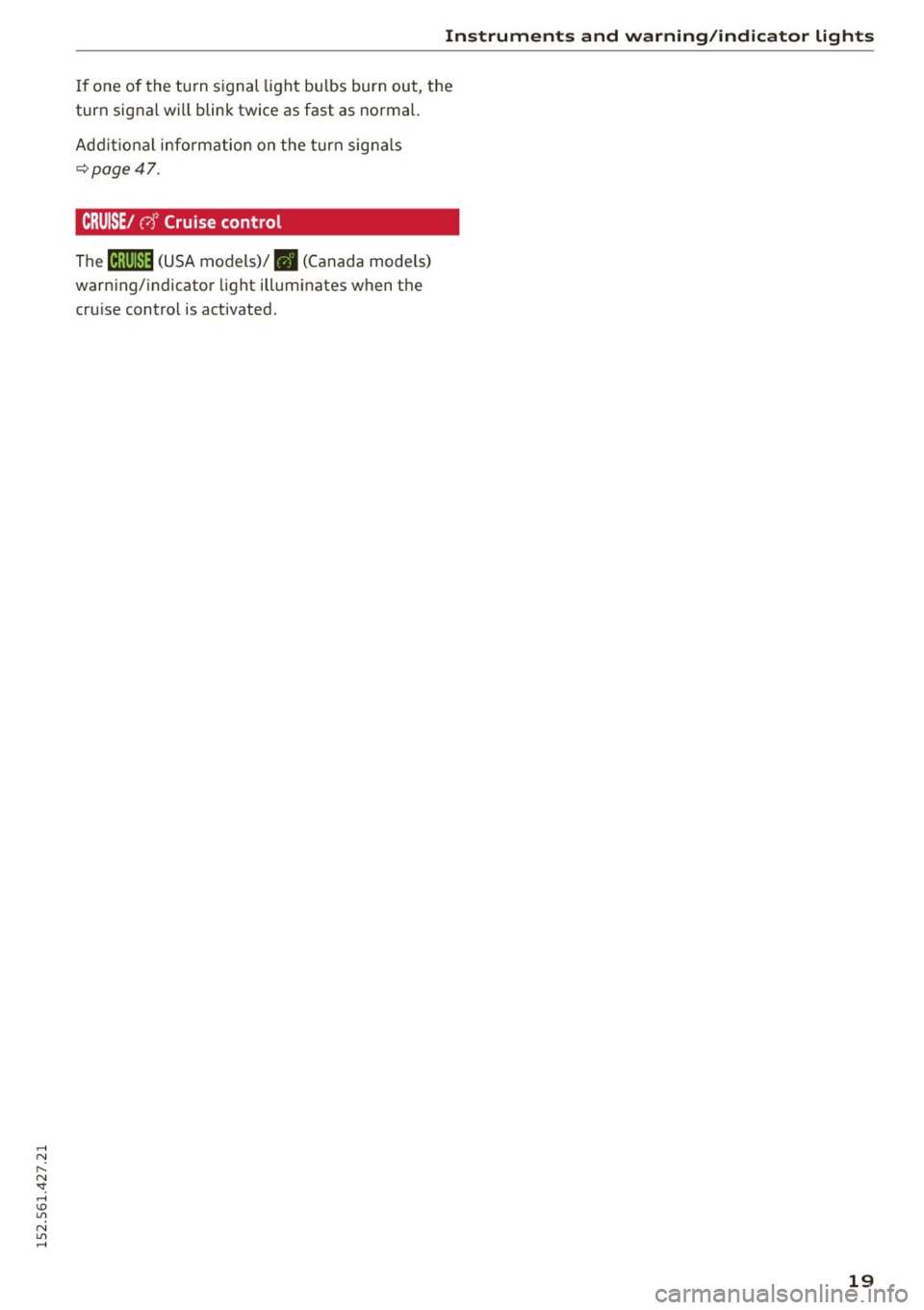

Page 21 of 232
..... N
r-N "': ..... \!) ..,.,
N ..,., .....
Instruments and warning/indicator lights
If one of the turn signal light bulbs burn out, the
turn signal wi ll blink twice as fast as normal.
Addit ional info rmation on the turn signals
~page 47.
CRUISE/ 0 Cruise control
The @;(1)~14 (USA models)/ . (Canada models)
warning/indicator light illuminates when the
cruise control is activated .
19

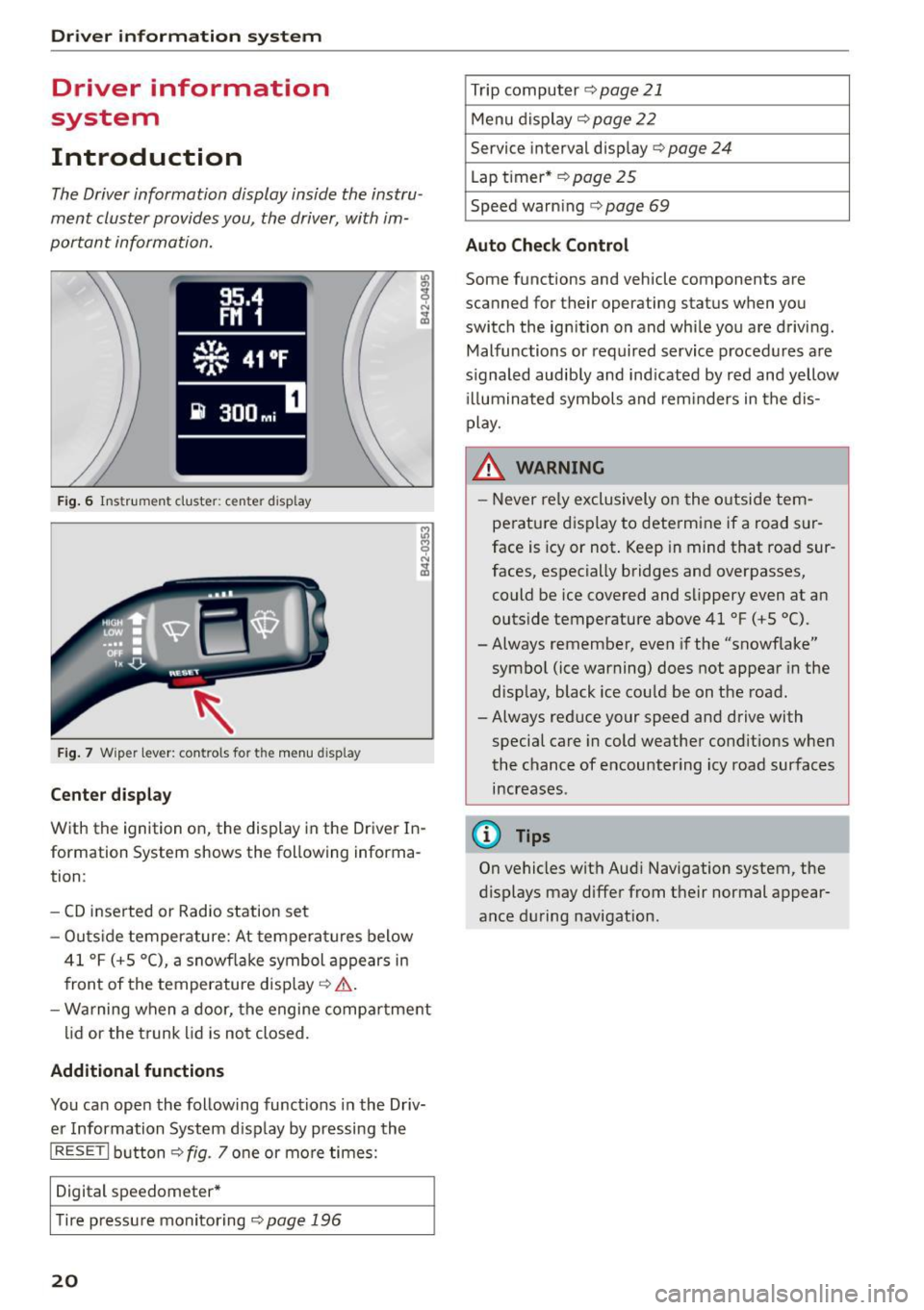

Page 22 of 232
Driver information system
Driver information
system
Introduction
The Driver information display inside the instru
ment cluster provides you, the driver, with im
portant information.
F ig. 6 Instr um en t cluster: center display
Fig. 7 Wiper lever: controls for the menu display
Center display
With the ignition on, the display in the Driver In
formation System shows the following informa
tion :
- CD inserted or Radio station set
- Outs ide temperature: At temperatures below
41 °F (+ S
0
(), a snowflake symbol appears in
front of the temperature display ¢,& .
- Warning when a door, the engine compartment
lid or the trunk lid is not closed.
Additional functions
You can open the following functions in the Driv
er Information System disp lay by pressing the
I RES ET I button ¢ fig. 7 one or more times:
Digital speedometer*
T ir e pressu re monitoring
¢page 196
20
Trip computer ¢ page 21
Menu display ¢ page 22
Service interval display¢ page 24
Lap timer* ¢page 25
Speed warn ing ¢ page 69
Auto Check Control
Some functions and vehicle components are
scanned for their operating status when you
switch the ignition on and whi le you are driving .
Malfunctions or required service procedures are
signaled audib ly and ind icated by red and yellow
ill uminated symbols and reminders in the dis
play.
& WARNING -
- Never re ly exclusively on the outside tem
perature display to determine if a road sur
face is icy or not. Keep in mind that road sur
faces, especially bridges and overpasses,
could be ice covered and slippery even at an
outside temperature above 41 °F (+S °C).
-Always remember, even if the "snowflake"
symbol (ice warning) does not appear in the
display, black ice could be on the road.
- Always reduce your speed and drive with
special care in cold weather cond itions when
the chance of encountering icy road surfaces
increases.
(D Tips
On vehicles with Aud i Navigation system, the
displays may differ from their normal appear
ance during navigation.
Page 23 of 232
.... N
l'
N "1: .... I.O
"' N
"' ....

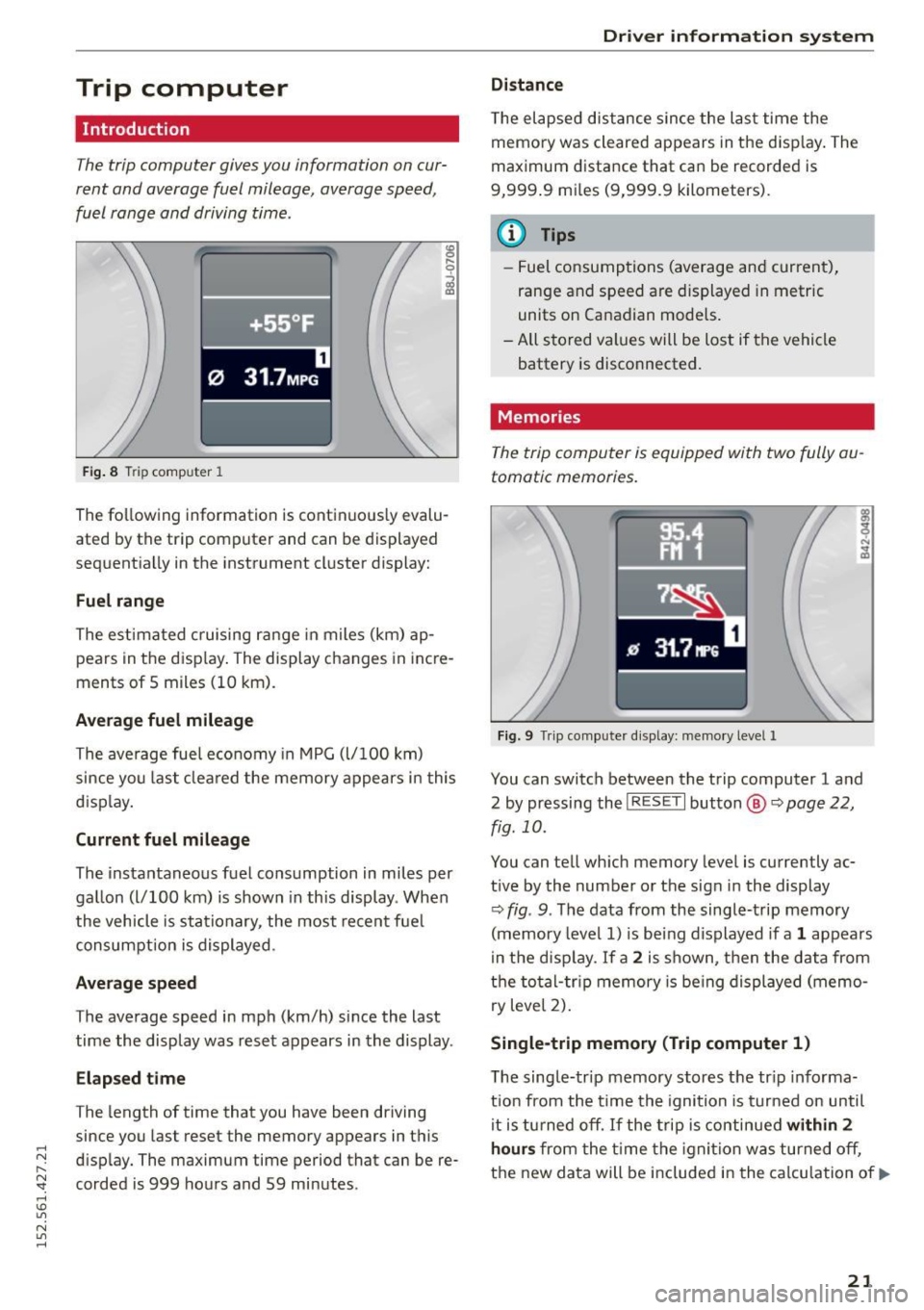

Trip computer
Introduction
The trip computer gives you information on cur
rent and average fuel mileage, average speed ,
fuel range and driving time.
Fig. 8 T ri p comp uter 1 ,....
0
;;i ID
The following
information is continuously evalu
ated by the trip computer and can be displayed
sequentially in the instrument cluster display:
Fuel range
The estimated cruising range in m iles (km) ap
pears in the disp lay. The display changes in incre
ments of 5 miles (10 km) .
Average fuel mileage
The average fuel economy in MPG (l/100 km)
since you last cleared the memory appears in this
d isplay.
Current fuel mileage
The instantaneous fuel consumption in miles per
gallon (l/100 km) is shown in this display . When
the vehicle is stationary , the most recent fuel
consumption is displayed.
Average speed
The average speed in mph (km/h) since the last
time the display was reset appears in the display .
Elapsed time
The length of time that you have been driving
since you last reset the memory appears in this
disp lay. The maximum time period that can be re
corded is 999 hours and 59 minutes .
Driver information system
Distance
The elapsed distance since the last time the
memory was cleared appears in the disp lay. The
maximum distance that can be recorded is
9,999 .9 mi les (9,999.9 kilometers).
(D Tips
- Fuel consumptions (average and current),
range and speed are displayed in metric
units on Canadian models .
- All stored values will be lost if the vehicle battery is disconnected.
Memories
The trip computer is equipped with two fully au
tomatic memories.
Fig. 9 Trip computer d is play: memo ry level 1
You can switch between the trip computer 1 and
2 by pressing the
! R ESET I button @ ~page 22,
fig. 10.
You can tell which memory level is currently ac
t ive by the number or the sign in the display
Q fig . 9. The data from the single-trip memory
(memory level 1) is being displayed if a
1 appears
in the disp lay.
If a 2 is shown, then the data from
the total-tr ip memory is being displayed (memo
ry level 2).
Single -trip memory (Trip computer 1)
T he single-trip memory stores the tr ip informa
tion from the time the ignition is turned on until
it is turned off. If the trip is continued
within 2
hours from the time the ignition was turned off,
the new data will be included in the calculation of.,.
21

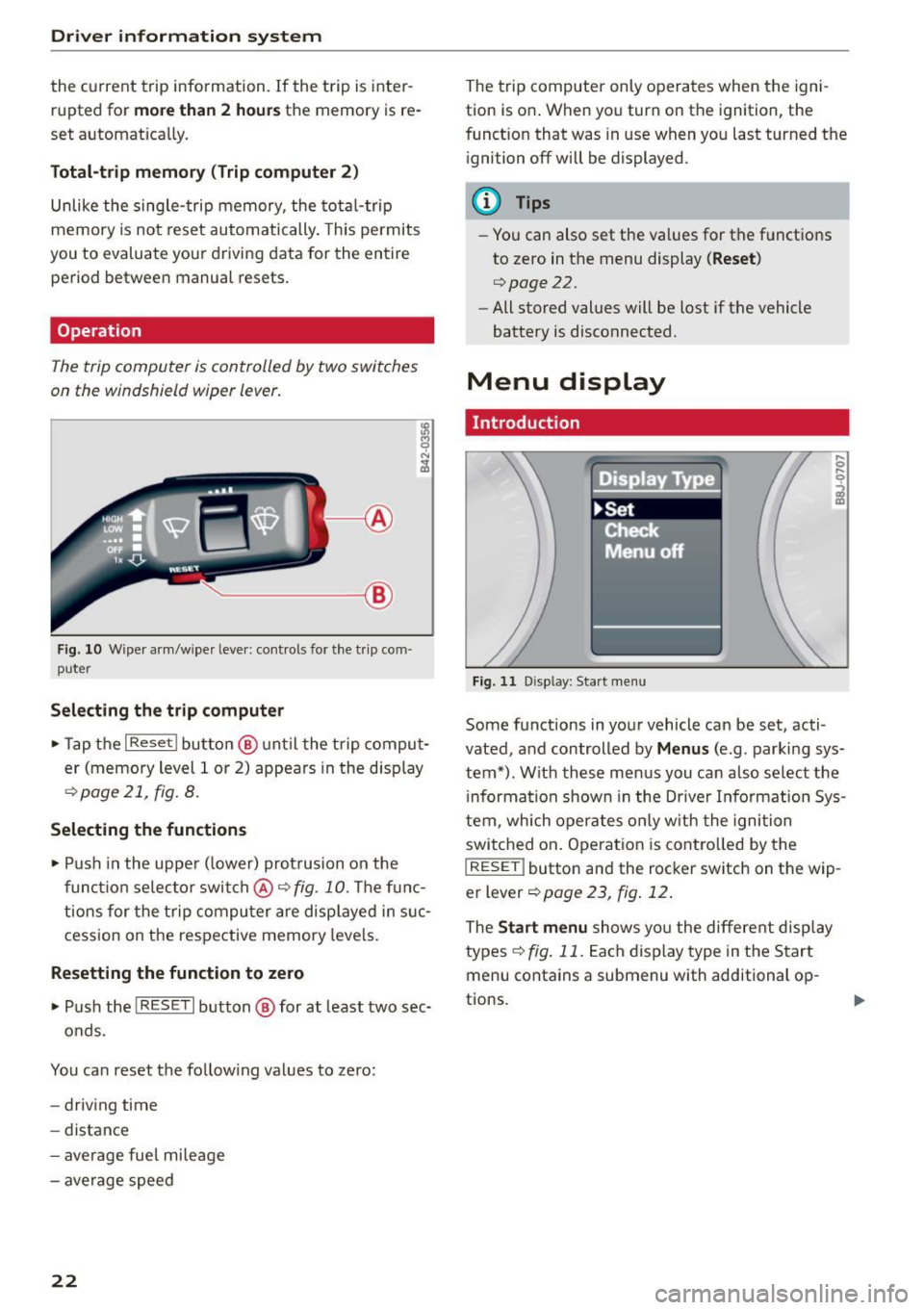

Page 24 of 232
Driver information system
the current trip information. If the trip is inter
rupted for
more than 2 hours the memory is re
set automat ically.
Total-trip memory (Trip computer 2)
Unlike the sing le-trip memory, the total-trip
memory is not reset automatically. This permits
you to evaluate your driving data for the entire
period between manual resets.
Operation
The trip computer is controlled by two switches
on the windshield wiper lever.
------- ®
Fig. 10 Wiper a rm/wiper leve r: controls for the t rip com ·
puter
Selecting the trip computer
• Tap the I Reset ! button @ unt il the trip comput
er (memory level 1 or 2) appears in the disp lay
¢ page 21, fig. 8.
Selecting the functions
• Push in the upper ( lower) protrusion on the
function selector switch @~
fig. 10. The func
tions for the trip computer are displayed in suc
cession on the respective memory levels.
Resetting the function to zero
• Push the I RESE T I button @ for at least two sec-
onds.
You can reset the follow ing values to zero:
- driving time
- distance
- average fuel mileage
- average speed
22
The trip computer only operates when the igni
tion is on . When you turn on the ignition, the
funct ion that was in use when you last turned the
ignition off will be displayed.
(D Tips
-You can also set the values for the functions
to zero in the menu display
( Reset )
c':) page 2 2.
-All stored values will be lost if the vehicle
battery is disconnected.
Menu display
Introduction
Fig. 11 D isp lay: Start menu
Some functions in your vehicle can be set, acti
vated, and controlled by
Menus (e.g . parking sys
tem•). With these menus you can also select the
i nformation shown in the Driver Information Sys
tem, which operates only with the ignition
switched on . Operation is contro lled by the
I RESET ! button and the rocker switch on the wip
er lever
¢page 23, fig. 12 .
The Start menu shows you the different display
types
~ fig . 11. Each dis play type in the Start
menu contains a submenu with additional op-
tions.
Ill-

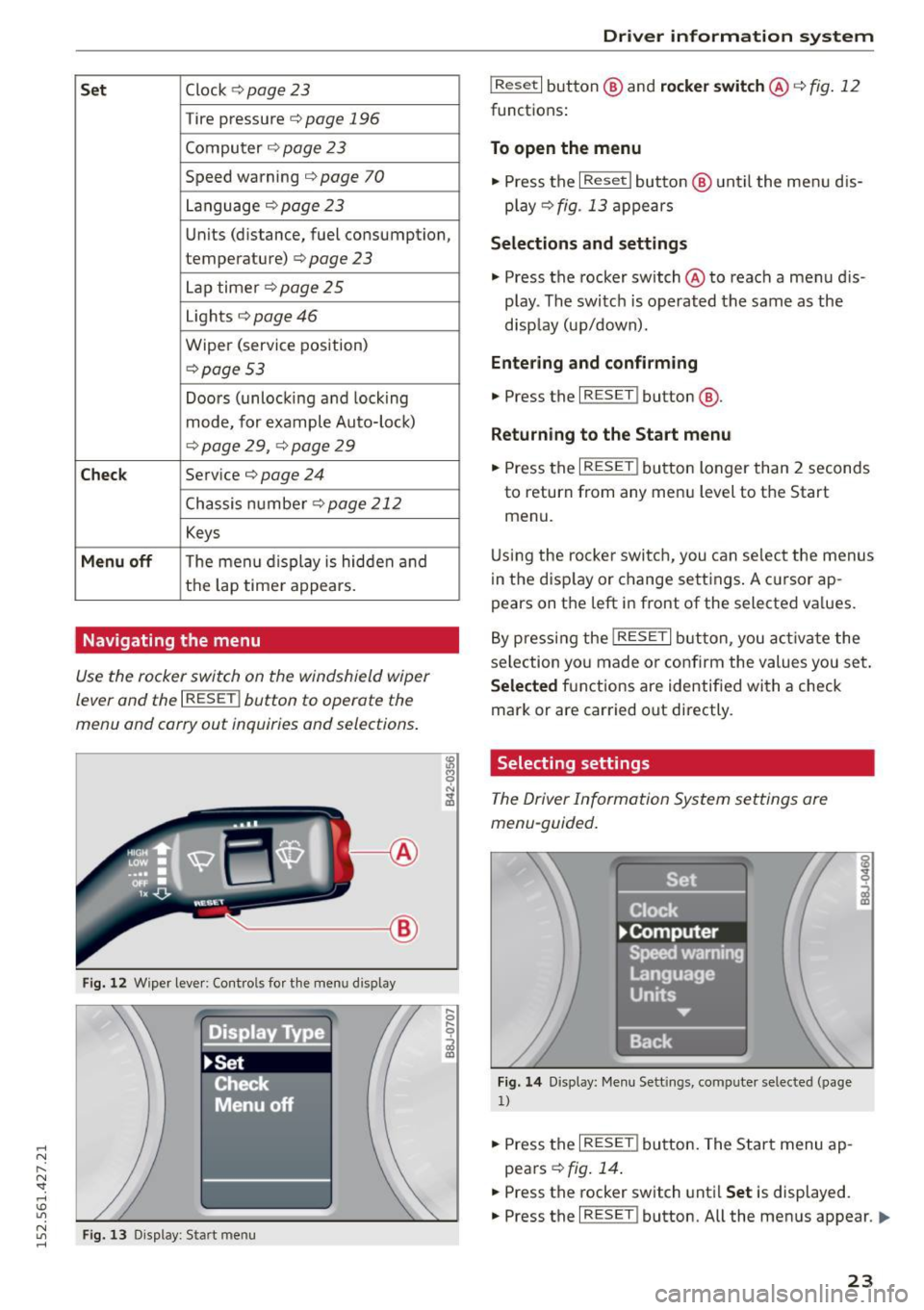

Page 25 of 232
.... N
l'
N "1: rl I.O
"' N
"' ....
Set Clock ¢ page 23
Tire pressure c::> page 196
Computer c::> page 2 3
Speed warning c::> page 70
Language c::>page23
Units (distance, fuel consumption,
temperature)
c::> page 23
Lap timer c::> page 25
Lights c::> page 46
Wiper (service position)
c::>page 53
Doors (unlocking and locking
mode, for example Auto-loc k)
c::> page 29, ¢ page 29
Chec k Service c::> page 24
Chassis number c::>page 212
Keys
Menu off The menu display is hidden and
the lap time r appears.
Navigating the menu
Use the rocker switch on the windshield wiper
lever and the
I RESET ! button to operate the
menu and carry out inquiries and selections.
-----®
Fig. 12 Wiper lever: Cont rols fo r th e menu d isplay
Fi g. 13 Display: Start menu
Dr iver inform atio n sy stem
I Reset I button @ and rocker switch @ c::> fig. 12
functions:
To open the menu
• Press the I Reset I button @ until the menu d is
play
c::> fig . 13 appears
Selection s and settings
• Press the rocker switch @ to reach a menu dis
play . The switc h is operated the same as the
disp lay (up/down).
Entering and confirming
• Press the I RESET ! button@.
Returning to the Start menu
.. Press the I RESET ! button longer than 2 seconds
to return from any menu level to the Start
menu.
U sing the rocke r switch, you can select the menus
in the disp lay or change settings . A c ursor ap
pears on the left in front of the selected va lues.
By pressing the
! RESET I button, you activa te the
selection yo u made or confirm the values you set .
Selected fu nctions are identified with a check
mark or are car ried out directly.
Selecting settings
The Driver Information System settings are
menu-guided.
Fi g. 14 Display: Me nu Sett ings, computer selected (page
1)
.. Press the I RESET ! button. The Start menu ap
pears
c::> fig . 14 .
.. Press the rocker switch until Set is displayed.
.. Press the
I RESET ! button. All the menus appear. Ill-
23

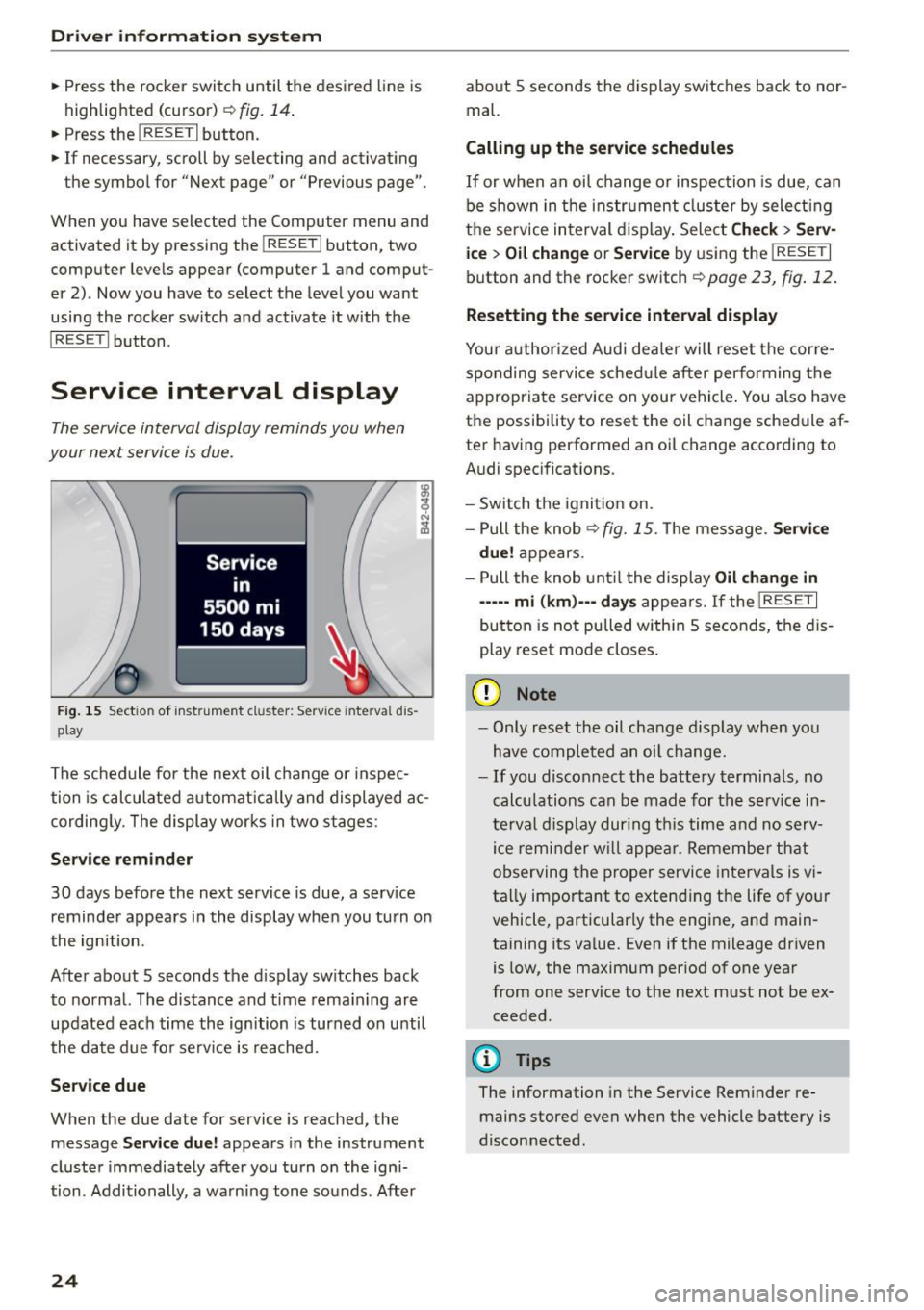

Page 26 of 232
Driver information system
• Press the rocker switch until the desired line is
highlighted (cursor)~
fig. 14.
• Press the !R ESE T I button.
• If necessary, scroll by se lecting and activating
the symbol for "Next page" or "Previous page".
When you have selected the Computer menu and
activated it by p ressing the
! RESET I button, two
computer levels appear (computer 1 and comput
er 2) . Now you have to select the level you want
using the rocker switch and activate it with the
I RESET I button .
Service interval display
The service interval display reminds you when
your next service is due.
Fig. 15 Sectio n of inst rument cl uster: Serv ice in terva l dis
pl ay
The schedule for the next oil change or inspec
tion is calculated automatically and displayed ac
cording ly. The display works in two stages:
Service reminder
30 days before the next service is due, a serv ice
reminder appears in the display when you turn on
the ignition.
After about 5 seconds the display sw itches back
to normal. The distance and time remaining are
updated each time the ignition is turned on unti l
the date due for serv ice is reached.
Service due
When the due date for service is reached , the
mes sage
Service due! appears in the instrument
cluster immediately after you turn on the igni
tion . Additionally, a warning tone sounds. After
24
about 5 seconds the display switches back to nor
mal.
Calling up the service schedules
If or when an oil change or inspection is due, can
be shown in the instrument cluster by select ing
the se rvice interval display. Select
Check> Serv
ice
> Oil change or Service by using the I RESET I
button and the rocker switch ¢ page 23, fig. 12.
Resetting the service interval display
Your authorized Audi dealer will reset the corre
sponding service schedule after performing the
appropriate service on your vehicle . You also have
the possibility to reset the oil change schedule af
ter having performed an oi l change according to
Audi specifications.
- Switch the ignition on.
- Pull the knob<>
fig. 15. The message. Service
due!
appears.
- Pull the knob until the display
Oil change in
-----mi (km)---days appears. If the I RESE T I
button is not pulled with in 5 seconds, the dis
play reset mode closes.
(D Note
-Only reset the oil change display when you
have completed an oil change.
-If you disconnect the battery terminals, no
calculations can be made for the service in
terval display during this time and no serv
ice reminder will appear. Remember that
observing the proper service intervals is vi
tally important to extend ing the life of your
vehicle, particularly the engine, and main
taining its va lue. Even if the mileage driven
is low, the maximum per iod of one year
from one service to the next must not be ex
ceeded.
@ Tips
The information in the Service Reminder re
mains stored even when the vehicle battery is
disconnected .
Page 27 of 232
.... N
l'
N "1: .... I.O
"' N
"' ....

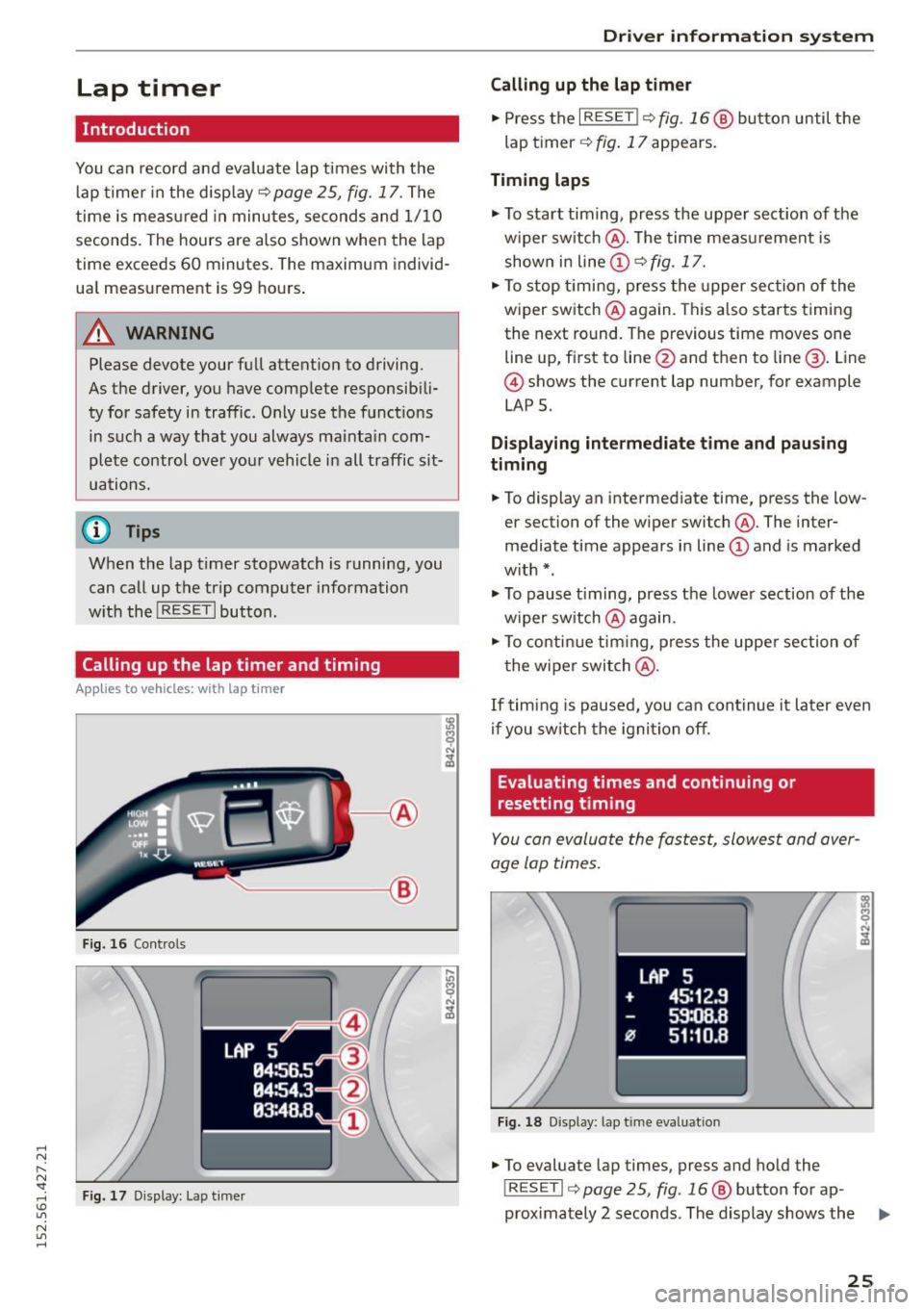

Lap timer
Introduction
You can record and evaluate lap times with the
lap timer in the display¢
page 25, fig. 17. The
time is measured in minutes, seconds and 1/10
seconds. The hours are also shown when the lap
time exceeds
60 minutes . The maximum individ
ua l measurement is
99 hours.
A WARNING
Please devote your full attention to driving.
As the driver, you have complete responsib ili
ty for safety in traffic. Only use the functions
in such a way that you always ma inta in com
plete control over your vehicle in all traffic sit
uations.
0) Tips
When the lap t imer stopwatch is running, you
can call up the trip computer information
w ith the
! RESET I button.
Calling up the lap timer and timing
A ppl ies to vehicles: with la p t ime r
'---- ®
Fig. 16 Controls
Fig. 17 D isplay: Lap timer
Driver inform atio n sy stem
Calling up the lap timer
.,. Press the I RESET !¢ fig. 16 @ button until the
lap timer ¢
fig. 17 appears.
Timing laps
"' To start timing, press the upper section of the
w iper sw itch @. The time meas urement is
shown in line(!)¢
fig. 17.
.,. To stop timing, press the upper section of the
wiper switch @again. This a lso starts timing
the next round. The previous time moves one
line up, first to line @and then to line@. Line
@ shows the current lap number, for example
LAP 5.
Di splaying inte rm ed iat e time and pau sing
timing
"' To display an intermediate time, press the low
er section of the wiper switch@. The inter
mediate time appears in line(!) and is marked
w ith *.
"' To pause timing, press the lowe r section of the
w iper sw itch @again.
"' To conti nue tim ing, press the uppe r section of
t he wiper swi tch @ .
If timing is paused, you can continue it later even
if you sw itch the igni tion off.
Evaluating times and continuing or
resetting timing
You can evaluate the fastest, slowest and aver
age lap times.
LAP 5
+ 45:12 .9
59:08.8
9J 51:10.8
F ig. 18 Display: lap time evaluat ion
"' To evaluate lap times, press and ho ld the
IRESE TI ¢ page 25, fig . 16 @ button for ap-
proximately 2 seconds. The display shows the
Iii>
25
Page 28 of 232

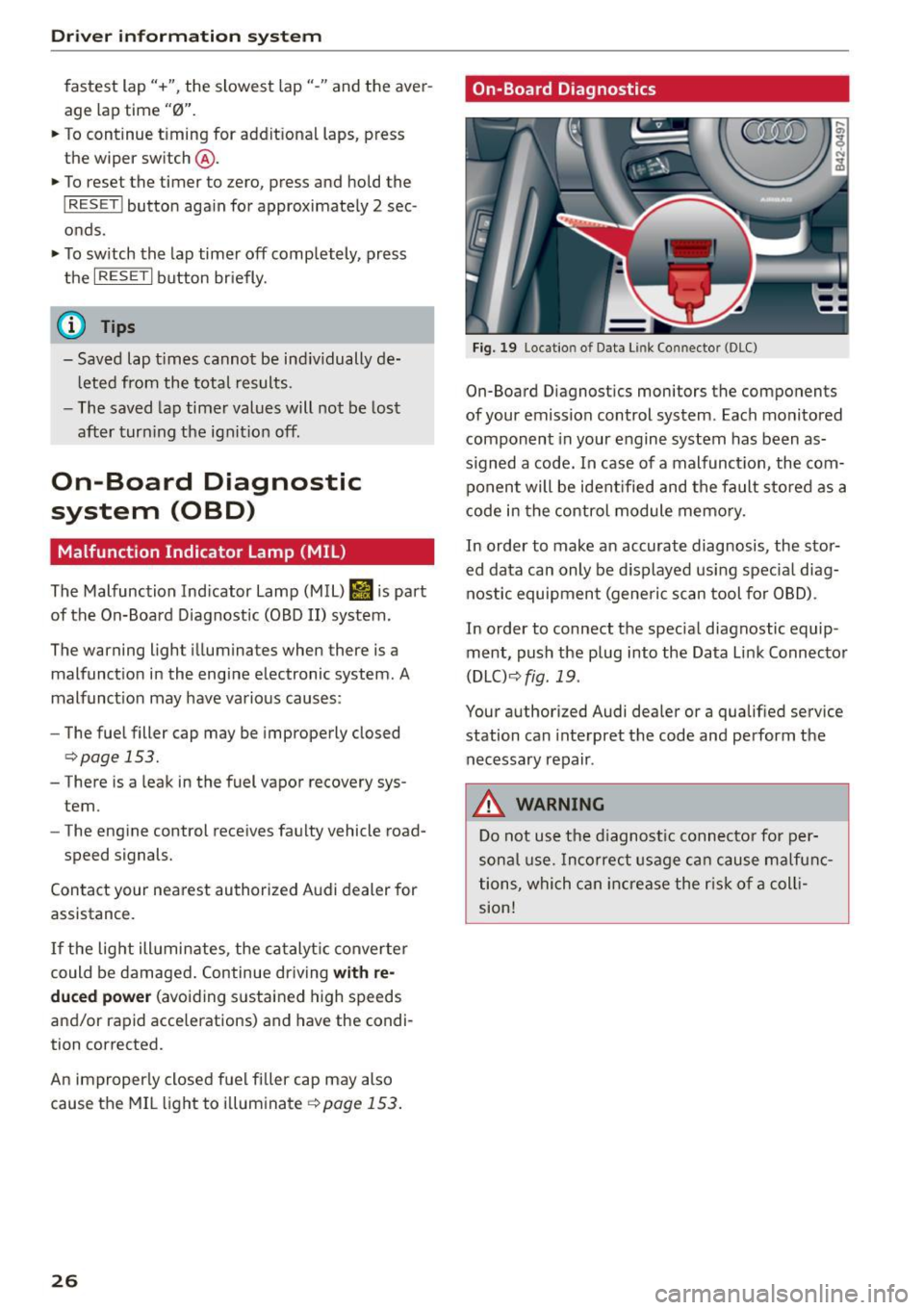

Drive r in formation syste m
fastest lap"+", the slowest lap"-" and the aver
age lap time "0" .
.. To continue t iming for additional laps, press
the wiper switch @ .
.. To reset the timer to zero, press and hold the
I RESET I button again for approximate ly 2 sec
onds .
.,. To sw itch the lap timer off comp letely, press
the
I RES ET I button br iefly.
@ Tips
- Saved lap t imes cannot be ind ividually de
l eted from the total results.
- The saved lap timer values will not be lost
after turn ing the ignit ion off.
On-Board Diagnostic
system (OBD)
Malfunction Indicator Lamp (MIL)
The Malfunction Ind icator Lamp (MIL)
llil is part
of the On-Board Diagnostic (OBD II) system .
The warning light illuminates when there is a malfunct ion in the engine electronic system . A
malfunct ion may have various causes:
- The fuel filler cap may be improperly closed
¢ page 153.
- T here is a leak in the fuel vapor recovery sys
tem .
- The engine control receives faulty vehicle road-
speed signals.
Contact your nearest authorized Audi dealer for
assistance.
I f the light illuminates , the catalyt ic converte r
could be damaged. Continue dr iving
w ith re
du ced pow er
(avoiding sustained high speeds
and/or rapid accelerations) and have the condi
tion corrected.
An improper ly closed fuel filler cap may also
cause the MI L light to illuminate
¢ page 153.
26
On-Board Diagnostics
Fig. 19 Locatio n of Data Li nk Co nnector (DLC)
On-Board D iagnostics monitors the components
of your emission control system. Each monitored component in your engine system has been as
s igned a code. In case of a malfunct ion, the com
ponent will be ident ified and the fault stored as a
code in the control module memo ry.
In order to make an accurate diagnosis, the stor
ed data can only be d isplayed using spec ia l diag
nostic equipmen t (generic scan tool for OBD) .
In order to connect the special diagnostic equip ment, push the plug into the Data Link Connector
(DLC) ¢
fig. 19.
Your authorized Audi dealer or a qualified service
station can interpret the code and perform the
necessary repair .
A WARNING
Do not use the d iagnost ic connector for per
sona l use. Incorrect usage ca n cause ma lfunc
tions, which can increase the r isk of a coll i
sion!
-
Page 29 of 232

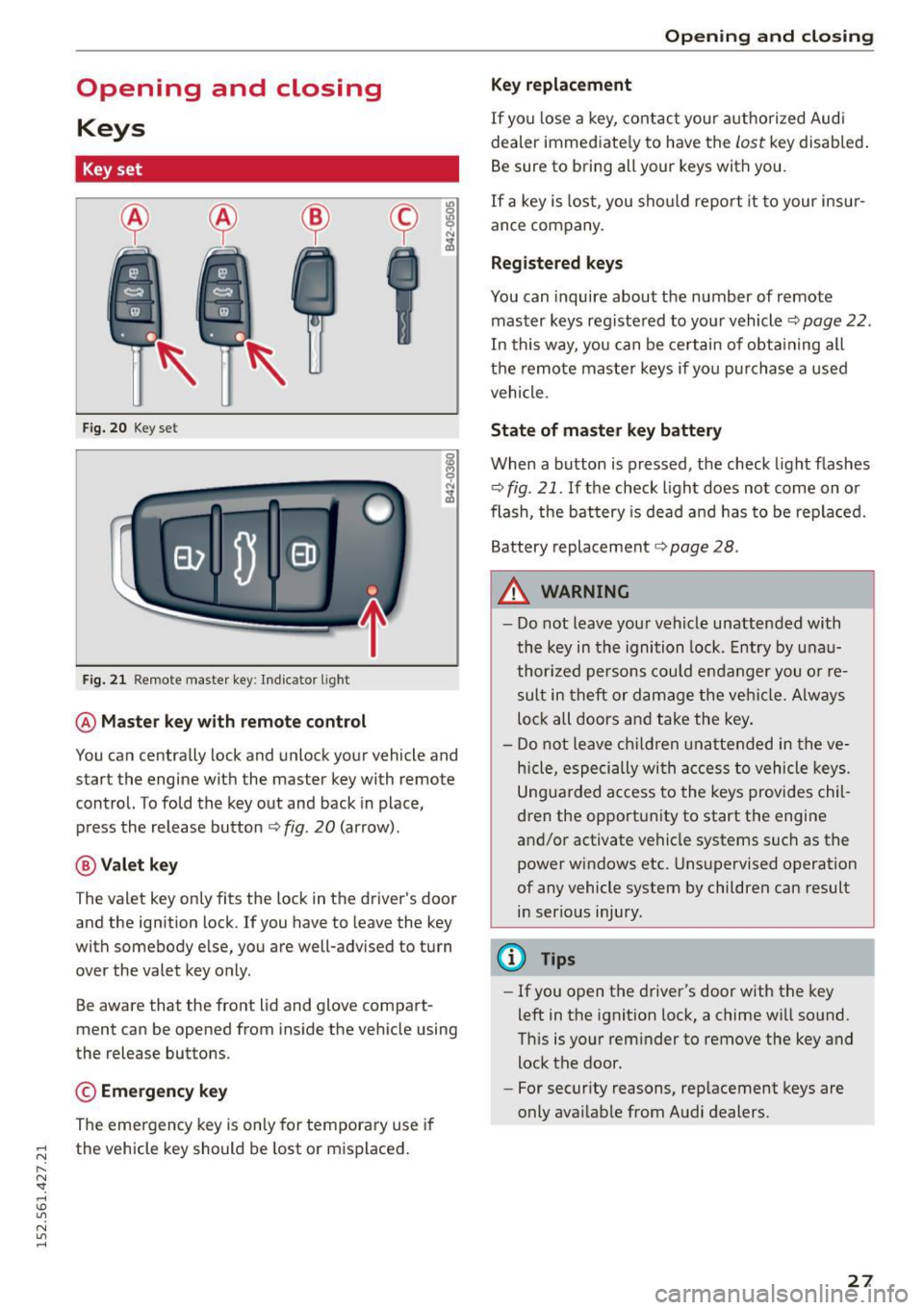

Opening and closing Keys
Key set
F ig. 20 Key set
Fig. 21 Remote master key : Indicator l ight
@ Ma ste r key with r em ote control
You can centra lly lock and unlock your vehicle and
start the engine with the master key with remote
control. To fold the key out and back in place,
press the release button
c:;, fig. 20 (arrow) .
@Vale t key
The valet key only fits the lock in the driver's door
and the ignition lock. If you have to leave the key
with somebody e lse, you are well-advised to turn
over the valet key o nly.
Be aware that the front lid and glove compart
ment can be opened from ins ide the vehicle using
the release buttons.
© Emergency k ey
The emergency key is only for temporary use if
;::: the vehicle key should be lost or misplaced.
l'N "1: rl I.O
"' N
"' rl
Open ing and clo sing
Key replac ement
If you lose a key, contact you r a uthorized Audi
dealer immed iate ly to have the
Lost key disab led .
Be sure to bring all your keys with you.
If a key is lost, you should report it to your insur
ance company.
Reg istered keys
You can inquire about the number of remote
master keys registered to your vehicle
c:;, page 22 .
In this way, you can be ce rtain of obta ining all
the remote master keys if yo u purchase a used
vehicle.
State of master key battery
When a button is pressed, the check light f lashes
c:;, fig. 21. If the check light does not come on or
flash, the battery is dead and has to be replaced.
Battery replacement
c:;, page 28.
A WARNING ..__
- Do not leave your vehicle unattended with
the key in the ignition lock. Entry by u nau
thor ized persons could endanger you or re
sult in theft or damage the vehi cle. Always
lock all doors a nd take the key .
- D o not leave ch ildren unattended in the ve
h icle, espe cially wi th access to vehicle keys.
Ungua rded access to the keys provides chil
dren the opportunity to start the engine
and/or activate vehicle systems such as the power windows etc. Unsupervised operation
of any vehicle system by children can result
i n ser ious injury.
@ Tips
- If you open the driver's door with the key
left in the ignition lock, a chime will so und.
Th is is your rem inder to remove the key and
lock the door.
- For security reasons, rep lacement keys are
only avai lable from Audi dealers.
-
27
Page 30 of 232

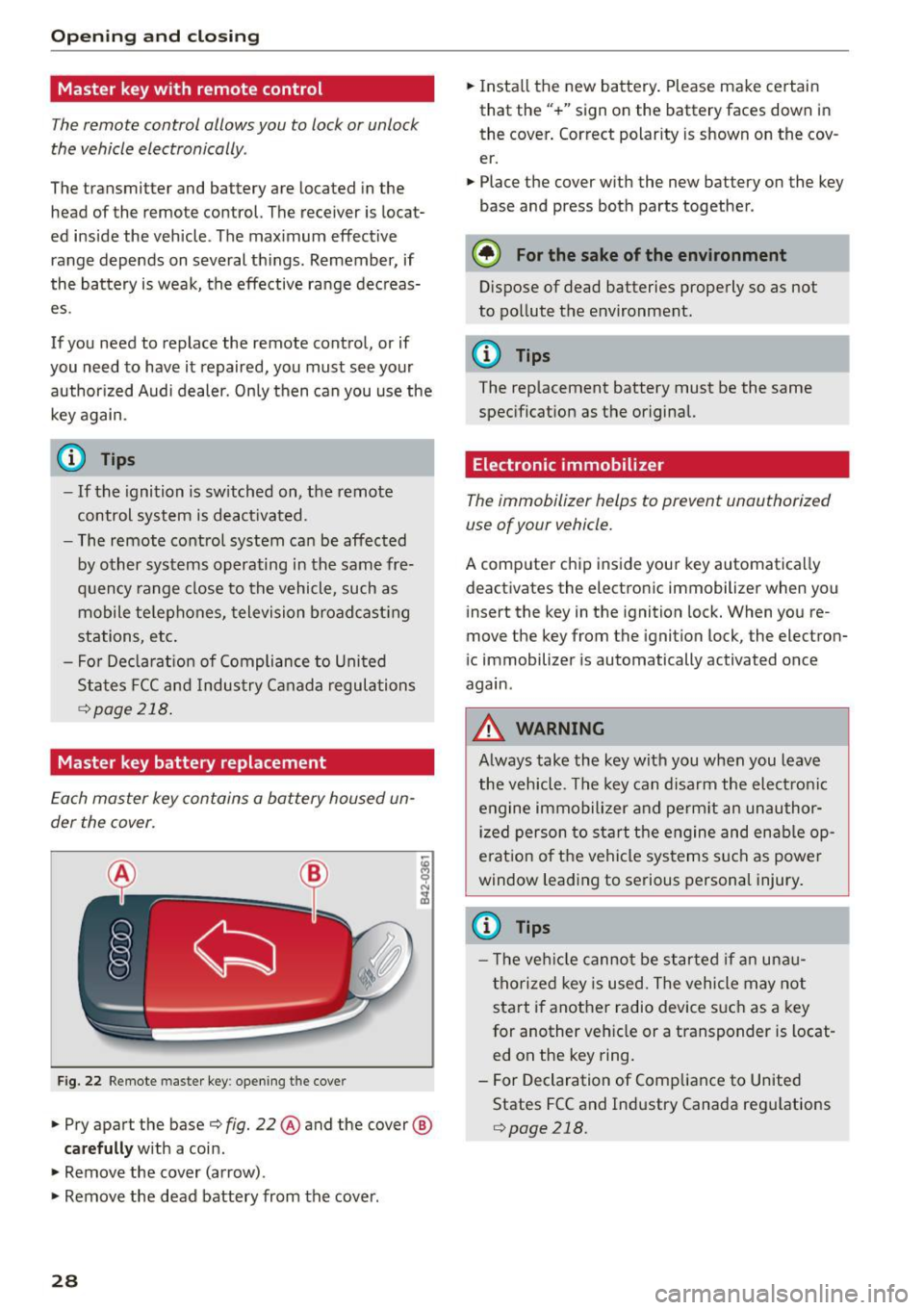

Opening and closing
Master key with remote control
The remote control allows you to lock or unlock
the vehicle electronically .
The transmitter and battery are located in the
head of the remote control. The receiver is locat
ed inside the vehicle . The max imum effective
range depends on several things . Remember, if
the battery is weak, the effective range dec reas
es .
If you need to replace the remote control , or if
you need to have it repaired, you must see your author ized Audi dealer. Only then can you use the
key again .
0) Tips
-If the ignition is sw itched on, the remote
control system is deact ivated.
- The remote control system can be affected
by other systems operating in the same fre
quency range close to the vehicle, such as
mobile te lephones, television broadcasting
stations, etc.
- For Declaration of Compliance to United
States FCC and Industry Canada regulations
¢page 218.
Master key battery replacement
Each master key contains a battery housed un
der the cover.
Fig. 22 Remote master key: opening t he cove r
• Pry apart the base¢ fig. 22 ® and the cover @
carefully with a coin.
• Remove the cover (arrow) .
• Remove the dead battery from the cover .
28
• Insta ll the new battery . Please make certain
that the" +" sign on the battery faces down in
the cover . Correct polarity is shown on the cov
er.
• Place the cover with the new battery on the key
base and press both parts together .
@ For the sake of the environment
D ispose of dead batteries properly so as not
to pollute the environment.
@ Tips
The replacement battery must be the same
specification as the original.
Electronic immobilizer
The immobilizer helps to prevent unauthorized
use of your vehicle.
A comp uter chip inside your key automatical ly
deactivates the electronic immobilizer when you
insert the key in the ignition lock. When you re
move the key from the ignition lock, the electron
ic immobilizer is automatically activated once
again .
A WARNING
Always take the key with you when you leave
the vehicle. The key can disarm the electronic
engine immobilizer and perm it an unauthor
ized person to start the engine and enab le op
e rat ion of t he vehicle systems such as power
window leading to serious personal injury.
{D Tips
- The veh icle cannot be started if an una u
thorized key is used. The vehicle may not
start if another radio device such as a key
for another veh icle or a transponder is locat
ed on the key ring.
- For Declaration of Compliance to United
States FCC and Industry Canada regulations
r::>page 218.
