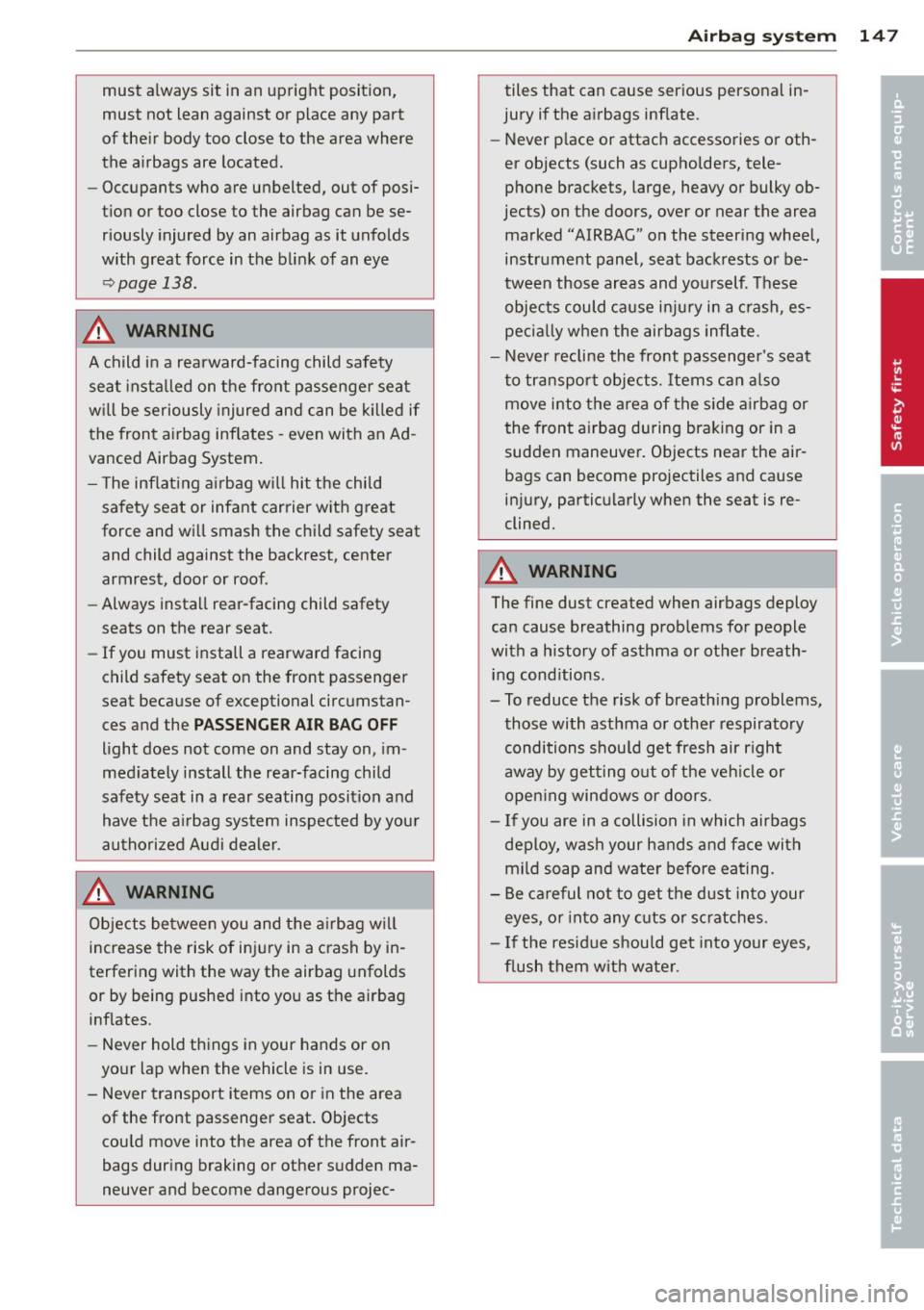

must always sit in an upright position,
must not lean against or place any part
of the ir body too close to the area where
the a irbags are located .
- Occupants who are unbelted, out of posi­
t ion or too close to the airbag can be se­
riously injured by an airbag as it unfolds
with great force in the blink of an eye
~ page 138.
A WARNING
A child in a rearward-facing child safety
seat insta lled on the front passenger seat
wi ll be seriously injured and can be k illed if
the front airbag inflates -even with an Ad ­
vanced Airbag System.
- T he inflating airbag will hit the child
safety seat or infant carrier with great
force and wi ll smash the ch ild safety seat
and child against the backrest, center
armrest, door or roof.
- Always install rear-facing child safety
seats on the rear seat.
- If you must install a rearward facing
child safety seat on the front passenger
seat because of exceptional circumstan­
ces and the
PASSENGER AIR BAG OFF
light does not come on and stay on, im­
med iately install the rear-facing child
safety seat in a rear seating position and
have the a irbag system inspected by your
authorized Audi dealer .
A WARNING
Objects between you and the airbag will
increase the risk of injury in a crash by in­
terfering with the way the airbag unfolds
or by being pushed into you as the airbag
inf lates.
- Never hold things in your hands or on
your lap when the vehicle is in use.
- Never transport items on or in the area
of the front passenger seat. Objects
cou ld move into the area of the front air­
bags during braking or other sudden ma­
neuver and become dangerous projec-
A irbag system 147
tiles that can cause serious personal in­
jury if the a irbags inflate.
- Never place or attach accessories or oth­
er objects (such as cupholders, tele­ phone brackets, large, heavy or bulky ob­
jects) on the doors, over or near the area marked "AIRBAG" on the steering wheel,
instrument panel, seat backrests or be­
tween those areas and yourself. These
objects could cause injury in a crash, es­
pecia lly when the airbags inflate.
- Never recline the front passenger's seat
to transport objects. Items can also
move into the area of the side a irbag or
the front airbag during braking or in a
sudden maneuver . Objects near the air­
bags can become projectiles and cause
injury, particularly when the seat is re­
clined.
A WARNING
The fine dust created when airbags deploy
can cause breathing problems for people
with a history of asthma or other breath­ ing cond itions.
- To reduce the risk of breath ing problems,
those with asthma or other respiratory
conditions shou ld get fresh air right
away by getting out of the veh icle or
open ing windows or doors.
- If you are in a collision in which airbags
deploy, wash your hands and face with mild soap and water before eating.
- Be careful not to get the dust into your
eyes, o r into any cuts or scratches .
- If the residue should get into your eyes,
f lush them with water. •
•

150 Airbag system
in the instrument cluster display. This is to in­
form the driver of the current front passenger
airbag status.
Important safety instructions on
monitoring the Advanced Airbag System
A WARNING
An airbag system that is not functioning properly cannot provide supplemental pro­
tection in a frontal crash.
- If the airbag indicator light¢
page 20
comes when the vehicle is being used,
have the system inspected immediately
by your authori zed Audi dealer. It is pos­
sible that the airbag will inflate when it
is not supposed to, or will not inflate
when it should .
A WARNING
If the front airbag inflates, a child without
a child restraint, in a rearward-facing child
safety seat or in a forward-facing child re­
straint that has not been properly installed
will be seriously injured and can be killed.
- Even though your vehicle is equipped
with an Advanced Airbag System, make certain that all children, especially 12
years and younger, always ride on the back seat properly restrained for their
age and size.
- Always install forward or rear-facing
child safety seats on the rear seat -even
with an Advanced Airbag System.
- If you must install a rearward-facing
child safety seat on the front passenger
seat because of exceptional circumstan­
ces and the
PASSENGER AIR BAG OFF
light does not appear and stay on, imme­
diately install the rear-facing child safety
seat in a rear seating position and have
the airbag system inspected by your au­
thorized Audi dealer.
- A tight tether or other strap on a rear­
ward-facing child restraint attached to
the front passenger seat can put too
much pressure on the weight-sensing
-
mat in the seat and register more weight
than is actually on the seat. The heavier
weight registered can make the system
work as though an adult were on the seat and deploy the Advanced Airbag when it
must be suppressed causing serious or
even fatal injury to the child.
- If, in exceptional circumstances, you
must install a forward-facing child re­
straint on the front passenger seat, al­
ways move the seat into its rearmost po­
sition in the seat's fore and aft adjust­
ment range, as far away from the airbag
as possible. The backrest must be adjust­
ed to an upright position. Make sure that
the
PASSENGER AIR BAG OFF light
comes on and stays on all the time when­
ever the ignition is switched on .
A WARNING
-
-
-If the PASSENGER AIR BAG OFF light
does not go out when an adult is sitting
on the front passenger seat after taking
the steps described above, make sure the
adult is properly seated and restrained at
one of the rear seating positions.
- Have the airbag system inspected by
your authorized Audi dealer before trans­
porting anyone on the front passenger
seat.
(D Tips
If the weight-sensing mat in the front pas­
senger seat detects an empty seat, the
front airbag on the passenger side will be
turned off, and
PASSENGER AIR BAG OFF
will stay on.
Repair , care and disposal of the airbags
Par ts of the airb ag system are ins talled at
many different places on your Audi. Installing,
removing, servicing or repairing a part in an
area of the vehicle can damage a part of an
airbag system and prevent that system from
working properly in a collision. .,..

There are some important things you have to know to make sure that the effectiveness of
the system will not be impaired and that dis­
carded components do not cause injury or pol­
lute the environment.
A WARNING
Improper care, servicing and repair proce­
dures can increase the risk of personal in­
jury and death by preventing an airbag from deploying when needed or deploying an airbag unexpectedly:
- Never cover, obstruct, or change the
steering wheel horn pad or airbag cover
or the instrument panel or modify them
in any way.
- Never attach any objects such as cu­
pholders or telephone mountings to the
surfaces covering the airbag units.
- For cleaning the horn pad or instrument
panel, use only a soft, dry cloth or one
moistened with plain water. Solvents or
cleaners could damage the airbag cover
or change the stiffness or strength of the
material so that the airbag cannot de­
ploy and protect properly.
- Never repair, adjust, or change any parts
of the airbag system.
- All work on the steering wheel, instru­
ment panel, front seats or electrical sys­
tem (including the installation of audio
equipment, cellular telephones and CB
radios, etc.) must be performed by a
qualified technician who has the training
and special equipment necessary.
- For any work on the airbag system, we
strongly recommend that you see your
authorized Audi dealer or qualified work­
shop.
- Never modify the front bumper or parts
of the vehicle body.
- Always make sure that the side airbag
can inflate without interference:
- Never install seat covers or replace­
ment upholstery over the front seat­
backs that have not been specifically
approved by Audi.
Airbag system 151
-Never use additional seat cushions that
cover the areas where the side airbags
inflate.
- Damage to the original seat covers or
to the seam in the area of the side air­
bag module must always be repaired
immediately by an authorized Audi
dealer.
- The airbag system can be activated only
once. After an airbag has inflated, it
must be replaced by an authorized Audi
dealer or qualified technician who has
the technical information, training and
special equipment necessary.
- The airbag system can be deployed only
once. After an airbag has been deployed, it must be replaced with new replace­
ment parts designed and approved espe­
cially for your Audi model version. Re­ placement of complete airbag systems
or airbag components must be per­
formed by qualified workshops only.
Make sure that any airbag service action
is entered in your Audi Warranty
& Main­
tenance booklet under
AIRBAG REPLACE­
MENT RECORD.
- In accidents when an airbag is deployed,
the vehicle battery separates the alterna­
tor and the starter from the vehicle elec­
trical system for safety reasons with a
pyrotechnic circuit interrupter.
- Work on the pyrotechnic circuit inter­
rupter must only be performed by a
qualified dealer - risk of an accident!
- If the vehicle or the circuit interrupter
is scrapped, all applicable safety pre­
cautions must be followed.
{® For the sake of the environment
Undeployed airbag modules and preten­
sioners might be classified as Perchlorate Material -special handling may apply, see
www.dtsc .ca.gov/hazardouswaste/per-
ch lorate. When the vehicle or parts of the
restraint system including airbag modules
safety belts with pretensioners are scrap­ ped, all applicable laws and regulations
must be observed. Your authorized Audi .,..
•
•

154 Airbag sys te m
The knee airbag system has been designed so
that the airbags for the driver and front pas­
senger dep loy in certain but not all frontal
collisions.
I f the front air bags deploy, the knee airbags
a lso deploy in frontal co llisions when the de ­
p loyment threshold stored in the control unit
is met.
When t he system dep loys, the airbags fill
with a prope llant gas, and i nflate between the
l ower part of the instrument panel and t he
driver and the lower part of the instrument panel and the front passenger
q page 146 ,
fig . 154.
A lthough they are not a soft pillow, they can
cushion the impact and in this way they can
help to reduce the r isk of injury to the lower
extremities .
A ll of this takes place in the blink of an eye, so
fast that many people don't even realize that
the airbags have deployed. The a irbags also
inflate wit h a great deal of force and it is im­
po rtant for occupant safety that not hing
should be in their way when they dep loy.
Fully inflated airbags in combination with
properly wor n safety belts slow down and lim­
it the occupant's forwa rd moveme nt and help
to reduce the r isk of injury .
Important safety instructions on the
knee airbag system
Applies to vehicles: wit h kn ee a irbags
Airbags are only supplemental restraints. Al ­
ways wear safety belts correctly and ride in a
proper seating position .
There is a lot that you and your passenge rs
m ust know and do to help the safety be lts and
air bags to provide supp lemental protection .
& WARNING
An inflating knee airbag can cause ser ious
injury. Wearing safety belts incorrectly and
improper seating positions increase the
r isk of serious personal injury and death
whenever a veh icle is being used. -
The knee a irbag system cannot p rotect
you proper ly if you a re seated too close
to any of the airbag locat ions. When ad­
justing their seat pos itions, it is impor­
tant that both the driver and the front passenger keep the ir upper bod ies and
knees at the following m inimum safe
distances:
- at least 10 inches (25 cm) between the
chest and the steering wheel/instru­
ment panel.
- at least 4 inches (10 cm) between the knees and the lower part of the instru­
ment panel.
- The risk of personal inj ury increases if
you lean forward or to the s ide, or if the
seat is improperly positioned and you a re
not wearing yo ur safety belt . The risk in­
creases even more should the a irbag de­
ploy.
- Always ma ke sure that th e knee airbag
can inf late without inte rfe rence. Objects
between yo u and the airbag can inc rea se
the risk of injury in an ac cident by inte r­
fering w ith the way the a irbag deploys or
by being p ushed into you as the air bag
deploys.
- Never let anybody, espec ia lly children
o r anima ls ride in the footwell in front
of the passenge r seat. I f the airbag de­
ploys, th is can resul t in serious o r fa tal
injur ies.
- Never carry objects of any kind in the
footwell are a in front of the dr iver's or
passenger 's sea t. Bulky objects (shop ­
ping bags, fo r example) can inte rfere
with or prevent proper deployment of
the a irbag. Small ob jects can be
thrown thro ugh the veh icle if the air­
bag deploys and injure you or your pas­
sengers .
- Make sure there are no cracks, deep
scratches or other damage in the area of
the instrument panel where the knee air­
b ags are located.
- If ch ildren are incorrectly seated, their
risk of injury increases in a collision
q page 158, Child Safety.

156 Airbag system
-in rol lovers.
I n s ome types of acc idents the front a irbags
a nd side a irbags m ay be triggered together .
.&_ WARNING
-Sa fety belts and t he a irbag system wi ll
only provide protection when occupants
are in the p roper seating posit ion
¢ page 156.
- If the airbag indicator light ¢ page 20
comes when the vehicle is being used,
have the system inspected immediate ly
by your aut hori zed Aud i dea ler. It is pos­
sible that the airbag will inf late w hen it
is not s upposed to, or w ill not inflate
when it should .
How supplemental side airbags work
.
Side airbags deploy instan tly and can help re­
duce the risk of upper torso injuries for occu ­
pants who are properly restrained .
Fig. 159 Infla ted s ide a irbag s on left s ide of ve hicle
When the system is triggered , the airbag is
f ill ed wit h prope llant gas and breaks thro ugh
a seam in the seat surface area marked "AIR ­
BAG" . It expands between the side trim panel
and the passenger . In orde r to help provide
this addi tional pro tection, the side airbag
must inflate withi n a fraction of a second at
very high speed and with great force . The sup ­
p lemental side a irbag could injure you if your
seating position is no t proper or upr ight or if
items are located in the area w here the sup­
p lemental side a irbag e xpands. This appl ies
especia lly to children ¢
page 158, Child Safe­
ty .
Suppleme nta l side airbags inflate between
the occupant and the door pane l on the side of the vehicle that is struc
k in certain side col ­
lisio n~
fig . 159.
Althoug h they are not a soft p illow , they can
"cushion " the impact and in this way they can
help to reduce the risk of injury to the upper
part of the body .
A fine dust may deve lop w hen the airbag de ­
ploys. This is normal an d does no t mean there
is a fire in the vehicle.
Important safety instructions on the
side airbag system
Airbags are only supplemental restraints. Al ­
ways properly wear safety belts and ride in a
proper sea ting posi tion.
T he re is a lot that you and your passengers
must know and act accord ingly to help the
safety belts and airbags do their job to pro­
vide supplementa l protectio n.
.&_ WARNING
-An inflat ing s ide a irbag can cause serious
or fata l injury . Improperly wearing safety
belts and imp roper seating pos it io ns in­
crease the risk of se rious pe rsonal injury
and dea th whenever a vehicle is being
used.
- In or der to reduce the risk of in ju ry when
t he supplemental side airbag infl ates :
- Always sit in an upright position and
never lean against the area where the
suppleme nta l side airbag is located.
- Never let a child or anyone e lse rest
their head aga inst the s ide trim pane l
i n the area where the supplementa l
s ide airbag inflates .
- Always make sure that safety be lts a re
worn correctly,
- Do not let anyone s itting in the fr ont
seat put t heir hand or any ot her parts
of their body out of the window .
- Always make sure that the s ide airbag
can inf late without interfe rence .

158 Child Saf ety
Child Safety
Important things to
know
Introduction
The rear seat is generally the safest place in a
collision .
The physical principles of what happens when
your veh icle is in a crash app ly also to chi ldren
q page 130, What happens to occupants not
wearing safety belts? .
But unlike adults their
muscles and bones are not fully developed. In
many respects children are at greater risk of
serious injury in crashes than adults.
Because children's bodies are not fully deve l­
oped, they require restra int systems especial­
l y designed for their size , weight, and body
structure. Many countries and all states of the United States and p rovinces of Canada have
laws requiring the use of approved child re­
straint systems for infants and small children .
In a frontal crash at a speed of 20 -35 mph
(30-56 km/h) the forces acting on a 13-pound
(6 kg) infant will be more than 20 times the
weight of the child . This means the weight of
the child would suddenly be more than
260 pounds (120 kg). Under these conditions,
only an appropriate ch ild restraint properly
used can reduce the risk of serious injury.
Ch ild restra ints must be used properly to be
effective. Used improperly, they can increase
the risk of serious injury in an accident .
Consult the child safety seat manufactu rer's
instructions to be sure the seat is right for
your chi ld's size
q page 161, Important safe­
ty instructions for using child safety seats .
Please be sure to read and heed all of the im­
portant information and WARNINGS about
child safety, Advanced Airbags, and the instal­
lation of child restraints in this chapter .
There is a lot you need to know about the Ad­
vanced Airbags in your vehicle and how they
work when infants and children in child re­
straints are on the front passenger seat . Be ­
cause of the large amount of important infor- mation, we cannot repeat it all here
. We urge
you to read the detailed information in this
owner's manua l about airbags and the Ad ­
vanced Airbag System in your vehicle and the
very important information about transport­ ing children on the front passenger seat .
Please be sure to heed the WARNINGS - they
are extremely important for your safety and
the safety of your passengers, especially in­
fants and small children.
A WARNING
- Accident statistics have shown that chil­
dren are generally safer in the rear seat
area than in the front seating position.
Always restrain any child age 12 and un­
der in the rear.
- All vehicle occupants and especially chil­
dren must be restrained properly when­
ever riding in a vehicle. An unrestrained
or improperly restrained chi ld could be
injured by str ik ing the interior or by be­
ing ejected from the vehicle dur ing a
sudden maneuver or impact. An unre­
strained or improperly restrained ch ild is
also at greater risk of injury or death
through contact with an inflating airbag.
- A suitable child restraint properly instal­
led and used at one of the rear seating
positions provides the highest degree of
protection for infants and small children
in most accident situations.
A WARNING
Children on the front seat of any car even
with Advanced Airbags can be seriously in­
jured or even killed when an airbag in­
flates . A child in a rearward-facing child
safety seat installed on the front passen­
ger seat w ill be ser iously injured and can
be killed if the front airbag inflates.
- The inflating airbag will h it the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the back rest or door.
- Always install rearward-facing child safe­
ty seats on the rear seat.

-If you must install a rearward facing
child safety seat on the front passenger
seat in exceptional circumstances and
the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately
install the rearward-facing child safety
seat in a rear seating position and have
the airbag system inspected immediately by your authorized Audi dealer.
,& WARNING
If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
- Always make sure the forward-facing
seat has been designed and certified by
its manufacturer for use on a front seat
with a passenger front and side airbag.
- Always follow the manufacturer's in­
structions provided with the child safety
seat or carrier.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the child restraint. The backrest must be adjusted to an upright position .
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays
on all the time whenever the ignition is
switched on.
@ Tips
Always replace child restraints that were
installed in a vehicle during a crash. Dam­
age to a child restraint that is not visible
could cause it to fail in another collision
situation.
Advanced front airbag system and children
Your vehicle is equipped with a front "Ad­
vanced Airbag System" in compliance with
United States Federal Motor Vehicle Safety
Standard (FMVSS) 208 as applicable at the
time your vehicle was manufactured .
Child Safety 159
The Advanced Airbag system in your vehicle
has been certified to meet the "low-risk" re­
quirements for 3- and 6-year old children on
the passenger side and small adults on the driver side. The low risk deployment criteria
are intended to reduce the risk of injury
through interaction with the airbag that can
occur, for example, by being too close to the
steering wheel and instrument panel when
the airbag inflates. In addition, the system
has been certified to comply with the "sup­
pression" requirements of the Safety Stand­
ard, to turn off the front airbag for infants up
to 12 months who are restrained on the front passenger seat in child restraints that are list­
ed in the Standard.
Even though your vehicle is equipped with an
Advanced Airbag system, all children, espe­
cially those 12 years and younger, should al­
ways ride in the back seat properly restrained
for their age and size . The airbag on the pas ­
senger side makes the front seat a potentially
dangerous place for a child to ride . The front
seat is not the safest place for a child in a for­
ward-facing child safety seat. It can be a very
dangerous place for an infant or a larger child
in a rearward-facing seat.
Advanced Airbags and the weight­
sensing mat in the front seat
The Advanced Airbag System in your vehicle
detects the presence of an infant or child in a
child restraint on the front passenger seat us­
ing the weight-sensing mat in the seat cush­
ion and the sensor below the safety belt latch
on the front passenger seat that measures the
tension on the safety belt.
The weight-sensing mat measures total
weight of the child and the child safety seat
and a child blanket on the front passenger
seat. The weight on the front passenger seat
is related to the design of the child restraint
and its "footprint", the size and shape of the
bottom of the child restraint as it sits on the
seat. The weight of a child restraint and its "footprint" vary for different kinds of child re -
straints and for the different models of the ..,. •
•

-Model Manufactured on or
after
Graco Snugride September 25, 2007
Peg Perego Primo V i- September 25, 200 7
aggio SIP IMUN00US
Subpart C -Forward-facing and
con vertible child r estra ints
Model Manufactured on or
after
Britax Roundabout September 25, 2007
E9L02xx
Cosco Touriva 02519 December 1, 1999
Cosco Summit Deluxe September 25, 2007
High Back Booster
22-262
Cosco High Back September 25, 2007
Booster 22-209
Evenflo Tribute V September 25, 2007
379xxxx
Evenflo Medallion December 1, 1999
254
Evenflo Generations September 25, 200 7
352xxxx
Graco ComfortSport September 25, 2007
Graco Toddler Safety September 25, 2007
Seat Step 2
Graco Platinum Cargo September 25, 2007
A WARNING
T o reduce the risk of serious injury, make
sure that the
PASSENGER AIR BAG O FF
light comes on and stays on whenever a
child restraint is installed on the front pas­
senger seat and the ignition is switched
on.
- Take the child restraint off the fro nt pas­
senger seat and install it properly at one of the rea r seat positions if the
PASSEN­
GER AIR BAG OFF
light does not stay on.
- Have the airbag system inspected by
your authorized Aud i dealer immediate­
ly.
Child Sa fet y 161
'
(D Tips
The child seats listed in categories A to C
have been statically tested by A udi on ly for
the Advanced A irbag function.
Important safety instructions for using
child safety seats
Correct use of child safety seats substantially
reduces the risk of injury in an accident!
As the dr iver, you are responsib le for the safe­
ty of everybody in the vehicle, especially ch il­
dren:
... Always use the right ch ild safety seat for
each child and always use it properly
¢page 164 .
... Always carefully follow the child safety seat
manufacturer's instruct ions on how to route
the safety belt properly through the child
safety seat.
... When using the veh icle safe ty belt to install
a child safety se at, you m ust first activate
the convertib le locking retractor on the
safety belt to prevent the child safety seat
from moving
¢ page 168.
... Push the ch ild safety seat down with yo ur
full weight to get the safety be lt really tight
so that the seat cannot move forwa rd or
sideways mo re than one inch (2 .5 cm) .
... If a strap or tethe r is be ing used to tie the
child safety seat to the front passenger
s eat , make sure tha t it is not so tight that it
causes the weight-sensing mat to measure
more weight than is act ually on the seat.
... Sec ure unused safety be lts on the rear seat
¢ page 163.
Always remember : Even tho ugh yo ur vehicle is
equipped with an Advanced Airbag system, all c h il dren, especially those 12 years and young­
er, shou ld always r ide in the back seat proper -
ly restra ined for the ir age and size. .,_ •
•

162 Child Safety
&_ WARNING
Not using a child safety seat, using the
wrong child safety seat or improperly in­
stalling a child restraint increases the risk
of serious personal injury and death .
-All vehicle occupants and especially chil ­
dren must always be restrained properly
whenever riding in a vehicle.
-
- An unrestrained or improperly restrain­
ed child can be injured or killed by be­
ing thrown against the inside of the ve­
hicle or by being ejected from it during
a sudden maneuver or impact .
- An unrestrained or improperly restrain­
ed child is at much greater risk of injury
or death by being struck by an inflating
airbag.
- Commercially available child safety seats
are required to comply with U.S. Federal
Motor Vehicle Safety Standard (FMVSS)
213 (in Canada CMVSS 213).
- When buying a child restraint, select
one that fits your child and the vehicle.
- Only use child restraint systems that
fully contact the flat portion of the
seat cushion. The child restraint must not tip or lean to either side. Audi does
not recommend using child safety
seats that rest on legs or tube -like
frames . They do not provide adequate
contact with the seat.
-Always heed all legal requirements per­
taining to the installation and use of
child safety seats and carefully follow
the instructions provided by the manu­
facturer of the seat you are using.
- Never allow children under 57 inches
(1.45 meters) to wear a normal safety
belt. They must always be restrained by a
proper child restraint system. Otherwise,
they could sustain injuries to the abdo­
men and neck areas during sudden brak­
ing maneuvers or accidents.
- Never let more than one child occupy a
child safety seat . -
Never let babies or older children ride in
a vehicle while sitting on the lap of an­
other passenger .
- Holding a child in your arms is never a
substitute for a child restraint system.
- The strongest person could not hold
the child with the forces that exist in
an accident. The child will strike the in­
terior of the vehicle and can also be
struck by the passenger.
- The child and the passenger can also
injure each other in an accident.
- Never install rearward-facing child safety
seats or infant carriers on the front pas­
senger seat. A child will be seriously in­
jured and can be killed when the passen­
ger airbag inflates -even with an Ad­
vanced Airbag System .
- The inflating airbag will hit the child
safety seat or infant carrier with great
force and will smash the child safety
seat and child against the backrest,
center arm rest, door or roof.
= Always install rearward-facing child
safety seats or infant carriers on the
rear seat.
- Forward-facing child safety seats instal­
led on the front passenger's seat can in­
terfere with the airbag when it inflates and cause serious injury to the child. Al­
ways install forward-facing child safety seats on the rear seat .
- If exceptional circumstances require the
use of a forward-facing child restraint on
the front passenger's seat, the child's
safety and well-being require that the
following special precautions be taken:
- Make sure the forward-facing seat has
been designed and certified by its man­
ufacturer for use on a front seat with a
passenger front and side airbag.
- Always carefully follow the manufac­
turer's instructions provided with the
child safety seat or carrier.
- Always move the front passenger seat
into the rearmost position of the pas-
senger seat's fore and aft adjustment
~

range, and as far away from the a irbag
as poss ible before instal ling the child
restraint.
- Always make sure that nothing pre­
vents the front passenger's seat from
be ing moved to the rearmost position
i n its fore and aft adjustment range.
- Always make sure that the backrest is
in the upr ight position.
- Always buckle the child safety seat firmly
in place even i f a child is not sitting in it.
A loose ch ild safety seat can fly around
dur ing a sudden stop or in a coll is ion .
- Always read and heed all WARNINGS
whenever using a child restrained in ave­
hicle is being used
c:::;,page 129, Safety
belts,
c:::;, page 137, Airbag system and
¢ page 158, Child Safety.
.8, WARNING
To reduce the risk of serious injury, make
sure tha t t he
PASSENGER AIR BAG OFF
light comes on and stays on whenever a
child rest raint is installed on the front pas­
senger seat and the ignition is switched
on.
- Take the child restraint off the front pas­
senger seat and install it proper ly at one
of the rear seat positions if the
PASSEN­
GER AIR BAG OFF
light does not stay on.
- Have the airbag system inspected by
your authorized Aud i dealer immediate­
ly.
Secure unused safety belts on the rear
seat
F ig. 160 Schematic overview: kee p un used safety be lts
away from chil dren in child safe ty seats. @-oute r rear
safety be lt
.
Child S afety 163
If a child safety seat is used on the rea r bench,
especially with LATCH universal lower ancho­
rages, the unused safety belts
must be se­
cured so that the child in the child restraint
cannot reach them
c:::;, &,.
-Guide the safety belt webbing @behind the
head restra int of the seat where the child re ­
straint is installed¢
fig. 160. When doing
so, do not engage the switchable locking re­
tractor ! You should not hear a "clicking"
sound when wind ing up the safety belt.
- Let the belt retractor wind up the safety belt
webbing.
.8, WARNING
A child in a chi ld safety seat installed with
the LA TCH lower a nc ho rages or with the
stan dard safety be lt or a child in a boos ter
se at o n the rea r seat co uld play with un­
used rea r seat safety belts and become en ­
tang led . This cou ld cause t he chi ld ser ious
personal injury and even death.
-A lways secure unused rear seat sa fe ty
be lts out of reach of children in child
seats such as by proper ly rout ing them
around the head restraint of the seat
where the ch ild restraint is installed.
- Never activate the switchable locking re­
tracto r when routing the safety belts
around the head restraints.
