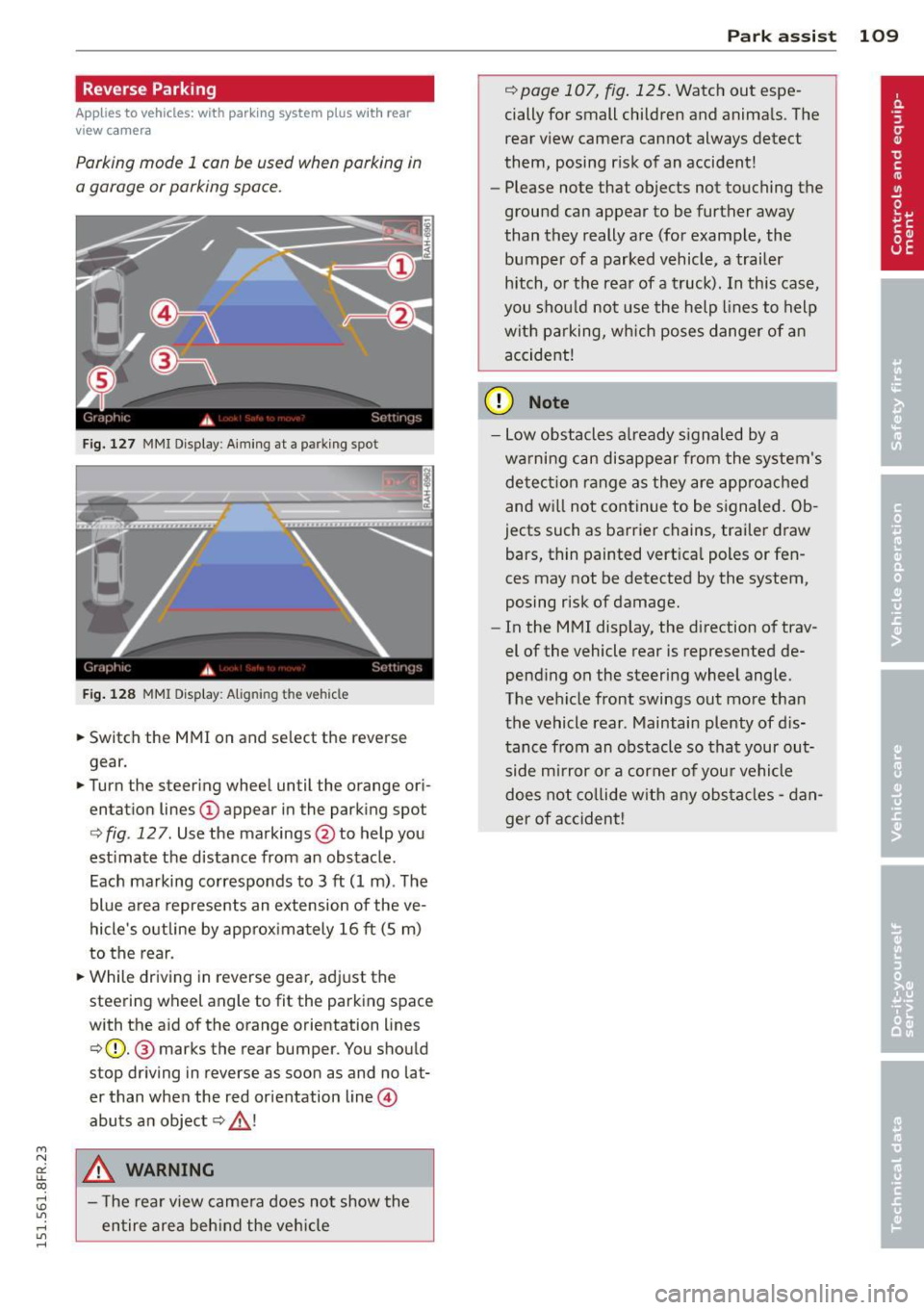

Reverse Parking
Applies to vehicles: with parking system plus wit h rea r
view ca mera
Parking mode 1 can be used when parking in
a garage or parking space.
Fig. 127 MMI Display: Aiming at a parking spot
Fig . 128 MMI Display : A ligning the vehicle
• Sw itch the MMI on and se lect the reverse
gear.
• Turn the steering wheel until the orange ori ­
entation lines
(D appear in the parking spot
c> fig. 12 7. Use the markings @to help you
estimate the distance from an obstacle .
Each marking corresponds to 3
ft (1 m) . The
blue area represents an extension of the ve­
hicle 's outline by approximately 16
ft (5 m)
to the rear.
• While driving in reverse gear, adj ust the
steer ing wheel angle to fit the parking space
with the aid
of the orange orientation lines
¢ (D. @ marks the rear bumper. You should
stop driving in reverse as soon as and no lat­
er than when the red orientation line@
abuts a n object ¢_&. !
A WARNING
- The rear view came ra does no t show the
entire area beh ind the veh icle
Par k ass ist 109
r::!) page 107, fig . 125. Watch out espe­
cially for small children and animals. The rear view camera cannot always detect
them, posing risk of an accident!
- Please note that objects not touching the
ground can appear to be further away
than they really are (for example, the bumper of a parked vehicle, a trailer
hitch, o r the rear of a truck). In this case,
you shou ld not use the help lines to help
with parking, wh ich poses danger of an
accident!
(D Note
- Low obstacles a lready s ignaled by a
warning can disappear from the system's detect ion range as they are app roached
and wi ll not continue to be signaled. Ob ­
jects such as barrier chains, trai ler draw
bars, thin painted vert ica l poles or fen­
ces may not be detected by the system,
posing risk of damage.
- In the MMI display, the direction of trav­
el of the vehicle rear is represented de­
pending on the steering wheel angle.
The vehicle front swings out more than
the vehicle rear . Maintain plenty of d is­
tance from an obstacle so that your out­
side mi rror or a corner of you r vehicle
does not co llide w ith any obsta cles -dan­
ger of accident !

110 Park assist
Parallel Parking
Applies to vehicles: with par king system p lus w it h rear
view ca mera
Use parking mode 2 to help you park on the
edge of a street.
F ig. 129 MMI Display: blue s urface in the parking spot
Fig. 130 MMI Disp lay: Blue curve on the curb
The following steps apply only when there is
no obstacle (such as a wall) near the parking
spot. Otherwise, please read the "Tips on Parking Next to Obstacles"¢
page 110.
.. Activate the turn signal.
.. Position your vehicle parallel to the edge of
the street, approximately 3 ft (1 m) from a parked vehicle .
.. Switch the MMI on and select the reverse
gear. The parking aid turns on and parking
mode 1 appears on the display.
"Press the
Mode¢ fig. 129 © control button
on the MMI control console. Parking mode 2
appears .
.. Back up in reverse gear and align your vehi­
cle so that the blue area
@ borders on the
rear end of the vehicle or on the parking
spot line. The blue area represents an exten­
sion of the vehicle's outline by approximate­ ly 16 ft (S m) to the rear. The long s ide of the blue
area shou ld be on the curb. The en­
tire blue area must fit into the parking spot.
.. While the vehicle is stationary, turn the
steering wheel to the rig ht as far as it will
go.
" Back into the parking spot. Stop the vehicle
as soon as the blue curve is nea r the curb
q fig . 130 ¢0.
"Whil e the vehicle is stationary, turn the
steering wheel to the left as far as it will go .
.. Continue to back up into the parking spot
until the vehicle is parked parallel to the
curb .@ marks the rear bumper. You should
stop driving in reverse as soon as and no lat­
er than when the red orientation line@
abuts an object¢_&. ! Keep an eye on the
front of your vehicle while do ing th is ¢ 6) .
Parking next to obstacles
When there is an obstacle (such as a wa ll)
next to the parking spot, choose a spot with
more space on the sides. Posit ion the long
s ide of the blue area so that there is suff ic ient
space from the curb . The area must not be on
the curb . You will a lso need to start turning
the steer ing wheel much earlier. There should
be a sufficient amount of space between the
curb and the blue curve, and the blue curve
¢
fig. 130 must not touch the curb.
A WARNING
- The rear view camera does not show the
entire area behind the vehicle
¢
page 10 7, fig. 12 5. Watch out espe­
cially for small children and anima ls. The
rear view camera cannot always detect
them, posing risk of an acc ident!
- Please note that objects not touching the
ground can appear to be further away
than they really are (for example, the
bumper of a parked vehicle, a trailer
hitch, or the rear of a truck). In this case,
you should not use the help lines to help
with parking, which poses danger of an
accident!
.__ _____________ _J ...

M N
er
u..
co ,...., \!) ..,.,
,...., ..,., ,....,

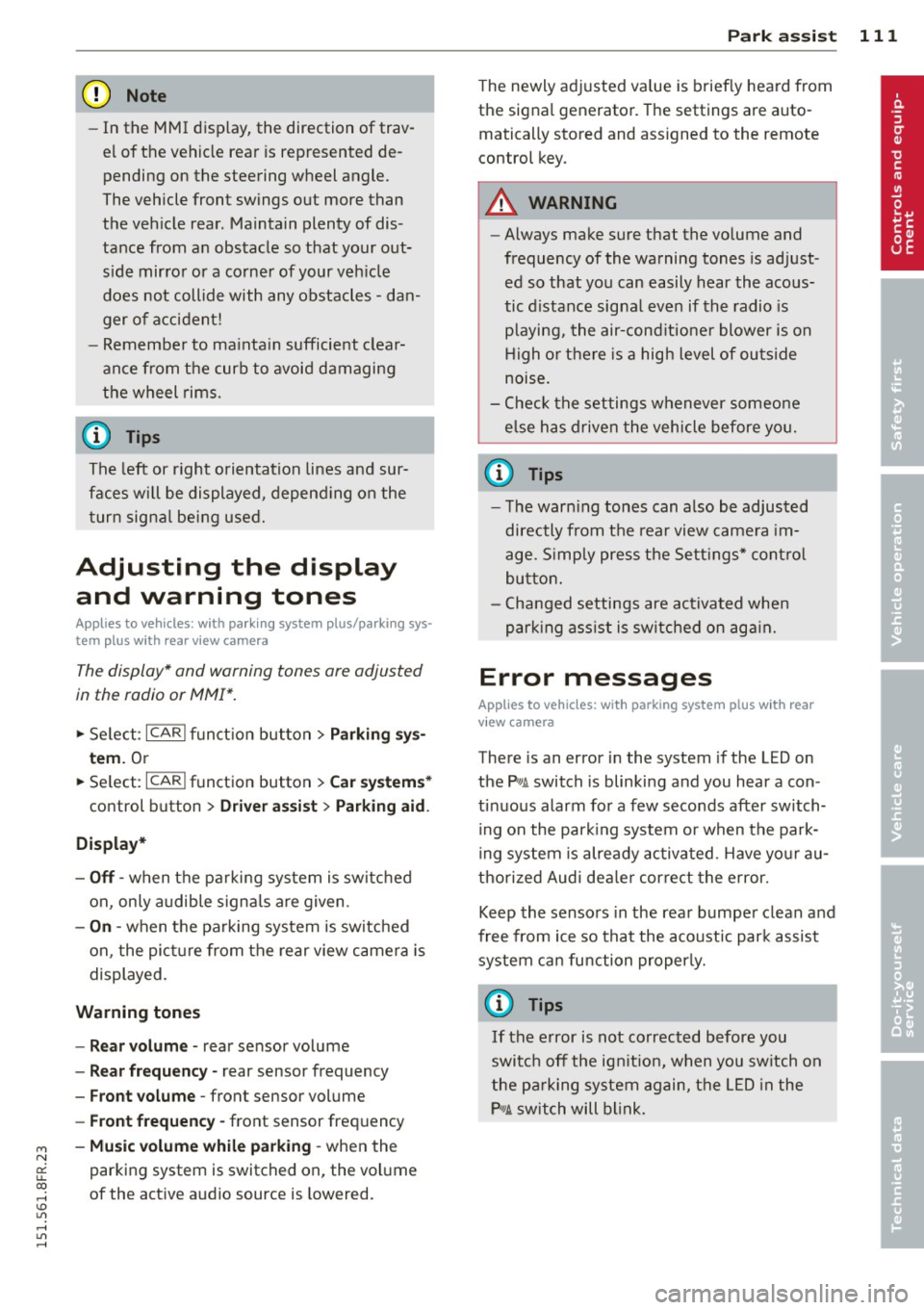

(D Note
-In the MMI display, the directio n of trav­
el of the vehicle rear is represented de­
pending on the steering wheel angle.
The vehicle front swings out more than
the veh icle rear . Maintain plenty of dis­
tance from an obstacle so that your out­
s ide mirro r or a corner of your veh icle
does not collide with any obstacles -dan­
ger o f accident!
- Remember to ma inta in sufficie nt clear­
ance from the curb to avoid damaging
the wheel rims.
(j) Tips
The left or right orientation lines and sur­
faces will be di splayed, depend ing on the
t ur n signa l being use d.
Adjusting the display
and warning tones
Applies to vehicles: with parking system plus/ parking sys­
tem plus with rear view camera
The display* and warning tones are adjusted
in the radio or MMI*.
,.. Se lect : I CARI fu nct ion button > Parking sy s­
tem.
Or
,.. Se lect : ~ I C~ A,..., R,..., I function button > Car system s*
control button > Drive r assist > Parking aid .
Display*
-Off -when t he parking system is sw itch ed
on, only a udib le signa ls are given .
-On -when the parking sys tem is switched
on, the pict ure from the rear view camera is
displayed.
Warning tones
- Rear volume -
rear sensor volume
-Rear frequency -rear sensor frequency
-Front volume -front sensor volume
-Front frequency -front sensor freq uency
- Mu sic volume while pa rking -when the
parking system is switched on, the vol ume
of the activ e audio source is lowered.
P ark a ssis t 11 1
The newly adj usted va lue is briefly hea rd from
the sig na l generato r. Th e settings are auto­
matically stored and assigned to the remote
control key.
A WARNING
- Always make sure that the vo lume and
frequency of the warning tones is ad just ­
ed so that yo u can easily hear the acous­
tic d istance signa l even if the radio is
p laying, the air-cond itio ne r blower is on
High or there is a high level of ou ts ide
noise.
- Chec k the settings whenever someone
e lse has drive n the vehicle before yo u.
(D Tips
- The warn ing tones can also be adjus ted
directly from t he rear view came ra im­
age. S imp ly press the Sett ings* cont ro l
bu tton.
- Cha nged settings are ac tiva ted whe n
park ing ass ist is swi tc hed on aga in.
Error messages
Applies to vehicles: with parking system plus with rear
view camera
There is an error in the system if the LED on
the
p, ,; A switch is blinki ng and you hear a con ­
tinuous alarm fo r a few seconds after switch­
ing on the park ing system or when the park­
ing system is already activated . Have yo ur au­
t h orized Aud i dea le r cor re ct the e rror.
Keep th e senso rs in the rea r bumpe r clean and
free from ice so that the acoust ic par k assist
system can fu nction properly.
@ Tips
If the error is not corrected before you
switc h off the ig nitio n, when you sw itch on
the p arking system again, the LED in the
P" JA switch will b link.

112 Driving Saf ely
Driving Safely
General notes
Safe driving habits
Please remember -safety first!
This chapter contains important information,
tips, instructions and warnings that you need
to read and observe for your own safety, the
safety of your passengers and others . We have
summarized here what you need to know
about safety belts, a irbags, ch ild restra ints as
well as child safety. Your safety is for us
priori­
ty number 1.
Always observe the info rmat ion
and warn ings in th is sect ion -fo r yo ur own
safety as well as that of your passengers .
The information in this se ction app lies to all
model ve rsions of your veh icle . Some of the
feat ures described in this sec tions may be
standard equipment on some models, or may
be optional equipment on others . If you are
not sure, ask your authorized Audi dealer.
A WARNING
- Always make sure that you follow the in­
struct ions and heed the WARNINGS in
this Manual. It is in your interest and in
the inte rest of you r passengers.
- Always keep the complete Owner's Liter­
ature in your Audi when you lend or sell
your vehicle so that this important info r­
mation will always be ava ilable to the
dr iver and passengers.
- Always keep the Owner's literature handy
so that you can find i t eas ily if you have
ques tions.
Safety equipment
The safety features are part of the occupant
restraint system and work together to help
redu ce the risk of injury in a wide variety of
accident situations.
Your safety and the safety of your passenge rs
should not be left to chance. Advances in
technology have made a varie ty o f fea tures
avai la bl e to he lp re duce the risk of injury in an accident
. The following is a list of just a few of
the safety features in your Audi:
- sophis tic ated s afety be lts fo r drive r and a ll
passenger sea ting pos it ions,
- be lt fo rce limi ters fo r the front seats,
- belt p retensioners for the seats,
- head restra ints for each seating posit io n,
- front airbags,
- side airbags in the front seats,
- specia l LATCH anchorages for child re -
straints,
- adj ustab le steering column .
T hese ind iv idual safety features, can wo rk to­
ge ther as a system to he lp p rotect you and
yo ur passengers in a w ide r ange of acci dents .
T hese features canno t work as a system i f
they a re not always correct ly adjusted and co r­
rect ly used.
Safety i s everybody's responsibility!
Important things to do before driving
Sofety is everybody's job! Vehide ond occu­
pant safe ty alw ays depends on the informed
and careful driver.
F o r yo ur safe ty and the safety of your passen­
gers,
before driving alwa ys:
" Make su re t hat all lights and signa ls are op ­
erati ng correctly .
" Ma ke sur e that the t ire p ressu re is co rrect.
" Ma ke su re t hat all windows are clean and af­
ford good v isibili ty to the outs ide.
" Secure all luggage and other items caref ully
¢page 65.
"Ma ke su re that nothing can interfere with
the pedals.
" Adjust front seat, head restraint and mirrors
correctly fo r your height .
" Inst ruct passe ngers to adjust the head re­
straints according to the ir height .
" Ma ke sur e to use the r igh t chi ld res traint
correctly to p rotect children ¢
page 15 2,
Child Safety .
"Sit prope rly in your seat and ma ke sure t hat
your passengers do the same ¢
page 60,
Seats and storage. ..,

"' N
a: LL co
rl I.O
"' rl
"' rl
.. Fasten your safety belt and wear it properly.
Also instruct your passengers to fasten their
safety belts properly ¢
page 123.
What impairs driving safety?
Safe driving is directly related to the condi­
tion of the vehicle, the driver as well as the
driver's ability to concentrate on the road
without being distracted.
The driver is responsible for the safety of the
vehicle and a ll of its occupants . If your ability
to drive is impaired, safety risks for everybody
in the vehicle increase and you also become a
hazard to everyone else on the road ¢ ,&. .
Therefore:
.,. Do not let yourself be distracted by passen­
gers or by us ing a cellular telephone.
.. NEVER drive when your driving ability is im ­
paired (by medicat ions, alcohol, drugs, etc.) .
.. Observe all traffic laws, rules of the road
and speed limits and plain common sense.
.. ALWAYS adjust your speed to road, traffic
and weather conditions.
.. Take frequent breaks on long trips. Do not
drive for more than two hours at a stretch .
.. Do NOT drive when you are tired, under
pressure or when you are stressed.
A WARNING
Impaired driving safety increases the risk
of serious personal injury and death when­
ever a vehicle is being used.
Driving Safely 113
Proper occupant
seating positions
Proper seating position for the driver
The proper driver seating position is impor­
tant for safe, relaxed driving.
Fig. 131 Correct seat ing pos ition
For your own safety and to reduce the risk of
injury in the event of an accident, we recom­
mend that you adjust the driver's seat to the
following position:
.. Adjust the driver's seat so that you can easi ­
ly push the pedals all the way to the floor
while keeping your knee(s) slightly bent
¢ ,&. .
.. Adjust the angle of the seatback so that it is
in an upr ight position so that your back
comes in full contact with it when you drive .
.. Adjust the steering wheel so that th ere is a
distance of at least 10 inches (25 cm) be­
tween the steering wheel and yo ur breast
bone ¢
fig. 131. If not possible, see your au­
thorized Audi dealer about adaptive equip­
ment .
.. Adjust the steering wheel so that the steer­
ing wheel and airbag cover points at your
chest and not at your face .
.,. Grasp the top of the steer ing whee l with
your elbow(s) slightly bent .
.. App lies to veh icles with adjustable head re­
straints: Adjust the head restraint so the up­
per edge is as even as possible with the top
of your head. If that is not possible, try to
adjust the head restraint so that it is as
close to this posit ion as possible.
.. Fasten and wear safety belts correctly
¢page 126.

114 Driving Safely

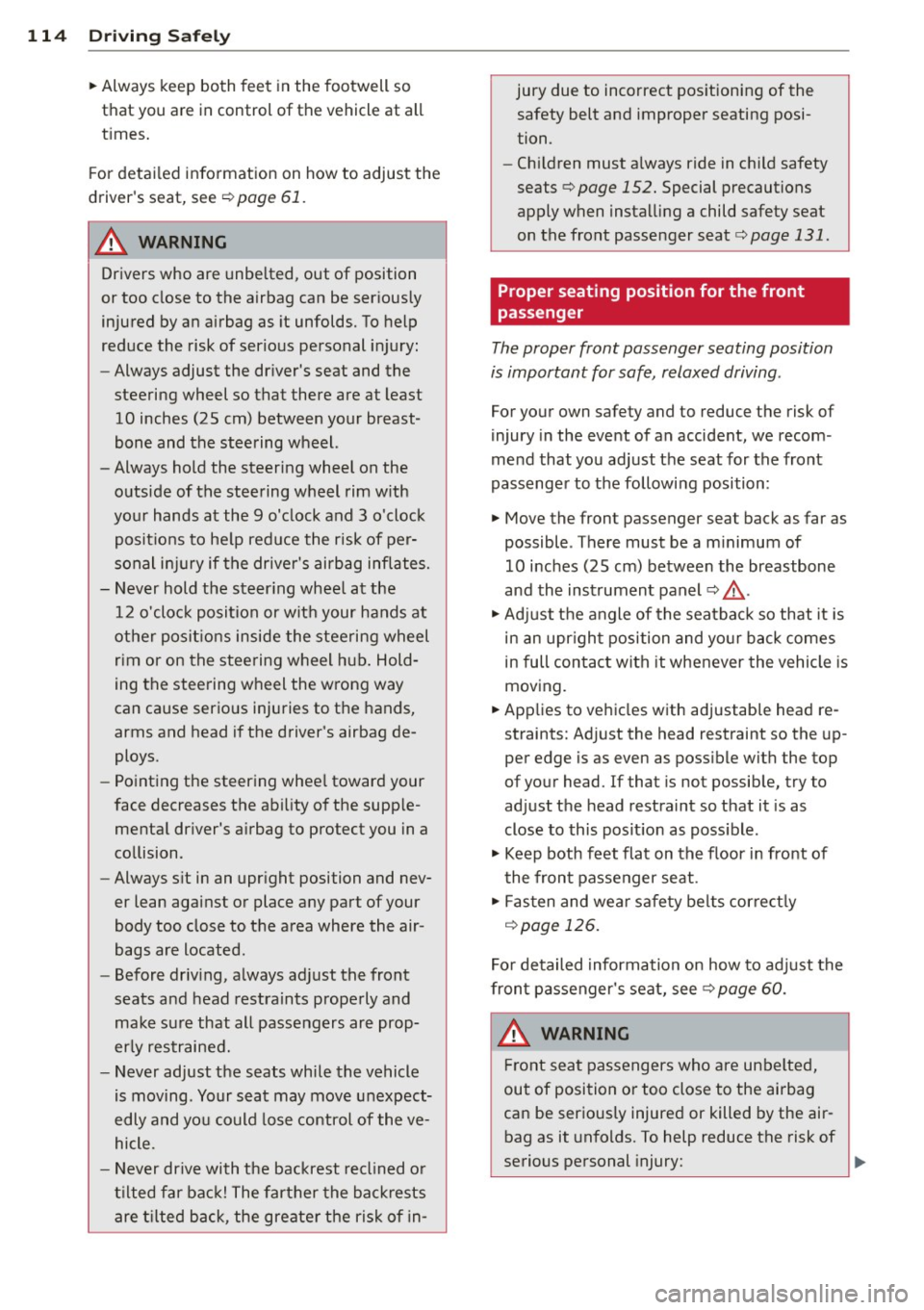

• Always keep both feet in the footwell so
that you are in control of the vehicle at all
times.
For detailed information on how to adjust the
driver's seat, see
¢page 61.
A WARNING
Drivers who are unbelted, out of position
or too close to the airbag can be seriously
injured by an airbag as it unfolds. To help
reduce the risk of serious personal injury:
- Always adjust the driver's seat and the
steering wheel so that there are at least
10 inches (25 cm) between your breast­
bone and the steering wheel.
- Always hold the steering wheel on the
outside of the steering wheel rim with
your hands at the 9 o'clock and 3 o'clock positions to help reduce the risk of per­
sonal injury if the driver's airbag inflates.
- Never hold the steering wheel at the
12 o'clock position or with your hands at
other positions inside the steering wheel
rim or on the steering wheel hub. Hold­
ing the steering wheel the wrong way
can cause serious injuries to the hands,
arms and head if the driver's airbag de­
ploys.
- Pointing the steering wheel toward your
face decreases the ability of the supple­
mental driver's airbag to protect you in a
collision.
- Always sit in an upright position and nev­
er lean against or place any part of your
body too close to the area where the air­
bags are located.
- Before driving, always adjust the front
seats and head restraints properly and
make sure that all passengers are prop­
erly restrained.
- Never adjust the seats while the vehicle
is moving . Your seat may move unexpect­
edly and you could lose control of the ve­
hicle.
- Never drive with the backrest reclined or
tilted far back! The farther the backrests
are tilted back, the greater the risk of in- jury due to incorrect positioning of the
safety belt and improper seating posi­
tion.
- Children must always ride in child safety
seats ¢
page 152. Special precautions
apply when installing a child safety seat
on the front passenger seat¢
page 131.
Proper seating position for the front
passenger
The proper front passenger seating position
is important for safe, relaxed driving .
For your own safety and to reduce the risk of
injury in the event of an accident, we recom ­
mend that you adjust the seat for the front
passenger to the following position :
• Move the front passenger seat back as far as
possible . There must be a minimum of
10 inches (25 cm) between the breastbone
and the instrument panel¢,&. .
• Adjust the angle of the seatback so that it is
in an upright position and your back comes
in full contact with it whenever the vehicle is
moving.
• Applies to vehicles with adjustable head re­
straints: Adjust the head restraint so the up­
per edge is as even as possible with the top
of your head. If that is not possible, try to
adjust the head restraint so that it is as
close to this position as possible.
• Keep both feet flat on the floor in front of
the front passenger seat.
• Fasten and wear safety belts correctly
¢page 126.
For detailed information on how to adjust the
front passenger's seat, see
¢ page 60.
A WARNING
-
Front seat passengers who are unbelted,
out of position or too close to the airbag
can be seriously injured or killed by the air­ bag as it unfolds. To help reduce the risk of
serious personal injury:

"' N
a: LL co
rl I.O
"' rl
"' rl
-Passengers must always sit in an upright
posit ion and never lean against or place
any part of their body too close to the
area where the airbags are located .
- Passengers who are unbelted, out of po­
sition or too close to the airbag can be
seriously injured by an airbag as it un­
folds with great force in the blink of an
eye .
- Always make sure that there are at least 10 inches (25 cm) between the front
passenge r's breastbone and the instru­
ment pane l.
- Ea ch passenger must always sit on a seat
of the ir own and properly fasten and
wear the safety bel t be long ing to that
seat .
- Before driv ing, a lways adj ust the front
passenger seat and head restra int prop­
er ly .
- Always keep your feet on the f loor in
front of the seat . Never rest them on the
seat, instrument panel, out of the win ­
dow, etc . The airbag system and safety
belt w ill not be ab le to protect you prop­
er ly and can even increase the risk of in­
jury in a crash .
- Never drive with the backrest reclined or tilted far back! The farther the backrests
are ti lted back, the greater the risk of in­
jury due to incorrect positioning of the
safety belt and improper seating posi­
t io n.
- Children must always ride in child safety
seats
c::> page 152 . Special precautions
apply when installing a child safety seat
o n t he front pas senge r sea t
c::> page 131.
Proper seating positions for passengers
in rear seats
Rear seat passengers must sit upright with
both feet on the floor consistent with their
physical size and be properly restrained whenever the vehicle is in use.
To reduce the risk of injury caused by an incor­
rect seat ing pos ition in the event of a sudden
braking maneuver or an accident, your pas-
Dr ivin g Sa fely 115
sengers on the rear bench seat must always
observe the following:
'" Make su re that the seatba ck is secure ly
la tched in the up right position
c::> page 66.
'" Keep both feet flat in the footwell in front of
the rear seat.
'" Fasten and wear safety belts proper ly
c::> page 126 .
'"Make sure that children are always properly
restrai ned in a child restraint that is appro ­
pr iate for the ir s ize and age
c::> page 152.
.&, WARNING
Passengers who are imp roperly seated on
the rea r seat can be seriously i njured in a
crash.
- Each passenge r must always si t on a seat
of their own and properly fasten and
wear the safety belt belonging to that
seat.
- Safety belts only offer maximum protec­
tion when the sea tback is sec urely latch ­
ed in the upright position and the safety
be lts are properly positioned on the
body. By not sitting upright, a rear seat
passenger increases the risk of personal
inj ury from improperly positioned safety
be lts!
Proper adjustment of head restraints
App lies to vehicles: with adjustable head restraints
Correctly adjusted head restraints are an im­
portant part of your vehicle's occupant re­
straint system and can help to reduce the risk
of injuries in accident situations .
Fig . 1 32 Head restra int: vi ewed from the front

116 Driving Saf ely
The head res traints must be correct ly a djust­
ed to achieve the best protection.
... Adjust the head restraints so the upper edge
is as even as poss ible w ith the top of yo ur
head.
If that is not possib le, try to ad just
the head restraint so that it is as close to
t h is position as possible¢
fig. 132.
Adjusting head restraints ¢ page 63 .
.&, WARNING
All seats are equipped with head re­
straints . Driving without head restraints or
w ith head restra ints that are not proper ly
adjusted increases the risk of ser ious or fa­
tal neck injury dramat ically . To help reduce
the risk of in ju ry:
- Always drive with the head restraints in
place and proper ly adjusted .
- Every person in the veh icle must have a
properly adjusted head restra int.
- Always make sure each person in the ve­
hicle properly adjusts the ir head re­
straint. Adj ust the head restraints so the
upper edge is as even as possible with
the top of your head . If that is not possi­
ble, try to adju st the head restra int so
that it is as close to this position as pos ­
sible.
- Never attempt to adjust head rest raint
wh ile driving. If you have driven off and
must adjust the dr iver head rest for any
reason, first stop the ve hicle safe ly be­
fore attempting to adjust the head re­ straint.
- Children must always be properly re­
strained in a ch ild restraint that is appro­
pr iate for their age and size ¢
page 152.
Examples of improper seating positions
The occupant restraint system can only re­
duce the risk of injury if vehicle occupants are
properly seated.
I mproper seating positions can ca use serio us
in ju ry or death . Safety belts can on ly work
when they are properly positioned on the body. Improper seating positions reduce the
effectiven
ess of safety belts and wi ll even in­
c rease the r isk o f injury and death by moving
the safety belt to crit ica l areas of the body.
Imprope r sea ting positions a lso increase the
risk of serious inju ry and death when an a ir ­
bag deploys and str ikes an occupa nt w ho is
not in the proper s eating posit ion . A dr iver is
responsible for the safety of all veh icle o ccu­
pants and espe cially for child ren. The re fo re :
... Never allow anyone to assume an incor rect
seating position when the vehicle is being
used ¢& .
T he following bulletins list o nly some sample
pos itions tha t w ill increase the r isk of serious
i njury and dea th . O ur hope is that t hese exam­
ples will ma ke yo u more aware o f seat ing po­
s itions tha t a re dangerous.
Therefore , whenever the vehicle is
moving:
- neve r sta nd up i n the vehicle
- neve r stand on the seats
- never kneel on the seats
- never ride wit h the seatback reclined
- never lie down on the rear seat
- never lean up against the instrument panel
- neve r sit on the e dge of the seat
- neve r sit s ideways
- neve r lean out the window
- never put your feet out the window
- never put your feet on the instrument panel
- never rest your feet on the seat cush ion or
back of the seat
- neve r ride in the footwell
- never ride in the cargo a rea
.&, WARNING
Imp roper seating posit ions increase the
risk of ser ious persona l injury and death
whenever a vehicle is being used.
- Always make sure that all vehicle occ u-
pants stay in a proper seating position
and are properly restrained whenever the
veh icle is being used.

M N
er
u..
co ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
Driver and passenger
side footwell
Important safety instructions
Applies to vehicles: with knee airbags
A WARNING
Always make sure that the knee a irbag can
inflate without interference . Objects be ­
tween yourself and the airbag can increase
the risk of inju ry in an acc ident by interfer­
ing w ith the way the a irbag deploys or by
be ing p ush ed into you as the airbag de­
ploys .
- No persons (ch ild ren) or animals should
ride in the footwell in front of the pas­
senger seat. If the airbag deploys, this
can result in serious or fata l injuries .
- No objec ts of any k ind sho uld be car ried
in t he footwell area in front of the driv­
er's or passenger's seat . B ulky objects
(shopping bags, for example) can ham­
per or prevent proper deployment of the
airbag . Small objects can be thrown
through the vehicle if the airbag deploys and injure you o r your passengers .
Pedal area
Pedals
The pedals must always be free to move and
must never be interfered with by a floor mat
or any other object.
M ake sure t hat all pedals move freely witho ut
in te rference and th at nothing prevents them
from returning to the ir origina l positions.
Only use floo r mats that leave the peda l area
free and can be secured w it h floor mat fas ten ­
e rs.
If a b rake circuit fails, increased b rake pedal
travel is req uired to br ing the vehi cle to a full
stop.
Dr iving S afel y 117
A WARNING
Pedals that cannot move free ly can cause
loss of vehicle control and increase the risk
of ser ious inju ry .
- Never p lace any objects in the drive r's
footwell . An ob ject cou ld get into the
pedal area and inte rfe re with pedal func­
tion . In case of sudde n bra ki ng o r an ac­
cident, yo u wo uld not be a ble to brake or
ac celer ate!
- Always ma ke su re tha t no thing can fall
or m ove into the driver's footwel l.
Floor mats on the driver side
Always use floor mats that can be securely
attached to the floor mat fasteners and do
not interfere with the free movement of the
pedals .
" Make s ure that the floor mats are prope rly
secured and cannot move and inte rfe re with
t he ped als~ ,&. .
U se on ly floor mats that leave the pedal area
unobst ructed and that are firmly secu red so
that they cannot slip o ut of posi tion . You ca n
obt ain suitab le floo r mats from yo ur aut ho r­
ized Audi dea ler .
Floor mat fastene rs a re insta lled in your Aud i.
Floor mats used in your vehicle must be at­
tac hed to these fastene rs . Prope rly secur ing
the floor mats will prevent them from sliding
i nto positions that could interfere with the
peda ls o r impa ir safe ope rat io n of yo ur vehicle
i n othe r ways.
A WARNING
Pedals that cannot move free ly can result
in a loss of vehicle control and inc rease the
risk of serious persona l injury.
- Always ma ke s ure that floo r mats a re
properly secu red.
- Never p lace or ins tall floor mats o r other
f loor coverings in the vehicle that cannot
be properly secured in p lace to prevent
them from slipping and interfer ing with
~
•
•

118 Driving Safely
the pedals or the ability to control the
vehicle.
- Never place or install floor mats or other
floor coverings on top of already instal­
led floor mats. Additional floor mats and
other coverings will reduce the size of
the pedal area and interfere with the
pedals.
- Always properly reinstall and secure floor
mats that have been taken out for clean ­
ing.
- Always make sure that objects cannot
fall into the driver footwell while the ve­
hicle is moving. Objects can become
trapped under the brake pedal and accel­
erator pedal causing a loss of vehicle
control.
Stowing luggage
Loading the luggage compartment
All luggage and other objects must be prop­
erly stowed and secured in the luggage com­
portment.
Fig. 133 Safe load pos itio nin g: place heavy objects as
low a nd as fa r forward as possible.
-M N 0 u.
l:l
Loose items in the luggage compartment can
shift suddenly, changing vehicle handling
characteristics . Loose items can also increase
the risk o f serious personal injury in a sudden
vehicle maneuver or in a collision .
... Distribute the load evenly in the luggage
compartment .
... Always place and properly secure heavy
items in the luggage compartment as low
and as far forward as possible
cc> fig . 133 .
... Secure luggage using the tie-downs provid­
ed
c:> poge 67.
... Make sure that the rear seatback is securely
latched in place.
A WARNING ,..__
Improperly stored luggage or other items
can fly through the vehicle causing serious
personal injury in the event of hard brak­
ing or an accident. To help reduce the risk
of serious personal injury:
-Always put objects, for example, luggage
or other heavy items in the luggage com­
partment.
- Always secure objects in the luggage
compartment using the tie-down eyelets
and suitable straps.
A WARNING
Heavy loads will influence the way your ve­
hicle handles. To help reduce the risk of a
loss of control leading to serious personal
injury:
-Always keep in mind when transporting
heavy objects, that a change in the cen­
ter of gravity can also cause changes in
vehicle handling:
- Always distribute the load as evenly as
possible.
- Place heavy objects as far forward in
the luggage compartment as possible.
- Never exceed the Gross Axle Weight Rat­
ing or the Gross Vehicle Weight Rating
specified on the safety compliance stick­
er on the left door jamb. Exceeding per­
missible weight standards can cause the
vehicle to slide and handle differently .
- Please observe information on safe driv­
ing
~ page 112.
A WARNING
To help prevent poisonous exhaust gas
from being drawn into the vehicle, always
keep the rear lid closed while driving.
- Never transport objects larger than
those fitting completely into the luggage
~
