and handling under a variety of driving condi­
tions. Ask your authorized Audi dea ler for
more deta ils.
The low aspect ratio of these tires is indicated
by a numeral of
55 or less in the tire's size
designation. The numeral represents the ratio
of the tire's sidewa ll height in relation to its
trea d width expressed in percentage. Conven­
ti onal tires have a height/width ratio of 60 or
more.
The performance of low-aspect-ratio tires is
particularly sensitive to improper inflation
pressure . It is therefore important that low
aspect ratio tires are inflated to the specified
pressur e and that the inflation pressure is
regularly checked and maintained. Tire pres­
sures should be checked at least once a
month and always before a long trip
¢ page 221, Checking tire pressure.
What you can do to avoid tire and rim
damage
Low aspect ratio tires can be damaged more
easily by impact with potho les, curbs, gullies
or ridges on the road, particu larly if the tire is
underinflated .
I n order to minimize the occ urrence of impact
damage to the tir es of your vehicle, we recom­
mend that you observe the following precau­
tions:
- Always maintain recommended inflation
pressures. Check your tire pressure every
2,000 miles (3,000 km) and add air if neces­
sary .
- Drive carefully on roads with potholes, deep
gullies or ridges. The impact from driving
t hr ough or over such obstacles can damage
your tires. Impact with a curb may also
cause damage to your tires.
- After any impact, immediately inspect your
t ir es or have them inspected by the nearest
authorized Aud i dealer. Replace a damaged
t ir e as soo n as possible.
- Inspect your t ires every 2,000 miles (3,000
km) for damage and wear. Damage is not al­
ways easy to see . Damage can lead to loss of
air and underinflation, wh ich could eventu-
Tires and wheels 239
ally cause tire failure. If you believe that a
tire may have been damaged, rep lace the
tire as soon as possib le.
- These tires may wear more quickly than oth­
ers.
- Please also remembe r that, while these tires
deliver responsive handling, they may ride
less comfortably and make more noise than
other choices.
Reduced performance in winter/cold
season conditions
All tires are designed for certain purposes.
The low aspect ratio, ultra high performance
tires or iginally installed on your vehicle are in­
tended for maximum dry and wet road per­
formance and handling. They are not suitable
for cold, snowy o r icy weather conditions. If
you drive under those circumstances, you
should equip your vehi cle w ith all-season or
winter tires, which offer better traction under
those conditions. We suggest you use the rec ­
ommended snow or a ll-season tires specified
for your vehicle, or their equivalent.
Refer to¢
page 236 for more de tailed infor­
mation regarding winter tires.
Ti re pressure
monitoring system
ill General notes
Applies to vehicles: with tire pressure monitoring system
Each tire, including the spare (if provided),
sho uld be checked monthly when cold and in ­
flated to the inflation pressure recommended by the veh icle manufacturer on the veh icle
placard or tire inflation pressure label. (If your
vehicle has tires of a d ifferent size than the
s ize indicated on the vehicle placard or tire in­
flat io n pressure label, you should determine
the proper t ire inflation pressu re for those
tires).
As an added safety feature, your veh icle has
been equipped with a tire pressure mon itoring
system (TPMS) that illum inates a low tire
pressure te llt ale when one or more of your
tires is significantly under-inflated. .,.
•
•

24 0 T ire s and wheel s
According ly, when the low tire pressure te ll­
tale illuminates, you shou ld stop and check
your tires as soon as possible, and inf late
them to the proper pressure. Driving on a s ig­
n ificantly under-inflated tire causes the tire to
overheat and can lead to tire failure. Under-in­
flation also reduces fuel efficiency and tire
tread life, and may affect the vehicle's han­
dli ng and stopp ing ability.
Please note that the TPMS is not a subst itute
for proper tire maintenance, and it is the driv­
e r's responsib ility to ma inta in correct tire
p ressu re, even if under- inflation has not
reached the leve l to trigger ill umination of the
TPMS low tire pressure telltale.
Your veh icle has also been equ ipped with a
TPMS malfunction indicato r to indica te when
the system is not opera ting properly. The
TPMS mal function indicator is combined wi th
the low tire press ure telltale . When the sys­
tem detects a malfunction, the te lltale will
f lash fo r approximately one minute and then
remain cont inuous ly illuminated. This se­
quence will continue upon subsequen t vehicle
start -ups as long as the ma lfunction ex ists .
When the malfunct ion indicator is ill uminat­
ed, the system may not be able to detect or
signal low t ire pressure as intended . TPMS
malfunctions may occur for a variety of rea ­
sons , includ ing the installat ion of replace­
ment or a lternate tires or whee ls on the veh i­
cle that prevent the TPMS from funct ioning
p roperly. Always check the TPM S malf unct ion
tellta le after replacing one o r more t ires or
wheels on your veh icle to ensure that the re­
p lacement or a lternate tires and wheels allow
the TPMS to continue to function p roperly. Tire pressure indicator appears
Applies to vehicles: wit h tire press ure mo nitor ing system
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too
low or if there is a system malfunction .
Fig . 1 87 Displa y: un derin flation w arnin g
U sing the ABS sensors, the tire pressure moni­
toring system compares the tire tread circum ­
ference and vib ration characteristics of the in­
dividua l tires.
If the pressure decreases in one
or more t ires, this is indicated in the instru­
ment cluster with a
RI] war ning symbol and a
message ¢
fig. 187 . The driver message in the
display goes out afte r 5 seconds . The driver
message can b e displayed again by pressing
t h e
ISE TI button. If o nly one t ire is affec ted,
the d isp lay w ill indicate its posi tion.
The tire pressure monitoring system must be reset via rad io or M MI* each time the pres­
su res a re adjusted (e.g. when swit ching be­
tween partial and f ull load p ress ure) or after
changing or rep lacing a tire on your ve hicle
¢
page 241 . The TPMS indicator only mon i­
tors the ti re pressure that yo u have previous ly
stored. You can find the recommended tire
pressures for your vehicle on the label on driv­
er 's side 8-pillar ¢
page 217.
Tire tread circumference and vibration charac­
teristics can change and cause a ti re pressure
warning if:
- the tire press ure in one or more tires is too
low,
- the t ire has struc tural damage,
- t he t ire p ress ure was c hanged, wheels rota t-
ed or rep laced but the TPMS was not reset
¢ page 241. ..,_

M N
er
u..
co ,...., \!) ..,.,
,...., ..,., ,....,
Warning symbol s
ti] Loss of p ressure in at least one tire c::> ,&. .
Check the tire or tires and replace o r repair if
necessary . The indicator light
ti] in the instru­
ment cluster also illuminates
c::> page 13.
Check/correct the pressures of all four tires
and reset TPMS v ia radio or MMI*.
liif:I ( T ire Pressure Monitoring System) Ti re
p ressu re : Sys tem malfun ction !.
Ifffi:m appears after sw itching the ign ition on
or while driving and the indicator light
ti] in
the instrument cluster blinks for approxi­
mate ly one min ute and then stays on, there is
a system malfunction. Attempt to store the
correct t ire pressure
c::> page 241. If the ind i­
cator light does not turn off or if it turns on
shortly thereafter, immediately drive your ve­ h icle to an authorized Audi dealer or author­
i zed repair facility to have the malfunction
corrected.
_& WARNING
- If the t ire pressure indicator appea rs in
the instrument cl uster display, one or
more of you r tires is significantly under­
inflated. Reduce your speed immediately
and avoid any hard steering or braking
maneuvers. Stop as soon as possible and
check the t ires and the ir pressures . In­
flate the tire pressure to the proper pres­ sure as indicated on the vehicle's t ire
pressure label
c::> page 217. Driving o n a
signific antly under-inflated tire ca uses
the tire to overhea t and can lead to tire
f ailure. Under-inflation also is likely to
impair the vehicle's handling and stop­
ping ability.
- The driver is responsible for maintaining
the correct tire pressures . You must
check the t ire pressures regular ly.
- Under certain cond itions (such as a spor ­
ty driving style, w inter condit ions or un­
paved roads), the pressure monitor ind i­
cator may be de layed.
-Ask your authorized Audi dealer if run­ flat tires may be used on your veh icle.
Tire s an d wheel s 241
(D Tips
-The tire pressure monitor ing system may
stop working when there is an ESC ma l­
function.
- Using snow c hains may res ult in a system
ma lf u nction.
- The tire pressure mon itoring system on
your Audi was deve loped using tires with
the "ROl" identificat ion on the tire side­
wall
c::> page 230. We recommend using
these tires.
Reset tire pressure monitoring system
App lies to vehicles : wit h tire p ress ure mo nitor ing system
If the tire pressure is adjusted, wheels ore ro­
tated or changed, the TPMS must be reset via
radio or MM!*.
.,. Before storing the new t ire pressures, check
that the current pressures on all four tires
correspond to the specified va lues and
adapt the pressures to the current load
c::> page 217 .
.,. Switch on the ignition.
.,. Select: the
I CARI fu nct ion button > Tir e pre s­
sure monitoring
> Store now . Or
.,. Select: the
I CAR I fu nction button > Car s ys­
tem s*
contro l butto n > Servicing & checks >
Tire p ressure monitoring > Sto re tire pres ­
sures
> Yes , store now .
(D Tips
Do not store the tire pressure if there are
snow cha ins on the tire. Otherwise, a sys­
tem malfunction may occur.
•
•

24 2 What do I do n ow ?
What do I do now?
Vehicle tool kit
The tools ore stored underneath the floor
panel in the luggage comportment.
Fig. 188 Luggage compartment: tool kit
When you need access to the vehicle too l kit
or jack*, you will need to take out the cover.
The vehicle tool kit includes:
- Tire repair kit (Tire Mobility System)
- Plastic cl ip for removing wheel bo lt caps*
- Alignment p in fo r cha nging the whee l
- Screwdriver with reversible blade
- Tool for chang ing light bulbs
- Reversible bit (reversible Torx bit for chang-
ing light bu lbs)
- Rod for jack
- Jack *
- Lug wrench
- T owing eye
Some of the ve hicle it ems listed above a re
p rov ided on certain models on ly or are opt io n­
a l extras.
Before returning the jack * to its place, retract
the jack arm fully .
.&, WARNING
- Never use the screw driver hex head to
t igh ten whee l bolts, s in ce the bolts can­
not at tain t he necess ary tightening tor­
que i f yo u use the hex head, potentially
causing an accident .
- T he factory -supplied ja ck is intended on ­
ly for your vehicle model. Under no cir ­
c u mstances should it be used to
lift
heavy vehicles or othe r loads; yo u risk in­
juring yo urself .
- Never start the engine when the vehicle
is raised, wh ich could cause an acc ident.
- Support the vehicle securely wit h app ro­
priate stands if work is to be performed
unde rneath the vehicle; otherwise, there
is a potentia l risk for injury.
Tire repair
General and safety pointers
Tire repair is intended only for temporary,
short-term use.
F ig . 1 89 Tire damage for wh ic h the Tire Mob ility Sys­
tem is not suited
Your vehicle is equipped with a tire repa ir k it,
the
Tire Mobility System (TMS ).
In the event of a tire failure, the TMS is in the
luggage compartme nt under the floor. It con­
s ists of the tire sealant and an e lectric air
pump .
U sing
T MS , tire damage caused by foreign
bodies up to abo ut
0.16 inch (4 mm ) in diam­
eter can be sea led reliably.
T he foreign object must stay in the tire .
The t ire sealant must not be used:
- for cu ts or pun ctures in t he tire wh ich a re
larger than 0 .16 inch (4 mm)
¢ fig. 189 @
-for damage to the rim @
- if you have been driving with very low ti re
p ressures or tires wi th no air@
U sing the
TMS is described in the section
¢ page 243.

"' N
a: LL co
rl I.O
"' rl
"' rl

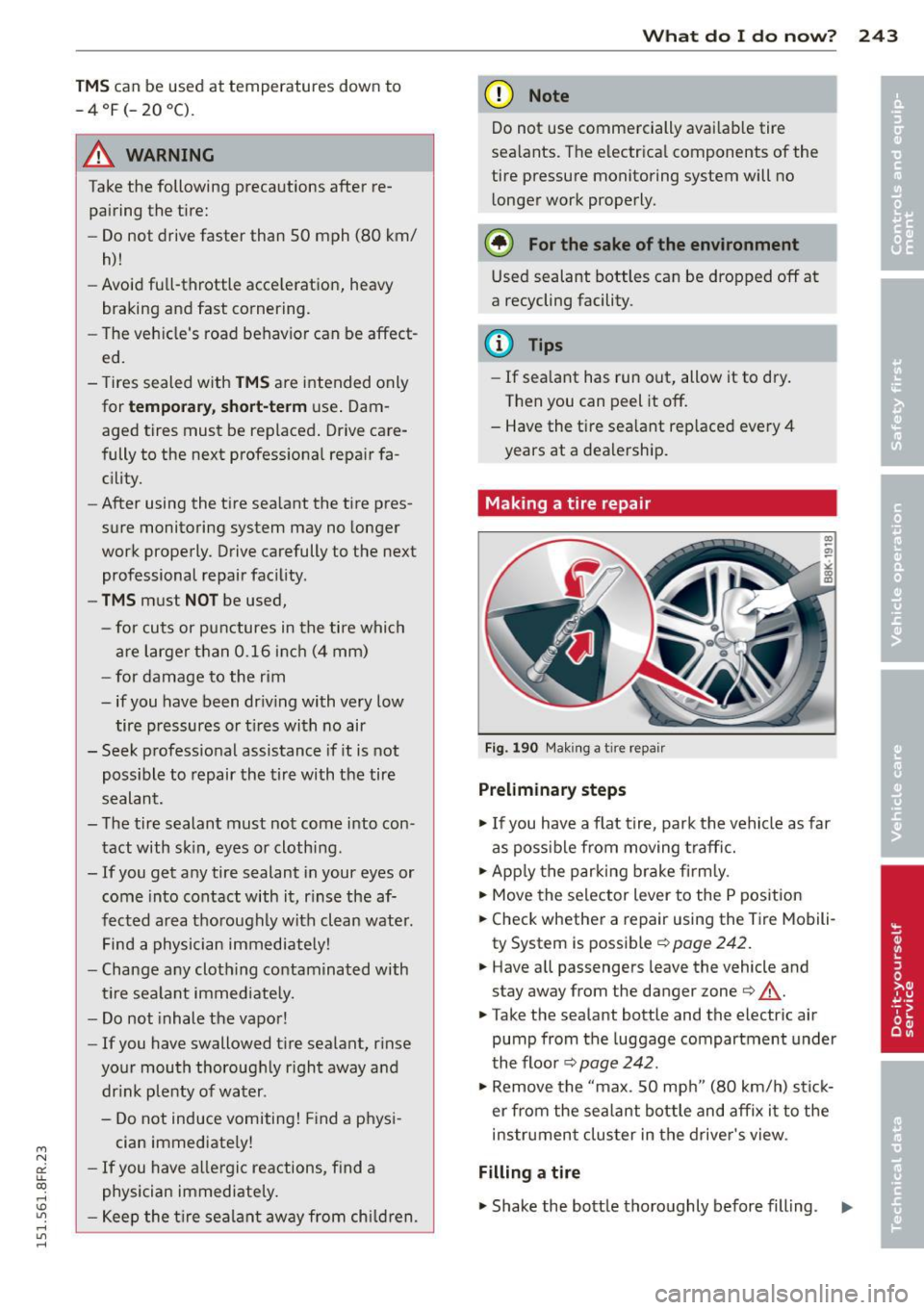

TMS can be used at temperatures down to
- 4 °F (- 20 °C).
A WARNING
Take the following precautions after re ­
pairing the tire:
- Do not drive faster than 50 mph (80 km/
h)!
- Avoid fu ll-throttle acce leration, heavy
braking and fast cornering.
- The vehicle's road behavior can be affect ­
ed.
- Tires sealed w ith
TMS are intended only
for
temporary, short-te rm u se . Dam­
aged tires must be replaced . Drive care­
fully to the next profess iona l repa ir fa ­
c ility.
- After using the t ire sea lant the tire pres­
sure monitoring system may no longer
work properly. Drive carefully to the next
professional repair fac ility.
- TMS must NOT be used,
- for cuts or punctures in the ti re whi ch
a re l arger tha n 0.16 inch (4 mm)
- for damage to the rim
- if you have been dr iv ing with very low
tire pressures o r ti res with no air
- Seek p rofess ional assistance if it is not
poss ible to repair the tire with the tire
sealant.
- The tire sealant must not come into con­ tact with sk in, eyes or clothing.
- If you get any tire sealant in your eyes or
come into contact with it, r inse the af­
fected a rea t horoughly with cl ean water.
F ind a physicia n immediate ly!
- Change a ny clot hing contam ina ted with
t ir e sea lant immed iate ly.
- Do not inhale the vapo r!
- If you have swallowed t ire sealant, r inse
your mouth thorough ly r ight away a nd
dr ink plenty of water.
- Do not induce vomiting! Find a phys i­
cian immediate ly!
- If you have a lle rgic reactions, f ind a
physician immediate ly.
- K eep t he tire sea la nt away from chi ld ren.
What do I d o now ? 243
(D Note
Do not use comme rcially avai lab le tire
sea lants. T he e lectr ica l components of the
tire pressure monitoring system will no
l onger work properly.
@ For the sake of the environment
Used sealant bottles can be dropped off at
a recycling facility.
(D Tips
- If sea lant has run out, allow it to dry .
Then you can peel it off.
- Have the t ire sea lant rep laced eve ry 4
years at a dealership.
Making a tire repair
Fig . 190 Mak ing a t ire repa ir
Preliminary steps
11>-I f you have a f lat tire, park the vehicle as far
as poss ible from moving t raffic.
11>-App ly th e p ark ing b rake fi rm ly .
.,. Move the se lector lever to the P pos ition
.,. Check whether a repair using the Tire Mobili­
ty System is possib le ¢
page 242.
.,. Have a ll passengers leave the vehicle and
stay away from the danger zone~_&..
.,. Take the seala nt bottle and the electric air
pump from the luggage compartment under
the floor ¢
page 242.
.,. Remove the "max. SO mph" (80 km/h) stic k­
er from the sealant bottle and affix i t to the
ins trumen t cluster in the drive r's view.
Filling a tire
.,. Shake the bott le thoro ughly before filling. ..,

24 4 What do I do no w?
• Screw the accompanying filling hose com ­
pletely onto the bottle. This breaks through
the fo il seal automat ica lly at the connec­
t ion.
• Remove the valve cap from the tire valve and
unscrew the valve insert us ing the accompa ­
nying valve insert tool
q fig . 190 .
• Lay the valve insert on a clean surface .
• Remove the sealing p lug from the filling
hose and connect the hose to the t ire va lve.
• Hold the bottle with the bottom fac ing up­
ward and empty the entire contents into the
tire.
• Then pu ll out the hose and screw the valve
insert tightly back into the tire valve.
Inflating a ti re
• Screw the fi lling hose for the electric air
pump onto the tire valve and insert the con ­
nector into the cigarette lighter .
• Inf late the tire between 2.0 and 2.S bar and
read the pressure from the gauge.
• If this tire pressure is not reached, drive
your vehicle approximately 10 meters for ­
ward or backward so that the sealant can be redistr ibuted i nside the tire.
If at th is time
the required air pressure still cannot be reached, the t ire is too bad ly damaged and
cannot be repaired with the tire sea lant.
Final check
• After dr iving for about 10 minutes, stop and
check the t ire pressure .
• If tire pressure is less than 1.3 bar, the ti re
is too seve rely damaged. Do not cont in u e to
drive . Seek pro fessional assistance.
8_ WARNING
- Turn on the eme rgency flashers and set
up the emergency triangle if you have
flat tire while in moving traff ic. This is
for your protection and the for the safety
of other d rivers .
- Have all passengers leave the vehicle and
stay away from the danger zone (fo r ex­
ample, beh ind a guard rail). -
Read and follow the manufacturer's safe­
ty precautions on the compressor and in
the instructions on the bottle of sealant!
- If a tire pressure of 2.0 bar cannot
reached after inflating for six minutes,
then the t ire is too severely damaged. Do
not continue driving!
- Obta in qualified help if it is not possible
to perform the repair with the tire seal­
ant.
- If the tire pressure is less than 1.3 bar
after 10 m inutes of driv ing, then the the
tire is too seve rely damaged . Do not con­
tinue dr iving. Seek profess iona l assis­
tance.
Q) Note
Particular care is necessary if you are mak­
i ng a tire repa ir on a steep incl ine .
@ Tips
-Do not operate the electric air pump for
more than 6 minutes without stopping,
otherwise it can overheat . When the a ir
pump has cooled down, you can continue
t o u se i t.
- If sealant has spilled out, let it dry and
then you can remove it by peeling it away
like a foil.
- Rememb er to obtain a new bott le of
sealant from yo ur autho rized Aud i deale r
after repairing a tire. After this, the func­
tionality of the tire repair set is resto red.
- Obey all laws.
Changing a wheel
Before changing a wheel
Observe the following precautions for your
own and your passenger 's safety when chang­
ing a wheel.
• After you experience a tire failure, pull the
car we ll away from mov ing traffic and try to
reach
le vel ground before you stop q ,& .
• All passengers should lea ve the car and
move to a safe location (for instance, behind
the guardrail)
q ,& . ..,.

M N
er
u..
co ,...., \!) 1.1'1 ,...., 1.1'1 ,....,
~ Engage th e pa rkin g bra ke to p revent your
v eh icl e from ro lling unintentionally ¢,&. .
~ Move the sele ctor le ve r to the P po siti on.
~ Take the jack c> page 242 out of the l uggage
compartment .
_& WARNING
You or your passengers cou ld be injured
wh ile changing a wheel if you do not fol­
low t hese safety precautions :
-If you have a flat t ire, move a safe dis­
tance off the road. Turn off the eng ine,
tu rn the emergency flashers o n and use
othe r warning dev ices to alert o ther mo­
torists.
- Make su re that passengers wai t in a safe
place away from the vehi cle and well
away from the road and traff ic.
- T o help p revent the veh icle from mov ing
sudden ly and possibly slipping off the
jack, a lways fully set the parking brake
and block the whee l diagona lly opposite
the wheel being changed with the fo ld­
ing chocks or other objects. When one
front wheel is lifted off the ground, plac­ ing the Automat ic Transm iss ion in "P"
(Park) w ill
not prevent the vehicle from
moving.
- Before you change a wheel, be sure the ground is level and firm. If necessa ry,
use a sturdy board under the jack.
- Always store the vehicle tool kit , the
jack* and the replaced ti re in the luggage
compartment
c> page 118.
([) Note
If you are chang ing the wheel on a steep
incline, use a rock or similar object to
b lock the opposite whe el to prevent the
veh icle from mov ing.
Obey all laws.
What do I do now? 245
Changing a wheel
When you change a wheel , follow these­
quence described below step-by-step and in
exactly that order.
l. Remove the w heel bolt cap s* . For more
details see also
c> page 246, Wheels with
wheel bolt caps .
2. Loosen the wheel bolts .:>page 246.
3. Locate the p roper mounting point fo r the
jack and align the jack below that point
.:> page 247 .
4. Lift the car with the jack Q page 247 .
5. Remov e the wheel with the flat tire and
then install the other wheel
c> page 248.
6. Tig hten all wheel bolts lightly.
7.
Lower the vehicle with the jack .
8 . Use the wheel bolt w rench and
firmly
t ighten all wheel bolts in a crisscross pat­
te rn
Q page 246.
9. Replace the whe el bolt cap s*.
WARNING
A lways read and fo llow all WARN INGS and
information
Q .&. in Raising the vehicle on
page 247
and ¢ page 249 .
After changing a wheel
A wheel change is not complete without the
doing the following .
~ Always store the vehicle tool kit, t he jack*,
and the rep laced tire in the lugg age com­
par tment
Q page 118.
~ As soon as possib le, have the t ight ening
torque s
on all wheel bolts checked with a
torque w rench. The correct tightening to r­
que is 90 ft lbs. (120 Nm).
~ Have the flat tire replaced as soon as possi­
ble.
(D Tips
- If you not ice that the wheel bolts are
corroded and diff icult to turn while
chang ing a tire, they should be replaced
before you check the tightening torque . •
•

246 What do I do now?
-Drive at reduced speed until you have the
tightening torques checked.
Wheels with wheel bolt caps
Applies to vehicles: with whee l bo lts wit h caps
The caps must be removed first from the
wheel bolts before the bolts con be un­
screwed.
Fig. 191 Chan ging a wheel: removing the w hee l bo lt
c aps
Removing
,.. Push the
plastic clip provided with the vehi­
cle tool kit over the wheel bolt cap until it
engages.
,.. Pull on the
plastic clip to remove the cap
¢ fig. 191.
Refitting
• Place the caps over the wheel bolts and
push them back on.
The caps are to protect and keep the wheel
bolts clean . Loosening and tightening the wheel
bolts
The wheel bolts must be loosened before rais­
ing the vehicle.
Fig. 192 Changing a wheel: loosening t he w hee l bo lts
Loosening
• Install the
wheel bolt wrench over the
wheel bolt and push it down as far as it will
go.
• Take tight hold of the
end of the wrench
handle and turn the wheel bolts
counter­
clockwise
about one single turn in the direc­
tion of arrow¢
fig. 192.
Tightening
• Install the
wheel bolt wrench over the
wheel bolt and push it down as far as it will
go.
• Take tight hold of the
end of the wrench
handle and turn each wheel bolt
clockwise
until it is seated .
_& WARNING
- Do not use force or hurry when changing
a wheel -you can cause the vehicle to slip
off the jack and cause serious personal
injuries.
- Do not loosen the wheel bolts more than
one turn
before you raise the vehicle with
the jack. -You risk an injury.
(D Tips
- Never use the hexagonal socket in the
handle of the screwdriver to loosen or
tighten the wheel bolts.
- If a wheel bolt is very tight, you may find
it easier to loosen by carefully pushing ..,.

"' N
a: LL co
rl I.O
"' rl
"' rl
down on the end of the wheel bolt
wrench with
one foot only. As you do so,
ho ld on to the car to keep your ba lance
and take care not to slip.
Raising the vehicle
The vehicle must be li~ed with the jock first
before the wheel can be removed.
Fi g. 193 Sill panels: markings
Fig. 194 S ill: posit ion ing the vehicle jack
The location of the jack point is indicated by
an indentat io n on the unders ide of the vehicle
c:>fig . 193 .
.,. Activate the park in g brake to prevent the
vehicle from rolling u nintentionally.
.,. Move the selecto r lever to position P.
.,. Find the
mark ing (raised area) on the sill
t h at is nearest the wheel that wi ll be
c hanged
c:>fig. 193. Behind the marki ng,
there is a
lifting point on the sill for the ve ­
hicle jack.
.,. Turn the
veh icle j ack located under the lift­
ing point on the s ill to raise the jack until
the jaw
c:> fig. 194 ® covers the notch on
the vehicle
c:> .&. c:> (D .
.,. Al ign the vehicle jack so the jaw @ covers
t h e notch and t he base p late @ is flat on What do
I d
o now ? 24 7
the floor . The base plate @ must be
vertical
under t he lifting point @.
.,. Insta ll the rod on the vehicle jack: Insert the
rod into the opening on the handwheel. Turn
the rod left or right to secure it .
.,. Continue raising the jack w ith the rod unt il
the wheel lifts off the ground slightly .
Position the vehicle jack
only under the desig­
nated lifting points on the s ill
c:>fig. 193.
There is exactly one locat ion for each wheel.
T he jack must not be positioned at any other
location
c:> ,& c:>(D .
Soft ground under the jack can cause the ve­
hicle to slip off the jack . Always place the jack
on fi rm ground . Use a flat, stab le support if
necessary. Use a no n-slip surfa ce such as a
rubber mat on a
s lippery surface such as tile .
_&. WARNING
-You or your passengers co uld be in ju red
while changing a wheel if you do no t fo l­
low these safety p reca utions:
- Position the vehicle jack on ly at the
designated lifting po ints and align the
j ac k. Otherw ise, the vehicle jac k co uld
s lip and cause an injury if it does not
have sufficient hold on the vehicle.
- A soft or unstable su rface unde r the
j a ck may cau se the ve hicle to slip off
the j ack. A lw ays p rov ide a firm b ase for
the j ack o n the ground .
If necessary,
u se a st urdy boa rd under the jack .
- On hard, sl ippery surface (s uch as t iles)
u se a ru bber mat o r similar to prevent
the jack from slipping .
- T o help p revent injury to yo urself and
your passengers:
- Do not ra ise the vehicle until you are
su re the jack is securely engaged.
- Passengers must not remain in the ve­
hicle when it is jacked up.
- Make sure that passengers wait in a
safe place away from the veh icle and
well away from the road and traffic.
- Make sure jack position is correct, ad­
j u st as necessary a nd then cont inue to
r aise t he jack .

248 What do I do now?
(D Note
Do not lift the vehicle by the sill. Position
the vehicle jack only at the designated lift­
ing points on the sill. Otherwise, your vehi­
cle will be damaged.
Taking the wheel off/installing a wheel
Follow these instructions step-by-step for
changing the wheel.
Fig. 195 Changing a wheel: using the screwdrive r han·
dle (with t he bl ade removed) to turn the bolts
Fig. 196 Changing a wheel: a lignment pin insid e t he
to p hole
After you have loosened all wheel bolts and
raised the veh icle off the ground, remove and
replace the wheel as follows:
Removing the wheel
.,. Remove the topmost wheel bolt completely
with the
he xa gonal socket in the screwdriv­
er handle (vehicle tool kit)
c> fig. 195 and
set it as ide on a
clean surface.
.,. Screw the threaded end of the
alignment
pin
from the tool kit hand-tig ht into the
empty bolt hole
<='>fig. 196.
.,. Then remove the other wheel bolts as de­
scribed above. .,.
Take off the wheel leaving the a lignment pin
in the bo lt hole
c::> (D .
Putting on the other wheel
.,. Push the whee l over the alignment pin.
.,. Screw on the wheel bolts and tighten them
slightly using the hexagonal socket .
.,. Remove the alignment pin and insert and
tighten the rema ining wheel bolt slightly
like the rest.
.,._ Turn the jack handle counter-clockwise to
lower the vehicle until the jack is fully re­
leased .
.,. Use the wheel bolt wrench to tighten all
wheel bo lts firm ly
c::> page 246. Ti ghten
them
in a crisscross pattern, from one bolt
to the (approximately) opposite one, to keep
the wheel centered .
.,._ Perform the steps required after changing
the wheel
c::> page 245, After changing a
wheel.
The hexagonal socket makes it easier to re­
move the wheel bolts from the rim. Care
shou ld be taken when removing the reversible
blade.
(D Note
When removing or installing the wheel,
the rim cou ld hit the brake rotor/ceramic
brake rotor* and damage the rotor. Work
carefully and have a second person to help
you.
@ Tips
- When mounting tires w ith unidirectional
tread design
make sure the tread pat­
tern is po inted the right way
c::> page 249.
-The wheel bolts should be clean and easy
to turn. Check for dirt and corrosion on
the mating surfaces of both the wheel
and the hub. Remove all d irt from these
surfaces before remounting the wheel.
- Do not use the hexagonal socket in the
sc rewdriver handle to loosen or tighten
the whee l bolts.
