Although they are not a soft pillow, side curtain
airbags can "cushion" the impact and in this way
they can help to reduce the risk of injury to the
head and the upper part of the body.
A fine dust may develop when the airbag deploys.
This is quite normal and does not mean there is a
fire in the vehicle.
Important safety instructions on the side
curtain airbag system
Airbags are only supplemental restraints. Always
properly wear safety belts and ride in a proper
seating position.
There is a lot that you and your passengers must
know and do to help the safety belts and airbags
do their job to provide supplemental protection.
A WARNING
Improperly wearing safety belts and improper
seating positions increase the risk of serious
personal injury and death whenever a vehicle
is being used.
- Never let occupants place any parts of their
bodies in the area from which the side cur­
tain airbags inflate.
- Always make sure that the side curtain air­
bags can inflate without interference. Un­
suitable accessories fitted inside the expan­
sion range of a head airbag can dangerously interfere with its function. A deploying head
airbag develops enough force to catapult
any piece of add-on component out of its
path of inflation and into the passenger
compartment . An occupant hit by such a
projectile can suffer serious injury or death
¢ page 238, Technical Modifications.
- Do not swivel the sun visors to the side if you have any objects clipped onto them (for
example pens). If the airbag should deploy,
you could be injured by these objects.
- Use the built-in coat hooks only for light­
weight clothing. Never leave any heavy or sharp-edged objects in the pockets that may
interfere with airbag deployment and can
cause personal injury in an accident.
Airbag system
-Never use hangers to hang clothing from
the hooks.
- Only use factory-installed sun shades or, in
the case of shades installed after the vehicle
leaves the factory, only Audi roll-up
sunscreens may be used
¢ page 238, Addi­
tional accessories and parts replacement.
- Always sit in proper seating position and
wear safety belts while traveling so that the
side curtain airbags can help provide protec­
tion.
- The airbag system can only be triggered once .
If the airbag has been triggered, the
system must be replaced by an authorized
Audi dealer or qualified workshop.
-Always have work involving the side curtain
airbag system, removal and installation of
the airbag components, or other repairs per­
formed by an authorized Audi dealer or
qualified workshop. Otherwise the airbag
system may not work correctly.
- Never attempt to modify any components of
the airbag system in any way.
149

Child safety
Child safety
Important information
Introduction
The rear seat is generally the safest place in a
collision .
The physical principles of what happens when
your vehicle is in a crash apply also to children
¢ page 121, What happens to occupants not
wearing safety belts? .
But unlike adults their
muscles and bones are not fully developed . In
many respects children are at greater risk of seri­
ous injury in crashes than adults .
Because children's bod ies are not fully developed,
they requ ire restraint systems especially de­
signed fo r their size, weight, and body structure.
Many countries and all states of the United
States and prov inces of Canada have laws requi r­
ing the use of approved child restraint systems
for infants and small children.
I n a frontal crash at a speed o f 20-35 mph
(30-56 km/h) the forces acting on a 13 -po und
(6 kg) infant will be more than 20 times the
weight of the child. This means the weight of the
child would sudden ly be more than 260 pounds
(120 kg). Under these conditions, only an appro­
priate ch ild restraint properly used can reduce
the risk of serious injury. Child restraints must be
used properly to be effective . Used improperly,
they can increase the risk of serious injury in an
accident.
Consult the ch ild safety seat manufacturer's in­
structions to be sure the seat is right for your
child's size¢
page 153, Important safety in­
structions for using child safety seats.
Please be
sure to read and heed all of the important infor­
mation and WARN INGS about child sa fety, Ad­
vanced Airbags, and the installation of child re­
straints in this chapter.
There is a lot you need to know about the Ad­
vanced Airbags in your vehicle and how they work
when infants and children in child restraints are
on the front passenger seat. Because of the large
amount of important information, we cannot re­
peat it all here. We urge you to read the detailed
150
information in this owner 's manual about airbags
and the Advanced Airbag System in your vehicle
and the very important information about trans­
porting children on the front passenger seat.
Please be sure to heed the WARNINGS -they are
extremely important for your safety and the safe ­
ty of your passengers, especially infants and
small chi ldren .
&_ WARNING
-Accident statistics have shown that children
are generally safer in the rear seat area than
in the front seating position. Always restrain
any child age 12 and under in the rear.
- All vehicle occupants and especially children
m ust be restrained properly whenever riding
in a vehicle. An unrestrained or improperly
restrained chi ld could be injured by striking
the interior or by be ing ejected from the ve­
hicle dur ing a sudden maneuver or impact.
An unrestra ined or improperly restrained
child is also at greater risk of injury or death
through contact with an inflating airbag.
-A suitable ch ild restraint properly installed
and used at one of the rear seating posit ions
provides the highest degree of protect ion
for infants and small children in most acci­
dent situations.
&_ WARNING
Children on the front seat of any car even with
Advanced Airbags can be seriously injured or
even killed when an airbag inflates. A child in
a rearward-facing child safety seat installed
on the front passenger seat will be serious ly
injured and can be killed if the front airbag in­
f lates .
- The inflating airbag will h it the ch ild safety
seat or infant carr ier with great force and
w ill smash the child safety seat and child
aga inst the backrest, center armrest or
door .
-Always install rearward-facing child safety seats on the rear seat .
- If you must install a rearward fac ing ch ild
safety seat on the front passenger seat in

M N
0:: l­oo ,...., \!) er,
N er, ,....,
exceptional circumstances and the PASSEN­
GER AIR BAG OFF
light does not come on
and stay on, immediately install the rear­
ward-facing child safety seat in a rear seat­
ing position and have the airbag system in­
spected immediately by your authorized
Audi dealer.
A WARNING
If, in exceptional circumstances, you must in­
stall a forward-facing child restraint on the
front passenger's seat:
- Always make sure the forward-facing seat
has been designed and certified by its man­
ufacturer for use on a front seat with a pas­
senger front and side airbag.
- Always follow the manufacturer's instruc­
tions provided with the child safety seat or carrier.
- Always
move the passenger seat into its
rearmost position in the seat's fore and aft
adjustment range, as far away from the air­
bag as possible before installing the child
restraint. The backrest must be adjusted to
an upright position.
- Always make sure that the
PASSENGER AIR
BAG OFF
light comes on and stays on all the
time whenever the ignition is switched on.
Always replace child restraints that were in­
stalled in a vehicle during a crash. Damage to
a child restraint that is not visible could cause
it to fail in another collision situation.
Advanced front airbag system and children
Your vehicle is equipped with a front "Advanced
Airbag System" in compliance with United States
Federal Motor Vehicle Safety Standard (FMVSS)
208 as applicable at the time your vehicle was
manufactured.
The Advanced Airbag system in your vehicle has
been certified to meet the "low-risk" require­
ments for 3- and 6-year old children on the pas­
senger side and small adults on the driver side.
The low risk deployment criteria are intended to
Child safety
reduce the risk of injury through interaction with
the airbag that can occur, for example, by being
too close to the steering wheel and instrument
panel when the ai rbag inflates. In addition, the
system has been certified to comply with the "suppression" requirements of the Safety Stand ­
ard, to turn off the front airbag for infants up to
12 months who are restrained on the front pas­
senger seat in child restraints that are listed in
the Standard.
Even though your vehicle is equipped with an Ad­
vanced Airbag system, all children, especially
those 12 years and younger, should always ride in
the back seat properly restrained for their age
and size. The airbag on the passenger side makes
the front seat a potentially dangerous place for a
child to ride. The front seat is not the safest place
for a child in a forward-facing child safety seat. It
can be a
very dangerous place for an infant or a
larger child in a rearward-facing seat.
Advanced Airbags and the weight-sensing
mat in the front seat
The Advanced Airbag System in your vehicle de­
tects the presence of an infant or child in a child
restraint on the front passenger seat using the
weight-sensing mat in the seat cushion and the sensor below the safety belt latch on the front
passenger seat that measures the tension on the
safety belt .
The weight-sensing mat measures total weight of
the child and the child safety seat and a child blanket on the front passenger seat. The weight
on the front passenger seat is related to the de­
sign of the child restraint and its "footprint", the
size and shape of the bottom of the child re ­
straint as it sits on the seat. The weight of a child
restraint and its "footprint" vary for different
kinds of child restraints and for the different
models of the same kind of child restraint offered
by child restraint manufacturers.
The weight ranges for the individual types, makes
and models of child restraints that the NHTSA
has specified in the Safety Standard together
with the weight ranges of typical infants and typ-
ical 1 year-old child have been stored in the ...,
151

Child safety
control unit of the Advanced Airbag System .
When a chi ld restraint is being used on the front
passenger seat with a typical 1 year-o ld chi ld, the
Advanced Airbag System compares the weight measured by the weight sensing mat with the in­
formation stored in the electron ic control unit .
The electronic control unit a lso registers the ten ­
sion on the front passenger safety be lt. The ten ­
sion on the safety belt for the front passenger
seat will be d ifferent for an adult w ho is properly
using the safety belt as compared to the tens ion
on the belt when it is used to attach a child re­
s traint to the seat. The senso r below the latch fo r
t he sa fety belt for the fron t se at passenge r
meas ures the tension on the be lt . T he inp ut from
this sensor is then used with the weight to "de­
cide", whether there is a c hild restraint with a
typical 1 year -old chi ld on the front passenger
seat and whether or not the airbag must be
t urned off .
Child restraints and Advanced Airbags
Regardless of the child restraint that you use,
make sure that it has been ce rtified to meet Un it­
ed States Fede ral Motor Vehicle Safety Standards
and h as been ce rtified by its manufac turer for
use w ith an airbag . A lways be sure tha t the child
restraint is p roperly ins talled at one of the rear
seating positions . If i n exceptiona l circumstances
you must use it on the front passenger seat, care­ fully read all of the informat ion on child safety
and Advanced Airbags and heed all of the appli­
cable WARNINGS . Make certain that the ch ild re ­
straint is correctly recognized by the weight-sens­
ing mat inside the front passenger seat, that the
front passenge r airbag is t urned
off and t hat the
air bag s tatus is a lways cor re ctly s ignaled by the
PASSENGER AIR BAG OFF li ght .
M any types and models of child restra ints have
been ava ilable ove r the yea rs, new models a re in­
t roduced regu larly incorporat ing new and im ­
p rove d des igns and o lder models are taken out o f
prod uction. Child restraints are not standardized .
Ch ild restrai nts of the same type typically have
d ifferent weights and s izes and different 'foot ­
prints,' the si ze and shape of the bottom of the
chi ld restraint that sits on the seat, w hen they
152 are
insta lled on a vehicle seat. These differences
make it virtua lly impossib le to certify compliance
with the requirements for advanced airbags with
each and every chi ld restraint that has ever been
sold in the past or will be sold over the course of
the usefu l life of your vehicle.
Fo r th is reason, the United States National High ­
way Traffic Safety Adm inistrat ion has published a
li st of specific type, makes and models of child
restraints that must be used to cert ify compli ­
ance of the Advanced Airbag System in your veh i­
cle w ith the s uppression requirem ents of Federal
Motor Veh icle Safety S tanda rd 208. These child
rest rain ts are:
Subpart A -Car bed child restra ints
Model Manufactured on or
after
Angel Guar d Angel Septe mber 2S, 200 7
Ride AA 2403FO F
Subpart B - Rear-facing child restraints
Model Manufactured on or
after
Century Smart Fit 4 S4 3 December 1, 1999
Cosco Arriva September 2S, 2007
22-013PAW and bas e
22-999WHO
E venflo Discove ry Ad -December 1, 1999
just R ight 212
E ven flo Firs t Choi ce De cembe r 1, 1999
2 04
Graco Infant 84S7 December 1, 1999
Graco Sn ug ride Se
ptember 2S, 2 007
Peg Perego Pr imo Viag- September 2S, 2007
gio SIP I MUNOOUS
Subpart C -Forward-facing and convertible
child restraints
Model Manufactured on or
after
B ritax Round about September 2S, 200 7
E 9 L0 2xx
Cosco Tou riva 02Sl9 December 1, 1999

M N
0:: l­oo ,...., \!) 1.1'1
N 1.1'1 ,....,
Model Manufactured on or
a fter
Cosco Summit Deluxe September 25, 2007
High Back Booster
22-262
Cosco High Back Boos -September 25, 2007
ter 22-209
Evenflo Tribute V September 25, 2007
379xxxx
Evenflo Medallion 254 December 1, 1999
Evenflo Generations September 25, 2007
3S2xxxx
Graco ComfortSport September 25, 2007
Graco Toddler Safety September 25, 2007
Seat Step 2
Graco Platinum Cargo September 25, 2007
.&, WARNING
To reduce the risk of serious injury, make sure
that the
PASS ENGER AIR BAG OFF light
comes on and stays on whenever a child re­
straint is installed on the front passenger seat
and the ignition is switched on.
- Take the child restraint off the front passen­ ger seat and install it properly at one of the
rear seat positions if the
PASSENGER AIR
BA G OFF
light does not stay on.
- Have the airbag system inspected by your
authorized Audi dealer immediately.
(D Tips
The ch ild seats listed in categories A to C have
been statically tested by Audi on ly for the Ad­
vanced Airbag function.
Important safety instructions for using
child safety seats
Correct use of child safety seats substantially re­
duces the risk of injury in an accident!
As the driver, you are responsible for the safety of
everybody in the vehicle, especially children:
.,. Always use the right child safe ty seat for each
child and a lways use it properly
¢ page 155 . Child
sa fety
.,. Always carefully follow the child safety seat
manufacturer's instructio ns on how to route
the safety belt properly through the child safe ­
ty seat.
.,. When using the vehicle safety belt to install a
child safety seat, you must first activate the
convert ible lock ing retractor on the safety belt
to prevent the child safety seat from mov ing
r::) page 159 .
.,. Push the ch ild safety sea t down with yo ur full
weight to get the safety belt rea lly tight so that
the seat cannot move forward or sideways more
than one inch (2.5 cm).
.,. If a strap or tether is being used to tie the child
safety seat to the front passenger seat, make
sure that it is not so tight that it causes the
weight -sensing mat to measure more we ight
than is actually on the seat .
.,. Secure unused safety belts on the rear seat
r::)page 155 .
Always remember : Even though your vehicle is
equipped with an Advanced Airbag system, all
c hi ld ren, especially those 12 years and younge r,
shou ld a lways r ide in the back seat prope rly re­
stra ined for their age and size.
A WARNING
=
Not using a child sa fety seat, us ing the wrong
chi ld safety seat or improperly installing a
chi ld restraint increases the risk of serious
personal injury and death.
- All vehicle occ upants and especially children
must always be restrained properly whenev­
er riding in a vehicle.
- An unrest rained or improperly restrained
ch ild can be injured or killed by being
thrown against the ins ide of the vehicle o r
b y being ejected from it du ring a s udden
maneuver or impact.
- An unrestrained or improperly res trained
child is at much greater risk of injury or
death by being struck by an inflating air ­
bag.
- Commercia lly available child safety seats
are req uired to comply with U.S. Federa l Mo­
tor Vehicle Safety Standard (FMVSS) 213 (in
Canada CMVSS 213). .,_
153

Child safet y
-When b uying a ch ild restraint, select one
that fits your child and the vehicle.
- On ly use child restraint systems that fully
contact the flat port ion of the seat cush­
ion. The ch ild restra int must not tip or
lean to either s ide. Audi does not recom­
mend using child safety seats that rest on
legs o r tube-like frames . They do not pro­
vide adequate contact with the seat.
- Always heed all legal requirements pe r­
taining to the installat ion and use of ch ild
safety seats and carefully follow the in­
struc tions prov ided by the manufacturer
of the seat you are using.
- Never allow ch ildren under 57 inches
(1.45 me ters) to wear a normal sa fety belt .
They m ust always be rest rained by a proper
child restra int system. Otherwise, they
could sustain injuries to the abdomen and
neck areas during sudden braking maneu­
vers or acc idents.
- Never let more than one child occupy a chi ld
safety seat.
- Never let babies or older children ride in a
vehicle while sitting on the lap of another
passenger.
- Ho ld ing a child in your arms is neve r a sub­
stit ute for a child rest raint sys tem.
- The strongest person co uld not hold the
child with the fo rces that ex ist in an acci­
dent. The child will s tri ke the inte rior of
the vehicle and can a lso be str uck by the
passenger.
- The ch ild and the passenger can a lso in­
jure each other in an acc ident .
- Never ins tall rea rward-facing child safety
seats or infant carriers on the front passen­
ger seat. A child w ill be seriously injured and
can be killed when the passenger airbag in­
flates -even with an Advanced Airbag Sys­
tem .
- The inflating airbag will h it the ch ild safe­
ty seat or infant carrier w ith g reat force
and will smash the child safety seat and
child against the bac krest, center arm
rest, door or roof.
- Always install rearward-facing chi ld safety
seats or in fant ca rr ie rs on the rear seat .
154
-Forwa rd-facing child safety seats insta lled
on the front passenger's seat can interfere
w ith the airbag when it inflates and cause
serious injury to the child. Always install fo r­
ward-facing child safety seats on the rear seat .
- If except ional circumstances require the use
of a fo rward-facing child restraint on the
front passenge r's seat, the child's safety
and well-be ing require that the following
speci al precautions be taken:
- Make sure the forward-facing seat has been designed and certified by its manu­
factu rer for use on a front seat w ith a pas­
senger front and side airbag .
- Always carefully follow the manufacturer's
i nst ructions provided with the child safety
seat or carrier .
- Always move the front passenger seat into
the rea rmost pos ition of the passenger
seat's fore and aft adjustment range, and
as fa r away from the a irbag as poss ible be­
fo re insta lling the child rest raint.
- Always make sure that nothing p revents
the front passenge r's seat from being
moved to the rearmost posit ion in its fo re
and aft adjus tment range .
- Always make sure tha t the backres t is in
the up right pos ition.
- Always buckle the child sa fety seat firmly in
place even if a ch ild is not si tting in it. A
loose child safety seat can fly around d uring
a sudden stop or in a collision.
- Always read and heed a ll WARNI NGS when­
eve r us ing a child restrained in a vehicle is
be ing used¢
page 120, Safety belts,
¢page 128, Airbag system
and
¢ page 150, Child safety.
A WARNING
To reduce the risk of ser ious injury, make sure
that the
PASSENGER AIR BAG OFF li ght
comes on and stays on whenever a ch ild re­
straint is installed on the front passenge r seat
and the ign ition is switched on . ..,.

"' N
0:: l­oo
rl I.O
"' N
"' rl
-Take the child restraint off the front passen­
ger seat and install it properly at one of the
rear seat positions if the
PASSENGER AIR
BAG OFF
light does not stay on .
- Have the airbag system inspected by your
authorized Audi dealer immediately.
Secure unused safety belts on the rear seat

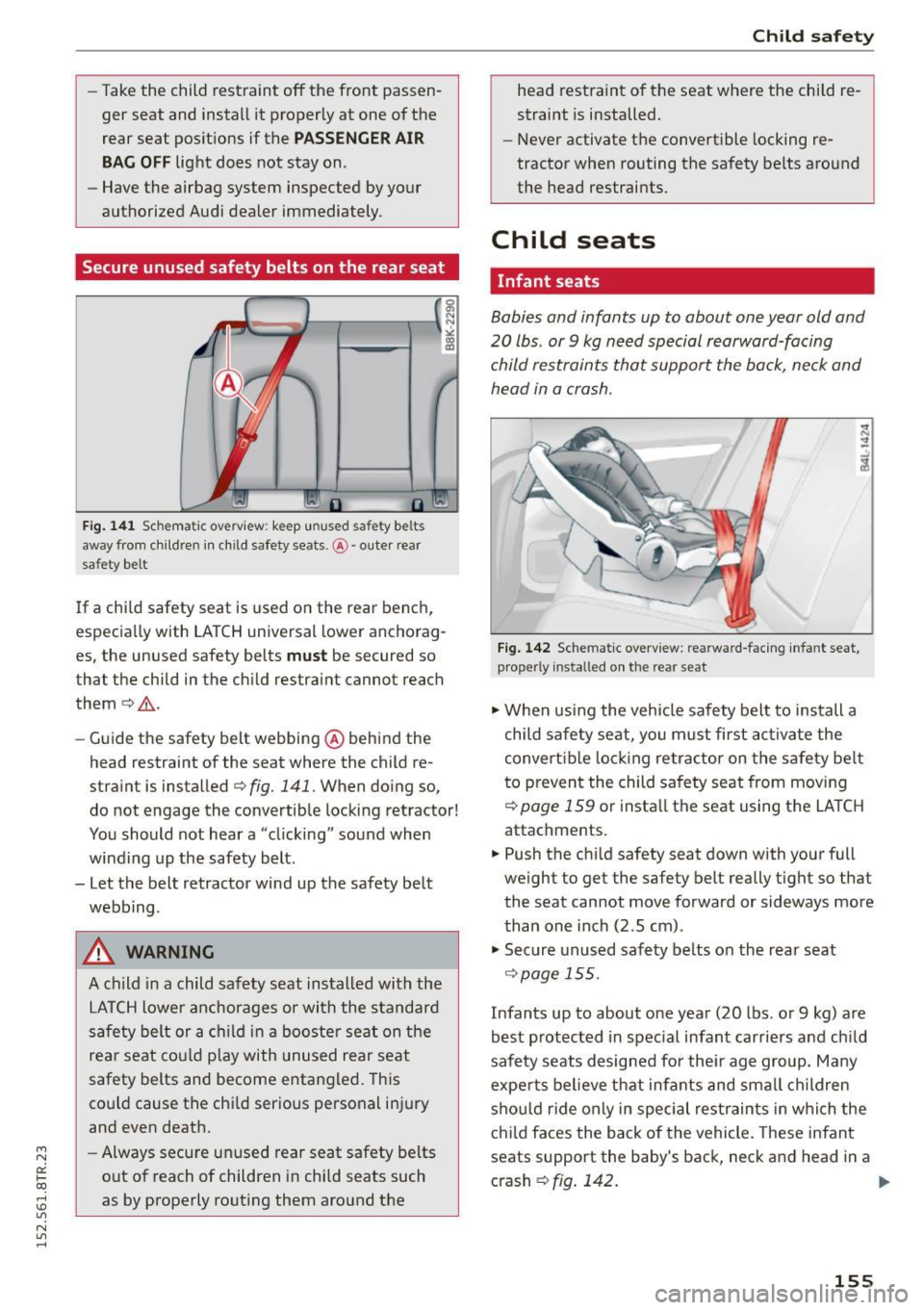

F ig . 141 Schemat ic overview : keep un used sa fety be lts
away from child ren in child safety seats. @-oute r rear
sa fety belt
If a chi ld safety seat is used on the rear bench,
especia lly with LATCH universal lower anchorag­
es, the unused safety belts
must be secured so
that the child in the child restraint cannot reach
them
c::> ,& .
-Gui de the safety belt webbing @ behind the
head restraint of the seat where the child re­
straint is installed
c:> fig. 141. When do ing so,
do not engage the convertible locking retractor!
You should not hear a "clicking " sound when
winding up the safety belt .
- Let the belt retractor wind up the safety belt webbing .
A WARNING
A child in a child safety seat installed with the
LA TCH lower anchorages or with the standard
safety belt or a child in a booster seat on the
rea r seat could play with unused rear seat
safety belts and become entangled. This
co uld cause the chi ld serious personal inj ury
and even death.
- Always secure un used rear seat safety belts
o ut of reach of children in child seats such
as by properly routing them around the
Child safety
head restraint of the seat where the child re­
straint is installed.
- Never activate the convertible locking re­
tractor when routing the safety be lts around
the head restraints.
Child seats
Infant seats
Babies and infants up to about one year old and
20 lbs. or
9 kg need special rearward-facing
child restraints that support the back, neck and
head in a crash.
Fig. 142 Schematic overv iew: re arward -fac ing infant seat ,
proper ly in stalled on the rear seat
... When using the vehicle safety belt to install a
child safety seat, you must first activate the
convert ible locki ng retractor on the safety belt
to prevent the child safety seat from mov ing
c:> page 159 or install the seat using the LATCH
attachments.
... Push the ch ild safety seat down with your full
weight to get the safety belt really tight so that
the seat cannot move forward or sideways more
than one inch (2.5 cm) .
... Secure unused safety belts on the rear seat
c::>page 155.
Infants up to about one year (20 lbs. or 9 kg) are
best p rotected in spec ial infant carriers and ch ild
safety seats designed for the ir age group. Many
experts believe that infants and small children
should ride only in special restraints in which the
child faces the back of the vehicle. These infant
seats support the baby's back, neck and head in a
crash
c:> fig . 142. ll>
155

Child safety
The airbag on the passenger side makes the front
seat a potentially dangerous place for a child to
ride. The front seat is not the safest place for a
child in a forward-facing child seat. It is a very
dangerous place for an infant or a larger child in
a rearward -facing seat .
A WARNING
Not using a child safety seat, using the wrong
child safety seat or improperly installing a
child restraint increases the risk of serious
personal inju ry and death in a crash.
- Never install rearward-facing child safety
seats or infant carriers on the front passen­
ger seat -even w ith an Advanced Airbag Sys­
tem . A child will be seriously injured and can
be killed when the inflating airbag hits the
child safety seat or infant carrier with great
force and smashes the child safety seat and
child against the backrest, center armrest,
door or roof¢
page 129, Child restraints on
the front seat -some important things to
know .
-Always install rearward -facing child safety
seats or infant carriers on the rear seat.
- Never install a rearward-facing child re­
straint in the forward-facing direction. Such restraints are designed for the special needs
of infants and very small children and can­
not protect them properly if the seat is for­
ward-facing .
- If you must install a rearward facing child
safety seat on the front passenger seat be­
cause of exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immediately install
the rearward-facing child safety seat in a
rear seating position and have the airbag
system inspected by your authorized Audi
dealer.
- Always read and heed all WARNINGS when­
ever using a child restrained in a vehicle is
being used
~ page 120, Safety belts,
~ page 128, Airbag system and
¢ page 150, Important information.
156
Convertible child safety seats
Properly used convertible child safety seats can
help protect toddlers and children over age one who weigh between 20 and 40 lbs. (9 and 18 kg)
in a crash .
Fig. 143 Schem atic ove rview: instal la ti on of the attach­
ments applicable to a LATCH seat
Fig. 144 Sc hematic ove rview : instal lat ion of the seat using
t he vehicl e's sa fet y bel t system
.. When using the vehicle safety belt to install a
child safety seat, you must first activate the
convertible locking retractor on the safety belt
to prevent the child safety seat from moving
¢
page 159 or install the seat using the LATC H
attachments.
.,. Push the chi ld safety seat down with your full
weight to get the safety belt really tight so that
the seat cannot move forward or sideways more
than one inch (2.5 cm)
~ page 159.
.. If the child safety seat is equipped with a tether
strap, attach it to the tether anchors
¢page 165.
.. Secure unused safety belts on the rear seat
¢ page 155.
A toddler or child is usually too large for an in­
fant restraint if it is more than one year old and
weighs more than 20 lbs . (9 kg) .
IJJ,,

M N
0:: l­oo ,...., \!) 1.1'1
N 1.1'1 ,....,
Toddlers and children who are older than one
year up to about 4 years old and weigh more than
20 lbs. (9 kg) up to 40 lbs. (18 kg) must always
be properly restrained in a child safety seat certi­
fied for their si ze and weight¢
fig. 143 and
¢fig. 144 .
The airbag on the passenger side makes the front
seat a potentially dangerous place for a child to ride . The front seat is not the safest place for a
child in a forward-facing child safety seat. It is a
very dangerous place for an infant or a larger
child in a rearward-facing seat.
.8, WARNING
Not using a child safety seat, using the wrong
child safety seat or improperly installing a
child restraint increases the risk of serious
personal injury and death in a collision or oth­
er emergency situation.
- Children on the front seat of any car, even
with Advanced Airbags, can be seriously in­
jured or even killed when an airbag inflates.
A child in a rearward-facing child safety seat
installed on the front passenger seat will be
seriously injured and can be killed if the
front airbag inflates -even with an Ad·
vanced Airbag System .
- The inflating airbag will hit the child safety seat or infant carrier with great force and
will smash the child safety seat and child against the backrest, center armrest, door
or roof.
- Always install rearward-facing child safety
seats on the rear seat.
- If you must install a rearward facing child
safety seat on the front passenger seat be­
cause of exceptional circumstances and the
PASSENGER AIR BAG OFF light does not
come on and stay on, immediately install
the rearward-facing child safety seat in a
rear seating position and have the airbag
system inspected by your authorized Audi
dealer.
- The rear side of the child safety seat should be positioned as close as possible to the
backrest on the vehicle seat . Adjust or re­
move the rear seat head restraint if it is dif-
Child safety
ficult to install the child seat with the head
restraint in place
¢ page 56. Install the
head restraint again immediately once the
child seat is removed . Driving without head
restraints or with head restraints that are
not properly adjusted increases the risk of
serious or fatal neck injury dramatically.
- Always read and heed all WARNINGS when­
ever using a child restrained in a vehicle is
being used¢
page 120, Safety belts,
¢ page 128, Airbag system and
¢page 150, Important information.
.8, WARNING
= -
If exceptional circumstances require the use
of a forward-facing child restraint on the front
passenger's seat, the child's safety and well­
being require that the following special pre­
cautions be taken:
- Make sure the forward-facing seat has been
designed and certified by its manufacturer
for use on a front seat with a passenger
front and side airbag .
-Always follow the manufacturer's instruc­ tions provided with the child safety seat or
infant carrier.
- Always move the front passenger seat into
the rearmost position of the passenger
seat's fore and aft adjustment range, and as
far away from the airbag as possible before
installing the child restraint.
- Always make sure that nothing prevents the
front passenger's seat from being moved to
the rearmost position in its fore and aft ad­
justment range.
- Always make sure the backrest is in an up­
right position.
- Make sure that the
PASSENGER AIR BAG
OFF
light comes on and stays on all the time
whenever the ignition is switched on.
- If the light does not stay on, perform the
checks ¢
page 138, Monitoring the Ad­
vanced Airbag System.
- Take the child restraint off the front passen­
ger seat and install it properly at one of the
rear seat positions if the
PASSENGER AIR
157

Child safety
BAG OFF light does not stay on whenever
the ignition is switched on.
Booster seats and safety belts
Properly used booster seats can help protect
children weighing between about 40 lbs. and 80
lbs. (18 kg and 36 kg) who ore less than 4 ft .
9
in. (57 inches/1.45 meters) tall.
Fig . 14 5 Rear seat: ch ild p roperly restra ined in a booster
seat
The vehicle's safety belts alone will not fit most
children until they are at least 4
ft. 9 in . (57 in­
ches/1.45 meters) tall and weigh about 80 lbs.
(36 kg) . Booster seats raise these c hildren up so
that the safety belt will pass properly over the
stronge r pa rts of their bod ies and the safety belt
can help protect them in a crash.
• Do not use the convertible locking retractor
when using the vehicle's safety belt to restrain
a chi ld on a booster seat .
• The shoulder be lt must lie as clo se to the cen­
t er of the child's collar bone as poss ible and
must lie flat and sn ug on the upper body . It
must never lie across the throat or neck . The
lap belt must lie across the pelvis and never
across the stomach or abdomen . Make sure the
belt lies flat and snug. Pull on the belt to tight­
en if necessary.
• Secu re unused safety belts on the rear seat
~ page 155.
Children up to about 40 lbs. (18 kg) are best pro­
tected in child safety seats designed for their age
and weight . Experts say that the skeletal struc­
ture, part icularly the pelvis, of these ch ildren is
not f ully deve loped, and they must not use the
158
vehicle safety be lts without a suitable child re­
straint.
It i s usually best to put t hese chi ldren in appro­
pr iate booste r seats . Be sure the boos ter seat
meets a ll applicab le safety standards.
Booster seats ra ise the sea ting pos ition of t he
ch ild an d repos ition bo th the lap and shoulder
parts o f the safety bel t so th at they pass across
the chi ld's body in the right places . The rout ing of
the be lt over the chi ld's body is very important
for t he chi ld's protection, whether or not a boos­
ter seat is used. C hildren age 12 and under must
always ride in the rear seat.
Children who are at least 4
ft . 9 in . (57 inc hes/
1.45 meters) tall ca n generally use the vehicle's
three po int lap and shoulder be lts. Never use the
lap belt portion of the vehicle's safety belt alone
to rest rain any child, regardless of how b ig the
c hi ld is . A lways remember that ch ild ren do not
have the p ronounced pe lvic st ructure required for
the p roper func tion of lap belt port ion of the ve­
h icle 's th ree po int lap and shoulder be lts. The
ch ild' s sa fety abso lutely requires tha t a lap belt
portion of the safety belt be fastened snug ly and
as low as possible around the pelvis . Never let
the lap be lt portion of the safety belt pass over
the child's stomach or abdomen.
In a crash, a irbags must inflate within a blink of
an eye and with considerable force . In order to do
i ts job, the airbag needs room to inflate so that it
will be there to protect the occ upant as the occu­
pant moves forward into the airbag .
A ve hicle occupant who is out of pos ition and too
close to the a irbag gets in the way of an inflating
airbag. When an occupant is too close, he or she
will be struck vio lent ly and will receive serious or
possibly even fatal injury .
In order for the airbag to
offer protection, it is
important that all vehicle occupants, especially
any ch ildren, who must be in the front seat be­
cause of exceptional circumstances, be prope rly
restrained and as far away from the airbag as
poss ible. By keep ing room betw een the ch ild 's ..,
