The PASSENGER AIR BAG OFF light will come on
and stay on to tell you when the front Advanced
Airbag on the passenger side has been t urned
off
by the electron ic control unit. Each time you turn
on the ignition, the
P A SSEN GER AIR BAG OFF
light will flash for a few seconds and:
- wi ll stay on if the front passenger seat is not
occupied,
- will stay on if there is a small child or child re­
straint on the front passenger seat,
- wi ll go out if the front passenger seat is occ u­
pied by an adult as registered by the weight ­
sensing mat .
The
PASSENGER AIR BAG OFF light mu st co me
on and st a y on
if the ignition is on and
- a ca r bed has been insta lled on the front seat ,
o r
- a rearward-fac ing c hild restraint has been in­
stalled on the front passenger seat, or
- a fo rward-facing child restraint has been insta l­
led on the front passenger seat, or
- the weight registered on the front passenger
seat is equal to o r less than the comb ined
weight of a typica l 1 yea r-old restrained in one
of the rear -facing or forwa rd-facing infant re­
straints listed in Federal Motor Vehicle Safety
Standard 208 with which the Advanced Airbag
System in your vehicle was certified .
I f the front passenger seat is not occupied, the
fro nt airbag will not deploy, and the
PASSENGER
AIR BAG OFF
light will stay on. Never install a
rearward-facing chi ld restraint on the front pas­
senger seat, the safest place for a child in any
kind of child restraint is at one of the seating po­
sitions on the rear seat
¢ page 129, Child re ­
straints on the front seat -some important
things to know
and ¢ page 150, Child safety.
If the PA SSENGER AI R BAG OFF light comes on
when one of the condit ions listed above is met,
be sure to check the light regularly to make cer­
tain that the
PASSENGER AIR BAG OFF light
stays on cont inuous ly whenever the ignition is
on.
If the PA SSENGER AIR BAG OFF light does
not appea r and not stay on a ll the time , stop as
soon as it is safe to do so and
Airbag syste m
- reactivate the system by t urning the ignition off
and then turning it on again;
- remove and reins tall the child restra int . Make
sure that the child restraint is properly installed
and that the safety belt for the front passenger
seat has been correct ly routed around the chi ld
restraint as described in the c hild restraint
manufacturer's instruct ions;
- make sure that the convertible locking retractor on the safety belt for the front passenger seat has been activated and that the safety belt has
been pulled tight . T he belt must not be loose or
have loops of s lack so that the sensor below the
safety belt lat ch on the seat can do its job
~ page 159.
-make sure that things that may increase the
weight of the ch ild and c hild safety seat a re not
be ing transpo rted on the fro nt passenge r seat;
- make sure t hat the safety belt tension sensor is
not b locked. Shake the safety belt lat ch on the
front passenge r seat back and forth;
- I f a strap or tet he r is be ing used to tie the child
safety sea t to the front passenge r seat, make
sure that it is not so t ight that it causes the
weight -sensing mat to measure more weight
than is actually on the seat .
If the PASSENGER AIR BAG OFF light still d oes
not come on
and does not stay on continuously
(when the ignition is switched on),
- t ake the child rest raint
off the front passenge r
seat and instal l it properly at one of the rea r
seat pos itions. Have the a irbag system inspec t­
ed by your authorized Audi dealer immediately .
- move the child to a rear seat posi tion and make
sure that the child is properly rest ra ined in a
child restraint that is appropr iate for its size
and age .
T he
PASSENGER AIR BAG OFF light sho uld NO T
come on when the ignit ion is on and an adult is
s itting in a proper seating position on the front
passenger seat. If the
PASSENGER AIR BAG OFF
li ght comes on and stays on or flashes for about
5 seconds while dr iv ing, under these circumstan­
ces, make sure that :
- the adult on t he front passenger seat is proper-
ly seated on the center of the seat cushion w ith ..,_
139

Airbag syste m
his or her back up against the backrest and the
backrest is not reclined ¢
page 112, Correct
passenger seating positions,
- the adu lt is not taking weight off the seat by
holding on to the passenger assist handle
above the front passenger door or supporting
their weight on the armrest,
- the safety belt is being properly worn and that
there is not a lot of slack in the safety belt web­
bing,
- accessory seat covers or cushions or other
things that may cause an incorrect reading or impression on the weight-sens ing mat under
the upholstery of the seat have been removed
from the front passenger seat,
- a safety be lt extender has not been left in the
safety belt latch for the front passenger seat .
In addition to the
P ASS ENGER AIR BA G OF F
light in the center of the instrument panel, the
message
PASSE NGER A IR BAG OFF or PASSEN­
GER AIR BAG ON
will briefly appear in the instru­
ment cluster display . Thi s is to inform the driver
of the current front passenger airbag status.
Important safety instructions on
monitoring the Advanced Airbag System
A WARNING
An airbag system that is not funct ion ing prop ­
erly cannot prov ide supplementa l protect ion
in a frontal crash.
- If the airbag indicator light ¢
page 19
comes when the vehicle is being used, have
the system inspected immediate ly by your
authorized Aud i dealer.
It is possible that
the a irbag will inflate when it is not s up­
posed to, or wi ll not inflate when it should.
A WARNING
If the front airbag in flates, a chi ld without a
child restraint, in a rearward-facing child safe­
ty seat or in a forward-facing child restraint
that has not been proper ly installed will be
ser iously injured and can be killed.
- Even though your veh icle is equipped with
an Advanced Airbag System, make certa in
that all ch ildren, especially 12 yea rs and
140
younger, a lways ride on the back seat prop­
erly restrained for their age and size.
- Always install forward or rear-facing child
safety seats on the rear seat -even with an
Advanced A irbag System.
- If you must install a rearward-facing child
safety seat on the front passenger seat be­
cause of exceptiona l circumstances and the
PASSENGER AIR BAG OFF light does not
appear and stay on, immediately insta ll the
rea r-facing chi ld safety seat in a rear seating
position and have the airbag system inspect­
ed by your authori zed Audi dealer .
- A t ight tether or other s trap on a rea rward­
facing chi ld restraint attached to the front
p assenger sea t can put too much pressure
on the weight-sens ing mat in the seat and
reg ister more weight than is actually on the
seat. The heavier weight registered can make the system work as though an adult
were on the seat and deploy the Advanced Airbag when it must be suppressed caus ing
serious or even fatal injury to the child .
- If, in exceptiona l circumstances, you must
install a forward-facing child restraint on
the front passenger seat, always move the seat into i ts rearmost pos ition in the seat's
fore and aft ad justmen t range, as fa r away
from the airbag as possib le. The backrest
m ust be adjusted to an upr ight position.
Make sure that the
PASSENGER AIR BAG
OFF
li ght comes on and stays on all the time
whenever the ignit ion is switched on.
A WARNING
- If the PASS ENGER AIR BAG OF F light does
not go out when an adult is s itting on the
front passenger seat after tak ing the steps
described above, make sure the adult is
prope rly seated and restra ined at one of the
rea r seat ing pos itions.
- Have the airbag system inspected by your
author ized Audi dealer befo re transpo rting
anyone on t he fro nt passenger seat.

M N
0:: l­oo ,...., \!) 1.1"1
N 1.1"1 ,....,
@ Tips
If the weight-sensing mat in the front passen­
ger seat detects an empty seat, the front air­
bag on the passenger side will be turned off,
and
PASSENGER AIR BAG OFF will stay on.
Repair, care and disposal of the airbags
Parts of the airbag system are installed at many
different places on your Audi. Installing, remov­ ing , servicing or repairing a part in an area of the
vehicle can damage a part of an airbag system and prevent that system from working properly in a collision.
There are some important things you have to know to make sure that the effectiveness of the
system will not be impaired and that discarded
components do not cause injury or pollute the
environment.
A WARNING
-
Improper care, servicing and repair proce­
dures can increase the risk of personal injury
and death by preventing an airbag from de­
ploying when needed or deploying an airbag
unexpectedly:
- Never cover, obstruct, or change the steer­
ing wheel horn pad or airbag cover or the in­
strument panel or modify them in any way .
- Never attach any objects such as cup holders
or telephone mountings to the surfaces cov­
ering the airbag units .
- For cleaning the horn pad or instrument panel, use only a soft, dry cloth or one mois­
tened with plain water. Solvents or cleaners could damage the airbag cover or change
the stiffness or strength of the material so
that the airbag cannot deploy and protect
properly.
- Never repair, adjust, or change any parts of
the airbag system.
- All work on the steering wheel, instrument
panel, front seats or electrical system (in­
cluding the installation of audio equipment,
cellular telephones and CB radios, etc.)
must be performed by a qualified technician
Airbag system
who has the training and special equipment
necessary.
- For any work on the airbag system, we
strongly recommend that you see your au­
thorized Audi dealer or qualified workshop.
- Never modify the front bumper or parts of
the vehicle body.
- Always make sure that the side airbag can
inflate without interference:
- Never install seat covers or replacement
upholstery over the front seatbacks that
have not been specifically approved by
Audi .
- Never use additional seat cushions that
cover the areas where the side airbags in­
flate.
- Damage to the original seat covers or to
the seam in the area of the side airbag
module must always be repaired immedi­
ately by an authorized Audi dealer.
- The airbag system can be activated only
once. After an airbag has inflated, it must
be replaced by an authorized Audi dealer or
qualified technician who has the technical
information, training and special equipment
necessary.
- The airbag system can be deployed only
once . After an airbag has been deployed, it
must be replaced with new replacement
parts designed and approved especially for
your Audi model version. Replacement of complete airbag systems or airbag compo­nents must be performed by qualified work­
shops only. Make sure that any airbag serv­
ice action is entered in your Audi Warranty
&
Maintenance booklet under AIRBAG RE­
PLACEMENT RECORD.
- In accidents when an airbag is deployed, the
vehicle battery separates the alternator and
the starter from the vehicle electrical sys­ tem for safety reasons with a pyrotechnic
circuit interrupter .
- Work on the pyrotechnic circuit interrupt­
er must only be performed by a qualified
dealer -risk of an accident!
- If the vehicle or the circuit interrupter is
scrapped, all applicable safety precautions
must be followed.
141

Airb ag syst em
@ For the sake of the environment
Undep loyed airbag modu les and pretension­
ers m ight be classified as Perchlorate Mater ia l
-special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlo­ rate. When the vehicle or parts of the re­
straint system including a irbag modules safe­
ty belts with pretensioners are scrapped, all
app licab le laws and regu lations must be ob­
served. Your authori zed A udi dealer is fami lia r
w ith these requirements and we recommend
that you have yo ur dealer perform this service
for you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle 's suspension system can
change the way that the Advanced A irbag System
pe rforms in a crash. For example, using t ire-rim
comb inat ions not approved by Audi, lowering the
ve hicl e, chang ing the stiffness of the suspension,
including the spr ings, suspension s truts, shock
absorbers etc . can change the forces that are
measured by the airbag sensors and sent to the
electronic control un it. Some suspension changes
can, for example, increase the force levels meas­
ured by the sensors and make the airbag system
deploy in c rashes in which it wo uld not deploy if
the changes had not been made. Other ki nds of
changes may reduce the force levels measured by
the sensors and preve nt the airbag from deploy­
i n g when i t should .
A WARNING
Changing the vehicle's s uspension including
use of unapproved ti re -rim comb inations can
change Advanced A irbag pe rformance and in ­
crease t he risk of serious persona l injury in a
crash.
- Never install suspension components that do not have the same performance charac­
teristics as the components or iginally insta l­
led on your veh icle.
- Never use tire-rim combinations that have
not been approved by Audi.
142
A WARNING
Items stored between t he safety be lt b uckle
and the center console can cause the sensors i n the buckle to send the wrong informat ion
to the electronic control module a nd prevent
the Adva nced Airbag System from wor king
properly.
- Always ma ke sure that nothing can interfere
w it h the safe ty belt bu ckles an d that they
are no t obstr ucted.
Knee airbags
Description of knee airbags
Applies to vehicles: with knee airbags
The knee airbag system can provide supplemen­
tal protection to properly restrained front seat
occupants.
F ig. 135 Driver"s kn ee airbag
The driver knee airbag is i n the instrument panel
u nderneath the steer ing whee l~
fig. 135, the
k nee a irbag for the passenger is at abou t the
same height in the instrument pane l unde rneath
the g love compartment.
The knee air bag offers addi tional protec tion to
t h e d river 's and passenge r's knees and uppe r and
l ower thigh areas and supplements the protec ­
tion provided by the safety belts.
If t he front airbags dep loy, the knee a irbags also
deploy in fro ntal c ollisions when the dep loyment
th reshold stored in the control un it is me t
~ page 136, More important things to know
about front airbags.
In add it ion to their normal sa fe ty f unct io n, safe-
ty be lts he lp keep the driver or front passenger in ..,.

"' N
0:: l­oo
rl I.O
"' N
"' rl
position in a frontal co llision so that the airbags
can provide supp lemental protection.
The airbag system is not a s ubst itute for yo ur
safety belt. Rathe r, it is part of the overall occu­
pant restraint system in your vehicle . Always re­
member that the airbag system can only help to
protect you if you are wear ing your safety belt
and wearing it properly. This is why you should al­
ways wear your safety belt, not just because the
law requ ires you to do soc::>
page 120, General in­
formation.
Remember too, airbags will deploy only once and
only in certain kinds of accidents -your safety
be lts are a lways there to offer protection in those
accidents in which airbags are not supposed to
deploy or when they have already deployed, for
examp le when yo ur vehicle str ikes or is struck by
anothe r after the first collision .
This is just one of the reasons why an a irbag is
not a substitute for the safety belt. The airbag
sys tem works most effective ly when used with
the safety belts. Therefore, always wear your
safety bel ts correctly.
It is important to remember that whi le the sup­
p lemental knee a irbag sys tem is designed to re­
d uce the likelihood of serious i njur ies, other inj u­
ries, for examp le, swe lling, bruising, and mino r
abrasions and friction b urns can a lso occur when
an airbag inflates.
The knee airbag system basically consist s of:
- T he elec tronic control mod ule
- Two inflatab le airbags (airbag and gas genera-
tor), one for the dr ive r and one fo r the front
passenge r
- T he airbag ind icator light in the instrument
pane l
The knee airb ag system will not deploy:
- when the ign ition is turned off
- in frontal collisions when the dece lerat ion
measured by the control unit is too low
- in side collisions
- in rear -end collisions
- in ro llovers
Ai rb ag system
- in the event of a system malfunction (warning/
indicator light is on)
c::>page 19.
A WARNING
-
-Safety belts and the airbag system can only
provide protection when occupants are in
the proper seating position
c::> page 136.
-If the airbag indicator light c::>page 19
comes w hen the vehicle is being used, have
the system inspected immediately by your
author ized Audi dealer. It is possib le that
the airbag will inflate when it is not sup­
posed to, or will not inflate when it should.
How knee airbags work
Applies to veh icles: w it h knee airbags
The risk of injury to the leg area can be reduced
by fully deployed knee airbags.
F ig . 1 36 Inflated airbags protecting in a frontal collision
T he knee airbag system has been designed so
that the airbags for the driver and front passen­
ger dep loy in certain but not all fronta l co llisions .
If the front a irbags dep loy, the knee airb ags also
deploy in fronta l co llisions when the dep loyment
t h reshold stored in the control unit is met.
When the system deploys, the a irbags fill with a
propellan t gas, and inf late be tween the lower
part o f the instr ument pane l and the driver and
the lowe r part of the instrument pane l and the
front passenger
c::> page 136, fig. 133.
Although they are not a soft p illow, they can
cus hion the impact and in this way they can help
to reduce the risk of injury to the lower extremi-
ties.
1111>
143

Airb ag syst em
All of this takes place in the blink of an eye, so
fast that many people don't even realize that the
airbags have deployed. The airbags also inflate
with a great deal of force and it is important for
occupant safety that nothing should be in their
way when they deploy .
Fully inflated airbags in comb ination with proper­
ly worn safety belts slow down and lim it the oc­
cupant's forward movement and help to reduce
the risk of injury.
Important safety instructions on the knee
airbag system
A pp lies to veh icles : w ith k nee a irbags
Airbags are only supplemental restraints . Always
wear safety belts correctly and ride in a proper
seating position.
There is a lot that you and your passengers must
know and do to help the safety belts and airbags
to prov ide supplemental protection.
,&. WARNING
An inflating knee airbag can cause ser ious in ­
jury. Wearing safety belts incorrectly and im­ proper seating positions increase the risk of
serious personal injury and death whenever a
vehicle is being used.
- The knee airbag system cannot protect you properly if you are seated too close to any of
the airbag locations. When adjusting their
seat positions, it is important that both the
driver and the front passenger keep the ir
upper bodies and knees at the following
min imum safe distances:
- at least 10 inches (25 cm) between the
chest and the steering whee l/instrument
panel.
- at least 4 inches (10 cm) between the
knees and the lower part of the instru­
ment panel.
- The risk of persona l injury increases if you
lean forward or to the s ide, or if the seat is
improperly positioned and you are not wear­
ing your safety belt. The risk increases even
more should the airbag deploy.
144
- Always make sure that the knee airbag can
inflate w ithout interference. Objects be­
tween you and the airbag can increase the
risk of injury in an accident by interfering
w ith the way the airbag deploys or by being
pushed into you as the a irbag deploys .
- Never let anybody, especia lly children or
anima ls ride in the footwell in front of the
passenger seat. If the airbag deploys, this
can resu lt in serious or fatal injuries.
- Never carry objects of any kind in the foot­
well area in front of the driver's or pas ­
senger's seat. Bulky objects (shopping
bags, for examp le) can interfere with or
prevent proper deployment of the airbag.
Small objects can be thrown through the
vehicle if the airbag deploys and injure you
or your passengers.
- Make sure there are no cracks, deep scratch­
es o r other damage in the area of the instru­
ment panel where the knee airb ags a re lo­
cated.
- I f ch ildren are incorrectly seated, their risk
of injury in creases in a coll is ion
~ page 150, Child safety.
S ide airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained occupants .
Fig. 137 Side airbag location in the driver 's seat
The side airbags are located in the sides of the
front seat backrests~
fig. 137. T hey a re ident i­
fied by the word "A IRBAG" .
Q)
~ ~ •
"' Q) m
The si de airbag system b asically con sists o f: ll>-

M N
0:: l­oo ,...., \!) 1.1'1
N 1.1'1 ,....,
-the e lectronic control module and external side
impact sensors
- the two side airbags located in the sides o f the
front backrests
- the a irb ag warning light in the inst rument cl us-
ter.
The airbag system is monitored elect ron ica lly to
make certa in th at it is func tioning properly at all
times. Each time you t urn on the ign ition, the a ir ­
bag system ind icator light will come on for a few
seconds (self diagnostics) .
The s ide a irbag system supp lements the safety
be lts and c an he lp to reduce the r is k of i njury to
the dr iver's and front passenger's upper torso on
the side of the vehicle that is struck in a s ide col ­
lision. The airbag dep loys only in side impacts
and only when the veh icle acce leration registered
by the control unit is high enoug h. If th is rate is
below the refe rence value programmed into the
control un it, the side a irbags will not be t rig­
gered, even though the car may be bad ly dam­
aged as a result of t he coll is ion. It is not poss ible
to define an airbag trigge ring range that will cov­
e r every possib le ang le o f impact , since the c ir­
cumstances wi ll vary considerably between one
collision and another . Important factors include,
for example, the nature (hard or soft) of the im ­
pacting object, the ang le of impact, vehicle
speed, etc. ¢
page 146, Impor tant safety in­
structions on the side airbag system .
Aside from their norma l safety function, safety
be lts work to help keep the dr iver or front pas­
senger in posit ion in the event of a side collision
so that the s ide a irbags can provide protect ion.
T he airbag system is
not a substitute for your
safety belt. Rather, it is part of the overall occu­ pant res traint system in your veh icle. Always re­
membe r th at the s ide a irbag system can only
h elp to p rotect you if yo u are wear ing your safety
be lt and wea ring it p roperly . T his is ano th er rea­
son why you s hou ld always wea r yo ur safety
b e lts, no t just because the law req uires you to do
so ¢
page 1 20, General information.
It is important to remember that whi le the sup­
p lemental s ide a irbag sys tem is designed to re­
d uce the likelihood of serious i njuries, other inju-
Airbag syste m
ries, for example, swell ing, bruising, and minor
abrasions can a lso be associated with dep loyed
s ide airbags. Remember too, s ide a irbags w ill de­
ploy only once and only in certain kinds of acci­
dents -your safety belts are always there to offer
protection .
Vehicle damage, repair costs o r even the lack of
vehicle damage are not necessari ly an indication
of over-sensitive or failed airbag activation . In
some collisions , both front and side airbags may
infla te. Remembe r too, that a irbags w ill dep loy
o n ly onc e and on ly in certa in ki nds of co llisions -
yo ur safety belts a re a lways the re to offer p rotec­
t io n in those accidents in wh ich airbags are not
s u pposed to deploy or when they have a lready
deployed.
The side airbag system will not deploy:
- when the ignit ion is tu rned off
- in side co llisions whe n the acceleration meas -
ured by the senso r is too low
- in front -end collisions
- in rear-end collisions
- in rollove rs.
In some types of ac cidents the front airbags, side
c ur tain airbags and s ide airbags may be triggered
togethe r.
A WARNING
- Safety belts and the airbag system will only
provide protection when occupants are in
the proper seating position¢
page 146.
- If the airbag ind icator light ¢ page 19
comes when the ve hicle is being used, have
the system inspected immediately by your
author ized Audi dealer. It is possib le that
the airbag will inflate wh en it is not sup­
posed to, or will not infla te when it shou ld.
145

Airb ag syst em
How supplemental side airbags work
Side airbags deploy instantly and can help re­
duce the risk of upper torso injuries for occu­
pants who are properly restrained .
Fig . 138 Infl ated s id e airbag s on left side of ve hicle
When the system is triggered, the airbag is f illed
with propellant gas and breaks through a seam in
the seat surface area marked "AIRBAG" . It ex­
pands between the side trim panel and the pas­
senger . In order to help provide th is add itional
protection , the side airbag must inflate within a
fraction of a second at ve ry high speed and with
g rea t force. The supplemental side airbag cou ld
inj ure you if yo ur seating pos ition is not prope r or
up right or if items a re located in the area where
the s upplemental side airbag expands . This ap ­
plies especially to children ¢
page 150, Child
safety .
Supplemental side airbags inflate be­
tween the occupant and the door panel on the
side of the vehicle that is struck in certain side
collis ion ¢
fig. 138 .
Although they are not a soft pi llow, they can
"cushion" the impact and in this way they can
he lp to reduce the risk of injury to the upper part
of the body .
A fine dust may develop when the airbag deploys .
This is normal and does not mean there is a fire in the veh icle.
146
Important safety instructions on the side
airbag system
Airbags are only supplemental restraints . Always
properly wear safety bel ts and ride in a proper
seating position .
There is a lot that yo u and your passengers must
k now and act accordingly to help the safety bel ts
and airbags do their job to provide supp lemental
protection.
_& WARNING
-
An inflating side airbag can cause serious or
fata l injury. Improperly wear ing safety be lts
and improper seating positions increase the
risk of serious personal injury and death
whenever a vehicle is being used.
- In order to reduce the risk of injury when
the supplemental side airbag inflates:
- Always sit in an uprig ht posi tion and never
l ean again st the area where the supple­
mental s ide airbag is located .
- Neve r let a child or anyone else res t the ir
head against the side tr im panel in the
area where the supplemen tal side airbag
inflates .
- Always make sure tha t safety be lts are
worn correctly,
- Do no t let anyone s itting in the fron t seat
pu t their h and or any other parts of their
body out of the window.
- Always m ake sure that the s ide airb ag can
inflate without interference .
- Never install seat covers or rep lacement
upholstery over the front seatbacks that
have not been specifically approved by
A udi .
- Never use additional seat cushions that
cover the areas where the side a irbags de­
ploy.
- Damage to the orig inal seat cove rs or to
the seam in the area of the side airbag
module mu st always be repaired immedi­
ate ly by an autho rized Au di dealer .
- Ob jects between you and the a irbag can in­
crease the risk of inj ury in an a cciden t by i n­
t erfer ing wi th the way the airbag unfolds or ..,_

"' N
0:: l­oo
rl I.O
"' N
"' rl
by being pushed into you as the airbag in­
flates.
- Never p lace or attach accessories or other
objects (such as cupholders, telephone
b rac ke ts, or even large, bulky objects) on
the doors, over or near t he area marked
"AIRBAG" on the seat backrests .
- Such ob jects and accessories can become
dangerous projecti les and cause injury
when the supplementa l side airbag de­
ploys .
- Never carry any objects or pets in the de ­
p loyment space between them and the
airbags or allow chi ldren or other passen­
gers to travel in this position .
- Always use the built-in coat hooks only for
lightweight clothing. Never leave any heavy
or sharp-edged objects in the pockets that
may interfere with side airbag deployment
and can cause personal injury in an accident .
- Always prevent the side a irbags from be ing
damaged by heavy objects knocking against
or hitt ing the sides of the seatbacks.
- The airbag system can only be triggered
once. If the a irbag has been triggered, the
system must be rep laced by an authorized
Audi dealership.
- Damage (cracks, deep scratches etc.) to the
o rigi nal seat cove rs or to the seam in the
area o f the side airbag module must always
be repaired immedia tely by an authorized
Audi dealer .
- If children a re seated improperly, their risk
of inj ury in crea ses in the case of an a ccident
c;, page 150, Child safety.
-Never attempt to modify any compo nents of
the a irbag sys tem in any way.
- In a side collision, s ide a irbags will not func ­
t io n properly if senso rs ca nnot correctly
measu re increasing air pressure inside the
doors when air escapes through larger, un­
closed openings in the door pane l.
- Never drive w ith inter ior door trim pane ls
removed .
- Never drive when parts have been re­
moved from the ins ide door panel and the
open ings they l eave have not been p rope r­
ly closed.
Ai rb ag system
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been properly closed.
- Always make certain that openings are
covered or filled if add itiona l speakers or
other equipment is installed in the inside
door panels.
- Always have work on the doors done by an
authorized Audi dea ler or qualified work­
shop.
Side curtain airbags
Description of side curtain airbags
The side curtain airbag system can provide sup­
plemental protec tion to properly restrained oc­
cupants.
F ig. 139 S ide curta in system, driver's s ide : side c urtain ai r­
bag loca tion
The side c urta in airbags are loc ated on bot h sides
of the inter ior above the front and rear side w in­
dows
c;, fig. 139 . They are identified by the word
"AIRBAG" on the windsh ield frame and the cen­
ter roof pi llar.
T he side c urtain airbag system supplements t he
sa fety belts and can help to reduce the risk o f in­
jury for occupants ' heads and upper torso on the
side of the vehicle that is struck in a side coll i­
s ion. The side curtain airbag inflates in side im­
pacts and only when the vehicle acce leration reg­
istered by the contro l unit is high enough . If this
rate is below the reference va lue programmed in­
to the control un it, the side a irbags w ill not be
t riggered , even thoug h the car may be bad ly
damaged as a result of the collision.
It is not pos­
s ible to define an airbag t riggering range that
will cover every possible angle of impact, since .,,.
147

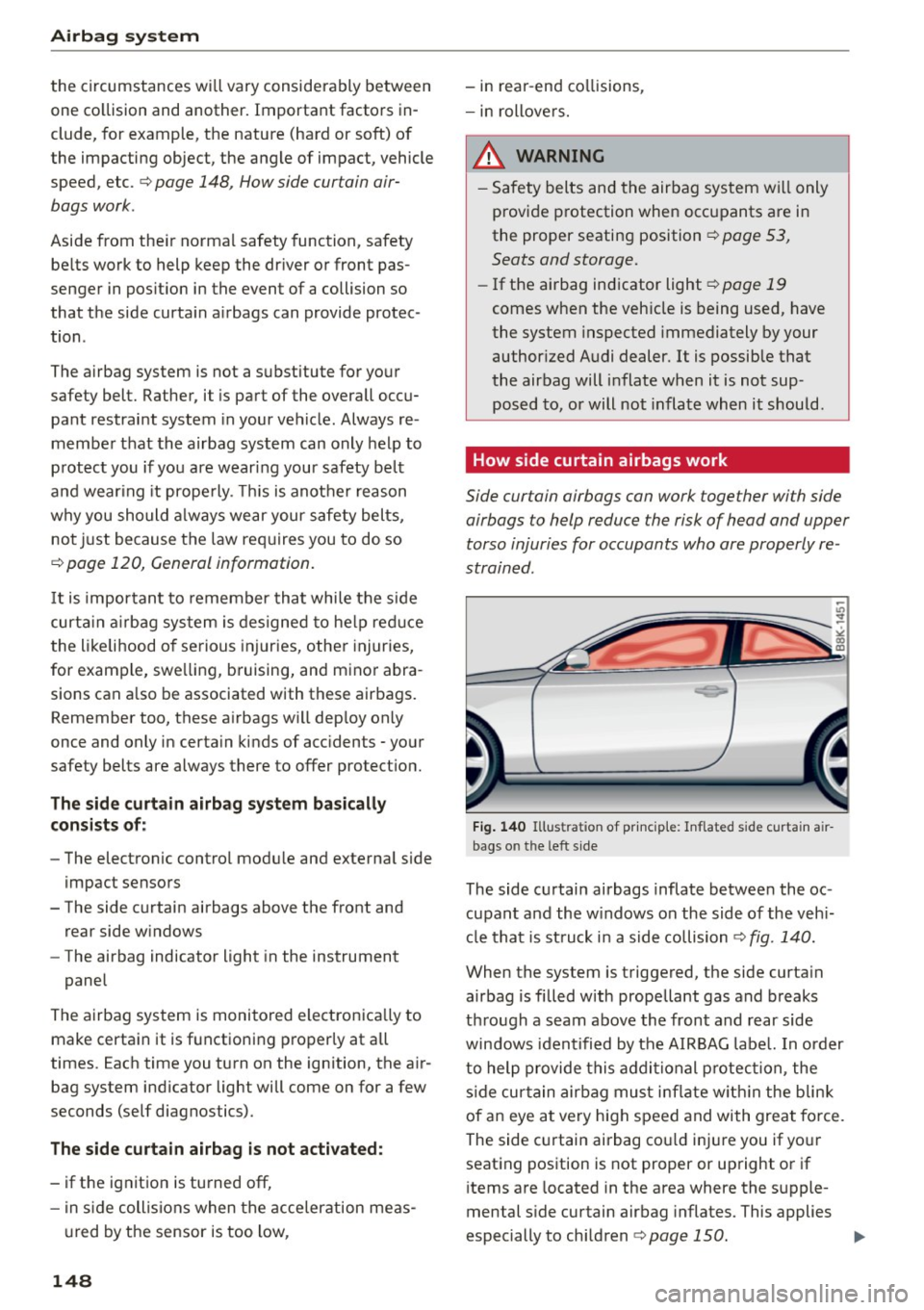

Airbag system
the circumstances wi ll vary considerably between
one co llision and another. Important factors in­
clude, for example, the nature (hard or soft) of
the impacting object, the angle of impact, vehicle
speed, etc. ¢
page 148, How side curtain air­
bags work .
Aside from their normal safety function, safety
be lts work to help keep the driver or front pas­
senger in position in the event of a collision so
that the side curtain airbags can provide protec­
tion.
The airbag system is not a substitute for your safety belt. Rather, it is part of the overall occu­
pant restraint system in your vehicle. Always re­
member that the airbag system can only help to
protect you if you are wearing your safety belt
and wear ing it prope rly. Thi s is another reason
why you should always wear your safety belts,
not just because the law requires you to do so
¢ page 120, General information.
It is important to remember that while the side
curta in air bag system is designed to help red uce
the likelihood of serious injuries, other injuries,
for example, swe lling, bruising, and minor abra ­
sions can a lso be associated with these airbags.
Remember too, these a irbags w ill dep loy only
once and only in certa in kinds of acc idents -your
safety belts are always there to offer protect ion.
The side curtain airbag system basically
consists of:
- The electronic control modu le and external side
impact sensors
- The side curtain airbags above the front and rear side w indows
- The airbag indicator light in the instrument
panel
The airbag system is monitored electronica lly to
make certain it is functioning properly at all
times. Each time you turn on the ignition, the air­
bag system indicator light will come on for a few
seconds (self diagnostics).
The side curtain airbag is not activated:
-if the ignition is turned off,
-in sid e collisions when the acceleration meas-
ured by the sensor is too low,
148
- in rear-end collisions,
- in rollovers.
& WARNING
-Safety belts and the airbag system will only
provide protection when occupants are in
the proper seating position¢
page 53,
Seats and storage.
- If the airbag indicator light¢ page 19
comes when the veh icle is being used, have
the system inspected immediately by your
author ized Audi dealer.
It is possible that
the airbag will inflate when it is not sup­
posed to, or will not inflate when it should.
How side curtain airbags work
Side curtain airbags can work together with side
airbags to help reduce the risk of head and upper
torso injuries for occupants who are properly re ­
strained .
E
Fig. 140 Illustra tion of princ ip le: Inflated side curtain a ir­
bags on the left side
The side curtain airbags inflate between the oc­
cupant and the w indows on the side of the veh i­
cle that is struck in a side collision¢
fig. 140.
When the system is triggered, the side curta in
airbag is filled with propellant gas and breaks
through a seam above the front and rear side
windows identified by the AIRBAG label. In order
to help provide this additional protection, the
side curtain airbag must inflate w ithin the blink
of an eye at very high speed and with great force.
The side curtain airbag cou ld injure you if your
seating position is not proper or upright or if
items are located in the area where the supple­
mental s ide curtain airbag inflates. This applies
especially to children
¢ page 150. .,,.
