AUDI RS5 COUPE 2015 Owners Manual

vehicles, it may order a recall and remedy campaign. However,
NHTSA cannot become involved in
individual problems between you,
your dealer, or Audi of America,
Inc.
To contact the NHTSA, you may
either call:
Tel. : 1-888-327-4236 (TTY:
1-800-424 -9153) or
1-800-424-9393
or you may write to: NHTSA
U.S. Department of Transporta­
tion
1200 New Jersey Ave., S.E.
West Building
Washington, DC 20590
You can also obtain other infor­
mation about motor vehicle safe­
ty from :
http://www.safercar.gov
Applicable to Canada
If you live in Canada and you be­
lieve that your vehicle has a de­
fect that could cause a crash, in­
jury or death, you should immedi­ ately inform Transport Canada,
::::: Defect Investigations and Recalls.
er
~ You should also notify Audi Cana-
"'
:'.l da.
"' ....
Driving safety
Canadian customers who wish to
report a safety-related defect to
Transport Canada, Defect Investi­ gations and Recalls, may either
call Transport Canada toll-free at:
Tel.: 1-800-333-0510 or
Tel. : 1-819-994-3328 (Ottawa re­
gion and from other countries)
TTY for hearing impaired: Tel.:
1-888-67 5-6863
or contact Transport Canada by mail at:
Transport Canada
Motor Vehicle Safety Investiga­
tions Laboratory
80 Noel Street
Gatineau, QC
J8Z 0Al
For additional road safety infor­
mation, please visit the Road
Safety website at:
http:/ /www.tc.gc.ca/eng/
roadsafety/menu. htm
119

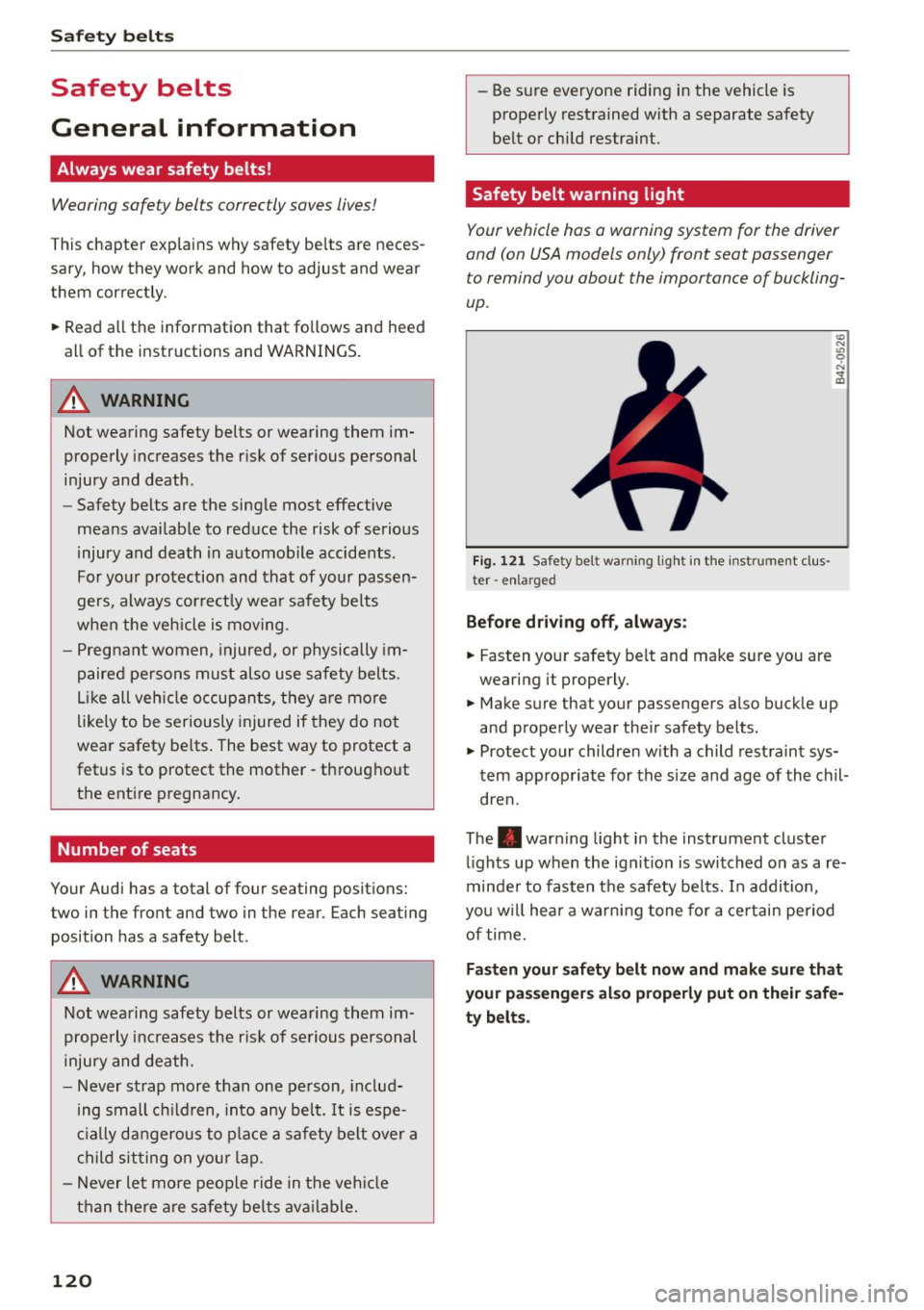

Safety belt s
Safety belts
General information
Always wear safety belts!
Wearing safety belts correctly saves lives!
This chapter explain s why safety be lts are neces­
sary, how they work and how to adjust and wear
them correctly.
.. Read all the information that fo llows and heed
all of the instructions and WARNINGS.
&_ WARNING
Not wearing safety belts or wearing them im­
properly increases the risk of serious personal
injury and death.
- Safety belts are the single most effective
means available to reduce the risk of serious
injury and death in automobile accidents.
For your protection and that of your passen­
gers, always correct ly wear safety belts
when the vehicle is moving.
- Pregnant women, injured, or physically im­
paired persons must also use safety belts.
L ik e all veh icle occupants, they are more
likely to be seriously injured if they do not
wear safety be lts . The best way to protect a
fetus is to protect the mother - throughout
the ent ire pregnancy.
Number of seats
Your Audi has a total of four seating positions:
two in the front and two in the rear. Each seating
position has a safety belt .
&_ WARNING
Not wearing safety belts or wearing them im­
properly increases the risk of serious personal
injury and death.
- Never strap more than one person, includ­
ing small ch ildren, into any belt. It is espe­
cially dangerous to place a safety belt over a
child sitting on your lap.
- Never let more people ride in the vehicle
than there are safety belts available.
120
-Be sure everyone riding in the vehicle is
properly restrained with a separate safety
belt or child restraint.
Safety belt warning light
Your vehicle has a warning system for the driver
and (on USA models only) front seat passenger
to remind you about the importance of buckling­
up .
Fig. 121 Safety belt warning light in the instrument cl us­
ter -enlarged
Before driving off, always:
.. Fas ten your safety belt and make sure you are
wearing it properly.
(0
"'
"' 0 N .. Make sure that your passengers also buckle up
and properly wear the ir safety belts .
.. Protect your children w ith a child restraint sys­
tem appropriate for the siz e and age of the chil­
dren.
The . warn ing light in the instrument cluster
lights up when the ign it ion is switched on as a re­
minder to fasten the safety be lts. In addit io n,
you w ill hear a warning tone for a certain period
of time.
Fasten your safety belt now and make sure that
your passengers also properly put on their safe­
ty belts.

"' N
0:: l­oo
rl I.O
"' N
"' rl
Why use safety belts?
Frontal collisions and the law of physics
Frontal crashes create very strong forces for peo­
ple riding in vehicles .
Fig. 122 Unbelted occupants in a ve hicle heading for a wall
Fig . 123 The vehicle cras hes into th e wall
CD
~ ± The physical principles are simple. Both the vehi­
cle and the passengers possess energy which var­ ies with vehicle speed and body weight . Engi­
neers call this energy "kinetic energy."
The higher the speed of the vehicle and the
greater the vehicle's weight, the more energy
that has to be "absorbed" in the crash.
Vehicle speed is the most significant factor. If the
speed doubles from 15 to 30 mph (25 to 50 km/
h) , the energy increases 4 times!
Because the passengers of this vehicle are not us­
ing safety belts~
fig. 122, they will keep moving
at the same speed the vehicle was moving just
before the crash, until something stops them -
here, the wall
~fig. 123 .
The same principles apply to people sitting in a
vehicle that is involved in a frontal collision. Even
at city speeds of 20 to 30 mph (30 to 50 km/h),
the forces acting on the body can reach one ton
Safety belts
(2,000 lbs. or 1,000 kg) or more . At greater
speeds, these forces are even higher .
People who do not use safety belts are also not
attached to their vehicle. In a frontal collision
they will also keep moving forward at the speed
their vehicle was travelling just before the crash.
Of course, the laws of physics don't just apply to
frontal collisions, they determ ine what happens
in all kinds of accidents and collisions.
What happens to occupants not wearing
safety belts?
In crashes unbelted occupants cannot stop themselves from flying forward and being in­
jured or killed . Always wear your safety belts!
Fig. 124 A driver not wea ring a safe ty belt is violen tly
thrown forwa rd
Fig. 125 A rear passenger not wear ing a safety belt w ill
fly
fo rward and strike t he dr ive r
Unbelted occupants are not able to resist the tre­
mendous forces of impact by holding tight or
bracing themselves . Without the benefit of safe­
ty restraint systems, the unrestrained occupant
will slam v iolently into the steering wheel, in­
strument panel, w indshield, or whatever else is
i n the way~
fig. 124 . This impact with the veh i­
cle inter ior has all the energy they had just before
the crash. .,.
121

Safety belts
Never rely on airbags a lone for protection . Even
when they deploy, airbags provide only additional
protection . A irbags are not supposed to deploy in
all kinds of accidents. Although your Audi is
equipped w ith airbags, all vehicle occupants, in­
cluding the driver, must wear safety belts cor ­
rectly in orde r to min imize the risk of seve re in­
jury o r death in a crash .
Remember too, that airbags will deploy only once
and that your safety be lts are a lways there to of ­
fer protection in t hose accidents in which airbags
are not supposed to deploy or when they have a l­
ready deployed . Unbelted o ccupan ts can also be
thrown ou t of the vehicle where even mo re severe
or fata l injur ies can occur .
It is also important fo r the rea r passenge rs to
wear safety belts co rrectly. Unbe lted passenge rs
i n t he rear se ats endanger not only themselves
but also the driver and other passengers
~ fig . 125 . In a frontal coll ision they wi ll be
thrown forward violent ly, where they can hit and
in ju re the driver and/or front seat passenger.
Safety belts protect
People think it's possible to use the hands to
brace the body in a minor collision . It 's simply
not true!
F ig . 12 6 Driver is correct ly rest ra ined i n a sudden b rak ing
m aneuver
Safety belts used properly can make a big differ­
ence. Safety belts help to keep passengers in
their seats , gradually reduce energy levels ap­
plied to the body in an accident, and he lp prevent
the uncont ro lled movement that can cause seri ­
ous injur ies. In add it ion, safety belts reduce the
danger of being throw n ou t of the vehicle.
122
Safety be lts attach passengers to the car and give
them the benefit of being s lowed down more
gently or "softly" through the "give" in the safety
belts, crush zones and other safety features eng i­
neered into today's veh icles. By "absorbing" the
ki net ic ene rgy over a longer period of time, the
safety be lts make the forces on the body more
"tole rable" and less li kely to cause injury .
Although these examples are based o n a frontal
collision, safety be lts can also substantially re ­
duce the r isk o f injury in other kinds o f crashes.
So, whether you're on a long tr ip or just go ing to
t he cor ne r store, always bu ckle up and ma ke sure
o thers do, too. Ac ciden t sta tis tics show that ve hi­
cle occupants properly wearing sa fe ty belts have
a lowe r risk of be ing injured and a much better
chance of surviving an accident. Pro perly using
safety belts a lso greatly increases the ab ility of
the supp lemental airbags to do their job in a col­
li sion. For this reason, wear ing a safety be lt is le­
gally required in most countries including much
of the United States and Canada .
Although your Audi is equipped with a irbags, you
still have to wear the safety belts provided. Front airbags, for example, are act ivated only in some
fron tal coll is io ns . The front airbags are not act i­
vated in a ll frontal col lisions, in s ide and rear co l­
li sio ns, in ro ll overs o r in cases whe re the re is not
eno ugh deceler ation th rough impac t to the front
of the vehicle . T he same goes for the other airbag
systems in your Audi. So, always wear your safety
belt and make sure everybody in your vehicle is
proper ly restrained!
Important safety instructions about safety
belts
Safety belts must always be correctly positioned
across the strongest bones of your body .
.,. Always wear safety belts as illustrated and de­
scribed in this chapter .
.,. Make s ure that your safety belts are always
ready fo r use and are not damaged .

"' N
0:: I-C() rl I.O
"' N
"' rl
_& WARNING
Not wearing safety belts or wearing them im­
properly increases the risk of serious personal
injury and death. Safety belts can work only
when used correctly .
- Always fasten your safety belts correctly be­
fore driving off and make sure al l passen­
gers are correctly restrained.
- For maximum protection, safety belts must
always be pos itioned properly on the body.
- Never strap more than one person, includ­
ing small ch ildren, into any belt.
- Never place a safety belt over a child sitting
on your lap .
- Always keep feet in the footwell in front of
the seat while the vehicle is being driven.
- Never let any person ride with their feet on
the instrument panel or sticking out the
window or on the seat .
- Never remove a safety belt while the vehicle
is moving . Doing so will increase your risk of
being injured or killed.
- Never wear belts twisted.
- Never wear belts over rigid or breakable ob-
jects in or on your clothing, such as eye
glasses, pens, keys, etc., as these may cause
injury .
- Never allow safety belts to become dam­
aged by being caught in door or seat hard­
ware.
- Do not wear the shoulder part of the belt
under your arm or otherwise out of position.
- Several layers of heavy clothing may inter­
fere with correct positioning of belts and re­ duce the overall effectiveness of the system .
- Always keep belt buckles free of anything
that may prevent the buckle from latching
securely.
- Never use comfort clips or devices that cre­
ate slack in the shoulder be lt. However, spe­
cial clips may be required for the proper use
of some child restraint systems.
- Torn or frayed safety belts can tear, and
damaged belt hardware can break in an acc i­
dent. Inspect belts regularly. If webb ing,
bind ings, buckles, or retracto rs are dam-
Safety belts
aged, have belts replaced by an authorized
Audi dealer .
- Safety belts that have been worn and loaded
in an accident must be replaced with the
correct replacement safety belt by an au­
thorized Audi dealer. Replacement may be
necessary even if damage cannot be clearly
seen. Anchorages that were loaded must al­
so be inspected.
- Never remove, modify , d isassemble, o r try
to repair the safety belts yourself .
-Always keep the belts clean. Dirty belts may not work properly and can impair the func­
tion of the inertia reel
Q page 181 .
Safety belts
Fastening safety belts
Safety first -everybody buckle up!
Fig. 127 Be lt buck le and to ngue on t he drive r's seat
To provide maximum protection, safety belt s
must always be positioned correctly on the wear­
er 's body.
... Adjust the front seat and head restraint proper­
ly
r::> page 53 , Seats and storage.
... Make sure the seatback of the rear sea t bench is
in an upr ight position and securely latched in
place before using the belt
Q _& .
.. Hold the belt by the tongue and pull it evenly
across the chest and pelvis
Q _&.
... Insert the tongue into the correct buckle of
your seat until you hear it latch securely
Qfig. 127.
... Pull on the belt to make sure that it is securely
latched in the buckle.
Iii>
123

Safety belts
Autom atic safet y belt retractors
Every safety belt is eq uipped w ith an automatic
be lt retractor on the shou lder belt. This feature
locks the belt when the be lt is pulled o ut fast,
during hard brak ing and in an accident . The belt
may also lock when you drive up or down a steep
hill or through a sharp curve. During normal driv­
ing the belt lets you move freely.
S afety belt p rete n sioner s
The safety be lts are equipped with a belt preten­
sioner that helps to t ighten the safety belt and
remove s lack when the pretensioner is activated.
The function of the pretensioner is monitored by
a warning light
r:::') page 19.
Converti ble lock ing r etra ctor
Every safety belt except the one on the driver
seat is equipped with a convertib le locking retrac­
tor that
must be used when the safety belt is
used to attach a child safety seat. Be sure to read
the important informat ion about this feature
r=;,page 159.
.&_ WARNING
Improperly positioned safety belts can cause
serious injury in an accident¢
page 124,
Safety belt posi tion.
- Safety belts offer optimum protection only
when the seatback is upright and belts are
properly positioned on the body.
- Never attac h the safety belt to the buc kle
for ano ther seat. At taching the belt to the
wrong buckle will reduce safety be lt effec­
tiveness and can cause serious persona l in ­
jury.
- A passenger who is not properly restrained
can be seriously in jured by the safety belt it­
self when it moves from the stronger parts of the body into critical areas like the abdo­
men.
-Always lock the convert ible lock ing retractor
when you are securing a child safety seat in
the vehicle¢
page 161.
124
Safety belt position
Correct belt position is the key to getting maxi­
mum protection from safety belts.
Fig . 12 8 Safety belt posit ion
Standard features o n your vehicle help you ad just
the position of the safety belt to match your body
size.
- he ight-adjustable fron t seats.
.&_ WARNING
Improperly posit ioned safety be lts can cause
serious personal injury in an accident.
- The shou lder belt should Lie as close to the
center of the collar bone as possib le and
should fit well on the body . Ho ld the belt
above the latch tongue and pull it evenly
across the chest so t hat it sits as low as pos­
sible on the pe lvis and there is no pressure
on the abdomen. The belt should always fit
snug ly
r:::;, fig. 128. Pull on the belt to tighten
if necessary.
- The lap be lt po rtion of the safety belt must
be positioned as low as poss ible across pel­
vis and never ove r the abdomen.
Make sure
t he belt lies flat and snug
r=;, fig. 128. P ull on
t he belt to tighten if necessary.
- A loose-fit ting safety belt can ca use serio us
in ju ries by s hifting its position on your body
from the st rong bones to more v ulnerable,
soft tissue and cause serious injury.
- Always rea d an d heed al l WAR NINGS and
other important information
r=;,page 122.

"' N
0:: l­oo
rl I.O
"' N
"' rl
Pregnant women must also be correctly
restrained
The best way to protect the fetus is to make sure
that expectant mothers always wear safety belts
correctly -throughout the pregnancy.
Fig. 129 Safety belt pos it io n during p regnancy
To provide maximum protection, safety belts
must always be positioned correctly on the wear­
er's body
c:> poge 124.
.. Adjust the front seat and head restraint correct­
ly
c> page 53, Seats and storage .
.. Make sure the seatback of the rear seat bench is
in an upright position and securely latched in
place before using the belt .
.. Hold the belt by the tongue and pull it evenly
across the chest and pelvis
c:>fig . 129, c:> &_.
.. Insert the tongue into the correct buckle of
your seat until you hear it latch securely
c:>poge 123, fig . 127 .
.. Pull on the belt to make sure that it is securely
latched in the buckle.
_& WARNING
Improperly positioned safety belts can cause
serious personal injury in an accident.
- Expectant mothers must always wear the
lap portion of the safety belt as low as pos­
sible across the pelvis and below the round ­
ing of the abdomen .
- Always read and heed all WARNINGS and
other important information
~.& in Fasten­
ing safety belts on page 124.
Safety belts
Unfastening safety belts
Unbuckle the safety belt with the red release
button only o~er the vehicle hos stopped .
J-L
Fig. 130 Releasing the tongue from the buck le
.. Push the red release button on the buckle
c:> fig. 130. The belt tongue will spring out of
the buckle
c> &_ .
.,. Let the belt wind up on the retractor as you
guide the belt tongue to its stowed position .
_& WARNING ,-
Never unfasten safety belt while the vehicle is
moving . Doing so will increase your risk of be­
ing injured or killed.
Improperly worn safety belts
0 ..... N 0 :i:
"' CD
Incorrectly positioned safety belts con cause se­
vere injuries .
Wearing safety belts improperly can cause seri­
ous injury or death . Safety belts can only work
when they are correctly positioned on the body.
Improper seating positions reduce the effective­
ness of safety belts and w ill even increase the risk
of injury and death by moving the safety belt to
critical areas of the body. Improper seating posi­
tions also increase the risk of serious injury and
death when an airbag dep loys and strikes an oc­
cupant who is not in the correct seating position.
A driver is responsible for the safety of all vehicle occupants and especially for children . Therefore:
.. Never permit anyone to assume an incorrect sit-
ting position in the vehicle while traveling
c> &_ . ~
125

Safe ty belt s
& WARNING
Improperly worn safety belts increase the risk
of serious personal injury and death whenever
a vehicle is being used.
- Always make sure that all vehicle occupants
are correctly restrained and stay in a correct
seat ing pos ition whenever the veh icle is be­
ing used .
- Always read and heed all WARNINGS and
other important information
¢ page 122 .
Belt tensioners
How safety belt pretensioners work
In front, side and rear-end collisions above a
particular sev erity, safety belts are tensioned au­
tomatically.
The safety be lts are equipped with safety be lt
p retens ioners. The system is activated by sensors
in front, side and rear-end co llisions of great se ­
verity. This tightens the be lt and takes up belt
slack
¢ .&. in Service and disposal of safety belt
pretensioner on page 126.
Taking up the slack
helps to reduce forward occupant movement dur­
ing a collision .
(D Note
Never let the be lt remain over a rear seatback
that has been folded forward.
(D Tips
The safety be lt pretensioner can only be acti­
vated once.
- In minor frontal and side collisions, in rear­
end collisions, in a rollover and in accidents
i nvo lv ing very little impact force, the safety
belt pretensioner are not act ivated.
- In the case of a side crash, the safety belt pretensioners w ill act ivate on the driver's or
front passenger's sides only, depending on which side of the vehicle the crash occurs.
- When the safety belt pretensioners are acti­
vated, a fine dust is released. This is normal
and is not caused by a fire in the vehicle.
- The relevant safety requirements must be
observed when the vehicle or components
126
of the system are sc rapped . An authorized
Audi dealer or qualified workshop is familiar
with these regulations and will be pleased
to pass on the information to you.
- Be sure to observe all safety, environmental
and other regu lations if the vehicle or indi­
vidual parts of the system, particularly the
safety belt or airbag, are to be disposed. We recommend you have your author ized Audi
dealer perform this service for you .
Service and disposal of safety belt preten­
sioner
'
The safety belt pretensioners are parts of the
safety belts on your Audi. Insta lling, removing,
servicing or repairing of be lt pretensioners can
damage the safety belt system and prevent it
from work ing correctly in a collision.
There are some important t hings you have to
know to make sure that the effectiveness of the
system will not be impaired and that discarded
componen ts do not cause injury or pollute the
environment .
& WARNING
Improper care, serv ic ing and repair proce­
dures can increase the risk of personal injury
a nd death by p reventing a safety be lt preten ­
sione r from activating when needed or acti­
vating it unexpected ly:
- The belt pretensione r system can be act ivat­
ed only once. If belt pretensioners have been activated, the system m ust be re­
placed .
- Never repair, adjus t, or change any parts of
the sa fety belt system.
- Safety belt systems including safety belt
pretens ioners cannot be repaired. Spec ial
procedures are req uired for remova l, instal­
lation and disposa l of this system .
- For any wo rk on the safety be lt system, we
strongly recommend that yo u see your au­
thorized Audi dealer or qualified technician
who has an Audi approved repair manual,
train ing and spec ial equ ipment necessary .

M N
0:: l­oo ,...., \!) 1.1"1
N 1.1"1 ,....,
@ For the sake of the environment
Undeployed airbag modu les and pretension­
ers might be classified as Perchlorate Mater ial
- spec ial handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlo­ rate. When the veh icle or parts of the re­
straint system includ ing a irbag modules safe­
ty belts with pretensioners a re scrapped, a ll
ap plicab le laws and regu lations mus t be ob­
served. Your author ized Audi dealer is fam iliar
w ith these requi rements and we recommend
t hat you have yo ur dealer pe rform this service
for you.
Sa fety bel ts
127

Airbag system
Airbag system
Important information
Importance of wearing safety belts and
sitting properly
Airbags are only supplemental restraints . For
airbags to do their job, occupants must always
properly wear their safety belts and be in a prop­ er seating position.
For your safety and the safety of your passen­
gers, befo re driving off, always:
"' Adjust the driver's seat and steering wheel
properly
Q page 112,
"'Adjust the front passenger's seat properly
Qpage 54,
"'Wear safety be lts properly C? page 122,
"'Always properly use the proper child restraint
to protect children
Qpage 150.
In a coll is ion airbags must inflate within the blink
of an eye and with considerab le force. The sup­
p lemental airbags can cause injuries if the driver
or the front seat passenger is not seated proper•
Ly. Therefore in order to help the airbag to do its
job, it is important, both as a driver and as a pas­
senger to sit properly at all times.
By keeping room between your body and the
steering whee l and the front of the passenger
compartment, the airbag can inflate fully and
completely and provide supplemental protection
in certain frontal collisions
c> page 112, Correct
passenger seating positions.
Fo r details on the
operation of the seat adjustment controls
c>page54.
It's especially important that children are proper­
ly restrained
Qpage 150.
There is a lot that the driver and the passengers
can and must do to help the individual safety fea­
tures installed in your Audi work together as a
system .
Proper seat ing position is important so that the
front airbag on the driver side can do its job. If
you have a phys ical impairment or condition that
prevents you from sitt ing properly on the dr iver
seat with the safety be lt properly fastened and
128
reaching the pedals, specia l modifications to your
vehicle may be necessary.
Contact your authorized Audi deale r, or call Audi
Customer Relat ions at 1-800-822-2834.
When the airbag system dep loys , a gas generator
will fill the airbags, break open the padded cov­
ers, and inflate between the steering wheel and
the driver and between the instrument panel and
the front passenger. The airbags wi ll deflate im ­
mediate ly after deployment so that the front oc­
cupants can see through the w indshield again
without interruption.
All o f this takes place in the blink o f an eye, so
fast that many people don't even realize that the
airbags have dep loyed . The airbags also inflate
with a great deal of force and nothing should be
in the ir way when they deploy. Front a irbags in
combination with properly worn safety belts slow
down and lim it the occupant's forwa rd move­
ment . Together they he lp to prevent the driver
and front seat passenge r from hitting parts of
the insid e the veh icle wh ile red ucing the forces
acting on the occupant dur ing the crash. In this
way they help to reduce the risk o f injury to the
head and upper body in the crash. Airbags do not
protect the arms or the lower parts of the body.
Both front airbags will not inflate in all fronta l
collisions . The triggering of the airbag system de ­
pends on the vehicle deceleration rate caused by
the collis ion and registered by the electronic con ­
trol unit. If this rate is below the reference value
programmed into the control unit, the airbags
will not be triggered, even though the car may be
badly damaged as a result of the coll is ion . Vehi­
cle damage, repair costs or even the lack of vehi­
cle damage is not necessar ily an indication of
whether an airbag should inflate or not.
It is not possible to define a range of vehicle
speeds that w ill cover every possible kind and an­
gle of impact that will always trigger the air bags,
since the circumstances will vary considerably be­
tween one collision and another. Impo rtant fac­
tors include, for example, the nature (hard or
soft) of the object which the car hits, the angle of
impact, vehicle speed, etc . The front airbags will
IJ>-
