AUDI S3 2009 Owners Manual

__________________________________________________ A_ i_ r _b _a...; g::- s_ y=--- s_t _e _m __ lllll
Child restraints on the front seat -some
important things to know
- Be sure to read the important information and head the
WARNINGS for important details about children and
Advanced Airbags :=>
page 169.
Even though your vehicle is equipped with an Advanced Airbag
System, make certain that all children, especially those 12 years and
younger, always ride in the back seat properly restrained for their age and size . The airbag on the passenger side makes the front seat
a potentially dangerous place for a child to ride . The front seat is not
the safest place for a child in a forward -facing child safety seat. It
can be a very dangerous place for an infant or a child in a rearward ­
facing seat.
The Advanced Airbag System in your vehicle has been certified to
comply with the requirements of United States Federal Motor
Vehicle Safety Standard 208 as applicable at the time your vehicle
was manufactured.
The Standard requires the front airbag on the passenger side to be
turned off ("suppressed") if a child up to about one year of age
restrained in one of the rear-facing or forward-facing infant
restraints listed in Federal Motor Vehicle Safety Standard 208 with
which the Advanced Airbag System in your vehicle was certified has been installed on the front passenger seat. For a listing of the child
restraints that were used to certify compliance with the US Safety
Standard =>
page 171.
The PASSENGER AIR BAG OFF light in the instrument panel tells you
when the front Advanced Airbag on the passenger side has been
turned off by the electronic control unit.
Each time you turn on the ignition, the
PASSENGER AIR BAG OFF
light will come on for a few seconds and:
• will stay on if the front passenger seat is not occupied,
Controls and equip­
ment Safety first Vehicle operation
•
will stay on if there is a small child or child restraint on the front
passenger seat,
• will go off if the front passenger seat is occupied by an adult as
registered by the weight-sensing mat=>
page 158, "Monitoring the
Advanced Airbag System" .
The
PASSENGER AIR BAG OFF light comes on when the control unit
detects a total weight on the front passenger seat that requires the
front airbag to be turned off.
If the total weight on the front passenger seat is more than that of
a typical 1 year-old child but less than the weight of a small adult,
the front airbag on the passenger side can deploy (the
PASSENGER
AIR BAG OFF
light does not come on). If the PASSENGER AIR BAG
OFF
light does not come on, the front airbag on the passenger side
has not been turned off by the electronic control unit and can
deploy if the control unit senses an impact that meets the condi­
tions stored in its memory.
For example, the airbag may deploy if:
• a small child that is heavier than a typical 1 year -old child is on
the front passenger seat (regardless of whether the child is in one
of the child safety seats listed=>
page 171), or
• a child who has outgrown child restraints is on the front
passenger seat.
If the front passenger airbag is turned off, the
PASSENGER AIR BAG
OFF
light comes on in the instrument cluster and stays on.
The front airbag on the passenger side may
not deploy (the
PASSENGER AIR BAG OFF light does not illuminate and stay lit) even
if a small adult or teenager, or a passenger who is not sitting upright
with their back against a non-reclined backrest with their feet on the
vehicle floor in front of the seat is on the front passenger seat
=>
page 128, "Proper seating position for the driver".
If the front passenger airbag deploys, the Federal Standard requires
the airbag to meet the "low risk" deployment criteria to reduce the risk of injury through interaction with the airbag . "Low risk" deploy­
ment occurs in those crashes that take place at lower decelerations
I),
Vehicle care Do-it-yourself service Technical data

___ A_ ir_ b_ a-g _ s_y _s_ t_ e_ m _________________________________________________ _
as defin ed i n th e el ectron ic contro l u n it=> page 159, "PASSE NGER
AI R BA G OFF lig ht".
A lways rem em ber, a c hild safet y se at or infant carr ier installe d on
the front seat may be struck and k nocked o ut of po sition by t he
rap id ly in fla ting passe nger's air bag in a fron tal colli sion . The airb ag
cou ld great ly re duce the effectivene ss of the ch ild restrain t and
e ve n seri ous ly injure the chi ld dur ing in flatio n.
For th is reason, and beca use the bac k seat is the safest plac e for
chi ldren -wh en prop erl y rest rained acc ording to th eir age and size
- we strong ly recommend that ch ildren a lways sit in the bac k se at
=> p age 169, "Ch ild Safe ty ".
& WARNING
A child in a rearward -facing child safety seat installed on the front
passenger seat will be ser iously injured and can be killed if the
front airbag inflates - even with an Advanced Airbag System .
• The inflating airbag will hit the child safety seat or infant
carrier with great force and will smash the child safety seat and
child against the ba ckrest , center arm rest , door or roof .
• Always install rear -facing child safety seats on the rear seat .
• If you must install a rearward facing child safety seat on the
front passenger seat because of exceptional circumstances and
the PASSENGER AIR BAG OFF light does not come on and stay on ,
immediately install the rear-facing child safety seat in a rear
seating position and have the airbag system inspected by your
authorized Audi dealer.
• Forward-facing child safety seats installed on the front
passenger's seat may interfere with the deployment of the airbag
and cause serious personal injury to the child .
& WARNING
If, in exceptional circumstances, you must install a forward-facing
child restraint on the front passenger's seat:
& WARNING (continued)
• Always make sure the forward-facing seat has been designed
and certified by its manufacturer for use on a front seat with a
passenger front and side airbag .
• Never put the forward-facing child restraint up against or very
near the instrument panel.
• Always move the passenger seat into its rearmost position in
the seat's fore and aft adjustment range, as far away from the
airbag as possible before installing the forward-facing child
restraint. The backrest must be adjusted to an upright position .
• Make sure that the PASSENGER AIR BAG OFF light comes on
and stays on all the time whenever the ignition is switched on.
& WARNING
To reduce the risk of serious injury , make sure that the PASSENGER
AIR BAG OFF light will be displayed whenever a child restraint is
installed on the front passenger seat and the ignition is switched
on.
• If the PASSENGER AIR BAG OFF light does not stay on , perform
the checks described
=> page 158 , "Monitoring the Advanced
Airbag System" .
• Take the child restraint off the front passenger seat and install
it properly at one of the rear seat positions if the PASSENGER AIR
BAG OFF light does not stay on.
• Have the airbag system inspected by your authorized Audi
dealer immediately.
• Always carefully follow instructions from child restraint manu ­
facturers when installing child restraints .
& WARNING
If, in exceptional circumstances, you must install a forward or
rearward-facing child restraint on the front passenger's seat :

& WARNING !continued)
• Improper installation of child restraints can reduce their effec­
tiveness or even prevent them from providing any protection .
• An improperly installed child restraint can interfere with the
airbag as it deploys and seriously injure or even kill the child -
even with an Advanced Airbag System.
• Always carefully follow the manufacturer's instructions
provided with the child safety seat or carrier.
• Never place additional items on the seat that can increase the
total weight registered by the weight-sensing mat and can cause injury in a crash. •
Front airbags
Description of front airbags
The airbag system can provide supplemental protection
to properly restrained front seat occupants.
Safety first
Fig . 143 Location of
driver airbag: in
steering wheel
'l
-- -
Airbag system
Fig . 144 Location of
front passenger's
airbag: in the instru­
ment panel
Your vehicle is equipped with an "Advanced Airbag System" in
compliance with United States Federal Motor Vehicle Safety Stan­
dard (FMVSS) 208 as applicable at the time your vehicle was manu­
factured. The safety belts for the front seats have "pretensioners"
that help to take slack out of the belt system. The pretensioners are
also activated by the electronic control unit for the airbag system .
The front safety belts also have load limiters to help reduce the
forces applied to the body in a crash.
The airbag for the driver is in the steering wheel hub~ fig.
143 and
the airbag for the front passenger is in the instrument panel
~ fig. 144. The general location of the airbags is marked "AIRBAG".
There is a lot you need to know about the airbags in your vehicle. We
urg e you to read the detailed information about airbags, safety belts
and child safety in this and the other chapters that make up the
owner's literature. Please be sure to heed the WARNINGS -they are
extremely important for your safety and the safety of your passen­
gers, especially infants and small children.
& WARNING
Never rely on airbags alone for protection .
• Even when they deploy, airbags provide only supplemental
protection.
Vehicle care I I irechnical data

-Airbag system ----------------
& W
ARN ING (continued )
• Airbag work most effectively when used with properly worn
safety belt s.
• Therefore , always wear your safety belts and make sure that
everybody in your vehicle is properly restra ined .
& WARNING
A person on the front passenger seat , espe cially infants and small
c hildren, will receive serious injuries and can even be killed by
being too close to the airbag when it inflates .
• Although the Advanced Airbag System in your vehicle is
designed to turn off the front passenger airbag if an infant or a
small child is on the front passenger seat , nobody can absolutely
guarantee that deployment unde r these spe cial conditions is
impossible in all conce ivable situations that may happen during
the useful life of your vehicle.
• The Advanced Airbag System can deploy in accordance with
the "low risk" option under the U .S . Federal Standa rd if a child that
is heavier than the typical one -year old child is on the front
pas senger seat and the other cond itions for airbag deployment
are met.
• Accident statistics have shown that children are generally safer
in the rear seat area than in the front seating position .
• For their own safety , all children , espec ially 12 years and
younger, should always ride in the back properly restrained for
their age and size . •
Advanced front airbag system
Your vehicle is equipped with a front Advanced Airbag System in
c ompl ia n ce wi th Un it ed Sta tes Federa l Motor Vehicle Safet y Sta n­
dard 208 as appl icab le at the time your vehicle was manufactured. T
he front Advanced Airbag System supplements the safety belts to
p rovide addit ional protecti on for the d river's a nd fro nt passenger's
heads and upper bodies in fronta l crashes . The ai rbags inflate only
in fron tal impac ts w hen the vehic le dece le ra tion is high en ough .
Th e fro nt Advanced A irbag System for t he fro nt seat occupa nts is
not a substitute for your safety belts . Rather, it is pa rt of the overall
occu pan t restra int system in your v ehicle. A lways remembe r that
the airbag system can only help to protect you, if you are sitting
uprigh t, weari ng you r sa fe ty bel t an d wea ring it proper ly . T hi s is w hy
you and your passengers must always be proper ly restrained, not
jus t beca use t he law requi res y ou t o be .
T he Advanced A irbag Syste m in your ve hicle has been cert ified to
meet the " lo w risk" requ irements fo r 3 an d 6 year -o ld chi ldren on the
passen ger side and ve ry small a dults on t he dr iver s ide. The low r isk
deployment criteria are intended to he lp reduce the risk of injury
th ro ugh in te ract io n with the front a irbag t hat ca n occur, fo r
example, by being too close to the steering wheel and instrument
p anel whe n the a irbag inflates.
I n addition, the syst em has been cert ified to comply with the
"su ppression" req uirem en ts of the Safe ty Standa rd, to turn off th e
fron t airbag for in fants 1 2 months o ld a nd youn ger who are
restrained on the front passenger seat in child restraints that are
li s ted in th e Stan dard=>
page 171 .
"Suppress ion" requires the front airbag on the passenger side to be
t urne d off if:
• a child up to about one year of a ge is restra in ed on the front
passenger seat in one of the rear -facing or forward -facing infant
re stra ints l is ted in Fed era l Motor V ehicle Safety Standard 208 w ith
whic h the Advanced Airbag System in your vehic le was ce rtified. For
a lis ting o f the child res traint s th at we re us ed to cer tify y our
vehic le 's compliance with the US Safety Standard =>
page 171,
• weight less t han a thr esho ld leve l sto red in th e contro l un it is
detected on the front passenger seat.
When a pers on is dete ct ed on th e fro nt pas senge r seat, weighi ng
more than the total weight of a ch ild that is about 1 year old ._

Airbag syst em -----------------=~-
restrained in one of the rear-facing or forward-facing infant
restraints (listed in Federa l Motor Vehicle Safety S tandard 208 with
which the Advanced Airbag System in your vehic le was certified),
the front airbag on the passenger side may or may not deploy .
The
PA SS ENGER AIR BAG OFF light comes on when the e lect ronic
control unit detects a total weight on the front passenger seat that
requires the front a irbag to be tu rned off . If the
PASSENGER AIR BAG
OF F
ligh t do es no t come on, the fron t airbag on th e passenger side
has not been turned of f by the contro l unit and can dep loy i f the
control unit senses an impact that meets the conditions stored in its
memo ry .
I f the total weight on the front passenger seat is more than that of
a typical
1 year-old, but less than the weight of a small adult, the
front airbag on the passenger side may dep loy (the
PASSENGER AIR
BAG OFF
light does not come on) .
For example, the airbag may deploy if:
• a small child that is heavier than a typ ical 1 year-old child is on
the front passenger sea t (regardless of whether the child is in one
of the child sa fety seats l isted :::::,
page 177) ,
• a child who has outgrown child res tra ints is on the front
passenger seat.
I f the front passenger airbag is turned off, the
PASSENGER AIR BAG
OFF
light in the center of the instrument panel wi ll come on and stay
on .
The front a irbag on the passenge r side may
not deploy (the
PAS SENG ER AIR BAG OFF light does not illuminate and stay lit) if:
• a small adult or teenager is on the front passenger seat
• a passenger who is not sitting upright with their back against a
non-reclined backrest with their feet on the vehicle floor in front of
the seat is on the front passenger seat.
I f the fron t pass enger airbag dep loys, the Federal Standard requires
t he air bag t o mee t the "low risk" deployment criteria to help reduce
the risk of injury through interaction with the airbag . "Low risk "
Controls and equip­
ment Safety first Vehicle operation
dep
loyment occurs in those crashes that take place at lower decel ­
erations as defi ned in the electronic con trol unit :::::,
page 158 .
Al wa ys remember :
Even though your vehicle is equipped with
Advanced Ai rbags, the safest place for chi ldren is properly
restra ine d on the back seat . Please be sure to read t he important
information in the sections that follow and be sure to heed a ll of the
WARNI NGS .
& WARNING
To reduce the risk of injury when an ai rbag inf lates , alway s wear
safety belts properly.
• If you a re unre strained , lean ing forward , sitt ing sideways or out
of position in any way , your risk of in jury is mu ch higher .
• You will also recei ve se riou s injur ies and cou ld even be killed if
you are up again st the airbag or too close to it when it inflates -
e ven with an Advan ced A irbag :::::,
page 14 7.
& WARNING
A child i n a re arward-fa cing child safety seat installed on the front
pa ssenger seat will be seriously injured and can be killed if the
fro nt airb ag infl ate s -ev en with an Ad vanced Airbag Sy stem .
• Although the Advan ced Airbag Sy stem in your vehicle is
designed to turn off the front a irb ag when a rearward-fa cing child
restraint ha s been in stalled on the front pa ssenger seat , nobody
ca n ab solutely guarantee that deployment is impo ssib le in all
c onceivable situations that may happen during the u seful life of
yo ur vehicle .
• The inflating airbag will hit the child safety seat or infant
c a rr ier with great for ce and will smash the child safety seat and
c hild again st the backre st, center arm rest , door, or roof .
• Always inst all rearward-fa cing child re strai nts in the back seat .
• If you mu st in stall a rearw ard facing child safety seat on the
front passenger seat be cause of e xceptional cir cumstances and
IIJ,,
Vehicle care Do-it-yourself service Technical data

___ A_ ir_ b_ a-g _ s_y _ s_ t_ e_ m _________________________________________________ _
& WARNING (continued)
the PASSENGER AIR BAG OFF light does not come on and stay on,
immediately install the rear-facing child safety seat in a rear
seating position and have the airbag system inspected by your
authorized Audi dealer.
& WARNING
If, in exceptional circumstances, you must install a forward-facing
child restraint on the front passenger's seat:
• Always make sure the forward -facing seat has been designed
and certified by its manufacturer for use on a front seat with a
passenger front and side airbag.
• Never put the forward-facing child restraint up against or very
near the instrument panel .
• Always move the passenger seat into its rearmost position in
the seat's fore and aft adjustment range, as far away from the
airbag as possible, before installing the forward-facing child
restraint . The backrest must be adjusted to an upright position.
• Make sure that the PASSENGER AIR BAG OFF light comes on
and stays on all the time whenever the ignition is switched on. •
Advanced Airbag System components
The front passenger seat in your vehicle has a lot of very important
parts of the Advanced Airbag System in it. These parts include the
weight-sensing mat, sensors, wiring, brackets, and more. The func­
tion of the system in the front passenger seat is checked by the elec ­
tronic control unit when the ignition is on. The control unit monitors
the Advanced Airbag System and turns the airbag indicator light on
when a malfunction in the system components is detected. The
function of the airbag indicator light is described in greater detail
below. Because the front passenger seat contains important parts
of the Advanced Airbag System, you must take care to prevent it from being damaged.
Damage to the seat may prevent the
Advanced Airbag for the front passenger seat from doing its job in
a crash .
The front Advanced Airbag System consists of the
following: • Crash sensors in the front of the vehicle that measure vehicle
acceleration/deceleration to provide information to the Advanced
Airbag System about the severity of the crash.
• An electronic control unit, with integrated crash sensors for front
and side impacts. The control unit "decides" whether to fire the
front airbags based on the informa tion received from the crash
sensors. The control unit also "decides" whether the safety belt
pretensioners should be activated.
• An Advanced Airbag with gas generator for the driver inside the
steering wheel hub .
• An Advanced Airbag with gas generator inside the instrument
panel for the front passenger.
• A weight-sensing mat under the upholstery padding of the front
passenger seat cushion that measures the total weight on the seat.
The information registered is sent continuously to the electronic
control unit to regulate deployment of the front Advanced Airbag on
the passenger side.
• An airbag monitoring system and indicator light in the instru ­
ment cluster => page 158.
• Th e PASSENGER AIR BAG OFF light comes on and stays on in the
center of the instrument panel=> page 159, fig. 146 and tells you
when the front Advanced Airbag on the passenger side has been
turned off.
• A sensor below the safety belt latch for the front seat passenger
to measure the tension on the safety belt . The tension on the safety
belt and the weight registered by the weight -sensing mat help the
control unit "decide" whether the front airbag for the front
passenger seat should be turned off or not=> page 149, "Child
restraints on the front seat -some important things to know". .,_

_________________________________________________ .:.A ..:. i :..:.r..::b :...:a:..:. g~ s::.. y .!....::. s..:t ..:e :..:.m.:....:...._lffllll

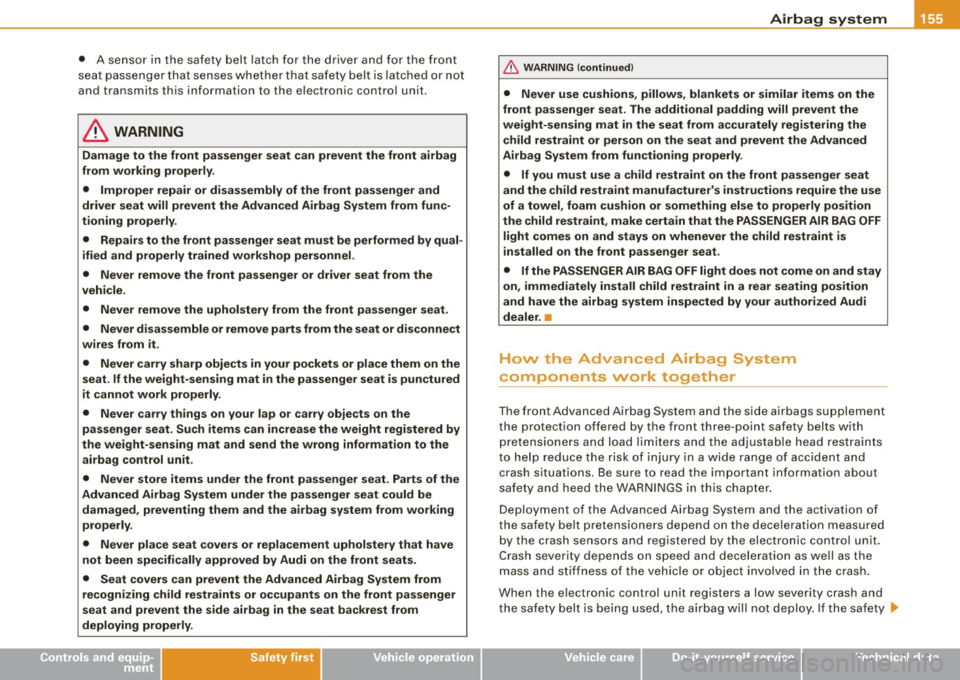

• A sensor in the safety belt latch for the driver and for the front
seat passe nger that s enses whe ther that sa fety belt i s latch ed or n ot
and transmits this informatio n to the e lectronic cont rol unit.
& WARNING
Damage to the front passenger seat can prevent the front airbag
from working properly.
• Improper repair or disassembly of the front passenger and
driver seat will prevent the Advanced Airbag Sy stem from func ­
tioning properly .
• Repairs to the front passenger seat must be performed by qual ­
ified and properly trained workshop personnel .
• Never remove the front passenger or driver seat from the
vehicle.
• Never remove the upholstery from the front passenger seat .
• Never disassemble or remove parts from the seat or disconnect
wires from it.
• Never carry sharp objects in your pockets or place them on the
seat . If the weight-sensing mat in the passenger seat is punctured
it cannot work properly.
• Never carry things on your lap or carry objects on the
passenger seat . Such items can increase the weight registered by
the weight-sensing mat and send the wrong information to the
airbag control unit .
• Never store items under the front passenger seat. Parts of the
Advanced Airbag System under the passenger seat could be damaged , preventing them and the airbag system from working
properly.
• Never place seat covers or replacement upholstery that have
not been specifically approved by Audi on the front seats.
• Seat covers can prevent the Advanced Airbag System from
recognizing child restraints or occupants on the front passenger
seat and prevent the side airbag in the seat backrest from
deploying properly.
Controls and equip­ ment Safety first
Vehicle operation
& WARNING (continued )
• Never use cushions, pillows, blankets or similar items on the
front passenger seat . The additional padd ing will prevent the
weight-sensing mat in the seat from a ccurately registering the
child re straint or person on the seat and prevent the Advanced
Airbag System from functioning properly .
• If you must use a child restraint on the front passenger seat
and the child restraint manufacturer's instru ctions requ ire the use
of a towel , foam cu shion or something else to properly position
the child restraint, make certa in that the PASSENGER AIR BAG OFF
light comes on and stays on whenever the child restraint is
installed on the front passenger seat .
• If the PASSENGER AIR BAG OFF light does not come on and stay
on , immediately install child restraint in a rear seating position
and have the airbag system inspected by your authorized Audi
dealer .•
How the Advanced Airbag System
components
work together
The front Advanced Air bag System and the side airbags s upplement
the protection offered by th e front three -point safety belts with
pretensioners and load limiters and the adjustable head restraints
to help re duce the r is k of in jury in a w ide ra nge o f accide nt a nd
crash situations. Be su re to read the important information about
safety and heed the WARNI NGS in t his c hap te r.
Dep loyment of the Advanced Airbag System and the activation of
t he sa fe ty be lt pretensione rs depe nd on the decele ration mea su red
by the crash sensors and registered by the electronic control unit .
C rash severity depends on s peed and deceleration a s well a s the
mass and st iffness o f the veh ic le or object involved in th e c ras h.
When the e lectronic control unit registers a low severity crash and
t he sa fe ty belt is being use d, the a irbag w ill not deploy . If the sa fe ty
~
Vehicle care Do-it-yourself service Technical data

___ A_ ir_b _a_ g;:::;_ s--:.. y_s _t _e _m _________________________________________________ _
belt is not being used, the first stage deploys, followed by the
second stage after a much la ter time in the crash sequence.
If the electronic control unit registers a crash of medium severity,
the first stage of the airbag deploys followed by the second stage at a much later time in the crash sequence -regardless of whether the
safety belt is being used or not . In higher severity crashes as regis ­
tered by the e lectronic contro l unit, both the first and second stages
deploy almost at the same time.
On the passenger side, regardless of safety belt use, the airbag will
be turned off if the weight on the passenger seat is less than the
amount programmed in the electronic control unit . The front airbag
on the passenger side will also be turned off if one of the ch ild
safety seats that has been certified under Federal Motor Vehicle
Safety Standard 208 has been recognized on the seat. The
PASSENGER AIR BAG OFF light comes on and stays on to tel l you
when the front Advanced Airbag on the passenger s ide has been
turned off=>
page 149, "Child restraints on the front seat - some
i m portant things to know".
& WARNING
To reduce the risk of injury when an airbag inflates, always wear
safety belts properly .
• If you are unrestrained , leaning forward , sitting sideways or out
of position in any way, your risk of injury is much higher.
• You will also receive serious injuries and could even be killed if
you are up against the airbag or too close to it when it inflates -
even with an Advanced Airbag=>
page 147 . •
More important things to knovv about front
airbags
Fig . 145 Inflated front
airbags
Safety belts are important to help keep front seat occupants in the
proper seated position so that airbags can unfold properly and
provide supp lemental protection in a fronta l collision.
The front airbags are designed to provide additional protection for
the chest and face of the driver and the front seat passenger when:
• safety be lts are worn properly,
• the seats have been positioned so that the occupant is properly
seated as far as possible from the airbag,
• and the head restraints have been properly adjusted.
Because airbags inflate in the blink of an eye with great force, things
you have on your lap or have placed on the seat cou ld become
dangerous projectiles, and be pushed into you if the airbag inflates .
When an airbag deploys, fine dust is released. This is normal and is
not caused by a fire in the vehic le. This dust is made up most ly of a
powder used to lubricate the airbags as they deploy. It could irritate
skin.
It is important to remember that while the supplemental airbag
system is designed to reduce the likelihood of serious injuries, other
injuries, for example swelling, bruising and minor abrasions, can
also happen when airbags inflate . Airbags do not protect the arms ._,

Airbag system ""' -------------------------------------------- -=---='------
or the lower parts of the body. Front airbags suppl em ent the three ­
poi nt s afet y be lts o nly in s ome fro ntal c oll isi ons i n whi ch the v ehicl e
deceleration is hi gh enough to d eploy the airbags .
Front airbags will not deploy:
• if the ignition is switched off when a crash occurs,
• i n sid e collisi ons,
• in r ear- e nd collisions ,
• in ro llovers,
• when the cras h de celer ation me asured b y th e a ir bag sy stem i s
l ess than the minimum threshold nee ded for airbag dep loyment as
r egi stere d by t he ele ctronic control un it.
The front passenger airbag also will not deploy :
• when the front pa ssen ger s eat i s not o cc up ied,
• wh en the weig ht on th e front pass enger seat as se nsed by t he
Advan ced A irb ag System indi cate s that the fr ont air b ag on the
p as se n ge r sid e h as to be turned off b y the e lectronic cont rol unit
(the PASSENGER AIR BAG OFF l ig ht co me s on and sta y s on ).
& WARNING
Sitting in the wrong position can increase the risk of serious injury
in crashes .
• To reduce the risk of injury when the airbags inflate , the driver
and passengers must always sit in an upright position , must not
lean against or place any part of their body too close to the area
where the airbags are located .
• Occupants who are unbelted , out of position or too close to the
airbag can be seriously injured by an airbag as it unfolds with
great force in the blink of an eye~ page
149 .
Controls and equip­
ment Safety first
Vehicle operation
& WARNING
A child in a rearward-facing child safety seat installed on the front
passenger seat will be seriously injured and can be killed if the
front airbag inflates - even with an Advanced Airbag System .
• The inflating airbag will hit the child safety seat or infant
carrier with great force and will smash the child safety seat and
child against the backrest , center arm rest , door or roof.
• Always install rear-facing child safety seats on the rear seat .
• If you must install a rearward facing child safety seat on the
front passenger seat because of exceptional circumstances and
the PASSENGER AIR BAG OFF light does not come on and stay on, immediately install the rear-facing child safety seat in a rear
seating position and have the airbag system inspected by your
authorized Audi dealer .
& WARNING
Objects between you and the airbag will in crease the risk of injury
in a crash by interfering with the way the airbag unfolds or by
being pushed into you as the airbag inflates .
• Never hold things in your hands or on your lap when the vehicle
is in use.
• Never transport items on or in the area of the front passenger
seat. Objects could move into the area of the front airbags during
braking or other sudden maneuvers and become dangerous
projectiles that can cause serious personal injury if the airbags
inflate .
• Never place or attach accessories or other objects (such as cup
holders, telephone brackets , large, heavy or bulky objects) on the
doors , over or near the area marked "AIRBAG " on the steering
wheel , instrument panel , seat backrests or between those areas
and yourself . These objects could cause injury in a crash , espe-
cially when the airbags inflate . ...
Vehicle care Do-it-yourself service Technical data

___ A_ ir_ b_ a-g _ s_y _s_ t_ e_ m _________________________________________________ _
& WARN ING (continued )
• Never recline the front passenger' s seat to transport obje cts.
Item s can als o move into the area of the side airbag or the front
airbag during br aki ng or in a sudden maneuver . Objects near the
airbags can become projectiles and cause injury , particularly when
the seat is re clined .
& WARNING
The fine dust created when airbags deploy can cause breathing
problems for people with a histo ry of asthma or other breathing
c onditions.
• To reduce the ri sk of breathing p roblems , tho se with asthma or
other respiratory conditions should get fresh air right away by
getting out of the veh icle or opening windows or door s.
• If you are in a collision in which airbags deploy , wash your
hands and face w ith mild soap and water before eat ing.
• Be careful not to get the dust into your eyes, or into any cuts or
s crat ches .
• If the residue should get into your eyes , flush them with
water .•
Monitoring the Advanced Airbag
System
Airbag monitoring indicator light t:Ji
Two sepa ra te indi cator s mon itor t he function of the
Ad vanc ed A irba g Sy stem: th e ai rbag moni to rin g in dicator
ligh t and the
PASSENGER AIR BAG OFF light .
The Advanced Airbag System (including the electronic control unit,
sensor c ircuits and system w irin g) is mon itored continuously to
make su re that it is functioning proper ly whenever the ignition is on. E
ach time you turn on the ignition, the airbag monitoring indicator
li ght
I wi ll c om e on fo r a few sec onds (sel f diag nos tics).
The system must be inspected when the indicator light ~:
• does not come on when the ignition is switched on,
• does not go out a few seconds a fter you have switched on the
ignition, or
• comes on w hile driving.
I f an airbag system malfunction is detected, the indicator light will
fir st star t fl ashin g to catc h the drive r's at tention an d then stay o n
continuously to serve as a constant reminder to have the system
ins pec te d imm edi ately.
I f a malfunction occurs t hat turns the front airbag on the passenger
side off, the PASSENGER AIR BAG OFF light will come on and stay on
whenever the ignition is on.
& WARNING
An airbag system that is not functioning properly cannot provide
supplemental protection in a front al crash.
• If the a irbag indicator light comes on , it means that there may
be something wrong with the Advanced Airbag System. It is
possible that the airbag will inflate when it is not supposed to , or
will not inflate when it should.
• Have the airbag system inspected immediately by your autho ­
rized Audi dealer. •
