Page 31 of 324
Yellow symbols
A yellow symbol means WARNING.
Contro ls and eq uip
ment
Low fuel level
Check engine oil level Engine oil sensor malfunction
E ng ine spee d limitation
Worn brake pads
USA mode ls:
Speed warning 1
Can ada m od els:
Speed warning 1
USA mod els:
Speed wa rning 2
C ana da m odels:
Speed warning 2
Dynamic headlight range con-
trol* defective
Windshield washer fluid leve l low
Ba ttery voltage too high or too
low
Defective light bulb
USA m odel s:
Defective brake light
=> page 32
=> page32
-
=> page32
=> page32
=> page32
=> page33
=> page33
=> page33
=> page33
=> page33
=> page33
=> page33
=> page 33
=> page33
-
-
Dri ver inf orm atio n di spl ay
Ca nad a m ode ls: => page33
Defective brake light
Light/rain sensor defect ive (auto-
=> page 34
matic headlights)* defective
Adapt ive Light* defective
=> page 34
Ti re pressure monitoring system* => page 34
When a yellow symbol appears, a warning tone will sound once .
Check the displayed function as soon as possible. If more than one
malfunction is detected, all symbols will appear one after the other
for about two seconds. •
Driver information
In addition to the warning/indicator lights and the
symbols in the instrument cluster display, driver informa tion is displayed.
Fi g. 2 1 Section of
in stru ment cl uster:
Set/C hec k b utto n
Driver information appears in the display when a defective light
bulb is reported by the defective light bulb warning=>
page 33,
when the brake pads are worn and before you engage a gear on
vehicles with S tronic.
Vehicle care I I irechnical data
Page 35 of 324
Speed warning 1 C (USA models) /'" (Canada
models)
If the symbol illuminates, this means you are driving faster than
the set vehicle speed. Slow down!=>
page 26. •
Speed warning 2
models) (
USA models) / (Canada
If the symbol illuminates, this means you have driven faster than
the second set vehicle speed. Slow down! =>
page 26. •
App lies to vehicles: w ith dynamic headlight range adjustment
Headlight range control defective ~ >
If the ·r illuminates, the dynamic headlight range control is no
longer working properly. Have the system checked and repaired at
your authorized Audi dealer. •
Windshield washer fluid level too low ' · '
If the rt symbol illuminates, add windshield washer fluid to the
washer system=>
page 241. •
Battery voltage low D
If the t::J symbol illuminates, contact your authorized Audi dealer
and have the following components inspected:
• drive belt
• battery charge
Also see if the generator warning/indicator light illuminates
=>
page 14. •
Controls and equip
ment
Driver information display
Defective light bulb warning ~
The defective light bulb warning tells you when a vehicle
light bulb has become defective.
If a defective bulb has been detected by the system or a light bulb
burns out, the ' symbol with a message appears in the display to
tell you which bulb is burnt out and where it is located. For example:
Rear left turn signal
After 5 seconds, the message disappears. If you want to recall the
message into the display, press the CHECK button=>
page 8, fig. 2
©-
There are three reasons why the defective bulb message would
appear in the display:
• The light bulb has burnt out=>
page 285.
• The fuse is "blown" => page 280, "Replacing a fuse" .
• Th e wire connection to the light bulb is defective.
Have the bulb replaced or the connection repaired by your autho
rized Audi Service department.
& WARNING
• Light bulbs are pressurized and could explode while they are
being changed causing serious personal injury.
• Work with due care when handling the high-voltage section of
gas discharge (xenon) lamps. Failing to do so could result in death
or serious injury! •
Brake light defective BR !.I" (USA
models) / (Canada models)
In case of a malfunction or component failure, the symbol
(USA models)/ (Canada models) can appear. The following elec- .,_
I • •
Page 67 of 324
• Before you take your vehicle to an automatic car wash , make sure
you have the windshield wiper system switched off !lever in position
Ol, otherwise the windshield wiper system could get damaged in the
car wash if it should suddenly come on.
[ i] Tips
• The rain sensor is part of the interval wiping system. Turning off
the ignition will also deactivate the rain sensor . To reactivate the
sensor, switch off the interval wiping function, then switch it back
on again.
• Worn or dirty windshield wiper blades cause smearing, which
can affect the operation of the light/rain sensor*. Check the condi
tion of your windshield wiper blades regularly .
• Applies to vehicles with light/rain sensor : When the wipers are
switched on manually and in rain conditions, the automatic head
lights* turn on~
page 53, "Sensor activated head- and tail light
control" or off during the day when the wipers are no longer oper
ating . The automatic headlights* function is available in this case
only when the light switch is in the "AUTO" position~
page 53,
fig. 48.
• Make sure the washer fluid reservoir in the engine compartment
is topped off before going on a long trip. Look up~
page 241 for
checking and filling the washer container .
• The wipers only operate with the hood complete ly c losed .•
Con tro ls and eq uip
ment
Clear vision
Rear window wiper
(Q
The wiper lever is also used to operate the rear window
wiper and the automatic wiper/washer function.
Fig. 65 Wiper leve r:
activating the rear
wi ndo w wipe r and
washer
The rear window wiper and the automatic wiper/washer
functions are activated as follows:
Intermittent wiping
Push the wiper lever forward towards the dashboard and
to the
first position ©=> fig. 65. The rear window wiper
will wipe the window approx. every four seconds.
Automatic wiper/washer function
Push the wiper lever forward to the second stop, position
0, and hold it there for as long as you want the rear
wiper/washer to operate.
Re lease the lever again. The wiper will keep running for
approx . four seconds.
Switching intermittent wiper action off
-Pull the lever all the way back to the original position.
Vehicle care I I irechnical data
Page 229 of 324
_____________________________________________ C_h_ e_ c _ k_in -= g_a _ n_d _ f_il _li _n ..;::g =--____.•
© Brake fluid reservoir ( ) . ....... ... ............ .
© Battery .. ... ................................. .
& WARNING
Before you check anything in the engine compartment, always
read and heed all WARNINGS
~ & in "Working in the engine
compartment" on
page 225. •
3.2 liter , 6 -cylinder engine (250 hp)
Fig. 170 Engine compartment: 3.21 250-hp engine
G) Coolant expansion tank (-L ) ................. .... .
@ Windshield washer container (,$ ) . ... ... .. .... ... .
@ Engine oil dipstick (orange) ...... ... ... .... .. ... .
© Engine oil filler cap ("1::r.) ..... .... .............. .
© Brake fluid reservoir ( ) . ...... ...... .......... .
© Jump start points(+) under a cover,(-) bolt head ... .
235
236
233
241
229
230
235
290
& WARNING
Before you check anything in the engine compartment, always
read and heed all WARNINGS
~ & in "Working in the engine
compartment" on
page 225.
[ i] Tips
The battery on vehicles with the 6-cylinder engine is located in the
luggage compartment. Have any work on this battery performed by
a qualified service facility.•

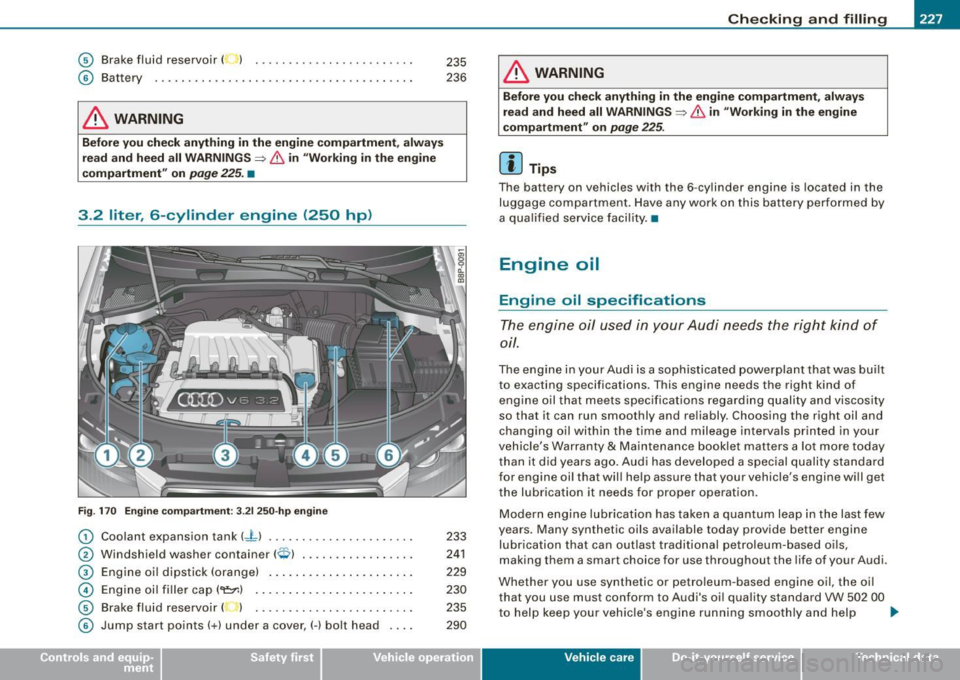

Engine oil
Engine oil specifications
The engine oil used in your Audi needs the right kind of
oil.
The engine in your Audi is a sophisticated powerplant that was built
to exacting specifications . This engine needs the right kind of
engine oil that meets specifications regarding quality and viscosity
so that it can run smoothly and reliably. Choosing the right oil and
changing oil within the time and mileage intervals printed in your
vehicle's Warranty
& Maintenance booklet matters a lot more today
than it did years ago. Audi has developed a special quality standard
for engine oil that will help assure that your vehicle's engine will get
the lubrication it needs for proper operation .
Modern engine lubrication has taken a quantum leap in the last few
years. Many synthetic oils available today provide better engine
lubrication that can outlast traditional petroleum-based oils,
making them a smart choice for use throughout the life of your Audi .
Whether you use synthetic or petroleum-based engine oil, the oil
that you use must conform to Audi's oil quality standard VW 502 00
to help keep your vehicle's engine running smoothly and help
ti,,,
Vehic le care I I irechnical data

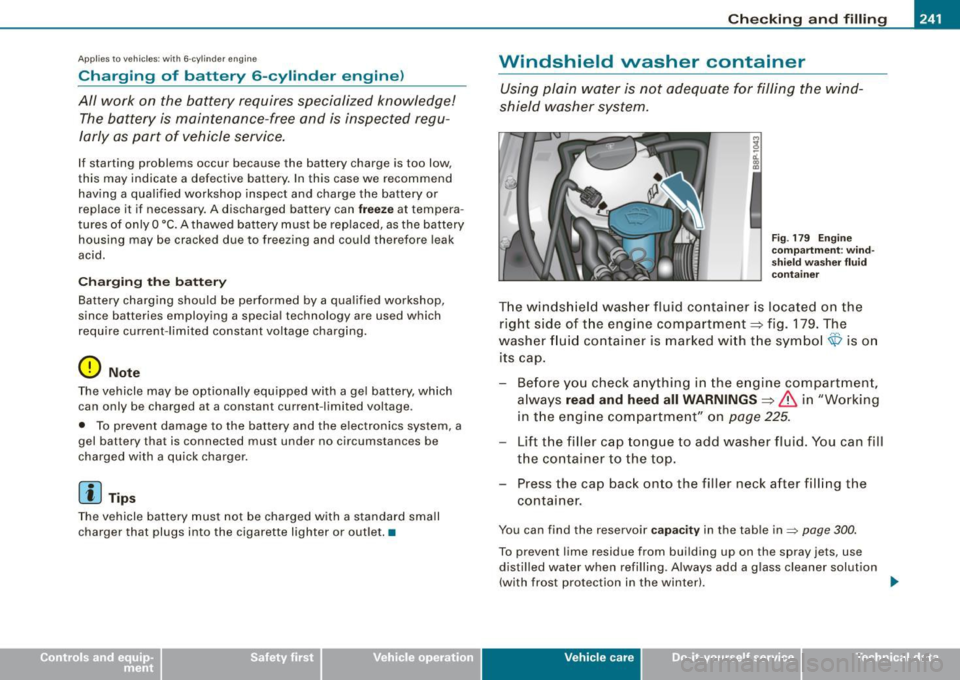

Page 243 of 324
_____________________________________________ C_h_ e_ c _ k_in -= g_a _ n_d _ f_il _li _n ..;::g =-- ____.•
Ap plies t o vehicles: w ith 6 -cylin d er engine
Charging of battery 6 -cylinder engine )
All work on the battery requires specialized knowledge!
The battery is maintenance-free and is inspected regu
larly as part of vehicle service.
If starting problems occur because the battery charge is too low,
this may indicate a defective battery. In this case we recommend
having a qualified workshop inspect and charge the battery or
replace it if necessary. A discharged battery can
freeze at tempera
tures of only O °C. A thawed battery must be replaced, as the battery
housing may be cracked due to freezing and could therefore leak
acid.
Charging the battery
Battery charging should be performed by a qualified workshop,
since batteries employing a special technology are used which
require current-limited constant voltage charging.
0 Note
The vehicle may be optionally equipped with a gel battery, which can only be charged at a constant current-limited voltage.
• To prevent damage to the battery and the electronics system, a
gel battery that is connected must under no circumstances be
charged with a quick charger.
[ i] Tips
The vehicle battery must not be charged with a standard small
charger that plugs into the cigarette lighter or outlet. •
Windshield washer container
Using plain water is not adequate for filling the wind
shield washer system.
Fig . 179 Engine
compartment : wind
shield washer fluid
container
The windshield washer fluid container is located on the
right side of the engine compartment~ fig. 179. The
washer fluid container is marked with the symbol %Pis on
its cap.
- Before you check anything in the engine compartment,
always
read and heed all WARNINGS~ & in "Working
in the engine compartment" on
page 225.
-Lift the filler cap tongue to add washer fluid. You can fill
the container to the top.
- Press the cap back onto the filler neck after filling the
container.
You can find the reservoir capacity in the table in~ page 300.
To prevent lime residue from building up on the spray jets, use
distilled water when refilling. Always add a glass cleaner solution
(with frost protection in the winter}. .,._
Vehicle care I I irechnical data
Page 304 of 324
___ D_ a_t _a ________________________________________________________ _

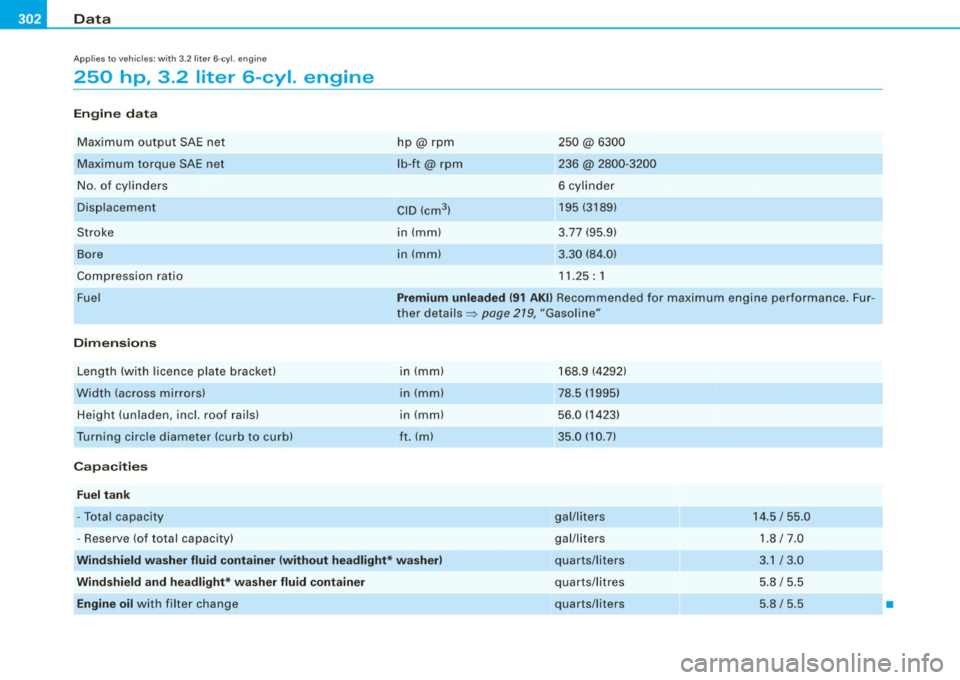

Applies to vehicles : wit h 3.2 liter 6-c yl. en gine
250 hp, 3 .2 liter 6-cyl. engine
Engine data
Max imum output SAE net
Maximum torque SAE net
No. of cy linders
Disp lacement
Stroke
Bo re
Comp ress ion ratio
Fuel
Dimensions
Length (with licence plate brac ket)
Width (across mirrors) Height (unladen, incl. roof rails)
Turning c ircle diameter (curb to curb)
Capacities
Fuel tank
- Total capacity
- Reserve (of total capacity) hp@ rpm
lb-ft@ rpm
CID (cm
3
)
in (mm)
in (m m) 250@6300
236 @ 2800-3200
6 cylinder 195 (3189)
3 .77 (95 .9)
3 .30 (84 .0)
11 .25 : 1
Premium unleaded {91 AKll Recommended for maximum engine performance . Fur
ther details =:>
page 219, "Gasoline"
in (m m)
in (m m)
in (mm)
ft . (ml 168
.9 ( 429 2)
78.5 (1995)
56.0 ( 14 23)
35 .0 (10 .7)
ga l/lit ers
gal/l iters 14.5 / 55
.0
1 .8/7 .0
Windshield washer fluid container (without headlight* washer )
Windshield and headlight* washer fluid container quarts/liters
quarts/l it res 3.
1 / 3.0
5 .8 / 5.5
Engine oil with filter change quarts/liters 5.8 / 5.5 •
Page 310 of 324
___ A_l.:,. p _h_ a_ b_e _t _ic _ a_l _in _ d_e _x ____________________________________________ _
A
ABS
See Anti-lock brake system
ABS (Anti-lock brake system) 194
Wa rning/indicato r lights .. ... .... .. 16
Accessori es . . . . . . . . . . . . . . . . . . . . . . . . 305
Adapter for anti-theft wheel bo lts . . . . . 275
Adaptive Light Air conditioning
Switching on and off
Air distribution 101
Climate controls .. ...... .... ... .. 103
Air outlets
Adjusting the outlets for rapid Side airbags
... .... .... ... .. ..... 163
Side curtain airbags ....... .... .. . 166
When must the system be inspected? ...
158
All Whee l Drive . ...... .... .......... 196
Alloy wheels ....... ... .... ...... ... 212
defrosting/defogging .... .... ... .
104 All -whe el drive
Climate controls .. .... .... .... ... 104
Winter tires ... ... ... .. ...... .... 260
Air quality sensor . . . . . . . . . . . . . . . . . . . 102
Alternator
defective ....................... . 34 Air recirculation
....... .. .... ....... 103
See Generator . . . . . . . . . . . . . . . . . . . . 14
Adaptive light . . . . . . . . . . . . . . . . . . . . . . . 55
Adding Engine coolant ... .... .... ....... 234
Engine oil . ................... ... 230
Windshield washer fluid .... ...... 241
Additiona l accessories .... ...... ... .. 305
Additives Engine oil .... .... ... ... ... .. .... 230
Adjustable steering whee l column ..... 107
Adjusting Steering wheel column .... ... .... 107
Adjusting front seats ............. ... . 74
Advanced Airbag System Children . ... .. .... .... ..... ..... 170
Components ...... .... ......... . 154
Front airbags ......... .... ....... 152
How the components work together 155
Monitoring . . . . . . . . . . . . . . . . . . . . . . 158
PASSENGER AIR BAG OFF ligh t .. ... 159
W eight -sensing mat .. .. .. .... .... 170
Air conditioner . . . . . . . . . . . . . . . . . . . . . 101
See also Climate controls . . . . . . . . . . . 98 Climate controls
.... . ......... ... 102
When should I use the air recirculation?
102
Air r ecirculation mode
Clima te controls .. ...... .... ... . . 102
Airbag Warning /indicator lights ....... .... 14
Airbag system .... .... .... .... .. 147, 164
Advanced Airbag System .......... 151
Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Child restraints .. ... ... .... .... .. 171
Components (front airbags) ..... ... 154
Danger of fitting a chi ld safety seat on the
front passenger seat . .... .... ... 149
Disposal . .... .... ...... .... ... .. 161
Front airbags . ... .. ..... ... .. ... . 151 Aluminum alloy wheels
...... .... .... 212
Amb ient lighting .. ... .... .... .... .... 61
Anti-glare inside day-night mirror .... .. 69
An ti-lock brake system
How the ABS system works ........ 194
Anti -lock brake system (ABS )
Warning /indicator lights ... .... .... . 16
Anti-Slip Regulation System (ASR) How the system works . . . . . . . . . . . . 192
An ti-theft sys tems
An ti-Theft Alarm System .. . .. .. .... 45
Anti -theft wheel bolts ..... .... .... ... 275
Armrest Center armrest ....... .. .. .. ..... .. 81
Rear armrest ................. .. .. 82
How do the front ai rrbags work? . . . . 156 Ashtray
How many airbags does my vehicle have?
154
Important things to know . ... .. ... 147
Indicator ligh t .... ... .. ..... .. ... 158
Monitoring . . . . . . . . . . . . . . . . . . . . . . 158
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . 161 Rea
r .... ... .. .. ... ... .. .. ... ... .. 93
ASR How the Anti -Slip Regulation System
works ... .... .... .... ... .... ... 192
Page 322 of 324
___ A_l.:,. p _h_ a_ b_e _t _ic _ a_l _in _ d_e _x ____________________________________________ _
What happens if you wear your safety belt too
loose? .................. ...... 142
What happens to unbelted occupants? . 139
What impairs driving safety? ... .. .... 127
What should I do after changing a wheel? . .
251
What should I do afte r replacing wheels? ...
251
Wheel bolts Anti -theft wheel bo lts . . . . . . . . . . . . . 275
Torque . ... ... ... ........ .... ... 262
Wheel change . . . . . . . . . . . . . . . . . . . . . . 272
Wheels .. ...... ... .. .... .... ...... . 243
Checking tire pressure ............ 250
Cold tire inflation pressure . ....... 247
General notes .... .... .... ... .... 243
Glossary of tire and loading terminology
244
New tires and wheels . . . . . . . . . . . . . 255
Tires and vehicle load limits 251
Wheels/Tires Cast alloy ... .. .... .... .......... 212
Stee l wheels . . . . . . . . . . . . . . . . . . . . 211
When must a safety belt be replaced? .. 140
When must the airbag system be inspected?
158
When should I adjust the tire pressures?
251
When should I check the tire pressures? 251 Windows
Cleaning .. .... ...... ........ ... . 210
Convenience close/open feature .. ... 47
Defogging ..... .. ... ... .... .... . 101
Defrosting . . . . . . . . . . . . . . . . . . . . . . 101
Rapid defrosting/defogging ... ..... 104
Windshield washer container . ...... .. 241
Windshield washer fluid . ...... .... ... 33
Windshield wipers Changing the rear wiper blade ...... 68
Installing new wipe r blades ......... 67
Service position . . . . . . . . . . . . . . . . . . . 66
Winter operation Battery ................. .... .... 237
Coolant system ................. . 232
Tires ... .. .... ...... ... .. ..... .. 196
Windows . ..... ... .... .... .... .. 210
W inter tires .. .... ..... .. .... .... ... 260
All-wh eel driv e .... ..... ..... .. ... 260
Wiper and washer system . . . . . . . . . . . . . 63
Intermittent wiping . . . . . . . . . . . . . . . . 63
One -tap w iping .... .... .... .... ... 63
Rea r w indow wiper . . . . . . . . . . . . . . . . 65
Wiper blades
Installing new wiper blades ..... .... 67
See also Windshield wipers ......... 68
X
Where can I find the tire pressures for my Xenon-Lights ............. .......... 285
car? .... ....... .... .... ...... . 250
Why safety belts? . . . . . . . . . . . . . . . . . . . 137
