0 > co ,...., injuries. When the vehicle enters drive ready
mode, the status message
e-"'1 o I r.-.Al"'Y ap­
pears briefly in the instrument cluster display
and the needle in the power meter points to
READY ¢page 101.
-Make sure that the selector lever is in the P
position and the ignition is switched off
when leaving the vehicle.
([) Note
-The high-voltage system can be damaged if
the vehicle underbody comes into contact
with the ground. Immediately drive your ve­
hicle to an authorized repair facility and
have it inspected.
- The electric drive motor can become very
hot during operation . Do not stop the vehi­
cle if there is oil, fuel residue or other flam­
mable substances under or next to the vehi­
cle.
Special considerations for the high-voltage
battery
Please first read and note the introductory infor­
mation and heed the warnings
¢page 98.
All batteries age with use and over time. There
are things you should know about the care of the
high-voltage battery that will help it keep giving
you good service and reliability over time. Please
read and keep the following information in mind
while you enjoy the performance and economy of
your vehicle.
- Be sure to charge the high-voltage battery be­
fore leaving the vehicle parked and unused for a
longer period of time. Ideally the high-voltage
battery should have a charge level between
40% and 60% when parked for a long time.
- If the battery charge level is below 3%, never
park the vehicle for more than 21 days without
charging the high-voltage battery. Should you
have to park the vehicle for a long time, make
sure that the charge level is sufficient to help
prevent the battery from aging prematurely.
- Frequent and consecutive charging of the high­
voltage battery when the charge level is above
98% can also decrease the capacity of the high-
e-tron
voltage battery. Make sure the charge level is
below 98% when you start the charging proc­
ess.
- Should the vehicle be parked for longer than
2 days at temperatures below -13 °F (-25 °(),
the high-voltage battery could freeze and not
be able to provide energy to the electric motor.
The battery will start working again, once it
warms up . The battery can be warmed up when
the outside temperature rises or when the vehi­
cle is garaged appropriately. The battery will al­
so warm up when being used (switching on the
air conditioner, the heater or by driving the ve­
hicle). Should you have to park your vehicle at
very low temperatures for longer than 1 day,
make sure that the high-voltage battery does
not freeze by parking the vehicle in a garage
that is heated or protected from the outside
temperature.
- The high-voltage battery can be damaged and
the capacity can be decreased when the vehicle
is parked for longer than 24 hours when the
ambient temperature is higher than 118 °F
(48 °C). Always make sure that the high-volt­
age battery is not exposed to temperatures
above 118 °F (48 °C) for a long time.
- Never park the vehicle in areas that are likely to
be flooded, such as beaches or river banks, and
never drive the vehicle in WATER, on flooded
roads or through water that is higher than the
bottom of the vehicle body. The high-voltage
battery, along with other vehicle components,
can be damaged severely if the high-voltage
battery is exposed to open water especially for
a longer time. However, you can drive through
water on roads under certain conditions
¢ page 77, Driving through water on roads .
Failure to heed any of these requirements can
age the battery prematurely and lead to a perma­
nent decrease of the high-voltage battery's ca­
pacity.
(D Tips
Always make sure that the high-voltage bat­
tery is not exposed to extremely low and high
temperatures as well as to water especially
for a longer time. Failure to protect and care
for the high-voltage battery can lead to
99

e-tron
serious damage and/or a decrease of the ca­
pacity void coverage under the New Vehicle
Limited Warranty.

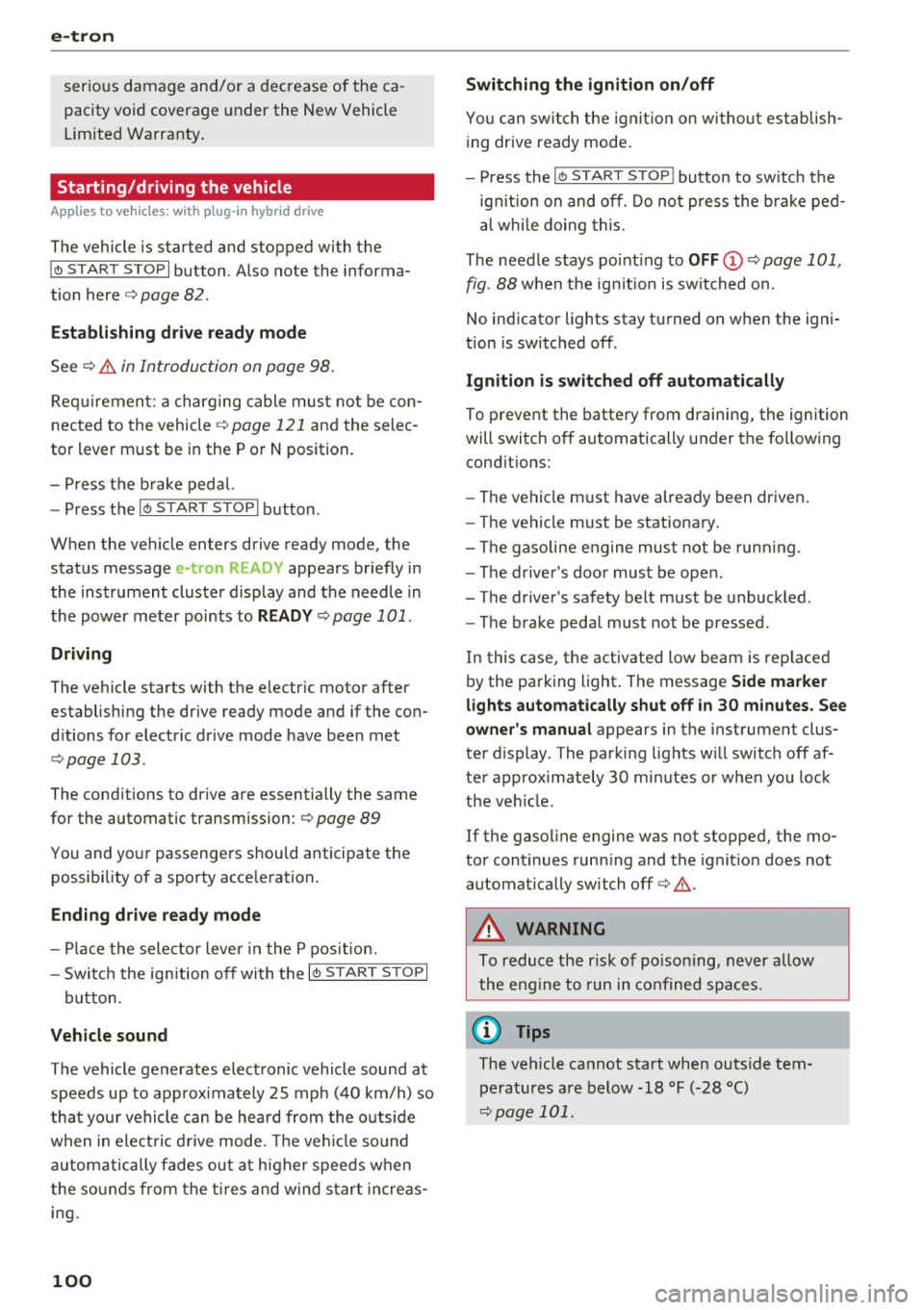

Starting/driving the vehicle
Applies to veh icles: w ith plug-in hybrid drive
The vehicle is started and stopped with the
I START S TOP I button. Also note the informa­
tion here ¢
page 82.
Establishing drive ready mode
See¢.& in Introduction on page 98.
Requ irement: a charging cable must not be con­
nected to the vehicle ¢
page 121 and the selec­
tor lever must be in the P or
N position.
- Press the brake pedal.
- Press the
I START STOPI button .
When the vehicle enters drive ready mode, the
status message
e-tron READY appears briefly in
the instrument cluster display and the needle in
the power meter points to
READY r:::;, page 101 .
Driving
The vehicle starts with the electric motor after
establishing the drive ready mode and if the con­
ditions for electric drive mode have been met
¢page 103.
The conditions to drive are essentially the same
for the automatic transmission : ¢
page 89
You and your passengers should anticipate the
possibility of a sporty acce leration.
Ending drive ready mode
- Place the selector lever in the P position.
- Switch the ignition off with the
le!> START STOPI
button.
Vehicle sound
The vehicle generates electronic vehicle sound at
speeds up to approximately 2S mph (40 km/h) so
that your vehicle can be heard from the outside
when in electric drive mode. The veh icle sound
automatically fades out at higher speeds when
the sounds from the tires and wind start increas­
ing .
100
Switching the ignition on/off
You can switch the ignit ion on without establish­
ing drive ready mode.
- Press the
I START STOP ! button to switch the
ign ition on and off. Do not press the brake ped­
al while doing this.
The needle stays pointing to
OFF@ r:::;, page 101,
fig. 88 when the ignit ion is switched on.
No indicator lights stay turned on when the igni­
tion is switched off .
Ignition is switched off automatically
To prevent the battery from draining, the ignition
will switch off automatically under the following conditions:
- The vehicle must have already been driven.
- The vehicle must be stationary.
- The gaso line engine must not be runn ing .
- The driver 's door must be open .
- The driver's safety belt must be unbuckled.
- The brake pedal must not be pressed.
In this case, the activated low beam is replaced
by the parking light. The message
Side marker
lights automatically shut off in 30 minutes. See
owner's manual
appears in the instrument clus­
ter display . The parking lights w ill switch off af­
ter approximately 30 minutes or when you lock
the vehicle.
If the gasoline engine was not stopped, the mo­
tor continues running and the ignition does not
automat ically switch off
r:::;, ,& .
A WARNING
To reduce the risk of poisoning, never allow
the engine to run in confined spaces.
(D Tips
The vehicle cannot start when outside tem­
peratures are below-18
°F (-28 °()
r:::;,page 101.
-

.... N
0 > CX)
.... I.Cl U"I
.... I.Cl ....
e-tron
Power meter overview
Applies to vehicles: with plug-in hybrid drive
The power meter shows the status of the plug-in hybrid drive and the availability of the plug-in hybrid
system .
Fig. 88 Power m ete r overview
When opening the driver's door, the charge level
is shown in the inst rument cl uster when the igni­
tion is sw itched on, or the cha rge level and the
rema ining charge time for the high-vo ltage bat­
tery is displayed when charg ing .
The power mete r is located in the instrument
cluster in place of the tachomete r. A d igital tach­
omete r can be d isplayed in the driver info rmation
sys tem
¢ page 29 .
The power mete r gives feedback about the part ic­
u lar accelerator pedal position and shows the
current demand
(%) for electricity or fue l regard­
less of which engine is active.
An economical dr iv ing and recupe ration range is
shown in g reen
¢ page 104, Energy recovery (re­
cuperation) .
A driving range that is not economi­
cal is shown i n orange . In add ition, the batte ry
status provides information about the high -vo lt ­
age battery charge status.
(D Vehi cle no t drive ready (OFF)
@ Recuperation (CHARGE)
® Veh icle dr ive ready (READY)
@ E ff ic ient driving w ith electric moto r
and/or gasoline engine (E FFIC IEN­
CY)
® E conom ic driving wh ile the electric
moto r or gaso line engine is in the
partia l powe r range
® Driving in fu ll power range
(J) 100% output
@ Boos ting -the e lec tric mo tor as­
sists the gaso line engine (BOOS T)
® High-voltage battery charge level
@ T he EV mode is ac tive o r EV mode is
current ly not ava ilable
@ Speed limit for electric driving in EV
mode (80 mph/ 130 km/h)
Indicator lights and messages
Applies to vehicles: wit h plug-in hybrid drive
Also note the ind icator lights in ¢ page 13.
The gasoline engine is act ive when the Ill indica ­
tor light t urns on.
• Drive system : sy stem fault! Safely park vehi­
cle
T he re is a ma lfunction in the plug- in hybrid sys­
tem. The br ake booster and the power steer ing
may stop working . Stop the vehi cle immed iate ly
or as soon as possible. Park the ve hicle in a sa fe
place outdoors that is not near bu ildings, roof ..,_
101

e-tron
overhangs, carports or similar structures . Switch
the ignition
off. Have the problem corrected by
an author ized Audi dealer or authorized A udi
Serv ice Facility .
• Elec tric s ystem: o verheated. Safel y park ve­
hicle and check coo lant
The coolan t leve l is too low or the coolant tem ­
pera ture is too high .
S top the vehicle in the outdoo rs as soon as it is
safe ly possible . Switch the ignition off.
Read the important safety precautions ¢.&.
in
Coolant on page 109 and check the coolant level
¢page 108.
If the coolant level is OK, the malfunction may be
caused by the system overheating . Let the vehi­
cle's electric drive system cool down for some
time .
If the message turns
off after cooling down and
sw itching the ign ition back on, you ca n continue
driving. Contact an author ized Audi dealer or au­
thor ized A udi Se rvice Facility immed iate ly to have
the ma lf u nction co rrected.
If the indicator lig ht stays on, contact an author­
ized A ud i dealer or authorized Aud i Serv ice Faci li­
ty .
Bil Drive system : sys tem fault! Pleas e contact
work shop
There is a malfunction in the plug-in hybrid sys ­
tem. Drive to an authorized Audi dealer or au­
thor ized Audi Service Facility immediate ly to have
the ma lfunction corrected .
II Drive sy stem: system fault! Restart not po s·
sible. Ple ase contact wo rkshop
There is a mal func tion in the plug -in hybrid sys­
tem . Do not open the engine compartment lid .
Drive to an a uth orized Aud i dea le r or authorized
Aud i Serv ice Facility immediately to have the
malfunct io n corrected.
II Batter y temperature too low . Engine start
not possible . See owner's manual
The outside temperature is too low. The vehicle
can no longer start at temperat ures below -18 °F
102
(- 28 °C) . Contact your author ized Audi dealer or
autho rized Audi Service Facility.
POWER LIMIT Warning! Limited power
If the indicator l ight turns on and this message
appears , there may be an engine cont rol mal­
funct ion. The
(m ind icator light in t he instr u­
ment clus ter a lso turns on. The e ng ine o utput is
reduced. Dr ive to an a utho rized Audi dea ler or
autho rized Audi Service Facility immedia tely to
have the malfunction corrected.
II e -tron mode : EV curr ently unavailable
This message appears w hen the 1-,$ 1 button is
pressed and the conditions for e lectric drive
mode are no t me t.
IIJ Vehicle sound: malfunction! Pedestrians
cannot h ear vehicle. P lease contact Service
if the indicator light t urns on and this message
appears, pedestrians and bicyclists can no longer
hear the vehicle when it is driving in electric
mode. Turn off the veh icle and switch to dr iv ing
with the gasoline e ngine . To activate the gasoli ne
engine, select the
Charge batt ery mode
¢page 103 with the kl"I button. Drive to a n au­
tho rized Audi dea le r or a uthorized Audi Service
Facility immediate ly to have the malfunction cor ­
rected.
Range display
Applies to vehicles: wit h pl ug-in hy brid drive
Fig. 89 Ins trument cluster example image: range disp lay
The range can be d isplayed in the on -board com­
p uter ¢
page 29.
Depend ing o n the selected p lug-in hybrid mode,
the d isp lay disp lays the follow ing informa tion:
Ill>

,....,
N
0 > co ,...., @ electric motor range or combined total range
@ gasoline engine range
© electric motor range
(D Tips
The values given are based on the latest con­
sumption values.
Plug-in hybrid mode
Applies to vehicles: with plug- in hybrid drive
You can select between one electric mode and
three hybrid modes.
dV Electric mode (EV mode)
EV mode is electric driving only.
EV mode is active at the beginning of every drive
depending on the operating status. The LED in
the
!<=I'! button turns on. The. indicator light al­
so turns on in the instr ument cluster display. The
gasoline engine stays switched off as long as the
battery charge level and climate conditions allow
it .
You can drive with only electric power at speeds
up to approximately 80 mph (130 km/h).
Hybrid modes
The electric motor and the gasoline engine work
efficiently together in every hybrid mode.
OQ!t Hybrid: the battery charge is used as much as
possible when this mode is switched on. This
mode is best suited for long distances.
O\Q!J Hold battery: the high-voltage battery charge
level is conserved as much as possible.
•& Charge battery: the high-voltage battery will
charge if the charge level permits it. This causes
an increase in fuel consumption.
@ Tips
-Applies to "Hold battery" and "Charge bat­
tery": the battery charge level can also de­
crease depending on the driving style.
- If you select the sport driving mode S when
in EV mode, the Hold battery mode is auto­
matically selected. You can select the EV
e-tron
mode again with the 1.:.1•! button
r:!;> page 104.
- if the la• I r:!;> page 104 button is pressed
while in sport driving mode S, the transmis­
sion switches automatically to normal mode
0.
Conditions for electric driving
Applies to vehicles: wit h plug-in hybrid drive
The EV mode can only be switched on if the fol­
lowing conditions are met:
- The cha rge level of the high-voltage battery
must be suff icient.
- The temperatu re of the high-voltage battery
must be adequate (outside temperatures not
below approximately 14°F / -10°C and not
above 104°F / 40°C)
- The speed must not be higher than approxi-
mately 80 mph (130 km/h).
- Kick-down must not be activated.
- The sport drive mode
S must not be selected.
EV mode is switched off if one or more of the
conditions are not met. The gasoline engine will
start automatically. The
E] ind icator light turns
on as a message in the instrument cluster. The
LED in the
l d• I button and the B indicator light
turn off.
Electric drive mode will not continue automati­
cally. Reactivate the EV mode
r:!;> page 104.
(D Tips
It may be necessary for the gasoline engine to
run longer for technical reasons, such as
when condensation accumulates in the en­
gine. Driving exclusively in electric mode is
not possible in this phase.
103

e-tron
Setting plug-in hybrid drive modes
Applies to vehicles: w ith p lug -in hybrid drive
Fig. 90 Center console : but ton &
You can change modes when the vehicle is sta­
tionary or while driving. If the vehicle operating
conditions will not allow you to set the mode manually, the last active mode is se lected .
.,. Press the
laV I button repeatedly until the de­
sired mode is displayed in the instrument clus­
ter . Or :
.,. Select the mode in the MMI
n: press the
I MENU I function button> Car > Systems con­
trol button >
e-tron mode and select the de­
s ir ed mode .
The active mode is displayed the first time the
14 "1
button is pressed .
Plug-in hybrid functions
Applies to veh icles: with p lug -in hybrid drive
The functions described below activate automati­
cally depending on the driving style.
Full acceleration (boost)
The boost funct ion is act ivated by pressing the
accelerator pedal farther down (kick-down). The
l) Not availa ble in a ll Info ta inm en t sy ste m s.
104
vehicle is powered by both the gasoline eng ine
and the e lectric motor when in fu ll acce leration.
Boost is only ava ilable for a short time because it
uses a large amount of energy. Availability de ­
pends on the high-voltage battery charge level.
Coasting
The gasoline engine switches off and disengages
at speeds up to approximate ly 112 mph
(180 km/h) if the acce lerator pedal is not press­
ed and the D position is selected. Driving conser­
vatively like this can reduce fuel consumption .
Energy recovery (recuperation)
When braking, the electric motor will act as a
generator creating electric energy that is then
stored in the high-voltage battery . This also oc­
curs when the vehicle is coasting or driving down­
hill.
If the brakes are applied early and evenly, the electric motor w ill brake the vehicle @
¢page 101 , fig. 88. By doing this , a large
amount of the kinetic energy is recovered and
may be stored as e lectric energy in the high -volt ­
age battery . The conventional brakes are also ac­
tivated when the brakes are pressed very hard.
The strength of recuperation can depend on the
following factors:
- If you are in tiptronic mode
Q page 94 . Or
- If the sport driving mode 5 was selected.
The ene rgy recovery is shown in the energy flow
i ndica tor in the in str ument cluster display
¢page 106 .

,....,
N
0 > co ,...., Tips for an efficient drive mode
Applies to vehicles: with p lug-in hybrid drive
Driving situations
Conditions
-Cautious driving and reserved ac-
ce leration .
Constant driving and -Release the accelerator peda l
c oasting (glid ing)
early and entirely.
-Brake early and evenly with short
Energy recovery (re- pedal movements.
cu peration)
Driv ing in city traffic -
Accelerate moderately and brake
early and evenly
- Intentionally take your foot off of
the gas peda l to allow for Lengthy
coast ing .
Driv ing on highways
-Reduce the vehicle speed by re-
and expressways leasing the accelerator pedal and
not by braking.
- Use the S selector lever position
and tiptronic mode sparing ly.
- Do not run the gasoline engine
while the vehicle is parked to warm
the engine.
- Use the rear window/exterior
Driving in cold weath -mirror defroster and the seat heat-
ing sparingly.
er
-Park the vehicle in a garage over -
night.
e-tron
Vehicle behavior
The kinetic energy of the vehicle is used to
move the vehicle.
The gasoline engine turns
off automati -
cally and disengages when you release the
accelerator pedal comp letely. The veh icle
glides without being propelled .
The electric motor brakes the vehicle. By
doing this, a large amount of the kinetic
energy is recovered and may be stored in
the high-voltage battery in the form of
electric energy .
The kinetic ene rgy of the veh icle is used to
move the vehicle.
The gasoline engine turns
off automati-
cally and disengages when yo u release the
accelerator pedal comp lete ly . T he veh icle
g lid es without being p ropelled .
Fu el cons umption can be reduced by
coasting .
A sporty driv ing style increases fue l con-
sumpt ion.
The temperat ure of the gasoline eng ine
rises very s lowly and the fuel consump-
tion increases considerably .
This conserves the energy in the high-volt-
age battery so that it is availab le to run
the vehicle in electric mode.
This reduces exposure of the high-voltage
battery to cold temperatu res . The re-
quired temperature range for the high-
voltage battery will then be reached more
quickly after you start driving.
105

e-tron

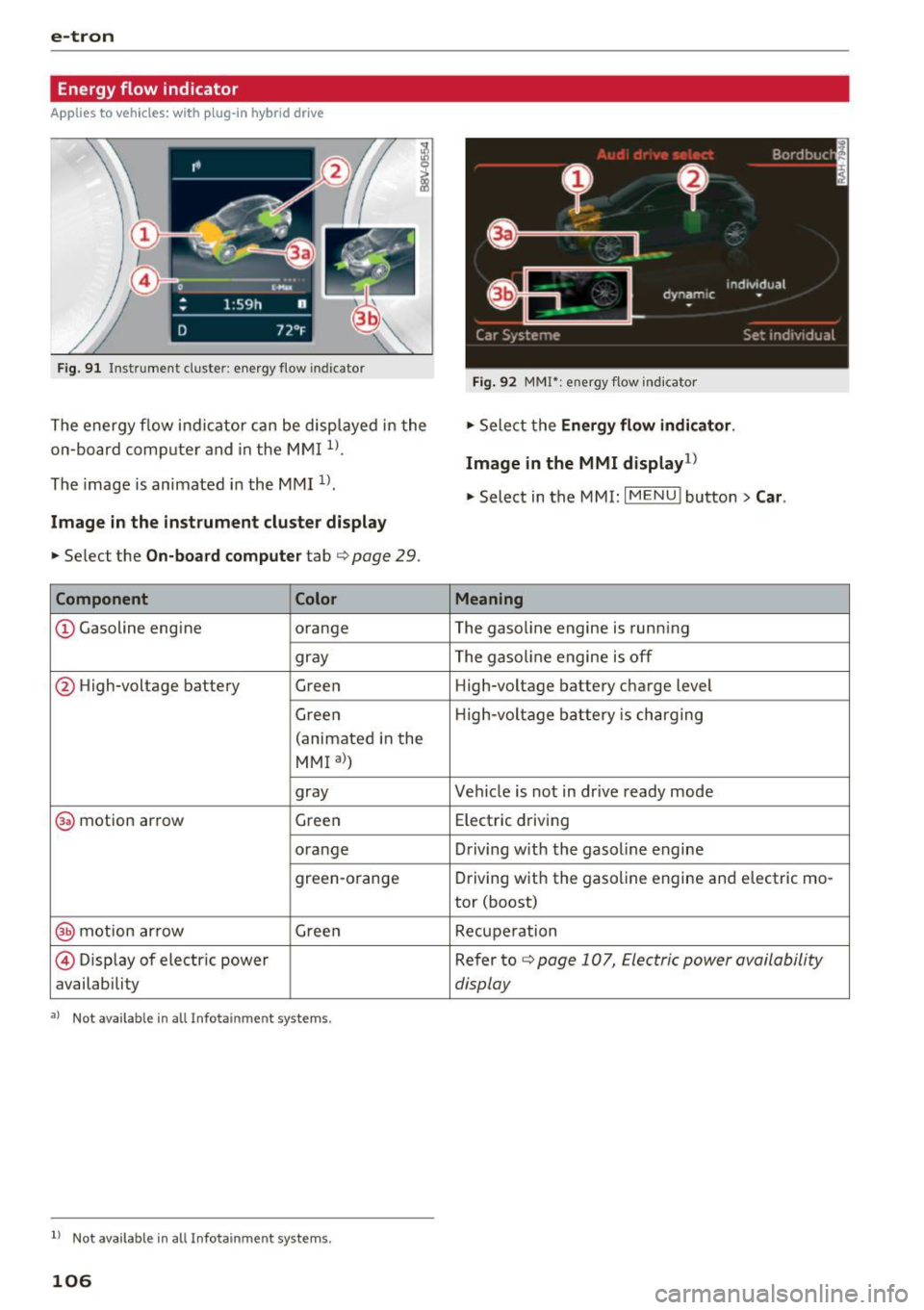

Energy flow indicator
Applies to veh icles: w ith p lug -in hybrid drive
Fig . 91 Instrument cluster: e nergy flow indicator
The energy f low indi cator can be disp layed in the
on-board com puter and in the M MI
1>.
The image is animated in the MMI 1>.
Image in the instrument cluster display
.,. Se lect the On-board compute r tab c> page 29.
Component Color
CD Gasoline engine orange
gray
@ High-voltage battery
Green
Green
(animated i n the
MMI al )
gray
@ motion ar row Gree
n
o range
green-orange
@ mot ion ar row Gree n
@ Disp lay of electric power
availability
•> Not available in a ll Infotainmen t systems .
ll Not available in all Infota inmen t sys tems .
106
Fig. 92 MMI*: energy flow i nd icato r
.,. Select the Ene rgy flow indi cator .
Image in the MMI display1
)
.,. Select in the MMI: I MENU ! button> Car.
Meaning
The gasoline engine is runn ing
The gasoline engine is off High-voltage battery charge level
H ig h-voltage battery is ch arging
Vehicle is not in dr ive ready mode
Elect ric d riving
D riving w ith the gasol ine engine
Driving wit h the gaso line engine and electric mo-
tor (boost)
Recupe ration
Refer to
c> page 107, Electric power availability
display

.... N
0 > CX)
rl I.Cl U"I
Statistics
Applies to vehicles: with plug-in hybrid drive
Fig. 93 Example image: e-tron stat istics
The statistics in the MMI l) show the distances
driven without emissions (electric) and with fuel.
The values are taken from on-board computers 1
and 2 .
Opening the statistics
.. Select: I MENU I function button >Car> Car sys­
tems
> e-tron statistics
.. Turn the control knob to switch between on­
board computer 1 and 2.
Electric power availability display
Applies to vehicles: with plug-in hybrid drive
Fig. 94 Instrument cluster; electric power availability dis­
p lay
The power currently available in the electric drive
system is displayed when you open the energy
flow indicator
r=> page 106.
The bars are filled in with different colors accord­
ing to the power status :
rl
~ 1> Not available in all Infotainment syste ms.
e-tron
@ -white: electric power currently available.
@ -green: electric power currently used .
The more segments that are colored in white in
the E-MAX area
0, the longer the maximum
power can be utilized . The segments turn off in
the E-MAX area when the maximum power can no
longer be utilized.
When the drive power is greatly reduced, the
drive mode will automatically switch to using the
gasoline engine.
The availability of power is generally restricted under the following conditions:
- The temperature of the high-voltage battery is
be very cold or very hot.
- The high-voltage battery charge level is low.
The power availability is not visible if the&] indi­
cator light turns on .
(D Tips
High power availability is necessary, for exam­
ple, when needing to accelerate quickly while
in electric driving mode to pass another vehi­
cle.
Vehicle tool kit and tire mobility kit
Applies to vehicles: with plug-in hybrid drive
Fig. 95 Luggage compartment: vehicle tool kit and tire
mo bility kit
The vehicle tool kit and the tire mobility kit (Tire
Mobility System) are located in the side trim pan-
el @ and @ in the luggage compartment. .,.
107

e-tron
Additional information about the vehicle tool kit may be found under
c::, page 280 and informa­
tion about the tire mobility kit under
c:> poge281 .
(D Tips
The vehicle must not be operated without the
tire repair set.
Vehicle transport
Applies to veh icles: w ith plug- in hybrid drive
The following contains information you should
know about transporting your vehicle.
The MQB-A lithium-ion battery system equipped
in your vehicle is composed of SANYO 12 U F 261
591 type batteries and has it passed test 38.3 in
accordance with the UN Tests and Criteria hand­ book. The vehicle may be transported with the
battery installed as conventional class 9 hazard­
ous materials without additional offic ial consent
for air and sea transportation (current law ICAO­
TI and IMDG-Code 01.01.2012) .
Jump starting and 12 volt battery
Applies to veh icles: with plug -in hybrid drive
Fig. 96 Engine compartment: connectors for a charger and
j ump start cables
The vehicle is equipped with one 12 vo lt battery
and one high-voltage battery.
If the 12 volt battery is drained, it can be charged
with a charger or you can jump start the vehicle
using another vehicle battery in the same way as
a conventional vehicle .
Note the information on charging the battery
¢
page 249 and for jump starting the vehicle
c:>poge297 .
108
.,. Open the hood¢ page 23 7.
.,. Remove the fuse box cover @ to access the
positive terminal
0 c::> page 239.
.,. Clamp the terminal clamps from the charging
device or jump start cable to the positive termi­
nal
0 and to the body ground point 0-
(D Note
You must not give a jump start with your vehi­
cle. This could cause s ignificant damage to
the electrical system in your veh icle.
Coolant
App lies to vehicles: with plug-in hybrid drive
Fig. 97 Engine compartme nt: coolant expa nsion tank
Your vehicle has two coolant expansion tanks
that are separate from each other:
@ : expansion tank for gasoline engine and elec­
tric motor.
@ : expansion tank for the high-voltage area .
The expansion tank@ must not be opened
c:>&_ .
.,. Switch the ignition off .
.,. Open the hood
c:> poge 237.
...
.,. Always check the coolant level in both coolant
expansion tanks @ and @ using the outer
markings.
.,. When you fill coolant in the expansion tank@,
please refer to
c::> page 244, Cooling system.
.,. Do not drive any farther if the expansion tank
@ is missing coolant. Contact an authorized
Audi dealer or authorized Audi Service Facility immediately ¢&_ . ..,.
