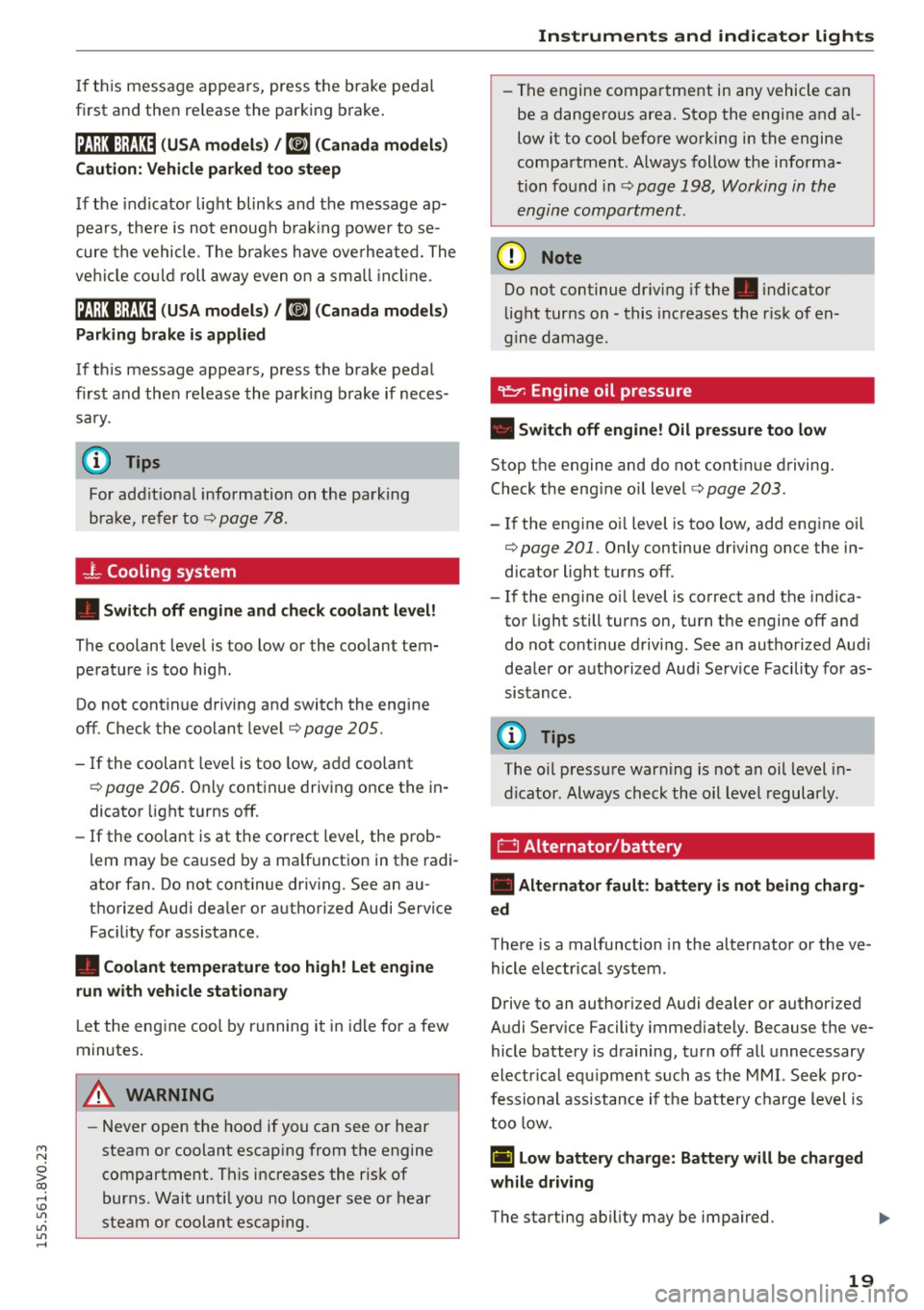

If th is message appea rs, press t he b rake pe da l
f ir st and the n re lease the par king brake .
IZ,;11:);MJ~ (USA models) / [i] (Canada models)
Caution: Vehicle parked too steep
I f the indicator lig ht blinks and t he messag e ap­
pea rs, there is no t enoug h bra kin g power to se­
cure the vehicle. The b rakes have ove rhe ate d. T he
ve hicl e c ould r oll aw ay even on a sm all incli ne.
l:(;1;1:t:);MJ~ (USA models ) / [i] (Canada models)
Parking brake is applied
I f th is message appears , press t he brake pedal
f ir st and the n re lease the par king b rake if neces ­
sa ry .
(D Tips
For addit io nal information o n the park ing
b ra ke, re fe r to ¢
page 78.
_L Cooling system
• Switch off engine and check coolant level!
The coolant leve l is too low or the coolant tem­
pe ra tu re is too hig h.
Do not cont inue driving and switc h the engine
off. C hec k the coolant leve l¢
page 205.
- If the coolant leve l is too low, add coolant
¢ page 206 . Only cont inue driv ing once t he in­
dicator light turns off.
- If the coolant is at the correct level , the prob­
l em may be ca used by a ma lf u nction in the radi­
ator fan. Do not cont inue driv ing. See an au­
t h orized Aud i dea le r or authorized Audi Service
Fac ility for assistance .
• Coolant temperature too high! Let engine
run with vehicle stationary
L e t th e en gine cool by r unnin g it in idle for a few
minutes .
A WARNING
-Never open t he hoo d if you ca n see o r hear
steam o r co olant escap ing from the engine
compartment. T his i ncreases the ris k of
bur ns. Wai t until yo u no lo nger see o r hear
steam o r co olan t escap ing .
Instruments and indicator lights
-The engine compa rtment in any vehicle ca n
be a dange ro us area . Sto p the engine and a l­
low it t o cool befo re working in the engine
compa rtment. Always follow the informa­
tion fo u nd in ¢
page 198, Working in the
e ngine compartment .
(D Note
Do not cont inue dr iv ing if the . indicato r
li g ht tur ns on -this inc reases the r isk o f en­
g in e damage.
"1::::7: Engine oil pressure
• Switch off engine! Oil pres sure too low
St op t he engine and do not cont inue drivi ng .
Ch eck the eng ine oi l level
¢ page 203.
- If the engine o il level is too low, add eng ine oi l
¢ page 201 . Only continue dr iving once the in­
dicator light turns off.
- If the engine o il level is co rrect and the indica­
to r li ght still turns on, turn t he e ngine off and
do not cont inue drivi ng. See an authorized Aud i
dea le r or a uth o rized Aud i Serv ice Facility fo r as­
sis tance .
(D Tips
The oil pressu re war ning is not an oi l level i n­
dicator . Always chec k the o il l ev el re gular ly .
0 Alternator/battery
• Alternator fault : battery is not being charg­
ed
T he re is a malfunction in the al ternator or the ve ­
hicle e lectr ica l system .
Drive to an authorized A udi dealer or autho rized
Audi Serv ice Facility immed iately. Because t he ve­
hicle battery is d ra ining, turn off all unnecessary
elect rical e quipment suc h as th e MMI. Seek pro­
fe ssional ass istance if t he battery charge lev el is
too low.
(•) Low battery charge: Battery will be charged
while driving
The starting ab ility may be impaired.
19

Instruments and indicator lights

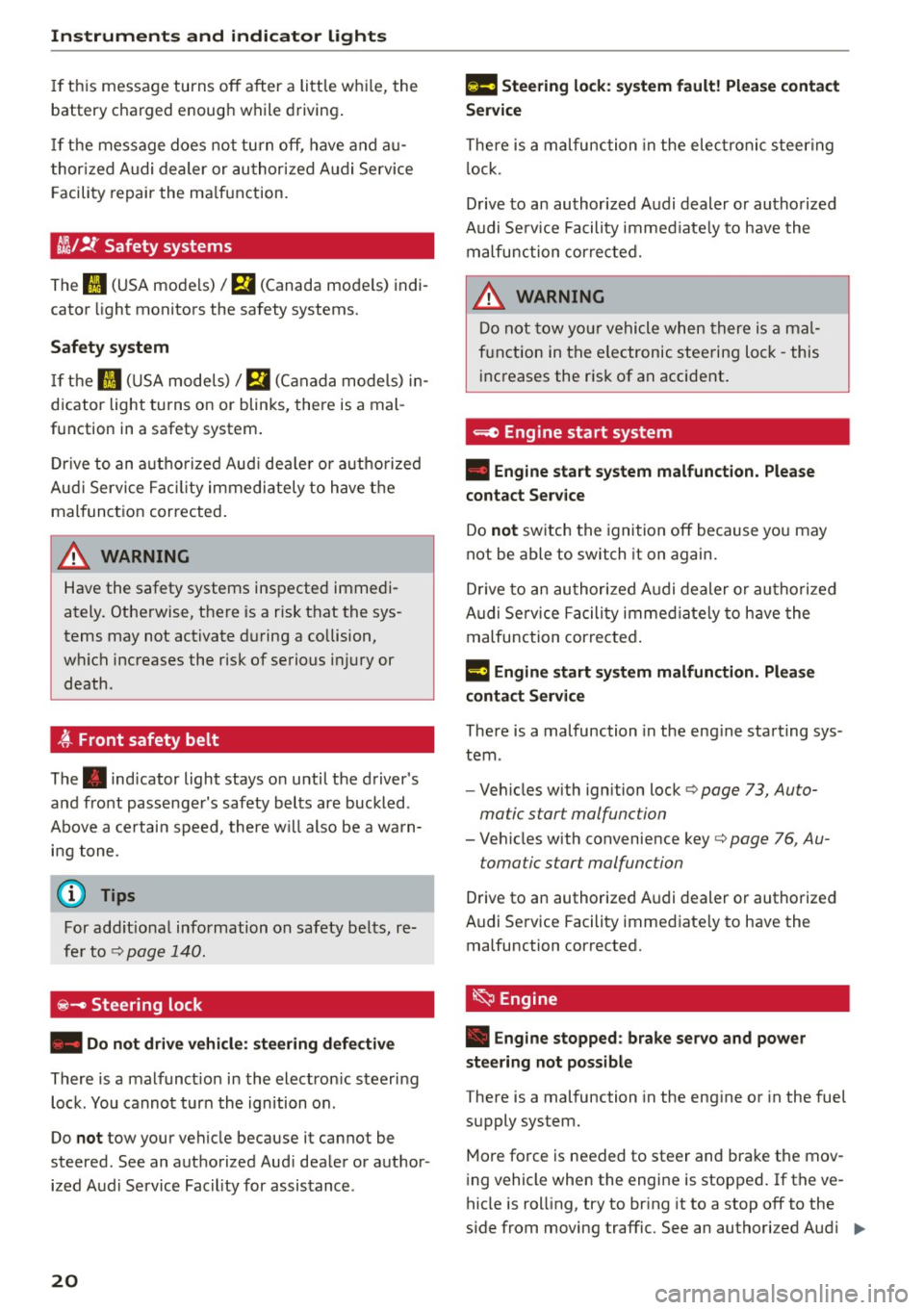

If th is message turns off after a little while, the
battery charged enough while driving .
I f the message does no t turn off, have and au­
thor ized Audi dealer or au thorized A udi Service
F acility repair the ma lfunction.
t/ll !i.: Safety systems
The II (USA models)/ m (Canada mode ls) indi­
cator light monitors the safety systems.
Safety system
If the II (USA mode ls) I m (C anada mode ls) in­
d icator light turns on or blinks, there is a mal ­
function in a safety system.
D rive to an a uth o rized Aud i dea le r or a uth o rized
Aud i Service Fac ility immediately to have the
malfunct ion corrected .
A WARNING
-
Have the safety systems inspected immedi­
ately. Otherwise, there is a risk that the sys­
tems may not activate d uring a co llision,
wh ich increases the risk of serious injury or
death .
t Front safety belt
The. indicator light stays o n until the driver 's
and front passenge r's safety belts are buckled .
Above a certain speed, there w ill also be a warn­
i n g tone .
@ Tips
For add it ional information on safety be lts, re­
fe r to
c::> page 140.
~ - Steering lock
• Do not dri ve v ehicle : steerin g defective
There is a malfunct ion in the electron ic steering
lock . You cannot turn the ignition on .
Do
not tow your vehicle because it cannot be
steered . See an authorized Aud i dea ler or author­
ized Aud i Service Fac ility for assistance .
20
II!! Steering lock: sy stem fault! Please contact
Serv ice
There is a malfunction in the elec tronic steer ing
l ock.
D rive to an authori zed Audi dealer or authorized
Audi Se rv ice Facility immed iate ly to have the
malfunction cor rec ted.
A WARNING
D o not tow yo ur vehicle when there is a mal­
f u nction in the e lectronic steering loc k - this
inc reases the r is k of an accident .
~ Engine start system
• Eng ine start system malfunction. Plea se
contact Ser vice
Do not sw itch the ignition off because you may
not be able to switch it on again.
D rive to an authori zed A udi dealer or au thori zed
Audi Service Facility immed iate ly to have the
malfunction corre cted.
¥ ·1 Engine start system malfunction. Pl ea se
conta ct Servi ce
-
There is a malfunction in the eng ine starting sys ­
tem .
- Veh icles with ign ition lock
c::> page 73, Auto­
matic start malfunction
- Veh icles with convenience key c::> page 76 , Au-
tomatic start malfunction
Drive to an authorized A udi dealer or authorized
A udi Service Facility immed iate ly to have the
malfunction corrected.
~ Engine
• Eng ine stopped : brake ser vo and power
steering not pos sibl e
There is a malfunction in the eng ine or in the fuel
supply sys tem.
More fo rce is needed to steer and bra ke t he mov ­
i ng vehicle when the engine is stopped. If the ve­
hicle is roll ing, try to br ing it to a stop off to the
s ide from moving traffic. See an authori zed Audi .,.

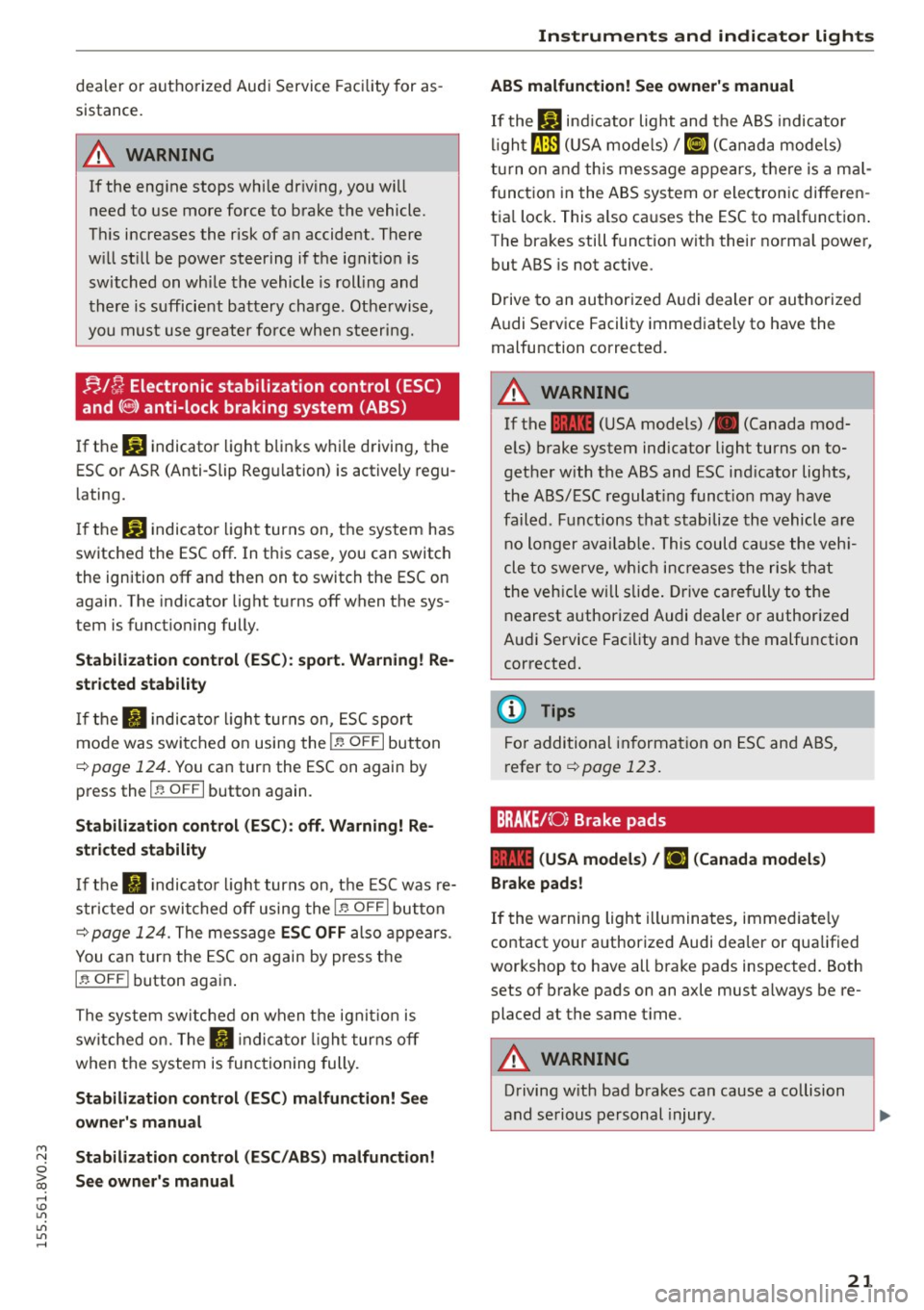

dealer or authorized Audi Service Facility for as­
sistance.
A WARNING
If the engine stops while driving, you will
need to use more force to brake the vehicle.
This increases the risk of an accident. There
will still be power steering if the ignition is
switched on while the vehicle is rolling and
there is sufficient battery charge. Otherwise,
you must use greater force when steering.
!;.!~ Electronic stabilization control (ESC)
and
(8) anti-lock braking system (ABS)
If the DJ indicator light blinks while driving, the
ESC or ASR (Anti-Slip Regulation) is actively regu­
lating.
If the
DJ indicator light turns on, the system has
switched the ESC off. In this case , you can switch
the ignition off and then on to switch the ESC on
again. The indicator light turns off when the sys­
tem is functioning fully.
Stabilization control (ESC): sport. Warning! Re­
stricted stability
If the II indicator light turns on, ESC sport
mode was switched on using the
i .i, O FF I button
¢ page 124. You can turn the ESC on again by
press the
i .i, OFFI button again .
Stabilization control (ESC): off. Warning! Re­
stricted stability
If the II indicator light turns on, the ESC was re­
stricted or switched off using the
I.$ O FF I button
r::!:> page 124. The message ESC OFF also appears.
You can turn the ESC on again by press the
i.i, OF F! button again.
The system switched on when the ignition is
switched on. The
II indicator light turns off
when the system is functioning fully.
Stabilization control (ESC) malfunction! See
owner's manual
M N Stabilization control (ESC/ABS) malfunction! 0
iii See owner's manual ,...., \!) 1.1"1
1.1"1
1.1"1
,....,
Instruments and indicator lights
ABS malfunction! See owner's manual
If the Bl indicator light and the ABS indicator
light[!] (USA models) /
¢0) (Canada models)
turn on and this message appears, there is a mal­
function in the ABS system or electronic differen­
tial lock. This also causes the ESC to malfunction.
The brakes still function with their normal power,
but ABS is not active.
Drive to an authorized Audi dealer or authorized
Audi Service Facility immediately to have the
malfunction corrected.
A WARNING
If the 1111 (USA models) /. (Canada mod­
els) brake system indicator light turns on to­
gether with the ABS and ESC indicator lights,
the ABS/ESC regulating function may have
failed . Functions that stabilize the vehicle are
no longer available. This could cause the vehi­
cle to swerve, which increases the risk that
the vehicle will slide. Drive carefully to the
nearest authorized Audi dealer or authorized
Audi Service Facility and have the malfunction
corrected.
(D Tips
For additional information on ESC and ABS,
refer tor::!:> page
123.
BRAKEt< O: Brake pads
1111 (USA models) / [IJ (Canada models)
Brake pads!
If the warning light illuminates, immediately
contact your authorized Audi dealer or qualified
workshop to have all brake pads inspected. Both
sets of brake pads on an axle must always be re­
placed at the same time.
A WARNING
-Driving with bad brakes can cause a collision
and serious personal injury .
21

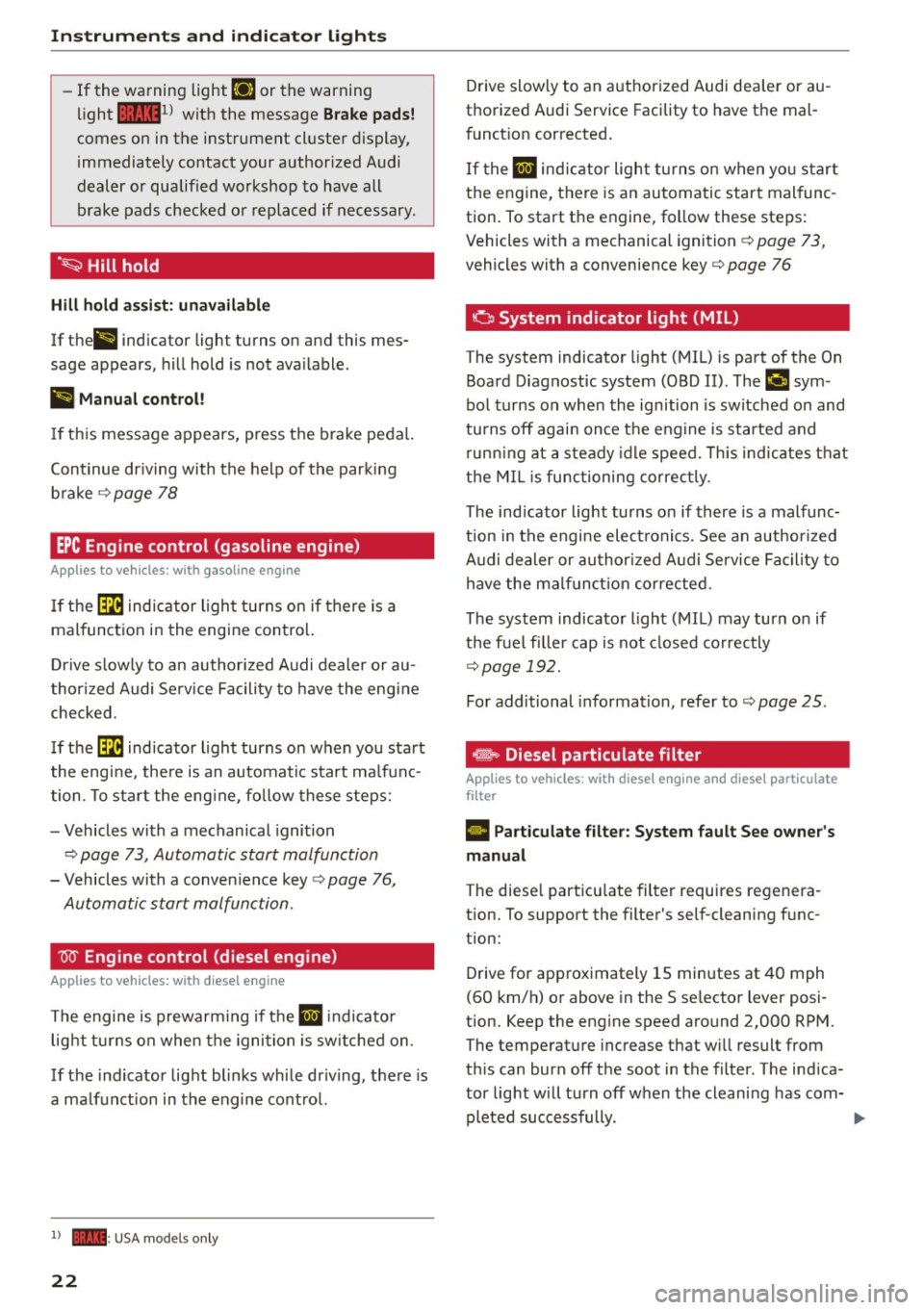

Instruments and indicator lights
-If the warnin g light EiJ or the warning
light
11111 ) w ith the message Brake p ads!
comes on in the instrument cluster display,
immediately contact your author ized Audi
dealer or qualified workshop to have all
brake pads checked o r replaced if necessary.
·~ Hill hold
Hill hold assi st: unavailable
If the ll ind icator light turns on and this mes­
sage appears, hill hold is not ava ilable.
II Manual control!
If thi s message appears, press the b rake peda l.
Continue dr iv ing with the help of the parking
b ra ke
¢ page 78
EPC Engine control (gasoline engine)
A pp lies to veh icles: w ith gaso line engine
If th e ~ indica tor ligh t turns on if there is a
malfunct ion in the engine contro l.
D rive s low ly to an author ized A udi dealer or au­
thor ized Audi Se rv ice Facility to have the eng ine
checked.
I f the ~ indicator light turns on when you sta rt
the eng ine, the re is an automatic start ma lf u n c­
tion. To sta rt the eng ine, fo llow these steps:
- Vehicles with a mechanical igni tion
c:> page 73, Automatic start malfunction
- Vehicles with a conven ience key c:> page 76,
Automatic start malfunction .
W Engine control (diesel engine)
A pp lies to veh icles: w ith d iesel e ngi ne
T he engine is prewa rming if t he II indicato r
light t urns on when the igni tion is sw itched on .
If the indicator lig ht blinks while dr iv ing , th e re is
a ma lfunct ion in the engine cont ro l.
l) - : USA mode ls onl y
22
Drive slowly to an a uthorized Audi dea ler or au ­
thorized Audi Service Facility to have the mal­
funct ion corrected .
I f the
II ind ic a tor light tu rns on w hen yo u start
t h e engine, t here is a n automatic start mal func ­
tion . To start the engine, follow these ste ps:
Vehicles with a mechanical ignition ¢
page 73,
vehicles with a convenience key c:> page 76
o System indicator light (MIL )
The system indicator light (MIL) is part of the On
Board Diagnostic system (OBD II). ThP
¢..ifi sym ­
bo l turns on whe n the ignition is switched on and
tu rns off agai n once t he eng ine is started and
r un ning at a steady id le speed. This ind ic a te s th at
t h e MIL i s func tioning correc tly.
The ind icator light turns on if there is a malfunc­
t ion in t he engine electronics. See an author ized
A udi de aler or au thori zed A udi Service Faci lity to
h ave the mal funct io n corrected.
The system indicato r light (MIL) may turn o n if
the f ue l filler cap is not closed co rrectly
¢page 192.
For additional information, refer to c:> page 25.
... Diesel particulate filter
Applies to vehicles : wit h diese l eng ine a nd diese l particulate
filter
• Part iculate filter: System fault See owner's
manual
The diese l part icu late filter requires regenera ­
tion. To support the filter's self-cleaning f unc ­
tion:
D rive for app roximately 15 minutes at 40 mph
(60 km/h) o r above in the S se lector lever posi ­
tion. Keep the eng ine speed around 2,000 RP M.
The temperat ure increase that w ill result from
th is can burn off the soot in the filter. The ind ica­
tor light w ill turn off when the cleani ng has com-
pleted successfully. .,..

M N
0 > co ,...., \!) ..,.,
..,.,
..,., ,....,

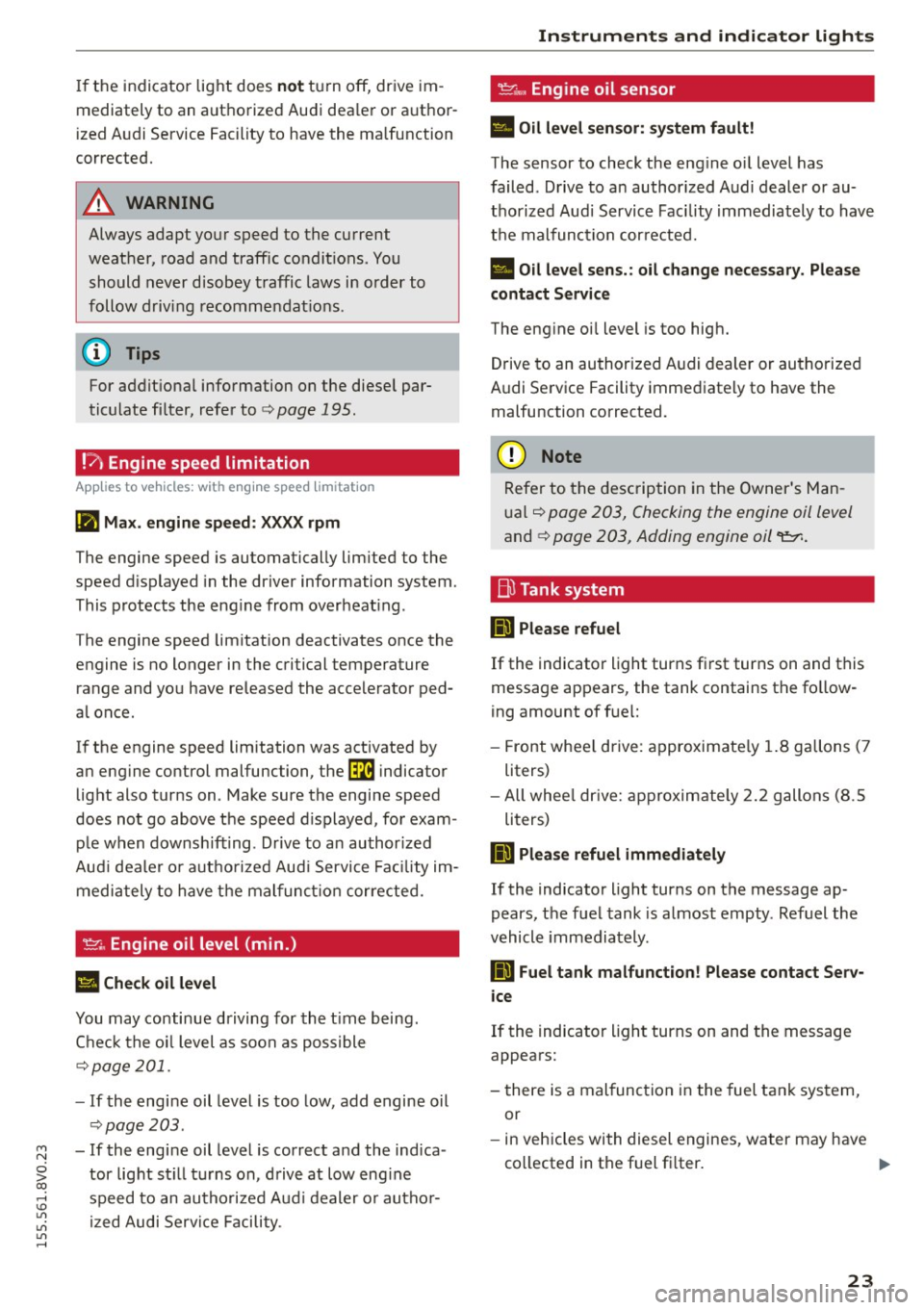

If the indicator light does not turn off, drive im­
mediately to an authorized Audi dea ler or author ­
ized Audi Service Facility to have the malfunction
corrected.
_& WARNING
Always adapt your speed to the current
weather, road and traffic conditions. You
should never disobey traffic laws in order to
follow driving recommendations .
@ Tips
For additional information on the diesel par­
ticulate filter, refer to¢
page 195.
!7l Engine speed limitation
A pplies to vehicles: with eng ine spee d limitat ion
(II Ma x. engine speed: XXXX rpm
The engine speed is automatically limited to the
speed displayed in the driver information system.
This protects the engine from overheat ing .
The engine speed limitation deactivates once the
engine is no longer in the critical temperature range and you have released the accelerator ped­
al once.
If the engine speed limitation was activated by
an engine control malfunction, the~ indicator
light also turns on . Make sure the engine speed
does not go above the speed d isplayed, for exam­
ple when downshifting. Drive to an author ized
Aud i dealer or autho rized Aud i Service Facility im­
mediately to have the malfunct ion corrected.
~ .. Engine oil level (min.)
l!I Check oil level
You may continue driving for the time being.
Check the oil level as soon as poss ible
¢page 201.
-If the engine oil level is too low, add engine oil
~page 203.
- If the engine oil level is correct and the indica ­
tor light st ill turns on, drive at low engine
speed to an authorized Audi dealer or author­
ized Audi Service Facility .
Instruments and indicator lights
'I::?;."', Engine oil sensor
• Oil level sensor: system fault!
The sensor to check the engine oi l level has
failed. Drive to an author ized Audi dealer or au­
thorized Audi Service Facility immediately to have
the malfunction corrected.
• Oil level sens.: oil change necessary. Please
contact Service
The engine oil level is too high.
Drive to an authorized Audi dealer or authorized
Audi Service Facility immediately to have the
malfunction corrected.
(D Note
Refer to the description in the Owner's Man­
ual~
page 203, Checking the engine oil level
and¢ page 203, Adding engine oil Bil Tank system
D Please refuel
If the indicator light turns first turns on and this
message appears , the tank contains the fol low­
ing amount of fuel:
- Front wheel drive: approximate ly 1.8 gallons (7
liters)
- All whee l dr ive: approximately
2.2 gallons (8.5
liters)
Hid Please refuel immediately
If the indicator light turns on the message ap­
pears, the fuel tank is almost empty. Refuel the
vehicle immediately.
D Fuel tank malfunction! Please contact Serv­
ice
If the indicator light turns on and the message
appears:
- there is a malfunction in the fuel tank system,
or
- in vehicles with diesel engines, water may have
collected in the fuel fi lter.
1111>
23

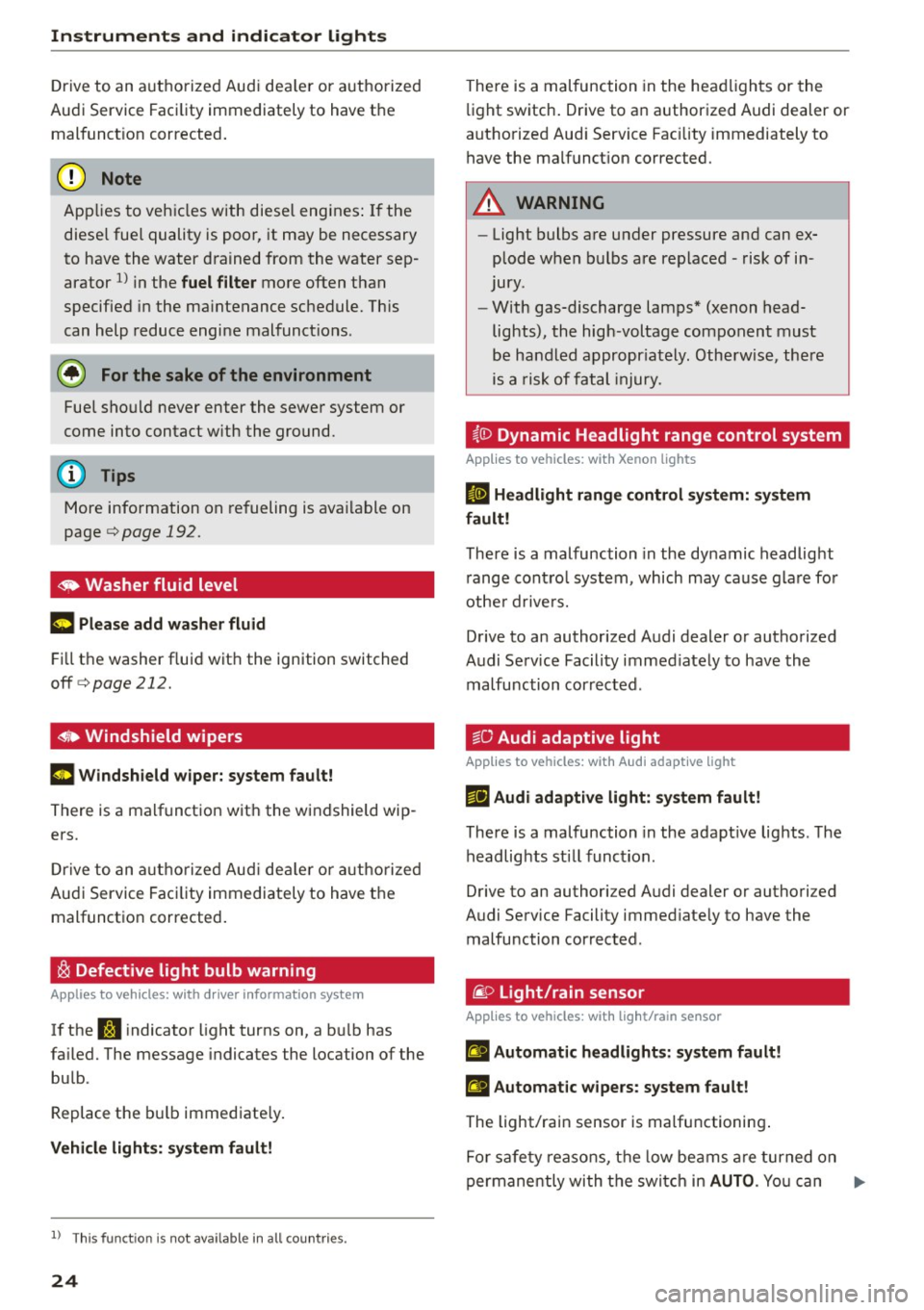

Instruments and indicator lights
Drive to an authorized Aud i dea ler or authorized
Audi Service Faci lity immediately to have the
malfunct ion corrected .
(D Note
Applies to veh icles with diesel engines: If the
diese l fue l quality is poor , it may be necessary
to have the water drained from the water sep­
arator
l) in the fuel filter more often than
specified in the ma intenance schedule. Th is
can help reduce engine malfunct ions.
@ For the sake of the environment
Fuel should never enter the sewer system or
come into contact w ith the ground.
More information on refueling is ava ilable on
page
c:> page 192.
~ Washer fluid level
~ Pl ease add w asher flu id
F ill the washer fluid with the ignition switched
off
c:> page 212.
~~ Windshield wipers
m Wind shield w iper: s yste m fault!
There is a malfunction with the windshield wip­
ers.
Dr ive to an a utho rized Aud i dea le r or a uthorized
Audi Service Faci lity immediately to have the
malfunct ion corrected .
~ Defective light bulb warning
Applies to veh icles: w ith driver information system
If the S:i indicator light turns on, a bu lb has
fa iled. The message indicates the location of the
bu lb.
Replace the bu lb immediate ly.
Vehi cle l ight s: syste m fault!
l) Thi s fun ction is not av ailable in all c ountri es.
24
There is a malfunction in the headlights or the
li ght switch . Drive to an authorized Audi dealer or
authorized Aud i Service Fac ility immediately to
have the malfunct ion corrected.
A WARNING
--
- Light bulbs are under pressure and can ex­
plode when bulbs are replaced -risk of in ­
jury .
- With gas-discharge lamps* (xenon head­
lights), the high -voltage component must
be handled appropr iately. Otherwise, there
is a risk of fatal injury.
~(D Dynamic Headlight range control system
App lies to vehicles: wit h Xeno n lights
II He adlight r an ge control system: sy ste m
f a ult!
There is a malfunction in the dynamic headlight
r ange contro l system, which may cause glare for
othe r drive rs.
Drive to an authorized Audi dealer or authorized
Audi Service Facility immed iate ly to have the
malfunction corrected.
go Audi adaptive light
App lies to vehicles : wi th Audi adapt ive ligh t
l'!J Audi adaptiv e light : system fault!
There is a malfunction in the adapt ive lights . T he
headlights sti ll function.
Drive to an authori zed Audi dealer or authori zed
Audi Service Facility immed iate ly to have the
malfunction corrected.
@ Light/rain sensor
App lies to vehicles: wit h lig ht/rain sensor
II Automat ic headlight s: s ys tem fault!
El Automat ic wipe rs: s ystem fault !
The light/rain sensor is ma lfunctioning .
Fo r safety reasons, the low beams a re turned on
permanently wi th the switch in
AUTO . You can .,..

....,
N
0 > co
rl I.O
"'
"'
"'
rl

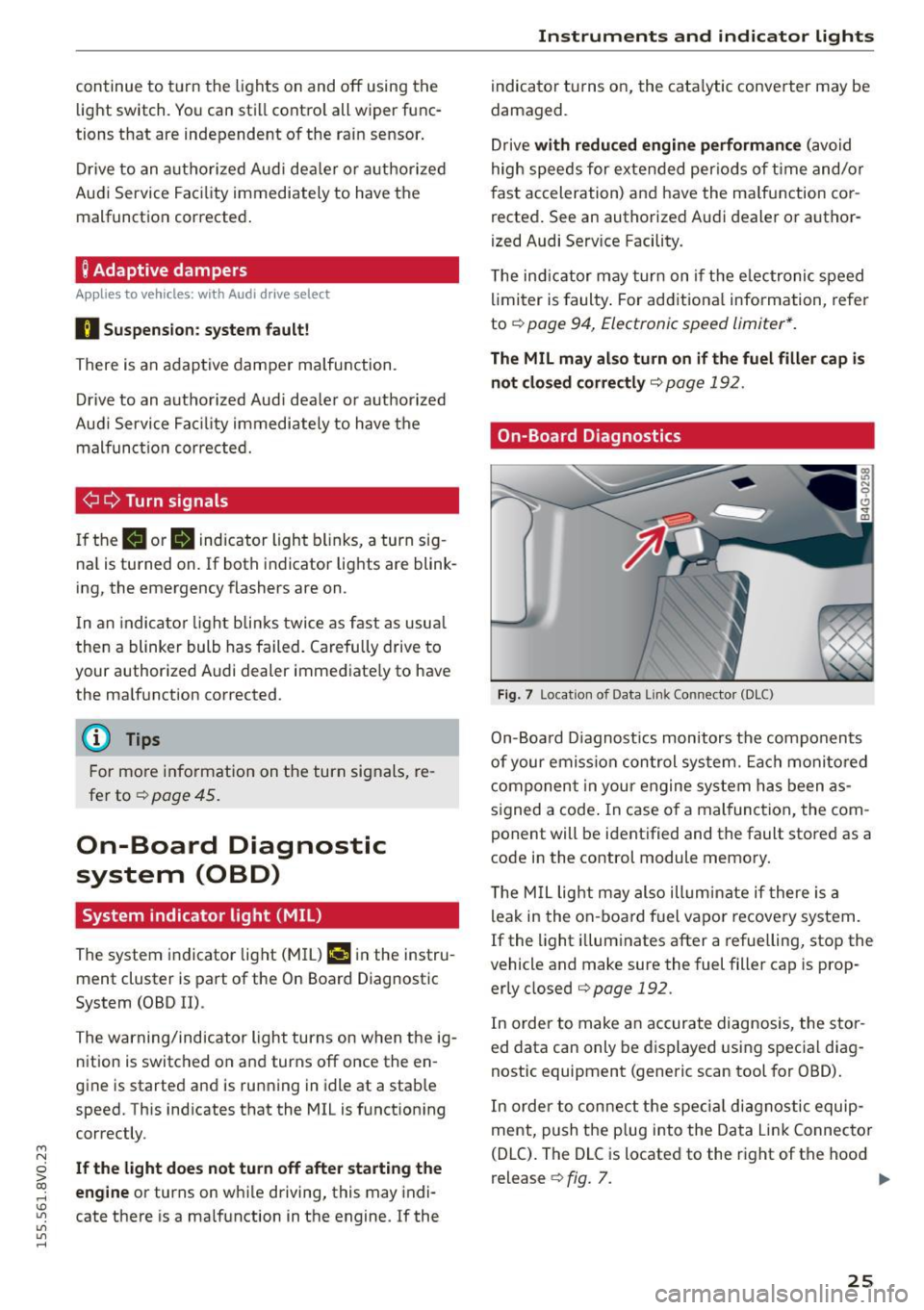

continue to turn the lights on and off using the
light switch. You can still contro l all wiper func­
tions that are independent of the rain sensor .
Drive to an autho rized Aud i dea le r or authorized
Audi Service Facility immediate ly to have the
malfunction corrected.
; Adaptive dampers
Applies to vehicles: with Audi drive select
R Suspension: system fault!
There is an adaptive damper ma lfunction.
D rive to an authorized Aud i dea ler or a uthorized
Aud i Service Facility immediate ly to have the
malfunction corrected.
¢¢Turn signals
If the B or DI indicator light blinks, a turn sig ­
na l is turned on. If both indicator lig hts are blink­
ing, the emergency flashers are on.
I n an indicator light blinks twice as fast as usual
then a blinker bulb has failed. Carefully drive to
your authorized Audi dealer immed iate ly to have
the ma lfunction corrected.
(D Tips
For more information on the turn signals, re­
fer to
q page 45.
On-Board Diagnostic
system (OBD)
System indicator light (MIL)
The system indicator light (MIL) ¢4 in the instru ­
ment cluster is part of the On Board Diagnostic
System (OBD II).
The warning/indicator light turns on when the ig­ nition is switched on and turns off once the en­
gine is started and is running in idle at a stab le
speed. Th is ind icates that the MIL is funct ion ing
correctly .
If the light does not turn off after starting the
engine
or turns on while driving, this may indi­
cate there is a ma lfunction in the engine. If the
Instruments and indicator lights
indicator turns on, the cata lytic conve rter may be
damaged.
Drive
with reduced engine performance (avoid
high speeds for extended per iods of time and/or
f ast acceleration) and have the malfunction cor­
rected . See an authorized Audi dealer or author­
ized Audi Serv ice Facility.
T he indicator may turn on if the e lectronic speed
limiter is faulty. For add itiona l information, refer
to
¢ page 94, Electronic speed limiter*.
The MIL may also turn on if the fuel filler cap is
not closed correctly ¢
page 192.
On-Board Diagnostics
Fig. 7 Location of Data Link Connector (DLC)
On-Board Diagnostics monitors the components
of your emission control system. Each monitored
component in your engine system has been as­
s igned a code . In case of a mal function, the com­
ponent will be identified and the fault stored as a
code in the control module memory.
T he M IL light may also illuminate if there is a
leak in the on-board fuel vapor recove ry system.
If the light illuminates after a refuelling, stop the
vehicle and make sure the fuel filler cap is prop­
erly closed
qpage 192.
In order to make an accurate diagnosis, the stor ­
ed data can only be displayed using special diag­
nostic equipment (generic scan tool for OBD).
In order to connect the special diagnostic equip­
ment, push the plug into the Data Link Connector
(DLC). The DLC is located to the right of the hood
release
¢ fig. 7. ..,.
25

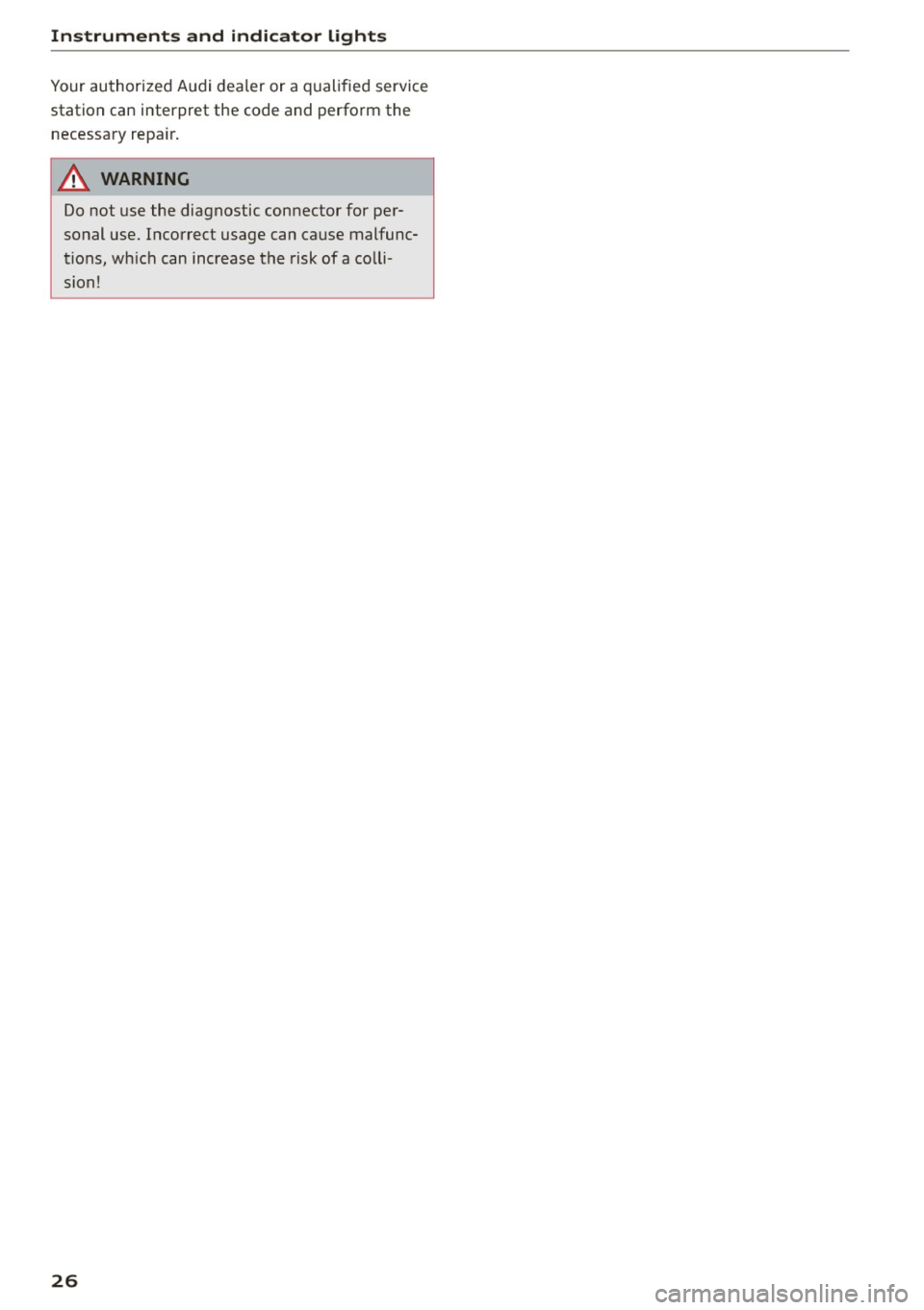

Instruments and indicator lights
Your authorized Audi dealer or a qualified service
station can interpret the code and perform the necessary repa ir .
A WARNING
Do not use the diagnostic connector for per­
sonal use. Incorrect usage can cause malfunc­
tions, wh ich can increase the risk of a co lli­
sion!
26
.

....,
N
0 > co
rl I.O
"'
"'
"'
rl

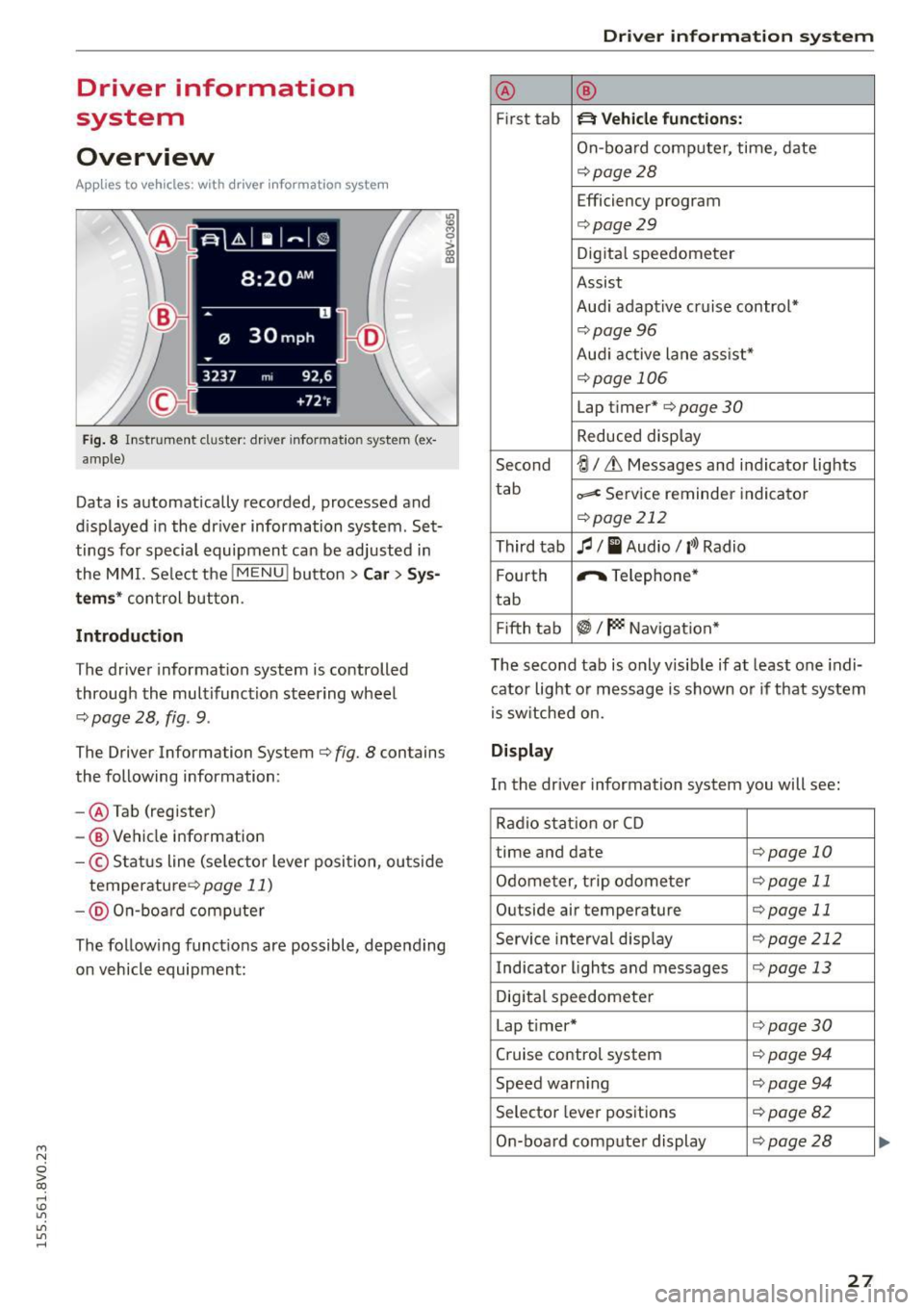

Driver information
system
Overview
App lies to vehicles: with driver information syste m
Fig. 8 Instr ument cluster : dr iver informat ion system (ex­
a mp le}
Data is automatically recorded, processed and
d is played in the driver information system . Set­
tings for special equipment can be adjusted in
the MMI. Select the
I MENU ! button >Car> Sys­
tems* control button.
Introduction
The driver information system is controlled
through the multifunction steering wheel
¢ page 28, fig . 9.
The Driver Information System ¢ fig. 8 contains
the following information:
- @ Tab (register)
-® Vehicle information
-© S tatus line (se lector lever position, ou tside
temperature ¢
page 11)
- @ On-b oar d computer
~ M 0 :> CX) ID
The follow ing funct ions are possible, depending
on vehicle equipment:
Dri ver information system
@ ®
First tab ~ Vehicle functions:
On-board computer, time, date
¢page28
Efficiency program
¢page29
Digital speedometer
Assist
Aud i adaptive cruise control*
¢pag e 96
Audi active lane ass ist*
¢page 106
Lap timer* ¢page 30
Reduced display
Second
-!;1 / Lt Messages and indicator lights
tab
=< Service reminder indicator
¢page 212
Third tab fl I I Audio/ l'>l Radio
F ourth ,.,.
Telephone*
tab
Fifth tab
~I~ Navigation *
The second tab is only visib le if at least one indi­
cator light or message is shown or if that system
is switched on.
Display
In the driver information system you will see:
Radio station or CD
time and date
¢page 10
Odometer, trip odometer ¢page 11
Outside air temperature ¢page 11
Service interval disp lay ¢ page 212
Indicator lights and messages ¢page 13
Digital speedometer
Lap t imer*
¢page30
Cruise control system ¢ page 94
Speed warn ing ¢page 94
Selector lever positions ¢page82
On-board computer display ¢page28
27
...

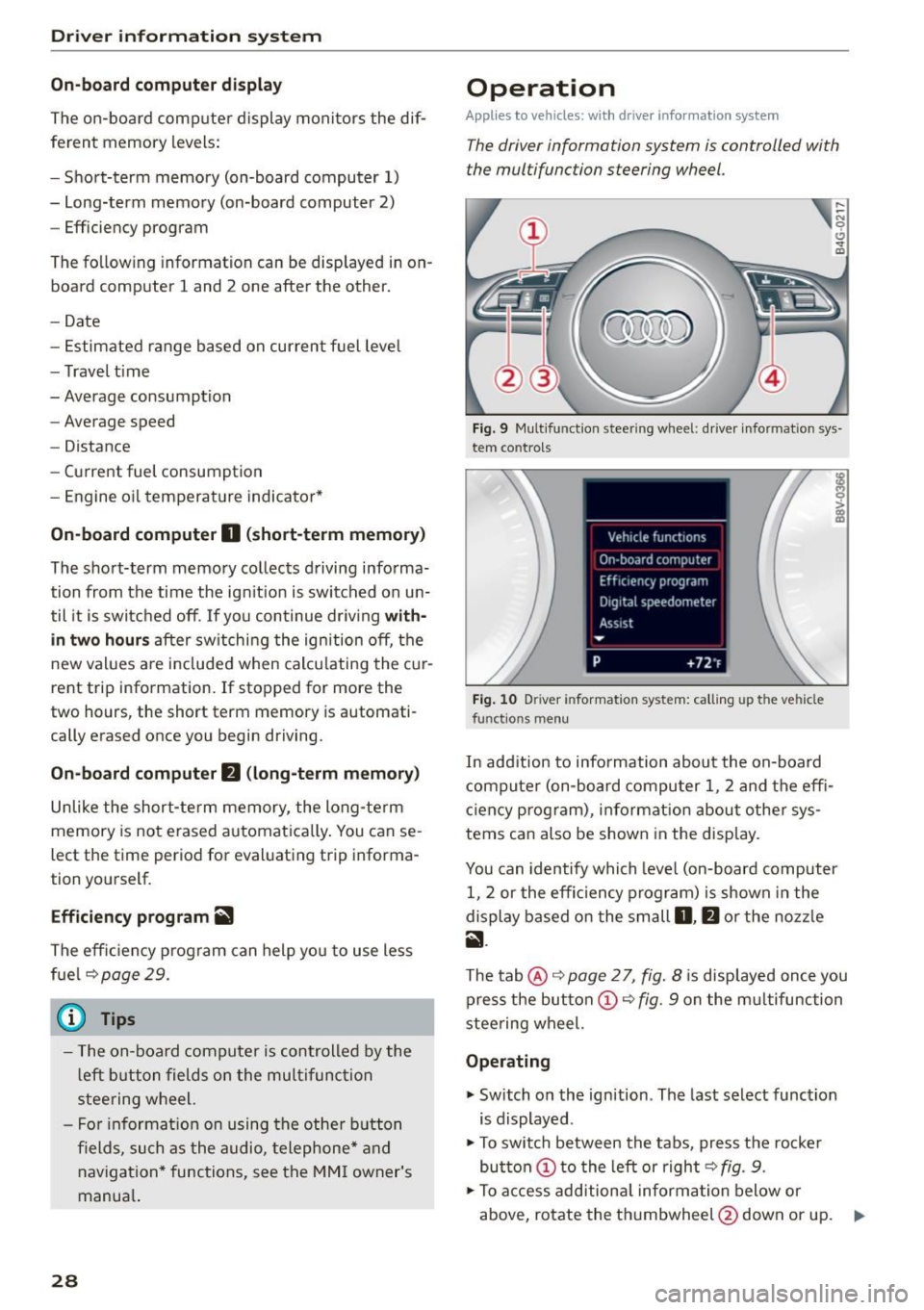

Drive r in formation syste m
On-board comput er display
The on-boa rd comp uter display monitors the dif­
ferent memory levels:
- Short-term memory (on-board computer 1)
- Long-term memory (on-board computer 2)
- Efficiency program
The follow ing information can be displayed in on­
board computer 1 and 2 one after the other.
-Date
- Estimated range based on current fuel leve l
- Travel time
- Average consumption
- Average speed
- Distance
- Current fuel consumption
- Engine o il temperature indicator*
On -board computer
D (sho rt -term memory )
The short-term memory collects driving informa­
tion from the time the ign it ion is switched on un­
til it is switched off . If you continue driving with ­
in tw o ho ur s after sw itchi ng the ignition off, the
new values are included when calcu lating the c ur­
rent trip information. If stopped for more the
two hours , the short term memory is automati ­
cally erased once you begin driving.
On-board com put er
fJ (long-t erm m emor y)
Unlike the short-te rm memory, the long-term
memory is not erased automat ica lly. You can se­
lect the time period for evaluating trip informa­
tion yourself.
E fficie ncy program
ii
The effic iency program can help you to use less
fuel ~page29.
(j) Tips
- The on-board computer is controlled by the
l eft button fields on the multifunction
steering wheel.
- For information on using the other b utton
fields, such as the audio, telephone* and navigation * functions, see the MM I owner's
manua l.
28
Operation
Applies to vehicles: with driver information system
The driver information system is controlled with
the multifunction steering wheel.
Fig. 9 Mult ifunction steering wheel: driver informat ion sys­
tem contro ls
Fig . 10 Dr iver info rmation system: ca lling up the vehicle
functions menu
In addition to information about the on-board
computer (on-board compu ter 1 , 2 and the effi­
c iency prog ram), information about othe r sys­
tems can also be shown in the display .
You can identify which level (on-board computer
1, 2 or the effi ciency program) is shown in the
display based on the small
D , fJ or the nozz le
ii .
The tab@~ page 2 7, fig. 8 is displayed once you
press the button
(D ~ fig . 9 on the m ultifunction
stee ring wheel.
Operating
"' Switch on the ignition . The last select function
is displayed .
"' To switch between the tabs, press the rocke r
button
(D t o the left or right ~ fig. 9.
"'To access add itiona l informa tion below or
above, rotate the thumbwheel @down or up.
9"'
