~ Unscrew the valve stem from the spare tire.
~ Screw the tire filler hose from the compres­
sor firmly onto the valve of the spare tire.
~ Insert the plug from the compressor into a
socket of the vehicle¢
page 64.
~ Switch the compressor on .
~ Let the compressor run until the value
specified on the tire pressure label is
reached
¢ page 238, fig. 192. Switch the
compressor off after running for 12 minutes
at the most -danger of overheating!
A WARNING
The compressor and the tire filler hose can
become extremely hot while they are run­
ning -danger of burns!
(D Note
Switch the compressor off after running
for 12 minutes at the most -danger of
overheating! Allow the compressor to cool
down for a few minutes before you use it
again.
Changing a wheel
Before changing a wheel
Observe the following precautions for your
own and your passenger's safety when chang­
ing a wheel .
~ After you experience a tire failure, pull the
car well away from moving traffic and try to
reach
level ground before you stop¢ L!)..
~ All passengers should leave the car and
move to a safe location (for instance, behind
the guardrail) ¢
A.
~ Engage the parking brake to prevent your
vehicle from rolling unintentionally ¢
A.
~ Shift into 1st gear on vehicles with manual
transmission, or move the
selector lever to
the P position
on vehicles with automatic
transmission .
~ If you are towing a trailer: unhitch the trail­
er from your vehicle.
~ Take the jack¢ page 256 and the spare tire
¢ page 257 out of the luggage compart­
ment.
What do I do now? 259
A WARNING
You or your passengers could be injured
while changing a wheel if you do not fol­
low these safety precautions:
- If you have a flat tire, move a safe dis­
tance off the road. Turn off the engine,
turn the emergency flashers on and use
other warning devices to alert other mo­
torists.
- Make sure that passengers wait in a safe
place away from the vehicle and well
away from the road and traffic.
- To help prevent the vehicle from moving
suddenly and possibly slipping off the
jack, always fully set the parking brake
and block the wheel diagonally opposite
the wheel being changed with the fold­
ing chocks or other objects. When one
front wheel is lifted off the ground, plac­ ing the Automatic Transmission in "P"
(Park) will
not prevent the vehicle from
moving .
- Before you change a wheel, be sure the
ground is level and firm. If necessary,
use a sturdy board under the jack.
- Always store the vehicle tool kit, the
jack* and the replaced tire in the luggage compartment
¢page 133.
(D Note
If you are changing the wheel on a steep
incline, use a rock or similar object to
block the opposite wheel to prevent the
vehicle from moving.
(D Tips
Obey all laws.
Changing a wheel
When you change a wheel , follow these­
quence described below step-by-step and in
exactly that order.
l. Remove the decorative wheel cover* or
-
the wheel bolt caps*. For more details see..,.
•
•

260 What do I do now ?

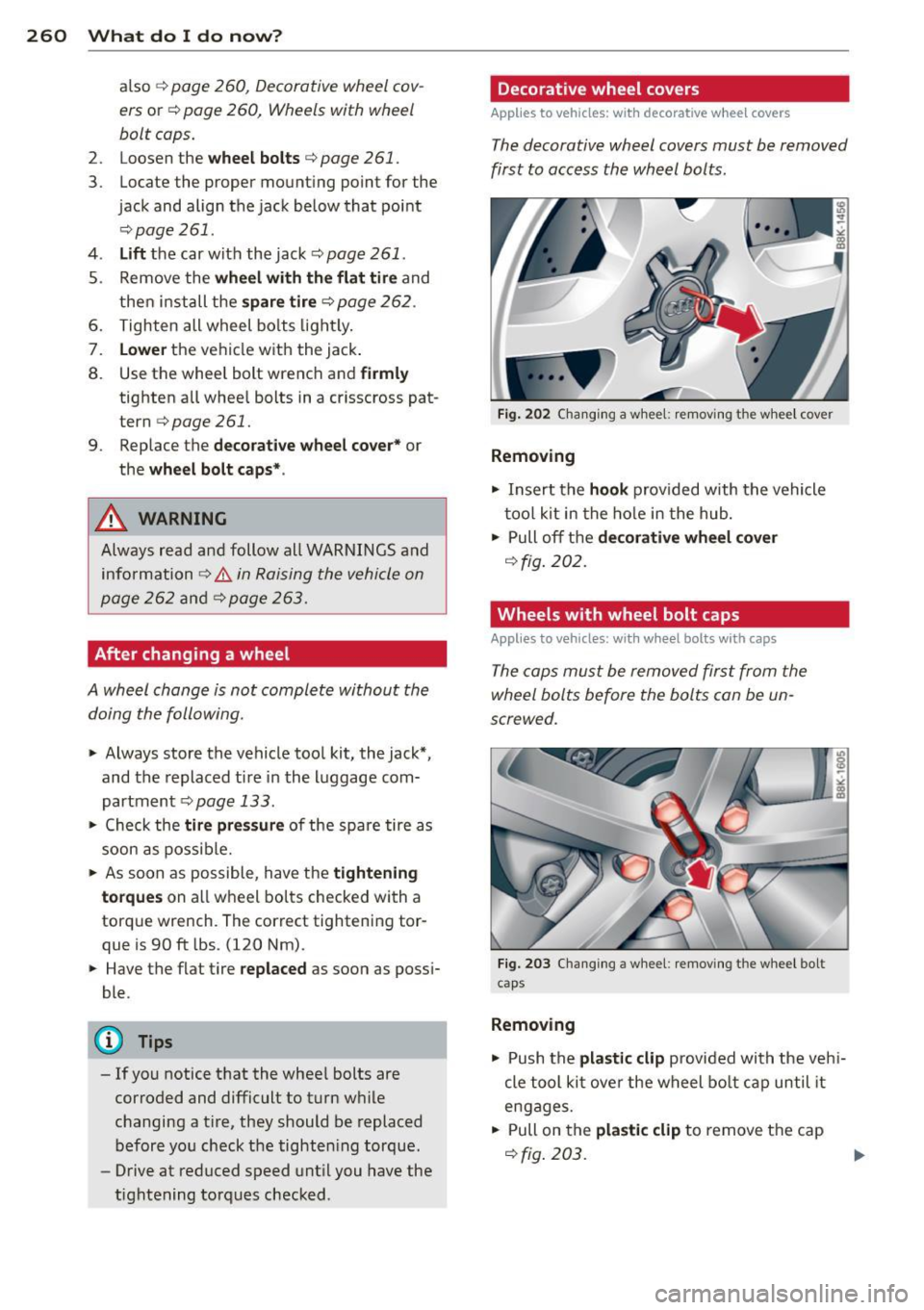

also c:> page 2 60 , Decorative wheel cov­
ers
or c:> page 260, Wheels with wheel
bolt caps.
2 . Loosen the wheel b olts c:> page 261.
3 . Locate the proper mounting point for the
jack and align the jack below that point
<=> page 261.
4. Li ft the car with the jack c:> page 261 .
5. Remove the wh eel with th e flat tir e and
then install the
s par e tir e c:> page 262 .
6 . Tighten all wheel bolts light ly .
7 .
Lowe r the ve hicle with the jack .
8 . Use the wheel bolt wrench and
firml y
tighten all whee l bolts in a crisscross pat­
tern
c:> page 261.
9 . Replace the decora tive whe el c ov er* or
the
wh eel b olt caps *.
A WARNING
Always read and follow all WARNINGS and
information
c:> .&. in Raising the vehicle on
page
262 and c:>page 263.
After changing a wheel
A wheel change is not complete without the
doing the following .
.,. Always store the vehicle tool kit, the jack*,
and the replaced tire in the l uggage com­
partment
c:> page 133 .
.,. Check the tire pre ssure of the spare tire as
soon as poss ible .
.,. As soon as possible, have the
tightening
torqu es
on all wheel bo lts checked with a
torq ue wrench . The correct tightening tor­
que is 90
ft lbs. (120 Nm) .
.,. Have the flat tire
repl aced as soon as poss i­
ble .
(j) Tips
-If you notice that the whee l bolts are
corroded and difficult to turn while
changing a t ire, they should be replaced
before you check the tighten ing torque.
- Drive at reduced speed unt il you have the
tightening torques checked .
Decorative wheel covers
Applies to vehicles: with decorative whee l covers
The decorative wheel covers must be removed
first to access the wheel bolts .
Fig . 202 Cha ng in g a w hee l: removing t he w heel cover
Removing
.,. Insert the hook prov ided with the vehicle
too l kit in the hole in the hub.
.,. Pull off the
dec ora ti ve wh eel cove r
<=>fig. 202.
Wheels with wheel bolt caps
Applies to vehicles: with wheel bolts with caps
The caps must be removed first from the
wheel bolts before the bolts can be un­
screwed .
Fig. 203 Changing a wheel: removing t he wheel bolt
caps
Removing
.,. Push the plast ic clip provided with the ve hi­
cle tool ki t over the wheel bo lt cap until it
engages.
.,. Pull on the
plastic clip to remove the cap
r:!) fig. 203.

Refitting
• Place the caps over the wheel bo lts and
push th em back on.
The caps are to protect and keep the wheel bolts clean.

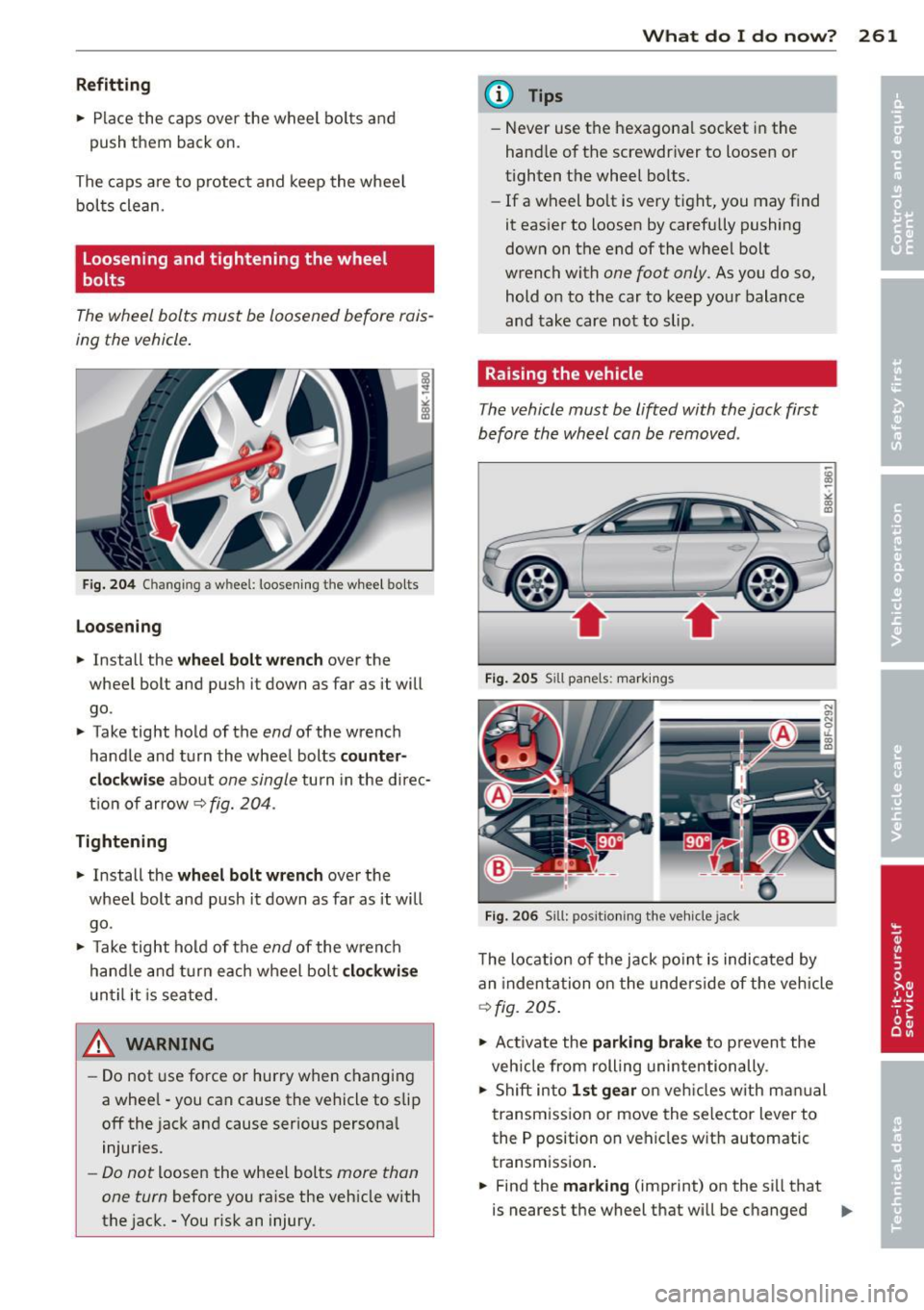

Loosening and tightening the wheel
bolts
The wheel bolts must be loosened before ra is­
ing the vehicle .
Fig. 204 C hangin g a whee l: l oosening t he w heel bolts
Loo sening
• Install the wheel bol t w rench over the
wheel bolt and push it down as far as it will
go .
• Take tight hold of the
end of the wrench
hand le and turn the whee l bolts
co unter­
cl ock wise
about one single turn in the direc­
t ion of arrow
9 fig. 204 .
Tightening
• Install the whe el bolt w rench over the
wheel bolt and push it down as far as it will go .
• Take tight hold of the
end of the wrench
hand le and turn each wheel bol t
clockwi se
until it is seated .
_& WARNING
-Do not use force or hurry when changing
a whee l -you can cause the vehicle to slip
off the jack and cause serious persona l
injuries.
- Do not Loosen the wheel bolts more than
one turn
before you raise the veh icle with
the jack. -You risk an injury .
What do I do now ? 261
@ Tips
-Never use the hexagona l socket in the
hand le of the screwdr iver to loosen or
tighten the wheel bolts.
- If a wheel bo lt is very tight, you may find
it eas ier to loosen by carefully pushing
down on the end of the wheel bolt
wrench with
one foot only . As you do so,
hold o n to the car to keep your balance
and take care not to slip .
Raising the vehicle
The vehicle must be lifted with the jack first
before the wheel can be removed .
Fig . 205 Sill panels: mark ings
Fig. 20 6 Sill: positi on ing the v eh icle ja ck
The location of the jack po int is indicated by
an indentation on the underside of the vehicle
9 fig . 205 .
• Act ivate the parking brak e to prevent the
veh icle from rolling unintentionally .
• Shift into
1st ge ar on veh icles with ma nual
transmiss ion or move the selector Lever to
the P position on vehicles w ith automatic
transm iss ion .
• Find the
m arking (impr int) on the sill that
i s nearest the wheel that will be changed .,..

262 What do I do now ?

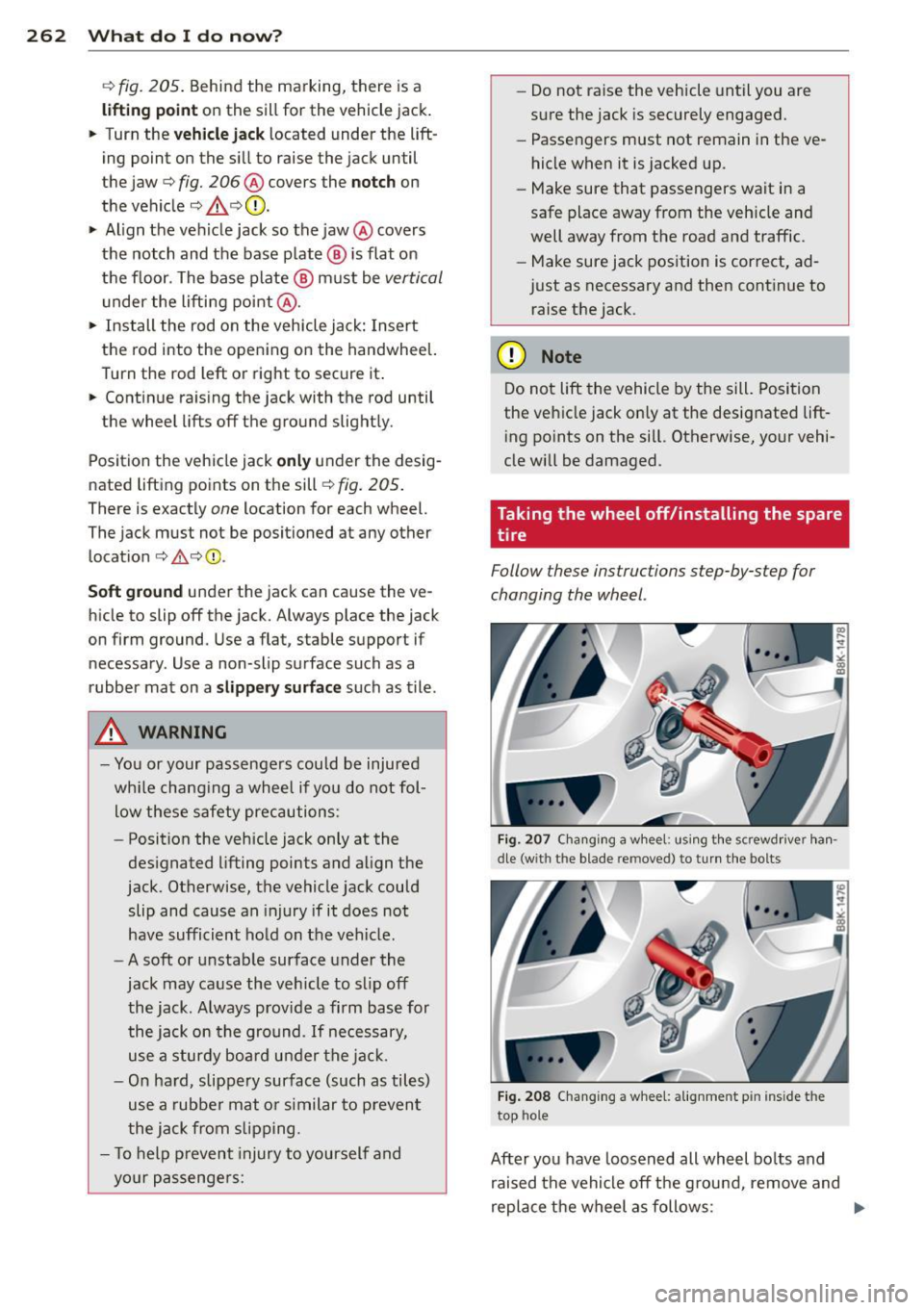

c:> fig. 205 . Behind the marking, there is a
lifting po int on the sill for the vehicle jack .
• Turn the
ve hicle jack located under the lift­
ing point on the si ll to raise the jack until
the jaw
c:> fig. 206 ® covers the notc h on
the vehicle
c:> &_ c:>(D .
• Al ign the vehicle jack so the jaw ® covers
the notch and the base plate @ is flat on
the floor. The base plate @ must be
vertical
under the lifti ng point @.
• Install the rod on the vehicle jack: Insert
the rod into the opening on the handwheel.
Turn the rod left or right to secure it .
• Continue ra is ing the jack with the rod until
the wheel lifts off the ground slightly.
Position the vehicle jack
onl y under the desig­
nated lifting points on the sill
c:> fig . 205 .
There is exactly one location for each wheel.
The jack must not be positioned at any other locat ion
c:> ,&. c:>(D .
Soft ground under the jack can cause the ve­
h icle to slip off the jack. Always place the jack
on firm ground. Use a flat, stable support if necessary . Use a non-slip surface such as a
rubber mat on a
slipp ery surfac e such as tile .
A WARNING
-You or your passengers could be injured
wh ile chang ing a wheel if you do not fol­
low these safety precautions :
- Position the vehicle jack only at the
des ignated lifting points and align the
jack. Otherwise, the vehicle jack could slip and cause an inj ury if it does not
have sufficient hold on t he veh icle .
- A soft or u nstab le surface under the
jack may cause the veh icle to slip off
the jack . A lways provide a firm base for
the jack on the ground.
If necessary,
use a sturdy boa rd un der the jac k.
- On hard, slippery surfac e (such as til es)
use a rubbe r mat o r similar to preven t
the jack from s lipping.
- T o help p revent injury to yourself and
yo ur p assenge rs: -
Do not raise the vehicle until you are
sure the jack is securely engaged.
- Passengers must not remain in the ve­
hicle when it is jacked up.
- Make sure that passengers wait in a
safe place away from the veh icle and
well away from the road and traffic .
- Make sure jack pos ition is cor rect, ad­
j ust as necessary and then cont inue to
raise the jack.
(D Note
Do not lift the vehicle by the sill. Position
the veh icle jack only at the designated lift­
i ng po ints on the sill. Otherwise, your vehi­
cle will be damaged.
Taking the wheel off/installing the spare
tire
Follow these instructions step-by-step for
changing the wheel .
Fig. 207 Cha ngin g a w hee l: us ing t he screwd rive r han ­
dle (w it h th e blade re m oved) to t urn t he bolts
F ig. 2 08 Ch ang ing a w hee l: ali gnme nt p in ins ide t he
top hole
After yo u have loosened all wheel bo lts and
raised the vehicle off the g round, remove and
replace the wheel a s follows: .,..

Removing the wheel
"' Remove the topmos t wheel bo lt completely
with the
he xagonal socket in t he screwdriv ­
er hand le (vehicle tool kit) ¢
fig. 207 and
set it aside on a
clean surface.
"' Screw the threaded end of the
alignment
pin
from the tool k it hand-tight into the
empty bolt hole ¢
fig. 208.
"' Then remove the o ther wheel bo lts as de­
scribed above .
"' Take off the wheel leav ing the alignment
pin in the bo lt ho le
~ CD .
Putting on the spare tire
"' all road : Inflate the inflatable spare tire
~ page258
"' Push the spare tire over the a lignment pi n.
"' Screw o n the whee l bolts and tighten them
slightly using the hexagonal socket .
"' Remove the alignment pin and insert an d
t ighten the remaining whee l bo lt s light ly
li ke the rest .
"' Turn the jack handle counter-clockw ise to
lower the vehicle unt il the jack is f ully re­
l eased .
"' Use the whee l bolt wrench to t ighten a ll
wheel bolts firmly ¢
page 261. Tighten
them
in a crisscross pattern, from one bo lt
to the (approx imately) opposi te o ne, to keep
t h e whee l cen te red .
"' Perform the steps requ ired after cha nging
the wheel ~
page 260 , After changing a
wheel .
The hex agonal so cket m akes it easier to re­
move the w heel bo lts from the r im . Care
should be taken when removing the reversible
b lade .
@ Note
When removing or ins tall ing the wheel,
the rim could hit the brake rotor an d dam­
age the rotor . Wor k carefully and have a
second person to he lp you .
@ Tips
-When mounting tires with unidirectional
tread design
ma ke s ure the tread pat-
What do I do now? 263
'
tern is po inted the righ t way
¢ page 263.
- The w heel bolts shou ld be clean an d easy
to t urn . Check fo r dirt an d corrosion on
the mating surfaces of both the w heel
and the hub. Remove all d irt from these
surfaces before remounting the whee l.
- Do not use the hexagonal socket in the
sc rewd river handle to loosen or t ighten
the whee l bolts.
Tires with unidirectional tread design
Tires with unidirectional tread design must be
mounted with their tread pattern pointed in the right direction.
Us ing a spa re tire with a tread pattern
intended for use in a specific di rection
When using a spare t ire with a tread patter n
intended for use in a spec ific d irection, please
note the following :
- The d irect ion of rotation is marked by an
ar­
row on the side of the t ire .
-If the spare tire has to be insta lled in the in­
correct d irect ion, use the spare tire only
temporarily s ince the tire will not be able to
achieve its optimum performance cha racte r­
istics w it h regard to aquap la ni ng, no ise and
wear .
- We recommend that you pay part icu lar at ­
t en tion to th is fact during we t weather and
that you adjust your speed to match road
condi tions.
- Replace the flat t ire wi th a new one a nd
have it insta lled o n you r vehicle as soo n as
pos sible to res to re the hand ling advant ages
o f a u nidirec tional tire.
Notes on wheel changing
Please read t he info rmation ~ page 24 6, New
tires and replacing tires and wheels
if yo u a re
going to use a spare tire wh ich is different
from the tires on your vehicle.
After yo u change a tire:
IJI,-
•
•

264 What do I do now?
-Check the tire pressure on the spare imme­
diately after installation.
- Have the wheel bolt tightening torque
checked with a torque wrench as soon as possible by your authorized Audi dealer or
a qualified workshop.
- With steel and alloy wheel rims , the wheel
bolts are correctly tightened at a torque of
90 ft lbs . (120 Nm).
- If you notice that the wheel bolts are cor­
roded and difficult to turn while changing
a tire, they should be replaced before you
check the tightening torque .
- Replace the flat tire with a new one and
have it installed on your vehicle as soon as
possible. Remount the wheel cover.
Until then, drive with extra care and at re ­
duced speeds .
A WARNING
-If you are going to equip y our veh icle
with t ires or rims w hich diffe r from t hose
w hich wer e facto ry ins talled, th en be
su re to read t he in forma tion ~
pag e 24 6,
N ew tir es and replacing tires and
wheel s.
- Always make su re the damaged w heel or
eve n a fla t tire and the ja ck and to ol kit
a re prop erly secure d in the lug gage com­
par tment and are not loose in the pas ­
senger com partment .
- In an a cciden t or sud den m ane uver they
cou ld fly forwar d, inju ring anyone in the
vehicle.
- Always s tore d amage d w hee l, ja ck a nd
tool s secure ly in the lu g gage com part ­
me nt. Otherw ise, in an acc ident or sud­
den maneuver they cou ld fly fo rward,
causing injury to passenge rs in the veh i­
cle .
@ Note
Do not use commerc ia lly available t ire
sea lants. Othe rwise, the elect rical compo­
ne nts of the tire pressure mon itor ing sys­
tem* will no longer wo rk p roperly and the
sensor for th e tire p ressur e monito rin g system
* wi ll h ave to be repla ced by a
qu alified works ho p.

Fuses and bulbs
Fuses
Replacing a fuse
Fuses that have blown will have metal strips
that have burned through.
Fig. 20 9 Left cockp it : fuse panel cover
The fuses are located at the front left and
r igh t of the cockpit and behi nd the trim on
the right side of the luggage compartment .
.. Turn off the ign it ion a nd the affected elec-
t rical consumers .
.. Check the following table to see which fuse
belongs to the consume r .
.. Remove the appropriate cover¢
fig. 209 or
¢page 218, fig. 180 .
.. To remove the purple plastic cl ip if necessa­
ry
ll, hold onto it at the small s ide and pull
it out of the fuse panel¢
page 265,
fig. 210 .
.. Remove the clamp from the rear side of the
fuse cover ¢
fig. 209 .
.. Remove the fuse using the clamp and re­
pla ce the blown fuse w ith an identical new
one.
& WARNING , -
Do not repair f uses and never replace a
blown fuse w ith one that has a higher amp
rating. This can cause damage to the e lec­
trical system and a fire.
11 You can dis pos e of the plastic clip after removing it.
Fu se s and bulb s 265
(D Note
If a new fuse burns out again after short ly
have you have insta lled it, have the electri ­
ca l system checked by your authorized
Audi dealer .
{!) Tips
-The following table does not list fuse lo ­
cat ions that are not used .
- Some of the equipment items listed are
opt ional or only available on certa in
mode l configurations.
Left cockpit fuse assignment
Fi g. 21 0 Left cockpit: fuse panel wit h plastic clip
No. Consumer
Amps
Fuse panel @(black)
1 Dynamic steering 5
2 ES C control module 5
A/C system pressure sensor,
electromechanical parking
3
brake, Homelink, automatic
5 dimming interior rear view
mirror, air quality/outside
ai r sensor, ESC button

266 Fuses and bulbs
No.
5 Sound actuator/exhaust
sound tuning
6 Headlight
range control sys-
tern/cornering light
7 Headlight (cornering light)
Control modules (electro-
mechanical parking brake,
8 shock absorber, quattro
I
sport, trailer hitch), DCDC
converter
9 Adaptive cruise control
10 Shift gate
11 Side assist
12 Headlight range control,
parking system
13 Airbag
14 Rear wiper (allroad)
15 Auxiliary fuse (instrument
panel)
16 Auxiliary fuse
terminal 15
(engine area)
Fuse panel @ (brown)
2 Brake light sensor
3 Fuel pump
4
5 Left seat heating with/with-
out seat ventilation
6 E5C
7 Horn
-Front left door (window reg·
8 ulator, central locking, mir-
ror, switch, lighting)
9 Wiper motor
10 ESC
Two-door models: rear left
window regulator, Four-door
11 models: rear left door (win-
dow regulator, central
lock-
ing, switch, lighting)
12 Rain and light sensor
Fuse panel © (red)
3 Lumbar support
Amps
5/15
5/7,5 7,5
5
5
5
5
5
5
15
10
40
5
25
5
15/30
5
15
30
30
25
30
5
10
No. Consumer
4 Dynamic steering
6
7
8
9
Interior lighting (Cabriolet)
Windshield washer system ,
headlight washer system
Vehicle electrical system
control module 1
Vehicle electrical system
control module 1 Left rear window regulator
motor (Cabriolet)/sunroof
10 Vehicle electrical system
control module 1
11 Right rear window regulator
(Cabriolet)/sun shade motor
12 Anti-theft
alarm warning
system
Right cockpit fuse assignment Amps
35
5
35
20
30
7,5/20
30
7,5/20
5
Fig. 211 R ight cockpi t: fuse pane l wit h plastic cl ip
No. Consumer Amps
Fuse panel @ (black)
5 Steering column switch
5
module
7 Terminal 15 diagnostic
con-
nector 5
•
....

--No. Consumer Amps
I a
Gateway (Databus diagnos-
5 tic interface)
I
9 Supplementary heater
Fuse panel ® (brown )
1 CD/DVD playe r
2
Wi-Fi
3 MMI/Radio
4 Instrument cluster
5 Gateway (instrument cluster
control module)
6 Ignition lock
7 Light switch
8
Climate cont
rol system
blower
9 Steering column lock
10 Climate control system
11 Termina
l 30 diagnostic con-
nector
-
12 Steering column switch
module
Right luggage compartment fuse
assignment
5
5
5
5/20
5
5
5
5
40
5
10
10
5
F ig . 2 12 R igh t lu ggage compar tmen t: fu se pan el w ith
pla stic cl ip
-
Fu se s and bulb s 267
No . Consumer Amps
Fuse panel @ (blac k)
Luggage compartment lid
1 control module (all
road) /
30/10
Power top control module
(Cabriolet)
Trailer con trol modu le or re-
2 tractable rear spoiler (RS 5 15
Coupe)
3 Trailer control module 20
4 Trailer contro l modu le 20
5 Electromechanical parking
5
brake
6 E lectron ic damping con trol 15
7
Electromechanical parking
30
brake
8 R ear exterior lighting 30
9 quattro sport
35
10 Rear exterior lighting
30
11 Vehicle electrical system
20
con trol module
12 Term inal 30
5
Fuse panel © (brown )
1 Luggage compartment lid
30
control module (allroad)
-.
2 12-volt
socket, cigarette
20
lighter
3 DCDC converte
r path 1 40
4 DCDC converter path
2, DSP
30
amplifie r, radio
6
Right upper cabin heating
30
(Cabriolet)
7
Electromechanical parking
30
brake
R ig ht front door (window
9 regulator, central locking,
30
mirror, switch, lighting)
10 L
eft upper cabin heating
30
(Cabriole t)
Two-door models : rear r ight
window regu lator, Four-door
11 models : rear right door
30
(w indow regulato r, ce ntra l
l ock ing, switch , lighti ng)

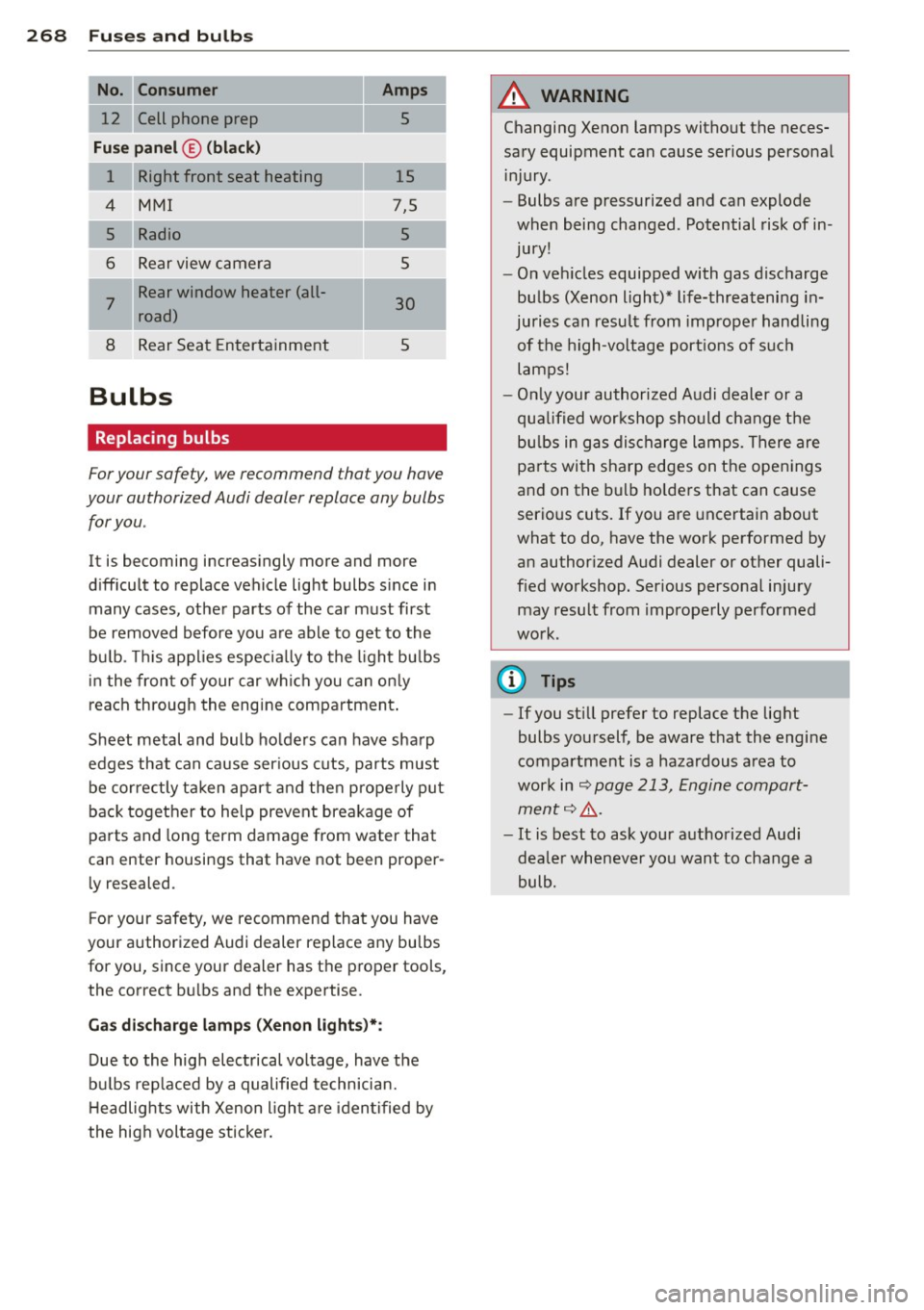

268 Fuses and bulbs
--No. Consumer Amps
12 Cell phone prep 5
-
Fuse panel© (black)
1 Right front seat heating 15
4 MMI 7,5
5
Radio 5
6 Rear view camera 5
7
Rear window heater (all·
30 road)
8 Rear Seat Entertainment 5
Bulbs
Replacing bulbs
For your safety, we recommend that you have
your authorized Audi dealer replace any bulbs for you.
It is becoming increasingly more and more
difficult to replace vehicle light bulbs since in many cases, other parts of the car must first
be removed before you are able to get to the
bu lb. Thi s applies especially to the light bu lbs
in the front of your car which you can only
reach through the engine compartment .
Sheet metal and bulb holders can have sharp
edges that can cause ser ious cuts, parts must
be correctly taken apart and then properly put
back together to help prevent breakage of
parts and long term damage from water that
can enter housings that have not been proper·
ly resealed.
F or your safety, we recommend that you have
your author ized Audi dealer replace any bulbs
for you, since your dealer has the proper tools,
the correct bu lbs and the expertise.
Ga s discharge lamps (Xenon lights}*:
Due to the high electrical vo ltage, have the
bu lbs rep laced by a qualified technician.
H eadlights with Xenon l ight are identified by
the high voltage sticker.
A WARNING
Changing Xenon lamps without the neces­
sary equipment can cause serious personal
in jury.
- Bulbs are pressurized and can explode
when being changed. Potential risk of in­
jury!
- On vehicles equipped with gas discharge
bulbs (Xenon light)* life-threatening in­
juries can result from improper handling
of the high-voltage portions of such
lamps!
- Only your authorized Audi dealer or a
qualified workshop should change the
bu lbs in gas discharge lamps. There are
pa rts with sharp edges on the openings
and on the bulb holders that can cause
serious cuts. If you are uncertain about
what to do, have the work performed by
an author ized Audi dealer or other quali­
fied workshop. Ser ious personal injury
may result from improperly performed
work.
(D Tips
- If you st ill prefer to replace the light
bulbs yourself, be aware that the engine
compartment is a hazardous area to
work in
9 page 213, Engine compart­
ment
9 Lr:,. .
-It is best to ask your authorized Audi
dealer whenever you want to change a
bulb.
