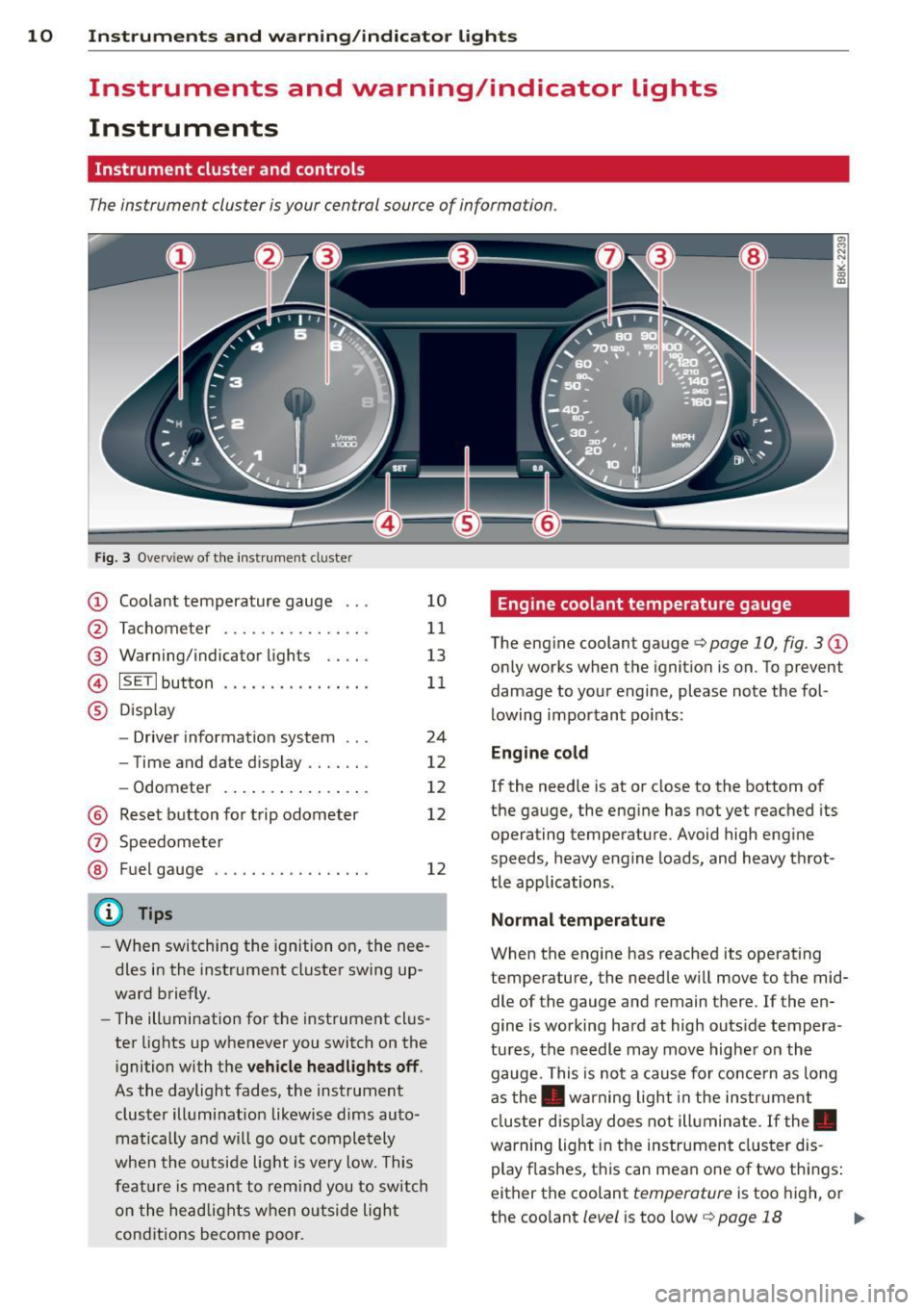

10 Instruments and warning/indicator lights
Instruments and warning/indicator Lights
Instruments
Instrument cluster and controls
The instrument cluster is your central source of information.
Fig. 3 Ove rv iew of the instrument cluster
CD Coolant temperature gauge .. .
@ Tachometer ........... .. .. .
@ Warning/indicator lights .. .. .
© ISETlbutton .... .... .. .... . .
® Display
- Driver information system .. .
- Time and date d isplay .. .. .. .
- Odometer .......... ... .. .
@ Reset button for trip odometer
(z) Speedometer
@ Fuel gauge . .... ..... .. .. .. .
(D Tips
10
11
13
11
24
12
12
12
12
- When switching the ignition on, the nee­
dles in the instrument cluster swing up­
ward briefly.
- The illumination for the instrument clus­
ter lights up whenever you switch on the
i gnition with the
vehicle headlights off .
As the daylight fades, the instrument
cluster illumination likewise dims auto­
matically a nd will go out completely
when the outside light is
very low. This
feature is meant to remind you to switch
on the headlights when outside light
conditions become poor .
Engine coolant temperature gauge
The engine coolant gauge q page 10, fig. 3 CD
only works when the ignition is on. To prevent
damage to your engine, please note the fol ­
lowing important points:
Engine cold
If the needle is at or close to the bottom of
the gauge, the engine has not yet reached its
operating temperature. Avoid high engine
speeds, heavy engine loads, and heavy throt ­
tle app lications.
Normal temperature
When the engine has reached its operating
temperature, the needle will
move to the mid­
dle of the gauge and remain there . If the en­
gine is working hard at high outs ide tempera­
tures, the needle may
move higher on the
gauge. This is not a cause for concern as long
as the . warning light in the instrument
cluster display does not illuminate. If the.
warning light in the instrument cluster dis­
play flashes, this can mean one of two things:
either the coolant
temperature is too high, or
the coolant
level is too low q page 18 Ill-

Instrument s and warning /indicator lights 11
,&_ WARNING
- Always observe the warning in
¢ page 213, Engine compartment, be­
fore opening the hood and checking the
engine coolant level.
- Never open the engine hood if you see or
hear steam, or if you see engine coolant
dripping from the engine compartment.
You could burn yourself . Let the engine
cool off first so that you cannot hear or
see any steam or engine coolant .
(D Note
-Mounting additional lights or accessories
in front of the air inlets reduces the cool­
i ng effect of the radiator . At h igh outside
temperatures or high engine load, the
engine could overheat.
- The front spo iler has been designed to
properly distribute the cooling air when
the veh icle is moving. If the spoiler is
damaged, this could reduce the cooling
effect and the engine could then over­
heat. Ask your authorized Audi dealer for
assistance.
Tachometer (engine rev counter)
The tachometer indicates the engin e RPM
(r evolutions per minutes).
If engine RPM d rops be low 1,500 , you should
downshift to the next lower gear. The red area
at the end of the scale indicates maximum
permissible engine RPM after the break-in pe­
riod . Before reaching this a rea, move these­
lector lever to position D/S or ease your foot
off the accelerator pedal.
(D Note
The tachometer needle@¢ page 10,
fig . 3
shou ld only briefly be in the red
zone: you could damage your engine! The
beg inning of the red zone varies depend­
ing on the engine.
@) For the sake of the environment
Upshifting early saves fuel and reduces en­
gine noise.

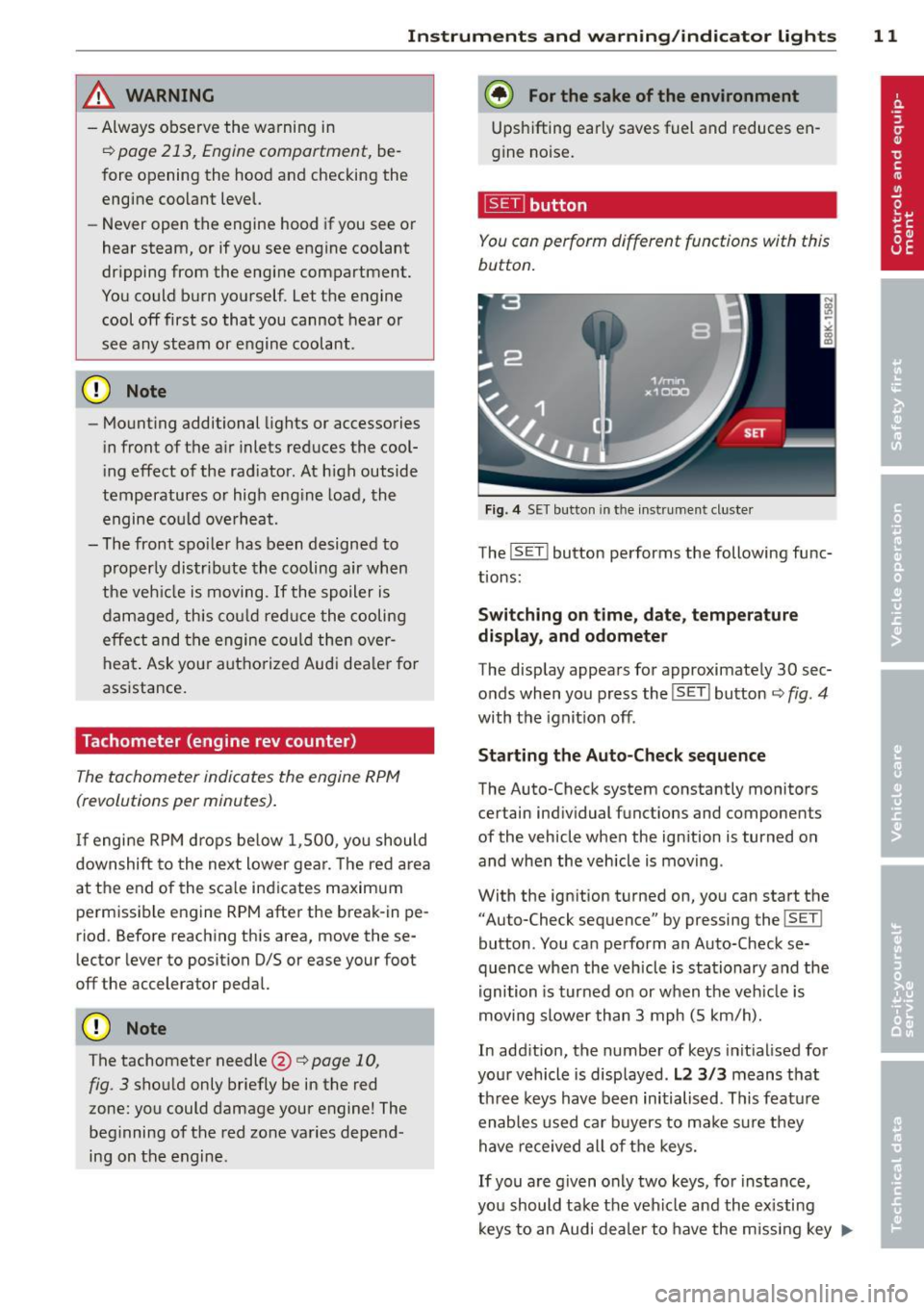

~ button
You can perform different functions with this
button.
Fig. 4 SET button in th e in strument cl uste r
The !SET ! button performs the following func­
tions :
Switching on time, date, temperature
display , and odometer
The display appears for approximately 30 sec­
onds when you press the
!S ET I button ¢ fig. 4
with the ignition off.
Starting the Auto-Check sequence
The Auto-Check system constantly monitors
certain individual functions and components
of the vehicle when the ignition is turned on
and when the vehicle is moving .
With the ignition turned on, you can start the "Auto-Check sequence" by pressing the
! S ET !
button . You can perform an Auto-Check se­
quence when the vehicle is stationary and the
ignition is turned on or when the veh icle is
moving slower than 3 mph (5 km/h).
In addition, the number of keys init ialised for
your vehicle is disp layed .
L2 3/3 means that
three keys have been initialised. This feature
enables used car buyers to ma ke sure they
have received all of the keys.
If you are given only two keys, for instance,
you should take the vehicle and the existing
keys to an Audi dea ler to have the missing key
II>-

18 Instrum ent s and w arn ing /indic ato r light s
...L Engine cooling system
A malfunction in the engine cooling system
must be repaired as soon as possible .
• Turn off engine and chec k coolant le vel
If the indicator light t urns on and the mes ­
sage appears, the coo lant temperature is too
high or the coo lant level is too low.
> Pu ll off the road.
> Stop the vehicle .
> Turn off the engine.
> Check coolant level c:> page 226.
> Add coolant if necessary c:> page 22 7 .
> Continue driving only after the eng ine cool­
ant warn ing/ indicator light goes out .
> Contact your authorized Audi dealer for as-
s istance if necessary .
If the engine coolant level is correct, then the radiator fan may be the cause of the malfunc­
tion .
• Coolan t tempe rature! Let engine run w ith
v eh icl e s tationary
If the indicator light turns on and the mes ­
sage appears in trailer mode*, let the engine
run at idle for a few m inutes to cool down.
A WARNING
- If your veh icle should break down for
mechanical or other reasons, park at a
safe distance from moving traffic, turn
off the engine and turn on the hazard
wa rning lights ¢
page 49, Emergency
flashers.
-
- Never open the hood if you see or hea r
steam or coolant escap ing from the en­
gine compartment - you risk being scald ­
ed. Wait until you can no longer see or
hear steam or coo lant escaping .
- The engine compartment of any vehicle
is a dangerous area. Before you perform
any work in the engine compartment,
turn of the eng ine and allow it to cool.
Follow the warning stickers¢
page 213,
Engine compartment .
(D Note
Do not continue driving if the . symbol
ill um inates . There is a malfunction in the
engine cooling system -you could damage
your engine.
@ -Steering column lock
• Stee ring d efec tive ! Do not dri ve vehicle!
If the indicator light turns on and the mes­
sage appears, there is an electronic steering
column lock malfunct ion. You cannot switch
the ignit ion on .
Do
not tow yo ur vehicle because it cannot be
steered . Seek professional assista nee.
l!J:I Steering lock : Cont act de ale r!
If the indicator light turns on and the mes­
sage appears, there is an e lectronic stee ring
co lumn lock malfunct ion .
Drive to your authori zed A udi dealer immedi­
ately to have the ma lfunction corrected .
A WARNING
-
Your vehicle must not be towed in the
event of a malfunction in the elect ronic
steering co lumn lock beca use it cannot be
steered due to the loc ked steering . If it is
towed with the steering locked, there is
the r isk of an accident.
© -Ignition lock
• Ignit ion lo ck defecti ve . Contact dealer!
If the indicator light turns on and the mes­
sage appears, do
n ot switch the ignit ion off
because you may not be ab le to sw itch it on
again.
Drive to your authorized A udi dealer immedi ­
ately to have the malfunction corrected .
On vehicles with convenience key*, the engine
shou ld not be switched
off using the
I S TAR T ENGINE ST OPI button beca use the en­
gine cannot be started again after the ignition
has been switched
off. ..,.

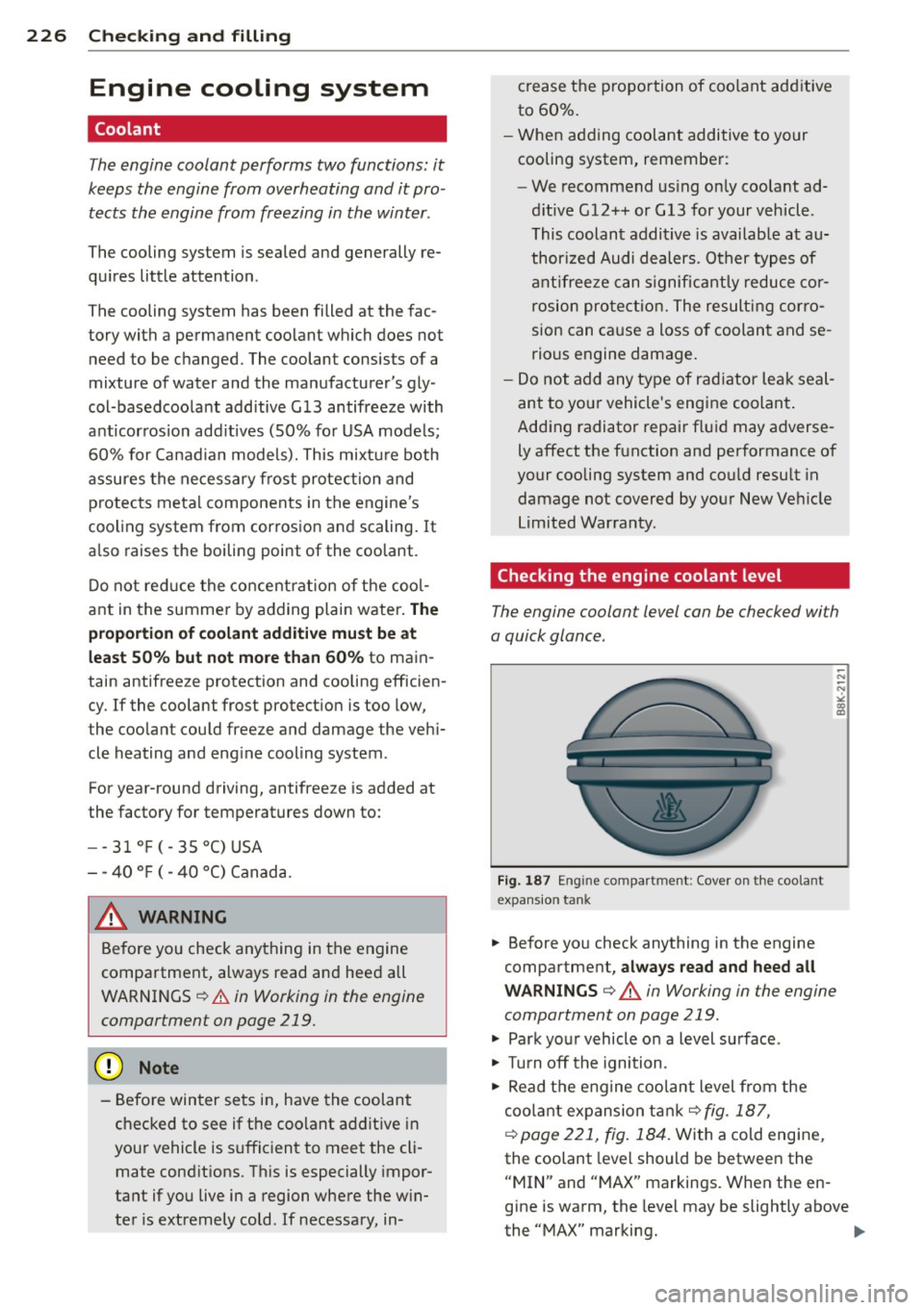

226 Check ing and filling
Engine cooling system
Coolant
The engine coolant performs two functions: it
keeps the engine from overheating and it pro ­
tects the engine from freezing in the winter .
The cooling system is sealed and generally re­
quires little attention.
The cooling system has been filled at the fac­
tory with a permanent coolant which does not need to be changed. The coolant consists of a
mixture of water and the manufacturer's gly ­
col-basedcoolant additive G 13 antifreeze with
anticorrosion add itives (SO% for USA mode ls;
60% for Canadian models). This mixture both
assures the necessary frost protection and protects metal components in the engine's
cooling system from corrosion and scaling. It
a lso raises the boiling point of the coolant .
Do not reduce the concentration of the coo l­
ant in the summer by adding plain water .
The
p ro po rti on of c ool ant add it iv e mu st b e at
lea st 50 % but not mo re th an 60%
to main­
tain antifree ze protection and cooling efficien­
cy. If the coolant frost protect ion is too low,
the coolant could freeze and damage the veh i­
cle heating and eng ine cooling system .
For year-round driving, antifreeze is added at
the factory for temperatures down to:
- -31° F(-3S°C)USA
- - 40 ° F ( - 40 °C) Canada.
_& WARNING
Before yo u check anything in the engine
compartment, always read and heed all
WARNINGS
¢ &. in Working in the engine
compartment on page 219.
(]) Note
-
- Before winter sets in, have the coolant
checked to see if the coo lant additive in
your vehicle is s uffic ient to meet the cli­
mate cond it ions . Th is is especially impor­
tant if you live in a region where the w in­
ter is extremely cold . If necessary, in- crease the p
roportion of coo lant additive
to 60%.
- When adding coolant additive to your
cooling system, remember:
- We recommend us ing on ly coolant ad­
d itive G12++ or G13 for your veh icle .
This coolant additive is availab le at au­
thor ized Audi dealers. Other types of
ant ifreeze can s ignificantly reduce cor­
rosion pro tection. The resulting cor ro­
sion can cause a loss o f coolant and se ­
rious engine damage.
- Do not add any type of rad iator leak seal­
ant to yo ur vehicle's engine coolant .
Adding radiator repair fl uid may adverse ­
ly affect the function and performance of
your cooling system and cou ld resu lt in
damage not covered by your New Veh icle
Limited Warranty.
' Checking the engine coolant level
The engine coolant level can be checked with
a quick glance.
F ig. 187 En gin e compa rtm en t: Cover o n the coo la n t
expans io n ta nk
-"' -"' >< .,
"'
.. Before yo u check anything in the engine
compartment,
alwa ys read and heed all
W ARNINGS ¢ .&. in Working in the engine
compartment on page 219 .
.,. Park your vehicle o n a level surface .
.,. Tu rn off the ignition .
.. Read t he engine coolant level from the
coo la nt expansion tank ¢
fig. 187 ,
r=:> page 221, fig . 184 . With a cold engine,
the coolant leve l should be between the
"MIN" and "MAX" markings . When the en­
gine is warm, the level may be slightly above
the "MAX" marking.
IJII,

The location of the coolant expansion tank
can be seen in the engine compartment illus­
tration
q page 221 .
To obtain an accurate read ing , the eng ine
must be switched off .
The expa nsion tank in you r vehicle is equipped
with an elec tric coolant level sensor.
When the coolant level is too low, the warning
light in the Auto-Check System
q page 18 wi ll
b lin k until you add coo lant and the level has
been restored to norma l. Even t hough the re is
an e lec tric coolant level sensor, we s till rec ­
ommend you check the coolant leve l from
time to time .
Coolant loss
Coolant loss may indi cate a leak in the coo ling
sys tem. In the event of coolant loss, the cool­
ing system should be inspected immedia tely
by your authorized A udi dealer. It is not
enough merely to add coolant.
I n a
s ealed system, losses can occur only if
the boiling point of the coolant is exceeded as
a result of overheating.
A WARNING
The cooling system is unde r press ure and
can get ve ry hot. Reduce the risk of sca ld­
ing from hot coolant by following these
steps.
- Turn off the engine and allow it to coo l
down.
- Protect yo ur face, hands and arms from
escaping fluid and steam by covering the
cap with a large, thick rag.
- Turn the cap slowly and very carefu lly in
a counter-clockwise direction wh ile ap­
plying light, downward pressure on the
t op of the cap .
- To avoid being bu rned, do not spill ant i­
freeze or coo lant on the exhaust system
o r hot eng ine parts . Unde r certai n condi­
t ions, the ethy lene g lycol in engine cool­
an t ca n catc h fire.
Checkin g and fillin g 22 7
@ Note
Do not ad d any type of radiator leak sea l­
ant to your ve hicle's engine coolant. Add ­
i ng radiator repa ir flui d may adverse ly af­
fect the funct ion and performance of your
cooling system and could result in damage not cove red by your New Vehicle l imi ted
Warranty .
Adding coolant
Be very careful when adding engine coolant.
Before you check anyth ing in the eng ine com ­
partment,
always read and heed all WARN­
INGS q & in Working in the engine compart ­
ment on page 219 .
.,. Turn off the engine.
.,. let the engi ne cool down.
.,. Place a thick rag over the coolant expansion
tank
q page 226, fig . 187 and carefully turn
the cap counter-clockwise
~ &_ .
.,. Add coo la nt.
.,. Twist the cap o n aga in
tightly.
Rep lacement engine coo lant must confo rm to
exact specificat ions ~
page 226, Coolant. We
recommend using on ly coo lant additive G 12+
+ , G 13 or in an eme rgency G12+. Do
not use a
different additive. In an emergency use pla in
water until you can get the correct additive
and can restore the correct ratio . This sho uld
be done as soon as possible.
If you have los t a cons iderab le amount o f
coolant , then you sho uld add cold antifreeze
and co ld water on ly when the engine is cold.
A lw ays use
new engine coo lant w hen refilling.
Do not f ill coo lant above t he "MAX" mark. Ex­
cess coola nt w ill be fo rced o ut through t he
pressure relief valve in the cap when the en­
gine becomes hot.
A WARNING
- The cooling system is under pressure and
can get very hot. Reduce the risk of ..,.
•
•

228 Check ing and filling
scalding from hot coolant by following
these steps .
- Turn off the eng ine and allow it to cool
down.
- Protect your face, hands and arms from escaping flu id and steam by cover ing
the cap with a large, thick rag .
- Turn the cap slowly and very carefully
i n a counter-clockwise direction while
apply ing l ight, downwa rd press ure on
the top of the cap .
- To avo id being burned, do not spi ll an­
tifreeze or coolant on the exhaust sys­
tem or hot engine parts . Under certain
conditions, the ethylene glyco l in en­
gine coolant can catch f ire .
- Antifreeze is poisonous . Always store an­
tifreeze in its or iginal container and we ll
out of the reach of children.
- If you drain the coolant, it must be
caught and safely stored in a proper con­
tainer clear ly marked "poison".
@ Note
- Coolant po llutes the env ironment and
could cause an engine fire . Excess coo l­
ant will be forced out through the pres­
sure re lief valve in the cap when the en­
gine becomes hot.
- If, in an emergency, only water can be
added, the correct ratio between water
and antifreeze
c::> page 226 must be re­
stored as soon as possible .
@ For the sake of the environment
Drained coolant should not be re used. Al­
ways dispose of used coolant while observ­
ing all environmental regulat ions .
Radiator fan
The radiator fan switches on automatically by
itself
T he radiator fan is driven by the engine via the
V-be lt . The viscous clutch regulates the speed
of the fan accord ing to the temperature of the
coolant. An a
uxiliary electric radiator fan* switches on
and off depend ing on coolant temperature
and other vehicle operat ing condit ions .
After yo u sw itch the engine off, the aux iliary
f an can continue running for up to 10 minutes
- eve n wit h the ignit ion off. It can even switc h
on again later by itself
c::> &. , if
- t he tempe rature of the engine coo lant rises
due to the heat build -up from the engine in
the engine compartment, or
- the engine compa rtment heats up because
the vehicle is parked in i ntense sunlight.
_& WARNING
- To reduce the risk of personal injury nev­
er touch the radiator fan.
- The auxiliary electric fan is temperat ure
controlled and can sw itch on suddenly
even when the engine is not running.
- The a uxiliary radiator fan sw itches on au­
tomatically when the engine coo lant
reaches a certai n temperature and will
continue to run until the coolant temper­
ature drops .
Brake fluid
Checking brake fluid level
The brake fluid level can be checked with a
quick glance.
F ig . 1 88 Engin e compart men t: Cover on the b rak e flu­
i d reservo ir
Before you check a nyth ing in the engine com­
partment,
always read and hee d all WARN ­
INGS c::> .&. in Working in the engine compart-
ment on page 219 . .,..

28 2 Con sum er Inf ormation
-Always make sure the transmission se­
lector lever (automatic transmiss ion) is
in "P" (Park position) or Neutral (manual
transmission) and the park brake is firm­
ly applied.
@) For the s ake of the environment
-Changing the engine settings will ad­
versely affect emission levels. This is det­
rimental to the environment and increas­
es fuel consumption .
- Always observe environmental regula­
tions when disposing of old engine oil,
used brake fluid, dirty engine coolant,
spent batteries or worn out tires.
- Undeployed airbag modules and preten­
s ioners might be classified as Perchlo­
rate Material -spec ial handling may ap­
ply, see www.dtsc.ca .gov/hazardous­
waste/perch lorate. When the veh icle or
parts of the restraint system including
airbag modules safety belts with preten­
sioners are scrapped, all app licable laws
and regulations must be observed . Your
authorized Audi dealer is familiar with
these requirements and we recommend
that you have your dealer perform this
serv ice for you .
Additional accessories,
modifications and
parts replacement
Additional accessories and parts
replacement
Always consult on authorized Audi dealer be­
fore purchasing accessories.
Your veh icle inco rporates the latest safety de­
sign featu res ensuring a high standard of ac­
tive and passive safety.
This safety could be compromised by non-ap­
proved changes to the veh icle. For this reason ,
if pa rts have to be replaced , please observe
the following points when installing addition­
a l accessories: Approved Audi accessories and genuine Audi
parts are available from authorized Audi deal­
ers.
T hese dea lers a lso have the necessary facili­
ties, tools and trained specialists to install the parts and acc essories proper ly.
A WARNING
-Using the wrong spare parts or using non-
approved accessories can cause damage to
the veh icle and ser ious personal injury.
- Use on ly accessories expressly approved
by Audi and genuine Audi spare parts
- These parts and accessories have been
specially designed to be used on your ve­
h icle .
- Never install accessories such as tele­
phone crad les or beverage ho lders on a ir­
bag covers or within the airbag deploy­
ment zones . Do ing so will increase the
risk of injury if a irbags are triggered in an
accident!
- Before you check anything in the engine
compa rtment, always read and heed a ll
WARNINGS
9 page 213 .
(D Note
-If items other than genu ine Audi spare
parts, add-on equipment and accessory
items are used or if repair work is not
performed accord ing to specified meth­
ods, this can resu lt in seve re damage to
your vehicle's eng ine and body (such as
corrosion) and adversely affect yo ur vehi ­
cle's warranty .
- If emergency repairs must be performed
elsewhere, have the vehicle examined by
an authorized Audi dealer as soon as
possible .
- The manufacturer cannot be held liable
for damage wh ich occ urs due to failure
to comply with these stipu lations.

_______________________________ ___:I~n ~d ~e:.::x 287
Changin g engine oi l
Chass is 225
U ndercoat ing ............ .... .. .. . 208
Checking
Eng ine coolant level ........ . .. .. .. .
226
Checking tire pressure .............. . 241
Ch ild restraints
D anger of usin g child restraints in the
front seat . . . . . . . . . . . . . . . . . . . . . . . .
146
Where can I get additional information
about child restraints and their use? ..
184
Child restraint system anchors . .. ... .. 180
Ch ild safety .. ............. .... .. ... 166
Convertible locking retractor . . . . . . . . . 176
Important safety instructions for using
ch ild safety seats .... ... .. .. .. .. .. .
169
Impo rtant th ings to know when driv in g
wi th children ............ .... .. ...
166
Insta lling a chi ld res traint using the
L A TCH system ............ .. .. .. .. .
18 1
Mounting and releasing the ancho rage
hook .... .. .. ............. .. .. ...
18 1
Tether anchors . . . . . . . . . . . . . . . . . . . . 182
Tether straps . . . . . . . . . . . . . . . . . . . . . 182
Child safety loc ks
Power windows .......... .. .. .. ....
42
Rear doors ... ........... .. .. ...... 42
Child safety seats .......... .... .. .. . 172
Booster seats ................ .. .. . 17 4
Convertible child seats .... .. .. .. .. .
173
Convertible locking retractor .. .. .. .. . 176
Danger of using child restra ints in the
front seat . . . . . . . . . . . . . . . . . . . . . . . .
146
How do I properly install a child safety
seat in my vehicle? ........ .. .. .. .. .
169
Infant seats . . . . . . . . . . . . . . . . . . . . . . 172
Installing ............ ...... .... .. 176
LATC H system ......... ...... .... .. 18 1
Saf ety inst ruc tions ........ .. .. .. .. . 169
Unused safety belts on the rear seat 17 1
Ch ild seats
L ower ancho rages ........... .. ....
18 1
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . 63
Cleaning
Alcantara® (syn thetic suede) .. .. .. .. .
212
En gine compartment .............. . 213
Exhaust tail pipes ............... .. . 209
Fabr ics and fabric coverings ......... 209
Instrument panel ... . .......... .. .. 210
Interior ... .. .. .. .. . .. .......... .. 209
Leather . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Matte finish paint ................. 204
MMI display/controls ... ......... ... 209
Plastic and vinyl .. .. . .. .. .. ... ... .. 206
Plastic parts ..... .. .. .. .. ......... 210
Safety belts ... .. .. . .............. 21 2
Trim strips .. .. .. .... ........... .. 206
Cleaning and protection . .. .......... . 202
Climate controls ..... . .. .......... .. . 76
Climate control system
Au tom atic recir culat ion ......... .. .. .
79
Supplementary heater ............... 79
synchronizing . . . . . . . . . . . . . . . . . . . . . . 79
Clock .. ... ... .. .... .. .. ...... ... .. . 12
Closing
Power w indows ................... .
42
Sliding/tilting sunroof ............... 44
Sunshade ....... .. . .. ......... ... . 44
Closing/opening
at the lock cylinder .. ........... .... .
38
by remote control ............. .. .. . 35
with the centra l locking sw itch ........
36
with the conven ience key . .......... .. 36
Cold tire inflation pressure .......... .. 238
Coming home ... .. .... ........... .. . 48
Compact spare tire .................. 256
also refer to Spare tire ....... ... .. .. 256
Compartments . . . . . . . . . . . . . . . . . . . . . . 66
Compass in the mirror ... ......... ... . 56
Compliance . . . . . . . . . . . . . . . . . . . . . . . . 283
Consumer Information . . . . . . . . . . 135, 280
Contacting NHTSA .... .. ......... ... 135
Convenience key
Ind icator lights .. ................. .
84
Starting engine (START ENGINE STOP
button) . .. .. .. .. .. . .. .. ..... ..... .
83
Stopping the engine (START ENGINE
STOP button) . . . . . . . . . . . . . . . . . . . . . .
84
Switching on ignition ............... . 83
un locking/loc king ............. ..... 36
Convenience opening/clos ing .......... 43
Convertible child safety seats ......... 173
•
•

-----------------------------~I~ n~d~ e~x 289
Emergency operation
Emergency braking function (parking
brake) ... .. .. .. ........ ... .. .. .. .. 87
E me rgency sta rting ........ .. .. .. .. . 269
Emergency towing .. .... .... . .. .. .. . 271
Energy management .... ... .. .. .. .. . 192
Battery power . . . . . . . . . . . . . . . . . . . . . 1 7
Driver notification . . . . . . . . . . . . . . . . . . 17
E ng ine
Compartment ..... .... ... .. .. .. ... 221
Coolant .... .. ... ..... ... .. .. .. ... 226
Hood . ..... .. .. ... . .... ... .. .. ... 219
Starting . . . . . . . . . . . . . . . . . . . . . . 80, 83
Start ing with jumper cables .. .. .. .. . 269
Stopping . . . . . . . . . . . . . . . . . . . . . . 82, 84
Eng ine compartment
Safety instructions ..... ... .. .. .. .. . 2 19
Working the engine compartment 219
E ng ine coolan t
I ndicator light . . . . . . . . . . . . . . . . . . . . . 18
E ng ine coolant system .......... ... .. 226
Adding coolant .............. ... ... 227
Chec kin g coolant leve l ..... .. .. .. .. . 226
Checking the eng ine coolan t leve l .. .. . 226
Ra diato r fan ............. .... .. ... 228
E ng ine coolant temperature
Temperatu re ga uge .... ...... .... ... 10
Eng ine data .. ............. .... .. ... 277
E ng ine hood
C losing . . . . . . . . . . . . . . . . . . . . . . . . . . 219
How to release the hood ... .. .. .. .. . 2 19
E ng ine oi l .. ................. ... ... 221
Adding .. .. ............. .. .. .. .. . 224
Addi tives . .. ............. .... .. ... 224
Changing .. ... .. ..... ... .. .. .. ... 225
Check oil leve l .. .. .... ... .. .. .. ... 224
Consumption ..... .... ... .. .. .. ... 224
Indicator light ........... .... .. 17,21
O il consumption .......... .. .. .. .. . 223
O il grades .. ............. .... .. ... 221
O il level symbol ............. .... ... 21
Pressu re malfunction ...... .. .. .. .. .. 17
Sensor defective . . . . . . . . . . . . . . . . . . . . 2 1
Specification and vis cos ity .. .. .. .. .. . 22 1
Eng ine speed limitat io n ..... .. .. .. .. .. 21 Environment
Break-in period ..... . ... ...... ... .. 194
Catalytic converter . .. .. ..... ... .. .. 195
Dispos ing of your ve hicle battery ... .. 233
Driving at high speeds .............. 196
Driving to minimize po llution and noise 196
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Fuel economy .. .. .. ..... ......... .
Lea ks unde r you r vehicle ........ ... .
Let ting the vehicle stand and warm up .
Proper disposal of d rained brake flu id .
Proper disposal of drained engine cool ­
ant
. ... .. .. .. .... . ... ...... ... ..
Proper disposal of drained eng ine 196
2 19
196
229
227
o il . . . . . . . . . . . . . . . . . . . . . . . . . 224, 22S
Recycling used engine oil ............ 224
Roof rack . . . . . . . . . . . . . . . . . . . . . . . . . 68
Un leaded fuel .. .. .. . .. .... .... .. .. 214
What shou ld I do with an o ld battery? . 233
EPC
refer to Electron ic power control . . . . . . 20
ESC ( Electronic Stabi lization Contro l)
Warning/indicator lights ..... ... .. .. . 19
E thy l alco ho l (Fuel) . ............. .. .. 215
Event Data Recorder (EDR) .......... .. 185
E xhaust tai l pipes
Cleaning . ... .... .. . .. .. ..... ... .. 209
Expansion tank
Exterior lighting
E xterior m irrors 226
. .. ............... .. . 47
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . SO
D' . 1mming .. .. .... .. . .. .. ..... ... .. . 51
Heating ... .. .. .. .. .. .. .. .... ... .. . SO
F
Fan
Radiator
Fasten ing
B oos ter sea ts 228
17 4
Convertib le child sa fe ty seats .... .. .. 173
Infant seats . . . . . . . . . . . . . . . . . . . . . . 172
Fasten ing eyes
refer to Tie-downs .... ........... .. . 72
Flat tire Chang ing . .. .. .. .. . .. ....... ... .. 259
flexib le fue l
Floor
. .. .... .. . .. .. ..... ... .. 215
75
•
•

290 Index
Floor mats ........ ......... ... .... . 132
Fog lights/rear fog light(s) ..... .. .. .. . . 47
Folding the rear seats . . . . . . . . . . . . . . . . . 69
F oot pedals ....................... . 132
For the sake of the environment Gasoline fumes and the environment .. 217
L ett ing the engine warm up . . . . . . 80, 83
Refueling ............... .. .. .... . 217
Saving fue l by early upshift ing .. ...... 11
Front airbags Descr ipt ion .... .... ...... .. .. .. .. . 149
H ow they work . . . . . . . . . . . . . . . . . . . . 154
Frontal collisions and the laws of physics 138
Fr ont passenger's door emergency locking 38
Front seats Adjusting .. ..... ........... ... .. . 129
Ch ild restraints in the front seat . .. .. . 146
Fuel Additives . ... ............ .. .. .. .. . 214
Blended gasoline ............. .. ... 214
Consumpt ion . . . . . . . . . . . . . . . . . . . . . . 25
Filler neck .. ... . ...... ... .. .. .. .. . 216
Fu el gauge ... ........... .. .. .... .. 12
Gasoline . ... ............ .. .. .. .. . 214
Gasoline additives ................ . 216
Low fuel level symbol . . . . . . . . . . . . . . . 21
Octane rating .................... . 214
Recommendation ........... .. .... . 214
Refuelling .... ........... .. .. .... . 217
Reserve .. ... ... .... ..... .. .. .. .. .. 12
Tank capacity ............. ... .. ... 277
Tank system .......... .... ... .. .. .. 21
Un lock ing the fuel fi ller flap by hand .. 218
Fuel economy messages (efficiency pro-
gram) . .. .. .. ... .. ..... ... .... .. .. .. 29
Fuel filler flap
Unlocking the fuel filler flap by hand .. 218
Fuses Assignment . . . . . . . . . . . . . 265, 266, 267
Replacing . ................. ..... . 265
G
Garage door opener (HomeL ink) .. .. ... 123
Garment hooks . . . . . . . . . . . . . . . . . . . . . . 66
Gas discharge lamps ......... ... .... . 268 Gauges
Engine coolant temperature . . . . . . . . . . 10
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . 12
Tachometer . . . . . . . . . . . . . . . . . . . . . . . 11
Gear recommendation . . . . . . . . . . . . . . . . 28
Gearshift indicator ...... ........... .. 27
Gearshift lever
6-speed manual transmission .... .... . 91
General illustration
Instruments and controls ....... .... .. 8
Generator Warning/ind icator lights ........... .. 17
G lossary of tire and loading terminology 235
G love compartment . . . . . . . . . . . . . . . . . . 65
Valet parking .... ................ .. 45
GPS controlled clock ................ .. 12
Gross Vehicle Weight Rating (GVWR) . .. 275
Ground clearance .. ... .......... .... 198
H
Headlights
Cleaning system . . . . . . . . . . . . . . . . . . . . 53
Defective . . . . . . . . . . . . . . . . . . . . . . . . . 21
Headlight range control ............. 22
Left hand drive, right hand drive .. .. .. . 49
Travel mode . . . . . . . . . . . . . . . . . . . . . . . 49
Headlight washer reservoir ..... .. .... 233
Head restraints .. .. ............. .... 131
Adjusting . . . . . . . . . . . . . . . . . . . . 61, 131
Removing/installing .............. .. 61
Heated exterior mirrors . . . . . . . . . . . . . . . . . . . . SO
rear window . . . . . . . . . . . . . . . . . . . . . . . 78
seats .... ... .. .. .. ...... ....... .. . 78
windshield washer spray nozzles . . . . . . 53
Heating ... ..... .. .. .............. .. 76
Heavy clothing and safety be lts ...... .. 140
High beam .. .... ... ................ . 48
High voltage warning label ........ ... 275
Hill descent control ................ .. 95
Homelink (remote control)
Hood 123
Opening . ..... .. ................ . 219
Re lease lever .... ............. .... 219
Hooks ... .. .. .. .. ............... .. . 72
Horn ...... .. .. .. .. ............... .. 8
