G) Power window switches ........................ .
@ Door handle
G) Power locking switches ..... .. .... .... .... ...... .
© Adjuster contro l for ou tside mirrors ...... .... .... .
© Light switch .. ...... .... ... .... .... .... ..... .. .
© Contro l lever for:
- Cruise control .... .... ...... ....... ...... ... .
- Adaptive C ru ise Contro l .... .... .... .... .... .. .
0 Air outlets ... .. .... .... .... .... ... .... .... .... .
@ Contro l lever for:
- Turn signal and high beam ....... ... .. .... ... .
- La ne assist .. ...... ... .... .... .... ... .... ... .
© Multi function steering wheel with :
- Horn
- Driver's a irbag .. ...... ... .... .... .... .... ... .
- Shift buttons ............................... .
Button for steer ing whee l heating ........ ... .. .
@ Instrument c luster .. ... .... .... ....... .... .... . .
@ Switches for
- Windshield wiper/washer ............... ...... .
- Trip computer .... ....... .... .... .... .... ... .
@ Steering lock/ignit ion/starter switch
@ Buttons for:
- Advanced Parking System .. .... .... .... .... .. .
- Side assist ................................. .
- Po wer sunshade
@ MM I Disp lay
Controls and equip
ment
62
53
84
69
137
139
122
73
15 1
222
168
119 12
80 38
129
170
154
78
Ins trum ents and controls
@ Buttons/Indicator l ight for :
- Electronic Stabilization Program (ESP) 268
- PASSE NGER AIR BAG OFF
- Emergency flashers . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
@ Storage tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
@ Glove compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
@ Front passe nger's airbag . . . . . . . . . . . . . . . . . . . . . . . . 222
@ Shift lever for automatic transmission . . . . . . . . . . . . . 163
@ Climate controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
@ Rear window defogger switch . . . . . . . . . . . . . . . . . . . . 124
@ Ashtray with cigarette lighter . . . . . . . . . . . . . . . . . . . . . 106
@ ISTAR T~~ STOP ~butto n . . . . . . . . . . . . . . . . . . . . . . . . . 131
@ MMI Terminal
@ Storage with cup holder . . . . . . . . . . . . . . . . . . . . . . . . . 105
@ Electromechanical parking brake . . . . . . . . . . . . . . . . . . 134
@ Data Link Connector for On Board Diagnostics (OBD Ill 27
@ Engine hood release . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306
@ Adjustable s teering co lumn . . . . . . . . . . . . . . . . . . . . . . 128
@ Me mory buttons (driver's seat) . . . . . . . . . . . . . . . . . . . 94
@ Switch for
- unlocking the fuel fil ler door
- unlocking t he tr unk l id
[ i ] Tips
303
55
Operation of the Mu lt i M edia In terface (MMI) is described in a sepa
rate manual. •
Page 19 of 404

tl~ Airbag system
--
/: Lane assist (system is ready)
Lane assist (system is not ready)
¢ Left turn signal
--D High beam
}D Fog lights
Rear fog lights
Tire pressure monitoring sys tem
Malfunction Indicator Lamp (MIU
Safety belt
Adaptive Air Suspension
<+:) Adaptive Air Suspension Right turn signal
--
CRUISE
--
USA models:
Cruise control activated
Canada models:
Cruise control activated
USA models:
Anti-lock brake system (ABS) defec
tive
Controls and equip ment
=> page 19
-
=> page 19
=> page 19
=> page 79
-=> page 19
=> page 79
=> page 19
=> page 20
=> page 20
=> page 20
=> page20
=> page 21
=> page 79
-
=> page 27
=> page 27
-
=> page 21
Instruments and warning/indicator lights
PARK BRAKE
(®)
----
Canada models:
Anti-lock brake system (ABS) defec
tive
USA models :
Electromechanical parking brake
Canada models: Electromechanical parking brake
-
BRAKE
USA models:
Brake malfunct ion
--((D) Canada models:
Brake malfunction
=> page 27
=> page 22
=> page 22
-
=> page 22
-
=> page22
V ehicl es wi th th e Adaptive Cruis e Control * have the follow ing addi
tional check lamps:
Open road
~ 1111 ~ Driving in traffic
~ 1111 ~ Request for driver to
assume control
& WARNING
=> page 145
=> page 145
=> page 145
• Failure to heed warning lights and other important vehicle
information may result in serious personal injury or vehicle
damage.
• Whenever stalled or stopped for repair, move the vehicle a safe
distance off the road, stop the engine, and turn on the emergency
flasher
=> page 73.
• The engine compartment of any motor vehicle is a potentially
hazardous area. Before you check anything in the engine compart-
ment, stop the engine and let it cool down. Always exercise
~
Page 24 of 404

Instruments and warning/indicator lights
M alfun cti on in the ele ctronic differential lo ck (EDL )
The ED L wor ks t oget her wi th the ABS. T he ABS wa rn ing light w ill
come on if there is a ma lfunction in the ED L
system=> page 269. See
you r au thor ized A ud i dea ler as soon as possible.
& WARNING
• If the ABS (USA models )/0 (Canada models) warning light
doe s not go out , or if it comes on while driving , the ABS system is
not working properly. The vehicle can then be stopped only with
the standard brake s (w ithout ABS ). You will not have the protec
tion ABS provides . Contact your Audi dealer as soon as po ssible .
• USA model s: If the BRAKE warning light , the~ warning light and
the ABS warning light come on together , the rear wheels could
lock up first under hard braking . Rear wheel lock -up can cause loss
of vehicle control and an accident . Have your vehicle repaired
immediately by your authorized Audi dealer or a qualified work
shop . Drive slowly and avoid sudden , hard brake applications .
• Canada models : If the brake warning light (CD), the f;. warning
light and the ABS warning light
080 come on together, the rear
wheels could lock up first under hard braking. Rear wheel lock -up
can cause loss of vehicle control and an accident . Have your
vehicle repaired immediately by your authorized Audi dealer or a qualified workshop . Drive slowly and avoid sudden, hard brake
appli cations .
•
Electromechanical parking brake
tffiE (USA models) /{®) (Canada models)
T he war nin g/in dic ator l ight mon it ors the ele ctro mech an
ical park ing brake .
With the parking brake applied and the ignition turned on, the
wa rning/ ind icator lig ht illu min a te s. Afte r the ig nition has been
turned off, the warning/indicator light continues to i llum inate for
abo ut 30 seconds. If the parking bra ke is a pplied with the ignition turned off, the warning/indicator light i
lluminates for about 30
seco nds.
T he warnin g/ind icator lig ht wi ll go out w hen the parking brake is
r elea sed .
I f t he war ning/indic ator l ig ht fl ashes con tinuously
after applying the
par king brake, bra king force is not sufficient to p revent the vehicle
fr om rol ling u nint en tional ly . This ca n happen if the br ak es b eco me
too hot . Please note the fol lowing :
• I f the slope of the g rou nd is too steep to pa rk t he ve hicle, the
addi tiona l dr ive message a ppears
Caution: Vehicle parked too
steep.
• I n the event of a parking brake ma lfunction , the yel low ·~ symbol
appea rs in the inst rument c luster display and the driver message
Parking brake malfunction ! is d isplayed . Have t he m alfu ncti on
r epaired as soon as possib le by a q ualified Audi dealership .•
Brake system BRAKE (USA models) /(©) (Canada
models)
T he warn ing/ind icator I i ght flash es if br ake fluid level is
low, if th ere is an A BS sys tem m alfunc tion or a p arki ng
br ake malf u n ct ion.
Th e li ght illu mi nates w hen t he ignit io n i s tur ned o n. It goes out afte r
the e ngine has been started . T his indicates that the bra ke warning
li ght is fu nct ioni ng prope rly.
If the brake warning light does not light up when the engine is
cranking , there may be a malfunction in the electrical system . In this
case , contact your Audi dealer.
If the brake system warning/indicator light flashes, there is a brake
syste m malfu nct ion . B y press ing th e
I CHECK ] butto n, you ca n brin g
up a driver message which exp lains the ma lfunction in more detail
::::> p~e~ ~
Page 25 of 404

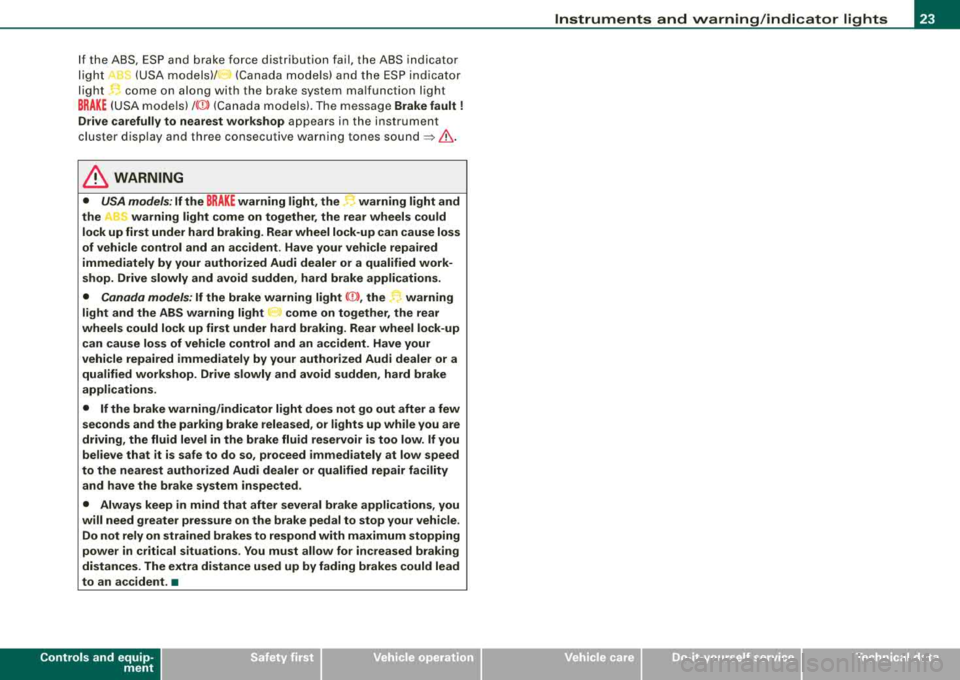

If the ABS, ESP and brake force distribution fail, the ABS indicator
l ig ht ABS (USA
mod els)/ 0 (Cana da mod els) and t he ESP i nd ica tor
light
f;. come on along with the brake system ma lfunction light
BRAKE (USA m ode ls)/ (@ (C an ada model s). The mes sage Brake fault !
Drive carefully to nearest workshop appears in the instrument
cluster d isp lay and three consec utive wa rning tones
sound =>& .
& WARNING
• USA models: If the BRAKE warning light , the $';. warning light and
the ABS warning light come on together , the rear wheels could
lock up first under hard braking . Rear wheel lock-up can cause loss
of vehicle control and an accident . Ha ve your vehicle repaired
immediately by your authorized Audi dealer or a qualified work
shop. Drive slowly and avoid sudden , hard brake applications.
• Canada model s: If the brake warning light
(CD) , the ~ warning
light and the ABS warning light
8 c ome on together , the rear
wheels could lock up first under hard braking. Rear wheel lock-up
can cau se los s of vehicle control and an accident. Have your
vehicle repaired immediately by your authorized Audi dealer or a qualified workshop. Drive slowly and avoid sudden , hard brake
applications.
• If the brake warning /indicator light does not go out after a few
seconds and the parking brake released , or lights up while you are
driving , the fluid level in the brake fluid reservoir is too low. If you
believe that it is safe to do so , pro ceed immediately at low speed
to the nearest authorized Audi dealer or qualified repair facility and have the brake system inspected .
• Always keep in mind that after several brake applications, you
will need greater pressure on the brake pedal to stop your vehicle.
Do not rely on strained brakes to respond with maximum stopping
power in critical situations . You must allow for increased braking
distances . The extra distance used up by fading brakes could lead
to an a ccident . •
Controls and equip ment
Instruments and warning /indicator lights
Page 33 of 404

button, you can bring up a driver message which explains
the malfunction in more detail.
Stop vehicle and check brake fluid level
- Pull off the road.
- Stop the vehicle.
- Turn off the engine.
- Check the brake fluid level ::::>
page 317.
-Contact your nearest authorized repair facility if neces-
sary.
Brake fault ! Drive carefully to nearest workshop
- Drive carefully to the nearest authorized repair facility
and have the malfunction corrected
=> &.
Parking brake ! Please contact workshop
- If the warning/indicator light flashes when the vehicle is
stationary or after the ignition is turned on, check to see
if the parking brake can be released. Drive to an autho
rized repair facility as soon as possible and have the
malfunction corrected. If the parking brake cannot be
released, contact your nearest authorized repair facility.
- If the warning/indicator light flashes while you are
driving, it is possible that the traction control or the
emergency brake has malfunctioned. It is possible that
the parking brake cannot be applied. It is also possible
that the parking brake cannot be released after it has
been applied. Drive to an authorized Audi dealer to have
the malfunction corrected.
Controls and equip
ment
Driver information display
If the ABS, ESP and the brake force distribution fail , the ABS
warning/indicator light and the ESP warning/indicator light come
on along with the brake system malfunction warning/indicator light
=>& .
& WARNING
• Always observe the warnings in => page 299, "Engine compart
ment", before opening the hood and checking the brake fluid.
• Driving with low brake fluid is a safety hazard. Stop the car and
get professional assistance .
• USA models: If the BRAKE warning light, the !';. warning light and
the ABS warning light come on together, the rear wheels could
lock up first under hard braking. Rear wheel lock-up can cause loss
of vehicle control and an accident. Have your vehicle repaired
immediately by your authorized Audi dealer or a qualified work
shop. Drive slowly and avoid sudden, hard brake applications.
• Canada models: If the brake warning light ((D), the 1$ warning
light and the ABS warning light
0 come on together, the rear
wheels could lock up first under hard braking. Rear wheel lock-up can cause loss of vehicle control and an accident . Have your
vehicle repaired immediately by your authorized Audi dealer or a qualified workshop . Drive slowly and avoid sudden, hard brake
applications. •
Engine cooling system malfunction -L
A malfunction in the engine cooling system must be
repaired as soon as possible.
When the -L symbol in the display blinks, then either the
engine coolant
temperature is too high, or the coolant level
is too low. An additional driver message can also be
displayed by pressing the
[CHECK] button:
Switch off engine and check coolant level
Page 36 of 404

Driver inf orma tio n displ ay
Yellow symbols
A yellow symbol means WARNING.
Fig . 18 Display: low
fu el l eve l warn in g
(pr iori ty 2)
Yellow symbols indicate a priority 2 malfunction - Warning!
When a yellow warning symbol appears,
one warning tone sounds.
A driver message appears as well to explain the malfunction in more detail . The driver warning goes out after about 5 seconds, but it can
be brought up again at any time by pressing the [ CHECK
I button.
Check the displayed function as soon as possible . If
more than one
priority 2 malfunction is detected, all symbols will appear one after
the other for about 2 seconds .
Yellow symbols mean:
Worn brake pads
Electromechanical
parking brake
Check engine oi l level
=> page 311
= page 34
=> page 136
=> page 35
Engine oil sensor malfunction => page 35
Low fue l level => page 35
-
Windshield washer fluid = page35
level low ~
Battery voltage => page35
-
II Battery in remote control key = page48
Advanced Key* = page 133
Key not in vehicle
USA mod els: = page26
Defective brake light
Canad a m od els: => page26
Defective brake light
Defective light bulb
=> page26
Adaptive Light* defective => page36
-
Dynamic headlight range => page36
ll contro l defective
Defective light -/rain sensor
= page36
--Tire pressure monitoring sys-= page42
tern
II Loss of air pressure
Tire pressure monitoring sys -
= poge45
tern
System not available
•
Worn brake pads
l"J Br ake pad s !
Page 136 of 404

___ O_ n_t_ h_ e_ ro_ a_d __________________________________________________ _

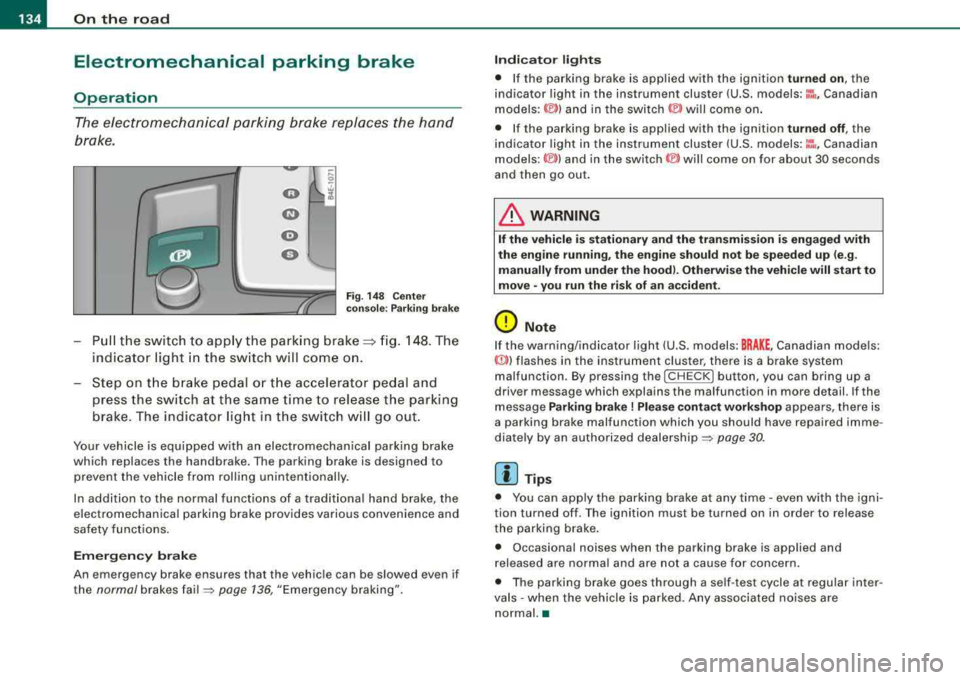

Electromechanical parking brake
Operation
The electromechani ca l parking brake replaces the hand
brake.
F ig. 148 C enter
co nso le: P arki ng b ra ke
Pu ll the switch to app ly the parking brake==> fig. 148. The
indicator light in the sw itch will come on.
Step on t he brake pedal o r th e acce lerator pedal and
press th e switch at the s am e time to rel eas e the parking
brake . The indicator light in t he switch w ill go out .
Your vehicle is equ ipped w ith an electromechanical parking brake
which replaces the handbrake . The parking brake is designed to
prevent the vehicle from rolling unintentionally .
In addition to the norma l functions of a trad itiona l hand brake, the
e lectromechanical parking brake provides various convenience and
safety functions.
Em erg ency brake
An emergency brake ensures that the vehicle can be slowed even if
the
normal brakes fa il=> page 136, "Emergency braking".
Indi cat or light s
• If the pa rking brake is app lied with the ignition turned on , the
indicator light in the instrument cluster (U.S. models:
::i , Canadian
models: ©) and in the switch © will come on .
• If the parking brake is applied with the ignition
tu rn ed off , the
indicator light in the instrument cluster (U .S .
models :~~ . Canadian
models :(®) ) and in the
switch (®) will come on for about 30 seconds
and then go out.
& WARNING
I f the vehicle i s stati onary and the transmis sion i s engaged with
the eng ine runnin g, the engine should n ot b e speeded up (e .g .
manu ally from under the ho od). Otherw ise th e vehi cle w ill start to
mo ve
-you r un the ris k of an ac cident .
0 Note
If the warning/indicator light (U .S . models: BRAKE , Canadian models:
«D>) flashes in the instrument cluster, there is a brake system
malfunction . By pressing the
I CH ECK] button , you can bring up a
driver message which explains the malfunction in more detail. If the
message
Parking brake! Plea se conta ct w ork shop appears, there is
a parking brake malfunction which you should have repaired imme
diate ly by an authorized dealership =>
page 30.
[ i] Tips
• You can app ly the parking brake at any time -even with the igni
tion turned off . T he ignition must be turned on in order to release
the parking brake.
• Occasional noises when the parking brake is applied and
released are norma l and are not a cause for concern .
• The parking brake goes through a se lf -test cycle at regular inter
va ls
-when the vehicle is parked. Any associated no ises are
normal. •
Page 137 of 404

On the road -----------------
Parking
To prevent a parked vehicle from rolling away, there are a
few things you should do.
When you park your vehicle, do the following
- Stop the vehicle using the brake pedal.
- Pull the switch to apply the electromechanical parking
brake.
- Move the selector lever into the
P position => &.
- Switch off the engine and remove the ignition key from
the ignition lock.
When you park your vehicle on hills, do the
following
- Stop the vehicle using the brake pedal.
- Pull the switch to apply the electromechanical parking
brake.
- If you are parking headed
downhill, turn the front wheels
toward the curb.
- If you are parking headed
uphill, turn the front wheels
awayfrom the curb.
- Move the selector lever into the
P position.
- Switch off the engine and remove the ignition key from
the ignition lock.
& WARNING
This is how you can reduce the risk of injury when leaving your
vehicle.
Controls and equip ment
&, WARNING (continued)
• Never park the vehicle where it can come in contact with dry
grass, spilled fuel or any other flammable materials.
• When parking on hills, always turn the wheels so that the front
wheels will first roll into the curb, if the vehicle should start to roll.
• Never allow anyone -especially small children -to remain
in the
vehicle when it is locked. Locked doors make it more difficult for
rescuers to access the passenger compartment in the event of an
emergency. Danger to life!
• Never leave children unsupervised in the vehicle. Children
could release the parking brake or move the gearshift lever out of
gear. The vehicle could start to roll away and cause an accident.
• No matter what the season is, the temperature in a parked
vehicle can reach dangerous levels.
0 Note
• Please exercise care when you park your vehicle in parking areas
with parking barriers or curbs . Parking barriers and curbs vary in
height and could damage your bumper and related components as
the front of your vehicle moves over a barrier or curb that is too high, as you park or as you back out of a parking spot. In order to be
sure that no such damage can occur, you may wish to stop short of
having the front tires of your car touch the parking barrier or curb.
• Please also exercise exceptional care when you drive up or down
steep ramps or drive over curbs or other obstacles, for which the
vehicle is not designed , because components of the vehicle close to
the ground, such as bumper covers, spoilers and suspension and
exhaust system components, may become damaged. •
Page 138 of 404

___ o_ n_ t_
h _e _ ro_ a_d __________________________________________________ _
Starting off with a trailer To prevent rolling back unintentionally on an incline, do
the following:
- Keep the switch pulled and depress the accelerator. The
parking brake stays applied and prevents the vehicle
from rolling backward.
- You can release the switch once you are sure that you are
developing enough forward momentum at the wheels as
you depress the accelerator.
Depending on the weight of the rig (vehicle and trailer) and the
severity of the incline, you may roll backwards as you start. You can
prevent rolling backwards by holding the parking brake switch
pulled out and accelerating -just as you would when starting on a
hill with a conventional hand brake. •
Emergency braking
In the event that the conventional brake system fails or
locks.
- Pull the switch and continue to pull it to slow your vehicle
with the parking brake in an emergency.
- As soon as you release the switch or accelerate, the
braking process stops.
If you pull the switch and hold it above a speed of about 5 mph (8
km/h), the emergency braking function is initiated . The vehicle is
braked at all four wheels by activating the hydraulic brake system.
Brake performance is similar to making an emergency
stop~ &.
So that emergency braking is not activated by mistake, an audible
warning tone (buzzer) sounds when the switch is pulled . As soon as the switch is released
, or the accelerator pedal is depressed, emer
gency braking stops.
& WARNING
Emergency braking should only be used in an emergency, when
the normal foot brake has failed or the brake pedal is obstructed .
Using the parking brake to perform emergency braking will slow
your vehicle as if you had made a full brake application. The laws
of physics cannot be suspended even with ESP and its associated
components (ABS, ASR, EDS). In corners and when road or
weather conditions are bad, a full brake application can cause the
vehicle to skid or the rear end to break away -risking an
accident. •
Driver messages in the instrument cluster
Caution: Vehicle parked too steep
This message appears when the parking brake is applied on an
incline that exceeds about 30%.
In this case the braking power of the parking brake may
not be
adequate
to prevent the vehicle from rolling unintentionally.
Please release parking brake
This message appears, when a gear is selected and the accel erator
pedal is depressed -release the parking brake.
Press brake pedal to release parking brake
This driver message appears when the switch to release the parking
brake was pressed. The parking brake can only be released if you
press the brake or accelerator pedal and press the switch at the
same time .
~ Parking brake malfunction !
This driver message appears together with the yellow 'Jlf symbol
when there is a parking brake malfunction.
~
