check engine light AUDI S8 2010 Owner's Guide

___ C_ h_e _c_ k_ i_ n ~ g~ a_ n _ d_ f_il _l _in _ g ____________________________________________ _

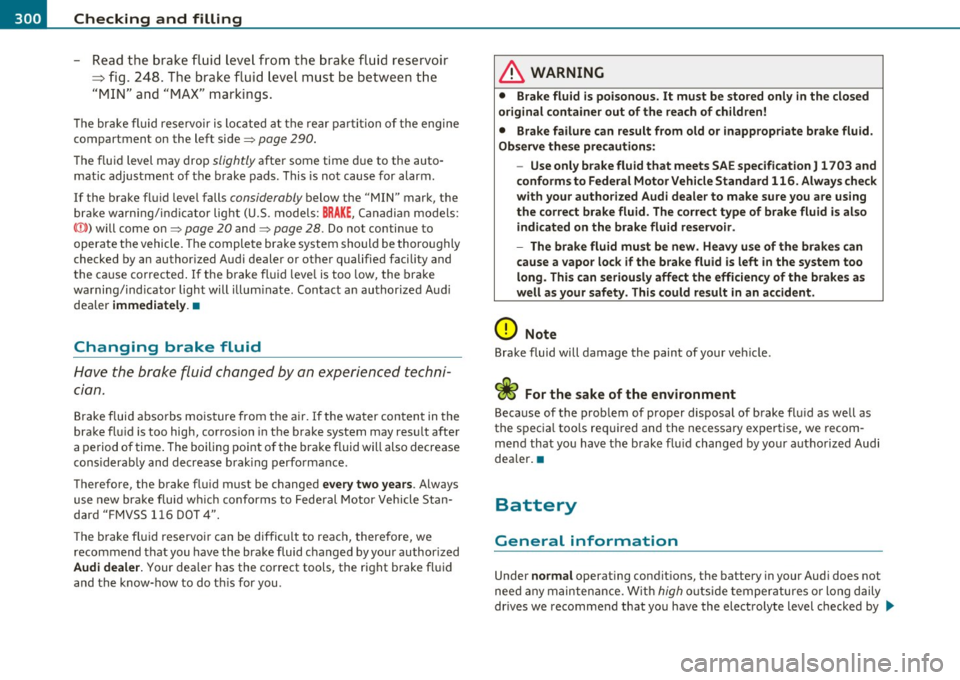

- Read the brake fluid level from the brake fluid reservoir
=> fig. 248 . T he brake fluid level mus t be between the
" M IN" and "MAX" markings.
The br ake fl uid re se rvoir is loc ated at the rear pa rt iti on of the engine
compartment on the left side~ page 290.
T he f lu id level may drop slightly after some time due to the auto­
matic adjus tment of t he b rake pads. This is not caus e for alarm.
If the brake flu id leve l falls considerably below the "MIN" mark, t he
br ak e wa rning/ind ic ator lig ht ( U.S . model s:
BRAKE , Can adi an mod els:
«D> ) will come on~ page 20 and~ page 28. Do not continue to
operate the vehicle . The comple te brake system sho uld be thoro ughly
checked by an author ized A udi dealer or ot her qualified facility and
t he ca use correcte d. If the b rake fl uid leve l is too low, the bra ke
wa rning/in dicator light will illu mi nate . Con tact an au thorized Aud i
dealer
immediately .•
Changing brake fluid
H ave the brake flui d changed by an ex perienc ed techni­
cian.
Brake flui d abso rbs mois ture from t he a ir . If t he wa ter con ten t in the
brake fl uid is too hig h, corros io n in the b rake system may res ult afte r
a period of time . The boiling po int o f the bra ke fl uid will also decrease
cons iderab ly and decrease brak ing perfo rmance.
The refore, the brake fl uid m ust be changed
every two years . Always
use new bra ke fluid w hich conforms to Fede ral Motor Veh icle St an­
dard "FMVSS 116 DOT 4" .
Th e b rake fl uid reservoi r ca n be diffi cult to rea ch, there fore, we
recommend that you have the bra ke fluid c hanged by your author ized
Audi dealer. Your dea ler has the correct tools, the right b rake fl uid
and the know-how to do t his for you .
& WARNING
• Brake fluid is poisonous. It must be stored only in the closed
original container out of the reach of children!
• Brake failure can result from old or inappropriate brake flu id.
Observe these pre cautions:
- Use only brake fluid that meets SAE specification
J 1703 and
conforms to Federal Motor Vehicle Standard 116. Always che ck
with your authorized Audi dealer to make sure you are us ing
the correct brake fluid. The correct type of brake fluid i s also
indicated on the brake fluid reservoir .
- The brake fluid must be new. Heavy use of the brakes can
cause a vapor lock if the brake fluid is left in the system too
long . Thi s can seriously affect the efficiency of the brakes as
well as your safety . This could result in an accident.
0 Note
Brake fluid will damage the paint of your ve hicle .
~ For the sake of the environment
Because of the prob lem of proper disposal of brake fl uid as we ll as
the spec ia l too ls req uired and the necessary expe rtise, we recom ­
m en d that you have t he brake fl uid changed by your autho rized Audi
dea ler .•
Battery
General information
Under normal operat ing condit ions, the battery in your Aud i does not
nee d any m ain ten ance. Wi th high outs ide temper atures o r long d aily
dr ives we recommend that yo u have the elect rolyte level checked by .,_

., __ C_ h_ e_c _k _i _ n _g ~ a_n _d_ f_il _l_in _ g _________________________________________ _

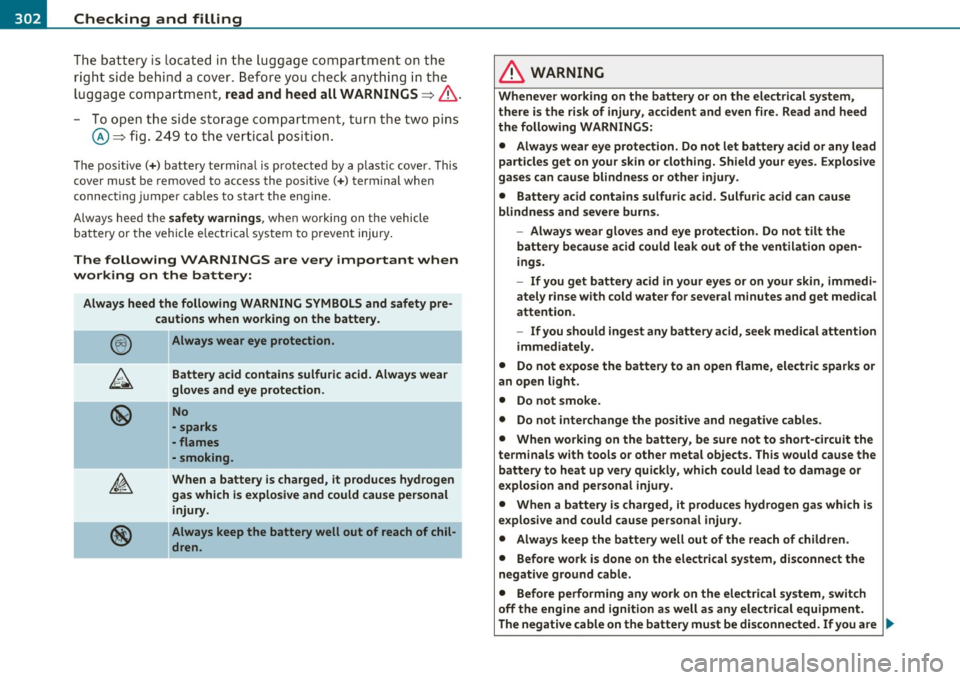

The battery is located in the luggage compa rtment on the
right side beh ind a cover. Before you check anything in the
luggage compa rtmen t, read and heed all WARNINGS=>& .
- To open the side sto rag e com part me nt, turn the tw o pins
@ =>fig . 24 9 to th e vert ical position .
The positive( +) battery termina l is p rotected by a plastic cov er. This
cover must be removed to access the positive( +) terminal when
c onnect ing jumpe r cab les to sta rt the engine.
Always heed the safety warnings, when working on the vehicle
bat tery or the vehicle e lect ric al system to p revent injury .
The following WARNINGS are very important when
working on the battery:
Always heed the following WARNING SYMBOLS and safety pre­ cautions when working on the battery.
-
®
Always wear eye protection.
Battery acid contain s sulfuric acid. Always wear
gloves and eye protection .
No
- sparks
- flames
- smoking .
When a battery is charged, it p roduces hydrogen
gas which is explosive and could cause personal
injury .
Always keep the battery well out of reach of chil­
dren .
& WARNING
Whenever working on the battery or on the electrical system,
there i s the ri sk of injury, a ccident and even fire. Read and heed
the following WARNINGS:
• Alway s wear eye protection . Do not let batt ery acid or any lead
part icles get on your skin or clothing. Shie ld your eyes. Explosive
ga se s can cause blindnes s or other in jury.
• Battery acid contains sulfuric acid. Sulfuric acid can cause
blindne ss and severe burns .
- Always wear gloves and eye protection . Do not tilt the
battery becau se acid could leak out of the ventilation open­
i ngs.
- If you get battery acid in your eyes or on your skin, immedi­
a tely rinse with cold water for several minutes and get medical
attention .
- If you should ingest any battery acid , see k medical attention
immediately.
• Do not expose the battery to an open flame, elect ric sparks or
an open light .
• Do not smoke.
• Do not interchange the positive and negative cables.
• When working on the battery, be sure not to short-circuit the
term inals with tools or other metal objects. This would cause the
battery to heat up very quickly, which could lead to damage or
e x plos ion and personal injury.
• When a battery is charged, it produce s hydrogen ga s wh ich is
e xplos ive and could cause pe rsonal inju ry.
• Alway s keep the battery well out of the reach of children .
• Before work is done on the ele ctrical system , disconnect the
negative ground cable.
• Before performing any work on the electrical sy stem , switch
off the engine and ignition as well as any electrical equipment.
The negative cable on the battery mu st be disconnected. If you are
~

_____________________________________________ C_h _ e_ c_ k_in --= g'-- a_n _d_ f_i _ll _i_n -=g ::;__ ____..
of properly in compliance with all environmental regulations .
Disposing of vehicle batter ies improperly is
very dangerous to the
environment .•
Windshield/headlight washer
container
F ig . 251 E ngine
compa rtme nt: W ind·
sh iel d and h eadlight
w asher flu id con tainer
The washer fluid container is marked wi th the symbol ~ on
its cap.
- Before you check anything in the engine compartment,
always read and heed all WARNINGS~ & in "Working
in the engine compartment" on page
289.
- Lift the filler cap tongue to add washer fluid. You can fill
the container to the top.
- Press the cap back onto the filler neck a fter filling the
container.
You can find the reservoir capacity i n the table in~ page 360 .
To p revent lime residue from bui ld in g up on the spray jets, use
distilled wate r when refilling . Always add a glass cleaner solution
(with frost p rotection in the winter) .
Vehicle OP-eration
0 Note
Do not mix engine coo lant antifreeze o r any other additives to fill up
the w indshield wash er reservoir .•
Vehicle care Do-it-yourselt service iTechnical data

_____________________________________________ E_ m___;, e_r-=g ~ e_ n_c,_:!y:.__: s_i:..:t ..:..u :..:a;;,. t.:.; i...: o :..: n...:..:. s _ __,J_
& WARN ING (conti nued)
• Before you check anything in the engine compartment , always
read and heed all WARNINGS~
page 281, "Engine compart­
ment ".
0 Note
• App lying a higher vo ltage booster battery will cause expensive
damage to sens itive e lectron ic components, such as contro l units,
relays, radio, etc.
• There must be no electrical contact between the vehicles as other­
wise current could already start to flow as soon as the positive(+)
terminals are connected.
[I] Tips
• The discharged battery must be properly connected to the
vehicle's electrical system . When jump starting or charging the
battery, never connect the negative ground cable to the battery nega­
tive post because the battery manager system must be able to detect
the battery's state of charge . Always connect the negative ground
cable to the negative ground post of the battery manager control
unit. •
Vehicle OP-eration
Use of jumper cables
Make sure to connect the jumper cable clamps in exactly
the order described below!
Fig. 282 Jump
starting with the
battery of another
vehicle: A -discharged
vehicle battery, B -
booster battery
The procedure described below for connecting jumper cables
is intended to provide a jump start for your vehicle.
Vehicle with discharged battery:
- Turn off lights and accessories, move lever of automatic
transmission to
N (Neutral) or P (Park) and set parking
brake.
Connect POSITIVE(+) to POSITIVE(+) (red)
1. Connect one end to the positive terminal~ fig. 282 © of
your battery @.
2 . Connect the other end to the positive terminal @ of the
booster battery®·
Connect NEGATIVE(-) to NEGATIVE(-)
(black)
3. Connect one end to the negative terminal® of the
booster battery@.
Vehicle care Do-it-yourself service iTechnical data
