AUDI S8 2011 Owners Manual

-An improperly installed child restraint
can interfere with the airbag as it de­
ploys and seriously injure or even kill the
child -even with an Advanced Airbag
System.
- Always carefully follow the manufactur­
er's instructions provided with the child
seat or carrier .
- Never place additional items on the seat
that can increase the total weight regis­
tered by the weight-sensing mat and can cause injury in a crash.
Front airbags
Description of front airbags
The airbag system can provide supplemental
protection to properly restrained front seat occupants.
Fig. 148 Location of driver air bag: in steer ing wheel
Fig. 149 Location of front passenger's airbag: in the in ­
st rum ent panel
Your vehicle is equipped with an "Advanced
Airbag System" in compliance with United
States Federal Motor Vehicle Safety Standard
(FMVSS) 208 as applicable at the time your
ve hicl e was manufactured. The system senses
the position of the front seats and controls
front airbag inflation with a valve, depending
Airbag system 149
on the distance between the respective seat
and the steering wheel or instrument panel.
The safety belts for the seats have "preten­
s ioner s" that help to take s lack out of the belt
system. The pretensioners are also activated
by the electronic control unit for the airbag
system.
The front safety belts also have load limiters
to help reduce the forces applied to the body
in a crash.
The airbag for the driver is in the steering
wheel hub¢
fig. 148 and the airbag for the
front passenger is in the instrument panel
¢
fig . 149. The general location of the airbags
is marked "AIRBAG ".
There is a lot you need to know about the air­
bags in your vehicle. We urge you to read the
detailed information about airbags, safety
belts and child safety in this and the other
chapters that make up the owner's literature.
Please be sure to heed the WARNINGS -they
are extremely important for your safety and
the safety of your passengers, especially in­
fants and small children.
Never rely on airbags alone for protection.
- Even when they deploy, airbags provide
only supplementa l protect ion .
- Airbag work most effective ly when used
with properly worn safety belts.
- Therefore, always wear your safety belts
and make sure that eve rybody in your ve ­
hicle is properly restrained .
&_ WARNING
A person on the front passenger seat, es­
pec ially infants and sma ll children, will re­
ceive serious injuries and can even be kil­
led by being too close to the airbag when
it inflates .
- Although the Advanced Airbag System in
your vehicle is designed to turn off the
front passenger airbag if an infant or a small child is on the front passenger
seat, nobody can absolutely guarantee
11-

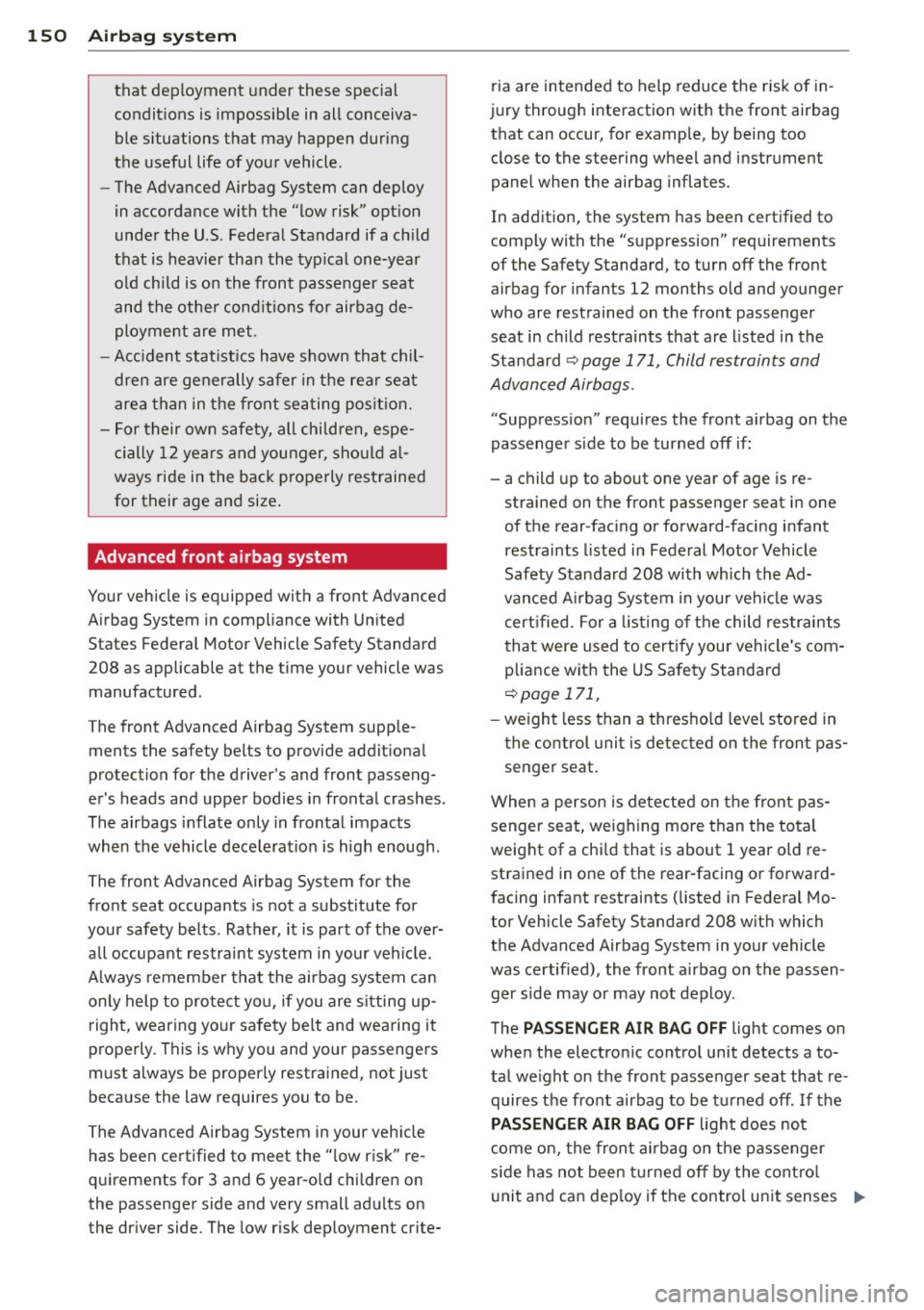

150 Airbag sys te m
that deployment under these special
condit ions is impossible in all conceiva­
ble situations that may happen during
the useful life of your vehicle .
- The Advanced Airbag System can deploy
in accordance with the "low risk" opt ion
under the U.S . Federal Standard if a child
that is heavier than the typical one-year old child is on the front passenger seat
and the othe r cond itions for airbag de­
ployme nt are met .
- Ac cident statist ics have shown that chi l­
dren are generally safer in the rea r seat
are a than in the front sea ting posi tion.
- For their own safety, all chi ld ren, espe­
cially 1 2 ye ars and younger, sho uld a l­
ways ride in the back properly rest rained
for their age and size .
Advanced front airbag system
Your vehicle is equipped with a front Advanced
Airbag System in compliance with Un ited
States Federal Motor Vehicle Safety Standard
208 as applicable at the time your vehicle was manufactured .
The front Advanced Airbag System supple­ ments the safety belts to provide addit iona l
protection for the driver's and front passeng­
er's heads and upper bodies in frontal crashes .
The airbags inflate only in frontal impacts
when the vehicle dece le rat ion is high enough .
The front Advanced Airbag System for the
front seat occupants is not a substitute for
your safety bel ts . Rather , it is part of the over­
a ll occupant restraint system i n your veh icle .
A lways remember tha t the airbag system ca n
on ly help to pro te ct yo u, if you are s itting up­
right , wearing yo ur safe ty belt and wearing it
properly. This is w hy you and yo ur passenge rs
m ust always be proper ly restrained, not just
because the law requires you to be.
The Advanced Airbag System i n your veh icle
has been certified to meet the " low ris k" re ­
qu irements for 3 and 6 year-o ld children on
the passenger side and very small adu lts on
the dr iver side. The low risk deployment crite- r
ia are intended to help reduce the r is k of i n­
jury through interaction with the front airbag that can occur, for example, by being too
close to the steering wheel and instrument
panel when the airbag inflates.
In addition, the system has been certified to
comply with the "s uppression" requirements
of the Safety Standard, to turn off the front
airbag for infants 12 months o ld and younger
who are restrained on t he front passenge r
seat in child restraints that are listed in the
Standa rd ¢
page 171, Child restraints and
Advanced Airbags .
"Suppression" requires the front a irbag on the
passenger s ide to be turned off if :
- a child up to about one year of age is re­ strained on the front passenger seat in one
of the rear -fac ing or fo rward-facing infant
restrai nts listed i n Federal Motor Vehicle
Safety Standard 208 with which the Ad­
vanced Airbag System in your vehi cle was
cert ified . F or a listing of the ch ild res traints
t ha t were used to certify your vehi cle's com ­
pliance w it h t he US Sa fety Standard
¢ page 171,
-weight less than a thresho ld level stored in
the control unit is detected on the front pas­
senger seat .
When a person is detected on the front p as­
senger seat, weighing more than the tota l
weight of a chi ld that is about 1 year old re­
strained in one of the rear -facing or forward ­
facing infant restraints ( listed in Federal Mo­
tor Vehicle Safety Standard 208 w it h which
the Advanced Airbag System in your vehicle
was certified), the front airbag on the passen­
ger side may or may not deploy .
The
PASSENGER AIR BAG OFF light comes on
whe n the electronic contro l unit detects a to­
ta l we ight on the fron t passe nger seat that re­
quires the front airbag to be t urned off . If the
PASSENGER AIR BAG OFF light does not
come on, the fron t air bag on the passenger
s ide has not been turned off by the cont ro l
u nit and can dep loy if the control unit senses ..,_

an impact that meets the conditions stored in its memory.
If the total weight on the front passenger
seat is more than that of a typical 1 year -old,
but less than the weight o f a small adu lt, the
fro nt airbag on the passenger side may deploy
(the
PASSENGER AIR BAG OFF light does not
come on).
For e xample, the ai rb ag may deplo y if:
- a small child that is heavier than a typical 1
year-o ld child is on the front passenger seat
(regardless of whe ther the child is in one of
the chi ld seats listed
page 171),
-a ch ild who has outgrown child rest raints is
on the front passenger seat.
I f the front passenger airbag is turned off, the
PA SSENGER AIR BAG OFF light in the center
of the inst rument panel w ill come on and stay
on.
The front a irbag on the passenger side may
not deploy (the PASSENGER AIR BAG OFF
light does not illuminate and stay lit) if:
- a small adult or teenager is on the front pas­
senger seat
- a passenger who is not sitt ing upr ight w ith
the ir back against a non-reclined backrest
with their feet on the veh icle floo r in front
of the sea t is on the front passenge r seat.
If the front passenger airbag deploys, the
Federal Standa rd requires the a irbag to meet
the " low risk" deployment criteria to help re­
duce the risk of inj ury through in terac tion
with the airbag . "Low risk" deployment occurs
in those crashes that take place at lower de ­
celerations as defined in the electronic control unit
~ page 156.
Always remember : Even though you r vehicle
is equipped with Advanced Airbags, the safes t
p lace for children is properly restrained on the
back seat . Please be sure to read the impor­
tant information in the sect ions that follow
and be sure to heed all of the WARNINGS.
A irbag system 15 1
A WARNING
To reduce the risk of injury when an a irbag
inflates, always wear safety be lts p roperly.
- If you are unrestra ined, leaning forward,
sitt ing s ideways or out of pos ition in any
way, your risk of injury is much higher.
- You will a lso receive serious injuries and
could even be killed if you are up aga inst
the airbag or too close to it when it in­
flates -even w ith an Advanced A irbag
r::> page 145.
A WARNING
A child in a rearward-fa cing ch ild seat in­
stalled on the front passenger seat will be
seriously inj ured and can be killed i f the
front airbag inflates -even w ith an Ad­
vanced Airbag System.
- Altho ugh the Advanced Airbag System in
your vehicle is designed to turn off the
front airbag when a rearward-facing
child restraint has been installed on the
front passenger seat, nobody can abso­
lutely guarantee that dep loyment is im­
possible in all conceivable s ituations that
may happen dur ing the usefu l life of your
veh icle.
- The inflating airbag will h it the ch ild seat
or infant car rier wit h great for ce and will
smash the child seat and child against
the b ackres t, center armrest, doo r, or
roof.
- Always install rearward-facing chi ld re­
s traints on the rear seat.
- If you mus t install a rearwa rd fac ing
child sea t on the front p assenger seat
because o f excep tional circumstances
an d the
PASSENGER AIR BAG OFF light
does not come on and stay on, immed i­
ately insta ll the rear-facing child seat in a
rea r seat ing pos ition and have the airbag
system inspected by your Audi dealer.
A WARNING
If, in except iona l circumstances, you must
install a forward-facing child restraint on
the front passenge r's seat: •
•
-

152 Airbag sys te m
- Always make su re the forward-facing
seat has been des igned and certified by
its manufacturer for use on a front seat
with a passenger front a nd side airbag .
- Never put the forward- facing child re­
straint up against or very near the instru­ ment panel.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the a irbag as poss ible, before insta lli ng
the fo rward-facing chi ld restraint. The
b ackres t must be adjusted to an upr igh t
posit ion.
- Make su re that the
PASSENGER AIR BAG
OFF
light co m es on and s tays on all the
t ime whenever the ignition is switched
on.
Advanced Airbag System components
The front passenger seat in your vehicle has a lot of very important parts of the Advanced
Airbag System in it. These parts include the
weight-sens ing mat, sensors, wiring, brack­
ets , and more . The function of the system in
the front passenger seat is checked by the
e lectronic control u nit when the ignit ion is on .
The control unit mo nitors the Advanced Air­
bag Sys tem and turns the airbag indicator
light on when a ma lfunction in the system
components is detected . The function of the
ai rbag ind icator light is described in greater
detai l below. Because the front passenger
seat contains important parts of the Ad­
vanced A irbag System, you must take care to
prevent it from be ing damaged . Damage to
the seat may prevent the Advanced A irbag for
the front passenger seat from doing its job in
a cra sh .
The front Advanced Airbag System
consists of the following:
- Crash senso rs in the front of the veh icle that
measu re ve hicle ac celera tion/de ce le ra ti on
to provide information to the Advanced Air­ bag System abo ut the severity of the crash . -
An elect ronic contro l unit, with integrated
crash sensors for front and side impacts .
The control un it "decides" whether to fi re
the front a irbags based on the informat ion
received from the crash sensors. The contro l
unit also "decides" whether the safety belt prete nsioners shou ld be act ivated .
- An Advanced A irbag w ith gas generator and
contro l valve for the driver ins ide the steer ­
ing wheel hub .
- An Advanced A irbag w ith gas generator and
contro l valve inside the instrument panel for
th e front passenger .
- A we ight-sensing mat under the upho lstery
padding of the fro nt passenge r seat cushion
that measures the total weight o n the seat.
The info rma tion reg iste red is sent continu­
ously to the elec troni c con trol un it to regu­
la te deployment o f the front Advanced Air ­
bag on the passenger side .
- An airbag monitor ing sys tem and indic ator
light in t he instr ument cluster ¢
page 15 6.
- A sensor in each front se at regis ters the dis ­
t ance between the respec tive seat and the
steering whee l o r instrument panel. The in­
formation registered is sent continuo usly to
the electron ic contro l unit to regulate de­
ployment of the front Adv a need A irbags .
- The
PASSENGER AIR BAG OFF light comes
on and stays on in the center of the instr u­
ment panel¢
page 156, fig. 151 and tells
you whe n the front Advanced Airbag on the
passenger side has been turned off .
- A sensor below the safety be lt latch for the
front seat passe nger to measure the tension
on the safety be lt . The tension o n the safety
be lt and the we ight registered by t he
weigh t-sens ing ma t he lp the cont rol unit
" de cide " whe ther the fro nt airbag fo r the
front passenge r seat should be turned off or
not ~
page 147, Child restraints on the
front seat -some important things to
know.
- A sensor in the safety belt latch fo r the d riv­
er and for the front seat passenger that
senses whether that safety belt is latched or not and transmits this information to the
electronic control un it .

& WARNING
Damage to the front passenger seat can
prevent the front airbag from working
properly.
- Improper repair or disassembly of the
front passenger and driver seat will pre­
vent the Advanced Airbag System from
functioning properly.
- Repairs to the front passenger seat must
be performed by qualified and properly
trained workshop personnel.
- Never remove the front passenger or
driver seat from the vehicle.
- Never remove the upholstery from the
front passenger seat.
- Never disassemble or remove parts from
the seat or disconnect wires from it.
- Never carry sharp objects in your pockets
or place them on the seat. If the weight­
sensing mat in the passenger seat is
punctured it cannot work properly.
- Never carry things on your lap or carry
objects on the passenger seat. Such
items can increase the weight registered
by the weight-sensing mat and send the
wrong information to the airbag control
unit.
- Never store items under the front pas­
senger seat. Parts of the Advanced Air­
bag System under the passenger seat
could be damaged, preventing them and
the airbag system from working proper­
ly.
- Never place seat covers or replacement
upholstery that have not been specifical­
ly approved by Audi on the front seats.
- Seat covers can prevent the Advanced
Airbag System from recognizing child re­ straints or occupants on the front pas­
senger seat and prevent the side airbag
in the seat backrest from deploying prop­
erly.
- Never use cushions, pillows, blankets or
similar items on the front passenger
seat. The additional padding will prevent
the weight-sensing mat in the seat from
accurately registering the child restraint
-
Airbag system 153
or person on the seat and prevent the
Advanced Airbag System from function­
ing properly.
- If you must use a child restraint on the
front passenger seat and the child re­
straint manufacturer's instructions re­
quire the use of a towel, foam cushion or
something else to properly position the
child restraint, make certain that the
PASSENGER AIR BAG OFF light comes
on and stays on whenever the child re­
straint is installed on the front passen­
ger seat.
- If the PASSENGER AIR BAG OFF light
does not come on and stay on, immedi­
ately install child restraint in a rear seat­
ing position and have the airbag system
inspected by your Audi dealer.
How the Advanced Airbag System
components work together
The front Advanced Airbag System and the
side airbags supplement the protection of­
fered by the front three-point safety belts
with pretensioners and load limiters and the
adjustable head restraints to help reduce the
risk of injury in a wide range of accident and
crash situations. Be sure to read the impor­
tant information about safety and heed the
WARNINGS in this chapter.
Deployment of the Adv a need Airbag System
and the activation of the safety belt preten­
sioners depend on the deceleration measured by the crash sensors and registered by the
electronic control unit. The amount of infla­
tion of the front airbags can also be adapted
to the front seat position, depending on the
distance between the respective front seat
and the steering wheel or instrument panel as registered by sensors in the seats. Crash se­
verity depends on speed and deceleration as
well as the mass and stiffness of the vehicle
or object involved in the crash.
On the passenger side, regardless of safety
belt use, the airbag will be turned off if the
weight on the passenger seat is less than the
Iii>'
•
•

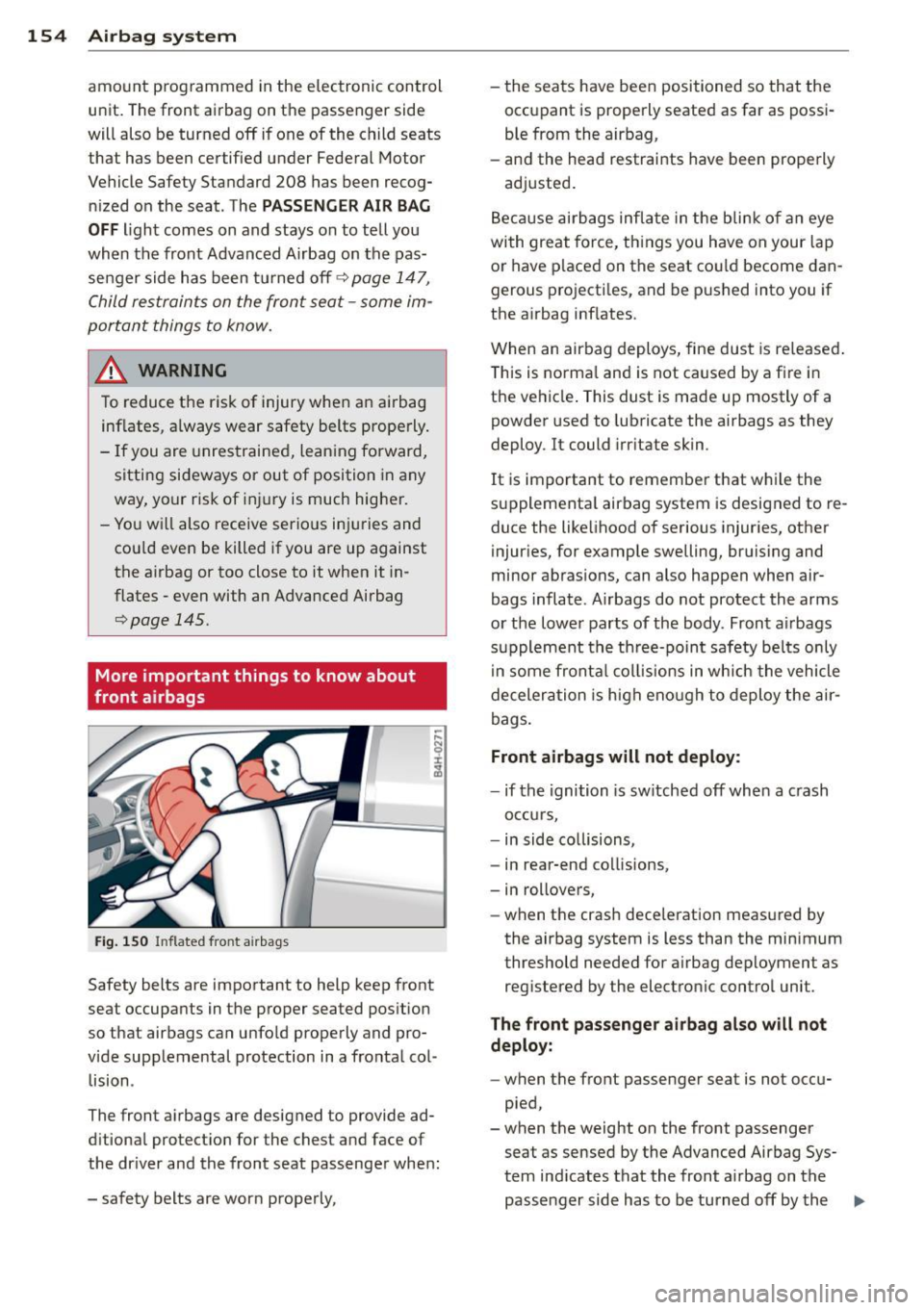

154 Airbag sy stem
amoun t pr og rammed in the e lec tronic control
un it . The front airbag on the passenger side
will also be turned off if one of the child seats
that has been certifie d under Fede ral Motor
V ehicle Safety Standard 208 has been recog­
n ized on the seat . The
PASS ENG ER AIR BAG
OFF light comes on and stays on to tell you
when the front Advanced Airbag on the pas­
senger side has been turned off¢
page 147,
Child restraints on the front seat -some im­
portant things to know.
8_ WARNING
To reduce the ris k of injury when an airbag
inf lates, a lways wear safety belts prope rly .
- If you are unrestrained, lean ing forward,
sitting sideways or out of position in any
way, your risk of injury is much higher.
- Yo u wi ll also receive serio us inju ries and
cou ld even be killed if you are up against
the a irbag or too close to it when it in­
flates - even with an Advanced Airbag
¢page 145.
More important things to know about
front airbags
Fi g. 1 50 Inflated front a irbags
Safety belts are important to help keep front
seat occupants in the proper seated pos ition
so that airbags can unfo ld prope rly and pro­
vide supplemental protection in a fronta l co l­
lision .
The front airbags are designed to provide ad­ d itiona l protect ion for the chest and face of
the dr iver and the front seat passenger when :
- sa fety belts are worn properly, -
the seats have been positioned so that the
occupant is properly seated as far as possi­
b le from the airbag,
- and the head restraints have been properly
ad justed .
B ec au se airb ags infla te in the blin k of an eye
with great force, th ing s you have on your lap
or have p laced on the seat co uld become dan ­
gerous pro jecti les, and be p ushed into you if
the a irbag inf lates .
When an airbag deploys, fine dus t is re leased .
This is no rma l and is not caused by a fire i n
the ve hicle . This dust is made up mostly of a
powder used to lubricate the airbags as they
deploy. It could irr itate skin.
It is important to remembe r that wh ile the
s u pplementa l airbag system is designed to re­
duce the like lihood of serious injur ies, other
injur ies, for example swelling, bruising and
minor ab rasions, can also happen when air­
bags inflate . A irbags do not protect the arms
o r the lowe r parts of the body . Front a irbags
supplement the th ree-point safety be lts only
i n some fronta l co llisions in wh ich the vehicle
deceler ation is h igh eno ugh to deploy the air­
bags .
Front airbags will not deploy:
-if the ignition is sw itched off when a c rash
o ccu rs,
- in side co llisions,
- in rear-end co llisions,
- in rollovers,
- when the crash deceleration measured by
the airbag system is less than the min imum
threshold needed for a irbag deployment as
registered by the electronic contro l unit .
The front pa ssenger airbag also will not
deploy:
- when the front passenger seat is not occ u­
pied,
- when the weight on the front passenger
seat as sensed by the Advanced Airbag Sys­
tem ind icates that the front a irbag on the
passe nger side has to be turned off by the ..,.

electronic control unit (the PA SS ENGE R AIR
BAG OFF
light comes on and stays on).
A WARNING
Sitting in the wrong position can increase
the risk of serious injury in crashes.
- To reduce the risk of injury when the air­
bags inflate, the driver and passengers
must always sit in an upright posit ion,
must not lean against or place any part
of the ir body too close to the area where
the a irbags are located .
- Occupants who are unbelted, out of posi ­
t ion or too close to the airbag can be se­
riously injured by an airbag as it unfolds
with great force in the blin k of an eye
¢page 147.
A WARNING
A child in a rearward-facing child seat in­
stalled on the front passenger seat will be
seriously injured and can be killed if the
front airbag inflates -even with an Ad­
vanced Airbag System.
-The inflating airbag will hit the child seat
or infant carrier w ith great force and wi ll
smash the ch ild seat and child against
the backrest, center armrest, door or roof.
- Always install rear-facing child seats on
the rear seat.
- If you must install a rearward facing
child seat on the front passenger seat
because of exceptiona l circumstances
and the
PASSENGER AIR BAG OFF light
does not come on and stay on, immedi­
ately install the rea r-facing chi ld seat in a
rear seating position and have the airbag
system inspected by your Aud i dealer.
A WARNING
Objects be tween you and the a irbag will
increase the risk of inj ury in a crash by in ­
terfering with the way the airbag unfolds
or by being pushed into you as the a irbag
inflates.
-
A irbag system 15 5
-Never hold things in you r hands o r on
your lap when the veh icle is in use.
- Never transport items on or in the area
of the front passenger seat. Objects
could move into the area of the front air­
bags during braking or other sudden ma­
neuvers and become dangerous projec­
tiles that can cause ser ious personal in­
jury if the a irbags inflate.
- Never place or attach accessories o r oth ­
er objects (such as cup holders, te le­
phone b rac kets, large, heavy or bulky ob ­
jects) on the doors, ove r o r near the area
marked "AIRBAG" on the steering wheel,
instrument panel, seat backrests or be ­
tween those areas and yo urself. These
objects could cause in ju ry in a crash, es­
pecially when the airbags inflate.
- Never recline the front passenger's seat
to transport objects. Items can a lso
move into the area of the s ide airbag or
the fron t airbag during braking or in a
sudden maneuver. Objects near the air­ bags can become projectiles and cause
in ju ry, partic ula rly when the seat is re­
clined.
A WARNING
T he fine dus t created when airbags deploy
can cause breathing prob lems fo r people
with a history of asthma or other breat h­
ing conditions.
- T o reduce the ri sk of breath ing problems,
those with asthma or other respiratory
conditions shou ld get fresh air right
away by getting o ut o f the veh icle or
open ing windows or doors .
- If you are in a collision in which airbags
deploy, wash your hands and face with mild soap and water before eating.
- Be careful not to get the dust into your
eyes, or into any c uts or scratches .
-If the resi due should get into your eyes,
f lush them with water.
•
•

156 Airbag system
Monitoring the
Advanced Airbag
System
I (USA models)/!f (Canada models )
Airbag monitoring indicator light
Two separate indicators monitor the function
of the Advanced Airbag System: the airbag
monitoring indicator light and the
PASSEN­
GER AIR BAG OFF
light.
The Advanced Airbag System (includ ing the
e lectronic control u nit, sensor circuits and sys ­
tem w iring) is mon itor ed cont inuo usly to
make sure that it is functioni ng p roperly
wheneve r the igni tion is on. Each time yo u
sw itch on t he ign it io n, the air bag moni to ring
indicator light
mJ ( U SA mode ls)/ m (C anada
models) will come on for a few seconds (se lf
d iagnost ics).
The system must be inspected when the
indicato r light
fl (USA models)/EJ
(Canada models ):
- does not come on when the ignit ion is
switched on,
- does not go out a few seconds afte r yo u
have switched on the ignition, or
- comes on while driving.
If an airbag sys tem malf unct ion is de te cte d,
the ind icator light will firs t start flash ing to
catch the driver's attention and then stay on
continuously to se rve as a constant reminder
to have the system inspected immediately .
If a mal function occurs that turns the fron t
a ir bag on t he passenger side
off, the PASSEN­
GER AIR BAG OFF
li ght will come on and stay
on whenever the ignition is on.
A WARNING
An airbag system that is not funct ioning
prope rly ca nnot provide supplemental pro­
t ect ion in a fron tal crash.
- If the airbag indicato r light comes on, it
means that t he re may be somet hing
wrong with the Advanc ed Ai rbag System .
It is possib le t hat the airbag will inflate
-
when it is not supposed to, or will not in­
f late when it sho uld.
- Have the airbag system inspected imme­
diate ly by yo ur Audi dealer.
PASSENGER AIR BAG OFF light
Fi g. 151 Sect io n fr om the instru men t pa nel: PASS EN ·
GER AIR BAG OFF lig ht
The PASSENGER AIR BAG OFF light is located
in the center of the instrument pane l
<=> fig. 151.
The PASSENGER AIR BAG OFF light wi ll come
on and stay on to tell you w hen the front Ad­
vanced Airbag on the passenger s ide has been
turned
off by the electron ic contro l unit . Each
t ime you sw itch on the ig nition, the
PASSEN­
GER AIR BAG OFF
light will flas h for a few
se conds a nd:
- will stay on if the fro nt passenger seat is not
occupied,
- will stay on if there is a small c hild or child
restrai nt on the front passenge r seat,
- will go out if the front passenger seat is oc­
cupied by an adult as registered by the
weight-sensing ma t.
The
PASSENGER AIR BAG OFF light must
come on and stay on
if the ignition is on and
- a ca r bed has been installed on the front
seat, or
- a rearwa rd -facing child rest raint has been
installed o n the front passenger seat, o r
- a forwar d-fac ing ch ild restra int has been in ­
stalled on the front passenger seat , or
- t he weigh t reg iste red on the fron t passen­
ge r seat is equal to or less t han the com-
bined weig ht of a typical 1 year -o ld .,..

restrained in one of the rear-facing or for­
ward-facing infant restraints listed in Feder­ al Motor Vehicle Safety Standard 208 with
which the Advanced Airbag System in your
vehicle was certified.
If the front passenger seat is not occupied,
the front airbag will not deploy, and the
PAS ·
S ENGER AIR BA G OFF
light will stay on. Nev­
er install a rearward-fac ing ch ild restra int on
the front passenger seat, the safest place for
a child in any k ind of child restraint is at one
of the seating positions on the rear seat
¢ page 147, Child restraints on the front seat
- some important things to know
and
¢ page 169, Child Safety.
If th e PASSENGER AIR BAG OFF light c ome s
on
when one of the conditions listed above is
met, be sure to check the light regularly to
make certa in that the
PASSENGER AIR BA G
OF F
light stays on continuous ly whenever the
ignition is on . If the
PASSENGER AIR BAG
OF F
light does not appear on and does not
stay on all the time, stop as soon as it is safe
to do so and
- reactivate the system by switc hing the igni­
t ion off and then sw itch ing it on again;
- remove and reinstall the child restraint .
Make sure that the child restraint is properly
insta lled and that the safety be lt for the
front passenger seat has been correctly
routed through the child restraint as descri­
bed in the chi ld restraint manufacturer's in ­
structions;
- make sure that the convertible locking fea­
ture on the safety belt fo r the front passen­
ger seat has been activated and that the
safety be lt has been pulled tight. The belt
mus t not be loose or have loops of slack so
that the sensor below the safety belt latch
on the seat can do its job
¢ page 178 .
-make su re that th ings that may increase the
weight of the chi ld and child seat a re not be­
ing transported on the front passenger seat;
- make su re that the safety bel t tension sen ­
sor is not b locked . Shake t he safety belt
l atch on the front passenger seatback and
forth;
A irbag system 157
-If a strap or tether is be ing used to tie the
child seat to the front passenger seat, make
sure that it is not so t ight that it causes the
weight-sensing mat to measure more
weight than is actua lly on the seat .
If the PASSENGER AIR BAG OFF light still
does not come on
and does not stay on con ­
tin uously (when the ignition is switched on),
- take the child restraint off the front passen -
ger seat and install it proper ly at o ne of the
rear seat positions. Have the airbag system
inspected by yo ur Audi dealer immed iate ly.
- move the child to a rear seat position and
make sure that the child is properly restra in­
ed in a ch ild restraint that is appropriate for
its size and age.
The
PA SS ENGER AIR BAG OFF light should
NOT come on when the ignit ion is on and an
adult is s itting in a proper seating position on
the front passenger seat. If the
PASSENGER
AIR BAG OFF
light comes on and stays on or
flashes fo r about 5 seconds wh ile driving, un­
der these cir cumstances, make sure that;
-the adult on the front passenger seat is
properly seated on the center of the seat
cushion with his or he r back up aga inst the
backrest and the backrest is not recl ined
¢ page 128, Proper o ccupant seating posi ­
tions,
- t he adult is not tak ing weight off the sea t by
holding on to the passenger assist handle
above the fron t passenger door or s upport ­
ing their weight on the armrest,
- t he safe ty be lt is be ing proper ly wo rn and
tha t the re is not a lot o f slack in the safety
be lt webbing,
- accesso ry sea t covers or cushions or o ther
things tha t may cause an incorrec t reading
or impression on the weight-sensing mat
under the upho lstery of the seat have been
removed from the front passenger seat,
- a safety belt extender has not been left in
the safety be lt latch for the front passenger
seat.
In addition to the
PASSENGER AIR BAG OFF
li ght in the center of the instrument panel, ll-
•
•

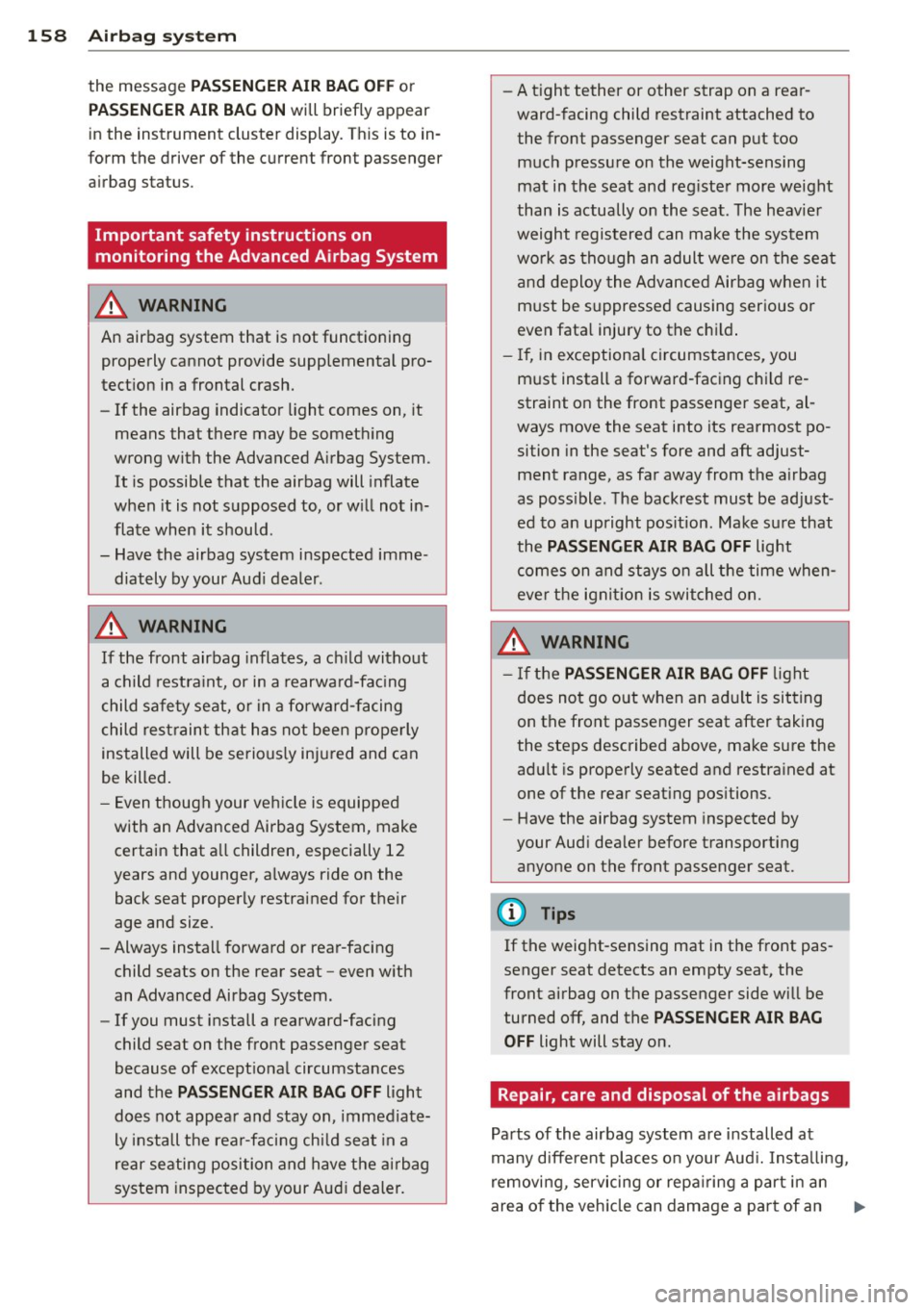

158 Airbag sys te m
the message PA SSENGER AIR BAG OFF or
PASSENGER AIR BAG ON will briefly appear
in the instrument cluster display. Th is is to in ­
form the driver of the current front passenger
a irbag status .
Important safety instructions on
monitoring the Advanced Airbag System
& WARNING
An airbag system that is not functioning
properly cannot provide supplemental pro­
tect ion in a frontal crash.
- If the airbag indicator light comes on, it
means that there may be someth ing
wrong with the Advanced A irbag System .
It is possible that the airbag will inflate
when it is not supposed to, or w ill not in­
flate when it should.
- Have the airbag system inspected imme­ diately by your Aud i dealer.
& WARNING
If the front airbag inflates, a ch ild without
a child restra int, or in a rearwa rd-fac ing
child safety seat, or in a forward-facing
child restrain t that h as not been properly
installed will be serious ly injured and can
be killed.
- Even though your ve hicle is equipped
with an Advanced Airbag System, make certain that a ll children, especially 12
years and younger, a lways ride on the
back seat properly restrained for t heir
age and size.
- Always insta ll forward or rear-facing
child seats on the rear seat -even w ith
an Advanced Airbag System .
- If you must install a rearward-facing
child seat on the front passenger seat
because of except iona l circumstances
and the
PASSENGER AIR BAG OFF light
does not appea r and stay on, immediate­
ly install the rea r-faci ng chi ld seat in a
re ar se ating position and have the ai rbag
system inspected by your Aud i dealer.
-
- A t ight tether or other strap on a rea r­
ward-facing child restraint attached to
the front passenger seat can put too muc h pressure on the weight-sensing
mat in the seat and reg iste r more weight
than is actually on the seat . The heav ie r
weight regis tered can make the system
wo rk as tho ugh an adult we re on the seat
and deploy the Advanced Airbag when it
m ust be suppressed causing serious or
even fata l injury to t he ch ild .
- If , in exceptiona l circumstances, you
m ust install a forward-facing c hild re­
straint on the front passenger seat, al­
ways move the seat into its rearmost po­ sition in the seat's fore and aft adjust­
ment range, as fa r away from the a irbag
as poss ible . The backrest must be ad just ­
ed to an upright pos ition . Make s ure that
the
PASSENGER AIR BAG OFF light
comes on and stay s on all the time when­
eve r the ignit ion is switched on.
& WARNING
-
- If the PASSENGER AIR BAG OFF light
does not go out when an a dult is sitting
on the front passenger seat after taking
the steps described above, make sure the
ad ult is prope rly seated and restra ined at
one of the rear seat ing pos itions.
- Have the airbag system inspected by
your Audi dea ler before transporting
anyone on the front passenger seat.
{D Tips
If the weight-sensing mat in the front pas ­
senger seat detects an empty seat, the
front airbag on the passenger side will be
turned off , and the
PASSENGER AIR BAG
OFF
light will stay on .
Repair, care and disposal of the airbags
Parts of the airbag system a re i nstalled at
many d ifferent p laces o n your Aud i. Insta lling,
removing, servicing or repa iring a p art i n a n
area o f the veh icle can damage a par t of an .,..
