airbag system and prevent that system from
working properly in a collision.
There are some important things you have to
know to make sure that the effectiveness of
the system will not be impaired and that dis­
carded components do not cause injury or pol­
lute the environment.
A WARNING
Improper care, servicing and repair proce­
dures can increase the risk of personal in­
jury and death by preventing an airbag
from deploying when needed or deploying an airbag unexpectedly:
- Never cover, obstruct, or change the steering wheel horn pad or airbag cover or the instrument panel or modify them
many way .
- Never attach any objects such as cup
holders or telephone mountings to the
surfaces covering the airbag units.
- For cleaning the horn pad or instrument
panel, use only a soft , dry cloth or one
moistened with plain water. Solvents or
cleaners could damage the airbag cover
or change the stiffness or strength of the
material so that the airbag cannot de­
ploy and protect properly.
- Never repair, adjust, or change any parts
of the airbag system.
- All work on the steering wheel, instru­
ment panel, front seats or electrical sys­
tem (including the installation of audio
equipment, cellular telephones and CB
radios, etc .) must be performed by a
qualified technician who has the training
and special equipment necessary .
- For any work on the airbag system, we
strongly recommend that you see your authorized Audi dealer or qualified work­
shop.
- Never modify the front bumper or parts
of the vehicle body .
- Always make sure that the side airbag
can inflate without interference:
- Never install seat covers or replace­
ment upholstery over the front seat-
Airbag system 159
backs that have not been specifically
approved by Audi.
- Never use additional seat cushions that
cover the areas where the side airbags
inflate.
- Damage to the original seat covers or
to the seam in the area of the side air­
bag module must always be repaired
immediately by an authorized Audi
dealer.
- The airbag system can be activated only
once . After an airbag has inflated, it
must be replaced by an authorized Audi
dealer or qualified technician who has
the technical information, training and
special equipment necessary.
- The airbag system can be deployed only
once . After an airbag has been deployed,
it must be replaced with new replace­
ment parts designed and approved espe­
cially for your Audi model version . Re­
placement of complete airbag systems
or airbag components must be per­
formed by qualified workshops only.
Make sure that any airbag service action
is entered in your Audi Warranty
& Main­
tenance booklet under
AIRBAG REPLACE­
MENT RECORD.
- For safety reasons in severe accidents,
the alternator and starter are separated
from the vehicle battery with a pyrotech­ nic circuit interrupter.
- Work on the pyrotechnic circuit inter­ rupter must only be performed by a
qualified dealer - risk of an accident!
- If the vehicle or the circuit interrupter
is scrapped, all applicable safety pre­
cautions must be followed.
@ For the sake of the environment
Undeployed airbag modules and preten­
sioners might be classified as Perchlorate Material - special handling may apply, see
www .dtsc .ca.gov/hazardouswaste/per-
ch lo rate . When the vehicle or parts of the
restraint system including airbag modules
and safety belts with pretensioners are
scrapped, all applicable laws and ..,.
•
•

160 Airbag sys te m
regulations must be obse rved . Your au ­
thorized A udi dealer is familiar with these
req uirements and we recommend that you
have your dea ler perform this service for
you.
Other things that can affect Advanced
Airbag performance
Changing the vehicle's suspension system can
change the way that the Advanced Airbag Sys­
tem performs in a crash. For example, using
tire-rim combinations not approved by Audi,
lowering the vehicle, changing the stiffness of
the suspension, including the springs, suspen­
sion struts, shock absorbers etc. can change
the forces that are measured by the a irbag
sensors and sent to the electronic control un it . Some suspension changes can, for exam­
p le, increase the force levels measured by the
sensors and make the airbag system deploy in
crashes in w hich it would not dep loy i f the
changes had not been made. Other kinds of
changes may reduce the force levels meas ­
ured by the sensors and prevent the airbag
from deploying when it should.
The sensors in the safety belt buckle fo r the
driver and front passenger seat tell the elec­
tronic control module if the safety belt is
latched or not. If the safety belt is being used,
the front airbag will deploy at a slightly high­
er rate of vehicle deceleration than if the safe­
ty belt is not being used. Therefore, in a par­
ticular co llision, it is poss ible that an a irbag
will not deploy at a seating position whe re the
safety be lt is being used but will inflate at the
position whe re the safety belt is not being
used . It is importan t that nothing interfe re
with the safety belt buckles so that the sen ­
sors can send the correct information abo ut
safety be lt use to the electron ic contro l unit.
A WARNING
Changing the vehicle 's suspension includ­
ing use of unapproved tire-r im combina­
tions can change Advanced Airbag pe r­
formance and increase the risk of ser ious
personal in jury in a crash. -
Never install suspension components
that do not have the same performance
characteristics as the components origi­
nally installed on your vehicle .
- Never use tire-rim combinations that
have not been approved by Audi.
A WARNING .....__ -
Items stored between the safety be lt
b uckle and the ce nter console can cause
the sensors in the buckle to send the
wrong information to the e lectronic con­
trol module and prevent the Advanced Air­
b ag System from working prope rly.
- Always ma ke sure that nothing can inter­
fe re with the safety belt buckles and that
they are not obs truc ted.
@ For the sake of the environment
Undeployed airbag modules and p reten­
s ione rs might be classified as Per chlorate
Materia l - specia l hand ling may apply, see
www.dtsc.ca.gov/ha zardouswaste/per­
ch lorate. When the vehicle or parts of the
rest raint system including airbag modu les
and safety belts with pretensioners are
scrapped, all applicab le laws and regu la­
tions must be observed. Your authorized
Audi dealer is familiar with these require­ ments and we recommend that you have
your dealer perform this service for you.

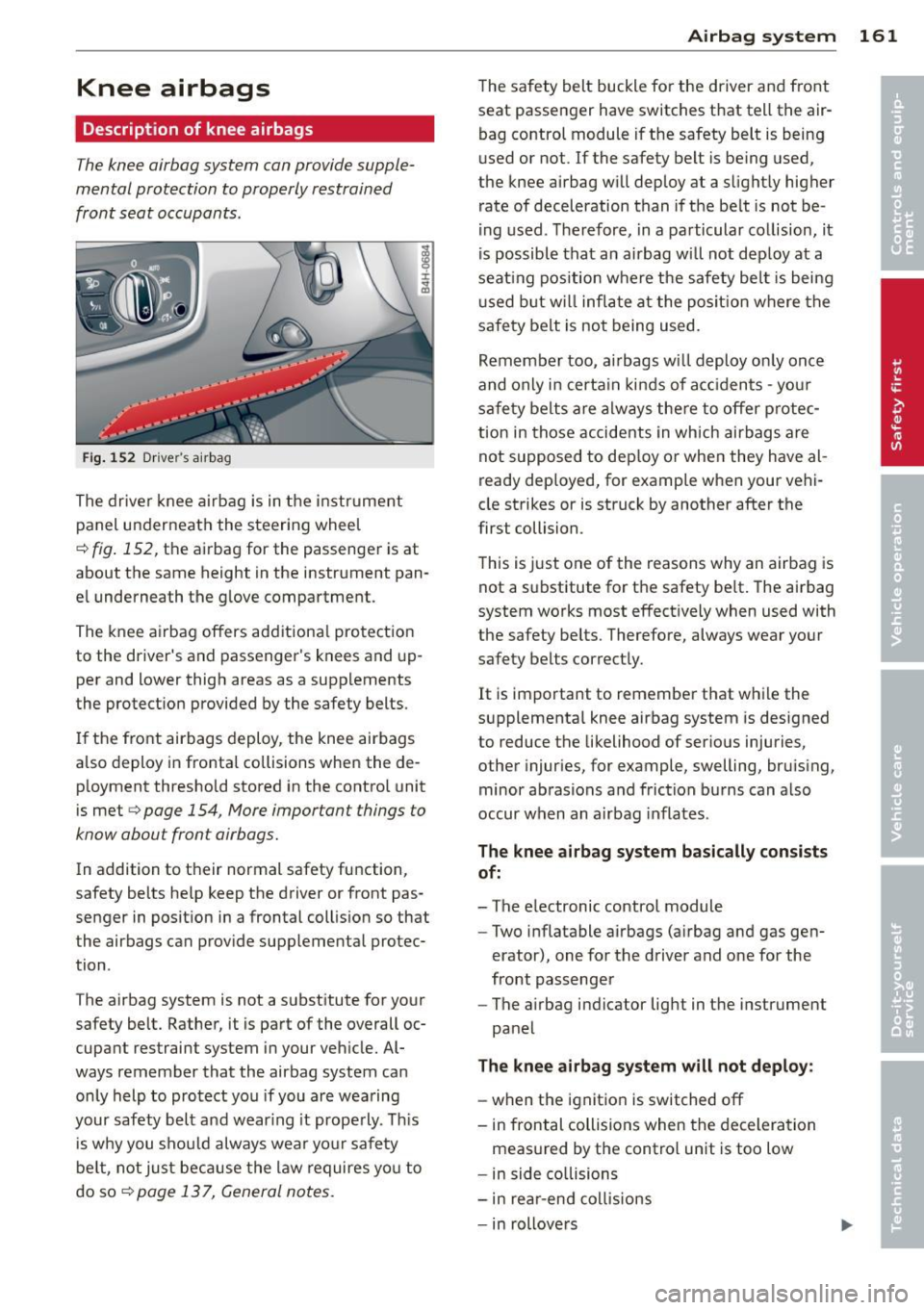

Knee airbags
Description of knee airbags
The knee airbag system can provide supple ­
mental protection to properly restrained
front seat occupants.
Fi g. 1 52 Driver's a irbag
The drive r knee airbag is in the instr ume nt
panel underneath the steeri ng wheel
¢ fig . 152, th e ai rbag for the passenger is at
about the same height in the instrument pan ­
e l underneath the g love compartment.
The knee a irbag offers add itiona l pro tect io n
to the driver's and passenger 's knees and up­
per and lower thigh areas as a supp lements
the protect ion provided by the safety belts.
If the front airbags deploy, the knee airbags
a lso deploy in frontal collisions when the de­
p loyment thresho ld stored in the contro l unit
is met
r::!;> page 154, More important things to
know about front airbags.
In addition to t heir normal safety function,
safety be lts he lp keep the driver or front pas­
se nger in posit ion in a frontal coll is ion so that
the airbags ca n prov ide supplemental protec­
tion .
T he airbag system is not a s ubst itute for yo ur
safety be lt. Rather, it is part of the overall oc­
cupa nt restraint system in your veh icle. Al­
ways remember that the airbag system ca n
only help to pro tect you if you are wea ring
your safety belt and wear ing it prope rly. Thi s
i s w hy you sho uld always wea r yo ur safety
be lt, not just because the law requires yo u to
do so
¢ page 137, General notes .
Airbag system 161
The safety belt buckle fo r the driver a nd front
seat passe nger have switches that tell the air­
bag control module if th e safety belt is being
u sed or not . If the safety belt is being used,
the knee airbag w ill deploy at a s light ly higher
rate of deceleration t han if t he be lt is not be ­
i ng used. Therefore, in a pa rticular co llision, it
is possible that an airbag will not dep loy at a
seat ing pos ition w he re t he safety be lt is being
u sed b ut w ill infl ate a t the po sition where the
safety belt is no t being used.
Remember too, a irbags wi ll deploy o nly once
and on ly in certa in kin ds of ac ciden ts -yo ur
sa fe ty belts a re a lw ay s there t o offer p rotec ­
t ion in those accide nts in which airbags are
not supposed to dep loy o r when they have al ­
ready dep loyed, for example when your vehi­
cle strikes or is struck by another after the
first collision.
This is just one of the reasons why an airbag is
not a s ubstitute fo r th e safety be lt . T he airbag
system works most effect ively when used with
the safety be lts. Therefore, always wea r your
safety belts correct ly.
It is important to remember that while the
supplementa l knee airbag system is designed
to reduce the li kelihood of ser ious injuries ,
other injur ies, for example, swelling, bru is ing,
minor abras ions and frict ion bu rns can a lso
occur when an airbag in flates.
The knee airbag system basically consists
of:
- The electronic control module
- Two inflatable a irbags (a irbag an d gas gen-
erator), one for the d river and one fo r the
front passenge r
- The a irbag indicator lig ht in t he i nstrument
pane l
The knee airbag system will not deploy :
-when the ignit io n is switched off
- in frontal collisions when the de celera tion
meas ured by the contro l unit is too low
- in side co llisions
- in rear-end col lis ions
- in rollove rs

162 Airbag system
-in the event of a system malfunction (warn­
ing/indicator light is on)
r=:> page 18.
.&_ WARNING
-Safety belts and the airbag system can
only provide protection when occupants
are in the proper seating position
¢page 154 .
-If the airbag indicator light comes when
the vehicle is being used, have the sys­
tem inspected immediately by your au­
thorized Audi dealer.

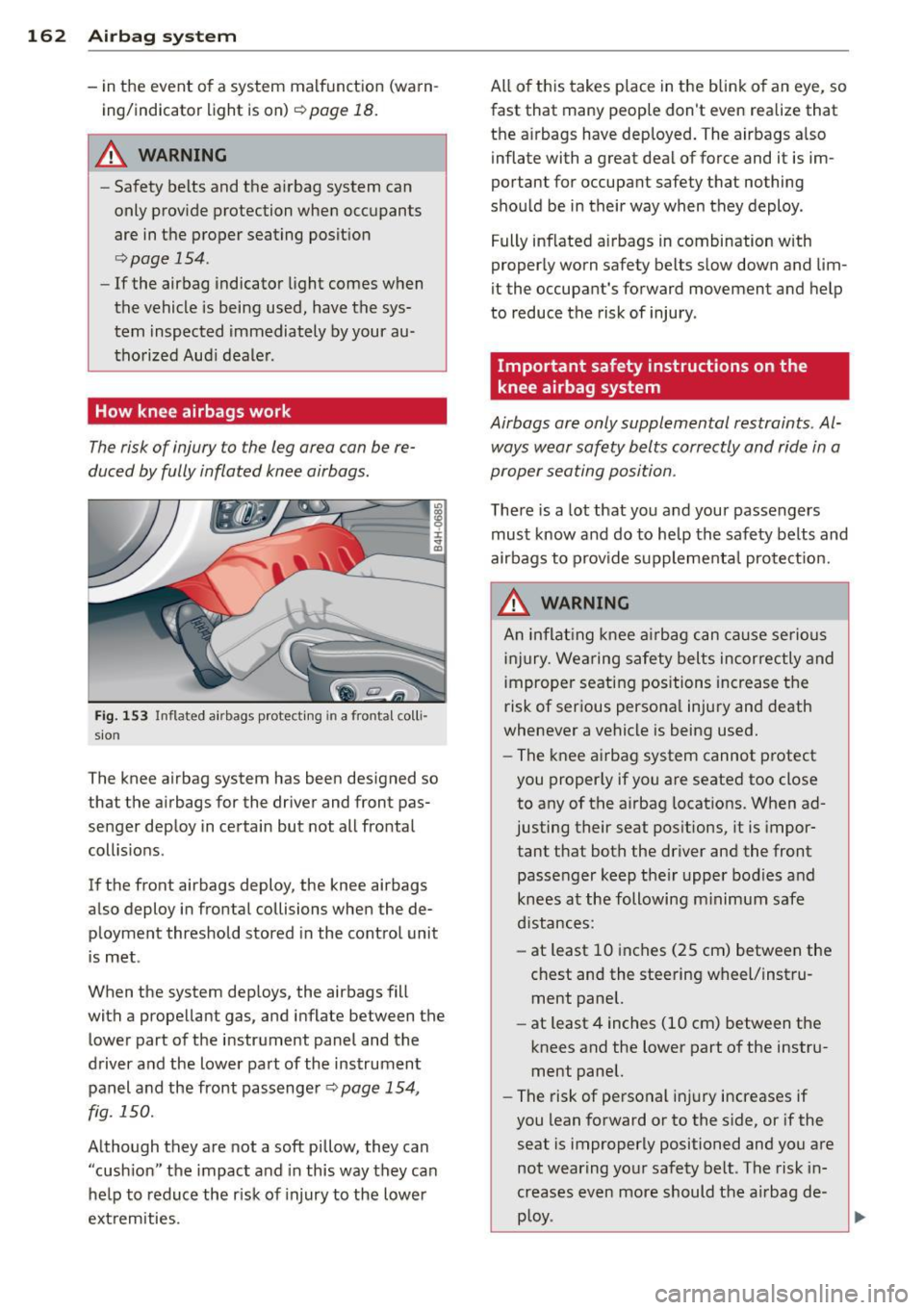

How knee airbags work
The risk of injury to the leg area can be re­
duced by fully inflated knee airbags.
Fig. 153 Infla ted airbags pro tecting in a fron ta l coll i­
sio n
The knee airbag system has been designed so
that the airbags for the driver and front pas­
senger deploy in certain but not all frontal
collisions .
If the front ai rbags deploy, the knee ai rbags
also deploy in frontal collisions when the de­
ployment threshold stored in the control unit
is met .
When the system deploys, the ai rbags fill
with a propellant gas, and inflate between the lower part of the instrument panel and the
driver and the lower part of the instrument
panel and the front passenger~
page 154,
fig. 150.
Although they are not a soft pillow, they can
"cushion" the impact and in this way they can
help to reduce the risk of injury to the lower
extremities . All of this takes place in the blink of an eye, so
fast that many people don
't even realize that
the airbags have deployed. The airbags also inflate with a great deal of force and it is im­
portant for occupant safety that nothing
should be in their way when they deploy .
Fully inflated airbags in combination with
properly worn safety belts slow down and lim­
it the occupant's forward movement and help
to reduce the risk of injury .
Important safety instructions on the
knee airbag system
Airbags are only supplemental restraints . Al­
ways wear safety belts correctly and ride in a
proper seating position .
There is a lot that you and your passengers
must know and do to help the safety belts and
airbags to provide supplemental protection .
.&_ WARNING
An inflating knee airbag can cause serious
injury. Wearing safety belts incorrectly and
improper seating positions increase the
risk of serious personal injury and death
whenever a vehicle is being used.
- The knee airbag system cannot protect
you properly if you are seated too close
to any of the airbag locations. When ad­
justing their seat positions, it is impor­
tant that both the driver and the front passenger keep their upper bodies and
knees at the following minimum safe
distances:
- at least 10 inches (25 cm) between the
chest and the steering wheel/instru­ ment panel.
- at least 4 inches (10 cm) between the
knees and the lower part of the instru­
ment panel.
- The risk of personal injury increases if
you lean forward or to the side, or if the
seat is improperly positioned and you are
not wearing your safety belt . The risk in­
creases even more should the airbag de­
ploy .

-Always mak e sure that the knee airbag
can inflate without interference. Objects
between you and the airbag can increase
the risk of injury in an accident by inter­
fering with the way the airbag deploys or by being pushed into you as the airbag
deploys.
- Never let anybody, especially children
or animals ride in the footwell in front
of the passenger seat.
If the airbag de­
ploys, this can result in serious or fatal
injuries .
- Never carry objects of any kind in the
footwell area in front of the driver's or
passenger's seat. Bulky objects (shop ­
ping bags, for example) can interfere
with or prevent proper deployment of
the airbag. Small objects can be
thrown through the vehicle if the air­
bag deploys and injure you or your pas­
sengers.
- Make sure there are no cracks, deep
scratches or other damage in the area of
the instrument panel where the knee air­
bags are located.
- If children are incorrectly seated, their
risk of injury increases in a collision
Q page 169, Child Safety.
Side airbags
Description of side airbags
T he airbag system can provide supplemental
protection to properly restrained occupants .
Fig. 154 Side airbag location in t he d river 's seat
The side airbags are located in the sides of the
front seat backrests
Q fig. 154 and the rear
Airbag system 163
backrest facing the doors. They are identified
by the word "AIRBAG".
The side airbag system basically consists of:
- the electron ic control module and external
side impact sensors
- the two side airbags located in the sides of the front backrests
- two rear side airbags
- the airbag warning light in the instrument
cluster.
The airbag system is monitored electronically
to make certain that it is functioning properly
at all times. Each time you switch on the igni­
tion, the airbag system indicator light will
come on for a few seconds (self diagnostics) .
T he side airbag system supplements the safe­
ty belts and can help to reduce the risk of in­
jury to the driver's, front and rear passenger's
upper torso on the side of the vehicle that is
struck in a s ide collision . The airbag deploys
only in side impacts and only when the vehicle
accelerat ion reg iste red by the control unit is
high enough.
If this rate is be low the refer­
ence value programmed into the control unit,
the side airbags will not be triggered, even
though the car may be badly damaged as a re­
sult of the co llision . It is not possib le to de­
fine an airbag triggering range that will cover
every possible angle of impact, since the cir­
cumstances will vary considerably between
one collis ion and another . Important factors
include, for example , the nature (hard or soft)
of the impacting object, the angle of impact,
vehicle speed , etc.
¢ page 165, Important
safety instructions on the side airbag system .
Aside from their normal safety function, safe­
ty belts work to help keep the driver or front
passenger in position in the event of a side
collision so that the side airbags can provide
protection.
The airbag system is
not a substitute for your
safety belt. Rather, it is part of the overall oc­
cupant restraint system in your vehicle. A l-
ways remember that the side airbag system
can only help to protect you if you are wearing
your safety belt and wearing it properly. This
Ill>

164 Airbag system
is another reason why you should always wear
your safety belts, not just because the law re­ quires you to do so~
page 137, General
notes.
It is important to remember that while the
supplemental side airbag system is designed
to reduce the likelihood of serious injuries,
other injuries, for example, swelling, bruising,
and minor abrasions can also be associated
with deployed side airbags . Remember too,
side airbags will deploy only once and only in
certain kinds of accidents -your safety belts
are always there to offer protection.
Vehicle damage, repair costs or even the lack
of vehicle damage are not necessar ily an indi­
cation of over-sensitive or failed airbag activa­
tion. In some collisions, both front and side
airbags may inflate . Remember too, that air­
bags will deploy only once and only in certain
kinds of collisions -your safety belts are al­
ways there to offer protection in those acci­
dents in which airbags are not supposed to
deploy or when they have already deployed.
The side airbag system will not deploy:
- when the ignition is switched off
- in side collisions when the acceleration
measured by the sensor is too low
- in front-end collisions
- in rear-end collisions
- in rollovers .
In some types of accidents the front airbags,
side curtain airbags and side airbags may be
tr iggered together.
A WARNING ,.
- Safety belts and the airbag system will
only prov ide protection when occupants
are in the proper seating position
~page 165.
-If the airbag indicator light comes on
when the vehicle is being used, have the
system inspected immediately by your
authorized Audi dealer. The airbag may
not work properly when the vehicle ac­
celeration in a side collision is high
enough to activate the airbag.
-
How supplemental side airbags work
Side airbags deploy instantly and can help re­
duce the risk of upper torso injuries for occu­
pants who are properly restrained.
Fig. 155 Inflated side airbags on left side of veh icle,
rear side a irbag
When the system is triggered, the airbag is
filled with propellant gas and breaks through a seam in the seat surface area marked "AIR­
BAG ".
It expands between the side trim panel
and the passenger. In order to help provide
this addit ional protection, the side airbag
must inflate within a fraction of a second at
very high speed and with great force. The sup­
plemental side airbag could injure you if your
seating position is not proper or upright or if
items are located in the area where the sup­
plemental side airbag expands. This applies
especially to children
q page 169, Child Safe­
ty . Supplemental side airbags inflate between
the occupant and the door panel on the side of the vehicle that is struck in certain side col­
lision
q fig. 155.
Although they are not a soft pillow, they can "cushion" the impact and in this way they can
help to reduce the risk of injury to the upper
part of the body.
A fine dust may deve lop when the airbag de­
ploys. This is normal and does not mean there
is a fire in the vehicle.

Important safety instructions on the
side airbag system
Airbags are only supplemental restraints. Al­
ways properly wear safety belts and ride in a
proper seating position.
There is a lot that you and your passengers
must know and act accordingly to help the
safety belts and airbags do their job to pro­
vide supplemental protection .
A WARNING
An inflating side airbag can cause serious
or fatal injury. Improperly wearing safety
belts and improper seating positions in­
crease the risk of serious personal injury
and death whenever a vehicle is being
used .
- In order to reduce the risk of injury when
the supplemental side airbag inflates:
-Always sit in an upright position and
never lean against the area where the
supplemental side airbag is located.
- Never let a child or anyone else rest
their head against the side trim panel
in the area where the supplemental
side airbag inflates.
- Always make sure that safety belts are worn correctly,
- Do not let anyone sitting in the front
seat put their hand or any other parts
of their body out of the window.
- Always make sure that the side airbag can inflate without interference.
- Never install seat covers or replace ­
ment upholstery over the front seat­
backs that have not been specifically
approved by Audi.
- Never use additional seat cushions that
cover the areas where the side airbags
deploy.
- Damage to the original seat covers or
to the seam in the area of the side air­ bag module must always be repaired
immediately by an authorized Audi
dealer.
Airbag system 165
- Objects between you and the airbag can
increase the risk of injury in an accident
by interfering with the way the airbag
unfolds or by being pushed into you as
the airbag inflates.
- Never place or attach accessories or
other objects (such as cup holders, tel­
ephone brackets, or even large, bulky
objects) on the doors, over or near the
area marked "AIRBAG" on the seat backrests .
- Such objects and accessories can be­ come dangerous projectiles and cause
injury when the supplemental side air­
bag deploys.
- Never carry any objects or pets in the
deployment space between them and
the airbags or allow children or other passengers to travel in this position .
- Always use the built -in coat hooks only
for lightweight clothing . Never leave any
heavy or sharp-edged objects in the
pockets that may interfere with side air­
bag deployment and can cause personal
injury in an accident.
- Always prevent the side airbags from be­
ing damaged by heavy objects knocking
against or hitting the sides of the seat­
backs.
- The airbag system can only be triggered
once. If the airbag has been triggered,
the system must be replaced by an au­
thorized Audi dealership.
- Damage (cracks, deep scratches etc .) to
the original seat covers or to the seam in
the area of the side airbag module must always be repaired immediately by an au­
thorized Audi dealer .
- If children are seated improperly, their
risk of injury increases in the case of an
accident
~ page 169, Child Safety.
- Never attempt to modify any compo­
nents of the airbag system in any way .
- In a side collision, side airbags will not
function properly if sensors cannot cor­ rectly measure increasing air pressure in-
side the doors when air escapes through .,.. •
•

166 Airbag system
larger, unclosed openings in the door
panel.
- Never drive with interior door trim pan­
els removed.
- Never drive when parts have been re­
moved from the inside door panel and
the openings they leave have not been
properly closed.
- Never drive when loudspeakers in the
doors have been removed unless the
speaker holes have been properly
closed.
-Always make certain that openings are
covered or filled if additional speakers
or other equipment is installed in the
inside door panels.
- Always have work on the doors done by
an authorized Audi dealer or qualified
workshop.
Side curtain airbags
Description of side curtain airbags
The side curtain airbag system can provide
supplemental protection to properly restrain ­
ed occupants.
Fig . 156 Side curtain a irbags, d river 's side: s ide curta in
airbag location
The side curtain airbags are located on both
sides of the interior above the front and rear
side windows
c:.> fig. 156 . They are identified
by the word "AIRBAG" on the windshield
frame and the center roof pillar.
The side curtain airbag system supplements
the safety belts and can help to reduce the risk of injury for occupants' heads and upper
torso on the side of the vehicle that is struck in a side collision.
The side curtain airbag in­
flates in side impacts and only when the vehi­ cle acceleration registered by the control unit
is high enough . If this rate is below the refer­
ence value programmed into the control unit,
the side airbags will not be triggered, even
though the car may be badly damaged as a re­ sult of the collision .
It is not possible to de­
fine an airbag triggering range that will cover
every possible angle of impact, since the cir­
cumstances will vary considerably between
one collision and another. Important factors
include, for example, the nature (hard or soft)
of the impacting object, the angle of impact,
vehicle speed, etc .
c:.> page 167, How side cur­
tain airbags work .
Aside from their normal safety function, safe­
ty belts work to help keep the driver or front
passenger in position in the event of a colli­
sion so that the side curtain airbags can pro­
vide protection .
The airbag system is not a substitute for your
safety belt . Rather, it is part of the overall oc­
cupant restraint system in your vehicle. Al­
ways remember that the airbag system can
only help to protect you if you are wear ing
your safety belt and wearing it properly . This
is another reason why you should always wear
your safety belts, not just because the law re­
quires you to do soc:.>
page 137, General
notes .
It is important to remember that while the
side curtain airbag system is designed to help
reduce the likelihood of ser ious injuries, other
injuries, for example, swelling, bruising, and
minor abrasions can also be associated with
these airbags upon deployment. Remember
too, these airbags will deploy only once and
only in certain kinds of accidents -your safety
belts are always there to offer protection .
The side curtain airbag system basically
consists of:
- The electronic control module and external
side impact sensors
- The side curtain airbags above the front and
rear side windows

-The airbag indicator light in the instrument
pane l
The airbag system is moni tored ele ct ro ni ca lly
t o make certain it is f unct ion ing properly a t all
times. Each time you switch on the ignition,
the airbag system indicator light wi ll come on
for a few seconds (se lf d iagnost ics) .
The side curt ain airbag is not activated:
- if the igni tion is switched off,
- i n s ide collisions when the acce lerat ion
measu red by the sensor is too low,
- i n rear-end collisions,
- in rollovers.
A WARNING
-
- Safety belts and the a irbag system will
o nly p rov ide protection whe n occ upants
are in t he pro per sea ting posit io n
c::> page 54, Gener al recommendations.
- If the airbag indicato r ligh t comes on
w hen the veh icle is be ing u sed, have the
system inspected immedia tely by your
au thorized Audi dealer. T he side curta in
air bag may not work properly even whe n
the vehicle acceleration in a side coll ision
is h igh enough to act ivate the airbag .
How side curtain airbags work
Side curtain airbags con work together with
side airbags to help reduce the risk of head
and upper torso injuries for occupants who
are properly restrained.
Fi g. 1 57 Ill ust rat ion of p rincip le: In fl ated side cu rt a in
air bags on t he left side
The side curtain air bags inflate between the
occ upant and the windows on the side of the
"' N ;g
±
"" ID
A irbag system 167
vehicle that is s truck in a side col lision
c::> fig. 157 .
When the system is t rigge red, the side curta in
a irbag is filled w ith propellant gas and breaks
th ro ugh a seam above the front and rear side
w in d ows identified by the AIRBAG labe l. In or ­
der to he lp provide this additional protection,
t h e side curtain a irbag m ust inflate within the
blink of an eye at very high speed and with
great fo rce . The side curtain a irbag could in ­
jure you if your seating pos it io n is not prope r
o r upright or if items ar e located in the area
whe re the supplemen tal side curta in a irbag
i nfl ates. This applies espe cially to ch ild ren
c::> page 1 69 .
Although they are not a soft p illow, side cur­
ta in a irbags can "cushion" the impact and in
th is way they can hel p to reduce the risk of in­
j u ry to the head a nd the upper part o f the
body.
A fine dust may deve lop w hen the a irbag de­
ploys . Th is is qui te no rm al and does not mean
t h ere is a fire in the vehicle .
Important safety instructions on the
side curtain airbag system
Airbags are only supplemental restraints. Al­
ways properly wear safety belts and ride in a
proper seating position .
There is a lot that yo u and your passengers
must know a nd do to he lp the safety belts and
airbags do t heir job to provide supplemental
protection .
A WARNING
Improperly wearing safety belts and im­
p roper seating pos it io ns increase the risk
of ser ious personal inju ry and death when­
eve r a vehicle is being used .
- Never let occupants place any pa rts of
thei r bod ies in t he area from which the
side curta in a irbags inf late.
- Always ma ke s ure that the s ide curtain
a irbags can infla te witho ut interference.
-
Unsui table a ccessor ies fitted inside the ..,

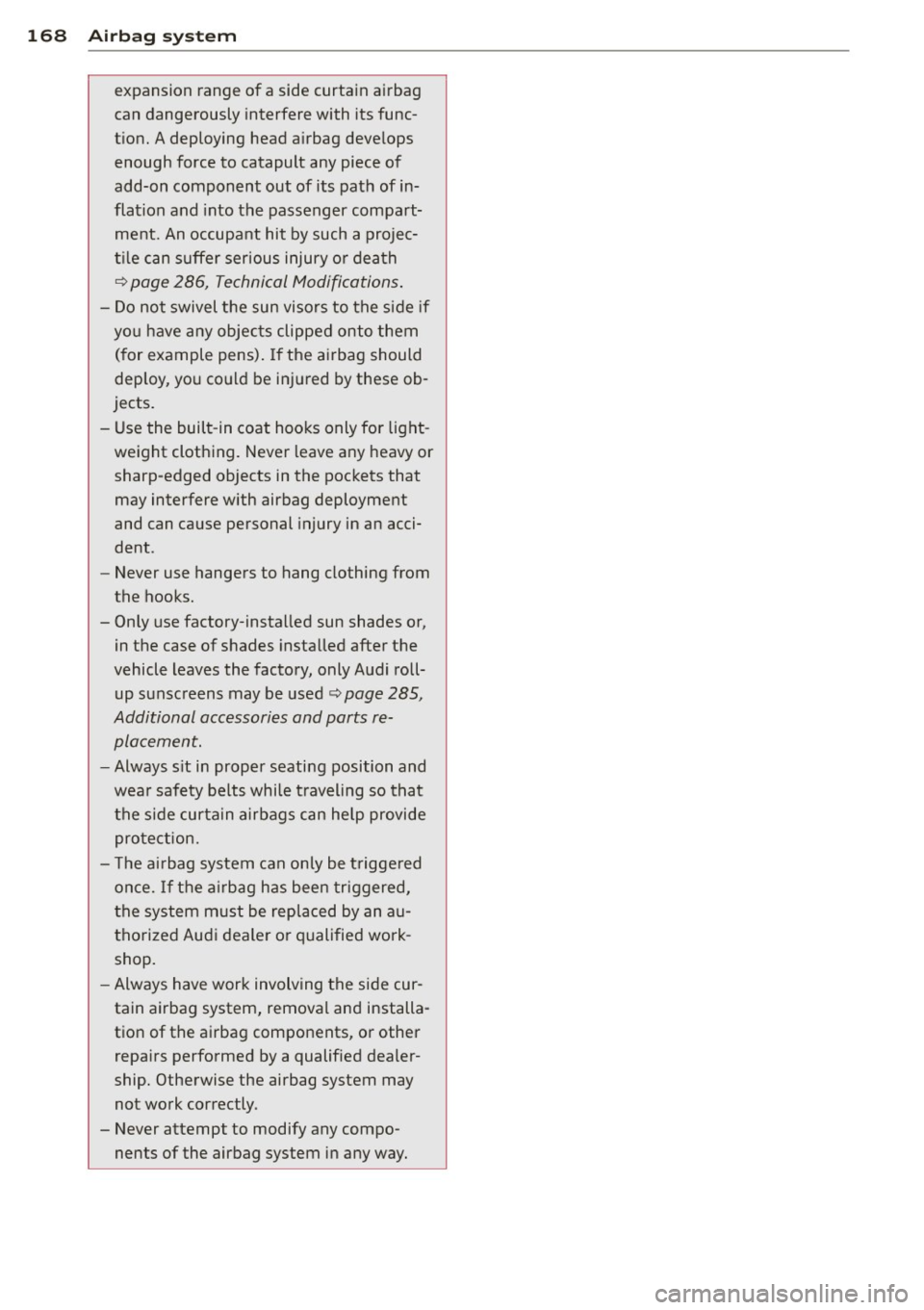

168 Airbag system
expansion range of a side curtain airbag
can dangerously interfere with its func­
tion. A deploying head airbag develops enough force to catapult any piece of
add-on component out of its path of in­
flation and into the passenger compart­
ment. An occupant hit by such a projec­
tile can suffer serious injury or death
9 page 286, Technical Modifications.
- Do not swivel the sun visors to the side if
you have any objects clipped onto them (for example pens). If the airbag should
deploy, you could be injured by these ob­
jects.
- Use the built-in coat hooks only for light­ weight clothing. Never leave any heavy or sharp-edged objects in the pockets that
may interfere with airbag deployment
and can cause personal injury in an acci­
dent .
- Never use hangers to hang clothing from
the hooks.
- Only use factory-installed sun shades or,
in the case of shades installed after the
vehicle leaves the factory, only Audi roll­ up sunscreens may be used
9 page 285,
Additional accessories and parts re­ placement.
- Always sit in proper seating position and
wear safety belts while traveling so that
the side curtain airbags can help provide
protection.
- The airbag system can only be triggered
once.
If the airbag has been triggered,
the system must be replaced by an au­
thorized Audi dealer or qualified work­
shop.
- Always have work involving the side cur­
tain airbag system, removal and installa­
tion of the airbag components, or other
repairs performed by a qualified dealer­
ship. Otherwise the airbag system may
not work correctly.
- Never attempt to modify any compo­ nents of the airbag system in anyway.
