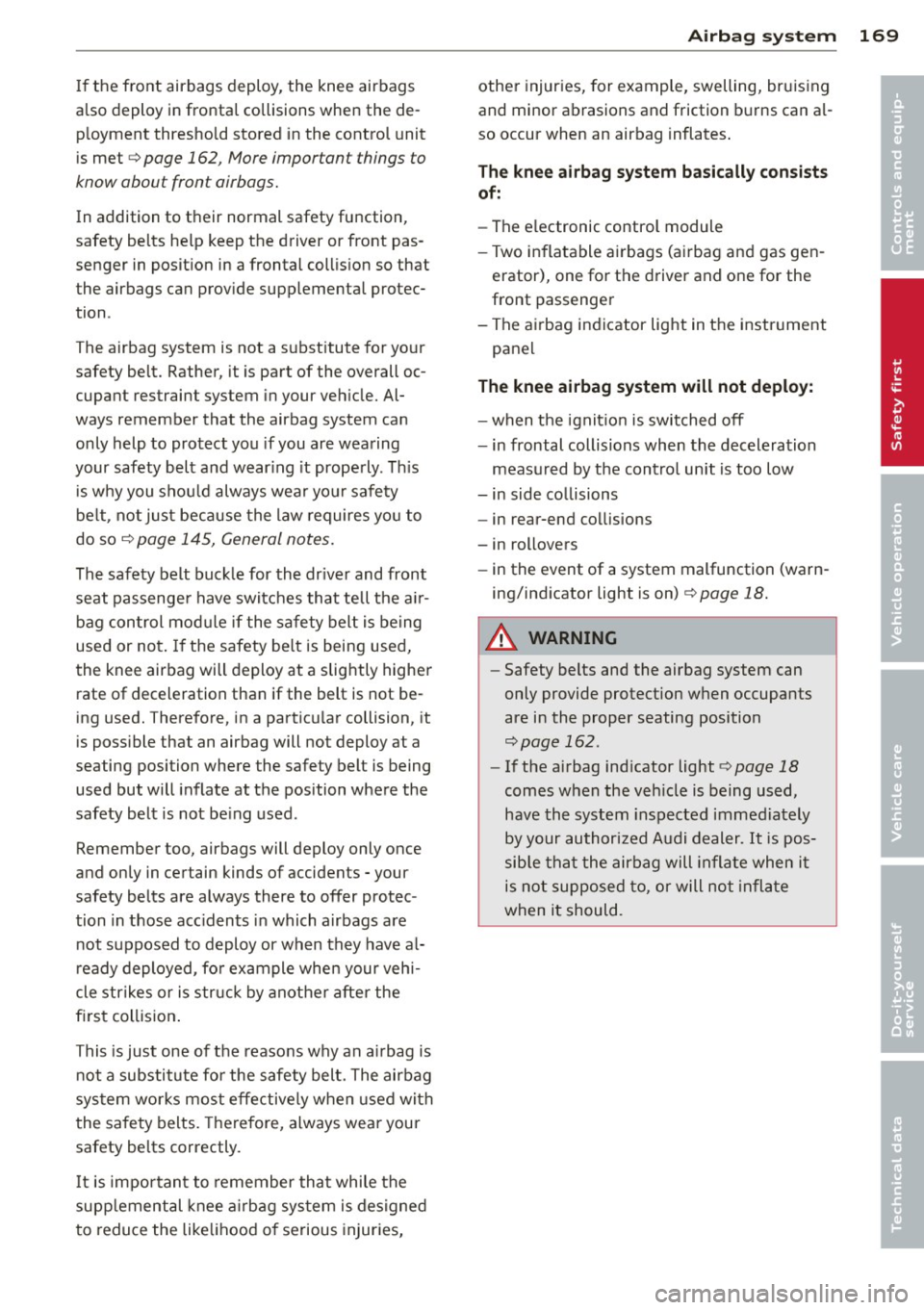

If the front airbags deploy, the knee airbags
also deploy in fronta l collisions when the de ­
p loyment threshold stored in the control unit
is met
c:> page 162, More important things to
know about front airbags.
In addition to their normal safety function,
safety be lts he lp keep the driver or front pas ­
senger in position in a frontal collision so that
the airbags can provide supplemental protec­
tion .
The airbag system is not a subst itute for yo ur
safety be lt. Rather, it is part of the overall oc­
cupant restraint system in your veh icle. Al­
ways remember that the airbag system can
only help to protect you if you are wearing
your safety belt and wear ing it properly. Th is
i s why you shou ld always wear you r safety
be lt, not just because the law requires you to
do so¢
page 145, General notes.
The safety be lt buck le for the dr iver and front
seat passenger have switches that tell the a ir­
bag con trol mod ule if the safety belt is be ing
used or not . If the safety belt is being used,
the knee airbag will deploy at a slightly higher rate of deceleration than if the belt is not be­
ing used. Therefore, in a particu lar collision, it
is poss ible that an airbag will not deploy at a
seating position where the safety belt is being
used but will inflate at the position where the
safety belt is not be ing used.
Remember too, airbags will deploy only once
and only in certain kinds of accidents -your
safety belts are always there to offer protec ­
tion in those acc idents in which a irbags a re
not supposed to deploy or when they have a l­
ready deployed, fo r example when your veh i­
cle strikes or is str uck by another after the
first collision .
This is just one of the reasons why an a irbag is
not a substitute for the safety belt. The airbag
system wo rks most effective ly when used with
the safety belts. Therefore, always wear your
safety be lts correctly.
It is impo rtan t to remember that while the
supp lemental knee a irbag sys tem is designed
to reduce the like lihood of serious injur ies,
A irbag system 169
other injur ies, for example, swelling, bru ising
and minor abrasions and friction b urns can al­
so occur when an airbag inflates .
The knee airbag system basic ally consist s
of:
-The e lectronic control module
- Two inflatable a irbags (airbag and gas gen-
erator), one for the driver and one for the
front passenger
- The airbag indicator light in the instrument pane l
The knee airbag s ystem will not depl oy:
- when the ignit ion is switched off
- in frontal collisions when the deceleration
measured by the control unit is too low
- in side collisions
- in rear-end collisions
- in rollovers
- in the event of a system malfunction (warn -
ing/indicator light is on) ¢
page 18.
A WARNING
--Safety belts and the airbag system can
only provide protection when occupants
are in the proper seating position
¢page 162.
-If the airbag ind icator light ¢ page 18
comes when the ve hicle is being used,
have the system inspected immediately
by your authori zed Audi dealer.
It is pos­
sible tha t the airbag will infla te when it
is not supposed to, or will not infla te
when it should.
-
•
•

1 7 0 Airbag system

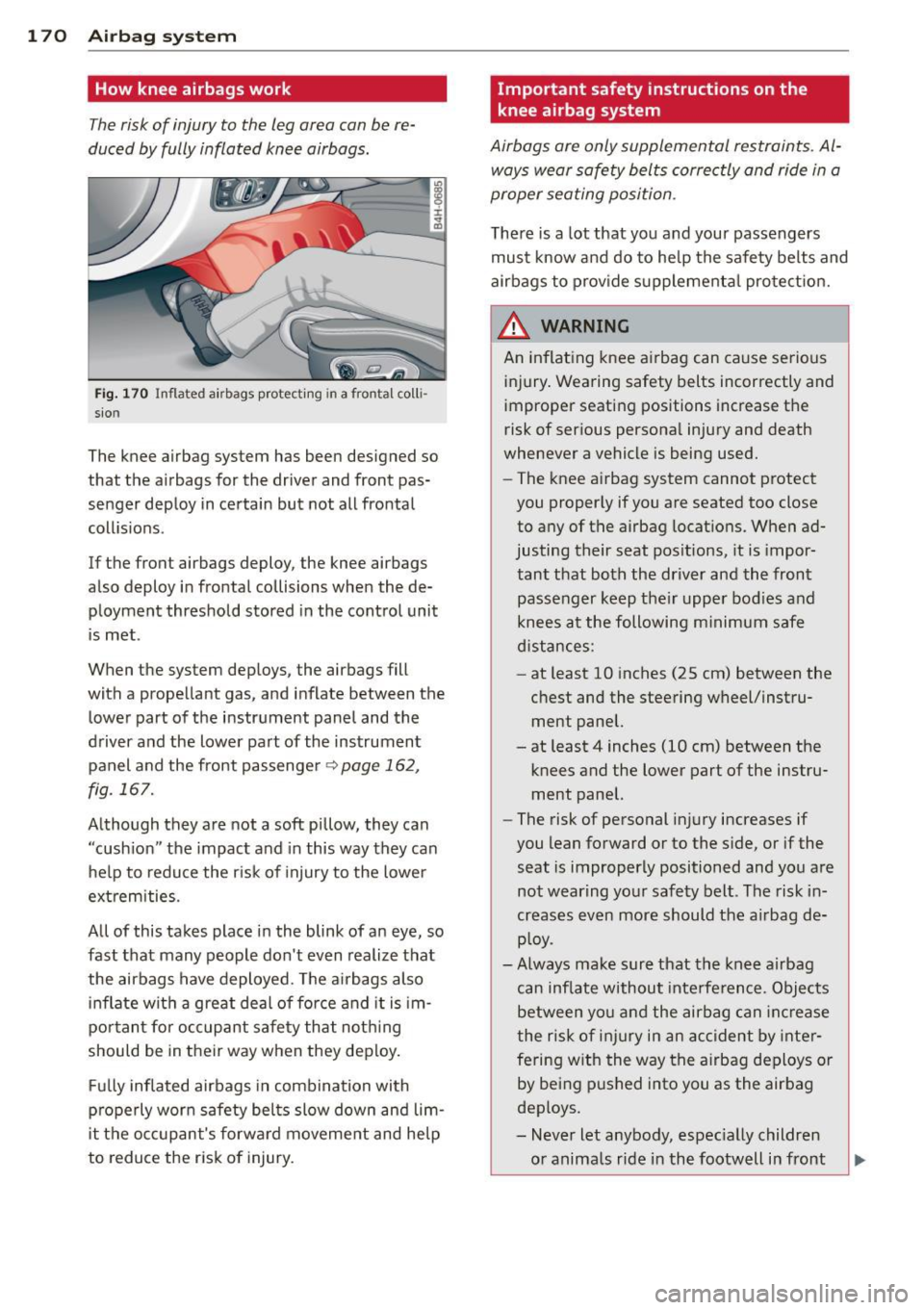

How knee airbags work
The risk of injury to the leg area can be re­
duced by fully inflated knee airbags.
Fig . 170 Inflated airbags protect ing in a frontal coll i­
sio n
The knee airbag system has been designed so
that the a irbags for the driver and front pas­
senger deploy in certain but not all frontal
collis ions ..
If the front airbags deploy, the knee airbags
also deploy i n frontal collisions when the de­
ployment threshold stored in the control unit
is met .
When the system deploys, the airbags fill
with a propellant gas, and inflate between the
lower part of the instrument panel and the
driver and the lower part of the instrument
panel and the front passenger
9 page 162,
fig. 167.
Although they a re not a soft pillow, they can
"cush ion " the impact and in this way they can
he lp to reduce the risk of injury to the lower
extremities.
All of this takes place in the blink of an eye, so
fast that many people don't even realize that
the airbags have deployed . T he ai rbags also
inflate with a great deal of force and it is im ­
po rtan t for occupant sa fety that not hing
should be in their way when they deploy.
Fu lly inflated airbags in combination with
properly worn safety bel ts slow down and lim­
it the oc cupant's forwa rd movement and help
to reduce the risk of injury. Important safety instructions on the
knee airbag system
Airbags are only supplemental restraints
. Al­
ways wear safety belts correctly and ride in a
proper seating position.
The re is a lot that you and your passengers
must know and do to he lp the sa fety belts and
airbags to prov ide supplemen ta l protect ion.
A WARNING ~
An inflat ing knee a irbag can cause serio us
i njury . Wearing safety belts incorrectly and
improper seating positions increase the
risk of ser ious persona l injury and death
whenever a vehicle is being used.
- The knee airbag system cannot protect
you properly if you a re seated too close
to any of the airbag locations. When ad­
justing their seat pos itions, it is impor­
tant that both the driver and the front
passenger keep the ir upper bod ies and
knees at the following m inimum safe
d istances:
- at least 10 inches (25 cm) between the
chest and the steering wheel/instru­
ment panel.
- at least 4 inches (10 cm) between the
knees and the lower part of the instru­
ment panel.
- The risk of personal injury increases if
you lean forward or to the side, or if the
seat is improperly positioned and you are not wearing your safety belt . The risk in­
creases even more should the a irbag de­
p loy .
- Always make s ure that the knee airbag
can inf late without inte rfe rence. Objects
between yo u and the airbag can increase
the risk of injury in an accident by inter ­
fering w ith the way the airbag deploys or
by being pushed into you as the airbag
deploys.
- Never let anybody, espec ia lly children
o r anima ls ride in the footwell in front

of the passenger seat. If the airbag de­
ploys, this can result in serious or fatal
injuries.
- Never carry objects of any kind in the
footwell area in front of the driver's or passenger's seat. Bulky objects (shop­
ping bags, for example) can interfere
with or prevent proper deployment of
the airbag. Small objects can be
thrown through the vehicle if the air­ bag deploys and injure you or your pas­
sengers.
- Make sure there are no cracks, deep
scratches or other damage in the area of
the instrument panel where the knee air­
bags are located.
- If children are incorrectly seated, their
risk of injury increases in a collision
¢ page 177, Child Safety.
Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained occupants.
---
Fig. 171 Side airbag location in the driver's seat
The side airbags are located in the sides of the
front seat backrests
¢fig. 171 and the rear
backrest facing the doors. They are identified
bytheword "AIRBAG".
The side airbag system basically consists of:
-the electronic control module and external
side impact sensors
- the two side airbags located in the sides of
the front backrests
- two rear side airbags
Airbag system 1 71
- the airbag warning light in the instrument
cluster.
The airbag system is monitored electronically
to make certain that it is functioning properly
at all times. Each time you switch on the igni­
tion, the airbag system indicator light will
come on for a few seconds (self diagnostics).
The side airbag system supplements the safe­
ty belts and can help to reduce the risk of in­
jury to the driver's, front and rear passenger's
upper torso on the side of the vehicle that is
struck in a side collision. The airbag deploys
only in side impacts and only when the vehicle
acceleration registered by the control unit is
high enough.
If this rate is below the refer­
ence value programmed into the control unit,
the side airbags will not be triggered, even
though the car may be badly damaged as a re­
sult of the collision.
It is not possible to de­
fine an airbag triggering range that will cover every possible angle of impact, since the cir­
cumstances will vary considerably between
one collision and another. Important factors include, for example, the nature (hard or soft)
of the impacting object, the angle of impact,
vehicle speed, etc. ¢
page 173, Important
safety instructions on the side airbag system.
Aside from their normal safety function, safe­
ty belts work to help keep the driver or front
passenger in position in the event of a side
collision so that the side airbags can provide
protection.
The airbag system is
not a substitute for your
safety belt . Rather, it is part of the overall oc­
cupant restraint system in your vehicle. Al­
ways remember that the side airbag system
can only help to protect you if you are wearing
your safety belt and wearing it properly. This
is another reason why you should always wear
your safety belts, not just because the law re­
quires you to do so¢
page 145, General
notes.
It is important to remember that while the
supplemental side airbag system is designed
to reduce the likelihood of serious injuries,
other injuries, for example, swelling, bruising,
IIJ>,

17 2 Airbag system
and minor abrasions can also be associated
with deployed side airbags . Remember too,
side airbags will deploy on ly once and on ly in
certain k inds of accidents -your safety belts
are always there to offer protect ion.
Vehicle damage, repair costs or even the lack
of vehicle damage are not necessar ily an indi­
cation of over-sensitive or failed airbag activa­
tion . In some co llisions, both front and side
a irbags may inflate . Remember too, that air ­
bags will deploy only once and only in certa in
kinds of co llisions -your safety belts are al­
ways there to offer protec tion in those acci­
dents in wh ich airbags are not supposed to
deploy or when they have already deployed.
The side airbag s yst em will not depl oy :
- when the ign ition is switched off
- in s ide collisions when the accelerat ion
measured by the sensor is too low
- in front-end collisions
- in rear-end collisions
- in ro llovers.
I n some types of acc idents the front airbags,
side curta in a irbags and side airbags may be
triggered together.
A WARNING
- Safety belts and t he airbag system will
only provide protection when occ upants
are in the proper seating posit ion
¢ page 173.
- If the airbag indicator light ¢ page 18
comes when the vehicle is being used,
have the system inspected immediate ly
by your aut ho rized Aud i dealer.
It is pos­
sible that the airbag will inflate when it
is not s upposed to, or w ill not inflate
when it sho uld. -How supplemental side airbags work
Side airbags deploy instantly and can help re­
duce the risk of upper torso injuries for occu­
pants who are properly restrained.
F ig . 1 72 Inflated s ide a irbags on left s ide of veh icle,
r ea r side a irbag
When the system is triggered, the a irbag is
filled with propellant gas and breaks through a seam in the seat surface area marked "AIR­
BAG".
It expands between the side tr im panel
and the passenger. In orde r to help provide
t hi s addit io nal pro tect ion, the s ide airbag
must inflate within a fraction of a second at
very h igh speed and with great force. The sup ­
plementa l side airbag could injure you if your
seat ing pos ition is not proper or upright or if
items are located in the area where the sup­
plemental side airbag expands. This applies
especially to ch ildren
q page 177, Child Safe­
ty .
Supplemental side airbags inflate betwee n
t h e occ upant and the door panel on the side
of the vehicle that is str uck in certa in side col ­
li sion ¢
fig. 172 .
Although they are not a soft pillow, they can
"cushion " the impact and in this way t hey can
help to reduce the risk of inju ry to the upper
part of the body.
A fine dust may deve lop when the airbag de­
ploys. This is normal a nd does not mean there
is a fire in the vehicle.

Important safety instructions on the
side airbag system
Airbags are only supplemental restraints. Al­
ways properly wear safety belts and ride in a
proper seating position.
There is a lot that you and your passengers
must know and act accordingly to help the
safety belts and airbags do their job to pro­
vide supplemental protection .
A WARNING
An inflating side airbag can cause serious
or fatal injury. Improperly wearing safety
belts and improper seating positions in­
crease the risk of serious personal injury
and death whenever a vehicle is being
used .
- In order to reduce the risk of injury when
the supplemental side airbag inflates:
-Always sit in an upright position and
never lean against the area where the
supplemental side airbag is located.
- Never let a child or anyone else rest
their head against the side trim panel
in the area where the supplemental
side airbag inflates.
- Always make sure that safety belts are worn correctly,
- Do not let anyone sitting in the front
seat put their hand or any other parts
of their body out of the window.
- Always make sure that the side airbag can inflate without interference.
- Never install seat covers or replace ­
ment upholstery over the front seat­
backs that have not been specifically
approved by Audi.
- Never use additional seat cushions that
cover the areas where the side airbags
deploy.
- Damage to the original seat covers or
to the seam in the area of the side air­ bag module must always be repaired
immediately by an authorized Audi
dealer.
Airbag system 173
- Objects between you and the airbag can
increase the risk of injury in an accident
by interfering with the way the airbag
unfolds or by being pushed into you as
the airbag inflates.
- Never place or attach accessories or
other objects (such as cup holders, tel­
ephone brackets, or even large, bulky
objects) on the doors, over or near the
area marked "AIRBAG" on the seat backrests .
- Such objects and accessories can be­ come dangerous projectiles and cause
injury when the supplemental side air­
bag deploys.
- Never carry any objects or pets in the
deployment space between them and
the airbags or allow children or other passengers to travel in this position .
- Always use the built -in coat hooks only
for lightweight clothing . Never leave any
heavy or sharp-edged objects in the
pockets that may interfere with side air­
bag deployment and can cause personal
injury in an accident.
- Always prevent the side airbags from be­
ing damaged by heavy objects knocking
against or hitting the sides of the seat­
backs.
- The airbag system can only be triggered
once. If the airbag has been triggered,
the system must be replaced by an au­
thorized Audi dealership.
- Damage (cracks, deep scratches etc .) to
the original seat covers or to the seam in
the area of the side airbag module must always be repaired immediately by an au­
thorized Audi dealer .
- If children are seated improperly, their
risk of injury increases in the case of an
accident ~
page 177, Child Safety.
-Never attempt to modify any compo­
nents of the airbag system in any way .
- In a side collision, side airbags will not
function properly if sensors cannot cor­ rectly measure increasing air pressure in-
side the doors when air escapes through .,.. •
•

17 4 Airbag syst em
larger, unclosed openings in the door
panel.
- Never drive w ith inter ior door trim pan­
e ls removed.
- Never drive when parts have been re­ moved from the ins ide doo r panel and
the openings they leave have not been p roperly closed.
- Never d rive when loudspeakers in the
doors have bee n removed unless the
spea ker holes have been properly
closed.
-Always ma ke certa in that openings are
covered or fi lled if additional speakers
or other equ ipment is installed in the
inside door panels.
- Always have work on the doors done by an authorized Audi dealer or qualified
workshop .
Side curtain airbags
Description of side curtain airbags
The side curtain airbag system can provide
supplemental protection to properly restrain ­
ed occupants.
Fi g. 1 73 Side curtain a irbags, d river 's side: s ide curta in
a ir bag location
The s ide curtain airbags are located o n both
sides of the interior above the front and rea r
side windows
c:.> fig. 173 . They are ident ified
by the word "AIRBAG" on the windshield
frame and the center roof p illar.
The s ide curtain airbag system supp lements
the safety belts and can help to reduce the risk of injury for occupants' heads and upper
torso o n the side of the vehicle tha t is struc k in a side collision
. The side curtain airbag in­
flates in side impacts and only when the vehi­ cle acceleration registered by the control un it
is h igh enough . If this rate is below the refer­
ence value programmed into the control unit,
the side airbags will not be triggered, even
t h ough the car may be bad ly damaged as a re­
su lt of the co llision .
It is not possib le to de­
fine an airbag triggering range that will cover every possib le ang le of impact, s ince the cir­
cumstances will vary cons iderably between
one collision and another. Important factors
include, for example, the nature (hard or soft)
of the impacting object, the angle of impact,
vehicle speed, etc .
c:,, page 175, How side cur­
tain airbags work .
Aside from their normal safety function, safe­
ty belts work to help keep the driver or front
passenger in position in the event of a colli­
sion so that the side curtain airbags can pro­
vide protection .
The airbag system is not a substit ute for your
safety belt . Rather, it is part of the overall oc­
cupant restraint system in your vehicle. Al­
ways remember that the a irbag system can
only help to protect you if you are wear ing
you r saf ety belt and wearing it properly . This
is anothe r reason why yo u should always wear
yo ur safe ty belts, no t just because the law re ­
quires yo u to do soc:.>
page 145, General
notes .
It is important to remember that w hile the
s ide cur tain airbag system is designed to help
reduce the likelihood of ser ious injur ies, other
injuries, for example, swelling, bruising, and
minor ab rasions can also be associated with
these a irbags upon dep loyment. Remember
too, these airbags will deploy only once and
only in certain kinds of accidents -your safety
belts are always there to offe r protection .
The s ide curtain a irbag system basic ally
cons ists of:
- The e lectronic control module and external
side impact sensors
- The side curtain airbags above the front and
rear s ide windows

-The airbag indicator light in the instrument
pane l
The airbag system is moni to red ele ct ro ni ca lly
t o make certain it is fu nct ion ing properly a t all
times. Each time you switch on the ignition,
the airbag system indicator light wi ll come on
for a few seconds (se lf d iagnost ics) .
The side curtain airbag is not activated:
-if the ignition is switched off,
- i n s ide collisions wh en the acceleration
measu red by the sensor is too low,
- i n rear-end collisions,
- in rollovers.
A WARNING
-
- Safety belts and the a irbag system will
only p rov ide p rotection when occ upants
are in t he p roper seat ing posit io n
c::> page 58, General recommendations.
- If the airbag indicato r light c::> page 18
comes whe n the vehicle is be ing used,
have the system inspected immediately
by you r auth o rized Audi dea le r. I t is pos ­
sible that the airbag will inflate when it
is not supposed to, or w ill not inflate
when it sho uld.
How side curtain airbags work
Side curtain airbags con work together with
side airbags to help reduce the risk of head
and upper torso injuries for occupants who
are properly res trained.
Fi g. 174 Ill ust rat ion of prin cipl e: In flat ed side cu rtain
airbags on the left side
The side curtain airbags inflate between the
occupant and the windows on the side of the
"' N ;g
±
"" ID
Airba g system 175
vehicle that is struck in a side collision
c::> fig. 174 .
When the system is t riggered, the side curta in
airbag is filled with propellant gas and breaks
through a seam above the front and rear side
w indows identified by the AIRBAG labe l. In or­
der to he lp provide this additional protection,
the side curtain airbag must inflate within the
blink of an eye at very high speed and with
great force. The side curtain a irbag could in ­
jure you if your seating pos it io n is not prope r
or upright or if items are located in the area
whe re the supplemen tal side curta in a irbag
infl ates. This applies espe cially to ch ildren
c::> page 177 .
Although they are not a soft p illow, side cur­
ta in ai rbags can "cushion" the impact and in
th is way they can help to reduce the risk of in­
jury to the head a nd the upper part of the
body.
A fine dust may deve lop when the ai rbag de­
ploys . Th is is qui te no rma l and does not mean
t h ere is a fire in the vehicle .
Important safety instructions on the
side curtain airbag system
Airbags are only supplemental restraints. Al­
ways properly wear safety belts and ride in a
proper seating position .
There is a lot that you and your passengers
must know and do to he lp the safety belts and
airbags do their job to provide supplemental
protection .
A WARNING
Improperly wearing safety belts and im­
p roper seating positions increase the risk
of ser ious personal injury and death when­
eve r a vehicle is being used .
- Never let occupants place any parts of thei r bod ies in the area from which the
side curta in a irbags inflate.
- Always make sure that the s ide curtain
airbags can inflate without interference.
-
Unsuitable accessor ies fitted inside the ..,

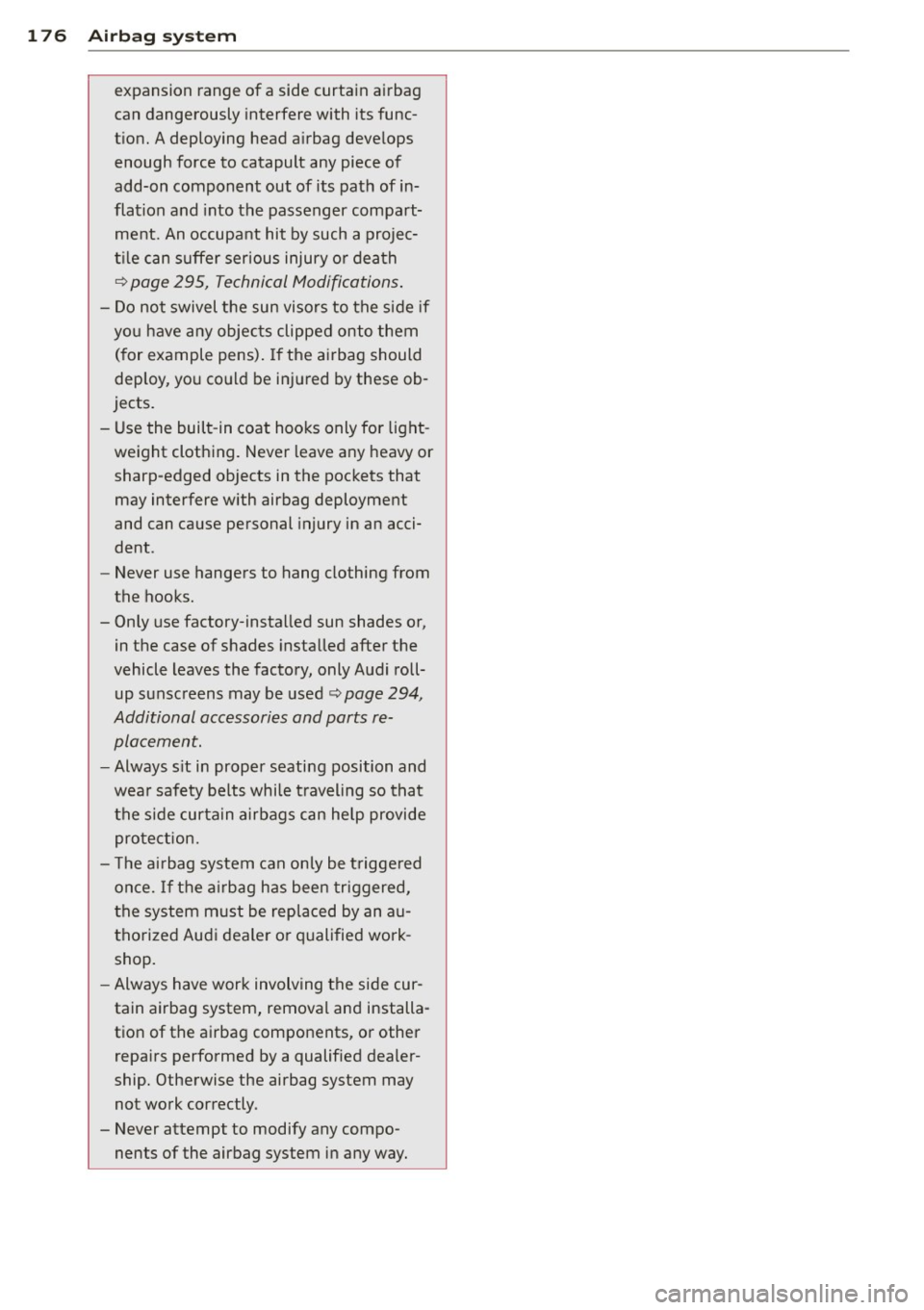

176 Airbag sys te m
expansion range of a side curtain airbag
can dangerously interfere with its func­
tion. A deploying head airbag develops enough force to catapult any piece of
add-on component out of its path of in­
flation and into the passenger compart­
ment. An occupant hit by such a projec­
t il e can suffer serious injury or death
9 page 295, Technical Modifications.
- Do not swivel the sun visors to the side if
yo u have any objects clipped onto them
(for example pens) . If the ai rbag should
deploy, you could be inj ured by these ob­
jects.
- Use the built -in coat hoo ks only for light­
weight clothing. Never leave any heavy or
sharp-edged objects in the poc kets that
may interfere with airbag deployment
and can cause personal injury in an acci­
dent .
- Never use hangers to hang clothing from
the hooks.
- Only use factory-installed sun shades or,
in the case of shades installed after the
vehicle leaves the factory, only Audi roll­ up sunsc reens may be used
9 page 294,
Additional accessories and parts re­ pla cement.
- Always s it in proper seating position and
wea r safety belts while t raveling so that
the side curtain airbags can help provide
pro tection.
- T he ai rbag system can only be t rigge red
once.
If the a irbag has been triggered,
the system m ust be replaced by an au­
thorized Aud i dealer o r qualified work ­
shop .
- Alw ays have work involving the side cur­
tain airbag system, removal and installa­
tion of the airbag components, or other
repa irs performed by a qualified dealer­
ship. Otherwise the airbag system may
not work cor rectly.
- Never attempt to modify any compo­ nents of the airbag system in anyway.

Child Safety
Important things to know
Introduction
The rear seat is generally the safest place in a
collision .
The physical principles of what happens when
your veh icle is in a crash app ly also to chi ldren
~ page 146, What happens to occupants not
wearing safety belts? .
But unlike adults and
teenagers, their muscles and bones are not
fu lly developed. In many respects children are
at greater risk of serious injury in crashes than
adu lts.
Because children's bod ies are not fully deve l­
oped, they require restraint systems especial­ ly designed for their size, weight, and body
structure. Many countries and all states of the
United States and provinces of Canada have
laws requiring the use of approved child re­
straint systems for infants and small children .
In a fronta l crash at a speed of 20 -35 mph
(30-56 km/h) the forces acting on a 13-pound
(6 kg) infant w ill be more than 20 t imes the
weight of the child . This means the weight of
the child would suddenly be more than
260 pounds (120 kg). Under these conditions,
on ly an appropriate chi ld restraint properly
used can reduce the risk of ser ious injury .
Child restraints, like adult safety belts, must
be used properly to be effective. Used improp­
erly, they can increase the risk of serious in ­
jury in an accident.
Consult the child safety seat manufacturer's
instructions in order to be sure the seat is
right for your chi ld's size ~
page 180, Impor­
tant safety instructions for using child safety
seats.
Please be sure to read and heed all of
the important information and WARNINGS
about ch ild safety, Advanced A irbags, and the
installation of child restraints in this chapter.
There is a lot you need to know about the Ad­
vanced Airbags in your vehicle and how they work when infants and children in child re-
Child Sa fet y 177
straints are on the front passenger seat . Be­
cause of the large amount of important infor­
mation, we cannot repeat it a ll here . We urge
you to read the detailed information in this owner's manual about airbags and the Ad­
vanced Airbag System in your vehicle and the
very important information about transport­
ing children on the front passenger seat .
Please be sure to heed the WARNINGS -they
are extremely important for your safety and
the safety of your passengers, especially in­
fants and small chi ldren .
.A, WARNING
-Accident statistics have shown that chil ­
dren are generally safer in the rear seat
area than in the front seating position.
Always restrain any child age 12 and un­ der in the rear.
- All vehicle occupants and especially chil­
dren must be restrained properly when­
ever riding in a vehicle . An unrestrained
or improperly restrained chi ld could be
injured by str ikin g the interior or by be­
ing ejected from the vehicle during a
sudden maneuver or impact. An un re ­
strained or improper ly restrained chi ld is
also at greater risk of injury or death
through contact with an inflating airbag.
- A suitable chi ld restraint properly instal­
led and used at one of the rear seating
positions provides the highest degree of
protection for infants and small children
in most accident situations.
A WARNING
Children on the front seat of any car even
with Advanced Airbags can be ser iously in­
jured or even killed when an a irbag in­
flates. A child in a rearward-fac ing ch ild
safety seat installed on the front passen­
ger seat will be ser iously injured and can
be killed if the front airbag inflates .
- The inflating airbag will h it the child
safety seat or infant carrier with great
force and will smash the child safety seat
and child against the backrest, center
armrest, or door.
•
•

178 Child Safety
-Always install rear-facing child safety
seats on the rear seat.
- If you must install a rearward facing
child safety seat on the front passenger
seat in exceptional circumstances and
the
PASSENGER AIR BAG OFF light does
not come on and stay on, immediately
install the rear-facing child safety seat in
a rear seating position and have the air­
bag system inspected immediately by
your Audi dealer.
_& WARNING
If, in exceptional circumstances, you must
install a forward-facing child restraint on
the front passenger's seat:
- Always make sure the forward-facing
seat has been designed and certified by
its manufacturer for use on a front seat
with a passenger front and side airbag.
- Always follow the manufacturer's in­
structions provided with the child safety
seat or carrier.
- Always move the passenger seat into its
rearmost position in the seat's fore and
aft adjustment range, as far away from
the airbag as possible before installing
the child restraint. The backrest must be
adjusted to an upright position .
- Always make sure that the
PASSENGER
AIR BAG OFF
light comes on and stays
on all the time whenever the ignition is
switched on.
(D Tips
Always replace child restraints that were
installed in a vehicle during a crash. Dam­
age to a child restraint that is not visible
could cause it to fail in another collision
situation.
Advanced front airbag system and children
Your vehicle is equipped with a front "Ad­
vanced Airbag System" in compliance with United States Federal Motor Vehicle Safety Standard (FMVSS) 208 as applicable at the
time your vehicle was manufactured.
The Advanced Airbag system in your vehicle
has been certified to meet the "low-risk" re­
quirements for 3- and 6-year old children on
the passenger side and small adults on th e
driver side. The low ris k deployment criteria
are intended to reduce the risk of injury
through interact ion with the airbag t hat can
occur, for example, by being too close to the
steering wheel and instrument panel when
the airbag inflates . In addition, the system
has been certified to comply with the "sup­
pression" requirements of the Safety Stand­
ard, to turn off the front airbag for infants up
to 12 months who are restrained on the front
passenger seat in child restraints that are list­
ed in the Standard.
Even though your vehicle is equipped with an
Advanced Airbag system , all children, espe­
cially those 12 years and younger, should al­
ways ride in the back seat properly restrained
for their age and size. The airbag on the pas­
senger side makes the front seat a potentially
dangerous place for a child to ride . The front
seat is not the safest place for a child in a for­
ward-facing child safety seat. It can be a very
dangerous place for an infant or a larger child
in a rearward-facing seat .
Advanced Airbags and the weight­
sensing mat in the front seat
The Advanced Airbag System in your vehicle
detects the presence of an infant or child in a
child restraint on the front passenger seat us­
ing the weight-sensing mat in the seat cush ­
ion and the sensor below the safety belt latch
on the front passenger seat that measures the
tension on the safety belt.
The weight -sensing mat measures total
weight of the child and the child safety seat
and a child blanket on the front passenger
seat. The weight on the front passenger seat
is related to the design of the child restraint
and its "footprint", the size and shape of the
bottom of the child restraint as it sits on the .,..
