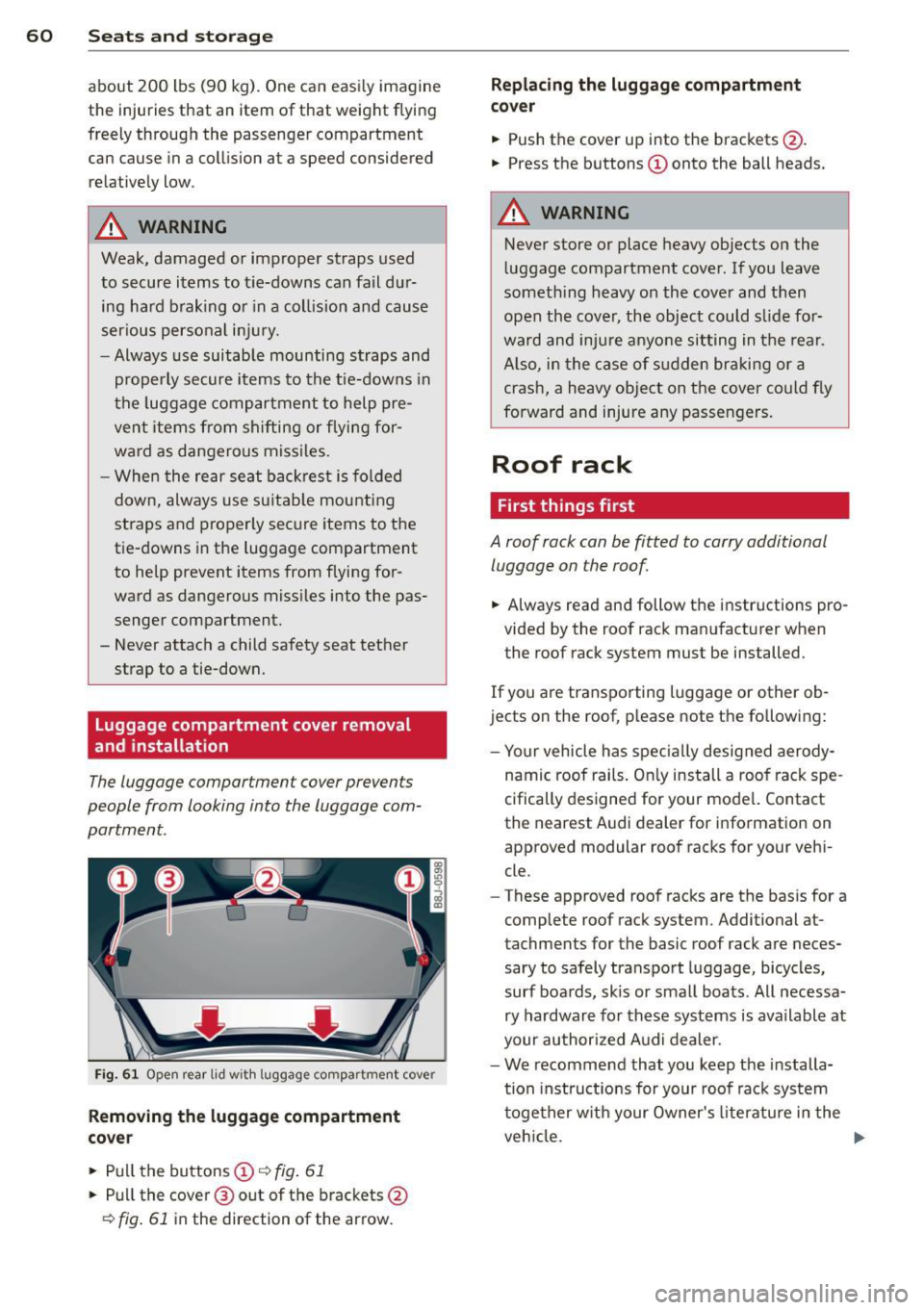

60 Seats and st o rage
about 200 lbs (90 kg). One can easi ly imagine
the injuries that an item of that weight flying
freely through the passenger compartment can cause in a co llision at a speed considered
relative ly low .
A WARNING
Weak, damaged or improper straps used
to secure items to t ie-downs can fail du r­
ing hard b rak ing or in a col lision and cause
ser ious personal inju ry.
- Always use suitable mounting straps and
properly secure i tems to the tie-downs in
the luggage compar tment to help pre­
vent items from shifting or flying for­
wa rd as dangerous missiles .
- When the rear seat back rest is folded
down, always use su itab le mount ing
st raps and proper ly secure items to the
t ie-downs in the luggage compartment
to help prevent items from flying for­
ward as dangerous miss iles into the pas­
senger compartment.
- Never attach a child safety seat tether strap to a tie-down.
Luggage compartment cover removal
and installat ion
The luggage compar tment cover preven ts
people from looking into the luggage com­
partment.
Fi g. 61 O pen rear lid w it h l uggage co m partment cove r
Removing the luggage compartment
co ve r
• Pu ll the buttons (D r::;, fig. 61
• Pull the cover @out of the brackets @
r::;, fig. 61 in the direction of the arrow.
Repl acing the luggage compartment
co ve r
• Push the cover up into the brackets @.
• Press the buttons
(D onto the ball he ads.
A WARNING
-Never store or place heavy objects on the
luggage compartment cover . If you leave
somet hing heavy o n the cove r and then
open the cover, the object could s lide fo r­
ward and inju re anyo ne sit ting in t he rea r.
A lso, in the case of s udden br aking or a
crash, a heavy object on the cover could fly
fo rward and injure any passen gers.
Roof rack
First things first
A roof rack can be fitted to carry additional
luggage on the roof
• Always read and follow the instructions pro­
vided by the roof rack man ufacturer when
the roof rack sys tem must be installed.
If you are transporting luggage or other ob ­
jects on the roof, p lease note the fo llowing:
- Yo ur vehicle has spec ially designed aerody-
namic roof rails . On ly install a roof rack spe­
cifically designed for your model. Contact
the nearest Aud i dealer for information on
approved modul ar roo f racks for your vehi­
cle .
- T hese approved roof racks are the basis for a
comp lete roof rack system . Additional at ­
tachments for the basic roof rack are neces­ sary to safely tran spo rt luggage, bicycles,
surf boards, skis or small boats. All necessa­ ry hardwar e fo r these syst ems is available at
your authorized A udi dealer.
- We recommend that you keep the installa­
tion instruct ions for your roof rac k system
together w ith your Owner's literatu re i n t he
veh icle. .,.

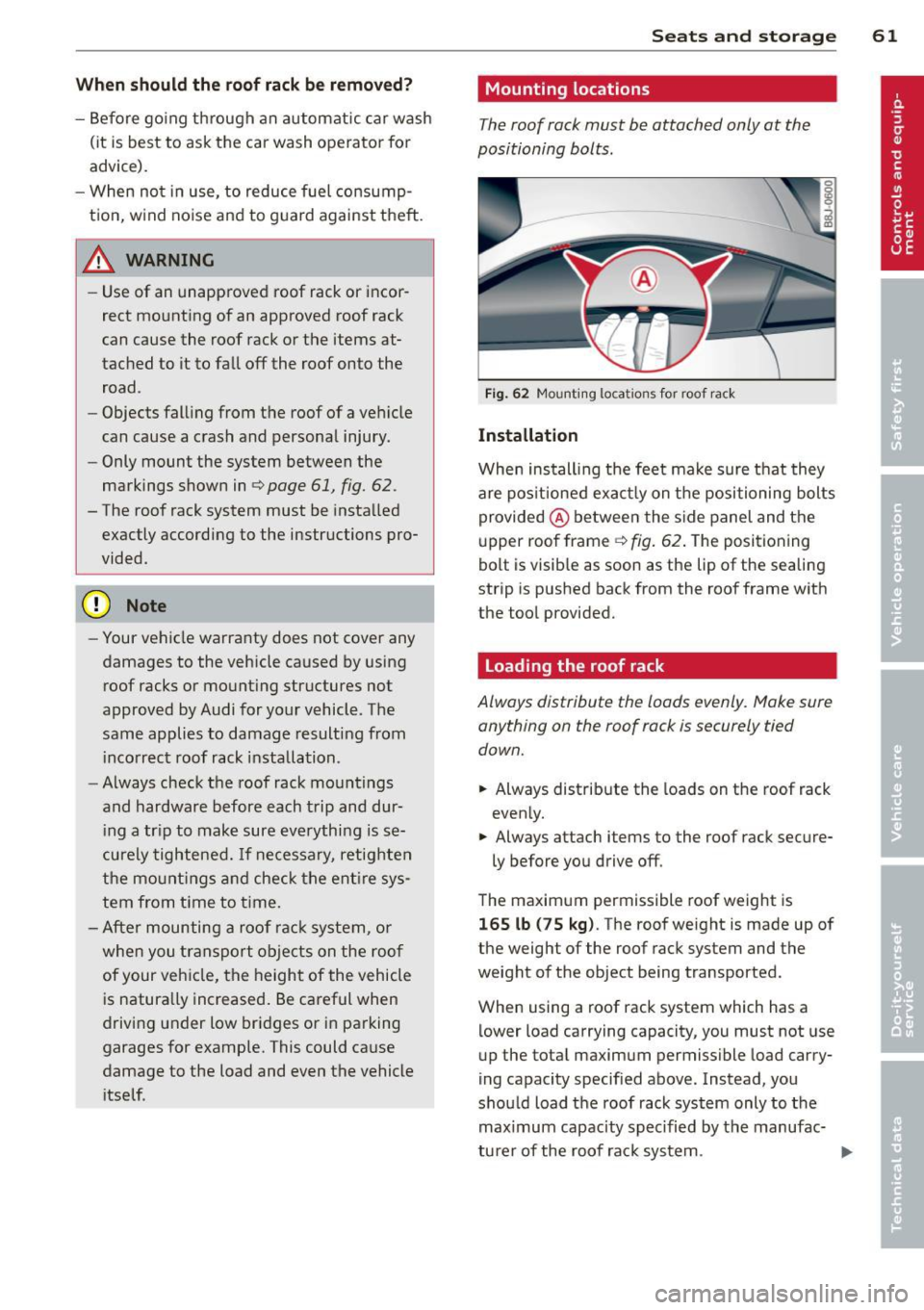

When should the roof rack be removed?
-Before going through an automatic car wash
(it is best to ask the car wash operator for
advice).
- When not in use, to reduce fuel consump­
tion, wind noise and to guard against theft.
_& WARNING
- Use of an unapproved roof rack or incor­
rect mounting of an approved roof rack
can cause the roof rack or the items at­
tached to it to fall off the roof onto the road .
- Objects falling from the roof of a vehicle
can cause a crash and personal injury .
- Only mount the system between the
markings shown in
¢ page 61, fig. 62.
- The roof rack system must be installed
exactly according to the instructions pro­
vided.
(D Note
- Your vehicle warranty does not cover any
damages to the vehicle caused by using
roof racks or mounting structures not
approved by Audi for your vehicle. The
same applies to damage resulting from
i ncorrect roof rack installation.
- Always check the roof rack mountings
and hardware before each trip and dur­
ing a trip to make sure everything is se­
curely tightened.
If necessary, retighten
the mount ings and check the entire sys­
tem from time to time.
- After mounting a roof rack system, or
whe n you transport objects on the roof
of your vehicle, the height of the vehicle
is naturally increased. Be careful when
driving under low br idges or in parking
garages for example. This could cause
damage to the load and even the vehicle
i tself .
Seats and storage 61
Mounting locations
The roof rack must be attached only at the
positioning bolts.
Fig. 62 Mounting locat ions for roof rac k
Installation
When installing the feet make sure that they
are pos itioned exact ly on the positioning bolts
provided @ between the side panel and the
upper roof frame ¢
fig. 62. The positioning
bolt is visib le as soon as the lip of the sealing
strip is pushed back from the roof frame with
the tool provided.
Loading the roof rack
Always distribute the loads evenly. Make sure anything on the roof rack is securely tied
down.
.,. Always distribute the loads on the roof rack
evenly.
.,. Always attach items to the roof rack secure-
ly before you drive off .
The maximum permissible roof weight is
165 lb (75 kg). The roof weight is made up of
the weight of the roof rack system and the
weight of the object being transported.
When using a roof rack system which has a
lower load carrying capacity, you must not use
up the total maximum permissible load carry­
ing capacity specified above. Instead, you
should load the roof rack system only to the maximum capacity spec ified by the manufac-
turer of the roof rack system . ..,.

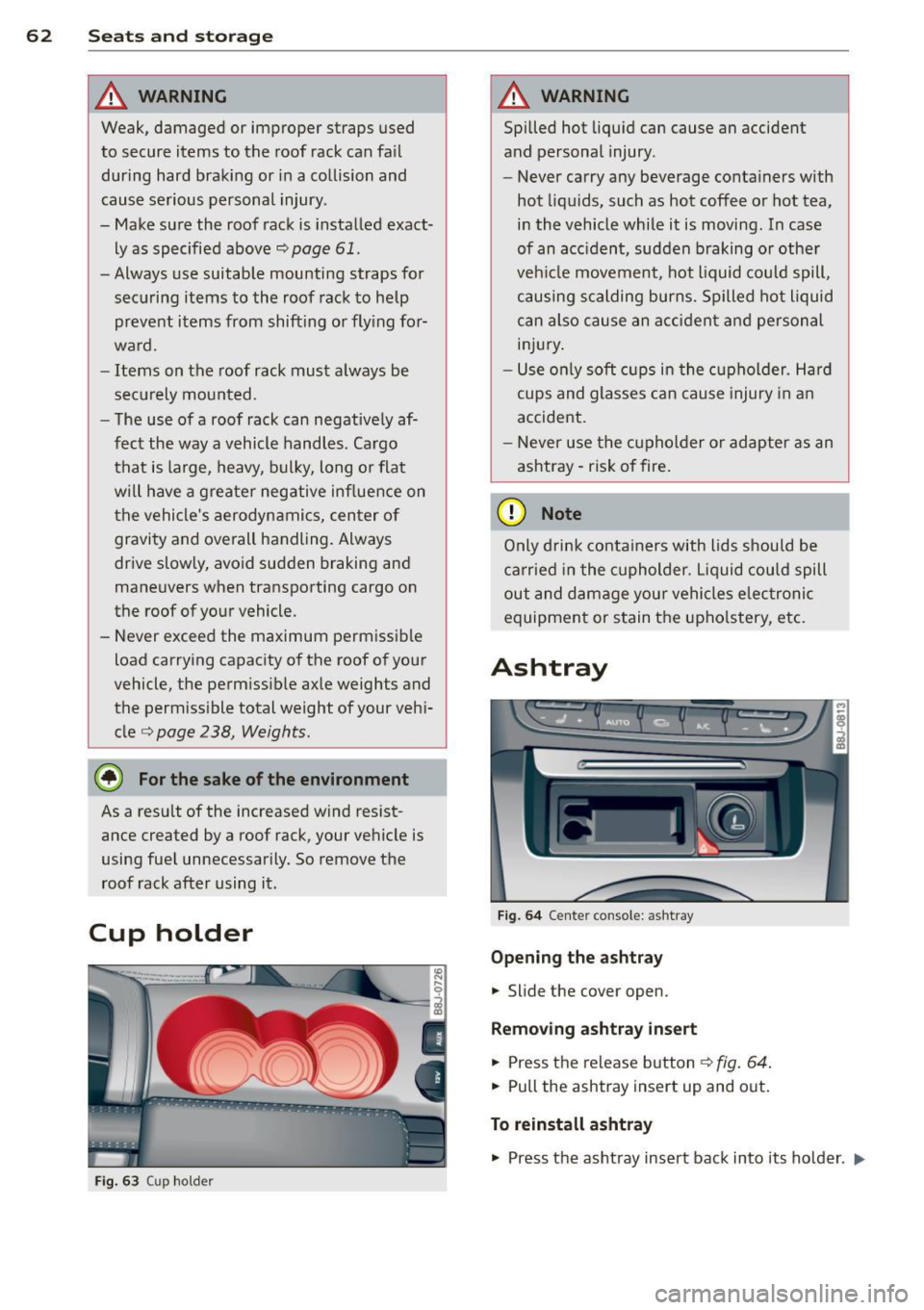

62 Seats and storage
A WARNING
Weak, damaged or improper straps used
to secure items to the roof rack can fa il
during hard braking or in a collision and
cause se rious personal injury .
- Make sure the roof rack is installed exact ­
ly as specified above
c> page 61 .
-Always use suitable mounting straps for
sec uring items to the roof rack to help
preve nt items from shift ing o r fly ing for­
wa rd.
- Items on the roof rack must always be
se cu rely mo unted.
- The use of a roof rack can negat ive ly af­
fect the way a vehicle handles. Ca rgo
that is large, heavy, b ulk y, long o r flat
wi ll h ave a g reater neg ative inf luence on
t he vehicle 's aerodynamics, cen ter of
gravity and overall handling . Always
dr ive slow ly, avoid sudden braking and
maneuvers when transporting cargo on
the roof of your vehicle.
- Never e xceed the maximum permissib le
load carrying capacity of the roof o f your
vehicle, the perm issib le a xle weights and
the permiss ible total weight of your veh i­
cle
c> page 238, Weights .
@) For the sake of the environment
As a result of the increased wind resist­
ance created by a roof rack , your veh icle is
using fue l unnecessar ily. So remove the
roof rack after using it .
Cup holder
Fig. 63 Cup ho ld er
A WARNING
-Spilled hot liquid can cause an accident
and personal injury .
- Never carry any beverage conta iners with
hot liquids , such as hot coffee o r hot tea,
i n the vehicle while it is moving. In case
of an acc ident, sudden braking or othe r
veh icle movement, hot liquid could spill,
c a using scalding burns. Spilled hot liquid
can also cause an acci dent and personal
i njur y.
- Use o nly soft c ups in the cupholder . H ard
cups and glasses can cause injury in an
accident.
- Never use the cup hol der or adapter as an
ashtray -ris k of fire.
(D Note
Only d rink conta iners with lids should be
ca rr ied in the cuph older. Liquid could spill
out and damage you r vehicles elec tronic
equipmen t or s tain t he upho lstery, etc.
Ashtray
Fig . 64 Center co nsole : a shtr ay
Opening the ashtray
.,. Slide the cover open.
Removing ashtray insert
.,. Press t he re lease b utton c> fig. 64 .
.,. Pull the ashtray insert up and o ut.
To reinstall ashtray
.,. Press the as htray insert back into its ho lder . ..,.

Automatic car wash
The vehicle can be washed in almost any
modern automatic car wash .
The vehicle paint is so durable that the vehicle
can normally be washed without problems in
an automatic car wash. However, the effect on
the paint depends to a large extent on the de­
sig n of the fac ility, the filtering of the wash
water, the type of wash and care mater ial , etc.
If the paint has a dull appearance afte r go ing
through the car wash or is scratched, bring
this to the attention of the operator immedi­
ately. If necessary, use a different car wash.
Before going through a ca r wash, be s ure to
take the usual precautions such as closing the
windows. Remove antenna if applicable .
If you have installed additional accessories on
the vehicle -such as spoilers, e tc. -it is best to
ask the car wash operator i f these should be
removed .
A WARNING
Always read and heed all WARNINGS and
the information ¢
page 164.
(D Note
- Fold the exterior mirrors -flat the re is a
risk of damaging the exterio r mirrors .
Power folding exterior mi rrors must not
be fo lded in or out by hand. Use the pow­
er function!
- Compare the track of your vehicle w ith
the d istance between the guide ra ils of
the facility- there is a risk of damage to
the wheels and tires .
- Compare the width of your vehicle wit h
the width of the tu nnel at the fac ility.
Washing the vehicle by hand
A lot of water is needed when washing a vehi­
cle by hand.
~ Befo re you start washing, make sure you
have read and understood the WARNINGS
¢ A in General informa tion on page 164 .
Cleaning and protec tion 165
~ First soak all dried d irt unt il it is soft, then
rinse it off.
~ As you clean yo ur vehicle, start w it h the
roof and work your way down to the bottom,
using a sponge, a sponge g love or a clean
brush .
~ Rinse the sponge o r the sponge glove often,
flushi ng it clean each time.
~ Use spec ia l car shampoo only fo r very per­
sisten t dirt.
~ Rinse the car thoroughly wit h water.
~ Use a chamois leather to gent ly wipe the ex -
terior dry .
U se a separate sponge for cleaning the
whee ls, door s ills and other regions exposed
to road dirt. In this way, yo u wi ll not scratch
the paint wit h coarse particles imbedded in
the sponge the next time you wash the car.
A WARNING
- Wash your vehicle only when the ignition
is switched off to reduce the risk of a
crash .
- Always read and heed all WARNINGS and
other information ¢
page 164.
(D Note
-Never try to remove dirt, mud or dust if
the surface of the veh icle is dry. Never
use a dry cloth or sponge, s ince this
cou ld scratch your vehicle's paint or win­
dows .
- Never wash your car in bright sun light.
Drops of wate r act as mag nifying lenses
and may damage yo ur paint .
- Whe n you wash your car in the winter: if
you rinse yo ur vehicle with a hose, be
c ar efu l not to aim the stream of water
directly at locks, or at doo r or hatch
openi ngs -they can free ze sh ut.
- Never use sponges designed to
remove
insec ts, or any k itche n sco uring sponges
or s imil ar p rod ucts. They can damage
your paint finish .
- Never use a dry cloth or sponge to clean
the headlights . Only use wet cloths o r
•
•

198 Tires and wheels
Groove
means the space between two adjacent tread
ribs .
Load rating (code)
means the maximum load that a tire is rated
to carry for a given inflation pressure. You
may not find this informat ion on all tires be­
cause it is not req uired by law.
Maximum load rating
means the load rating for a t ire at the max i­
mum permissible inflation pressure for that
tire.
Maximum loaded vehicle weight
means the sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity we ight, and
(d) Production options weight
Maximum (permissible) inflation pressure
means the maximum cold inflation pressure
to which a tire may be inflated. Also called
"maximum inflation pressure ."
Normal occupant weight
means 150 lbs. (68 kilograms) times the
number of occupants seated in the vehicle up
to the total seating capacity of your vehicle .
Occupant distribution
means distribution of occupants in a vehicle.
Outer diameter
means the overa ll diameter of an inflated new
tire.
Overall width
means the linear distance between the exteri­
ors of the sidewalls of an inflated tire, includ ­
ing elevations due to labeling, decorations, or
protective bands o r ribs .
Ply
means a layer of rubber-coated parallel cords.
Production options weight
means the combined weight of those insta lled
regular production options weighing over 5
lb s. (2 .3 kg) in excess of those standard items
which they replace, not previously considered
in curb weight or accessory we ight, including
heavy duty brakes, ride levelers, roof rack,
heavy duty battery, and special tr im .
Radial ply tire
means a pneumat ic tire in which the ply cords
that extend to the beads are laid at substan­
t ia lly 90 degrees to the center line of the
tread .
Recommended inflation pressure
see <=> page 19 7, Cold tire inflation pressure.
Reinforced tire
means a t ire designed to operate at higher
loads and at higher inflation pressures than
the cor responding standard tire. Reinf orced
ti res may be identified as "XL" , "xl", "E XTRA
LOAD", or "RF" on the sidewall.
Rim
means a metal support for a tire or a tire and
tube assembly upon which the tire beads are
seated.
Rim diameter
means nom inal diameter of the bead seat. If
you change your wheel s ize, you will have to
purchase new tires to match the new rim di­
ameter.
Rim size designation
means r im diameter and width .
Rim width
means nominal distance between rim flanges.
Sidewall
means that portion of a tire between the
tread and bead.

designated seating position) and luggage
weight.
Gross Axle Weight Rating
The G ross Axle Weight Rating is the maximum
l oad that can be applied at each axle of the
veh icle ¢.&. .
Vehicle capacit y weight
The vehicle capac ity we ight (max. load) is list­
ed either on the dr iver's side B-pillar or inside
the fuel filler flap.
Roof weight
The max imum perm issible roof weight is 165
lb (7 5 k g). The roof weight is made up of the
weight of the roof rack system and the weight
of the object being transported
¢ page 61,
Loading the roof rack .
.&, WARNING
- T he actual Gross Axle Weight Rat ing at
the front and rear axles shou ld not ex­
ceed the permiss ible weights, and their
combination must not exceed the Gross
Vehicle Weight Rat ing.
- Exceeding permissib le weight ratings can
result in vehicle damage, accidents and
personal injury.
CD Note
- The vehicle capacity weight figures apply
when the load is distributed evenly in the
vehicle (passengers and luggage). When
transporting a heavy load in the luggage
compartment, carry the load as near to
the rear axle as possib le so that the veh i­
cle's handling is not impa ired.
- Do not exceed the maximum permissible
axle loads or the max imum gross vehicle
weight. Always remember that the vehi­
cle's handling will be affected by the ex­
tra load. Therefore, adjust you r speed ac ­
cord ingly.
- Always observe loca l regu lations.
-
G ene ral in formation 239
Dimensions
The specifications refer to the basic model.
Differences may occur depending on the mod­
el type and options ordered, for example, tire
sizes.
CD Note
When driving up steep ramps, on rough roads, over curbs, etc. it is important to re­
member that some parts of your vehicle,
such as spoilers or exhaust system compo­ nents, may be close to the ground . Be
careful not to damage them .
•
•

-----------------------------~I~ n~ d~ e~x 253
LA T CH . ..... .. ............ .... .... 143
Description ................. ... ... 144
Guidance f ixtures for lower anchorages 145
Installing a child restraint .. .... .. ... 146
Location
144
Mounting and releasing the anchorage
hook .. .. .. .. ........ ... .. ... ... . 146
Launch Control Program . . . . . . . . . . . . . . 85
L eather . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
C leaning . .. ............. .. .. .. .. . 173
Leaving home ................ .... ... 43
Lifting jack .. ................ ... ... 225
Lifting vehicle ............. .. .. .. .. . 237
Light/rain sensor defective .. .. .. .. .. .. 21
Lights . ..... .. ................ ..... 42
Coming/Leaving home ........... .. .. 43
Emergency flasher .................. 45
Exterior lighting .......... .... .. .. .. 43
Front fog lights .......... .. .. .. .. .. 44
Headlights ............... ... ... ... 42
High beam . . . . . . . . . . . . . . . . . . . . 42, 44
Instrument panel illumination .. . ... .. 46
Side marker lights ........ .. .. .. .. .. 42
Turn signals .. ........... .. .. .. .... 44
Xenon headlights ......... .. .. .. .. .. 42
Loading the luggage compartment ...... 96
Loading the roof rack .......... ... .. .. 61
L ocking
Power locking switch ........ .. .. .. .. 36
Rear lid/trunk lid . . . . . . . . . . . . . . . . . . . 3 7
Remote master key .......... ... .. .. 35
Using the key .................. .... 36
L ower universal anchorage ba rs (Canada) 143
Lower universal anchorages (Canada) 143
L uggage compartment
Cover . ... .. .. ................ ..... 60
Expanding . . . . . . . . . . . . . . . . . . . . . . . . 59
Fastening eyelets ......... .. .. .. .. .. 59
Light .. ... . .... ............. .. .. .. 46
Loading . ... ... .. .. ...... .. .. .. .. .. 96
M
Maintenance . ............. .... .. ... 243
Malfunction Indicator Lamp (MIL) . . 19, 30
Manual transmission ............ .... . 80
Gearshift lever ... .. ...... .. .. .. .. .. 80 Master key ...
..... .................. 33
Battery replacement . . . . . . . . . . . . . . . . 33
Matte finish paint .. ................. 166
Menu button .. .. .. ................. . 25
Menu display . . . . . . . . . . . . . . . . . . . . . . . . 24
Mirrors Activating the dig ita l compass ...... .. 52
Adjusting the exterior mirrors .... .. .. . 47
dimming .. .. .. .. ... .. .......... .. . 47
Monitoring the Advanced Airbag System 119
N
Natural leather .. .. ................. 172
New tires and wheels
NHTSA 207
Contacting ...... .. ................ 98
Number of seats . .. .... ............. 100
0
Occupant seating positions .......... .. 91
Octane rating ... .. .... ........... . .
Odometer
.. .. .. .. ..................
Oil 176
12
refer to Engine oil ................ . 182
On-Board Diagnostic System (OBD)
Data Link Connector (DLC) ....... .. .. . 30
Electronic speed limiter ......... .. .. . 31
Malfunction Indicator Lamp (MIL) ... .. 30
Open door or front lid warn ing ....... .. 22
Operate your vehicle economically and
minimize pollution . ................. 161
Optional eq uipment
Marked with an asterisk . . . . . . . . . . . . . . . 6
Other equipment (efficiency program) .. . 27
Outlets ...... .. ...... ............. . 63
Outs ide mirrors
refer to Exterior mirrors ............. 47
Outs ide temperature display . . . . . . . . . . . 22
Owner's manual How the Owner's Manual is organized . .. 6
p
Paint
Touch-up ... ... .... ............... 168
Pa int No . 238
•
•

Roof rack Loading .... ..... ..... ... .. .. .. .... 61
Mounting locations ...... ... .. .. .. .. 61
Safe mounting ........... .... .. .... 60
Roof weight . . . . . . . . . . . . . . . . . . . . . . . . . 61
Run-flat tires ............... ... ... .. 217
Driving .................... ... ... 218
I ntroduct ion ............. .... .. .. . 217
Replacing defects parts . . . . . . . . . . . . . 219
s
SAFE ...... ... ................ .... . 12
Safe driving hab its . . . . . . . . . . . . . . . . . . . 90
Safety belt posi tion ........ .. .. .. .. . 105
Safety belts worn by p regnant women . 105
Safety belt prete nsioner
Service and disposal ...... .. .. .. .. . 107
Safety belts . . . . . . . . . . . . . . . . . . . . . . . . 104
Cleaning . .. ............. .... .. ... 174
Danger to passe ngers who do not wear a
safety belt . . . . . . . . . . . . . . . . . . . . . . . 102
Fasten ing .. .. .............. ... ... 104
I mp roperly worn ......... .. .. .. .. . 106
N ot wo rn . . . . . . . . . . . . . . . . . . . . . . . . 10 2
pretensioners .... ..... ... .. .. .. ... 106
Safety belt position . . . . . . . . . . . . . . . . 105
Safety instructions ..... ... .. .. .. .. . 103
Secur ing ch ild safety seats . .. .. .. .. . 140
Special cons iderations for pregnant
women .. .. ............. .... .. ... 105
Unfasten ing .. ........ ...... .... .. 106
War ning/ indica to r light .. .. .. .. .. .. . 100
WhyYOU MUSTwea rthem . .. .. .. .. . 100
Wo rn properly ........... .. .. .. .. . 10 2
Safety belt warn ing light . . . . . . . . . 16, 100
Safety compliance sticker ... .. .. .. .. . 238
Safety equipment . . . . . . . . . . . . . . . . . . . . 90
Safety features for occupant restra int and
protection . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Safety guide lines
Seat adjustment . . . . . . . . . . . . . . . . . . . . 54
Safety instructions Eng ine compartment ...... .. .. .. .. . 180
fo r us ing chi ld safety seats . .. .. .. .. . 133
F or using safety be lts . . . . . . . . . . . . . . 103
Mo nitoring the Advanced Airbag Sys-
tem ... .. .. ... .. .. ..... ... .. .. ... 121
Inde x 255
Safety lock (Ignition key) . . . . . . . . . . . . . . 72
Seat adjustment Drive r's seat . . . . . . . . . . . . . . . . . . . . . . . 54
Front passenger's seat . . . . . . . . . . . . . . . 55
F ron t seats . . . . . . . . . . . . . . . . . . . . . . . . 54
Head restraints .. .. . ... .... ... .. .. . 94
Head restraints , front seat ... ... .. .. . 57
Manua l controls . ... .. .. .... ... .. .. . 55
Power seats . . . . . . . . . . . . . . . . . . . . . . . 56
Safety gu idelines . ................. . 54
seatback ang le . ... ............... .. 55
Seating capacity ..... . .. ..... ... .. .. 100
Seat ing position
D rive r .. .. .. .. .. .. .. ........... .. . 91
F ron t passenger .. ................. . 92
How to ad just the front seats . ... .. .. . 92
Incorrect seat position . . . . . . . . . . . . . . . 94
Occ upants ... .. .... . ... ...... ... .. . 91
Rear passengers .. .... ............. . 93
Seats Number of sea ts .... .. ..... ... .. .. 100
Se lector lever emerge ncy release . . . . . . . 86
Se lector lever positions . . . . . . . . . . . . . . . 80
Se rv ice and d ispos al
Safe ty be lt pre tensioner ........ .. .. 107
Se rv ice interval display . . . . . . . . . . . . . . . . 28
Se rvice position for windshield wipers . .. 50
Set me nu ... .. .. .. .. . .............. . 26
Setting Date d isp lay
D igital clock
S ide a irbags ..
... .. ..... ........... 11
11
Description .. .. .. ... ............ .. 126
How they work . .. ............. .... 127
S ide marker lights ... . ... .... ... .. .. . 42
Snow cha ins .. .. .... .......... ..... 212
Sockets .... .. .. .. ................. . 63
Sound sys tem disp lay . . . . . . . . . . . . . . . . . 22
Sources of information about child re -
stra ints and their use .... ....... .... . 149
Speedometer . . . . . . . . . . . . . . . . . . . . . . . 12
Speed ra ting letter code . ......... .... 208
Speed warning system ... ..... ... .. .. . 74
Sport b utton . . . . . . . . . . . . . . . . . . . . . . . . 78
Sport mode . . . . . . . . . . . . . . . . . . . . 78, 1S2
Starting ass istance . ................. 233
•
•
