& W ARNING (continued )
seating position and have the airbag system inspected by your
Audi dealer .
• A tight tether or other str ap on a rearward-fac ing child restr aint
attached to the front pas senger seat can put too much pressure
on the weight-sensing mat in the seat and reg ister more weight
than i s actually on the seat. The heavier weight registered can
make the system work as though an adult were on the seat and
deploy the Advanced Airbag when it must be suppressed causing
s erious or even fatal injury to the child .
• If, in exceptional circumstance s, you mu st in stall a forward ­
fac ing child restra int on the front passenger seat , always move the
seat into its rearmost position in the seat 's fore and aft ad just ­
ment range , as far away from the airbag a s possible . The backrest
must be adjusted to an upright position . Make sure that the
PASSENGER AIR BAG OFF light comes on and stay s on all the time
whenever the ignition is switched on .
& WARNING
• If the PASSENGER AIR BAG OFF light does not go out when an
adult is sitting on the front passenger seat after taking the steps
described above, make sure the adult is properly seated and
restrained at one of the rear seating positions .
• Have the airbag system inspected by your Audi dealer before
transporting anyone on the front passenger seat .
[ i ] Tips
If the weight -sensing mat in the front passenger seat detects an
e mp ty seat, the fro nt air b ag on the pa ssenge r sid e will be t urned
off, and PASSENGER AIR BAG OFF will stay on.•
Controls and equip­ ment Safety first
Vehicle operation
Repair, care and disposal of the airbags
Parts of the airbag system are insta lled at many different places on
your Au di. In sta ll in g, re moving, ser vic in g or re pair in g a part in an
area of the vehicle can damage a part of an a irbag system and
pre ven t that system fro m wo rki ng p rope rly in a co llision .
There are some important things you have to know to make sure
that the effectiveness of the system will not be impai red an d that
d iscarded components do not cause inju ry or po llute t he e nv iron ­
ment .
& WARNING
Improper care , servicing and repair procedures can increase the
risk of personal injury and death by preventing an airbag from
deploying when needed or deploying an airbag unexpectedly:
• Never cover , obstruct , or change the steering wheel horn pad
or airbag cover or the instrument panel or modify them in any way .
• Never attach any obje cts su ch as cup holders or telephone
mountings to the surfaces covering the airbag units.
• For cleaning the horn pad or instrument panel, use only a soft ,
dry cloth or one moi stened with plain water . Solvents or cleaners
c ould damage the airbag cover or change the stiffness or strength
of the material so that the airbag cannot deploy and protect prop ­
erly .
• Never repair , adjust , or change any parts of the airbag system.
• All work on the steering wheel , instrument panel , front seats or
electrical system (including the installation of audio equipment ,
c ellular telephones and CB radios , etc .I must be performed by a
qualified technician who has the training and special equipment
necessary .
• For any work on the airbag system , we strongly recommend
that you see your authorized Audi dealer or qualified workshop .
• Never modify the front bumper or parts of the vehicle body .
Vehicle care Do-it-yourself service Technical data

-L~A:::..:,: ir:....: b:!..::: a~g L.:: s:1y :...:s::..: t~ e:.: m:...:...:.. ________________________________________________ _
& WARN ING (continued )
• Always make sure that the side airbag can inflate without inter­
fe rence :
- Never install seat covers or replacement upholstery over the
front seatback s that have not been spe cifically approved by
Audi.
- Never use additional seat cushions that cover the areas
where the side airbags inflate .
- Damage to the original seat covers or to the seam
in the area
of the side airbag module must always be repaired immedi ­
ately by an authorized Audi dealer .
• The airbag system can be activated only once. After an airbag
ha s inflated , it must be replaced by an authorized Audi de aler or
qualified technician who has the technical information , training
and special equipment necessary .
• The airbag system can be deployed only once. After an airbag
has been deployed , it must be repla ced with new repla cement
parts designed and approved especially for your Audi model
version . Replacement of complete airbag systems or airbag
components must be performed by qualified workshops only .
Make sure that any airbag service action is entered in your Audi
Warranty
& Maintenance booklet under AIRBAG REPLACEMENT
RECORD .
• For safety reasons in severe accidents , the alternator and
starter are separated from the vehicle battery with a pyrotechn ic
circuit interrupter.
-Work on the pyrotechni c circuit interrupter must only be
performed by a qualified dealer -risk of an accident!
- If the vehi cle or the circuit inte rrupter is scrapped , all appli ­
cable safety precautions must be followed. •
Other things that can affect Advanced Airbag
performance
Changing the vehic le 's suspens ion system can change the way that
th e Adva nced Air bag Syste m performs in a c rash. Fo r example,
using tire -ri m co mbinations not approved by Audi, lowering the
veh ic le, c hang in g the st if f ness o f th e suspe nsio n, incl uding th e
spr ings, suspension struts, shock absorbers etc. can change the
f o rces t hat a re m easured by the a irba g se nsors and se nt to the elec ­
tronic control unit. Some suspension changes can, for example,
i ncrease the fo rce level s meas ure d by the senso rs and make the
a irbag system dep loy in crashes in which it wou ld not d ep loy if the
changes ha d no t been made . O th er ki nds of changes may red uce
th e force levels measured by the sensors and preve nt the airbag
fro m deploying w hen it sh ould.
Th e senso rs in th e sa fety belt buc kle fo r the dr iver a nd fro nt
passenger seat te ll the e lectronic control modu le if the safety belt is
l a tc h ed or not. If th e sa fe ty belt is being use d, th e front airbag wi ll
deploy at a slightly higher rate of vehic le dece leration than if the
sa fe ty be lt is n ot b ein g use d. Th ere fore, i n a partic ula r co llisi on, i t is
possible that an airbag wi ll not deploy at a seating position where
th e sa fe ty be lt is bei ng us ed bu t wi ll infl ate at the position w here the
safety be lt is not being used. It is important that nothi ng interfere
with the safety belt buc kles so that the sensors can send the co rrect
i nformatio n about safety belt use to t he electronic control unit.
& WARNING
Changing the vehicle's suspension including use of unapproved
tire -rim combinations can change Advanced Airbag performance
and increase the risk of serious personal injury in a crash.
• Never install suspension components that do not have the
same pe rformance characteristics as the components originally
installed on your vehicle.
• Never use tire -rim combinations that have not been approved
by Audi. ..

& WARNING
Items stored between the safety belt buckle and the center
console can cause the sensors in the buckle to send the wrong
information to the electronic control module and prevent the
Advanced Airbag System from working properly.
• Always make sure that nothing can interfere with the safety
belt buckles and that they are not obstructed.
Undeployed airbag modules and pretensioners might be classified
as Perchlorate Material -special handling may apply, see
www.dtsc.ca.gov/hazardouswaste/perchlorate. When the vehicle or
parts of the restraint system including airbag modules safety belts
with pretensioners are scrapped, all applicable laws and regula­
tions must be observed. Your authorized Audi dealer is familiar with
these requirements and we recommend that you have your dealer
perform this service for you. •
Safety first
Knee airbags
Description of knee airbags
Airbag system
The airbag system can provide supplemental protection
to properly restrained front seat occupants.
Fig. 114 Driver 's
airbag
The airbag for the driver is located in the instrument panel under ­
neath the steering wheel=> fig. 114, the airbag for the passenger is
at about the same height in the instrument panel underneath the
glove compartment.
The knee airbag offers additional protection to the driver's and
passenger's knees and upper and lower thigh areas as a supple­
ment to the safety belts.
If the front airbags deploy, the knee airbags also deploy in frontal
collisions above a certain severity=>
page 144, "More importan t
things to know about front airbags".
Besides their normal safety function, safety belts work to help keep
the driver or front passenger in position in case of a frontal collision
so that the airbags can provide protection.
The airbag system is not a substitute for your safety belt. Rather, it
is part of the overall occupant restraint system in your vehicle.
Always remember that the airbag system can only help to protect
you if you are wearing your safety belt and wearing it properly. This •
Vehicle care I I irechnical data

__ .....:::A::.::..:. ir..:b ::..:a::. 9:2...: s:::L y..::s :.:t ..::e :.:m.:..:... ________________________________________________ _

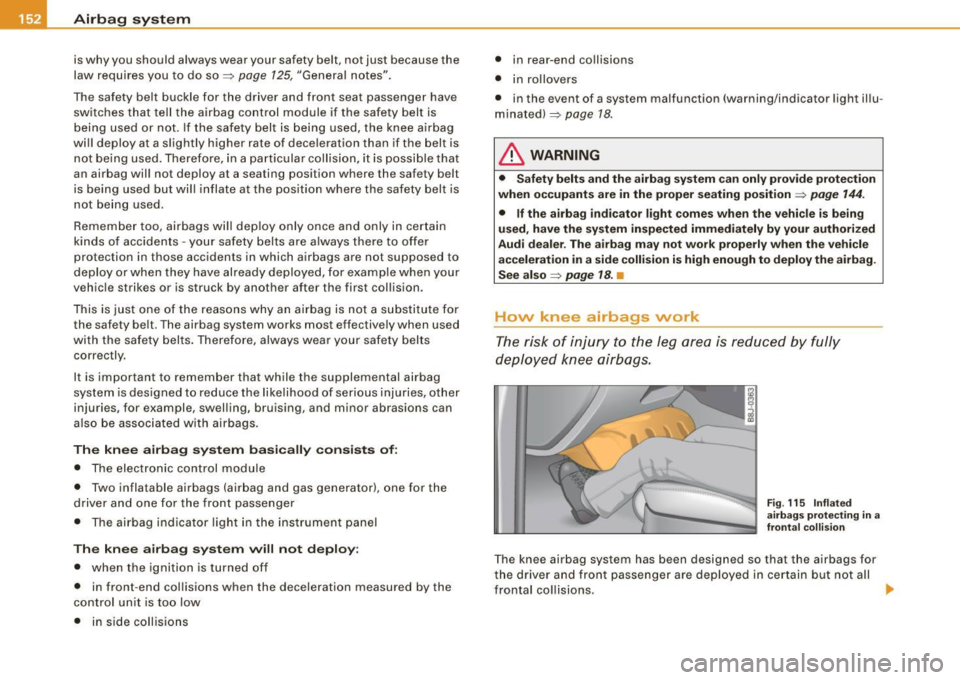

is why you should always wear your safety belt, not just because the
law requires you to do so~
page 125, "General notes".
The safety belt buckle for the driver and front seat passenger have switches that tell the airbag control module if the safety belt is
being used or not . If the safety belt is being used, the knee airbag
will deploy at a slightly higher rate of deceleration than if the belt is
not be ing used. Therefore, in a part icular collision, it is possible that
an airbag will not deploy at a seating position where the safety belt
is being used but will inflate a t the position where the safety belt is
not being used .
Remember too, airbags wi ll deploy only once and only in certain
kinds o f accidents -your safety belts are a lways there to offer
protection in those accidents in which airbags are not supposed to
deploy or when they have already deployed, for example when your
vehic le strikes or is struck by another after the first collision .
This is just one of the reasons why an airbag is not a substitute for
the safety be lt . The airbag system works most effectively when used
with the safety bel ts. Therefore, always wear your safety belts
correctly .
It is important to remember that while the supplemental airbag
system is des igned to reduce the likelihood of serious injuries, other
injuries, for example, swelling, bruising, and minor abrasions can
a lso be associated with airbags.
Th e kn ee a irbag s ystem b asica lly con sist s of:
• The electronic control module
• Two inflatable airbags (airbag and gas generator!, one for the
driver and one for the front passenger
• The airbag indicator light in the instrument panel
T he kn ee airb ag sys te m will not depl oy:
• when the ignition is turned off
• in front -end col lisions when the deceleration measured by the
control unit is too low
• in side collisions •
in rear-end collisions
• in rollovers
• in the event of a system malfunction (warning/indicator light illu ­
m inated)~
page 18 .
& WARNING
• Safet y belt s a nd th e airbag sy stem can onl y pr ovi de prote ction
when o ccupants are in the prop er seating posit ion ~
pag e 144.
• If the airbag i nd ica to r light com es whe n the vehi cle is being
used , have the sy ste m in spected imm ediat ely by y our authori zed
Audi deale r. The a irbag ma y not work p roperly when the v ehicl e
acceler ation in a sid e co llision i s high enou gh to deploy th e airbag.
S ee als o~
pag e 18. •
How knee airbags work
The risk of injury to the leg area is re duced by fully
deployed knee airbags.
Fig . 115 Inf lat ed
a ir bags pro tec ting in a
fr ontal co llision
The knee airbag system has been designed so that the airbags for
the driver and fron t passenger are deployed in certain but not all
frontal co llisions. .,.

Airbag system -----------------=~-
If the fr ont airba gs deploy, t he kne e airbags also deploy in fro ntal
c o lli sion s above a ce rt a in s ev e rity.
W hen th e syst em is dep loy ed, the airbags start to f ill with a prope l­
lant gas, and inflate between the lower part of the inst rument pane l
and the dri ver an d the l ower pa rt of t he in strument panel a nd the
front passenger =>
page 144, fig. 112.
A lth ough they ar e not a so ft pil low, the y ca n "c ush io n" the impac t
an d in this way they can h elp to reduce the risk of in jury to th e low er
e xtr emiti es.
A ll thi s takes place insta nt ane ous ly, so f ast th at many p eople don't
eve n realize that the a irbags ha ve deploye d. T he ai rb ag s als o i nflate
wi th a great dea l of force and it is im portant f or occ up ant saf ety that
no thi ng s ho ul d be in t he ir wa y when the y dep lo y.
Fu lly infl ate d airb ags in combin ation with pr operl y worn s afe ty b elt s
s lo w dow n and limi t the occu pant's fo rward moveme nt and h elp to
r e duc e th e risk. •
Important safety instructions on the knee
airbag system
A irbags are only s upplem enta l restra ints. Alwa ys wea r
safe ty belts corr ectly and ride in a prop er seating position .
There is a lo t th at you an d your p assenger s m us t kn ow and d o to
he lp the safety be lts an d air ba gs to p ro v ide supp leme nta l p ro tec ­
ti on.
& WARNING
An inflating knee airbag can cause serious injury. Wearing safety
belts incorrectly and improper seating positions increase the risk
of serious personal injury and death whenever a vehicle is being
used .
• The airbag system cannot protect you properly if you are
seated too close to any of the airbag locations. When adjusting
Controls and equip­ ment Safety first
Vehicle operation
& WARNING (continued)
their seat positions, it is important that both the driver and the
front passenger keep their upper bodies and knees at the
following minimum safe distances:
- 1
O inches (25 cm) between the chest and the steering
wheel /instrument panel .
- 4 inches (10 cm) between the knees and the lower part of the instrument panel .
• The risk of personal injury increases if you lean forward or to
the side, or if the seat is improperly positioned and you are not
wearing your safety belt . The risk increases even more should the
airbag deploy .
• Always make sure that the knee airbag can inflate without
interference . Objects between yourself and the airbag can
increase the risk of injury in an accident by interfering with the
way the airbag deploys or by being pushed into you as the airbag
deploys .
- No persons (children) or animals should ride in the footwell
in front of the passenger seat . If the airbag deploys , this can
result in serious or fatal injuries .
- No objects of any kind should be carried in the footwell area
in front of the driver's or passenger's seat . Bulky objects (shop­
ping bags , for example) can hamper or prevent proper deploy­
ment of the airbag . Small objects can be thrown through the
vehicle if the airbag deploys and injure you or your passengers .
• Make sure there are no cracks, deep scratches or other damage
in the area of the instrument panel where the knee airbags are
located .
• If children are incorrectly seated, their risk of injury increases in
the case of an accident=>
page 157, "Child Safety". •
Vehicle care Do-it-yourself service Technical data

___ A_ ir_b _a_ g;:::;_ s--:.. y_s _t _e _m _________________________________________________ _
Side airbags
Description of side airbags
The airbag system can provide supplemental protection
to properly restrained front seat occupants.
Fig. 1 16 S ide a irbag
l oca tion i n the drive r's
seat
The side airbags are located in the sides of the front seat backrests
~ fig. 116 facing the doors. They are identified by the word
"AIRBAG".
Th e s ide a irba g sys te m bas ica lly consis ts o f:
• the e lectronic control module and external side impact sensors
• the two side airbags located in the sides of the front backrests
• the airbag warning light in the instrument cluster .
The airbag system is monitored electronica lly to make certain that
it is functioning properly at all times . Each time you turn on the igni ­
tion, the airbag system indicator light will come on for a few
seconds (self diagnostics).
The side airbag system supplements the safety belts and can help
to reduce the risk of injury to the driver's and front passenger's
upper torso on the side of the vehicle that is struck in a side colli­
sion . The airbag deploys only in side impacts and only when the
vehic le acceleration registered by the control unit is high enough. If
this rate is below the reference value programmed into the control unit, the side airbags will not be
triggered, even though the car may
be badly damaged as a result of the collision. It is not possible to
define an airbag triggering range that wi ll cover every possible
angle of impact, since the circumstances will vary considerab ly
between one collision and another . Important factors include, for
example, the nature (hard or soft) of the impacting object, the angle
of impact, vehicle speed, etc.~
page 155, "Important safety
instructions on the side airbag system" .
Aside from their normal safety function, safety belts work to he lp
keep the driver or front passenger in position in the event of a side
collision so that the side airbags can provide protection.
The airbag system is
not a subs titute for your safety belt. Rather, it
is part of the overall occupant restraint system in your vehicle .
Always remember that the side airbag system can only help to protect you if you are wearing your safety belt and wearing it prop ­
erly. This is another reason why you should always wear your safety
belts, not just because the law requires you to do so~
page 125,
"General notes" .
It is important to remember that while the supplemental side airbag
system is designed to reduce the likelihood of serious injuries, other
injuries, for example, swel ling, bruis ing , and minor abrasions can
also be associated with deployed side airbags . Remember too, side
airbags will deploy only once and only in certain kinds of accidents
- your safety belts are a lways there to offer protection.
Vehicle damage, repair costs or even the lack of vehicle damage are not necessarily an indication of over-sensitive or failed airbag acti­
va tion . In some collisions, both front and side airbags may inflate .
Remember too, that airbags will deploy only once and only in
certain kinds of col lisions -your safety belts are a lways there to
offer protection in those accidents in which airbags are not
supposed to deploy or when they have already deployed .

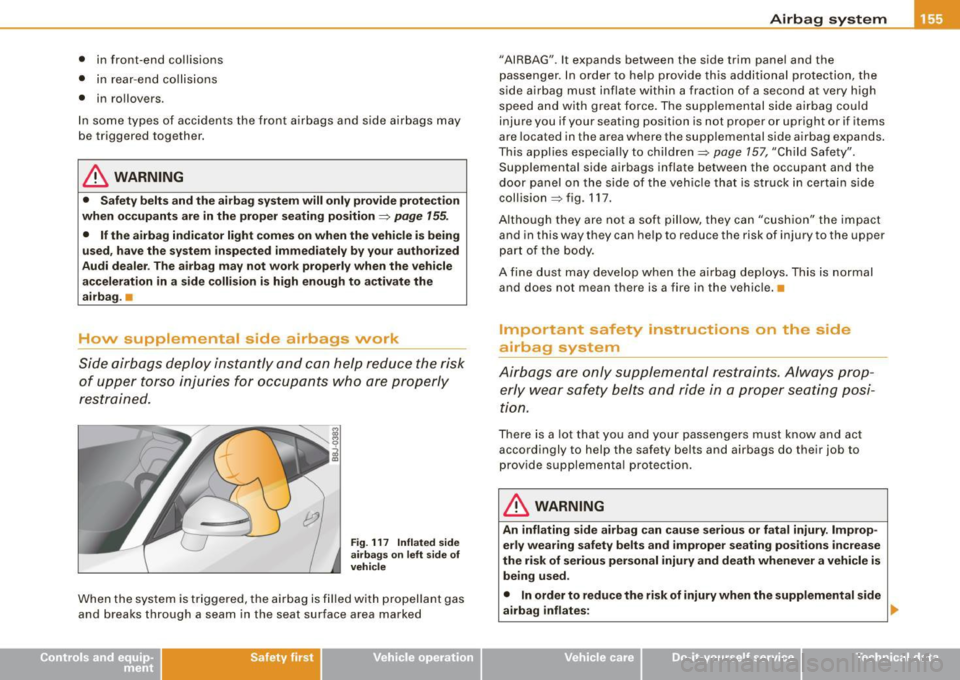

The s ide a irba g sy stem wi ll not deploy :
• whe n the ignition is turned off
• in side collisions when the acceleration measured by the sensor
is too low
~

• in front -end collisions
• i n rea r-en d col lis ions
• in ro llovers.
In som e types o f acci dents th e fron t air bags a nd s ide airbags m ay
be trigge red together.
& WARNING
• Safety belts and the airbag system will only provide protect ion
when occupants are in the proper seating position
=> page 155 .
• If the a irbag indicator light comes on when the vehicle is being
used, have the system inspected immediately by your authorized
Audi dealer . The a irbag may not work properly when the vehicle
acceleration in a side collision is high enough to a ctivate the
airbag .•
How supplemental side airbags work
Side air bags deploy inst ant ly a nd con help reduce the risk
of u pper torso injuries for oc cupants wh o ore p roperly
restrained.
Fig . 117 Inflated side
a irba gs on left side of
vehic le
When the sys tem is triggered, the airbag is fille d with prop ellant gas
and br eaks through a seam in the seat sur face area marked
Safety first
Airbag system
"AIR BAG". It expands between the side trim pane l and the
passe nger. In o rder to hel p provide this a dditional protecti on, the
s ide a irbag must inflate w ithin a fraction of a second at very high
speed a nd w ith grea t force. T he suppleme ntal side ai rbag could
injure you if your seating position is not proper or upright or if items
are located in the a rea where the s upp lemental si de air bag expands .
This applies especial ly to child ren=>
page 157, "Ch ild Sa fe ty".
Sup plemental side airbags inflate between the o ccupant and the
d o or pa nel on the side of the vehicle tha t is str uck in certa in side
collision => fig . 117.
A lthough they a re not a s oft pillow, they ca n "cu shi on" the i mpact
and in this way they can help to reduce the risk of injury to the upper
par t of the bo dy.
A fin e dust may d evelop whe n the ai rbag deploys. T his is no rmal
and does not mean there is a fire in the vehic le .•
rmportant safety instructions on the side
airbag system
Ai rb ags o re on ly supplementa l restrai nts. A lwa ys p rop ­
e rly wea r safety belts and ride i n a prope r seatin g posi­
ti on .
Ther e is a lo t th at you and your passenge rs m ust know a nd act
accordingly to help the safety belts and airbags do their job to
p rovide s upple men ta l pr otec tion .
& WARNING
An inflating side airbag can cause serious or fatal injury . Improp ­
erly wearing safety belts and improper seating positions increase
the risk of serious personal injury and death whenever a vehicle is being used.
• In order to reduce the risk of injury when the supplemental side
airbag inflates : .,
Vehicle care
I I irechnical data

-Airbag system ----=---'---------------------------------------------
& WARNING (continued)
- Always sit in an upright position and never lean against the
area where the supplemental side airbag is located.
- Never let a child or anyone else rest their head against the
side trim panel in the area where the supplemental side airbag
inflates .
- Always make sure that safety belts are worn correctly,
- Do not let anyone sitting in the front seat put their hand or any other parts of their body out of the window.
• Always make sure that the side airbag can inflate without inter ­
ference.
- Never install seat covers or replacement upholstery over the front seat backs that have not been specifically approved by
Audi.
- Never use additional seat cushions that cover the areas
where the side airbags deploy .
- Damage to the original seat covers or to the seam in the area
of the side airbag module must always be repaired immedi­
ately by an authorized Audi dealer.
• Objects between you and the airbag can increase the risk of
injury in an accident by interfering with the way the airbag unfolds
or by being pushed into you as the airbag inflates .
- Never place or attach accessories or other objects (such as
cup holders , telephone brackets, or even large, bulky objects)
on the doors , over or near the area marked "AIRBAG" on the
seat backrests .
- Such objects and accessories can become dangerous projec ­
tiles and cause injury when the supplemental side airbag
deploys.
- Never carry any objects or pets in the deployment space
between them and the airbags or allow children or other
passengers to travel in this position.
& WARNING (continued)
• Always use the built-in coat hooks only for lightweight
clothing. Never leave any heavy or sharp -edged objects in the
pockets that may interfere with side airbag deployment and can
cause personal injury in an accident .
• Always prevent the side airbags from being damaged by heavy
objects knocking against or hitting the sides of the seatbacks.
• The airbag system can only be triggered once.
If the airbag has
been triggered, the system must be replaced by an authorized
Audi dealership .
• Damage (cracks , deep scratches etc.I to the original seat covers
or to the seam in the area of the side airbag module must always
be repaired immediately by an authorized Audi dealer .
• If children are seated improperly, their risk of injury increases
in the case of an accident~
page 157, "Child Safety ".
• Never attempt to modify any components of the airbag system
in any way .
• In a side collision , side airbags will not function properly if
sensors cannot correctly measure increasing air pressure inside
the doors when air escapes through larger , unclosed openings in
the door panel.
- Never drive with interior door trim panels removed.
-Never drive when parts have been removed from the inside
door panel and the openings they leave have not been properly
closed .
- Never drive when loudspeakers in the doors have been
removed unless the speaker holes have been properly closed.
- Always make certain that openings are covered or filled if
additional speakers or other equipment is installed in the
inside door panels .
- Always have work on the doors done by an authorized Audi
dealer or qualified workshop . •

Child Safety -
--------------------''---
Child Safety
Important things to know
Introduction
The rear seat is generally the safes t place in a collision.
The p hysica l pr inciples of what happens when you r veh ic le is in a
crash apply also to children=>
page 127, "What happens to occu ­
p a nts not wearing safety bel ts?" . Bu t un like adults and teenagers,
their musc les and bones are not fully developed. In many respects
children a re a t greater ris k of serious inj ury in cras hes than a dults .
B ecause chi ldren's bodies a re no t fully deve loped, they require
restraint systems especial ly designed for their size, weight, and
body structu re. Ma ny countries and al l sta tes of the U nited States
and provinces of Canada have laws requiring the use of approved
chil d restraint sys te m s for infa nts and smal l children .
I n a frontal crash at a speed of 20 -35 mph (30 -56 km/h) the forces
ac ting on a 13-pou nd (6 kg) infant wi ll be mo re than 20 times the
weight of the child. This means the weight of the child would
suddenly be more than 260 pounds ( 120 kg). Under these condi ­
t ions, only an appropriate child restraint proper ly used can reduce
the risk of serious injury. Child restraints, like adult safety belts,
must be use d properly t o be eff ective. Use d impro perly, they can
increase the risk of serious injury in an accident.
Co nsul t the c hild safety seat man ufacture r's ins truc tions to be su re
the seat is right for your child's size=>
page 160, "Important safety
instructions for using child safety seats" . Please be sure to read and
heed a ll of the important information and WARNI NGS about child
safety, Advanced Airbags, and the insta llation of child restraints in
this chapter.
T here is a lot you need to know about the Advanced Airbags in your
veh ic le and how they work whe n inf an ts and ch ild ren in c hild
restraints are on the front passenger seat. Because of the large
Controls and equip­ ment Safety first Vehicle operation
amoun
t of important informat ion, we cannot repeat it all here. We
urge you to read the detai led information in this owner's manua l
about a irbags and the Advanced Airbag Sys tem in your ve hic le and
the very important information about transporting children on the
fr ont passenger sea t. Please b e sure to hee d th e WAR NINGS -th ey
are extreme ly important for your safety and the safety of your
p asse ngers, es pecia lly inf ant s and s mall ch ildren .
& WARNING
• Accident statistics have shown that children are generally safer
in the rear seat area than in the front seating position . Always
restrain any child age 12 and under in the rear.
• All vehicle o ccupants and especially children must be
restrained properly whenever riding in a vehicle . An unrestrained
or improperly restrained child could be injured by striking the inte­
rior or by being ejected from the vehicle during a sudden
maneuver o r impact . An unrestrained or improperly restrained
c hild is also at greater risk of injury or death through conta ct with
an inflating a irbag .
• A suitable child restraint properly installed and used at one of
the rear seating positions provides the highest degree of protec­
tion for infants and small children in most accident situations .
& WARNING
Children on the front seat of any car even with Advanced Airb ags
c an be seriously injured or even killed when an airbag inflates . A
child in a rearward -fa cing child safety seat installed on the front
pas senger seat will be seriously injured and can be killed if the
front airbag inflates.
• The inflating airbag will hit the ch ild safety seat or infant
carrier with great force and will smash the child safety seat and
child against the backrest or door. •
Vehicle care Do-it-yourself service Technical data

-Child Safety -------=---------------------------------------
& WAR NIN G (co ntinued )
• Alw ays in sta ll re ar-facin g child safety s eats on the r ear seat .
• If you m us t in sta ll a rear ward f acing child saf ety s eat on th e
fr ont pa ssenger seat in exceptional circum stan ces and the
PA SSEN GER AIR BAG OFF light do es not come on and sta y on ,
immediately in sta ll the re ar-facing child safety s eat in a rear
s eating po sit ion and ha ve th e airb ag s ystem insp ected immedi ­
atel y by your Audi dea ler .
& WARNING
If, in exceptional circum stance s, you mu st in sta ll a forward -f a cing
c hild re str ain t on th e fr ont p assenger's s eat:
• Always mak e sure the forward -fac ing seat ha s been de signed
a nd ce rt ified by it s m anufa cturer for u se on a fr ont se at w ith a
pa ssenger front and side airbag.
• Always follow the m anufacturer's instru ctions provided w ith
the child safety seat or carr ier.
• Alwa ys mo ve the pa ssenger seat into it s rea rmost positi on in
the seat' s fore and aft adju stment range , as far aw ay from the
ai rbag as possib le bef ore installing the ch ild r estr aint . The ba ck­
re st mu st b e adjusted to an upright po sition.
• Alway s m ake sure that the PASSENGER AIR BAG OFF l ight
c om es on and sta y s on all the time whenever the ignition is
s w it c hed on . •
Advanced front airbag system and children
Your vehicle is equipped with an "Advanced Airbag System" in
complia nce with United States Federa l Motor Vehicle Safety Stan ­
dard (FMVSS) 208 as applicable at the time your vehicle was manu ­
factu red. T
he Advanced Airbag system in your vehicle has been certified to
meet the " low -risk" requirements for 3 and 6 year -old chi ldren on
the passenger side and smal l adults on the driver side . The low risk
deployment criteria are intended to reduce the risk of injury through
interaction with the airbag that can occur, for example, by being too
close to the steering wheel and instrument panel when the airbag
inflates. In addition, the system has been certified to comply with
the "suppression" requirements of the Safety Standard, to turn off
the front airbag for infants up to 12 months who are restrained on
the front passenger seat in child restraints that are listed in the
S tandard.
Even though your vehicle is equipped with an Advanced Airbag
system, all ch ildren, especially those 12 years and younger, should
always ride in the back seat properly restrained for their age and
size . The airbag on the passenger side makes the front seat a poten­
tially dangerous p lace for a child to ride. The front seat is not the
safest p lace for a child in a forward -facing child safety seat. It can be
a very dangerous p lace for an infant or a larger ch ild in a rearward­
facing seat. •
Advanced Airbags and the weight-sensing
mat in the front seat
The Advanced Airbag System in your vehicle detects the presence
of an infant or child in a chi ld restraint on the front passenger seat
using the weight -sensing mat in the seat cushion and the sensor
below the safety belt latch on the front passenger seat that
measures the tension on the safety belt.
The weight -sensing mat measures total weight of the chi ld and the
child safety seat and a child blanket on the front passenger seat . The
weight on the front passenger seat is related to the design of the
child restraint and its "footprint", the size and shape of the bottom
of the child restraint as it sits on the seat . The weight of a child
restraint and its "footprint" vary for different kinds of child ..,.
