check engine AUDI TT COUPE 2014 Repair Manual

Downloaded from www.Manualslib.com manuals search engine Fuses
and bulbs
Fuses and bulbs
Fuses Fuses in vehic le interior
Fig. 243 Area near steering column on LHD vehicle: Cover
Fig. 244 Open glove box on RHO vehicle: Cover
Access to the fuses is different on left-hand and
right-hand drive vehicles.
- LHD vehicles: The fuses are located behind a
cover near the steering column ¢Fig. 243.
- RHD vehicles: The fuses are located behind a
cover in the glove box¢ Fig. 244.
Changing fuses
To see whether a fuse has blown, check whether
the metal strip has melted.
Fig. 245 Engine compartment, left-hand side: Fuse cover
254 The
various electrical circuits are protected by
fuses. The fuses are located behind a cover below
the steering wheel and on the left side of the en­
gine compartment.
Fuses in vehicle interior
.. Switch
off the ignition and all electrical equip­
ment .
.. Refer to the following tables to identify the
fuse for the failed component ¢ page 255 .
.. Remove the cover: LHD vehicles c:> page 254,
Fig. 243 or RHD vehicles ¢ page 254, Fig. 244 .
.. Take the plastic clip from inside the fuse cover
in the engine compartment ¢ Fig. 245 .
.. Use the clip to pull out the fuse.
.. Blown fuses should always be replaced with a
fuse of the same rating .
.. Replace the cover.
Fuses in engine compartment
.. Switch off the ignition and all electrical equip­
ment .
.. Refer to the following tables to identify the
fuse for the failed component ¢ page 256 .
.. Release the fuse cover ¢ Fig. 245.
.. Take the plastic clip from inside the fuse cover
¢Fig. 245.
.. Use the clip to pull out the fuse.
.. Blown fuses should always be replaced with a
fuse of the same rating.
Colour coding for fuses
Colour Rating
in amperes
black 1
purple 3
light brown 5
brown 7.5
red 10
blue 15
yellow 20
white or transparent 25
green 30
orange 40

Downloaded from www.Manualslib.com manuals search engine 0
N
co
....
\D L/'l
N
L/'l
.... ,&.
WARNING
Never attempt to repair a fuse or replace a
blown fuse by fitting a fuse with a higher am­
pere rating. This could damage the electrical
system -risk of fire!
CD CAUTION
If a newly replaced fuse blows again after a
short time, the electrical system must be
checked by a qualified workshop as soon as
possible.
@ Note
- Unassigned fuse locations are not shown in
the tables below.
- Some of the items of equipment listed in
the tables below are only fitted on certain
models or are optional extras.
Fuses in vehicle interior
Fig. 246 Interior: Fuse layout
No. Electrical
equipment
F3 ESC
control unit
F4 Central computer (MIB-2)
FS Gateway No.
F6
F7
F8 F9
FlO Fll
F12
F13
F14
FlS
F16
F17
F18
Fl9
F20
F23
F25
F26
F28
F29
F31
F32 F33
F34
F35
F36 F37
F38 F39 Fuses
and bulbs
Electrical equipment
Anti-theft alarm system
Air conditioner console, selector lever (au-
tomatic gearbox), auxiliary heating, relay
coil for rear window heating
Diagnostics, switch for electronic parking
brake, light switch, rain/light sensor, inte-
rior lighting
Steering column switch module
Display
Haldex coupling
MMI system
Control unit for suspension control
Air conditioner blower
Electric steering column lock
MMI system
Instrument cluster
Reversing camera
Control unit for convenience key system
Electric lumbar support adjuster
Exterior lighting (right side), on-board
computer (right side)
Door/s, driver's side (e.g. electric windows)
Seat heating
Media socket for AMI High
On-board computer
On-board computer (left side)
Driver assistance systems
Airbag Electrical socket relay, interior sound, re-
versing light switch, temperature sensor,
oil level sensor
Diagnostics, headlight range control, air
quality sensor, automatic anti-dazzle mir-
rors
Corn ering light (right side)/ LED headlight
(right side)
Cornering light (left side) / LED headlight
(left side)
Engine control unit, ESC control unit
Door(s), passenger's side (e.g. electric win-
dows)
255

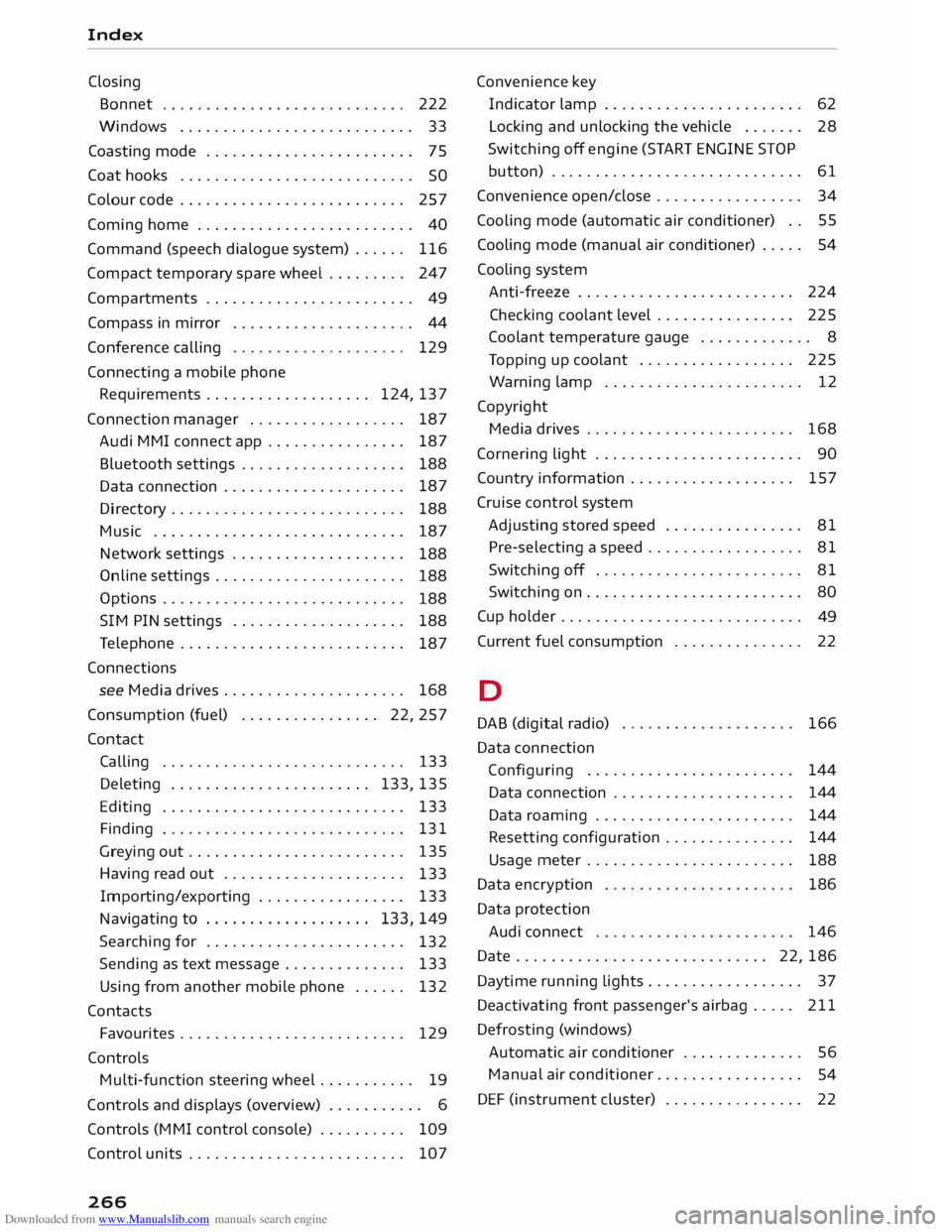

Downloaded from www.Manualslib.com manuals search engine Index
Closing Bonnet 222
Windows ........................... 33
Coasting mode . . . . . . . . . . . . . . . . . . . . . . . .
75
Coat hooks . . . . . . . . . . . . . . . . . . . . . . . . . . .
SO
Colour code . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Coming home . . . . . . . . . . . . . . . . . . . . . . . . . 40
Command (speech dialogue system) . . . . . .
116
Compact temporary spare wheel . . . . . . . . . 247
Compartments . . . . . . . . . . . . . . . . . . . . . . . . 49
Compass in mirror
Conference calling
Connecting a mobile phone 44
129
Requirements . . . . . . . . . . . . . . . . . . . 124, 137
Connection manager . . . . . . . . . . . . . . . . . .
187
Audi MMI connect app . . . . . . . . . . . . . . . .
187
Bluetooth settings . . . . . . . . . . . . . . . . . . .
188
Data connection . . . . . . . . . . . . . . . . . . . . . 187
Directory . . . . . . . . . . . . . . . . . . . . . . . . . . .
188
Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Network settings . . . . . . . . . . . . . . . . . . . .
188
Online settings . . . . . . . . . . . . . . . . . . . . . .
188
Options . . . . . . . . . . . . . . . . . . . . . . . . . . . .
188
SIM PIN settings . . . . . . . . . . . . . . . . . . . .
188
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . .
187
Connections see Media drives. . . . . . . . . . . . . . . . . . . . .
168
Consumption (fuel) . . . . . . . . . . . . . . . . 22, 257
Contact Calling . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Deleting . . . . . . . . . . . . . . . . . . . . . . . 133, 135
Editing . . . . . . . . . . . . . . . . . . . . . . . . . . . .
133
Finding . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Greying out . . . . . . . . . . . . . . . . . . . . . . . . .
135
Having read out . . . . . . . . . . . . . . . . . . . . .
133
Importing/exporting . . . . . . . . . . . . . . . . . 133
Navigating to . . . . . . . . . . . . . . . . . . . 133, 149
Searching for . . . . . . . . . . . . . . . . . . . . . . .
132
Sending as text message . . . . . . . . . . . . . .
133
Using from another mobile phone . . . . . .
132
Contacts Favourites . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Controls Multi-function steering wheel . . . . . . . . . . .
19
Controls and displays (overview) . . . . . . . . . . . 6
Controls (MMI control console) . . . . . . . . . .
109
Control units . . . . . . . . . . . . . . . . . . . . . . . . . 107
266 Convenience key
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . 62
Locking and unlocking the vehicle . . . . . . .
28
Switching off engine (START ENGINE STOP
button) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Convenience open/close . . . . . . . . . . . . . . . . . 34
Cooling mode (automatic air conditioner) . . 55
Cooling mode (manual air conditioner) . . . . . 54
Cooling system
Anti-freeze . . . . . . . . . . . . . . . . . . . . . . . . . 224
Checking coolant level . . . . . . . . . . . . . . . .
225
Coolant temperature gauge . . . . . . . . . . . . . 8
Topping up coolant . . . . . . . . . . . . . . . . . . 225
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 12
Copyright Media drives . . . . . . . . . . . . . . . . . . . . . . . . 168
Cornering light . . . . . . . . . . . . . . . . . . . . . . . . 90
Country information . . . . . . . . . . . . . . . . . . . 157
Cruise control system
Adjusting stored speed . . . . . . . . . . . . . . . .
81
Pre-selecting a speed . . . . . . . . . . . . . . . . . .
81
Switching off . . . . . . . . . . . . . . . . . . . . . . . .
81
Switching on . . . . . . . . . . . . . . . . . . . . . . . . .
80
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . .
49
Current fuel consumption . . . . . . . . . . . . . . . 22
D
DAB (digital radio)
Data connection
Configuring ....................... .
Data connection .................... .
Data roaming ...................... .
Resetting configuration .............. .
Usage meter ....................... .
Data encryption
Data protection
Audi connect 166
144 144
144
144
188
186
146
Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 186
Daytime running Lights.. . . . . . . . . . . . . . . . . 37
Deactivatiing front passenger's airbag . . . . . 211
Defrosting (windows)
Automatic air conditioner . . . . . . . . . . . . . .
56
Manual air conditioner. . . . . . . . . . . . . . . . .
54
DEF (instrument cluster) . . . . . . . . . . . . . . . .
22

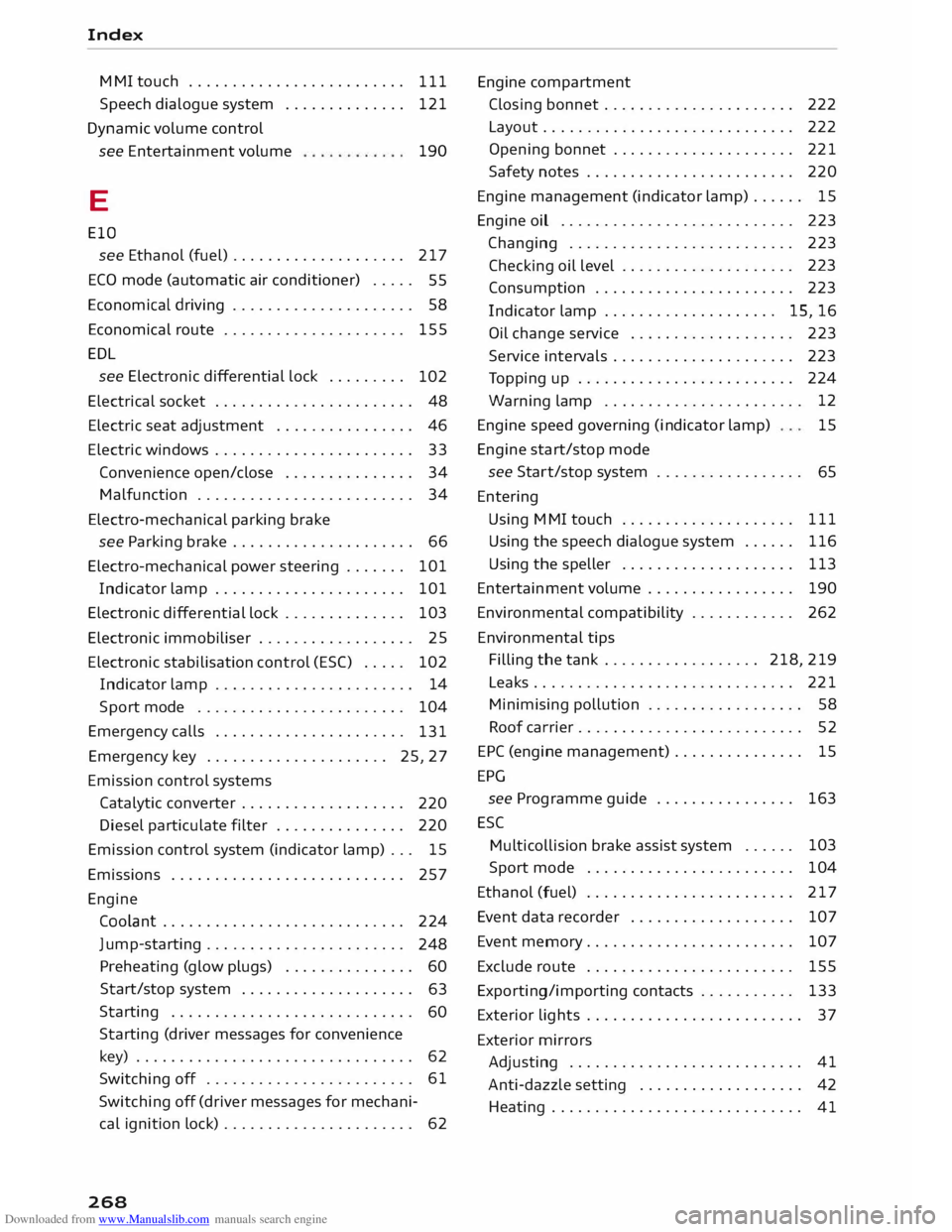

Downloaded from www.Manualslib.com manuals search engine Index
MMI touch . . . . . . . . . . . . . . . . . . . . . . . . .
111
Speech dialogue system . . . . . . . . . . . . . . 121
Dynamic volume control
see Entertainment volume
E
ElO 190
see Ethanol (fuel) . . . . . . . . . . . . . . . . . . . .
217
ECO mode (automatic air conditioner) . . . . .
55
Economical driving . . . . . . . . . . . . . . . . . . . . .
58
Economical route . . . . . . . . . . . . . . . . . . . . . 155
EDL see Electronic differential lock . . . . . . . . .
102
Electrical socket . . . . . . . . . . . . . . . . . . . . . . .
48
Electric seat adjustment . . . . . . . . . . . . . . . . 46
Electric windows . . . . . . . . . . . . . . . . . . . . . . . 33
Convenience open/close . . . . . . . . . . . . . . .
34
Malfunction . . . . . . . . . . . . . . . . . . . . . . . . .
34
Electro-mechanical parking brake
see Parking brake . . . . . . . . . . . . . . . . . . . . . 66
Electro-mechanical power steering . . . . . . . 101
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . 101
Electronic differential lock . . . . . . . . . . . . . . 103
Electronic immobiliser . . . . . . . . . . . . . . . . . . 25
Electronic stabilisation control (ES() . . . . . 102
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . 14
Sport mode . . . . . . . . . . . . . . . . . . . . . . . .
104
Emergency calls . . . . . . . . . . . . . . . . . . . . . .
131
Emergency key . . . . . . . . . . . . . . . . . . . . . 25, 27
Emission control systems
Catalytic converter . . . . . . . . . . . . . . . . . . .
220
Diesel particulate filter . . . . . . . . . . . . . . .
220
Emission control system (indicator lamp) . . . 15
Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . 257
Engine Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . .
224
Jump-starting . . . . . . . . . . . . . . . . . . . . . . .
248
Preheating (glow plugs) . . . . . . . . . . . . . . .
60
Start/stop system . . . . . . . . . . . . . . . . . . . .
63
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . .
60
Starting (driver messages for convenience
key) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Switching off . . . . . . . . . . . . . . . . . . . . . . . . 61
Switching off (driver messages for mechani-
cal ignition lock) . . . . . . . . . . . . . . . . . . . . . .
62
268 Engine
compartment
Closing bonnet . . . . . . . . . . . . . . . . . . . . . .
222
Layout.. ........................... 222
Opening bonnet . . . . . . . . . . . . . . . . . . . . .
221
Safety notes . . . . . . . . . . . . . . . . . . . . . . . .
220
Engine management (indicator lamp) . . . . . . 15
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Checking oil level . . . . . . . . . . . . . . . . . . . . 223
Consumption . . . . . . . . . . . . . . . . . . . . . . . 223
Indicator lamp . . . . . . . . . . . . . . . . . . . . 15, 16
Oil change service . . . . . . . . . . . . . . . . . . .
223
Service intervals . . . . . . . . . . . . . . . . . . . . .
223
Topping up . . . . . . . . . . . . . . . . . . . . . . . . .
224
Warning lamp . . . . . . . . . . . . . . . . . . . . . . . 12
Engine speed governing (indicator lamp)
15
Engine start/stop mode
see Star t/stop system . . . . . . . . . . . . . . . . .
65
Entering Using MMI touch . . . . . . . . . . . . . . . . . . . . 111
Using the speech dialogue system . . . . . .
116
Using the speller . . . . . . . . . . . . . . . . . . . . 113
Entertainment volume . . . . . . . . . . . . . . . . . 190
Environmental compatibility . . . . . . . . . . . . 262
Environmental tips Filling the tank .................. 218, 219
Leaks.. ............................ 221
Minimising pollution . . . . . . . . . . . . . . . . . .
58
Roof carrier . . . . . . . . . . . . . . . . . . . . . . . . . .
52
EPC (engine management) . . . . . . . . . . . . . . .
15
EPG see Programme guide . . . . . . . . . . . . . . . . 163
ESC Multicollision brake assist system . . . . . . 103
Sport mode . . . . . . . . . . . . . . . . . . . . . . . .
104
Ethanol (fuel) . . . . . . . . . . . . . . . . . . . . . . . . 217
Event data recorder . . . . . . . . . . . . . . . . . . . 107
Event memory . . . . . . . . . . . . . . . . . . . . . . . .
107
Exclude route . . . . . . . . . . . . . . . . . . . . . . . .
155
Exporting/ importing contacts . . . . . . . . . . . 133
Exterior lights . . . . . . . . . . . . . . . . . . . . . . . . . 37
Exterior mirrors
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . .
41
Anti-dazzle setting . . . . . . . . . . . . . . . . . . .
42
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
