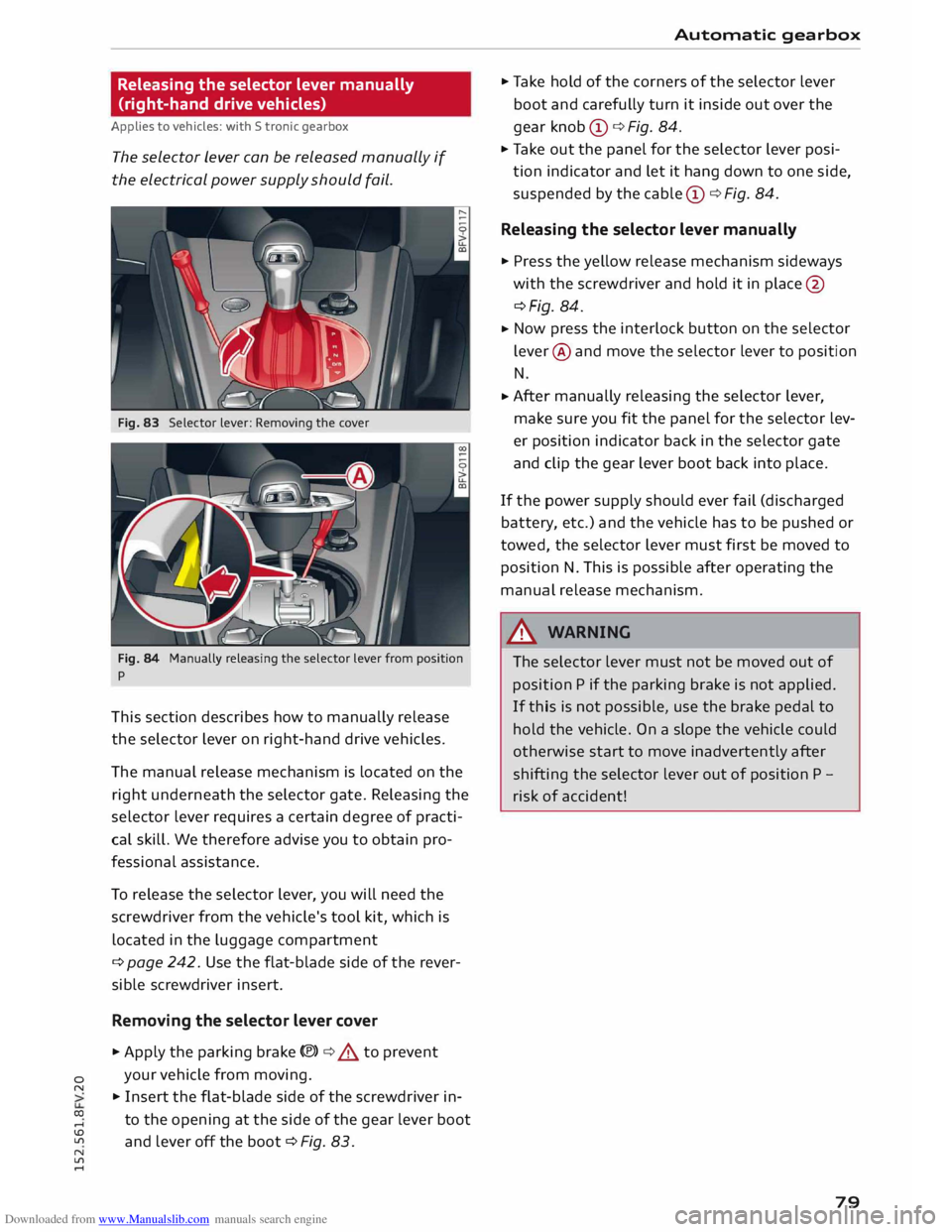

.... Releasing
the selector lever manually
(right-hand drive vehicles)
Applies to vehicles: with S tronic gearbox
The selector Lever can be released manually if
the electrical power supply should fail.
Fig. 83 Selector lever: Removing the cover
Fig. 84 Manually releasing the selector lever from position
p
This section describes how to manually release
the selector lever on right-hand drive vehicles.
The manual release mechanism is located on the
right underneath the selector gate. Releasing the
selector lever requires a certain degree of practi­
cal skill. We therefore advise you to obtain pro­
fessional assistance.
To release the selector lever, you will need the
screwdriver from the vehicle's tool kit, which is
located in the luggage compartment
¢ page 242. Use the flat-blade side of the rever­
sible screwdriver insert.
Removing the selector lever cover
... Apply the parking brake(®)¢.,& to prevent
your vehicle from moving.
... Insert the flat-blade side of the screwdriver in­
to the opening at the side of the gear lever boot
and lever off the boot ¢ Fig. 83. Automatic
gearbox
... Take hold of the corners of the selector lever
boot and carefully turn it inside out over the
gear knob CD¢ Fig. 84.
... Take out the panel for the selector lever posi­
tion indicator and let it hang down to one side,
suspended by the cable CD¢ Fig. 84.
Releasing the selector lever manually
... Press the yellow release mechanism sideways
with the screwdriver and hold it in place @
¢Fig. 84 .
... Now
press the interlock button on the selector
lever @and move the selector lever to position
N
... After
manually releasing the selector lever,
make sure you fit the panel for the selector lev­
er position indicator back in the selector gate
and clip the gear lever boot back into place.
If the power supply should ever fail (discharged
battery, etc.) and the vehicle has to be pushed or
tow ed, the selector lever must first be moved to
position N. This is possible after operating the
manual release mechanism.
&_ WARNING
The selector lever must not be moved out of
position P if the parking brake is not applied.
If this is not possible, use the brake pedal to
hold the vehicle. On a slope the vehicle could
otherwise start to move inadvertently after
shifting the selector lever out of position P -
risk of accident!
79

Downloaded from www.Manualslib.com manuals search engine Driver
assist systems
Driver assist systems
Speed warning function
Introduction
Applies to vehicles: with speed warning function
The speed warning function can help you keep
below a pre-set maximum speed.
The speed warning function will warn you if the
vehicle exceeds the pre-set maximum speed. The
system gives an audible warning signal if the set
speed is exceeded by about 3 km/h. The indicator
lamp [9] simultaneously appears on the infotain­
ment display. The indicator lamp [9J goes out
when the speed drops below the set speed limit
again.
You are recommended to store this speed limit
warning if you wish to be reminded of a particu­
lar speed limit. This could be when driving in
countries with general speed limits, or if you
need to keep below a particular speed when win­
ter tyres are fitted, etc.
Note
- Please bear in mind that, even with the
speed warning function, it is still important
to keep a check on the car's speed with the
speedometer and to observe the statutory
speed limits.
- On vehicles for some markets, the speed
warning function warns you when you reach
a speed of 120 km/h. This speed limit warn­
ing is preset at the factory.
Setting speed limit warning
Applies to vehicles: with speed warning function
The infotainment system is used to set, alter or
cancel the speed limit warning.
.. Select the following on the infotainment sys­
tem: IM E
N u I
button > Car > left control button
> Driver assist> Speed warning.
The speed limit warning can be adjusted in incre­
ments of 10 km/h between 30 and 240 km/h.
80 Cruise
control system
Switching on
Applies to vehicles: with cruise control system
The cruise control system allows you to drive at a
constant speed of 20 km/h or higher.
0
'
� 0
Fig. 85 Control lever for cruise control system
Fig. 86 Display: Selected speed
.. Pull the lever to position (D ¢ Fig. 85 to switch
on the system.
.. Drive at the speed you wish to set the system
to.
.. Press the button marked @to store the speed.
The display will indicate the stored speed
¢ Fig. 86. The display can vary according to the
display status. In addition, the indicator lamp.
will light up on the infotainment display.
A constant speed is maintained by adjusting the
engine power or braking the vehicle accordingly .
A WARNING
- Always direct your full attention to the road,
even when you are using the cruise control
system. It is always the driver who is re­
sponsible for determining the speed and for
keeping a safe distance to the other vehicles
on the road.
�

Downloaded from www.Manualslib.com manuals search engine 0
N
co
....
\D Lfl
N
Lfl
.... -

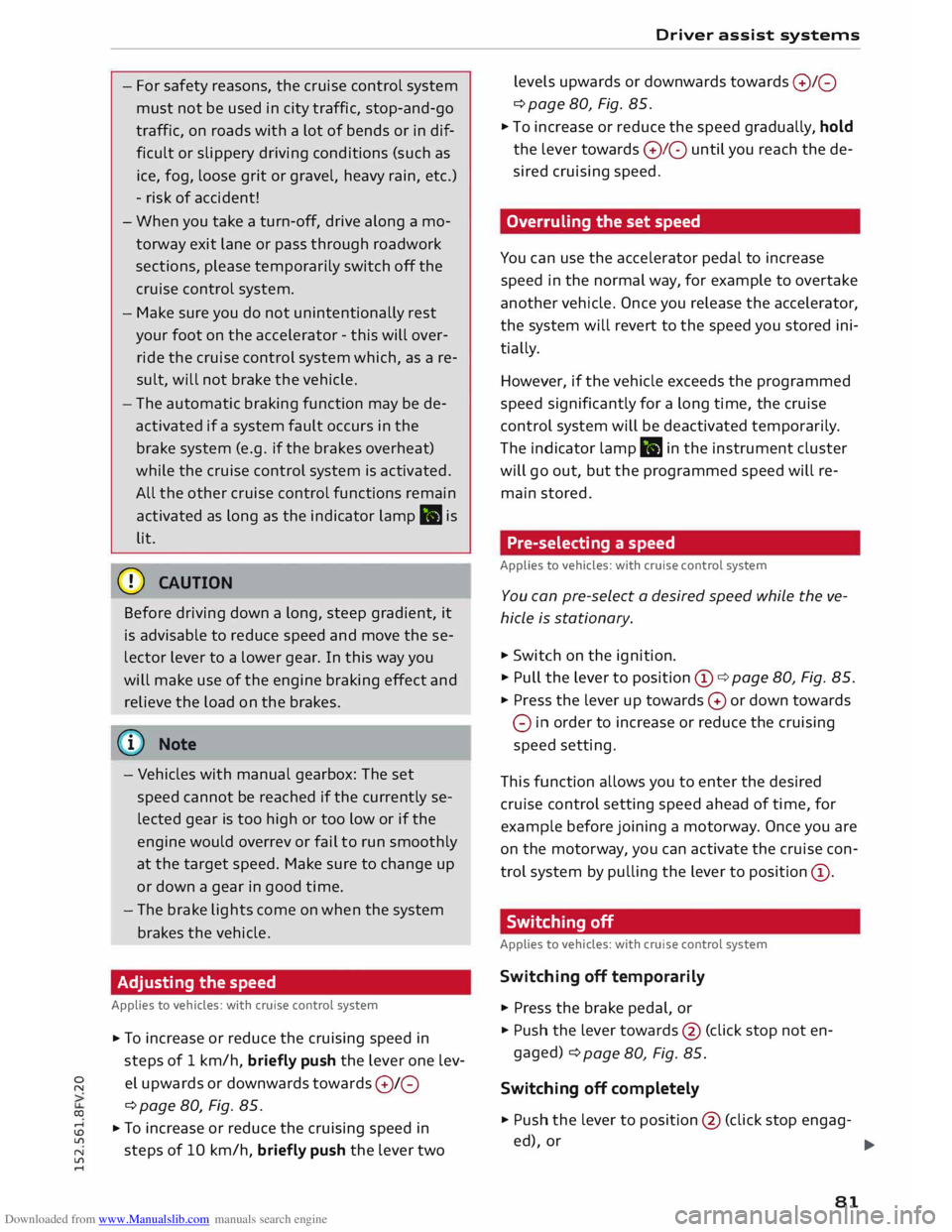

For safety reasons, the cruise control system
must not be used in city traffic, stop-and-go
traffic, on roads with a Lot of bends or in dif­
ficult or slippery driving conditions (such as
ice, fog, Loose grit or gravel, heavy rain, etc.)
- risk of accident!
- When you take a turn-off, drive along a mo-
torway exit Lane or pass through roadwork
sections, please temporarily switch off the
cruise control system.
- Make sure you do not unintentionally rest
your foot on the accelerator -this will over­
ride the cruise control system which, as a re­
sult, will not brake the vehicle.
- The automatic braking function may be de­
activated if a system fault occurs in the
brake system (e.g. if the brakes overheat)
while the cruise control system is activated.
All the other cruise control functions remain
activated as Long as the indicator Lamp ii is
Lit.
CD CAUTION
Before driving down a Long, steep gradient, it
is advisable to reduce speed and move these­
lector Lever to a Lower gear. In this way you
will make use of the engine braking effect and
relieve the Load on the brakes.
w) Note
- Vehicles with manual gearbox: The set
speed cannot be reached if the currently se­
lected gear is too high or too Low or if the
engine would overrev or fail to run smoothly
at the target speed. Make sure to change up
or down a gear in good time.
- The brake Lights come on when the system
brakes the vehicle.
Adjusting the speed
Applies to vehicles: with cruise control system
• To increase or reduce the cruising speed in
steps of 1 km/h, briefly push the Lever one Lev­
el upwards or downwards towards 010
¢ page 80, Fig. 85.
• To increase or reduce the cruising speed in
steps of 10 km/h, briefly push the Lever two Driver assist
systems
Levels upwards or downwards towards (!)1 0
¢ page 80, Fig. 85.
• To increase or reduce the speed gradually, hold
the Lever towards GY0 until you reach the de­
sired cruising speed.
Overruling the set speed
You can use the accelerator pedal to increase
speed in the normal way, for example to overtake
another vehicle. Once you release the accelerator,
the system will revert to the speed you stored ini­
tially.
However, if the vehicle exceeds the programmed
speed significantly for a Long time, the cruise
control system will be deactivated temporarily.
The indicator Lamp ii in the instrument cluster
will go out, but the programmed speed will re­
main stored.
Pre-selecting a speed
Applies to vehicles: with cruise control system
You can pre-select a desired speed while the ve­
hicle is stationary.
• Switch on the ignition.
• Pull the Lever to position (D ¢ page 80, Fig. 85.
• Press the Lever up towards 0 or down towards
0 in order to increase or reduce the cruising
speed setting.
This function allows you to enter the desired
cruise control setting speed ahead of time, for
example before joining a motorway. Once you are
on the motor way, you can activate the cruise con­
trol system by pulling the Lever to position (D.
Switching off
Applies to vehicles: with cruise control system
Switching off temporarily
• Press the brake pedal, or
• Push the Lever towards @
(click stop not en­
gaged) ¢page 80, Fig. 85.
Switching off completely
• Push the lever to position @
(click stop engag-
ed), or
..,.
81

Downloaded from www.Manualslib.com manuals search engine Driver
assist systems
.. Switch off the ignition.
The speed setting will remain stored after the
system is temporarily deactivated. To resume the
programmed cruising speed, release the clutch or
brake pedal and pull the lever to position (!).
The stored speed will be deleted once the igni­
tion is switched off.
_& WARNING
Do not resume the programmed cruising
speed if this is too high for the traffic condi­
tions -this can cause accidents.

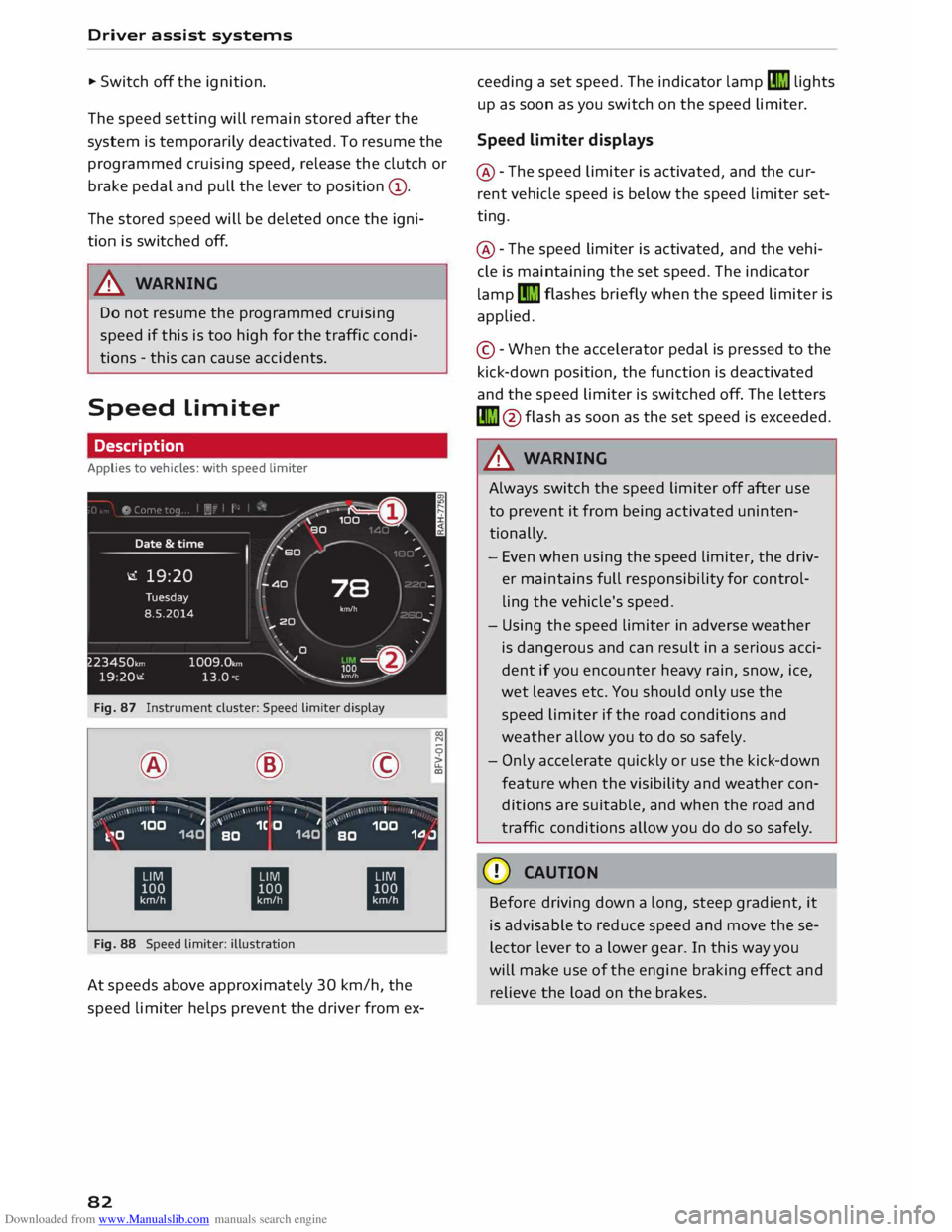

Speed limiter
Description
Applies to vehicles: with speed limiter
Fig. 87 Instrument cluster: Speed limiter display
® ·-
' I I @
,.,...---:-;- ·-
/ \ \ •
I I ©
·-
, ' I
' 00
N
0
>
LL
a,
,, _ ,\ 100 1
k.�0 140 '
1C O 1
BO 140 '
100
BO 1.0.J
ti ti
ti
Fig. 88 Speed limiter: illustration
At speeds above approximately 30 km/h, the
speed limiter helps prevent the driver from ex-
82 ceeding
a set speed. The indicator lamp�
lights
up as soon as you switch on the speed limiter.
Speed limiter displays
@ -The speed limiter is activated, and the cur­
rent vehicle speed is below the speed limiter set­
ting.
@ -The speed limiter is activated, and the vehi­
cle is maintaining the set speed. The indicator
lamp �
flashes briefly when the speed limiter is
applied.
© -When the accelerator pedal is pressed to the
kick-down position, the function is deactivated
and the speed limiter is switched off. The letters
� @flash as soon as the set speed is exceeded.
_& WARNING
Always switch the speed limiter off after use
to prevent it from being activated uninten­
tionally.
- Even when using the speed limiter, the driv­
er maintains full responsibility for control­
ling the vehicle's speed.
- Using the speed limiter in adverse weather
is dangerous and can result in a serious acci­
dent if you encounter heavy rain, snow, ice,
wet leaves etc. You should only use the
speed limiter if the road conditions and
weather allow you to do so safely.
- Only accelerate quickly or use the kick-down
feature when the visibility and weather con­
ditions are suitable, and when the road and
traffic conditions allow you do do so safely.
CD CAUTION
Before driving down a long, steep gradient, it
is advisable to reduce speed and move these­
lector lever to a lower gear. In this way you
will make use of the engine braking effect and
relieve the load on the brakes.

Downloaded from www.Manualslib.com manuals search engine 0
N
co
....
\D Lfl
N
Lfl

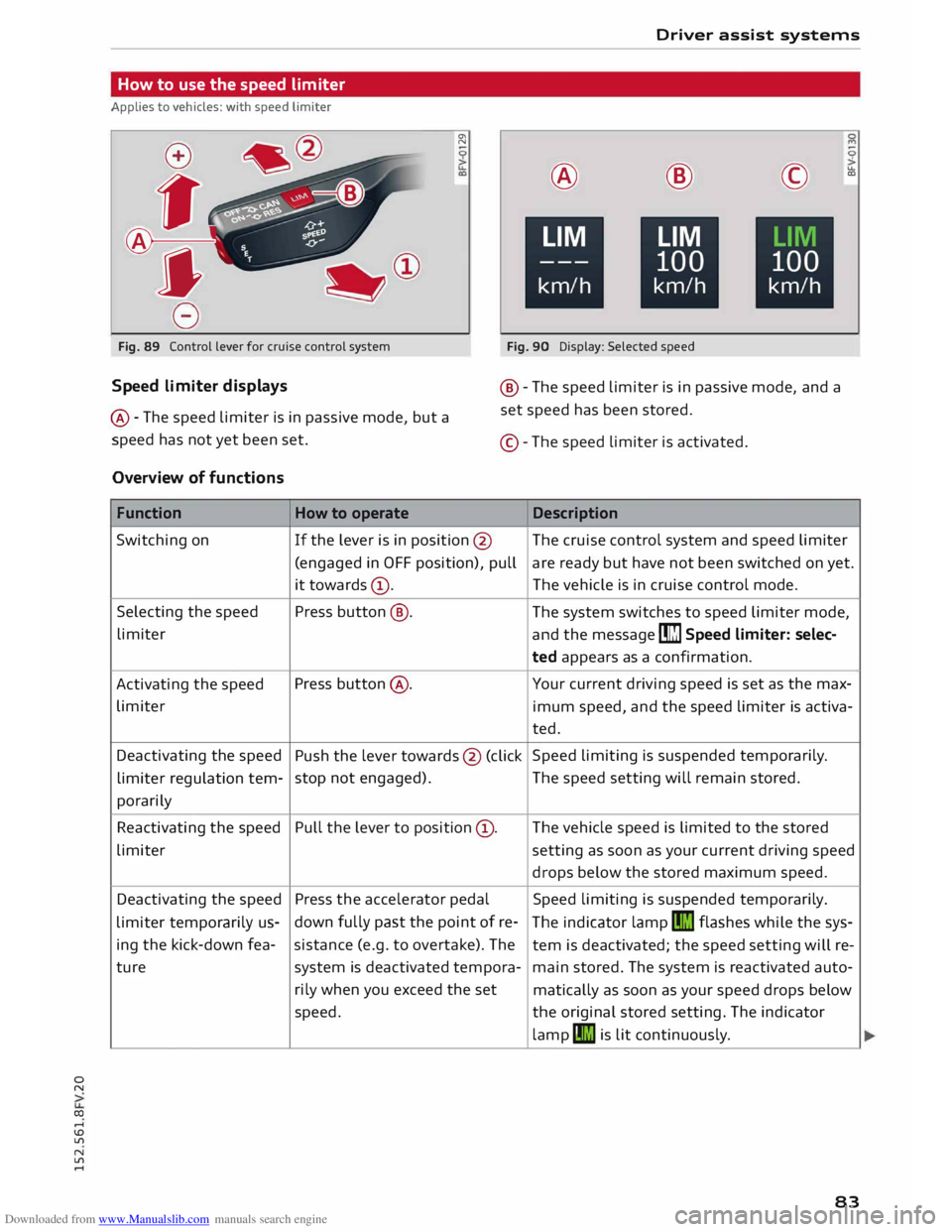

.... How
to use the speed limiter
Applies to vehicles: with speed limiter
0
,
� 0 °'
N
® Driver
assist systems
® ©u.
cc
Fig. 89 Control lever for cruise control system
Fig. 90 Display: Selected speed
Speed limiter displays
@ -The speed Limiter is in passive mode, but a
speed has not yet been set. @
-The speed Limiter is in passive mode, and a
set speed has been stored.
©- The speed Limiter is activated.
Overview of functions
Function How to operate Description
Switching on If
the lever is in position @ The cruise control system and speed limiter
(engaged in OFF position), pull are ready but have not been switched on yet.
it towards (D. The
vehicle is in cruise control mode.
Selecting the speed
Press button @.
The system switches to speed Limiter mode,
Limiter and the message [m] Speed limiter: selec-
ted appears as a confirmation.
Activating the speed Press
button @. Your current driving speed is set as the max-
Limiter imum speed, and the speed Limiter is activa-
ted.
Deactivating the speed
Push the lever towards @ (click Speed
Limiting is suspended temporarily.
Limiter regulation tern-stop
not engaged). The
speed setting will remain stored.
porarily
Reactivating the speed Pull
the lever to position (D.
The vehicle speed is limited to the stored
Limiter setting as soon as your current driving speed
drops below the stored maximum speed.
Deactivating the speed
Press the accelerator pedal Speed
limiting is suspended temporarily.
Limiter temporarily us-down
fully past the point of re-
The indicator lamp II) flashes while the sys-
ing the kick-down fea-sistance
(e.g. to overtake). The
tern is deactivated; the speed setting will re-
ture system
is deactivated tempora-
main stored. The system is reactivated auto-
rily when you exceed the set
matically as soon as your speed drops below
speed. the original stored setting. The indicator
lamp II) is Lit continuously.
83

Downloaded from www.Manualslib.com manuals search engine Driver
assist systems
Function How to operate Description
Switching between the
Press button @ on the Lever.
The system switches between the speed lim-
speed Limiter and the
iter and the cruise control. The message
cruise control (when
El) Cruise control: selected appears as a
the speed Limiter is
confirmation. The Last speed set remains
switched on) stored and can be applied again when you
switch back to the speed Limiter.
To increase the speed in steps
of 1 km/h, briefly press the Lev-
Increasing the set er
upwards 0 to the first Level.
To increase the speed in steps Your
speed is Limited to the set value.
speed
of 10 km/h, briefly press the
Lever upwards 0 to the second
Level.
To reduce the speed in steps of
1 km/h, briefly press the Lever
downwards 0 to the first Lev-
el.
Reducing the set speed
To reduce the speed in steps of Your
speed is Limited to the set value.
10 km/h, briefly press the Lever
downwards 0 to the second
Level.
Switching off the Press
the Lever to position @ The system is switched off and the speed
speed limiter
(click stop engaged), or switch setting
is erased.
off the ignition.
Automatic deactivation
Audi active Lane assist
(Lane departure warning
feature)
If
it detects an error which could prevent the
speed Limiter from functioning properly, the sys­
tem switches off automatically and the following
message appears:
Speed limiter: currently unavailable. See own­
er's manual
@ Note
If a system fault requires the speed Limiter to
switch off automatically, for safety reasons it
does not switch off completely until the driver
releases the accelerator pedal once or deacti­
vates the system manually.
84 Description
Applies to vehicles: with Audi active lane assist
The active Lane assist uses a camera in the wind­
screen to detect Lane markings (subject to gener­
al system Limitations). If you approach one of the
detected lane markings, the system corrects the
steering to warn you that the vehicle might be
about to cross one of the markings. You can over­
ride this steering input at any time. The steering
wheel vibrates slightly if you cross a Lane mark­
ing. The vibration warning must be activated be­
forehand on the infotainment system. The active
Lane assist is functional when it detects a demar­
cation line on at least one side of the Lane in
which you are driving.

Downloaded from www.Manualslib.com manuals search engine 0
N
co
....
\D Lfl
N
Lfl
.... As
the system is designed for driving on motor­
ways and other major roads, it is only active
above a speed of about 65 km/h (may vary in dif­
ferent export markets).
Applies to vehicles with side assist*: If you oper­
ate the turn signals while the active lane assist
and side assist are active, the steering will be cor­
rected just before you cross the lane demarcation
if the side assist detects vehicles approaching
quickly or travelling at about the same speed as
your own vehicle and judges the situation to be
critical. This intervention is intended to keep the
vehicle in the lane.
Applies to vehicles without side assist*: The sys­
tem does not warn you if you operate the turn
signal before crossing a lane demarcation. In this
case, it assumes that you intend to change lanes.
_&. WARNING
- The system initiates a corrective steering in­
put to warn the driver that the vehicle is
about to leave the lane. As the driver you are
always responsible for staying in your own
lane.
- The system can assist you to keep the vehi­
cle in the lane, however it is not capable of
driving on its own. Never take your hands off
the steering wheel.
- In certain situations, e.g. during heavy brak­
ing, the system may not correct the steer­
ing.
- In certain circumstances, not all of the lane
markings may be detected by the camera. A
corrective steering input can only be initi­
ated if the system detects a lane marking on
the side in question.
- Variations in the road surface or objects on
the road may be misinterpreted as lane
markings. In this case, the steering may be
corrected unexpectedly or not at all.
- The camera's view might be obstructed, for
example by vehicles travelling in front, rain,
snow, a lot of water on the road, adverse
light or dirt on the windscreen. If this hap-
l l
The steering input function is not available on all export
versions Driver
assist systems
pens, the active lane assist may not detect
the lane markings or may respond incorrect­
ly.
- In certain circumstances, for instance if visi­
bility is poor, the setting for the steering in­
put may be switched from "early" to "late"
1)
- In certain driving conditions, such as ruts in
the road surface, adverse cambers or side
winds, the assistance provided by the steer­
ing correction may be insufficient to keep
the vehicle in the middle of the lane.
- For safety reasons, the active lane assist
must not be used in poor weather or in diffi­
cult or slippery road conditions (such as ice,
fog, loose grit or gravel, heavy rain, snow,
etc.) -risk of accident!
Switching on/off
Applies to vehicles: with Audi active lane assist
Fig. 91 Turn signal lever: Button for active lane assist N
0
0
>
Fig. 92 Windscreen: Camera window for active lane assist
� Press the button ¢ Fig. 91 to switch the system
on/off. The indicator lamp. or IIJ in the in-
strument cluster will light up or go out.
.,..
85

Downloaded from www.Manualslib.com manuals search engine Driver
assist systems
Indicator lamps
• Ready: The indicator Lamp Lights up when the
system is fully functional. The system is ready to
intervene .
• Not ready: The indicator Lamp Lights up when
the system is switched on but not ready to inter­
vene. The causes for this can include the follow­
ing:
- There are no Lane markings.
- The system cannot detect the relevant Lane
markings (e.g. temporary markings for road
works or markings obscured by snow, dirt, rain
or adverse Light).
- The vehicle's speed is below 65 km/h, the
speed at which the Lane assist system is activa­
ted (the threshold may vary in different export
markets).
- The Lane is narrower than 2.1 m or wider than
5.5 m.
- The bend is too tight.
- You have taken your hands off the steering
wheel.
@ Note
- Make sure that the camera window
¢ Fig. 92 is not covered with stickers or sim­
ilar objects. Notes on cleaning ¢ page 236.
- On vehicles for some export markets: once
the system is activated, it is "ready" each
time the ignition is switched on.
Infotainment display
Applies to vehicles: with Audi active lane assist
Fig. 93 Instrument cluster: active lane assist switched on
and in warning mode
86 Fig.
94 Instrument cluster: active lane assist switched on
but not ready for warning
You can use the controls on the multi-function
steering wheel to call up the active lane assist
display¢ page 18.
Green Lin e(s) The active Lane assist is switch-
ed on and ready to warn.
Red line(s) The active lane assist warns
(left or right you before you cross the lane
sides) demarcation¢ Fig. 93. In ad-
dition, the steering wheel vi-
brates slightly.
Grey Line(s) The
active lane assist is switch-
ed on but not ready for warn-
ing ¢Fig. 94.
Driver messages on the infotainment display
Should the active lane assist be deactivated auto­
matically, the indicator lamp on the display will
go out and one of the following messages will
appear:
Audi active lane assist: currently unavailable.
Camera view restricted due to surroundings.
This message is displayed when the camera is no
longer functional after the system has continu­
ously failed to detect the lane markings. This can
have the following causes:
- The outside of the camera window¢ page 85,
Fig. 92 is dirty or frosted. Remove dirt or ice
from this area of the windscreen.
- The inside of the camera window is misted up.
In this case, wait for the camera window to de­
mist before switching on the active lane assist
system again.
- Due to the road conditions, the system has not
been able to detect the lane markings for a .,..

Downloaded from www.Manualslib.com manuals search engine 0
N
co
....
\D U'l
N
U'l
.... long
period. Do not switch the active lane assist
system on again before the lane markings are
discernible.
Audi active lane assist: currently unavailable.
See owner's manual
A temporary fault is preventing the active lane
assist system from functioning. Try switching on
the active lane assist system again later.
Audi active lane assist: fault. See owner's man­
ual
Drive to a qualified workshop soon and have the
fault rectified.
Audi active lane assist: please take over steering
This message will appear if you do not steer the
vehicle yourself. In this case, the active lane as­
sist will switch to "not ready for warning" but will
not be deactivated completely. The system can
assist you to keep the vehicle in the lane. Howev­
er it is your own responsibility to steer and con­
trol the vehicle.
Setting the steering input time and
vibration warning
Applies to vehicles: with Audi active lane assist
You can change the active lane assist settings on
the infotainment system to suit your individual
preferences.
Select the following on the infotainment system:
I MENU!
button> Car> left control button> Driv­
er assist > Audi active lane assist.
Steering input1
>
early: If this setting is selected, a continuous
steering input assists the driver to keep the vehi­
cle in the middle of the lane.
late: If this setting is selected, the steering is not
corrected until just before a wheel touches a de­
tected lane marking.
l l
The steering input function is not available on all export
versions Driver
assist systems
Vibration warning
You can switch the additional steering wheel vi­
bration warning on/off.
(!} Note
Your personal settings are stored automati­
cally and assigned to the remote control key
which is being used (only applies to some
countries).
Audi side assist (Lane
change assist feature)
Description
Applies to vehicles: with Audi side assist
Fig. 95 Area covered by the radar sensors
Fig. 96 Warning lamp on exterior mirror
The side assist function assists the driver in mon­
itoring following traffic and the blind spots on
both sides of the car. Within certain system lim-
its, it warns you if it detects vehicles approaching
quickly or travelling at about the same speed as
your own vehicle in the area covered by the sen­
sors ©¢ Fig. 95: if it judges a lane change to be
..,.
87

Downloaded from www.Manualslib.com manuals search engine Driver
assist systems
critical, the warning lamp@ on the exterior mir­
ror lights up¢ Fig. 96.
The warning lamp on the left-hand mirror assists
the driver when changing lane towards the left
and the warning lamp on the right-hand mirror
assists the driver when changing lane towards
the right.
Information mode
As long as you do not operate the turn signal, the
side assist will merely inform you of the presence
of vehicles that it has detected and judges to be
critical. In this case, the warning lamp on the rel­
evant exterior mirror will light up at low intensi­
ty.
The intensity of the warning lamp in this infor­
mation mode is kept relatively low, so that it
does not distract you while you are looking at the
road in front.
Warning mode
If you operate the turn signal, the side assist will
warn you if it registers what it judges to be a crit­
ical vehicle. In this case, the warning lamp on the
relevant exterior mirror will flash brightly. Please
check the situation in the exterior mirror and by
looking back over your shoulder ¢.&. in General
notes on page 89.
@ Note
You can adjust the brightness of the warning
lamp on the exterior mirror¢ page 90.
88 General
notes
Applies to vehicles: with Audi side assist
®
Fig. 97 Driving situations
Fig. 98 Rear of vehicle: Location of the sensors (example)
The side assist is active above a speed of
about 30 km/h.
® Vehicles approaching from behind
In certain cases, a vehicle is judged to be critical
in the event of a lane change even if it is still
some distance away. The faster a vehicle ap­
proaches, the earlier the warning will appear on
the exterior mirror.
@ Vehicles moving at a similar speed
The warning lamp in the relevant exterior mirror
will warn you of vehicles that are moving with the
flow of traffic at about the same speed as you if
they are judged to be critical in the event of a ..,.
