Openingandclosing
—Whenyouopenthedoors,thewindowsau-
tomaticallylowerapproximately0.4inch
(10mm).
Convenienceopeningandclosing
Allwindowscanbeopenedandclosedatthe
sametime.
Convenienceopeningfeature
>Pressandholdthefjbuttonontheremotecon-
trolkeyuntilallwindowsreachthedesiredpo-
sition.
Convenienceclosingfeature
>Pressandholdthefbuttonontheremotecon-
trolkeyuntilallwindowsareclosed>/\.
Convenienceclosingwiththeconvenience
key*
>Touchthesensor*onthedoorhandlelong
enoughuntilallwindowsareclosed.Donot
placeyourhandinthedoorhandlewhendoing
this.
Settingconvenienceopeninginthe
Infotainmentsystem
Thefunctioncan be switchedon/offintheInfo-
tainmentsystem>page26.
ZAWARNING
—Neverclosethewindowscarelesslyorinan
uncontrolledmanner,becausethisincreases
theriskofinjury.
—Forsecurityreasons,thewindowscanonly
beopenedandclosedwiththeremotecon-
trolkeyatamaximumdistanceofapproxi-
mately6ft(2m)awayfromthevehicle.
Whenpressingtheffbutton,alwayswatch
thewindowswhiletheyareclosingso that
nooneispinchedinthewindow.Theclosing
processwillstopimmediatelywhenthefj
buttonisreleased.
Correctingpowerwindowmalfunctions
You canreactivatetheone-touchup/downfunc-
tionifitmalfunctions.
> Pullthepowerwindowswitchupuntilthewin-
dowiscompletelyraised.
>»Releasetheswitchandpullitupagainforat
leastonesecond.
Garagedooropener
Appliesto:vehicleswithgaragedooropener
BFV-0090
Fig.24Garage dooropener:examplesofusagefordiffer-
entsystems
Withthegarage dooropener,youcanactivate
systemssuchasthegaragedoors,securitysys-
temsorhouselightsfrominsideyourvehicle.Up
tothreeremotecontrolfunctionscanbepro-
grammedtothethreebuttonsthatareintegrat-
edinthecontrolunitabovetherearviewmirror.
To beabletooperatesystemsusingthegarage
dooropener,thebuttonsinthecontrolunitmust
firstbeprogrammed.
ZXWARNING
Whenoperatingorprogrammingthegarage
dooropener,makesurethatnopeopleorob-
jectsareintheareaimmediatelysurrounding
theequipment.Peoplecanbeinjuredorprop-
ertycanbedamagedifstruckwhenclosing.
G)Tips
—Forsecurityreasons,werecommendthat
youcleartheprogrammedbuttonsbefore
sellingthevehicle.
29
Page 32 of 312
Openingandclosing
—ForadditionalinformationaboutHomeLink,Programmingthetransmitter
visitwww.homelink.com.Appliesto:vehicleswithgaragedooropener
—FortheDeclarationofConformitywiththe
provisionsfromtheFCCintheUnitedStates
andIndustryCanada,see>page291.
Appliesto:vehicleswithgaragedooropener
BFV-0204
g
8
omz&
Fig.26Distancebetweentheradiatorgrilleandthere-
motecontroltransmitter

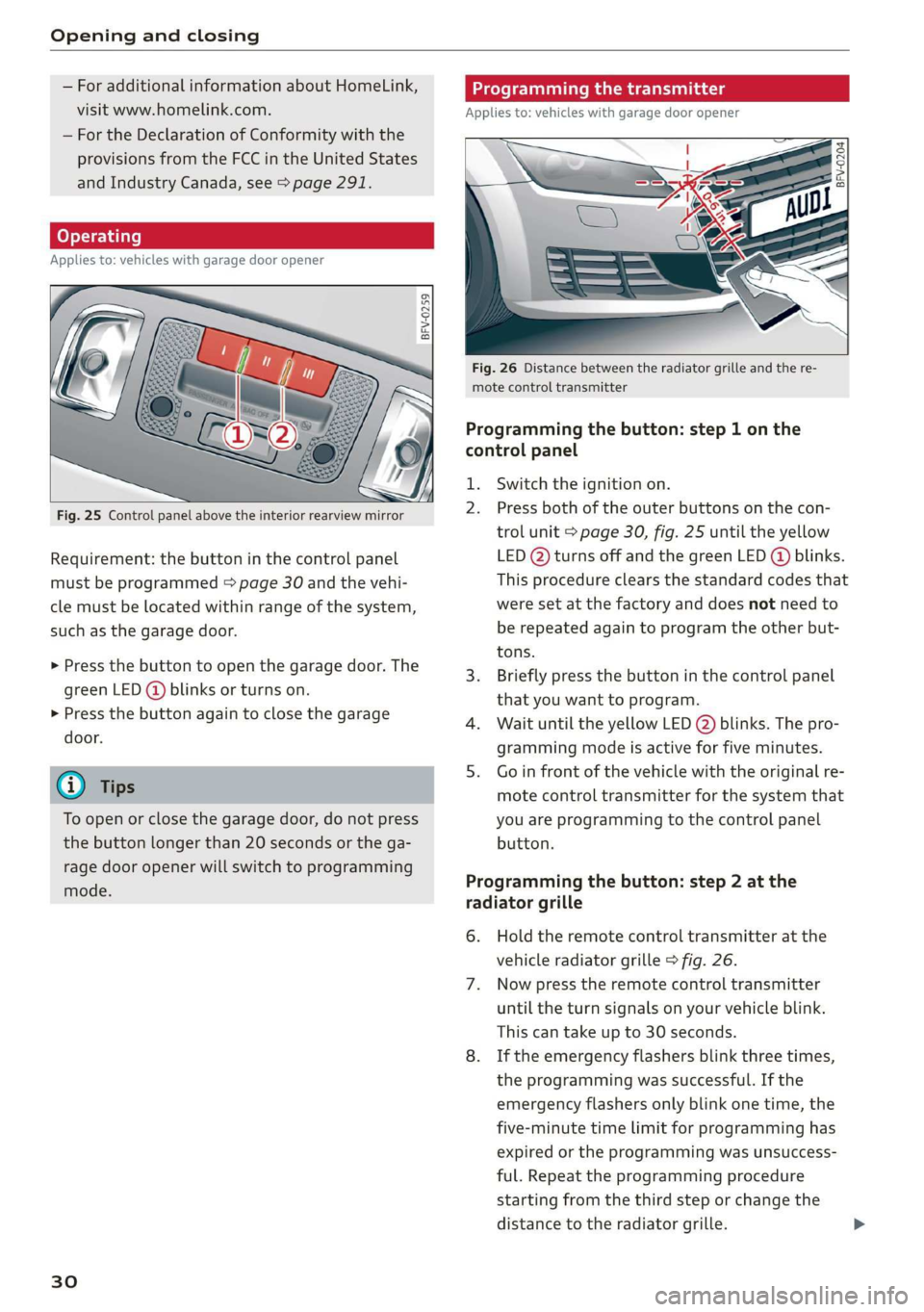

Programmingthebutton:step1onthe
controlpanel
1.Switchtheignitionon.
2.Pressbothoftheouterbuttonsonthecon-
trolunit>page30,fig.25untiltheyellow
Fig.25Controlpanelabovetheinteriorrearview mirror
Requirement:thebuttoninthecontrolpanelLED(2)turnsoffandthegreenLED()blinks.
mustbeprogrammed>page30andthevehi-Thisprocedureclearsthestandardcodesthat
clemustbelocatedwithinrangeofthesystem,weresetatthefactoryanddoesnotneedto
suchasthegaragedoor.berepeatedagaintoprogramtheotherbut-
tons.
mibressthebuttontoopenthegaragedeatThe3.Brieflypressthebuttoninthecontrolpanel
greenLED(@)blinksorturnson.
-thatyouwanttoprogram.
>Pressthebuttonagaintoclosethegarage
4.Waituntilthe yellowLED@)blinks.Thepro-
Oar:grammingmodeisactiveforfiveminutes.
@)5.Goinfrontofthevehiclewiththeoriginalre-
AYTipsmotecontroltransmitterforthesystemthat
Toopenorclosethegaragedoor,donotpressyouareprogrammingtothecontrolpanel
thebuttonlongerthan20secondsorthega-button.
ragedooropenerwillswitchtoprogramming
mode.Programmingthebutton:step2atthe
radiatorgrille
6.Holdtheremotecontroltransmitteratthe
vehicleradiatorgrille>fig.26.
7.Nowpresstheremotecontroltransmitter
untiltheturnsignalsonyourvehicleblink.
Thiscantakeupto30seconds.
8.Iftheemergencyflashersblinkthreetimes,
theprogrammingwassuccessful.Ifthe
emergencyflashersonlyblinkonetime,the
five-minutetimelimitforprogramminghas
expiredortheprogrammingwasunsuccess-
ful.Repeattheprogrammingprocedure
startingfromthethirdsteporchangethe
distancetotheradiatorgrille.
30
Page 33 of 312
8S1012721BA
Openingandclosing
9.Ifthegaragedoororothersystemsdonot
openwiththeHomeLinkbuttonsevenifthe
programmingwassuccessful,thesystem
mayusearollingcodeinsteadofafixed
code.Youmustalsothenperformrolling
codeprogramming>page31.
Theothertwobuttonsinthecontrolpanel can be
programmedusingtheinstructionsgivenabove.
Startwithstep3.
Deletingbuttonprogramming
Theprogrammedbuttonscannotbedeletedindi-
vidually.Theymustbedeletedallatonce.Repro-
gramthebuttonsifnecessary.
>Switchtheignitionon.
>Pressbothoftheouterbuttonsonthecontrol
unituntiltheyellowLED(2)turnsoffandthe
greenLED(@blinks.
Reprogrammingbuttons
>Switchtheignitionon.
>Toreprogramanindividualbutton,pressthe
desiredbuttonuntilthegreenLED@turnsoff
andtheyellowLED(2)startstoblink(afterap-
proximately20seconds).Releasethebutton
immediately.Theprogrammingmodeisactive
forfiveminutes.
>Continuewithstep5.
@)Tips
— Thedistanceneededbetweentheremote
controltransmitterandthegarage door
openermoduleintheradiatorgrille
=>fig.26dependsonthesystemyouare
programming.
—Dependingonthesystemmodel,youmay
needtoreleasethe buttonontheremote
controltransmitterwhileitisprogramming
andpressitagain.Holdeverypositionyou
trywhenprogrammingforatleast15sec-
ondsbeforetryinganewposition.Keepan
eyeonthevehicleturnsignalswhiledoing
this.

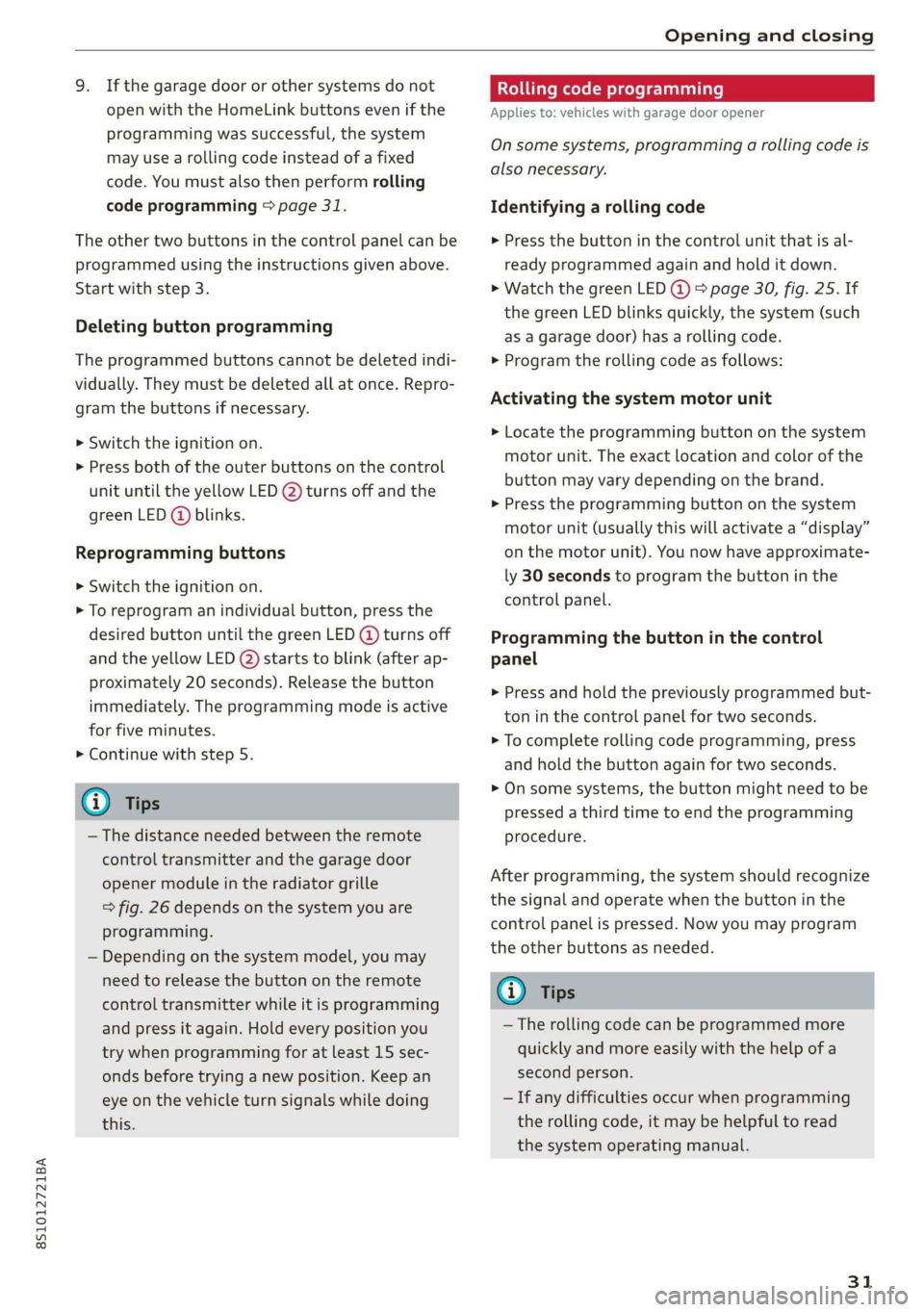

Rollingcodeprogramming
Appliesto:vehicleswithgaragedooropener
Onsomesystems,programmingarollingcodeis
alsonecessary.
Identifyinga rollingcode
>Pressthebuttoninthecontrolunitthatisal-
readyprogrammedagainandholditdown.
>»WatchthegreenLED@)>page30,fig.25.If
thegreenLEDblinksquickly,thesystem(such
asagaragedoor)hasarollingcode.
>Programtherollingcodeasfollows:
Activatingthesystemmotorunit
>Locate theprogrammingbuttononthesystem
motorunit.Theexactlocationandcolorofthe
buttonmayvarydependingonthebrand.
>»Presstheprogrammingbuttononthesystem
motorunit(usuallythiswillactivatea“display”
onthemotorunit).Younowhaveapproximate-
ly30secondstoprogramthebuttoninthe
controlpanel.
Programmingthebuttoninthecontrol
panel
>Pressandholdthepreviouslyprogrammedbut-
toninthecontrolpanelfortwoseconds.
>Tocompleterollingcodeprogramming,press
andholdthebuttonagainfortwoseconds.
>Onsomesystems,the buttonmightneedtobe
pressedathirdtimetoendtheprogramming
procedure.
Afterprogramming,thesystemshouldrecognize
thesignalandoperatewhenthebuttoninthe
controlpanelispressed.Nowyoumayprogram
theotherbuttonsasneeded.
(i)Tips
—Therollingcodecanbeprogrammedmore
quicklyandmoreeasilywiththehelpofa
secondperson.
—Ifanydifficultiesoccurwhenprogramming
therollingcode,itmaybehelpful toread
thesystemoperatingmanual.
31
Page 34 of 312
LightsandVision
LightsandVision
Exteriorlighting
SistemcLLatseal
B8V-0430
Fig.27Instrumentpanel:lightswitch
Lightswitch
Turntheswitchtothecorrespondingposition.
Whenthe lightsareswitchedon,the2»symbol
turnson.
O-lightsareoff(insomemarkets,thedaytime
runninglights*areswitchedonwhentheignition
isswitchedon.)
—USAmodels:thedaytimerunninglightsswitch
onautomaticallywhentheignitionisswitched
onandthelightswitchisset totheOorthe
AUTOposition(onlyindaylight).TheDaytime
runninglightscan beswitchedonandoffin
theMMI>page33>A.
—Canadamodels:thedaytimerunninglights
switchonautomaticallywhentheignitionis
switchedonandthelightswitchissettotheO,
20aortheAUTOposition(onlyindaylight)>A\.
AUTO*-automaticheadlightsswitchon andoff
dependingonbrightness,forexampleintwilight,
duringrainorintunnels.
300:-Parkinglights
2D-Lowbeamheadlights
220-All-weatherlights*
Q#-Rearfoglight(s)*
All-weatherlights*
Invehicleswithall-weatherlights,thefront
lightsareadjustedautomaticallyso thatyouare
32
lesslikelytoseeglarefromyourownheadlights,
forexamplewhendrivingonawetroad.
Automaticdynamicheadlightrangecontrol
system*
Yourvehicleisequippedwithaheadlightrange
controlsystemsothatthereislessglareforon-
comingtrafficifthevehicleloadchanges.The
headlightrangealsoadjustsautomaticallywhen
brakingandaccelerating.
Lightfunctions
Thefollowinglightfunctionsmaybeavailable
dependingonvehicleequipmentandonlyfunc-
tionwhenthelightswitchisintheAUTOposi-
tion.
Staticcorneringlight*(vehicleswithLEDhead-
lights)-thecorneringlightswitchesonautomat-
icallywhenthesteeringwheelisturnedatacer-
tainangleatspeeds uptoapproximately44mph
(70km/h)andwhentheturnsignalisactivated
atspeedsuptoapproximately25mph
(40km/h).Theareatothesideofthevehicleis
illuminatedbetterwhenturning.
Highwaylightfunction*(vehicleswithLEDhead-
lights)-thisfunctionadaptsthelightingfor
highwaydrivingbasedonvehiclespeed.
Speeddependentlightdistribution*(vehicles
withLEDheadlights)-thespeeddependentlight
distributionadaptsthelightintownsandon
highwaysorexpressways.Intersectionscanalso
beilluminatedonvehicleswithanavigationsys-
tem*.
ZA\WARNING
—Automaticheadlights*areonlyintendedto
assistthedriver.They donotrelievethe
driverofresponsibilitytocheck thehead-
lightsandtoturnthemonmanuallybased
onthecurrentlightandvisibilityconditions.
Forexample,fogcannot bedetectedby the
lightsensors.Soalwaysswitchonthelow
beamsundertheseweatherconditionsand
whendrivinginthe darkZO.
—Toreduceglarefortrafficbehindyourvehi-
cle,therearfoglights*shouldonlybe
turnedoninaccordancewiththelegal>
Page 35 of 312
8S1012721BA
LightsandVision
regulationsinthe countrywhereyouareop-
eratingthevehicle.
—Ifthebatteryhasbeendischargingfora
while,theparkinglightmayswitchoffauto-
matically.Alwaysmakesureyourvehicleis
parkedandadequatelyilluminatedaccord-
ingtothelegalregulationsinthe country
whereyouareoperatingthevehicle.Avoid
usingtheparkinglightsforseveralhours.
—Observethelegalregulationsinthecountry
whereyouareoperatingthevehiclewhen
usingthelightingsystemthatisdescribed.
@Tips
—Thelightsensorfortheautomatichead-
lights*isintherearview mirrormount.Do
notplaceanystickersinthisareaonthe
windshield.
—Someexteriorlightingfunctionscan bead-
justed
>page33.
—Ifyouturnofftheignitionwhiletheexterior
lightsareonandopenthedoor,awarning
tonesounds.
—Insomemarkets,thetaillightswillswitch
onwhenthedaytimerunninglightsswitch
on.
—Incoolordampweather,theinsideofthe
headlights,turnsignals,andtaillightscan
fog
overduetothetemperaturedifference
betweentheinsideandoutside.Theywill
clearshortlyafterswitchingthemon.This
doesnotaffecttheservicelifeofthelight-
ing.
Turnsignalandhighbeamlever
Theleveroperatestheturnsignals,thehigh
beamsandtheheadlightflasher.
©
»
©
Fig.28Turnsignalandhighbeamlever
Turnsignals@>
Theturnsignalsactivatewhenyoumovethelev-
er intoaturnsignalpositionwhentheignitionis
switchedon.
@-Rightturnsignal
@-Leftturnsignal
Theturnsignalblinksthreetimesifyoutap the
lever(convenienceturnsignal).
Highbeamsandheadlightflasher20
Movethelevertothecorrespondingposition:
@®-Highbeamson
@-Highbeamsofforheadlightflasher
The=o}indicatorlightintheinstrumentcluster
willturnon.
ZA\WARNING
Highbeamscancauseglareforotherdrivers,
whichincreasestheriskofanaccident.For
thisreason,onlyuse thehighbeamsorthe
headlightflasherwhentheywillnotcreate
glareforotherdrivers.
Adjustingtheexteriorlighting
ThefunctionsareadjustedintheInfotainment
system.
>SelectintheInfotainmentsystem:MENUbut-
ton>Vehicle> leftcontrolbutton>Vehicleset-
tings>Exteriorlighting.
33
Page 36 of 312
LightsandVision
Automaticheadlights
YoucanadjustthefollowingsettingsintheAuto-
matic
headlightsmenu:
Activationtime-youcanadjustiftheheadlights
switchonEarly,Medium,orLateaccordingto
thesensitivityofthelightsensor.
Audiadaptivelight*-youcanswitchadaptive
lightOnandOff.
Daytimerunninglights*
USAmodels:thedaytimerunninglightscanbe
switched
onoroffusingtheMMI.SelectOnor
Off.
Canadamodels:thisfunctioncannotbeswitched
off.Theyactivateautomaticallyeachtimetheig-
nitionisswitchedon.Thismenuitemisshown
witha“graybackground”.
Entry/exitlighting
Theentrylightingfunctionilluminatesthearea
outsidethevehiclewhenyouunlockthevehicle
whenitisdark.Toswitchonthefunction,select
Entry/exitlighting.
Theexitlightingfunctionilluminatesthearea
outsidethevehiclewhenyouturntheignitionoff
andopenthedriver'sdoorwhenitisdark.To
switchonthefunction,selectEntry/exitlight-
ing.
Theentry/exitlightingonlyworkswhenitisdark
andthelightswitchisintheAUTOposition.
Emergencyflashers
ee wm3 q 2
>imo
Fig.29Centerconsole:emergencyflasherbutton
Theemergencyflashersmakesotherdrivers
awareofyourvehicleindangeroussituations.
34
>PresstheAbuttontoswitchtheemergency
flashersonoroff.
Youcanindicatealanechangeoraturnwhenthe
emergencyflashersareswitchedonbyusingthe
turnsignallever.Theemergencyflashersstop
temporarily.
Theemergencyflashersalsoworkwhentheigni-
tionisturnedoff.
G)Tips
Youshouldswitchthe emergencyflasherson
if:
—youarethelastcarinatrafficjamsothat
allothervehiclesapproachingfrombehind
can seeyourvehicle
—yourvehiclehasbrokendownoryouare
havinganemergency
—yourvehicleisbeingtowedorifyouaretow-
inganothervehicle
Interior lighting
Interiorlighting
Fig.30Headliner:interiorlighting
4-Doorcontactswitch.Theinteriorlightingis
controlledautomatically.
Aswitchisnolongerneededtoswitchtheread-
ing lightson.Aswipingmovementorabrieftap
onthelightisallthatisneededtoswitchthe
lightonoroff.Ifyouholdyourfingeronthe
readinglightwhenswitchingiton,thiscandim
thelightdowntoacertainlevel.
Interiorlighting
Thereareotheroptionalinteriorlightingfunc-
tionsthatareavailable.Severalfunctionscanbe>
Page 37 of 312
8S1012721BA
LightsandVision
setintheInfotainmentsystem.SelectintheIn-
fotainmentsystem:MENUbutton>Vehicle>left
controlbutton>Vehiclesettings>Interiorlight-
ing.
NidaToateertela)
BFV-0015
Fig.31Instrumentillumination
Thebrightnessoftheinstrumentclusterandthe
centerconsolecan beadjusted.
>Presstheknobtoreleaseit.
>Turn theknobtoward"-"or"+"toreduceorin-
creasethebrightness.
>
Presstheknobagaintoreturnittoitsoriginal
position.
Vision
Adjustingtheexteriormirrors
5 8
gy
z o
Fig.32Driver'sdoor:knobfortheexteriormirrors
Turntheknobtothedesiredposition:
CV/®-Adjuststheleft/rightexteriormirror.
Movetheknobinthedesireddirection.
GA-Heatsthemirrorglassdependingontheout-
sidetemperature.
SA-Foldstheexteriormirrors*.IntheInfotain-
mentsystem,youcanselectifthemirrorsfoldin
automaticallywhenyoulockthevehicle
=>page26.
Frontpassenger'sexteriormirrortilt
function*
Tohelpyouseethecurbwhenbackingintoa
parkingspace,thesurfaceofthemirrortilts
slightly.Forthistohappen,theknobmustbein
thepositionforthefrontpassenger'sexterior
mirror.
Youcanadjustthetiltedmirrorsurfacebyturn-
ingtheknobinthedesireddirection.Whenyou
moveoutofreverseandintoanothergear,the
newmirrorpositionisstoredandassignedtothe
keyyouareusing.
Themirrorgoesbackintoitsoriginalposition
onceyoudriveforwardfasterthan9mph
(15km/h)orturntheignitionoff.
ZXWARNING
Curvedmirrorsurfaces(convex)enlargethe
fieldofvision.However,theymakeobjectsin
themirrorappearsmallerandfartheraway.
Youmayestimateincorrectlywhenyouuse
thesemirrorstogaugeyourdistancefromthe
vehiclesbehindyouwhenchanginglanes,
whichincreasestheriskofanaccident.
QoNote
Ifthemirrorhousingwasmovedbyoutside
forces(suchasanimpactwhenmaneuver-
ing),youmustuse thepowerfoldingfunction
tofoldthemirrorallthewayout.Themirror
housingmustnot bemovedbackintoplace
byhandbecausethiscouldimpairthefunc-
tionofthemirrormechanism.
G)Tips
Ifthepoweradjustingfunctionmalfunctions,
theglassinbothmirrorscan beadjustedby
pressingontheedgeofitbyhand.
35
Page 38 of 312
LightsandVision
Dimmingthemirrors
Manualdimmingrearviewmirror
>Pulltheleveronthebottomofthemirrorback.
Automaticdimmingrearviewmirror*
>Theinteriorrearview mirrorandexteriormir-
rors*dimautomaticallywhenlightshineson
them,forexamplefromheadlightsonavehicle
behindyou.
G)Tips
—Ifthelightreachingtherearviewmirroris
obstructed,theautomaticdimmingmirror
willnotfunctioncorrectly,
— Theautomaticdimmingmirrorsdonotdim
whentheinteriorlightingisturnedonor
thereversegearisselected.
WARNING
Electrolytefluidcanleakfromautomaticdim-
mingmirrorsiftheglassisbroken.Electrolyte
fluidcanirritateskin,eyesandairways.
—Repeatedorlong-termexposuretoelectro-
lytefluidcanleadtoirritationoftheair-
ways,especiallyinpeoplewithasthmaor
otherrespiratory conditions.Takedeep
breathsimmediatelyafterleavingthevehi-
cleor,ifthisisnotpossible,openallofthe
doorsandwindowsaswideaspossible.
—Ifelectrolytefluidenterstheeyes,flush
themthoroughlywithalargeamountof
cleanwaterforatleast15minutesandthen
seekmedicalattention.
—Ifelectrolytefluidcomesintocontactwith
theskin,flushtheaffectedareawithclean
water
foratleast15minutesandthenclean
withsoapandwaterandseekmedicalatten-
tion.Cleanaffectedclothingandshoesthor-
oughlybeforewearingagain.
—Ifthefluidwasswallowedandthepersonis
conscious,flushthemouthwithwaterforat
least15minutes.Donotinducevomiting
unlessthisisrecommendedbymedicalpro-
fessionals.Seekmedicalattentionimmedi-
ately.
©)Note
Iftheglassonanautomaticdimmingmirror
breaks,electrolytecanleakout.Thisliquid
damagesplasticsurfaces.Removetheliquid
asquicklyaspossible,forexampleusinga
wetsponge.
36
ry 3S
2=zc oo
Fig.33Sunvisor
Thesunvisorscan bemovedoutoftheirbrackets
[email protected]
mirrorlightswitchesonwhenthecoveroverthe
vanitymirror@)opens.
Windshieldwipers
Switchingthewindshieldwiperson
BFV-0019
Fig.34Windshieldwiperlever
Movethewindshieldwiperlevertothecorre-
spondingposition:
@-Windshieldwipersoff
@-Intervalmode.Toincrease/decreasethewip-
erintervals,movetheswitch@)totheleft/right.
Invehicleswitharainsensor*,thewipersturnon
intherainoncethevehiclespeedexceeds
Page 39 of 312
8S1012721BA
LightsandVision
approximately2mph(4km/h).Thehigherthe
sensitivityoftherainsensor*isset(switch@)to
theright),theearlierthewindshieldwipersreact
tomoistureonthewindshield.Youcandeacti-
vatetherainsensormode®intheInfotainment
system,whichswitchestheintermittentmode
on.SelectintheInfotainmentsystem:MENU
button>Vehicle> leftcontrolbutton>Driveras-
sistance>Rainsensor>Off.
@-Slowwiping
@-Fastwiping
@-Singlewipe.Ifyouholdtheleverinthisposi-
tionlonger,thewipersswitchfromslowwiping
tofastwiping.
©)-Cleanthewindshield.Toeliminatewater
droplets,thewindshieldwipersperformoneaf-
terwipeafterseveralsecondswhiledrivingin
temperaturesabove39°F(4°C).Youcanswitch
thisfunctionoffbymovingthelevertoposition
©within10secondsoftheafterwipe.Theafter-
wipefunctionisreactivatedthenexttimeyou
switchtheignitionon.
Cleantheheadlights*.Theheadlightwashersys-
tem*onlyfunctionswhenthe lightsareswitched
on.Theheadlightsareautomaticallycleanedthe
firsttimeandeveryfifthtimetheleverismoved
topositionG).
Z\WARNING
—Therainsensor*isonlyintendedtoassist
thedriver.Thedrivermaystill beresponsi-
ble formanuallyswitchingthe wiperson
basedonvisibilityconditions.
— Thewindshieldmustnotbetreatedwith
water-repellingwindshieldcoatingagents.
Unfavorableconditions,suchaswetness,
darkness,andwhenthe sunislow,can
causeincreasedglare,whichincreasesthe
riskofanaccident.Wiperbladechatterisal-
sopossible.
—Properlyfunctioningwindshieldwiper
bladesarerequiredforaclearviewandsafe
driving>page38,Replacingwindshield
wiperblades.
C@)Note
—Ifthereisfrost,makesurethewindshield
wiperbladesarenotfrozentothewind-
shield.Switchingonthewindshieldwipers
whenthebladesarefrozentothewind-
shieldcandamagethewiperblades.
—Thewindshieldwipersystemmustbe
switchedoff(leverinposition0)beforeus-
ing
acarwash.Thispreventsthewipers
fromswitchingonunintentionallyandcaus-
ingdamagetothewindshieldwipersystem.
@)Tips
—Thewindshieldwipersswitchoffwhenthe
ignitionisswitchedoff.Youcanactivatethe
windshieldwipersaftertheignitionis
switchedonagainbymovingthewindshield
wiperlevertoanyposition.
—Wornordirtywindshieldwiperbladesresult
instreaking.Thiscanaffecttherainsensor*
function.Checkyourwindshieldwiper
bladesregularly.
—Thewasherfluidnozzlesinthewindshield
washersystemareheated*atlowtempera-
tureswhentheignitionison.
—Whenstoppingtemporarily,suchasata
trafficlight,thespeedofthewindshield
wipersautomaticallyreducesbyonelevel.
Cleaningwindshieldwiperblades
Cleanthewiperbladeswhenyouseewiper
streaks.Cleanthewiperbladeswithasofttowel
andglasscleaner.
>Placethewindshieldwiperarmsintheservice
position>page38.
>Foldthewindshieldwiperarmsawayfromthe
windshield.
Z\WARNING
Dirtywindshieldwiperbladescanimpairvi-
sion,whichincreasestheriskofanaccident.
37
Page 40 of 312
LightsandVision
Replacingwindshieldwiperblades
he
B8R-0379
Fig.35Removingwindshieldwiperblades
Windshieldwiperserviceposition/blade
replacementposition
>Tobringthewindshieldwipersintotheservice
position,turntheignitionoffandmovethe
windshieldwiperleverintoposition@)
=>page36,fig.34.
>Tobringthewipersintothestartingposition,
turntheignitiononandmovethewindshield
wiperleverintoposition@)foratleasttwosec-
onds>page36,fig.34.
Removingthewiperblade
> Foldthewindshieldwiperarmawayfromthe
windshield.
>Pressthelockingknob(@)©fig.35onthewiper
blade.Holdthewiperbladefirmly.
>Removethewiperbladeinthedirectionofthe
arrow.
Installingthewiperblade
>Insertthenewwiperbladeintothemounton
thewiperarm(2)untilyouhearitlatchinto
place.
» Placethewiperarmbackonthewindshield.
>Turn theservicepositionoff.
Z\WARNING
Forsafetyreasons,thewindshieldwiper
bladesshouldbereplacedonceortwiceeach
year.
@)Note
— Thewindshieldwipersmustonlybefolded
upwhenintheserviceposition!Otherwise,
338
youriskdamagingthepaintonthehoodor
thewindshieldwipermotor.
—Youshouldnotdriveyourvehicleorpress
thewindshieldwiperleverwhenthewiper
armsarefoldedawayfromthewindshield.
Thewindshieldwiperswouldmovebackin-
totheiroriginalpositionandcoulddamage
thehood andwindshield.
G)Tips
—Youcanalsousetheserviceposition,forex-
ample,ifyouwanttoprotectthewindshield
fromicingbyusingacover.
—Youcannotactivatetheserviceposition
whenthehoodisopen.
Digitalcompass
SicaatematmeelnieRniemela
Appliesto:vehicleswithdigitalcompass
BFV-0288
@
Fig.36Rearviewmirror:digitalcompassisswitchedon
>Toturnthecompassonoroff,pressthe button
@untilthecompassdisplayinthemirrorturns
onoroff.
Thedigitalcompassonlyworkswhentheignition
isturnedon.Thedirectionsareindicatedwithab-
breviations:N(north),NE(northeast),E(east),
SE(southeast),S(south),SW(southwest),W
(west),NW(northwest).
(i)Tips
Topreventinaccuratecompassreadings,do
notbringanyremotecontrols,electricaldevi-
ces or metallicobjectsnearthemirror.
