Adjustingthemagnetic zone
Appliesto:vehicleswithdigitalcompass

BFV-0293

Fig.37NorthAmerica:magneticzonemap
>Pressandholdthebutton@>page38,fig.36
untilthenumberofthemagneticzoneappears
intheinteriorrearviewmirror.
>Pressthebutton(@)repeatedlytoselectthe
correctmagneticzone.Theselectionmode
turnsoffafterafewseconds.
Calibratingthecompass
Appliesto:vehicleswithdigitalcompass
Ifthedisplayisincorrectorinaccurate,thecom-
passmustberecalibrated.
>Pressandholdthebutton@untilaCappears
intheinteriorrearviewmirror.
>Driveinacircleatabout5mph(10km/h)until
a
directionisdisplayedintherearviewmirror.

—Toreducetherisktoyourselfandotherdriv-
ers,calibratethe compassinanareawhere
thereisnotraffic.
—Alwayspayattentiontothetrafficandthe
areaaroundyourvehicleifyouarereading
thecompasswhiledriving.


39

Seats

Seats
Generalinformation

Z\WARNING
See=page175,Safedrivingforimportant
information,tips,suggestionsandwarnings
thatyoushouldreadandfollowforyourown
safetyandthesafetyofyourpassengers.

Frontseats
eae)arenalalg
Appliesto:vehicleswithpoweradjustableseats
2 &
Sg cd
z o

Fig.38Frontseat:powerseatadjustment
@-Lumbarsupportormultifunctionbutton*
=page40.Toadjustthelumbarsupport,press
thebuttonintheapplicablelocation.
@-Movingtheseatup/down:pressthe button
upward/downward.Toadjustthefrontseatcush-
ion,pressthefrontbuttonup/down.Toadjust
therearseatcushion,presstherearbuttonup/
down.
@-Movingtheseatforward/back:pressthebut-
ton forward/back.
@®)-Adjustingthebackrestangle:pressthebut-
ton forward/back.
@-Lengthening/shorteningtheupperthighsup-
port*:liftthegriphandle.


Z\WARNING
—Onlyadjustthefrontseatwhenthevehicle
isstationary.Otherwise,thisincreasesthe
riskofanaccident
— Thepowerfrontseatscanalsobeadjusted

whentheignitionisswitchedoff.Forthis

40

reason,childrenshouldneverbeleftunat-
tendedinthevehiclebecausetheycouldbe
injured.
—Exercisecautionwhenadjustingtheseat
height.Unsupervisedorcarelessseatadjust-
mentcanpinchfingersorhandscausingin-
juries.
— Thefrontseatbackrestsmustnotbere-
clinedtoofarbackwhendriving,because
thisimpairstheeffectivenessofthesafety
beltsandairbagsystem,whichincreasesthe
riskofinjury.
—Tominimizetheriskofinjuryduringsudden
brakingoracollision,thedriverandthe
frontpassengermustnotdriveorridewith
thebackrestinthereclinedposition.The
safetybeltsandairbagsystemcanonlypro-
videthegreatestprotectionpossiblewhen
thebackrestsareintheuprightpositionand
thesafetybeltsareworncorrectly.Themore
abackrestisreclined,thegreatertheriskof
injuryduetoanincorrectseatingposition
andsafetybeltposition.
Multifunctionbutton
Appliesto:vehicleswithmultifunctionbutton


You canadjustthesidebolstersusingthemulti-
functionbutton.
>Ifyouturnthemultifunctionbutton@
=>page40,fig.38totheleftorright,theside
bolstersontheseatbackrestswillincrease or
decreasethelateralsupport.
G)Tips
Theairinthesidebolsters*isreleasedas
soonasthedriver'sdooropens.Thismakesis
possibletoenterandexitthevehiclemore
comfortably.Assoonasyoustartdrivingthe
vehicle,thesidebolstersfill.

8S1012721BA
Seats

a1
Appliesto:vehicleswithentryassistance
Easyseatentrymakesiteasiertogetintothe
Ay
oe
d
Fig.39Driver'sseat:loopontheseatbackrest

BFV-0119


>Tofoldthefrontseatbackrestsforward,pullon
theloopandfoldtheseatbackrest.

ZA\WARNING
Alwaysmakesurethefront seatsareupright
andsecurelylockedinplacewhendriving.
(eataed
Appliesto:vehicleswithcenterarmrest




Fig.40Armrestbetweenthedriver's/frontpassenger's
seats.
>Toliftthearmrestoutofthelowestposition,
pressthebuttoninthedirectionofthearrow.
>Toadjusttheangle,raisethearmrestnotch by
notch.
>Tobringthearmrestbackdown,raiseitoutof
the topnotchandfolditbackdown.ThenLift
thearmresttothedesiredposition,ifnecessa-
ry.
Pleasenotethatthedriver'sabilitytomovehisor
armmayberestrictedwhenthearmrestisfolded

down.Becauseofthis,thearmrestshouldnotbe
foldeddownduringcitydriving.
Thearmrestcanslideforwardandback.
Thereisastoragecompartmentunderthearm-
rest.
Rearbenchseat
Rearseatpassengersmustmeetcertaincriteria.

BFV-0074

Fig.41Correctseatedpositionontherearbenchseat

ZA\WARNING
—Onlypassengersupto57in(145cm)tall
maysitontherearbenchseat.
—Theminimumdistancebetweenthehead
andtherearwindowwhensittingupright
should not belessthan1in(2.5cm).People
whosittallerthanthiscouldsuffersevere
injurieswhenclosingtheluggagecompart-
mentlidorduringacollision.Alwayspayat-
tentiontotherearpassengerswhenclosing
theluggagecompartmentlid.
— Noheavy,hardobjectsmaybeplacedonthe
luggagecompartmentcover.Theyendanger
thevehiclepassengerswhenopeningthe
luggagecompartmentlidorwhenbraking
suddenly.

41

Stowingandusing

Stowingandusing
Ashtray
Appliesto:vehicleswithashtray
2 3 e >
coa

Fig.42Centerarmrestfoldedup:ashtray
Theashtrayisplacedinthecenterconsoleunder
the centerarmrest.
Openingandclosing
>Toopenorclosetheashtray,foldthecoverup
ordown.
Emptying
>Toemptytheashtray,pullitupwardandout.

Z\WARNING
Neverusetheashtraytoholdpaper,because
thisincreasestheriskofafire.

Cigarettelighter

Fig.43Centerarmrestfoldedup:cigarettelighter
Thecigarettelighteronlyworkswhentheigni-
tionisswitchedon.
> Foldthe centerarmrestuptoreachtheciga-
rettelighter,ifnecessary.
>
Pressthecigarettelighterin.
42
>Removethecigarettelighterwhenitpopsout.
Thecigarettelightermaybeusedasapower
sourceforthetiremobilitykit/compactspare
tire*compressoronlywhenabsolutelynecessary.

Z\WARNING
—Thecigarettelighteronlyworkswhentheig-
nitionisswitchedon.Incorrectusagecan
leadtoseriousinjuriesorburns.To reduce
theriskofinjuries,neverleavechildrenun-
attendedinthevehiclewiththevehiclekey.
—Becarefulwhenusingthecigarettelighter.
Inattentiveorunsuperviseduseoftheciga-
rette
lightercancauseburns.

Powersources
Whentheignitionisswitchedon,youmaybe
abletouse theelectricpowersourcesforexter-
naldevices,dependingonthevehicleequipment.
12voltsockets
Youcanconnectelectricalaccessoriestothe12
voltsockets.Thepowerusagemustnotexceed
120watts.
The12voltsocketsarelabeledwiththe&or
12Vsymbol.Theyarelocatedinthefrontcenter
console*andonthesidetrimpanelinthelug-
gagecompartment*.
USBports
Appliesto:vehicleswithUSBport
Youcan chargemobiledevicesusingtheUSB
ports.TheUSBportsarelabeledwiththe«<>or
[4symbolorCHARGEONLY.

Z\WARNING
—Toreducetheriskoffatalinjury,storeall
connecteddevicessecurelywhendrivingso
that
theydonotmovearoundinsidetheve-
hiclewhenbrakingorintheeventofanacci-
dent.
—Incorrectusagecanleadtoseriousinjuries
orburns.Toreducetheriskofinjuries,never
leavechildrenunattendedinthevehicle
withthevehiclekey.>

8S1012721BA
Stowingandusing

@)Note
—Readtheoperatingmanualsforthecon-
necteddevices.
—Toreducetheriskofdamagetothevehicle
electricalsystem,neverattempttocharge
the
vehiclebatterybyconnectingaccesso-
riesthatprovidepowertothepowersour-
ces.
—Donotconnectanydevicewhosenetwork
class(voltage)doesnotmatchthenetwork
classdesignedforthesocket.
—Disconnect theconnectorsfromthepower
sourcescarefullytoreducetheriskofdam-
agingthem.
Storage
(etymiredtel-Te
Appliesto:vehicleswithcupholders
S s 2
>ega


Fig.45Centerarmrestfoldedup:cupholder
>Touse thecupholderunderthecenterarmrest,
folditupward>page41.
>Foldtheplasticbrackettowardtherear,ifnec-
essary>fig.45.

ZXWARNING
Spilledhotliquidcanincreasetheriskofacci-
dentsandinjuries.
—Neverdrivewithcontainersthatcontainhot
liquidsuchas coffeeortea.Thehotliquid
couldspillandcauseburnsduringacolli-
sion,suddenbrakingorothervehiclemove-
ment.Spilledhotliquidcanalsoincrease
theriskofaccidentsandinjuries.
—Onlyusesoftcontainersinthecupholders.
Hardcupsandglassescanincreasetherisk
ofinjuryduringacollision.
—Neveruse thecupholderortheadapteras


anashtraybecausethisisafirehazard.
C)Note
Beveragecontainersinthecupholdersshould
always
havealid.Otherwise,theliquidinside
couldspillandcausedamagetovehicle
equipment.
Additionalstoragecompartments
Youwillfindarangeofstoragecompartments
andholdersatdifferentlocationsinthevehicle.

—Compartmentsinthedoors
—Storageareaintheglovecompartment.The
glovecompartmentcanbelockedusingthe
mechanicalkey>page23.
—Storagecompartmentunderthecenterarm-
rest*
—Keycompartmentinthecenterconsole
—Storagecompartmentontherearsideofthe
frontseat*.The compartmentcanholdamaxi-
mumweightof2.2lbs(1kg).
—Coathooks

ZA\WARNING
— Noheavyorhardobjectsmaybeplacedon
thestoragecompartmentbehindtherear
seatbackrest.Thereisariskofinjuringthe
vehiclepassengerswhenbrakingsuddenly.
—Toreducetheriskofinjury,makesurethe
coversforallstoragecompartmentsareal-
waysclosedwhiledriving.>


43

Stowingandusing


—Onlyuse thestoragecompartmentsinthe
doortrimpanelstostoresmallobjectsthat
willnotstickoutofthecompartmentand
impair thefunction ofthesideairbags.
—Makesurethattheviewtotherearisnot
obstructedbyhanginggarments.
—Hangonlylightweightclothingandbesure
that
therearenoheavyorsharp-edgedob-
jectsinthepockets.
—Donotusecoathangerstohanggarments
becausethiscouldreducetheeffectiveness
ofthesidecurtainairbags*.
@)Note
Objectsontherearshelfthatrubagainstthe
rearwindowcandamagetherearwindow
heatingwires.
Theroofrackmustonlybesecuredintheposi-
tioningboltarea.


ryxSs Z|
>coO


Fig.46Mountinglocationsforroofrack
Ifluggageorcargoistobecarriedontheroof,
youmustobservethefollowing:
—Onlyapprovedroofracksmaybeusedonyour
vehicle.Theseroofracksarethebasisfora
completeroofracksystem.Additionalattach-
mentsorcarriersystemsare neededtotrans-
portluggageandsportsequipment.Roofracks
andattachmentsfromtheAudiGenuineAcces-
soriesprogramarerecommended.
—Wheninstallingtheroofrack,makesurethatit
ismountedonlyatthedesignatedpointson
theroof>fig.46.
—Notethepermittedaxleload,permittedtotal
weight,andpermittedroof loadofyourvehicle
44
=>page294.Theroofloadisthetotalofthe
weightoftheroofrack,theattachmentsand
thecargoyouarecarrying.However,youmust
alsonote thepermittedloadofthecarriersys-
tembeingused.
Installation
Wheninstallingthesupportfeet,makesurethey
areonly placedinthepositioningboltarea be-
tweenthesidewallframeandtheroofframe
trim>fig.46.Thepositioningboltisvisibleas
soonasyoupushthesealinglipbackfromthe
roomframetrimusingthedesignatedtool.

Z\WARNING
—Followtheinstallationinstructionsprovided
withtheroofracksystem.Ifyoudonotse-
curetheroofracksystem andobjectsonthe
roofcorrectly,theycouldcomeloosefrom
thevehicleandcause anaccident.
—Theriskofanaccidentincreaseswhenusing
aroofracksystem,becauseitchangesthe
drivingcharacteristicsbyshiftingthecenter
ofgravityand/ortheincreasingthesurface
areaexposedtowind.Youmayneedto
adaptyourdrivingstyleandspeedtothe
currentconditions.
@)Note
Makesuretheluggagecompartmentliddoes
nothitthecargoontheroofrackwhenyou
openit.

@)Forthesakeoftheenvironment
Yourvehiclewillusemoreenergyduetothe
increasedwindresistance.Removetheroof
rackwhenyouarenolongerusingit.
Luggagecompartment
Generalinformation
Allpiecesofluggageorobjectsmustbesecurely
fastenedintheluggagecompartment.Notethe
followingtomaintaingoodvehiclehandling:
>Distributetheloadevenlyintheluggagecom-
partment.

8S1012721BA
Stowingandusing

>Stowheavyluggageasfarforwardinthelug-
gagecompartmentaspossible.
>Usenon-elasticcordsattachedtothetie-downs
tosecureobjects.


Z\WARNING
— Theluggagecompartmentcovermustal-
waysbesecurelyfastenedwheninusetore-
ducetheriskofanaccident.
— Theluggagecompartmentcoverisnota
surfaceforstoringobjects.Objectsplaced
onthecoverincreasetheriskofinjurytoall
vehicleoccupantsduringsuddendrivingor
brakingmaneuversorintheeventofanac-
cident.
—Looseobjectscanbethrownaroundtheve-
hicleinteriorduringsuddendrivingorbrak-
ingmaneuvers, whichincreasestheriskof
anaccident.Alwaysstowobjectssecurelyin
theluggagecompartmentandsecurethem
atthetie-downs.Usestrapssuitablefor
heavyobjects.
—Ifpieces ofluggageorobjects aresecured
tothetie-downswithunsuitableordam-
agedstraps,thiscanincreasetheriskofin-
juryduringbrakingmaneuversoraccidents.
—Whentransportingheavyobjects,thevehi-
clecharacteristicswillchangeduetothe
shiftinthecenterofgravity,whichincreases
theriskofanaccident.Youmayneedto
adaptyourdrivingstyleandspeedtothe
currentconditions.
— Thecargonetisonlystrongenoughtose-
curelightobjects.Heavyobjects arenotade-
quatelysecured.Attemptingtosecureheavy
objectsincreasestheriskofinjury.
—Neverexceedthepermittedaxleandload
andvehicleweight>page294.
—Neversecureachildsafetyseattothetie-
downs.
—Neverleaveyourvehicleunattended,espe-
ciallyiftheluggagecompartmentlidis
open.Childrencouldentertheluggagecom-
partmentandclosetheluggagecompart-
mentlidfromtheinside.Thiscreatesthe
riskoffatalinjury,sincethechildrenwould
belockedinandmaynotbeabletoescape

bythemselves.

—Donotallowchildrentoplayinorontheve-
hicle.Closeandlocktheluggagecompart-
mentlidaswellasallotherdoorswhenyou
leavethevehicle.
—Nevertransportpassengersintheluggage
compartment.Everypassengermustbecor-
rectlysecuredwiththesafetybeltsinthe
vehicle>page180.
—Becarefulwhenreleasingthebackrestand
foldingitforward.Toreducetheriskof be-
ingpinched,payattentionandcheckwhen
foldingbackrestsforward.
— Thebackrestmustbesecurelylatchedso
objectscannotslideforwardoutofthelug-
gagecompartmentduringsuddenbraking.
—Alwayspullforwardonthebackresttomake
sureitischeckifitiscorrectlylockedin
place.


()Note
—Ifyoumovethefrontseatbackwhenthe
rearseatbackrestisfoldedforward,you
coulddamagetheheadrestraintsonthe
rearseat.
—Whenfoldingthebackrestforward,make
suretheoutersafetybeltsareinthebelt
guiderecessso thattheydonot get pinched
inthebackrestlockanddamaged.Otherob-
jectsshould beremovedfromtherear
benchseattoprotectthebackrestfrom
damage.
—Makesurethattheheatinggridstripsfor
therearwindowdefoggerarenotdamaged
byabrasiveobjects.
G)Tips
—Thetirepressuremustbeadaptedtothe
load>page258.
—Youcanpurchasestrapsatspecialtystores.
45

Stowingandusing


Luggagecompartme!1!


o 2 3
gz=c
oo

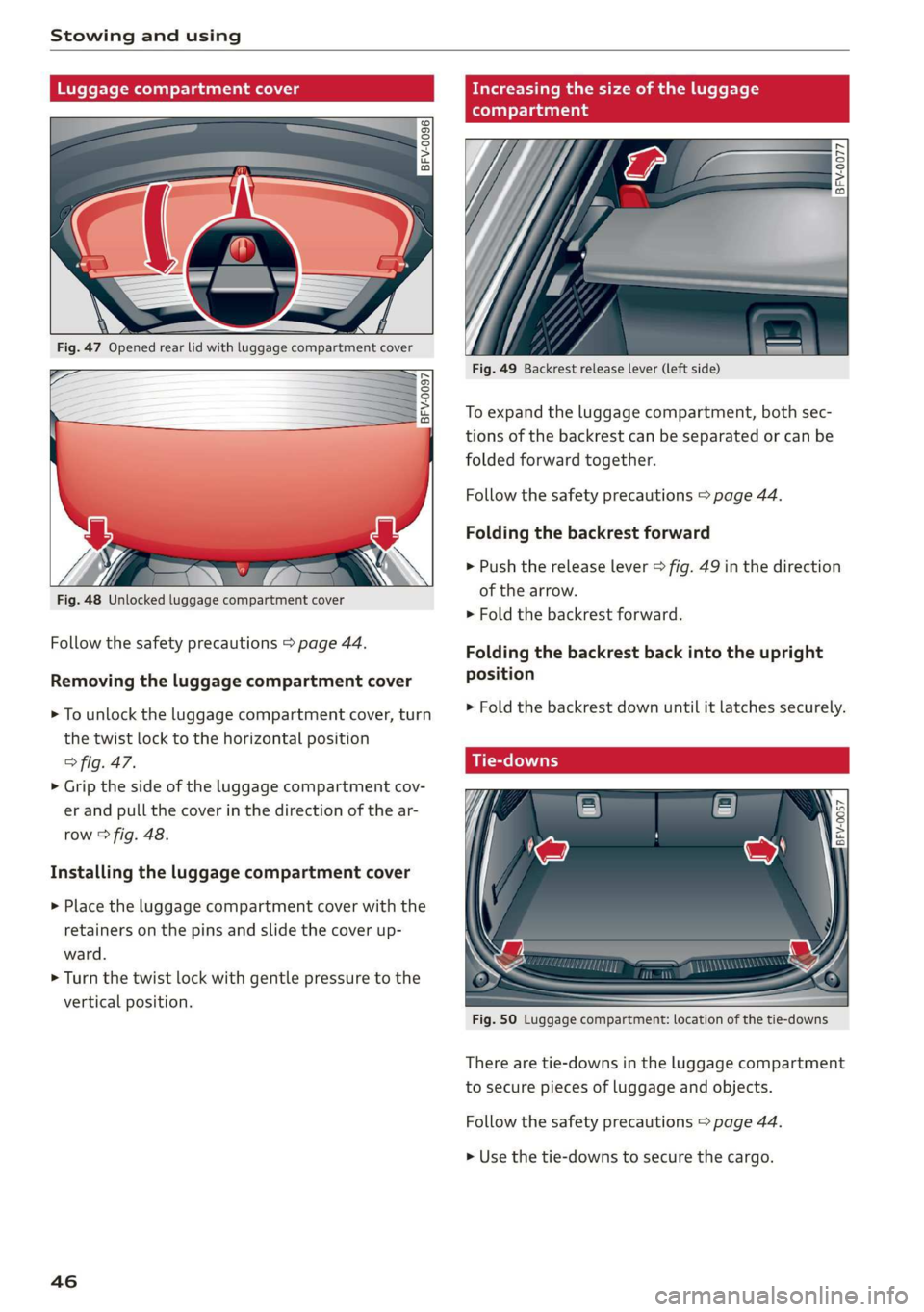

Fig.47Openedrearlidwithluggagecompartmentcover
ee
sg|
Fig.48Unlockedluggagecompartmentcover

BFV-0097


Followthesafetyprecautions>page44.
Removingtheluggagecompartmentcover
>Tounlocktheluggagecompartmentcover,turn
thetwistlocktothehorizontalposition
>fig.47.
> Gripthesideoftheluggagecompartmentcov-
er
andpullthecoverinthedirectionofthear-
row>fig.48.
Installingtheluggagecompartmentcover
> Placetheluggagecompartmentcoverwiththe
retainersonthepinsandslidethecoverup-
ward.
>Turn thetwistlockwithgentle pressuretothe
verticalposition.
46

BFV-0077

Fig.49Backrestreleaselever (leftside)
Toexpandtheluggagecompartment,bothsec-
tionsofthebackrestcan be separatedorcanbe
foldedforwardtogether.
Followthesafetyprecautions>page44.
Foldingthebackrestforward
>Pushthereleaselever>fig.49inthedirection
ofthearrow.
>Foldthebackrestforward.
Foldingthebackrestbackintothe upright
position
> Foldthebackrestdownuntilitlatchessecurely.



Fig.50Luggagecompartment:locationofthetie-downs
Therearetie-downsintheluggagecompartment
tosecurepiecesofluggageandobjects.
Followthesafetyprecautions>page44.
»Usethetie-downstosecure thecargo.

8S1012721BA

Stowingandusing

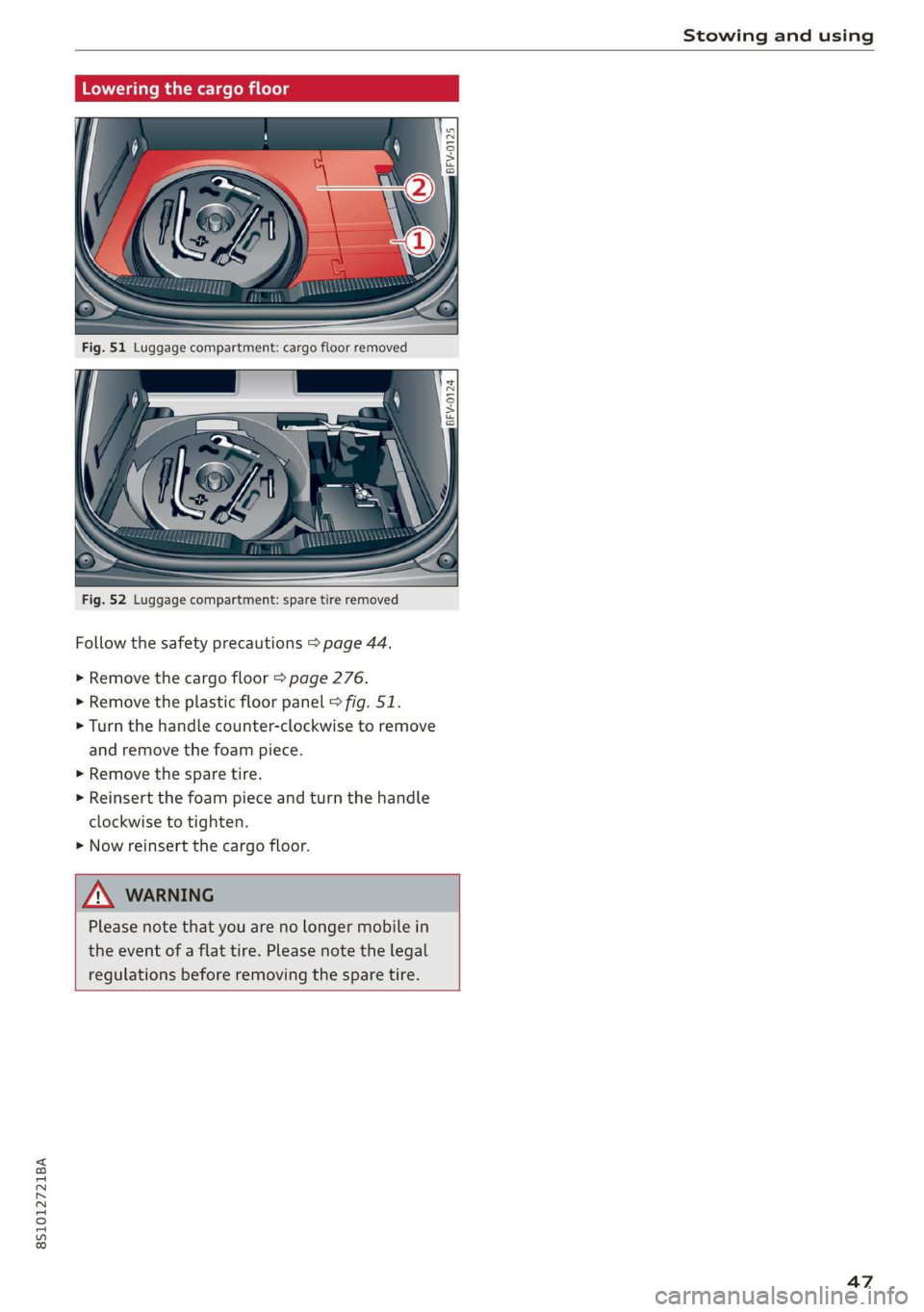

Fig.52Luggagecompartment:sparetireremoved
Followthesafetyprecautions>page44.
>»Removethecargofloor>page276.
>Removetheplasticfloorpanel>fig.51.
>Turn thehandlecounter-clockwisetoremove
andremovethefoampiece.
>Removethesparetire.
>Reinsertthefoampieceandturnthehandle
clockwisetotighten.
>Nowreinsertthecargofloor.
Loweringthecargofloor
]

BFV-0124

ZAWARNING
Pleasenotethatyouarenolongermobilein
theeventofaflattire.Pleasenotethelegal
regulationsbeforeremovingthesparetire.

47

Warmandcold

Warmandcold
Climatecontrolsystem
Theclimatecontrolsystemwarms,coolsandre-
moveshumidityfromtheairinthevehicleinteri-
or.Itfunctionsmosteffectivelywhenthewin-
dowsareclosed.Ifthereisabuild-upofheatin-
sidethevehicle,ventilationcanhelptospeedup
thecoolingprocess.
Pollutantfilter
The
pollutantfilterremovespollutantssuchas
dustandpollenfromtheair.
Keyrecognition
Certain settings areautomaticallystoredandas-
signedtotheremotecontrolkeybeingused.

ZA\WARNING
Poorvisibilitycanleadtoaccidents.
—Forsaferdriving,keepallwindowsfreeof
ice,snowandfog.
—Becomefamiliarasquicklyaspossiblewith
thecorrectuseandfunction oftheclimate
controlsystem,especiallywiththedefrost-
inganddefoggingfunction.
—Whenthetemperatureisbelowfreezing,
onlyuse thewindshieldwashersystemafter
thewindshieldhasbeenwarmedbythecli-
matecontrolsystem.Thewasherfluidcould
freezeonthewindshieldandimpairvisibili-
ty.
@)Note
—Ifyoususpectthattheclimatecontrolsys-
temisdamaged,switchthesystemoffto
48
preventfurtherdamageandhaveitchecked
byanauthorizedAudidealerorauthorized
AudiServiceFacility.
—RepairstotheAudiclimatecontrolsystem
require specialtechnicalknowledgeand
specialtools.Haveitinspectedbyanau-
thorizedAudidealershiporaqualifiedelec-
tronicsstore.
()Forthesakeoftheenvironment
Reducingtheamountoffuelusedalsore-
ducestheamountofpollutantsthatenterthe
alr.
G)Tips
—Topreventinterferencewiththeheating
andcoolingoutput andtopreventthewin-
dowsfromfoggingover,theairintakein
front ofthewindshieldmustbefreeofice,
snow,orleaves.
—Condensationfromthecoolingsystemcan
dripandformapuddleofwaterunderthe
vehicle.Thisisnormalanddoesnotmean
thereisaleak.
— Theenergymanagementsystemmaytem-
porarilyswitchoffcertainfunctions,suchas
theseatheating*orrearwindowdefogger.
Thesesystemsareavailableagainassoonas
theenergysupplyhasbeenrestored.
— Theflowsthroughtheventsundertherear
window.Makesuretheopeningsarenot
coveredwhenplacingclothingonthelug-
gagecompartmentcover.
