AUDI TT ROADSTER 2008 Owners Manual

Applies to vehicles : wit h m anua l seat a djustment

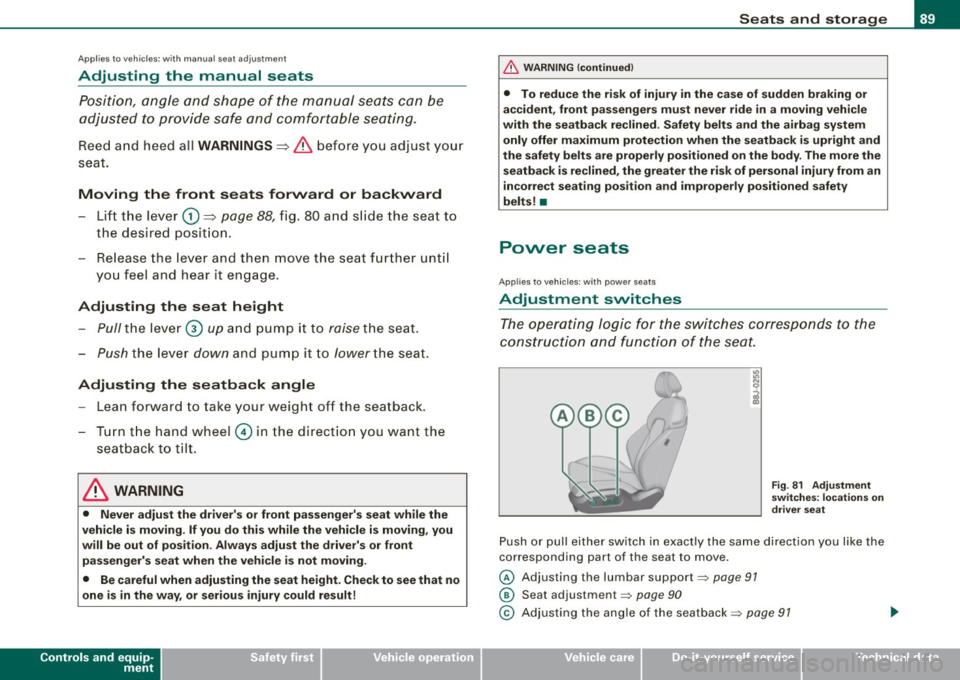

Adjust ing the m anu al se ats
Position, angle and shape of the manual seats can be
adjusted to provide safe and comfortable seating.
Reed and heed all WARNINGS=:> & before you adjust your
seat.
Moving the front seats forward or backward
- Lift the lever (D =:> page 88, fig. 80 and slide the seat to
the desired position.
- Release the lever and then move the seat further until
you feel and hear it engage.
Adjusting the seat height
- Pull
the lever 0 up and pump it to raise the seat.
-Push the lever down and pump it to lower the seat.
Adjusting the seatback angle
-Lean forward to take your weight off the seatback.
- Turn the hand wheel© in the direction you want the
seatback to tilt .
& WARNING
• Never adjust the driver's or front passenger's seat while the
vehicle is moving. If you do this while the vehicle is moving, you
will be out of position . Always adjust the driver's or front
passenger's seat when the vehicle is not moving.
• Be careful when adjusting the seat height. Check to see that no
one is in the way, or serious injury could result!
Controls and equip ­
ment
Seats and storage
& WARNING (continued)
• To reduce the risk of injury in the case of sudden braking or
accident, front passengers must never ride in a moving vehicle
with the seatback reclined . Safety belts and the airbag system
only offer maximum protection when the seatback is upright and
the safety belts are properly positioned on the body. The more the
seatback is reclined, the greater the risk of personal injury from an
incorrect seating position and improperly positioned safety
belts! •
Power seats
Applies to ve hicles: w ith power sea ts
Adjustment switches
The operating logic for the switches corresponds to the
construction and function of the seat.
Fig. 81 Adjustment
switches: locations on
driver seat
Push or pull either switch in exactly the same direction you like the
corresponding part of the seat to move.
@ Adjusting the lumbar support~ page 91
@ Seat adjustm ent ~ page 90
© Adjusting the angle of the seatback ~ page 91 ..,_
I • •

Seats and storage
& WARNING
• Never adjust the driver's or front passenger seat while the
vehicle is moving. If you do this while the vehicle is moving, you
will be out of position . Always adjust the driver's or front
passenger seat when the vehicle is not moving .
• Be careful when adjusting the seat height . Check to see that no
one is in the way, or serious injury could result!
• Because the seats can be electrically adjusted with the ignition
key removed, never leave children unattended in the vehicle. Unsu­
pervised use of the electric seat adjustments may cause serious
injury. •
Applies t o ve hicl es: w it h p ower seats

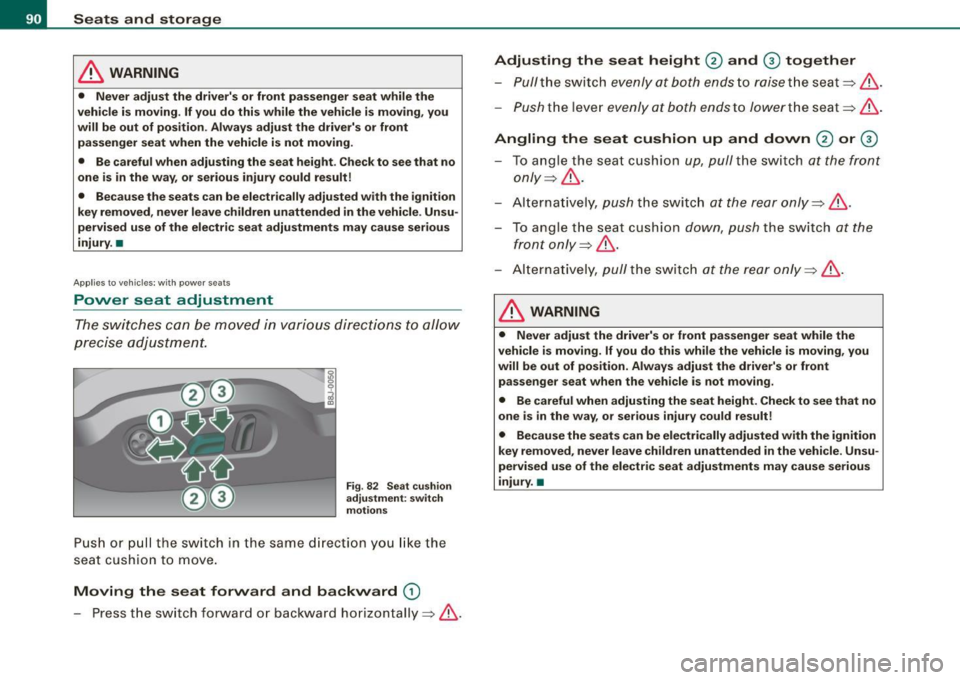

Power seat adjustment
The switches can be moved in various directions to allow
precise adjustment.
Fig. 82 Seat cushion
adjustment: switch
motions
Push or pull the switch in the same direction you like the
seat cushion to move.
Moving the seat forward and backward G)
- Press the switch forward or backward horizontally=>& .
Adjusting the seat height 0 and 0 together
Pull the switch evenly at both ends to raise the seat =>& .
-Push the lever evenly at both ends to lower the seat=> &.
Angling the seat cushion up and down 0 or 0
To angle the seat cushion up, pull the switch at the front
only =>& .
Alternatively, push the sw itch at the rear only =>& .
To angle the seat cushion down, push the switch at the
front only=>& .
Alternatively , pull the switch at the rear only =>& .
& WARNING
• Never adjust the driver's or front passenger seat while the
vehicle is moving. If you do this while the vehicle is moving, you
will be out of position. Always adjust the driver's or front
passenger seat when the vehicle is not moving.
• Be careful when adjusting the seat height. Check to see that no
one is in the way, or serious injury could result!
• Because the seats can be electrically adjusted with the ignition
key removed, never leave children unattended in the vehicle. Unsu­
pervised use of the electric seat adjustments may cause serious
injury. •

Applies to vehic les: with power seats

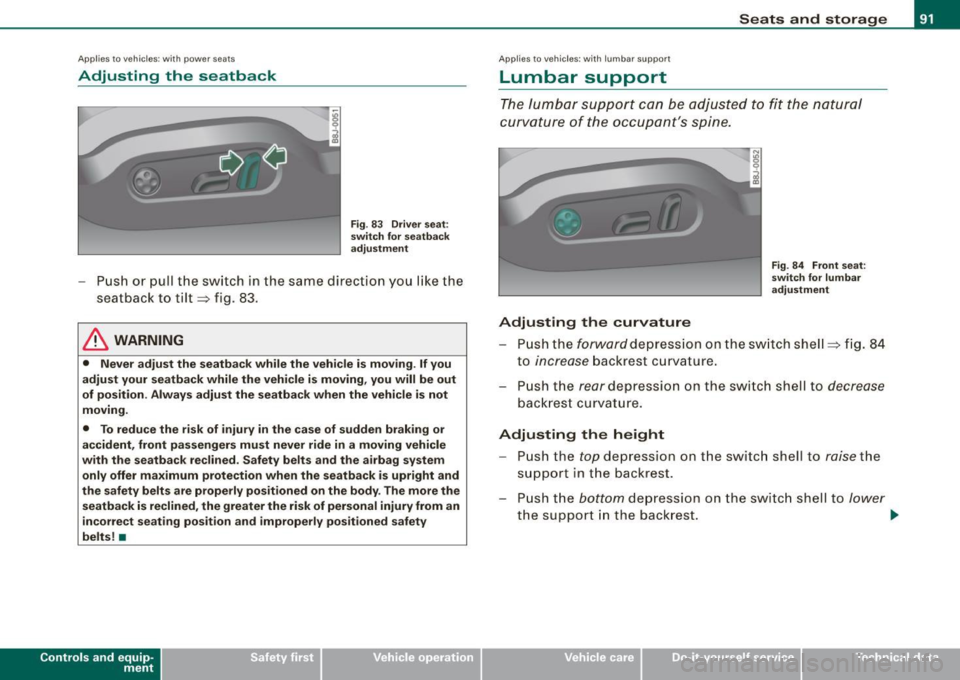

Adjusting the seatback
Fig . 83 Driver seat:
switch for seatback
adjustment
- Push or pull the switch in the same d irection you like the
seatback to ti It => fig. 83 .
& WARNING
• Never adjust the seatback while the vehicle is moving . If you
adjust your seatback while the vehicle is moving, you will be out
of position . Always adjust the seatback when the vehicle is not
moving.
• To reduce the risk of injury in the case of sudden braking or
accident, front passengers must never ride in a moving vehicle
with the seatback reclined. Safety belts and the airbag system
only offer maximum protection when the seatback is upright and
the safety belts are properly positioned on the body . The more the
seatback is reclined, the greater the risk of personal injury from an
incorrect seating position and improperly positioned safety
belts! •
Con tro ls and eq uip­
ment
Seats and storage
A pp lies to vehicles: with lumba r suppo rt
Lumbar support
The lumbar support can be adjusted to fit the natural
curvature of the occupant's spine .
Adjusting the curvature
Fig. 84 Front seat:
switch for lumbar
adjustment
Push the forward depression on the switch shell=> fig. 84
to
increase backrest curvature.
Push the
rear depression on the switch shell to decrease
backrest curvature.
Adjusting the height
Push the top depression on the sw itch s he ll t o raise the
support in the backrest .
Push the
bottom depressio n on the switch shell to lower
the support in the backrest . ~
Vehicle care I I irechnical data

Seats and storage
& WARNING
Never adjust the lumbar support while the vehicle is moving. If you
adjust your seat while the vehicle is moving, you will be out of
position. Always adjust the lumbar support when the vehicle is
not moving. •

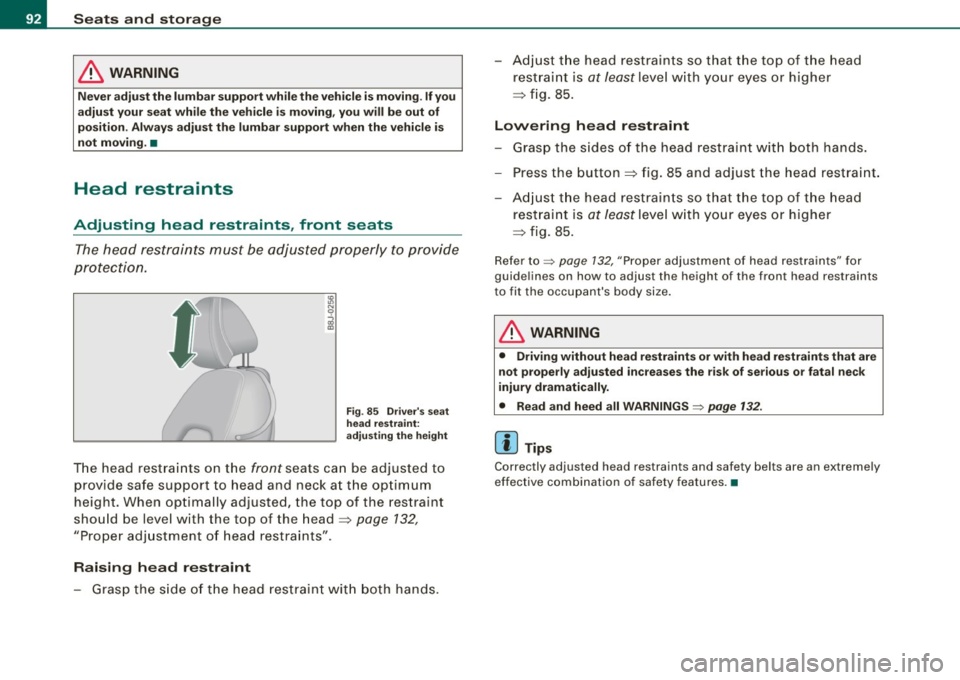

Head restraints
Adjusting head r estraints , front seats
The head restraints must be adjusted properly to provide
protection.
N 0
;i'l Fig. 85 Driver's seat
head restraint:
adjusting the height
The head restraints on the front seats can be adjusted to
provide safe support to head and neck at the optimum
height. When optimally adjusted, the top of the restraint
should be level with the top of the head=:>
page 132,
"Proper adjustment of head restraints".
Raising head restraint
-Grasp the side of the head restraint with both hands. -
Adjust the head restraints so that the top of the head
restraint is
at least level with your eyes or higher
=:> fig. 85.
Lowering head restraint
- Grasp the sides of the head restraint with both hands.
- Press the button=:> fig. 85 and adjust the head restraint.
- Adjust the head restraints so that the top of the head
restraint is
at least level with your eyes or higher
=:> fig. 85.
Refer to=> page 132, "Proper adjustment of head restraints" for
guidelines on how to adjust the height of the front head restraints
to fit the occupant's body size.
& WARNING
• Driving without head restraints or with head restraints that are
not properly adjusted increases the risk of serious or fatal neck
injury dramatically.
• Read and heed all WARNINGS =>
page 132.
[ i] Tips
Correctly adjusted head restraints and safety belts are an extremely
effective combination of safety features .•

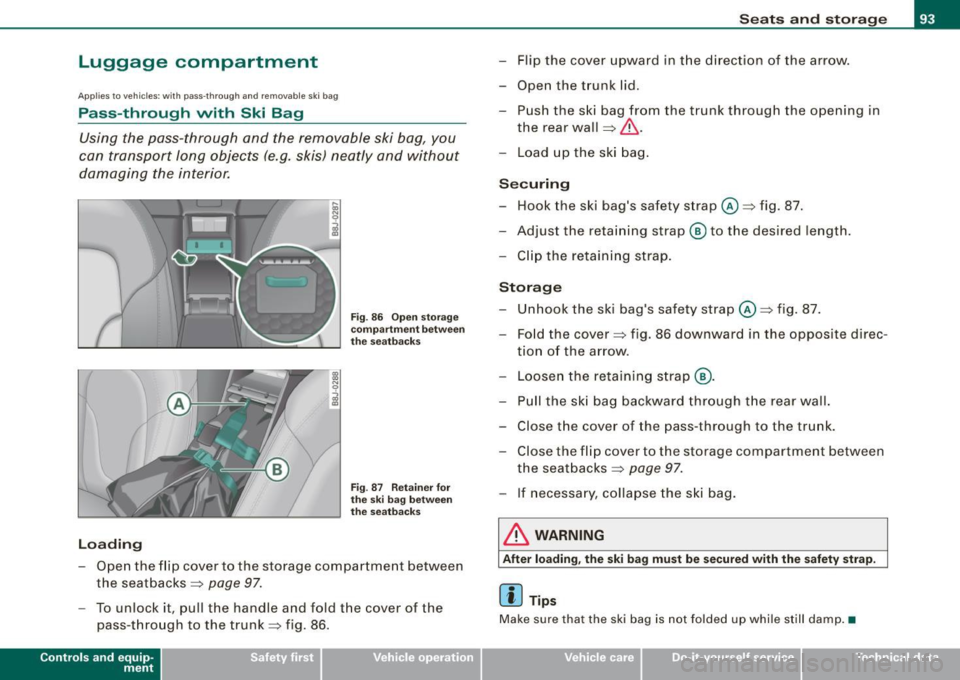

Luggage compartment
Applies to vehicles: with pass-through and removable ski bag
Pass-through with Ski Bag
Using the pass-through and the removable ski bag, you
can transport long objects (e.g. skis) neatly and without
damaging the interior.
Loading
Fig . 86 Open storage
compartment between
the seatbacks
Fig . 87 Retainer for
the ski bag between
the seatbacks
-Open the flip cover to the storage compartment between
the seatbacks => page
97.
-To unlock it, pull the handle and fold the cover of the
pass -through to the trunk=> fig. 86.
Contro ls and eq uip­
ment
Seats and storage
- Flip the cover upward in the direction of the arrow.
- Open the trunk lid.
- Push the ski bag from the trunk through the opening in
the rear wall
=> &, .
- Load up the ski bag.
Securing
Hook the ski bag's safety strap @=>fig. 87.
Adjust the retaining strap® to the desired length.
- Clip the retaining strap.
Storage
- Unhook the ski bag's safety strap@=> fig. 87.
- Fold the cover => fig. 86 downward in the opposite direc-
tion of the arrow .
- Loosen the retaining strap @.
Pull the ski bag backward through the rear wall.
- Close the cover of the pass-through to the trunk.
- Close the flip cover to the storage compartment between
the seatbacks => page
97.
- If necessary , collapse the ski bag.
& WARNING
After loading, the ski bag must be secured w ith the safety strap.
[ i] Tips
Mak e sure that the ski bag is not folded up while still damp. •
Vehicle care
I I irechnical data

Seats and storage

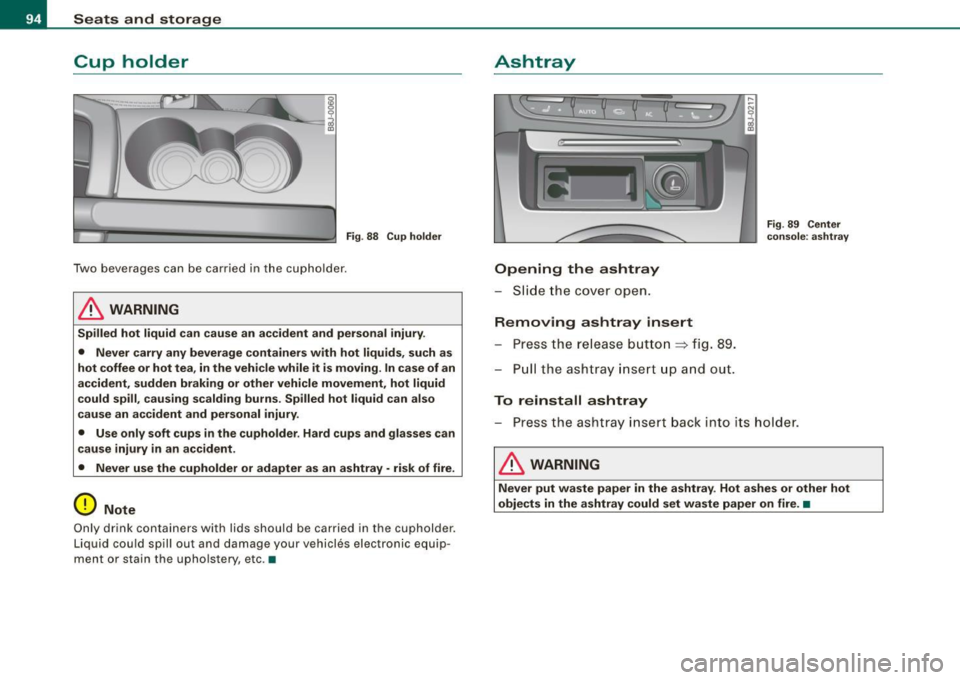

Cup holder
Fig . 88 Cup holder
Two beverages can be carried in t he cupho lder .
& WARNING
Spilled hot liquid can cause an accident and personal injury .
• Never carry any beverage containers with hot liquids , such as
hot coffee or hot tea , in the veh icle while it is moving . In case of an
accident, sudden braking or other vehicle movement , hot liquid
could spill , causing scalding burns . Spilled hot l iquid can a lso
c ause an ac cident and per sonal injury .
• Use only soft cups in the cupholder . Hard cups and glasses can
cause injury in an accident .
• Never use the cupholder or adapter as an ashtray -risk of fire.
0 Note
Only drink containers with lids should be carried in the cupholder.
Liquid cou ld spill out and damage your ve hicles electronic equip ­
ment or stain the upholstery, etc. •
Ashtray
Opening the ashtray
-Slide t he cover open.
Removing ashtray insert
Press th e re leas e butt on => fi g. 89.
Pull the ash tray in sert up an d o ut.
To reinstall ashtray
Fig . 89 Cen ter
con sole : ashtray
- Press the asht ray insert back into i ts hol der.
& WARNING
Never put waste paper in the ashtray . Hot ashes or other hot
objects in the ashtray could set waste paper on fire .•

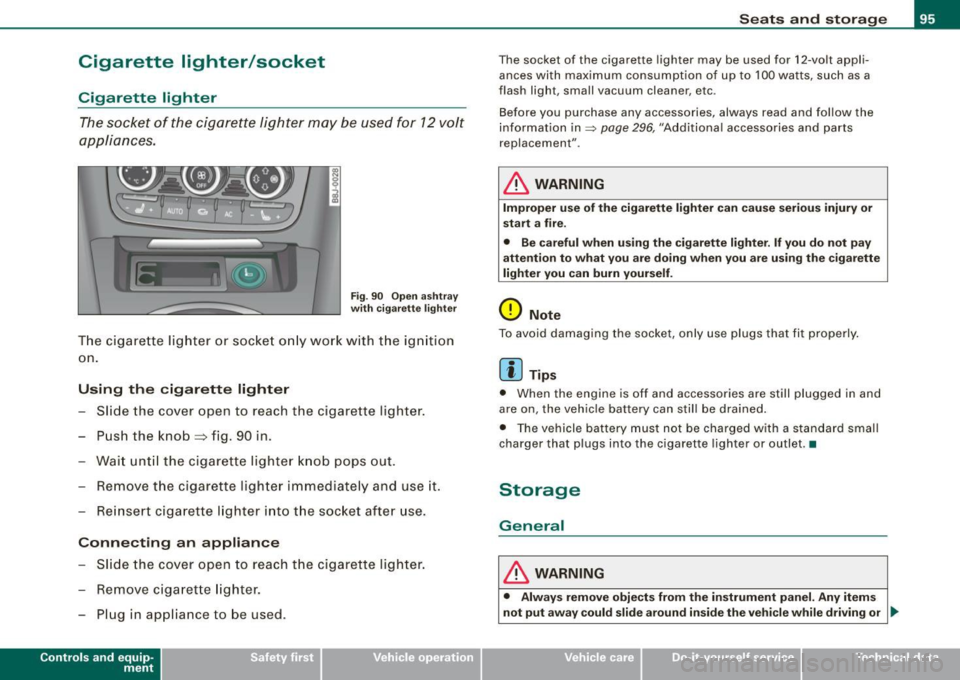

Cigarette lighter/socket
Cigarette lighter
The socket of the cigarette lighter may be used for 12 volt
appliances.
Fig . 90 Open ashtray
with cigarette lighter
The cigarette lighter or socket only work with the ignition
on.
Using the cigarette lighter
- Slide the cover open to reach the c igarette lighter.
- Push the knob=> fig. 90 in .
- Wait until the cigarette lighter knob pops out.
- Remove the cigarette lighter immediately and use it.
- Reinsert cigarette lighter into the socket after use.
Connecting an appliance
- Slide the cover open to reach the cigarette lighter.
- Remove cigarette lighter.
- Plug in appliance to be used .
Contro ls and eq uip­
ment
Seats and storage
The socket of the cigarette lighter may be used for 12-volt appli­
ances with maximum consumption of up to 100 watts , such as a
flash ligh t, small vacuum cleaner, etc.
Before you purchase any accessories, always read and follow the
information in=>
page 296, "Additional accessories and parts
replacement" .
& WARNING
Improper use of the cigarette lighter can cause serious injury or
start a fire.
• Be careful when using the cigarette lighter. If you do not pay
attention to what you are doing when you are using the cigarette
lighter you can burn yourself.
0 Note
To avoid damaging the socket, only use plugs that fit properly.
[ i] Tips
• When the engine is off and accessories are still plugged in and
are on, the vehicle battery can still be drained.
• The vehicle battery must not be charged with a standard small
charger that plugs into the cigarette lighter or outlet .•
Storage
General
& WARNING
• Always remove objects from the instrument panel. Any items
not put away could slide around inside the vehicle while driving or
~
Vehicle care I I irechnical data

Seats and storage
& WARNING (continued)
when accelerating or when applying the brakes or when driving
around a corner.
• When you are driving make sure that anything you may have
placed in the center console or other storage locations cannot fall
out into the footwells . In case of sudden braking you would not be
able to brake, depress the clutch or accelerate. •
Glove compartment
The glove compartment is illuminated and can be locked .
To open glove compartment
Fig. 91 Glove compart­
ment
- Pull the handle=> fig. 91 in the direct ion of the arrow
push down lid to the fully open position.
To close glove compartment
Push the glove compartment lid upward until the lock
engages.
You will find a glass case in the lid .
CD changer*
The CD changer for the Sound System is located in the glove
compartmen t.
LJ}. WARNING
To reduce the risk of personal injury in an accident or sudden stop,
always keep the glove compartment closed while driving. •
App lies to veh icle s: w ith sto ra ge co mpart ment in the front seats
Storage compartment in the front seats
There is a fold-out storage compartment in the front of the
seats.
Opening
- Lift the handle and pull the drawer ou t.
Closing
- Push the drawer in completely until it latches.
[ i ] Tips
The maximum carrying capacity 2.2 lbs (1 kg). •

Storage compartment between the seat
backs
Opening storage compartment
.... N
N
'i'
i
Fig. 92 Storage
compartment between
the seat backs
-Pull the handle on the lid in the direction of the arrow
~ page 97, fig. 92 and swing the lid downward.
Closing storage compartment
-Swing the lid upward until it clicks into place.
& WARNING
Always keep the storage compartment lid closed while driving -
risk of injury! •
Con tro ls and eq uip­
ment
Seats and storage
Vehicle care I I irechnical data

Warm and cold
Warm and cold
Climate controls
Controls
The air conditioning automatically maintains the selected
temperature in the vehicleinterior throughout each
se aso n.
Fig . 93 C limate co ntro ls
We recomme nd the following setting:
Rotate the knob=> fig. 93 @to th e right to switch on the
air conditioning.
Set t he temperature to 72 °F ( 22 °Cl.
Press th e !AUTO ]=> fig . 93 button.
Using the previously recommended setting is the quickest way to
achieve a comfortable climate in the vehicle . T his setting should
therefore on ly be changed when persona l comfort levels or certain
circumstances require it .
The climate contr ols are a combination of automatic heating and
ventilation systems and a cooling system which dehumidifies and coo ls the a ir inside the veh ic le .
The climate controls automa tically ma intain a temperature once it
has been set . T he temperature of the air from the vents, fan speed
(air volume) and air dis tribution are also automa tica lly adjusted . The
system also takes into account strong sunshine so that manual
adjustment is no t necessary. So in al most a ll cases,
automatic mode
offers the best conditions for the comfort of the occupants at all
times of the year~
page 101.
Please note :
In cooling mode, relative humidity in the interior is reduced. This
prevents the w indows from fogging up.
When relative humidity and temperatures outside are high,
conden­
sate
can drip from the air conditioning evaporator and form a poo l
of water under the vehicle . This is normal and not an indication of a
leak!
When outside temperatures are low, the fan does not switch to a
higher speed until the coolant has reached an adequate tempera­
ture, with the exception of the defrost setting .
When accelerating at wide -open throttle, the air conditioning
compressor is temporarily switched off to maintain full engine
power .
I n order to ensure eng ine cooling under extreme engine loads, the
compressor is switched off if coolant temperatures climb too high. _,,,
