Instrument s and warnin g/indic ator ligh ts 13

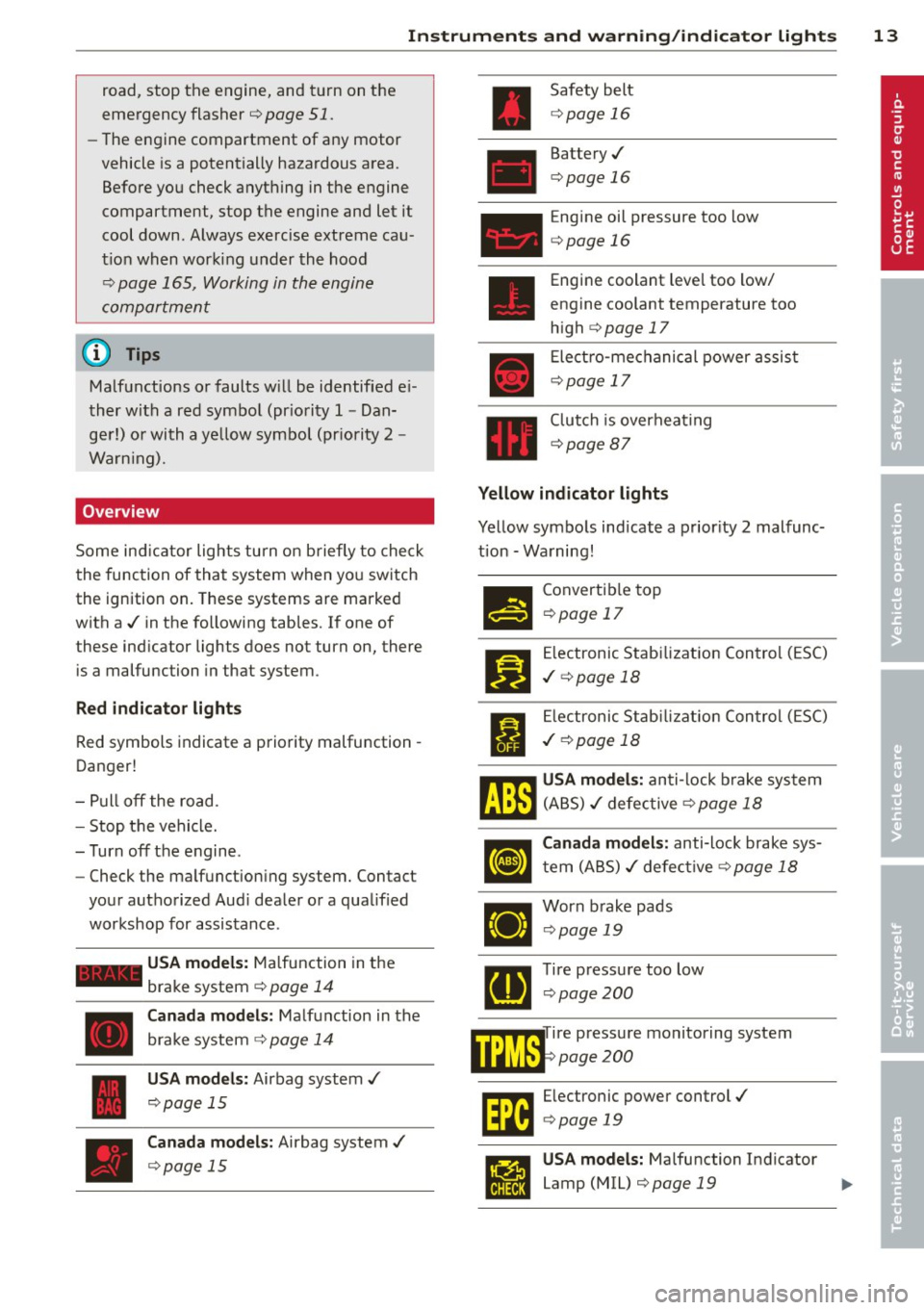

road, stop the engine, and turn on the
emergency flasher¢
page 51.
-The engine com partment of any motor
vehicle is a potentially hazardous area.
Before you check anything in the engine
compartment, stop the engine and let it
cool down. Always exercise extreme cau­
t ion when wor king under the hood
¢ page 165, Working in the engine
compartment
(D Tips
Ma lfunctions or faults w ill be identified e i­
ther with a red symbo l (pr iority 1 -Dan­
ge r!) o r with a ye llow symbol (pr iority 2 -
Warn ing).
Overview
Some ind icator lights turn on briefly to check
the function of that system when yo u switch
the ignition on. These systems are marked
with a./ in the following tab les. If one of
these ind icator lights does not turn on, there
is a malfunction in that system.
R ed indicator lights
Red symbols indicate a priority malfu nction -
Danger!
- P ull off the road.
- Stop t he vehicle.
- T urn off the engine .
- Check the ma lfunction ing system. Contact
you r authorized Aud i dealer o r a qualified
workshop for assistance .
-USA model s: Ma lfunction in the
brake system ¢
page 14
Canada model s: Ma lf u nction in the
brake system ¢
page 14
USA models: Airbag system ./
¢page 15
Canada model s: Airbag system ./
¢page 15
Safety belt
¢page 16
Battery./
¢page 16
Engine oil pressure too low
¢ page 16
Engine coolant level too low/
engine coolant temperature too
h igh
¢ page 17
Electro-mechanical power assis t
¢page 17
Clutch is overhea ting
¢page 87
Yellow indicator lights
Yellow symbo ls indicate a prior ity 2 malfunc­
t ion -Wa rning!
•
I
Convertib le top
¢ page 17
Electronic Stab ilizat ion Con tro l (ESC)
./ ¢page 18
Electronic St abiliz at ion Con tro l (ES C)
./ ¢page 18
~ USA models : anti- lock b rake system
liJ.:tl (A BS) ./ defec tive ¢ page 18
•
Canada models : anti-lock brake sys­
t em (ABS) ./ defect ive ¢
page 18
Worn b rake pads
¢ page 19
Tire pressure too low
¢ page 200
mfflT ire pressure monitoring system
WiU.t:.F page 200
~ Electronic power control./
1.1&:J ¢ page 19
USA models: Malfunction Indicator
Lamp (MIL)
¢page 19

Instrument s and warnin g/indic ator ligh ts 15

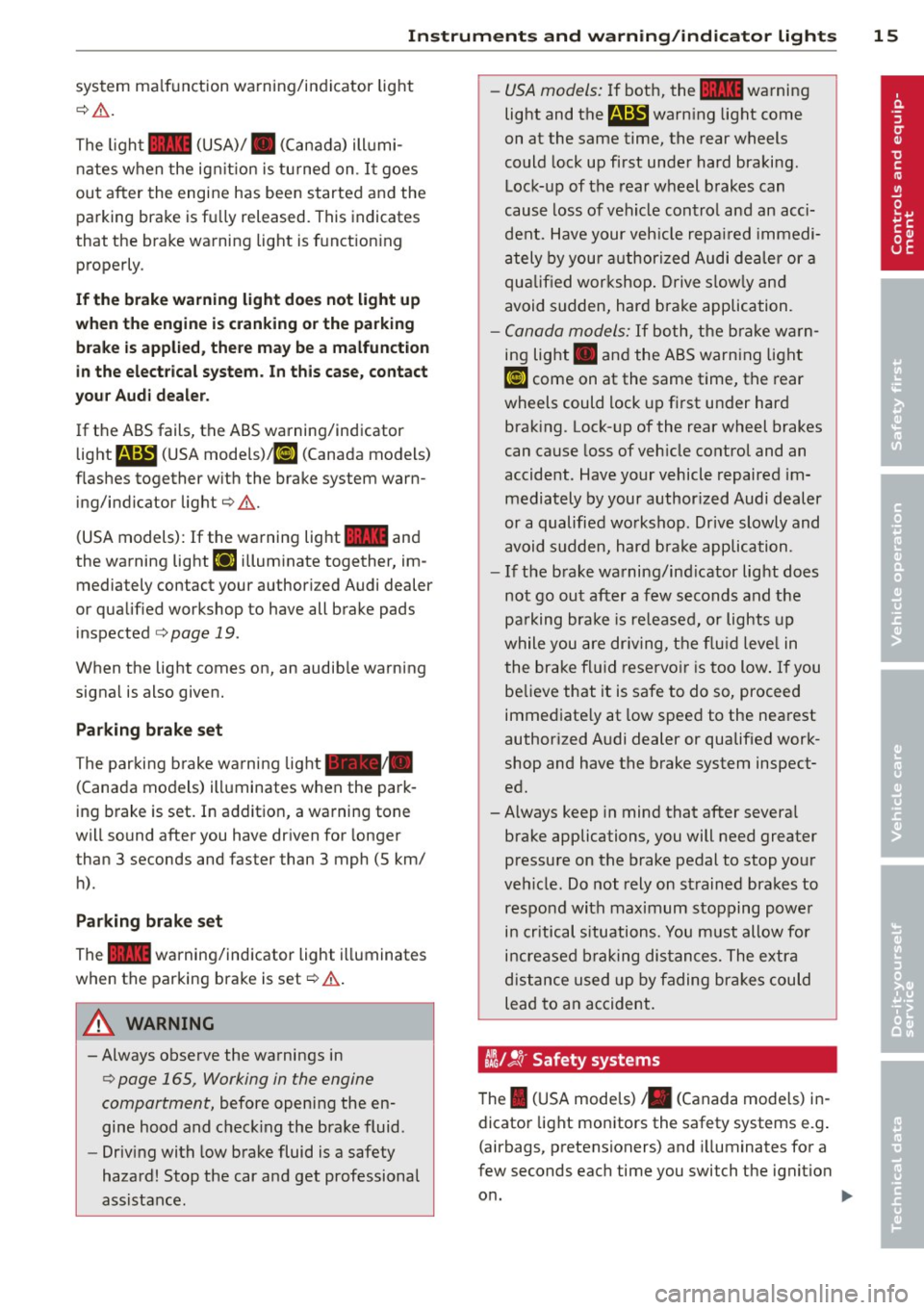

system ma lfunction warning/indicator light
c> ,&. .
The ligh t 1111 (USA)/ . (Canada) illumi­
nates when the ignit ion is tu rned on. I t goes
out after the engine has been started and the
parking brake is fully released. This indicates
that the brake warning lig ht is funct ion ing
properly.
If the brake warn ing light doe s not light up
w hen the engin e is cr anking o r the p arking
br ak e is applied, th ere m ay be a malfun ction
in th e electrical syste m. In thi s cas e, conta ct
y ou r A udi dealer .
If the ABS fails, the ABS warning/indicator
light
E (USA mode ls)! EIJ (Canada models)
f lashes together with the brake system warn­
ing/indicator light
c> ,&. .
(USA models): If the warning light 1111 and
the warning light
EiJ illum inate together, im­
mediately contact your author ized Audi dealer
or qualified workshop to have all brake pads
inspected
c> page 19.
When the light comes on, an audible warning
signa l is also given.
Parking brake set
The parking brake warning light_ /_
(Canada models) illuminates when the park­
ing brake is set. In addition, a warning tone
will sound after you have driven for longer
than 3 seconds and faster than 3 mph (5 km/
h).
Park ing brak e set
The 1111 warning/indicator light illuminates
when the parking brake is set
c> &..
A WARNING
-Always observe the warnings in
c> page 165, Working in the engine
compartment, before opening the en­
gine hood and check ing the bra ke fluid.
- Driv ing with low brake fluid is a safety
hazard! Stop the car and get professional
assistance. -
USA models: If both, the
1111 warning
light and the
E warn ing light come
on at the same time, the rear wheels
could lock up first under hard braking.
Lock-up of the rear wheel brakes can
cause loss of vehicle contro l and an acci­
dent. Have your veh icle repa ired immedi­
ately by your authorized Audi dealer or a
qualified workshop . Drive s low ly and
avoid sudden, hard brake application.
- Canada models:
If both, the b rake warn­
ing light . and the ABS warning light
EiJ come on at the same time, the rear
wheels could lock up f irst under hard
brak ing. Lock-up of the rear wheel brakes
can cause loss of veh icle control and an
accident. Have your vehicle repaired im­
mediately by your author ized Audi dealer
or a qualified wo rkshop. Drive slowly and
avoid sudden, hard brake application.
- If the b rake warning/ind icator light does
not go out after a few seconds and the
pa rking brake is re leased, or lights up
while you are dr iving, the flu id leve l in
the brake fl uid reservo ir is too low . If you
believe that it is safe to do so, proceed
immediate ly at low speed to the nea rest
author ized Audi dealer or qualif ied work­
shop and have the brake system inspect­
ed.
-Always keep in mind that after severa l
brake applications, you will need greater
pressure on the brake pedal to stop your
veh icle. Do not rely on strained brakes to
respond with maximum stopping powe r
i n critical s ituations. You must allow for
increased b raking dis tances. The extra
distance used up by fading bra kes could
lead to an accident.
tli1 !.!r Safety systems
The I ( U SA models) . (Canada mode ls) in­
dicator light monitors the safety systems e.g.
(airbags, pretensioners) and i lluminates for a
few seconds each time you switch the ignitio n
o n.

Instrument s and warnin g/indic ator ligh ts 19

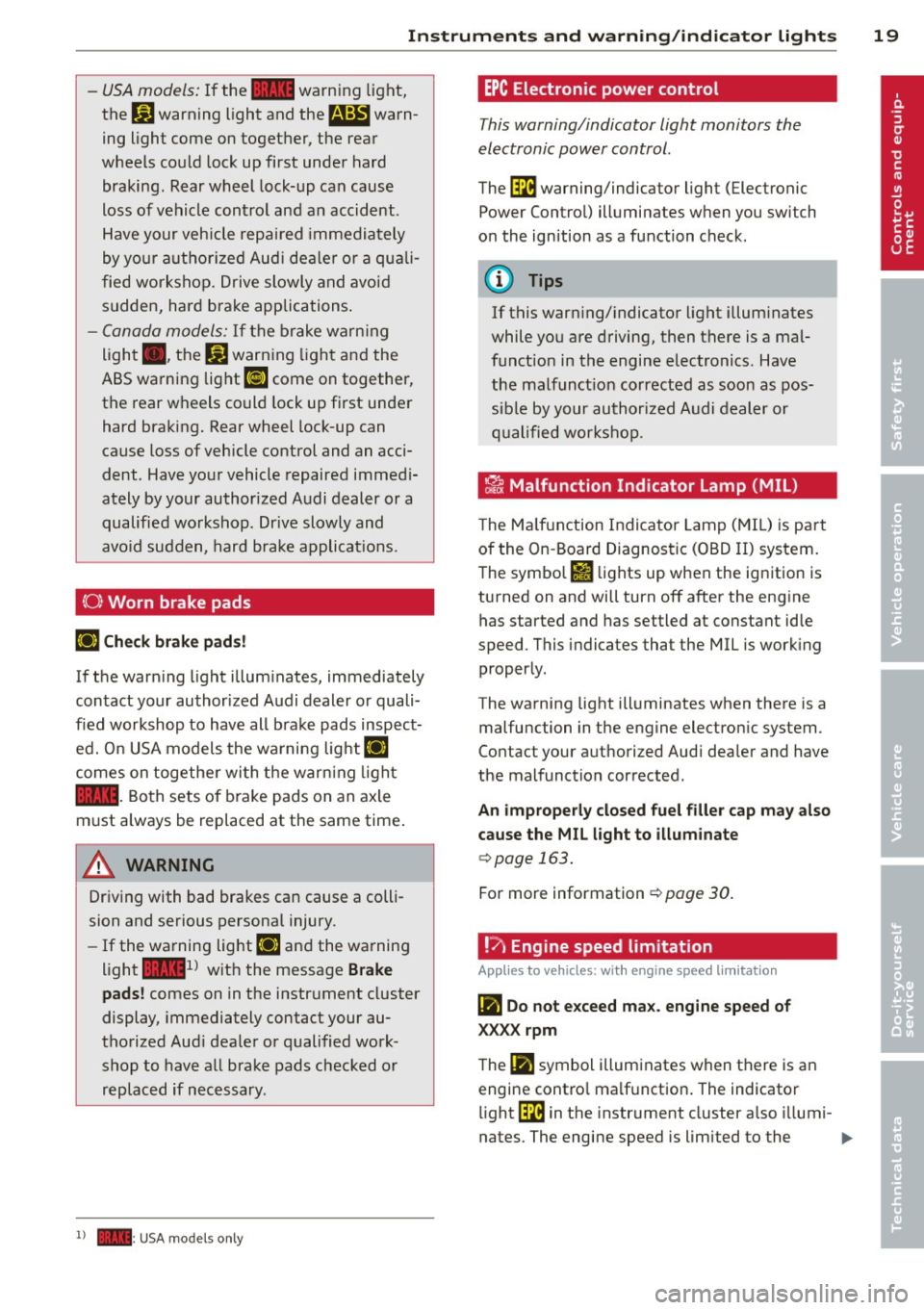

-USA models: If the la warning light,
the
G1 warning light and the m:IJ warn­
ing light come on together, t he rear
wheels could lock up first under hard
braking. Rear wheel lock-up can cause
loss of vehicle control and an accident .
Have your vehicle repai red immediately
by you r autho rized Aud i dea ler or a qua li­
fied workshop. Drive slowly and avoid
sudden, hard brake applications .
-Canada models: If the brake warn ing
light ., the
&J warn ing light and the
ABS warning light
[IJ come on together,
the rear wheels could lock up first under
hard braking. Rear wheel lock-up can
cause loss of vehicle control and an acci­
dent . Have you r vehicle repaired immed i­
ately by your authorized Audi dealer or a
qualified wo rkshop . Dr ive slowly and
avo id sudden, hard brake applicat ions.
( 0) Worn brake pads
riJ Che ck brake pad s!
If the warn ing light illum inates, immediately
contact your authorized A udi dealer or quali­
f ied workshop to have all brake pads inspect­
ed. O n USA models the wa rning lig ht
riJ
comes on togethe r wi th the warn ing light
la . Both sets of b ra ke pads on an axle
must always be replaced at the same time .
A WARNING
Driving with bad brakes can cause a colli­
sion and serious personal injury.
- If the warning light riJ and the warning
light
lai1 ) w it h the message Brake
pads !
comes on in the instr ument cluster
display, immediately contact your au­
tho rized Aud i dea le r or qualified work ­
shop to have a ll brake pads checked or
replaced if necessary .
1) - : USA mod els on ly
-
EPC Electronic pow er control
This warning/indicator light monitors the
electronic power control.
The ~ warning/indicator light (Electronic
Power Control) illuminates when you switch
on the ignition as a function check .
@ Tips
If this warning/ indicato r light illum inates
while you are driving, then there is a mal­
funct ion in the engine electronics . Have
the malfunct ion corrected as soon as pos­
sible by your authori zed A udi dealer or
q ualified works hop .
~ Malfunction Indicator lamp (MIL )
The Ma lfun ction Indicator Lamp ( MIL) is par t
of the On -Board Diagnostic (OBD II) system.
The symbo l
fl lights up when the ignition is
turned on and will turn off after the eng ine
has started and has settled at constant idle
speed . This indicates that the MIL is work ing
proper ly.
The warning light illuminates when there is a
malfu nction in the eng ine electron ic system .
Contact your a uthorized Audi dea ler and have
the malfunction corrected.
An improperly closed fuel filler cap may also
cause the MIL l ight to illum inate
c::> page 163.
For more information c::> page 30 .
!?) Engine speed limitation
App lies to vehicles : wi th engine speed limitatio n
(m Do not e xceed ma x. engine speed of
XXXX rpm
The (Ill symbol illuminates when there is an
engine contro l ma lf u nction . The indicator
li ght ~ in the instrument cl uster a lso illumi-
nates. The engine speed is limited to the .,.

(D Note
Never push the vehicle or apply force to
the rear spoiler -it could be damaged.
@ Tips

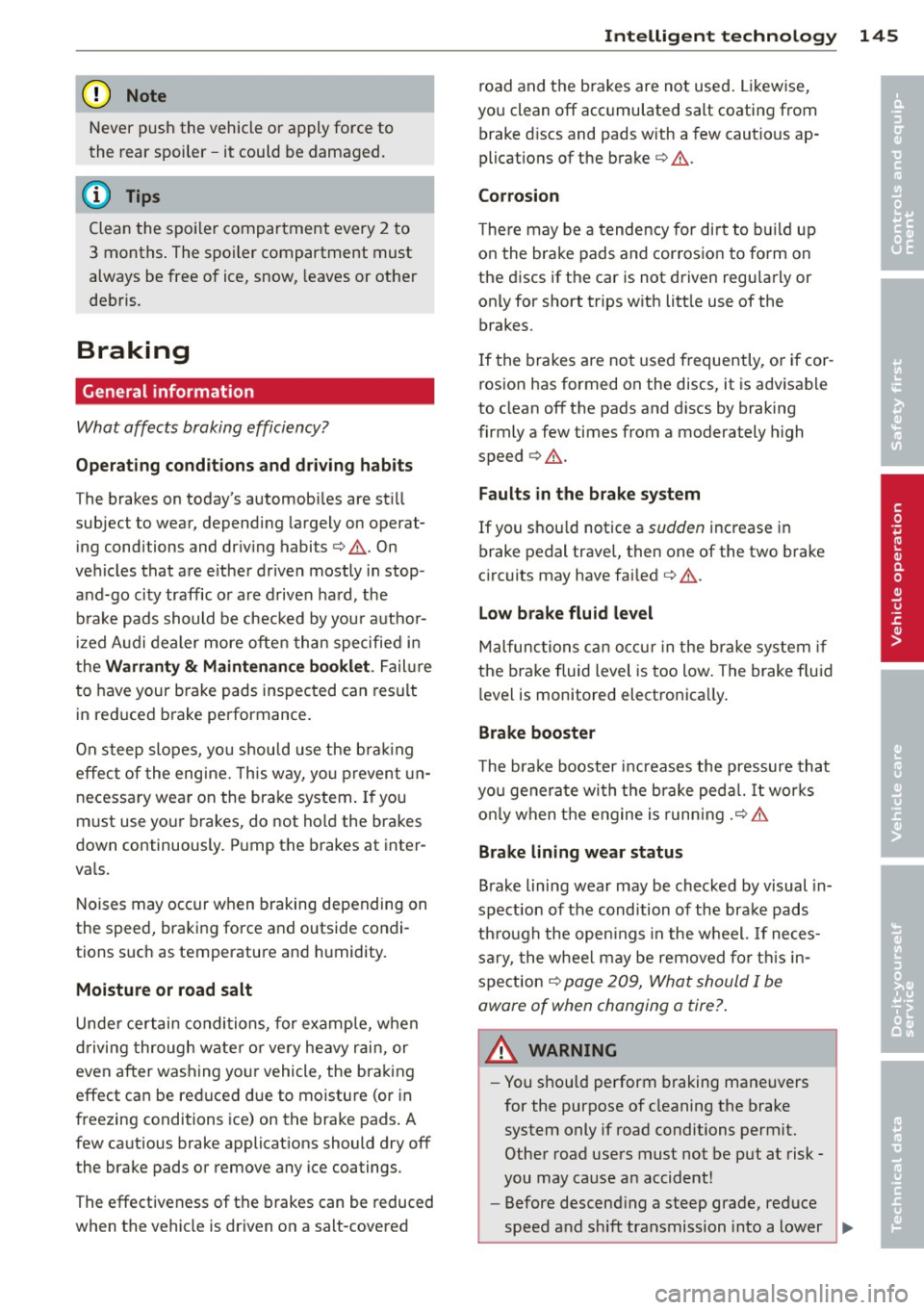

Clean the spoiler compartment every 2 to
3 months . The spoiler compartment must
always be free of ice, snow, leaves or other
debris.
Braking
General information
What affects braking efficiency?
Oper ating condit ions and d riving hab it s
T he brakes on today's automobi les are st ill
s ubject to wear, depending largely on opera t­
ing conditions and dr iv ing habi ts
c> & . On
vehicles that are e ither driven mostly in stop ­
and-go city traffic or are d riven hard , the
b rake pads should be checked by you r author­
i zed Audi dealer more often than specified i n
the
Warr ant y & Maint enan ce booklet . Failure
to have your brake pads inspected can res ult
in red uced brake performance.
On steep slopes, you shou ld use the brak ing
effect of the eng ine. This way, you p revent un­
necessa ry wear on the brake system . If you
must use yo ur brakes, do not hold the brakes
down continuously. Pump th e brakes at inter­
vals.
Noises may occur when braking d epending on
the speed, braki ng force and outside condi­
tions such as temperature and humidity.
Moistu re or road salt
Unde r certain conditions, for example, w hen
driving through water or ve ry heavy rain, or
even after washing your vehicle, the braking
effect can be reduced d ue to moisture (or in
fre ezing conditions ice) on the brake pads . A
few ca utious brake applicat ions should dry off
the b rake pads or remove any ice coatings.
The effectiveness of the brakes can be reduced
when th e vehicle is driven on a salt-covered
Int ellig ent technolog y 145
road and the b rakes are no t used. Likewise ,
you clean off accumulated salt coating from brake d iscs and pads with a few cautious ap ­
plications of the brake
c> & .
Cor ro sion
T here may be a tendency for dir t to build up
on the brake pads and corrosion to form on
the discs if the car is not driven regu larly or
on ly fo r short trips with litt le use of the
brakes.
If the brakes are not used frequently, or if cor­
rosion has formed on the discs, it is advisable
to clean off the pads and discs by braking
firmly a few times from a moderately high
speed
c> & .
Faults in the brak e syst em
If you shou ld notice a sudden increase in
brake pedal trave l, then one of the two brake
c ircuits may have fai led
c> & .
Low brake fluid lev el
Malfunctions can occur in the brake system if
the b rake fluid level is too low. The brake fluid
level is monitored electronica lly.
Brake booster
T he brake booster inc reases the pressure that
you generate with the brake peda l. It works
o nl y when the engine is running
.c> &
Brake lining wear status
Brake lining wear may be checked by visual in­
spection of the condition of the brake pads
through the open ings in the wheel. If neces­
sary, the wheel may be removed for t his in­
spection
c> page 209, What should I be
aware of when changing a tire? .
A WARNING
--=
-You should perform braking maneuvers
for the purpose of cleaning the brake
system only if road conditions permit.
Other road users must not be put at risk -
you may cause an accident!
- Before descend ing a steep grade, reduce
speed and sh ift transmission into a lower
~
•
•

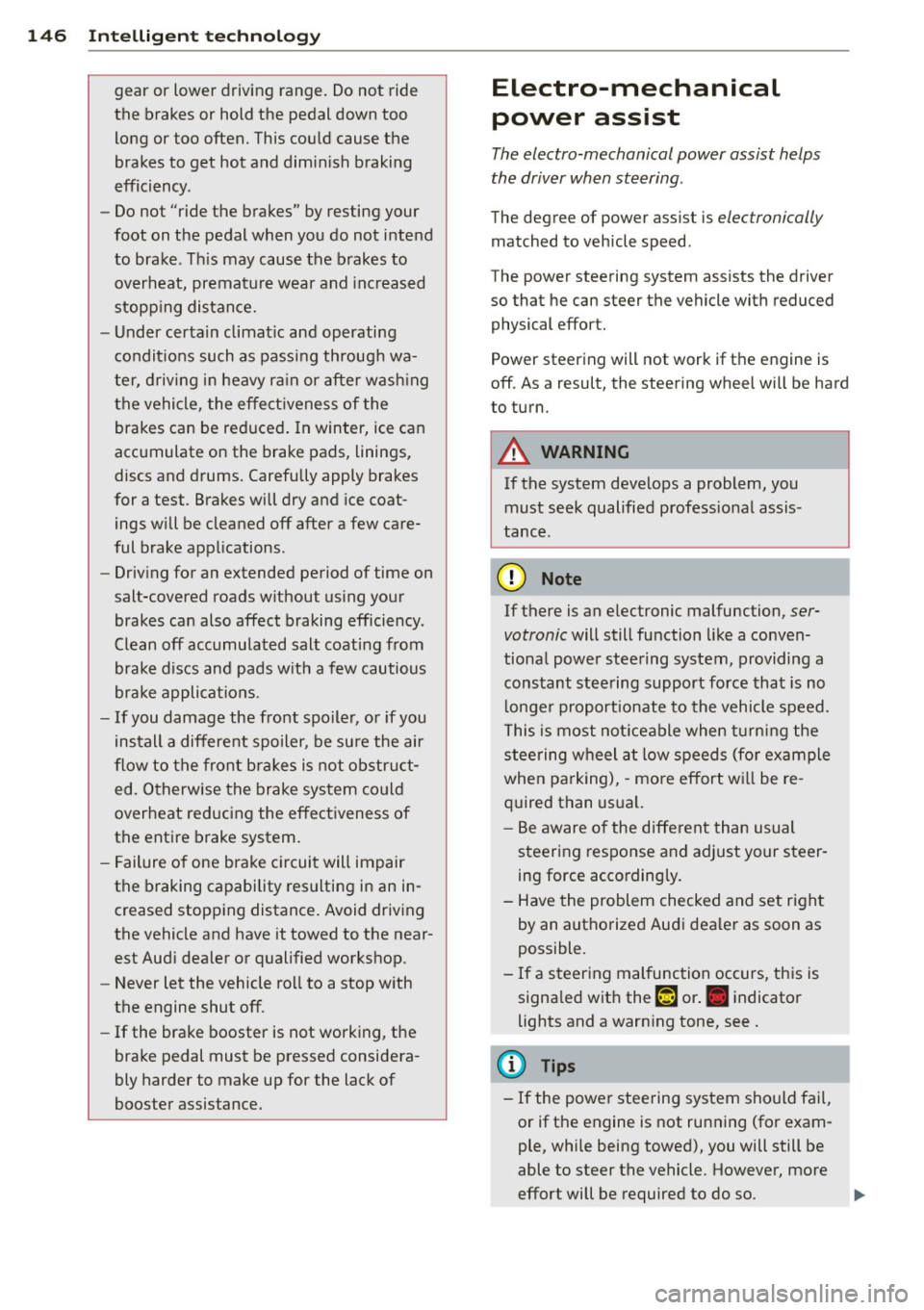

146 Intellig ent technolog y
gear or lower driving range. Do no t ride
t h e brakes or hold the pedal down too
long or too often. This cou ld cause the
bra kes to get hot and dimin ish braking
efficiency .
- Do no t "ride the brakes" by resting your
foot on the pedal when you do not intend
to brake . Th is may cause the brakes to
overheat, prematu re wear and inc reased
stopp ing distan ce.
- Under certain climat ic and operating
c ondit ions such as passing through wa­
ter, driving i n heavy ra in or after wash ing
the vehicle, the effect iveness of the
brakes can be red uced . In winter, ice can
accumulate on the brake pads, linings,
discs and d rums . Carefully apply brakes
for a test . Brakes will dry and ice coat­
ings will be cleaned off after a few care­
ful brake applications.
- Driving for an extended period of time on
salt-covered roads w ithout us ing your
brakes can also affect braking efficiency .
Clean off accumulated salt coating from
brake d iscs and pads w it h a few cautious
brake appli cat ions.
- If you damage the fro nt spo iler, or if you
ins tall a different spoiler, be su re the air
flow to the fron t bra kes is not o bstr uct­
ed. O therwise the brake system co uld
overheat reducing the effectiveness of
the entire brake system.
- F ailure o f one bra ke c ircuit will impair
the b raking capability resulting in an in­
creased stopp ing distance . Avoid driv ing
the vehicle and have it towed to the near­
est Aud i dea le r o r qualified workshop.
- Never let the vehicle ro ll to a stop w ith
the engine shut off.
- If the brake booster is not working, t he
brake pedal must be pressed considera­
bly harder to make up for the lack of
booster assistance . Electro-mechanical
power assist
The electro-mechanical power assist helps
the driver when steering .
The degree of power assi st is electronically
matched to vehicle speed .
T he power steering system assists the driver
so that he can steer the vehicle with reduced
physical effor t.
Power steering will not work if t he engine is
off . As a result, the steering wheel will be hard
to turn.
A WARNING
If the system develops a problem , you
must seek qualified profess iona l assis ­
tance .
(D Note
-
If there is an e lectronic malfunction, ser­
votronic
will still function like a conven­
tiona l power steering system, providing a
constant steering support force that is no
l onge r proportionate to the vehicle speed .
This is most not icea ble whe n tu rni ng the
s tee ring w heel a t low speeds (fo r example
when pa rking), -more effort w ill be re­
q uired than us ua l.
- Be aware o f the diffe rent than usual
steering response and adjust your steer ­
ing force acco rdingly.
- Have the problem checked and set right
by an autho rize d Aud i dealer as soon as
possible.
- If a s teer ing mal func tion occurs, this is
signa led wit h the
,'Zr~ or .• indicato r
lights and a warning tone, see.
(D Tips
- If the powe r stee ring system sho uld fai l,
or if the engine is not ru nning (fo r exam­
ple, whi le being towed), you will still be
able to steer the vehicle. However, more
effort will be required to do so.
11-

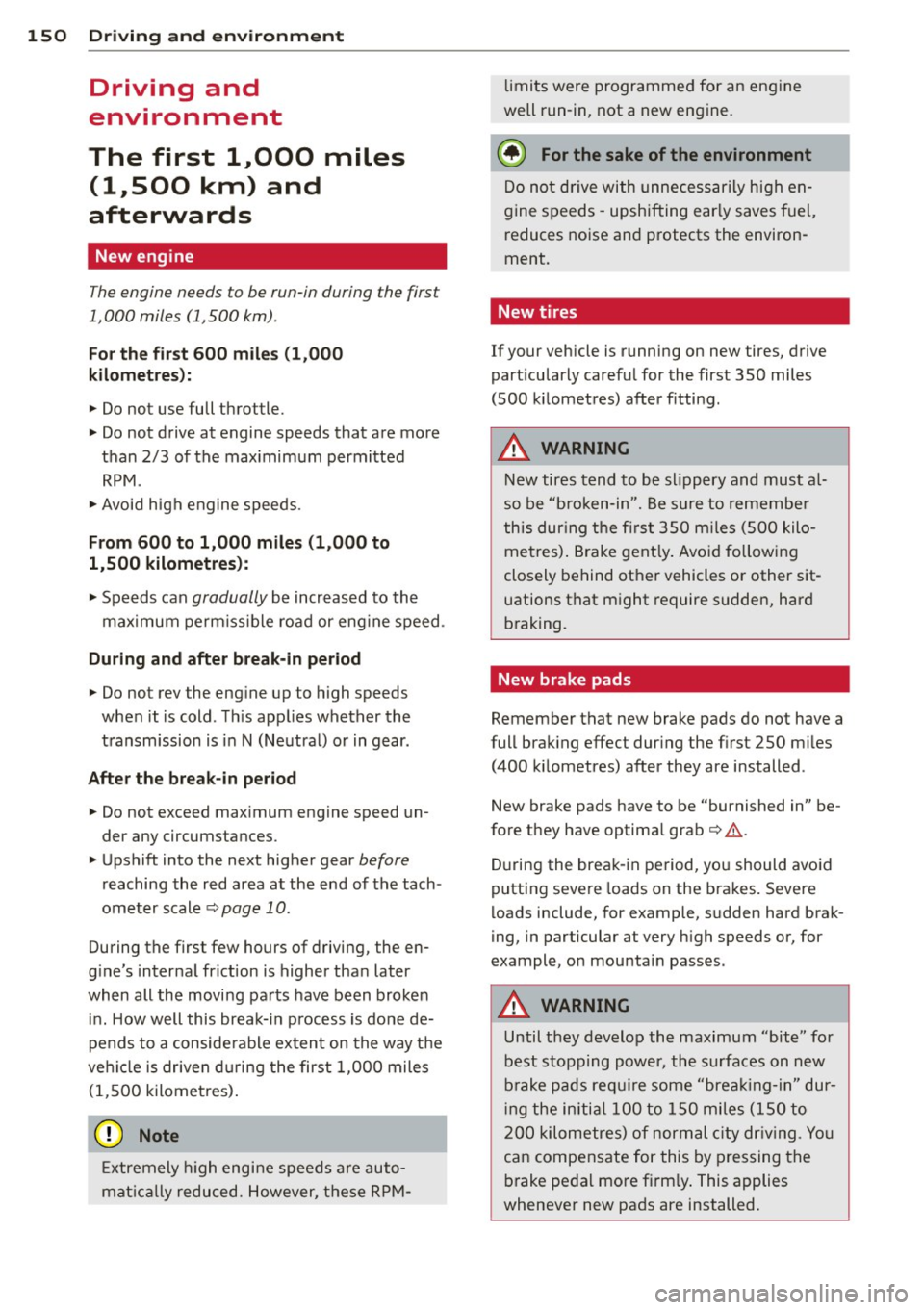

150 Driving and environment
Driving and
environment
The first 1,000 miles
(1,500 km) and
afterwards
New engine
The engine needs to be run-in during the first
1,000 miles (1,500 km).
For the fir st 600 miles (1,000
kilometres ):
.,. Do not use full throttle .
... Do not d rive at engine speeds that are more
than 2/3 of the max imimum permitted
RPM.
.,. Avoid high engine s peeds.
From 600 to 1,000 miles (1 ,000 to
1,500 kilometres):
"" Speeds can gradually be increased to the
max imum pe rm iss ib le road or eng ine speed.
During and after break-in period
.,. Do not rev the engine up to high speeds
when it is cold. This app lies whether the
t ransm ission is in N (Neutral) or in gear.
After the break- in period
... Do not exceed max imum engine speed un­
der any circumstances .
.,. Upshift into the next hig her gear
before
reaching the red area at the end of the tach­
ometer scale
¢page 10.
During the first few hours of driving, the en­
g ine's interna l friction is higher than later
when all the moving pa rts have been broken
in. How w ell this break-in p rocess is done de­
pends to a conside rable ex ten t on the way t he
vehi cle is dr iven d uring the first 1,000 miles
(1, 500 kilome tres) .
(D Note
Extremely high engi ne speeds a re auto­
mat ic all y reduced. However, t hese RPM-
'
limi ts were programme d for an eng ine
well run-in, not a new eng ine.
~ For the sake of the env ironment
Do no t drive with unnecessar ily high en­
gine speeds -upshifting early saves f uel,
r educes no ise an d protects the environ ­
ment.
New tires
If your vehicle is runni ng on new tires, drive
part icularly careful for the first 350 miles
(500 k ilometres) after fitting .
A WARNING
-New tires tend to be s lippery and mus t al-
so be "b roken-in". Be s ure to re m embe r
this dur ing t he fir st 35 0 m iles (500 kilo ­
me tres) . Brake gent ly . Avo id following
closely be hind ot her vehicles or other sit­
uations that m ight require sudde n, hard
b raking.
New brake pads
Remember that new brake pads do not have a
full brak ing effect during the first 250 m iles
(400 ki lometres) after they are installed .
New brake pads have to be "burnished in" be­
fore they have optima l grab¢ &.
D uring the break-in pe riod, yo u should avoid
putting seve re loads on the brakes . Severe
l oads include, for example, su dden hard brak­
ing, in particular at very high speeds or, for
example, o n mountai n passes .
A WARNING ~
Until they develo p the maximum "bite" fo r
b est stopp ing power, the surfaces on new
b rake pads requ ire some "brea king-in" du r­
in g the initia l 10 0 to 15 0 mi les (150 to
200 kilome tres) of norm al cit y dr iv ing. Yo u
can compensate for this by pressing the
br ake pe da l mo re f irm ly . This applies
whenever new pa ds are installed.

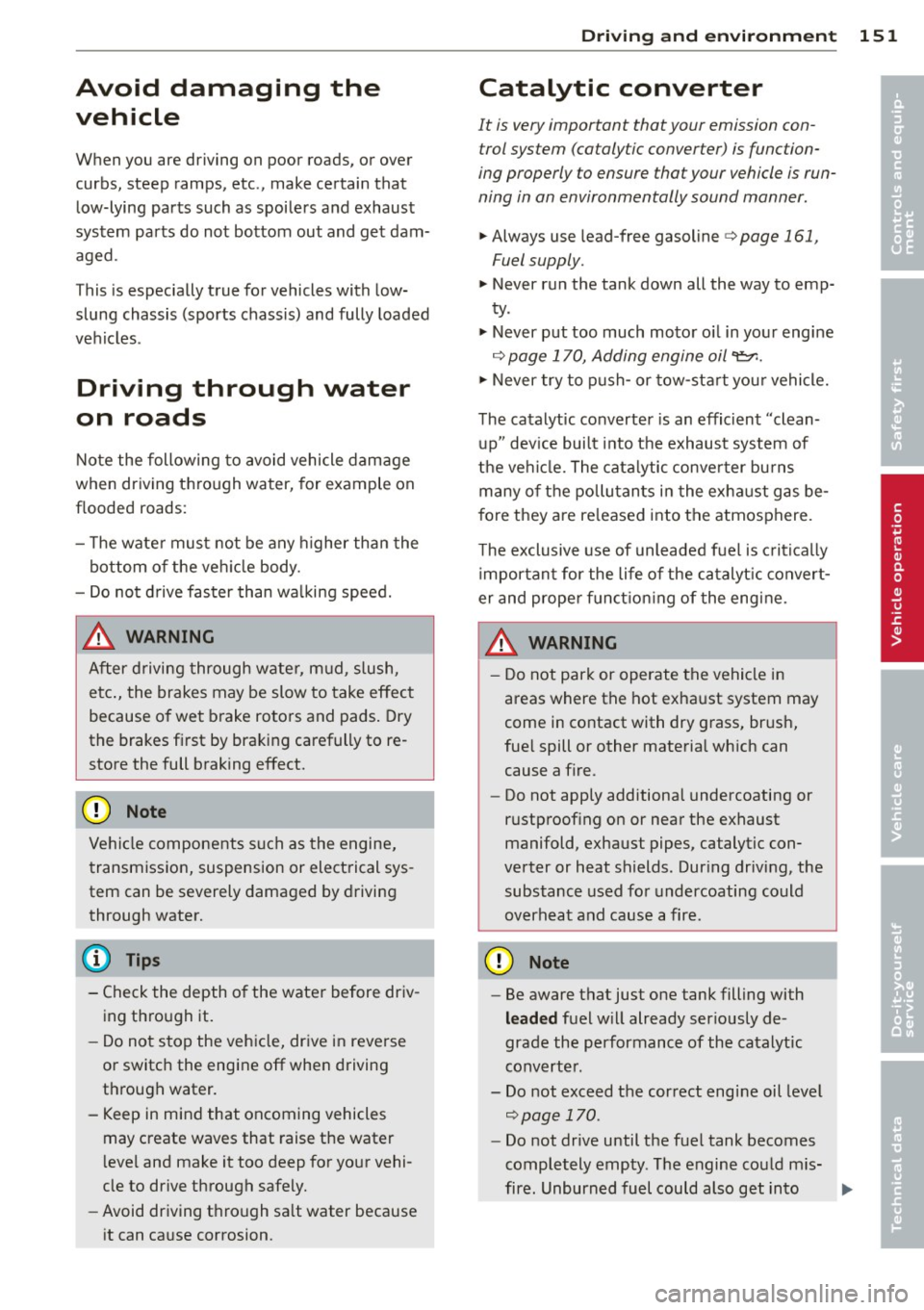

Avoid damaging the
vehicle
When you are driving on poor roads, or over
curbs, steep ramps, etc., make certain that
low-lying parts such as spoilers and exhaust
system parts do not bottom out and get dam­
aged.
T his is especially true for vehicles with low­
slung chassis (sports chassis) and fully loaded
vehicles .
Driving through water
on roads
Note the following to avoid vehicle damage
when driving through water, for example on
flooded roads:
- T he water must not be any higher than the
bottom of the veh icle body.
- Do not d rive faster than wa lking speed.
..&, WARNING
After driving through wate r, m ud, slush,
etc., the brakes may be slow to take effect
because of wet brake rotors and pads . Dry
the brakes first by braking carefully to re­
store the full braking effect.
(D Note
Vehicle components such as the engine,
transmiss ion, suspension or electrical sys ­
tem can be severely damaged by driving
through water.
- Check the depth of the water before driv ­
ing through it.
- Do not s top the veh icle, drive in reverse
or switch the engine off when driving
through water.
- Keep in mind that oncoming vehicles may create waves that raise the water
level and make it too deep for your vehi­
cle to drive through safely.
- Avoid driving thro ugh sa lt water because
it can cause corrosion.
-
Dri vin g and en vironm ent 151
Catalytic converter
It is very important that your emission con­
trol system (catalytic converter) is function­
ing properly to ensure that your vehicle is run­
ning in an environmentally sound manner .
.,. Always use lead-free gasoline¢ page 161 ,
Fuel supply.
.,. Never run the tank down all the way to emp­
ty.
.,. Never put too much motor o il in your engine
c:::> page 170, Adding engine oil 9::71 .
.,. Never try to push- or tow-sta rt you r vehicle.
The catalytic converter is an efficient "clean­
up" dev ice built into the exhaust system of
the vehicle. The cata lytic conve rter bu rns
many of the pollutants in the exha ust gas be­
f ore they are re leased into the atmosphere .
T he exclusive use of unleaded fuel is critically
important for the life of the catalyt ic convert­
er and prope r fu nct ion ing of the engine .
A WARNING
-
- Do not park or operate the vehicle in
areas where the hot exha ust system may
come in contact with dry grass, brush,
fue l spill or other materia l wh ich can
cause a fire .
- Do not apply additional undercoating or
rustproof ing on or near the exhaust
manifold, exhaust pipes, catalytic con­
verter or heat shields. Dur ing driving, the
substance used for undercoating could
overheat and cause a fire .
(I) Note
-Be aware that just one tank filling with
leaded fuel w ill already ser iously de­
grade the performance of the catalytic
converte r.
- Do not exceed the correct eng ine oil level
c:::> page 170.
- Do not drive until the fue l tank becomes
completely empty . The engine could m is-
fire. Unburned fuel could also get into
IJ,,
•
•

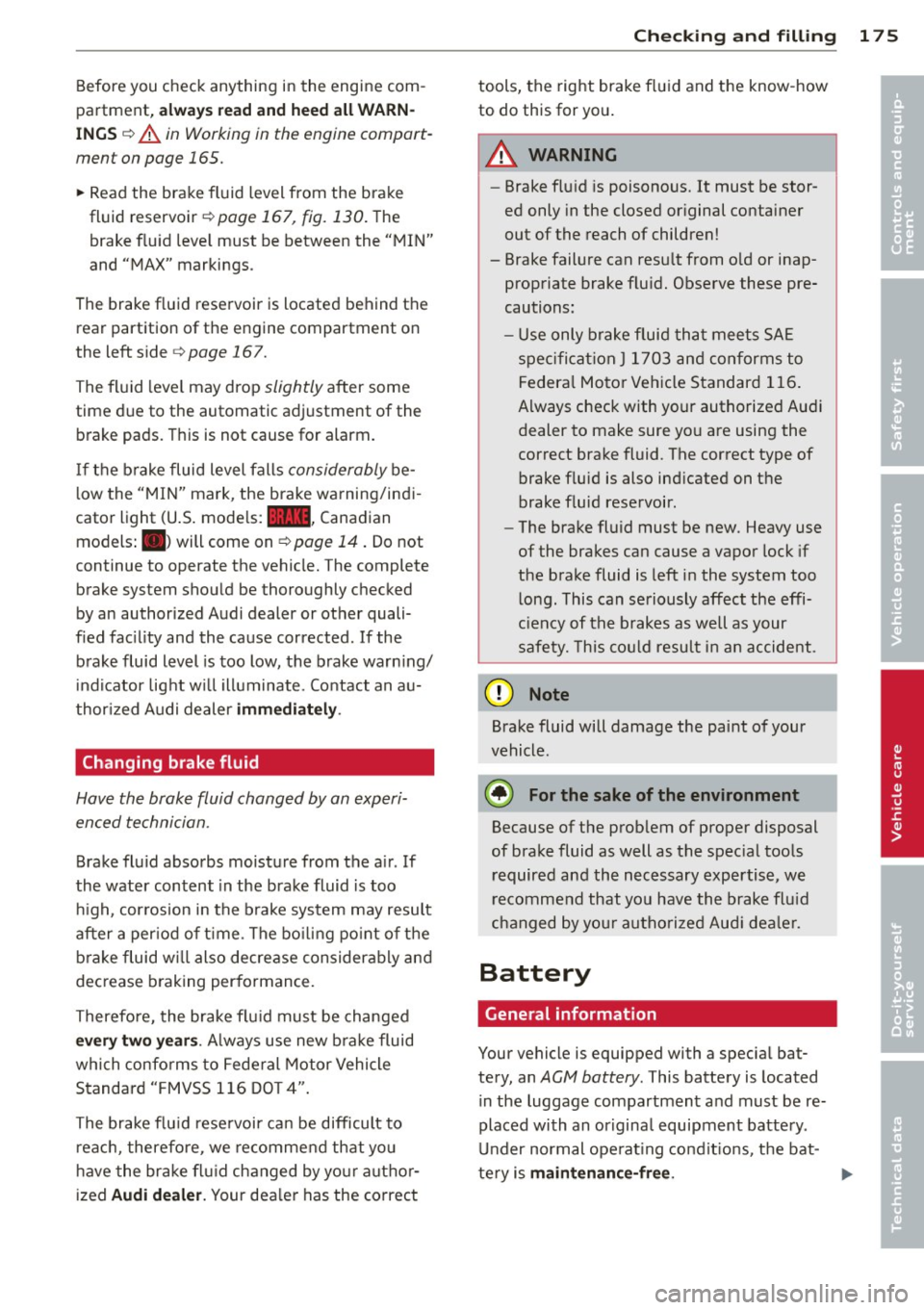

Before you check anything in the engine com­
partment,
always r ead and heed all WARN­
ING S
~ A in Working in the engine compart­
ment on page 165.
.. Read the brake flu id level from the brake
fluid reservoir
9 page 167, fig. 130 . The
brake f lu id leve l must be between the "MIN"
and "MAX" markings.
The brake f luid reservoir is located behind the
rear partition of the engine compartment on
the left side
9 page 167.
The fl uid level may drop slightly after some
time due to the automatic adjustment of the brake pads . This is not cause for alarm .
If the brake fluid level falls considerably be­
l ow the "M IN" mark, the brake wa rning/indi ­
cator light (U .S . mode ls:
1111 , Canadian
models: .) will come on ¢
page 14 . Do not
continue to operate the vehicle. The complete
brake system shou ld be thoroughly checked
by an authorized Audi dealer or other quali­
f ied fac ility and the cause corrected . If the
b rake fluid level is too low, the brake warn ing/
i ndicator light w ill illuminate . Co ntact an au­
thor ized Audi dealer
immediately .
Changing brake fluid
Have the brake fluid changed by an experi­
enced technician .
Brake fluid abso rbs moistu re from the a ir . If
the water content in the brake fluid is too
hi gh, cor ros ion in the b rake system may result
after a per iod of t ime . The bo iling po int of t he
b ra ke fluid w ill also decrease considerab ly and
decrease braking performance.
Therefore, the brake flu id must be changed
e very two year s. Always use new b rake fluid
which confo rms to Fede ral Motor Vehicle
Standard "FMVSS 1 16 DO T 4".
The brake flu id rese rvoi r ca n be difficult to
r each, therefo re , we recommend that yo u
h ave the brake fl uid changed by you r autho r­
i zed
Audi dealer . Your deale r has the correct
Checkin g and fillin g 175
tools, the right brake fl uid and t he know -how
to do this for you .
A WARNING
-Brake flu id is poisonous. It must be stor­
ed only in the closed or iginal container
out of the reach of children!
- Brake failure can res ult from o ld or inap­
propriate brake f lu id. Observe these pre­
cautions:
- Use only b rake fluid th at mee ts SA E
spe cificat ion
J 17 03 and conforms to
Federa l Mo to r Ve hicl e Standard 1 16.
Always check with yo ur authorized Au di
dealer to make sure yo u are using the
correct brake fluid. The cor rect type of
brake f luid is also ind icated on the
brake f luid reservoir .
- The bra ke fluid must be new. Heavy use
of the brakes ca n cause a vapor lock if
the brake fluid is left i n the system too
long. This can se riously affect the effi­
c iency of the b rakes as well as your
safety , T his could result in an accide nt.
(!) Note
Brake fluid will damage the pai nt of your
vehicle.
@) For the sake of the environment
Because of the prob lem of proper disposal
of brake fluid as well as the spec ial too ls
r equired and the nec essary expertise, we
r ecommend that yo u have th e brake flu id
c hanged by you r aut ho rized Aud i dea le r.
Battery
General information
Your vehicle is equipped with a specia l bat­
tery, an
ACM battery. This battery is located
in the luggage compartment and must be re­
placed with an origina l equipment batte ry .
Un der normal ope rat ing condit io ns, t he bat-
te ry is
maintenanc e-free . .,.
•
•

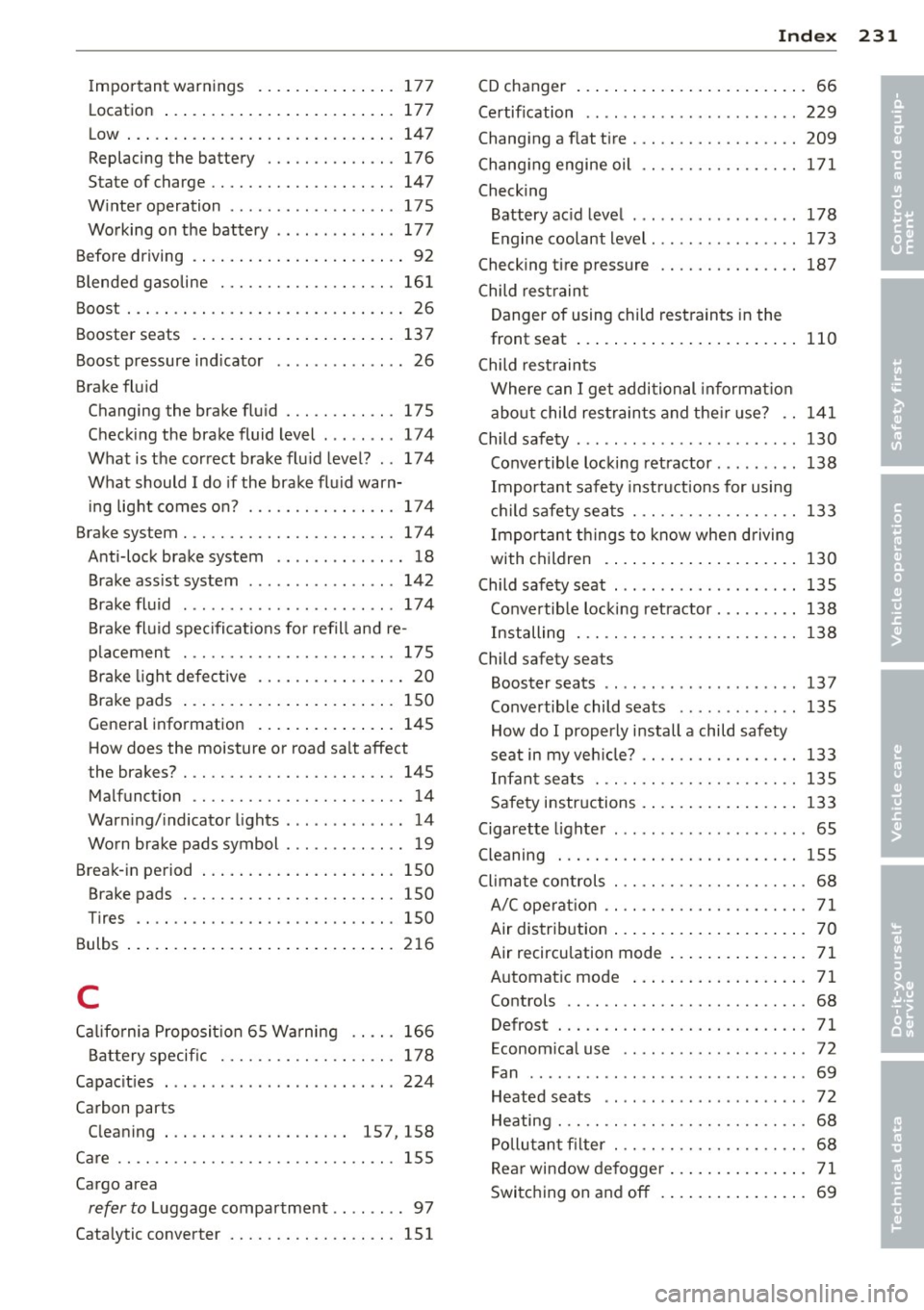

Important warnings ... ... .. .. .. .. . 177
Location 177
Low ... .. .. .. ... ....... ... .. .. .. . 147
Replacing the battery ........... .. . 176
State of charge . . . . . . . . . . . . . . . . . . . . 147
W inter operation . . . . . . . . . . . . . . . . . . 17 5
Wo rking on the battery . . . . . . . . . . . . . 177
Before driving . . . . . . . . . . . . . . . . . . . . . . . 92
Blended gasoline .......... .. .. .. ... 16 1
Boost . .... .. ................. .. .... 26
Booster seats . .... ..... ... .. .. .. ... 137
Boost pressure ind icator ........... ... 26
Brake fl uid
Changing the brake fluid ... .. .. .. .. .
175
Checking the brake fluid level . ....... 174
What is the correct brake flu id level? .. 174
What should I do if the brake fl uid warn-
ing light comes o n? ................
174
Brake system ... ........... .. .. .. ... 174
Anti-lock brake system ........ ... ... 18
Brake ass ist system ........... ... .. 142
Brake fl uid ................. ... ... 174
Brake fluid spec ifi cat ions for refill and re­
p lacemen t . . . . . . . . . . . . . . . . . . . . . . .
17 5
Brake ligh t de fect ive ................ 20
Brake pads . . . . . . . . . . . . . . . . . . . . . . . 150
General i nformation ... ... .. .. .. .. . 145
How does the moisture or road sa lt affect
the brakes? . ............. .... .. .. .
145
Malfunct ion . . . . . . . . . . . . . . . . . . . . . . . 14
Warn ing/ indicato r lights ....... ... ... 14
Wo rn brake pads symbol ....... ... ... 19
Brea k-in pe riod ... .. .... ... .. .. .... . 150
Brake pads . ............. .... .. ... 150
Tires
Bulbs
C
Ca lifo rnia Proposit io n 65 Wa rning
150
2 16
166
B att ery specific .......... .. .. .. .. . 178
Capac it ies ......................... 224
Carbon parts
Clean ing . . . . . . . . . . . . . . . . . . . .
157, 158
Care .. .. .. .. .. .. ........... .. .. ... 155
Cargo area
refer to Luggage compartment . . . . . . . . 97
Cata lytic converter .................. 151
Inde x 231
CD changer ... .... .. . .. .. ..... ... .. . 66
Certif ication ...... .. ............... 229
Changing a flat tire . ............. .. .. 209
Ch ang ing engine oil ................. 171
Checking
Battery ac id level ............. .... .
178
Engine coolant level ........... .... . 173
Checking t ire pressure ............... 187
Child res train t
Danger of using child res train ts in the
front seat
110
Child rest rain ts
Where can I ge t addi tional in format io n
abo ut child res train ts and the ir use? ..
1 4 1
Child safety .............. .......... 130
Convertible locking retractor ......... 138
Important safety instructions for using
c hi ld safety seats . .. .. ......... .. ..
133
Important t hings to know whe n driving
with children .. .... . ... ...... ... ..
130
Child safety seat .... ........... .... . 135
Convertib le locking retractor ......... 138
Installing . .. .. .. ................. 138
Child safety seats
Booster seats .. .. .. ...............
137
Co nve rtib le child seats ... ... ..... .. 135
How do I properly install a child safety
. h' l ? 133 sea t m my ve 1c e ................. .
Infan t seats . .. .. .... ........... ..
135
Safety instr uctions . .. .. ..... ... .. .. 133
Cigarette lighter ... .. . .. .. ... ..... .. . 65
Cleaning ..... .. ...... ............. 155
C limate controls . .. .. ........... .... . 68
A/C opera tion .. .. .... ............. . 71
Air distribution . . . . . . . . . . . . . . . . . . . . . 70
Air recircu lation mode . . . . . . . . . . . . . . . 71
Automat ic mode ... .. .. .... ... .. .. . 71
Controls . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Defrost . .. .. .. .. .. ............... . 71
Economica l use .. .. . .. .. ... ..... .. . 72
Fan ................... ........... 69
Heated seats . . . . . . . . . . . . . . . . . . . . . . 72
Heating ... .. .. .. .... ........... .. . 68
Pollu tant fi lter . . . . . . . . . . . . . . . . . . . . . 68
Rea r window defogger .. ..... ... .. .. . 71
Switc hing on and off .... .... ... .. .. . 69
•
•
