remain continuous ly illuminated . This se ­
quence will continue upon subsequent vehicle
start-ups as long as the ma lfunction ex ists.
When the malfunct ion indicator is ill uminat­
ed, the system may not be able to detect or
signa l low tire pressure as intended. TPMS
malfunct ions may occur for a variety of rea­
sons, including the installat ion of replace­
ment or alternate tires or wheels on the veh i­
cle that prevent the TPMS from funct io ni ng
properly. Always check the TPMS malfunct ion
tellta le afte r replacing one or more t ires or
wheels on your veh icle to ensure that the re­
p lacement or a lternate tires and wheels allow
the TPMS to continue to function properly.
Tire pressure indicator appears
Applies to vehicles: with tire pressure monitoring system
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too
low or if there is a system malfunction.

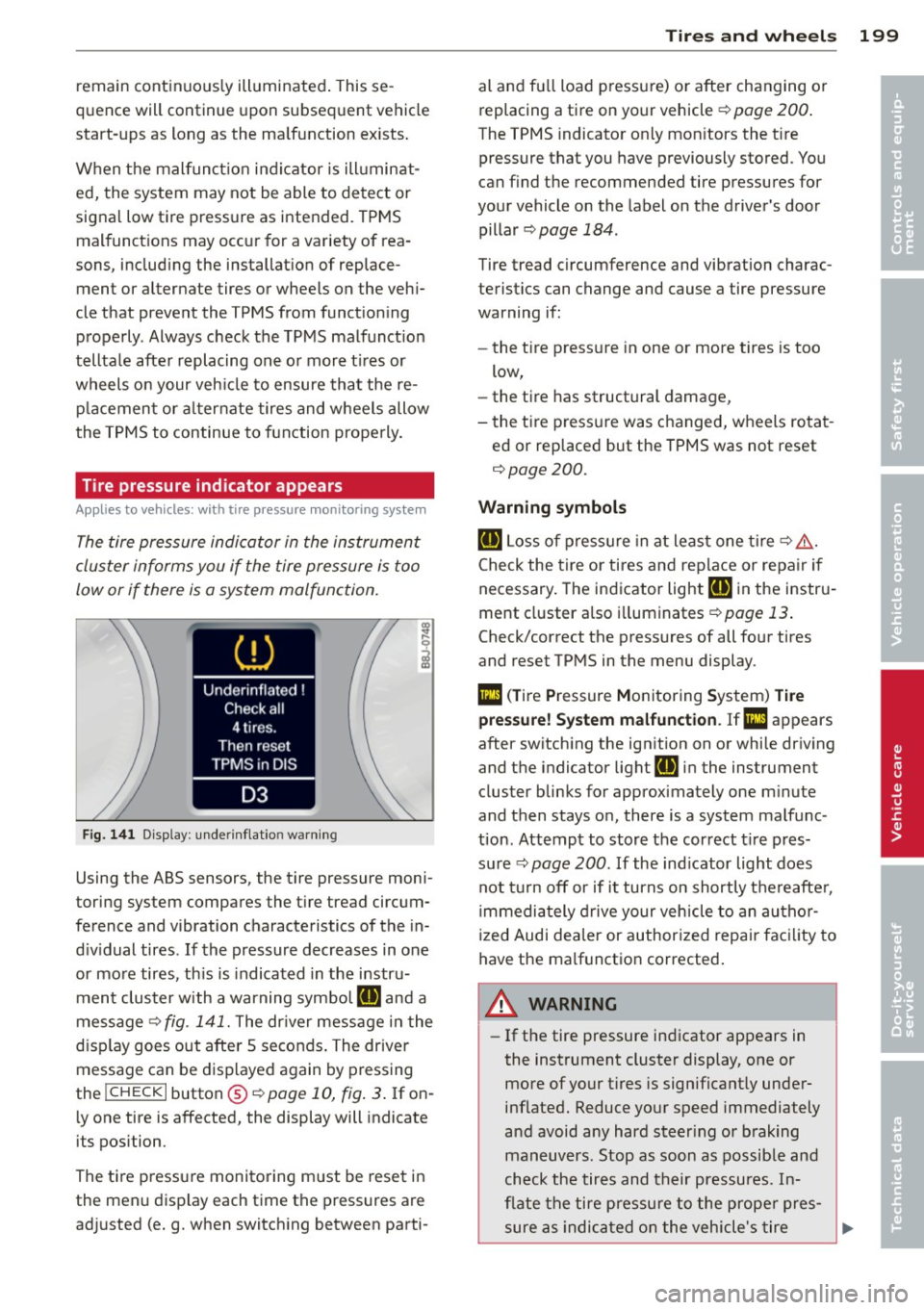

F ig. 1 41 Disp lay : under in fla tion warn ing
Using the ABS sensors, the tire pressure moni ­
toring system compares the t ire tread circum­
fe rence and vibration characteristics of the in­
d iv idual tires . If the pressure decreases in one
or mo re tires, th is is indicated in the instru­
ment clus ter with a warning symbol
[I] and a
message
'* fig. 141. The dr iver message in the
d isp lay goes out after 5 seconds . The driver
message can be d isplayed again by pressing
the
! CHECK I button @¢ page 10, fig . 3 . If on ­
ly one tire is affected, the display will indicate
its pos ition.
The ti re pressure monito ring m ust be reset in
the menu display each time the pressures are
ad justed (e.g. when switching between parti-
Tire s an d wheel s 199
al and fu ll load pressure) or after changing o r
replacing a tire on your vehicle '*
page 200.
The TPMS indicator on ly mon itors the t ire
pressure that you have previously stored . You
can f ind the recommended tire pressures for
your vehicle on the label on the driver's door
pillar ¢
page 184 .
Tire tread circumference and vibration charac­
teristics can change and cause a tire pressure
warning if:
- the t ire press ure in one or more tires is too
low,
- the tire has structural damage,
- the t ire press ure was changed, wheels rotat -
ed or rep laced but the TPMS was not reset
¢ page 200.
Warning symbo ls
[I] Loss of press ure in at least one tire'*& .
Check the tire or tires and rep lace or repa ir if
necessary . The indicator light
[I] in the instru ­
ment cluster a lso i lluminates
¢ page 13.
Check/correct the press ures of all four tires
and reset TPMS in the menu display .
mm (T ire Pressure Monitoring System) Ti re
pre ssure! System malfun ction . Ifll appears
after switching the ign it ion on or while dr iving
and the indicator light
[I] in the instrument
clus ter blinks fo r approximately one m inute
and then stays on, there is a system malfunc ­
tion . Attemp t to store the correct t ire pres­
su re '*
page 200 . If the ind icator light does
not turn off or if i t turns on shortly thereafte r,
immedia tely drive your vehicle to an au thor­
ized Audi dea ler or author ized repai r fac ility to
have the malfunction corrected .
A WARNING
=
-If the tire pressure indicator appears in
the instrument cluster display, one or
more of your t ires is significant ly under­
inflated. Reduce your speed immediately
and avoid any hard steer ing or b rak ing
maneuvers. Stop as soon as possib le and
check the tires and their pressu res . In­
flate the tire pressure to the prope r pres-
sure as indicated on the vehicle's tire .,..
•
•

200 Tires and wheels
pressure label¢ page 184. Driving on a
significantly under-inflated tire causes the tire to overheat and can lead to tire
failure . Under-inflation also is likely to
impair the vehicle's handling and stop­
ping ability .
- The driver is responsible for mainta ining
the correct tire pressures. You must
check the tire pressures regularly.
- Under certain conditions (such as a spor­
ty driving style, winter conditions or un­
paved roads), the pressure monitor indi­
cator may be delayed.
- Ask your author ized Audi dealer if run­
flat tires may be used on your veh icle.
Your vehicle registration becomes inval id
if you use these tires when not permit­
ted. Damage to your vehicle or accidents
cou ld also resu lt.
- If you switch between standard and run­
flat tires, an authorized Audi dealer or
qualified workshop must reprogram the
control module .
@ Tips
-The tire pressure monitoring system may
stop working when there is an ESC mal ­
funct ion .
- Using snow chains may result in a system
malfunction.
- The tire pressure monitoring system on
your Audi was developed using tires with
the "AO" or "RO" identif ication on the
tire sidewall ¢
page 191. We recom­
mend using these tires.
Reset tire pressure monitoring system
(Stepl)
Applies to vehicles: with tire pressure monitoring system
If the tire pressure is adjusted, wheels are ro­
tated or changed, the TPMS must be reset in
the menu display.
----- ®

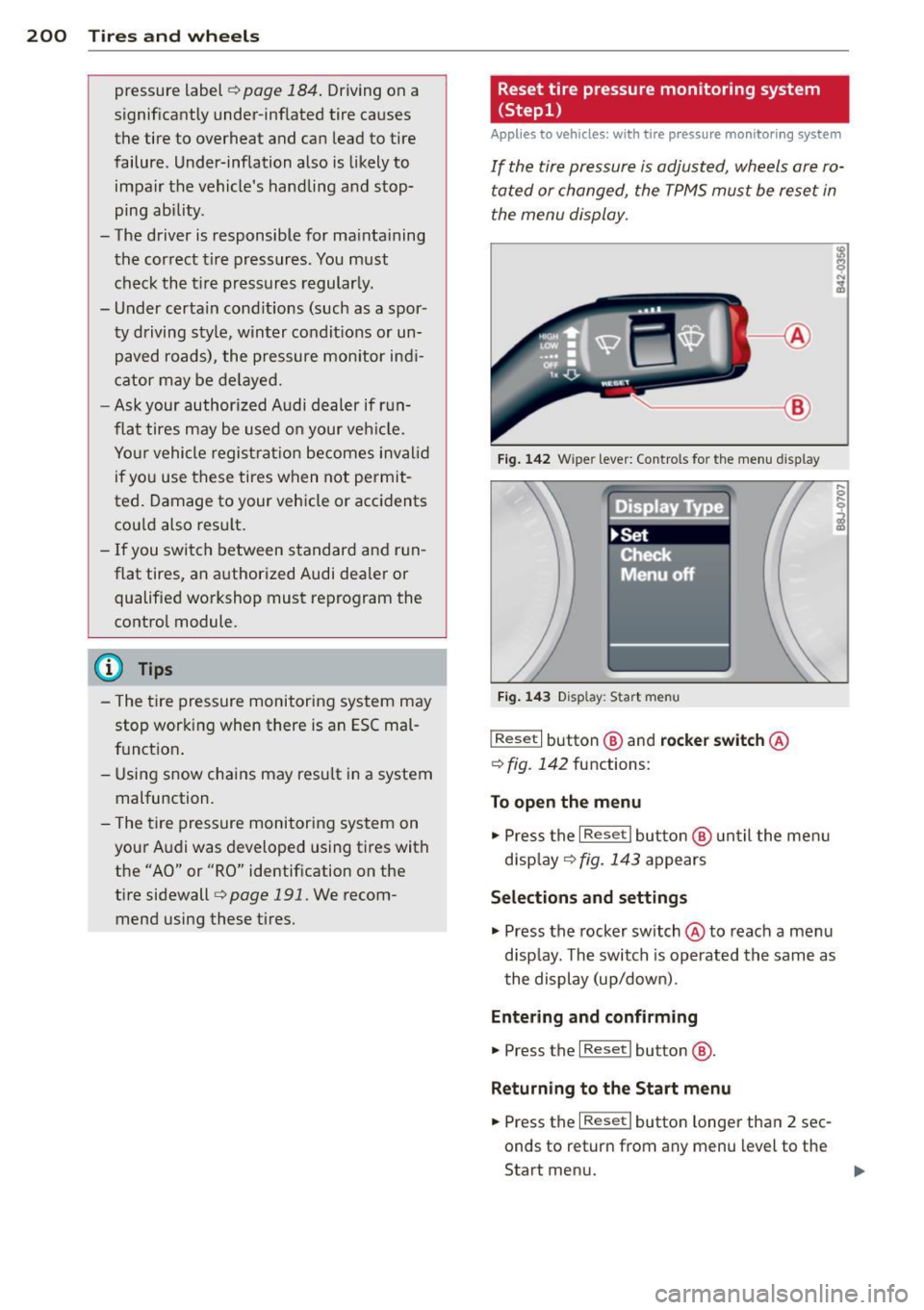

Fig. 142 Wiper lever: Contro ls fo r the menu displ ay
Fig. 143 Disp lay: S tar t m en u
I Reset I button @ and rocker switch @
¢
fig . 142 functions:
To open the menu
" Press the I Rese t I button @ until the men u
disp lay
¢ fig . 143 appears
Selections and settings
" Press the rocker switch @ to reach a menu
disp lay. The switch is operated the same as
the display (up/down) .
Entering and confirming
" Press the I Re set I bu tton @.
Returning to the Start menu
" Press the I Reset I button longer than 2 sec ­
onds to return from any m enu l evel to the
Start menu.

@ Tips
-Before resetting the TPMS, the current
pressures of
all four tires must corre­
spond t o the specified va lues. Adjust the
tire pressu re and reset the pressure in
the tire pressure mon itor ing system ac­
cord ing to the load yo u are carry ing
<=> pag e 184.
- Do not store the tire pressure if there are
snow cha ins on the tire . Othe rwise, a
system malfunct ion may occ ur.
Reset tire pressure monitoring system
(Step2}
Applies to vehicles: with tire pressure monitoring system

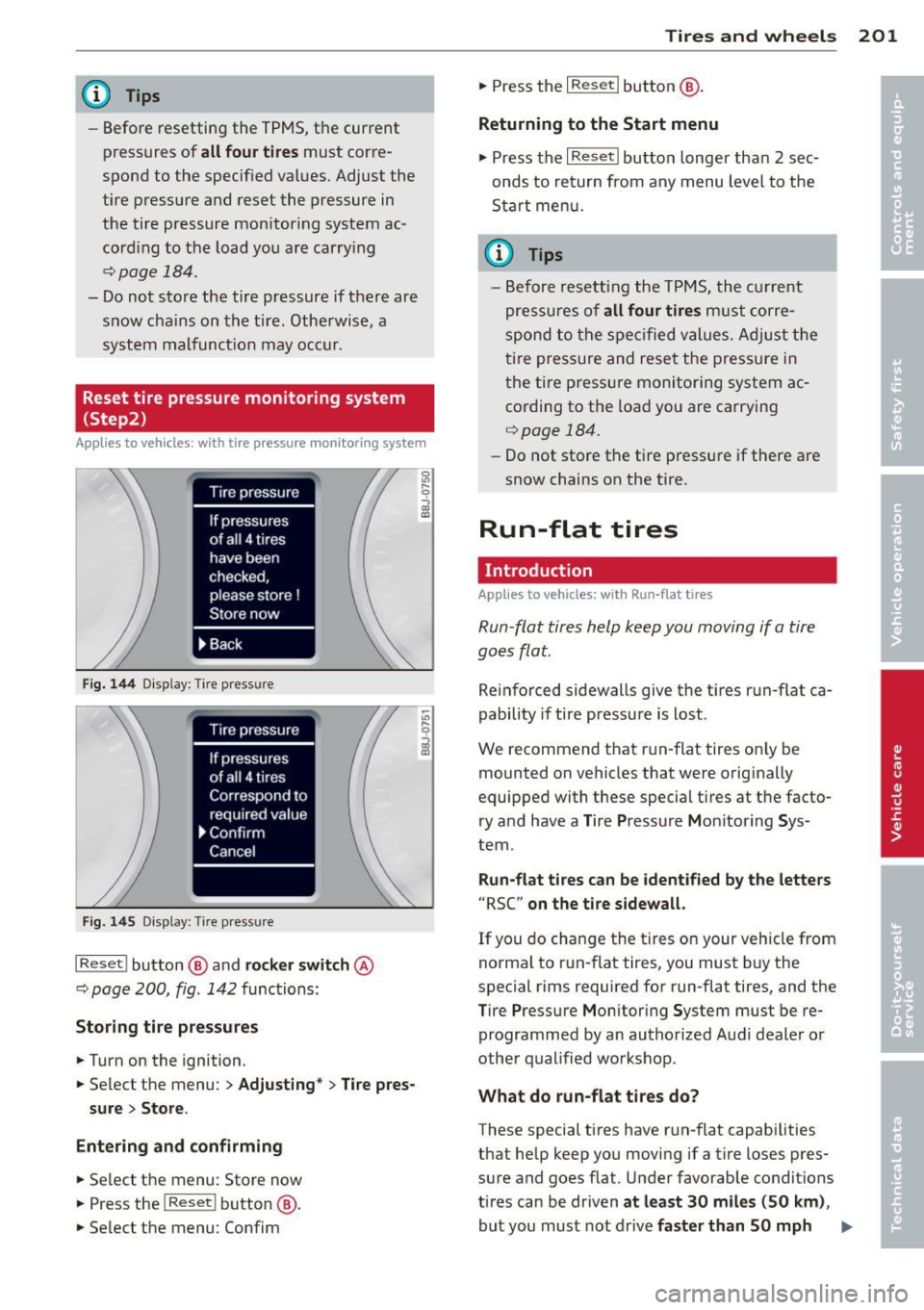

Fig. 144 D isplay: Tir e press ure
Fi g. 145 Display: Tir e pr ess ure
I Reset ! button @ and rock e r swit ch @
~ page 200, fig . 142 func tions:
Storing tire pressures
.. Turn on the ignition .
.. Select the menu :
> Adjusting * > Tire pres-
sure
> Store .
Entering and confirming
.. Se lect t he menu : St ore now
.,. Press the
l Reset ! button @.
.. Se lect the menu : Confim
Tires and wheels 201
.. Press the I Rese t I button @.
Returning to the Start menu
.,. Press the I R eset I butto n longer than 2 sec­
onds to retur n from any menu level to the
S ta rt me nu.
{!) Tips
- B efore resett ing the TP MS, the c urrent
pre ssures o f
all four tires must co rre­
spond to t he s pec ified v alue s. A dju st t he
tire pressure and rese t the pressure i n
the tire p ressu re monito ring system ac­
co rding to the loa d you are carrying
<=> page 184.
-Do not store the tire p ress ure if there are
snow chains on the tire .
Run-flat ti res
Introduction
Applies to vehicles: with Run -f lat tires
Run-flat tires help keep you moving if a tire
goes flat.
Re inforced sidewalls give the tires run-flat ca­
pability if tire pressure is lost .
We recommend that r un-flat tires on ly be
m ounted on vehicles that were orig inally
equipped with these special tires at t he facto­
ry and have a Tire Pressure Moni toring Sys­
tem .
Run-flat tires can be identified by the letters
"RSC" on the tire sidewall.
If you do change the tires on your veh icle from
norma l to run- flat tires, you must b uy the
special rims required for run-flat tires, and the
T ire Pressure Monitor ing System must be re­
programmed by an authorized Aud i dealer o r
other qualified worksho p .
What do run-fl at tires do?
These special tires have r un-flat capabilities
that help keep you moving if a t ire loses pres­
sure and goes flat . Under favorable conditions
ti res can be dr iven
at least 30 miles (50 km) ,
but you mus t not dr ive faster than 50 mph Ill-

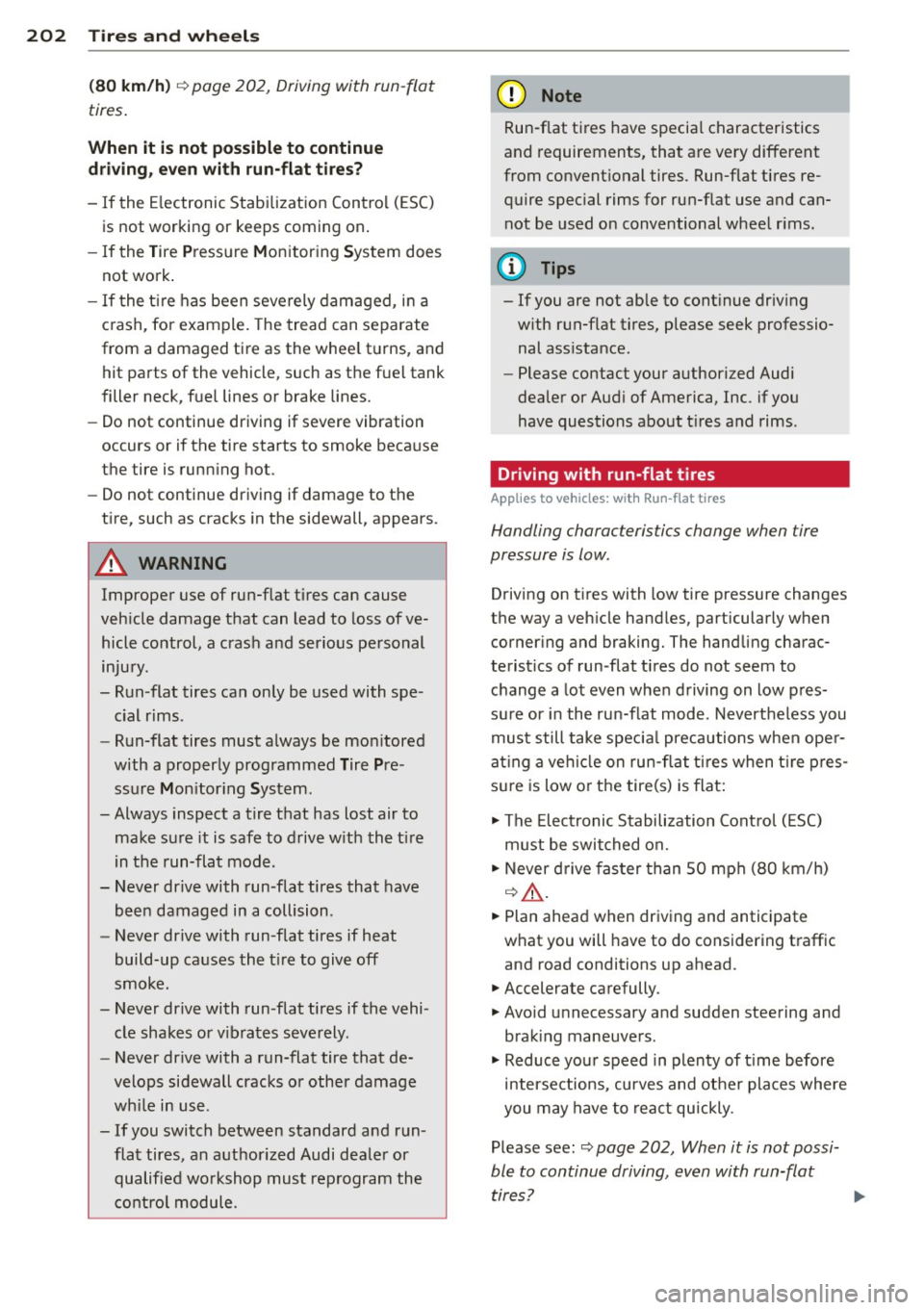

202 Tires and wheels
(80 km/h)
¢ page 202, Driving with run -flat
tires .
When it is not possible to continue
driving, even with run-flat tires?
- If the E lectronic Stabilization Control (ESC)
is not working or keeps coming on.
- If the Tire Pressure Monitoring System does
not work .
-If the tire has been severely damaged, in a
crash, for example. The tread can separate
from a damaged tire as the whee l turns , and
hit parts of the vehicle , such as the fuel tank
filler neck, fuel lines or brake lines.
- Do not continue driving if severe vibration
occurs or if the tire starts to smoke because
the tire is running hot.
- Do not continue driving if damage to the
tire, such as cracks in the sidewall, appears.
A WARNING
Improper use of run-flat t ires can cause
veh icle damage that can lead to loss of ve­
hicle control, a crash and serious pe rsonal
injury.
- Run-flat tires can only be used with spe­ cial rims.
- Run-flat tires must always be mon itored
with a properly programmed Tire
P re­
ssure Mon itor ing System.
- Always inspect a tire that has lost air to
make sure it is safe to drive with the tir e
in the run-flat mode.
- Never drive with run-flat tires that have
been damaged in a collision .
- Never drive with run-flat tires if heat
build-up causes the tire to give off
smoke .
- Never drive with run-flat tires if the vehi­
cle shakes or v ibrates severely.
- Never drive with a run-flat tire that de­
velops sidewall cracks or other damage
wh ile in use .
- If you switch between standard and run ­
flat tires, an authorized Audi dealer or qualified workshop must reprogram the
control module .
-
(D Note
Run-flat tires have specia l characteristics
and requirements, that are very different
from conventional tires. Run-flat tires re­
quire special rims for run-flat use and can­
not be used on conventional wheel rims.
(D Tips
- If you are not able to cont inue driving
with run-flat tires, please seek professio­
nal assistance.
- Please contact your authorized Audi
dealer or Audi of America, Inc. if you
have questions about tires and rims .

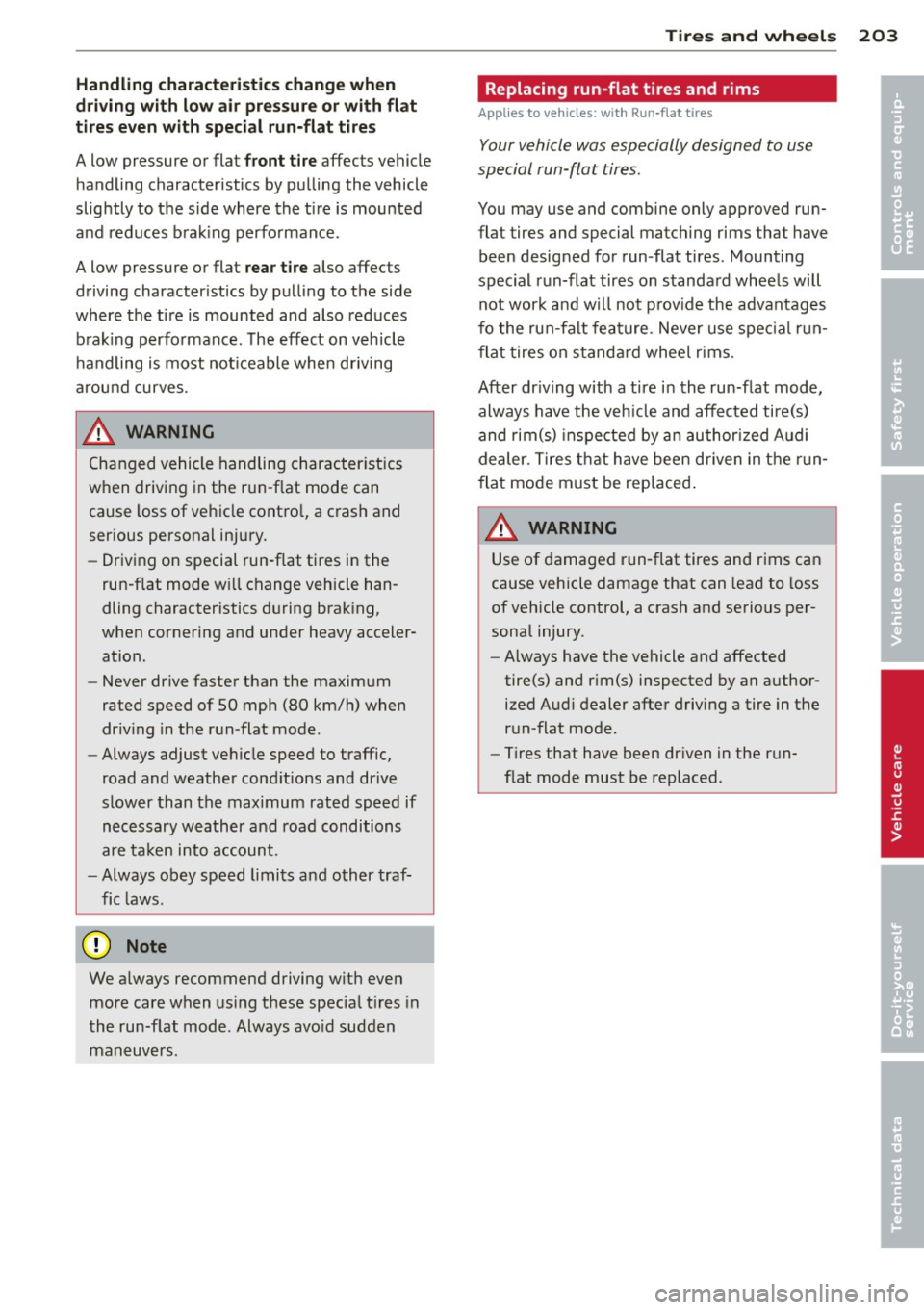

Driving with run-flat tires
Applies to vehicles: wit h Run -flat tires
Handling characteristics change when tire
pressure is low .
Driving on tires with low tire pressure changes
the way a vehicle handles, particularly when
cornering and braking. The handling charac­
teristics of run-flat tires do not seem to
change a lot even when driving on low pres­
sure or in the run-flat mode . Nevertheless you
must still take specia l precautions when ope r­
at ing a vehicle on run-flat tires when tire pres­
sure is low o r the tire(s) is flat:
.,. The Electronic Stabilization Control (ESC)
must be switched on.
.,. Never drive faster than 50 mph (80 km/h)
¢&_ .
.,. Plan ahead when driving and anticipate
what you will have to do considering traffic
and road conditions up ahead .
.,. Accelerate carefully.
.,. Avo id unnecessary and sudden steering and
brak ing maneuvers.
.,. Reduce your speed in plenty of time before
intersections, curves and other places where
you may have to react quickly.
Please see :
¢ page 202, When it is not possi­
ble to continue driving, even with run-flat
tires?

Handling characteristics change when
driving with low air pressure or with flat
tires even with special run-flat tires
A low pressure or flat front tire affects vehicle
handling characteristics by pu lling the vehicle
slightly to the side where the tire is mounted
and reduces braking performance .
A low pressure or flat
rear tire also affects
driving character istics by pulling to the side
where the tire is mounted and also reduces
brak ing performance. The effect on vehicle
handling is most not iceable when driving
around curves.
A WARNING
Changed vehicle handling character istics
when driving in the run -f lat mode can
cause loss of vehicle contro l, a crash and
serious personal injury.
- Driving on special run-flat tires in the
run-f lat mode wi ll change vehicle han­
dling characteristics during braking,
when cornering and under heavy acceler­
ation.
- Never drive faster than the maximum
rated speed of 50 mph (80 km/h) when
dr iv ing in the run -flat mode.
- Always adjust vehicle speed to traffic,
road and weather cond itions and drive
slower than the max imum rated speed if
necessary weather and road conditions
are taken into account.
- Always obey speed limits and other traf­
fic laws.
Q) Note
We always recommend driving w ith even
more care when using these special t ires in
the run-flat mode . Always avo id sudden
maneuvers.
Tires and wheels 203
Replacing run-flat tires and rims
App lies to veh icles : w it h Run -flat t ires
Your vehicle was especially designed to use
special run-flat tires.
You may use and combine only approved run­
flat tires and special matching rims that have
been designed for run-flat tires. Mounting
special run-flat tires on standard wheels will not work and w ill not prov ide the advantages
fo the ru n-falt feature . Never use spec ial run­
flat tires on standa rd wheel rims.
After dr iving with a tire i n the run-flat mode,
always have the veh icle and affected tire(s)
and rim(s) inspected by a n authorized Audi
dealer. Tires that have been driven in the run­
f lat mode must be rep laced .
A WARNING
-Use of damaged run-flat tires and rims can
cause vehicle damage that can lead to loss
of vehicle control, a crash and serious per­
sonal injury.
- Always have the vehicle and affected
tire(s) and r im(s) inspected by an author­
ized Audi dealer after driving a tire in the
run-flat mode .
- Tires that have been dr iven in the run­
f lat mode must be replaced.
•
•

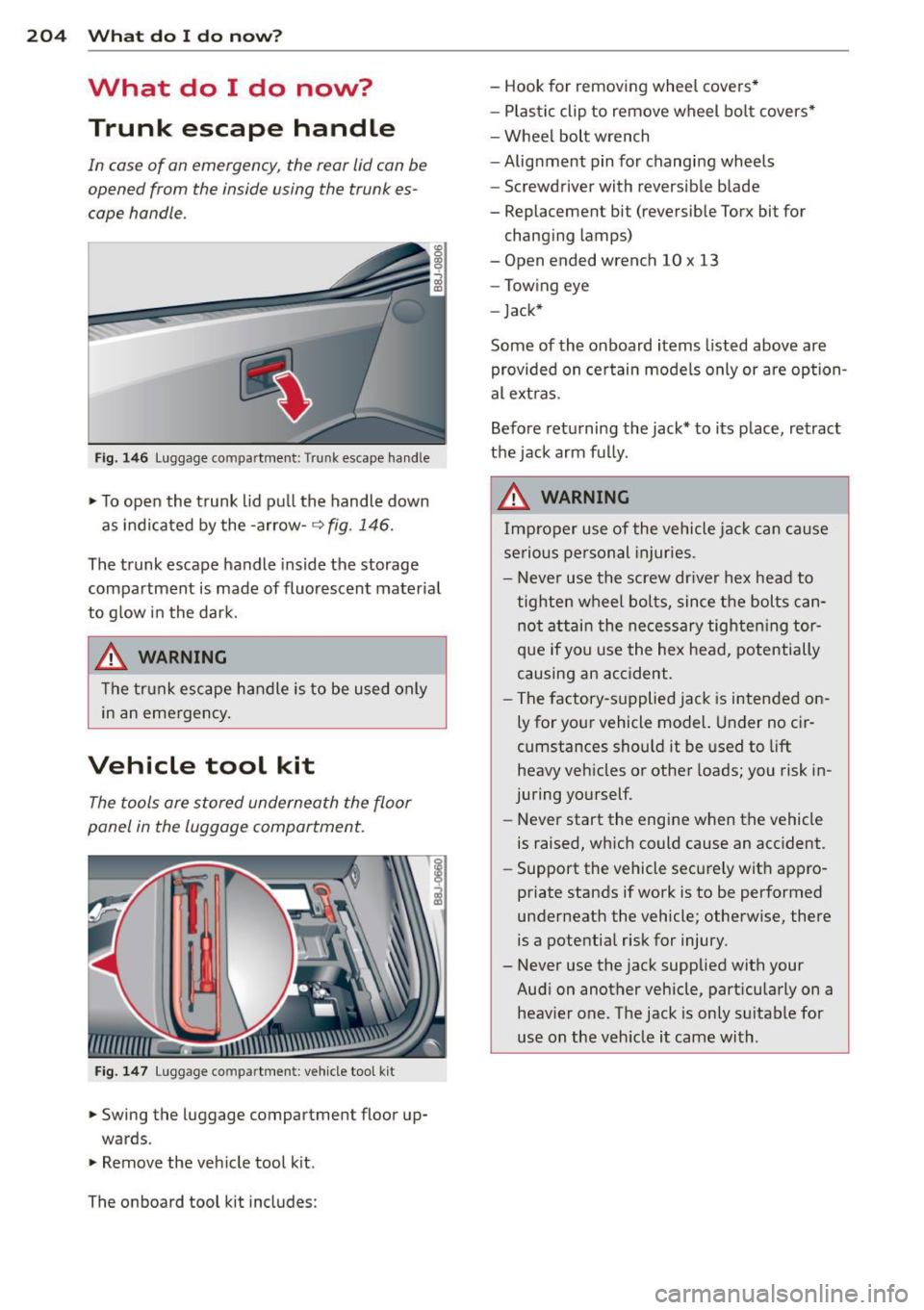

204 What do I do now ?
What do I do now?
Trunk escape handle
In case of an emergency, the rear lid can be
opened from the inside using the trunk es­
cape handle.
Fig. 1 46 Luggage compartment: Trunk escape handle
... To open the trunk lid pu ll the handle down
as indicated by the -arrow-~
fig. 146.
The trunk escape handle inside the storage
compartment is made of fluorescent materia l
to g low in the dark.
A WARNING
The trunk escape handle is to be used only
in an emergency.
Vehicle tool kit
The tools are stored underneath the floor
panel in the luggage compartment.
Fig. 1 47 Luggage co mpa rtment : veh icle too l kit
... Swing the luggage compartment floor up­
wards .
... Remove the veh icle tool k it.
The on board tool kit includes: -
Hook for removing wheel covers *
- Plastic clip to remove wheel bo lt covers•
- Wheel bolt wrench
-Alignment pin for changing wheels
- Screwdriver with reversible blade
- Replacement bit (reversible Torx bit for
chang ing lamps)
- Open ended wrench 10 x 13
- Towing eye
- Jack*
Some of the on board items listed above are
provided on certain mode ls only or are option­
al ext ras.
Before returning the jack* to its place, retract
the jack arm fully .
A WARNING
Im proper use of the vehicle jac k can cause
serious personal injuries .
- Never use the screw driver hex head to tighten wheel bo lts, since the bolts can­
not attain the ne cessary tighten ing tor­
que if you use the hex head, potentially
causing an accident.
- The factory-supplied jack is intended on­ ly for your vehicle model. Under no cir­
cumstances should it be used to lift
heavy vehicles or other loads; you risk in­
juring yourself.
- Never start the engine when the vehicle
is raised, wh ich could cause an acc ident.
- Support the vehicle secure ly wit h appro­
priate stands if work is to be performed
underneath the vehicle; otherwise, there
is a potential risk for injury.
- Never use the jack supplied with your
Audi on another vehicle, part icularly on a
heavier one. The jack is only su itable for
use on the veh icle it came with .

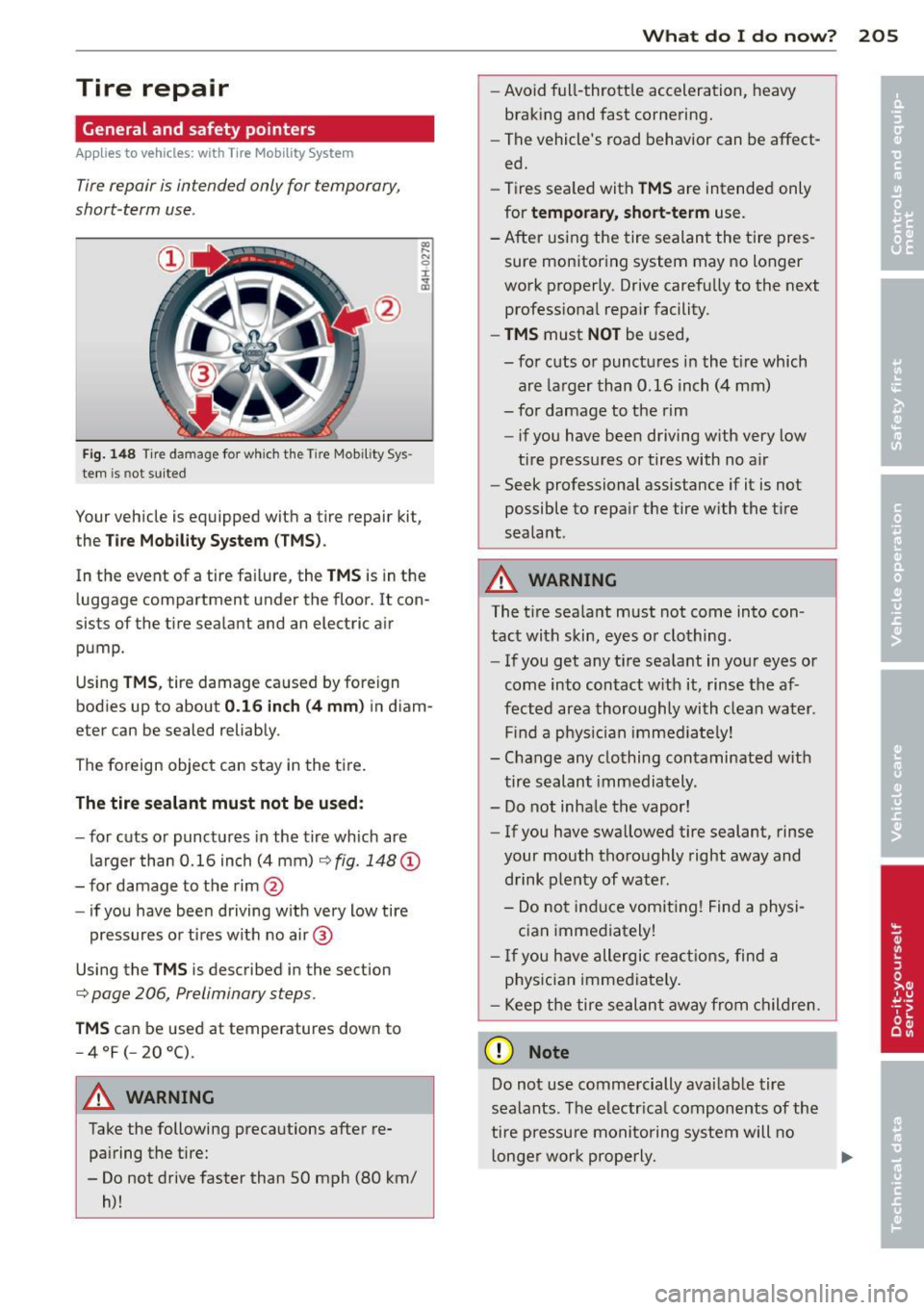

Tire repair
General and safety pointers
Applies to vehicles: with T ire Mobility System
Tire repair is intended only for temporary,
short-term use.
Fig. 1 48 Tire damage for which the Tire Mobil ity Sys ·
tern is not suited
Your vehicle is equipped wit h a tire repair kit ,
the
Tire Mobil it y Syste m (TM S).
In the event of a tire failure, the TMS is in the
luggage compartment under the floor. It con­
sists of the t ire sealant and an electric air
pump.
Using
TMS , tire damage caused by foreign
bodies up to about
0.16 inch (4 mm ) in diam­
eter can be sealed reliably.
The foreign object can stay in the tire.
The tire sealant must not be used :
-for cuts or punctures in the tire which are
larger than 0.16 inch (4 mm)¢
fig. 148@
- for damage to the rim@
- if you have been driving w ith very low tire
pressures or t ires with no air ®
Using the
T M S is described in the section
¢ page 206 , Preliminary steps.
TMS can be used at temperatures down to
- 4 °F (- 20 °().
.&_ WARNING
Take the following precautions after re­
pairing the tire:
-
- Do not drive faster than 50 mph (80 km/
h)!
What do I d o now ? 205
-Avoid full-throttle acceleration, heavy
brak ing and fast cornering.
- The vehicle's road behavior can be affect­
ed.
- Tires sea led with
T MS are intended only
for
t e mpo rary, sh or t-t erm use.
-After using the tire sealant the tire pres­
sure mon itoring system may no longer
work properly. Drive carefully to the next professional repair facility.
- TMS must NOT be used,
- for cuts or punctures in the t ire which
are larger than 0.16 inch (4 mm)
- for damage to the rim
- if you have been driving with very low
tire pressures or tires with no a ir
- Seek professional assistance if it is not
possible to repa ir the tire with the t ire
sealant .
.&_ WARNING
The tire sea lant must not come into con­
tact with skin, eyes or clothing .
- If you get any tire sealant in your eyes or
come into contact w ith it, rinse the af­
fected area thoroughly with clean water. Find a phys ician immed iately!
- Change any clothing contaminated with
tire sealant immediately.
- Do not inha le the vapor!
- If you have swallowed tire sealant, rinse
your mouth thoroughly right away and
drink plenty of water.
- Do not induce vomiting! Find a physi­
c ian immediately!
- I f you have allergic react ions, find a
physician immediately .
- Keep the tire sealant away from ch ildren.
(D Note
Do not use commercially ava ilable tire
sealants . The electr ical components of the
tire pressu re monitoring system will no
l onger work properly.

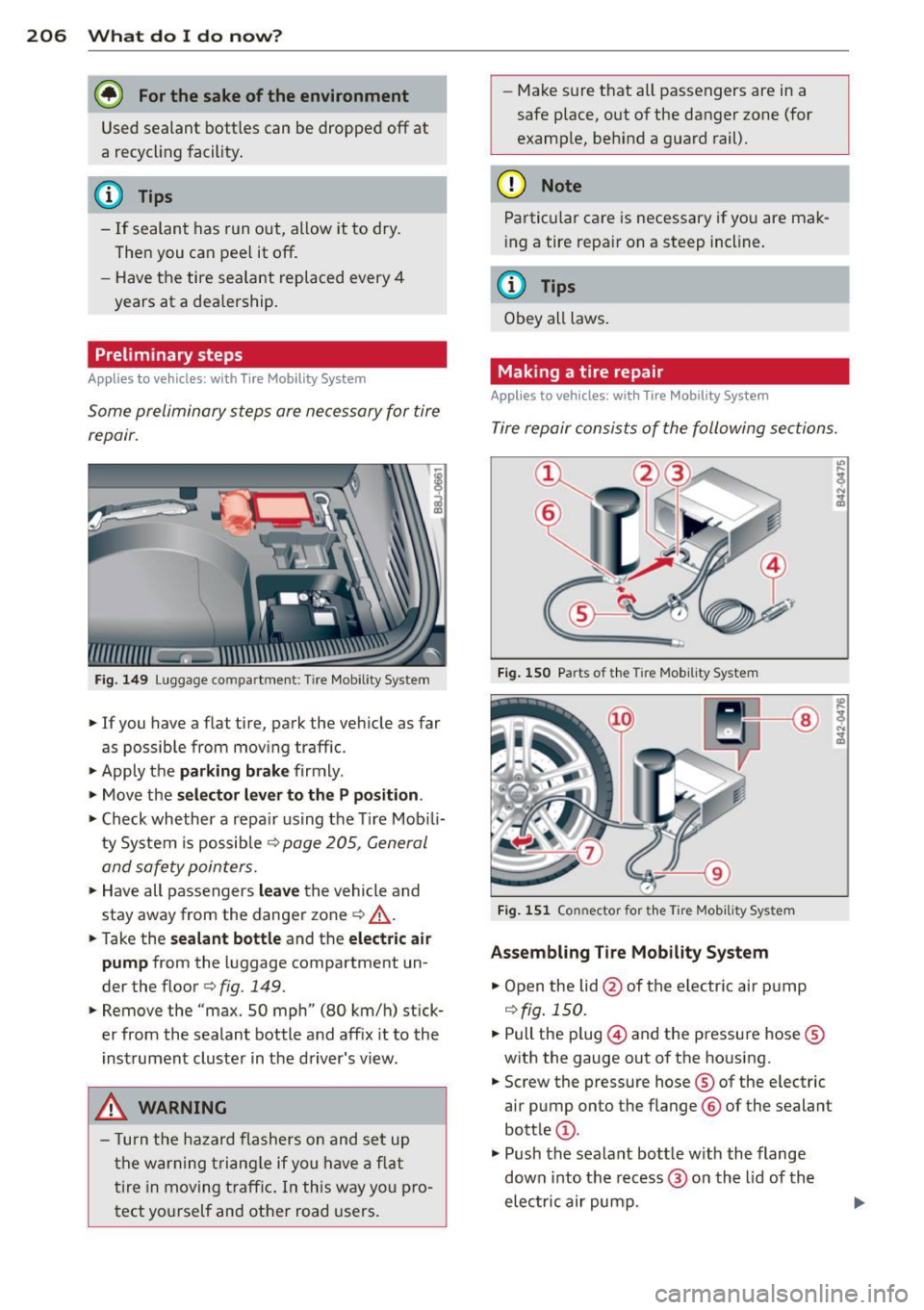

206 What do I do now ?
@ For the sake of the environment
Used sealant bottles can be dropped off at
a recycling facility .
@ Tips
- If sealant has run out, allow it to dry.
Then you can peel it off.
- Have the tire se alant replaced every 4
years at a dea lership .
Preliminary steps
Applies to vehicles: with Tire Mobil ity System
Some preliminary steps are necessary for tire
repair.
Fig. 149 Luggage co mpa rtment : T ir e Mobil ity System
.. If you have a flat tire, park the ve hicle as far
as possible from mov ing traffic .
.. Apply the parking brake firmly .
.. Move the selector lever to the P po sition .
.. Check whether a repa ir using the T ire Mob ili­
ty System is possib le
~ page 205 , General
and safety pointers .
.. Have all passengers leave the vehicle and
stay away from the danger zone
c:> /.1. .
.. Take the sealant bottle and the electric air
pump from the luggage compartment un­
der the floor
c:> fig. 149 .
.. Remove the "max. 50 mph" (80 km/ h) stick­
er from the sealant bottle and aff ix it to the
instrument cluster in the driver's view.
A WARNING
- T urn the ha zard flashers on and set up
t he w arning t ria ng le if you have a fla t
t ire in moving traffic. In this way you pro­
tect yo urself and other road users .
-
-Make sure that all passengers are in a
safe place, out of the danger zone (for
example, beh ind a guard rail).
(D Note
Particular care is necessary if you are mak­
ing a tire repa ir on a steep incline.
(D Tips
Obey all laws.
Making a tire repair
Appl ies to vehicles: with Tire Mob ility System
Tire repair consists of the following sec tion s.
F ig. 1 50 Parts of t he T ire Mob ility System
Fig. 1 51 Conn ector for th e Tire Mob ility System
As sembling Ti re Mobility System
.. Open the lid@ of the electric air p ump
c:> fig.150 .
.. Pull the plug @) and the pressure hose ®
with the gauge out of the housing .
.. Screw the pressure hose ® of the electric
air pump onto the flange @ of the sealant
bott le @ .
"' Push the sealant bottle w ith the flange
down into the recess @ on the lid of the
elec tric air pump. ..,.

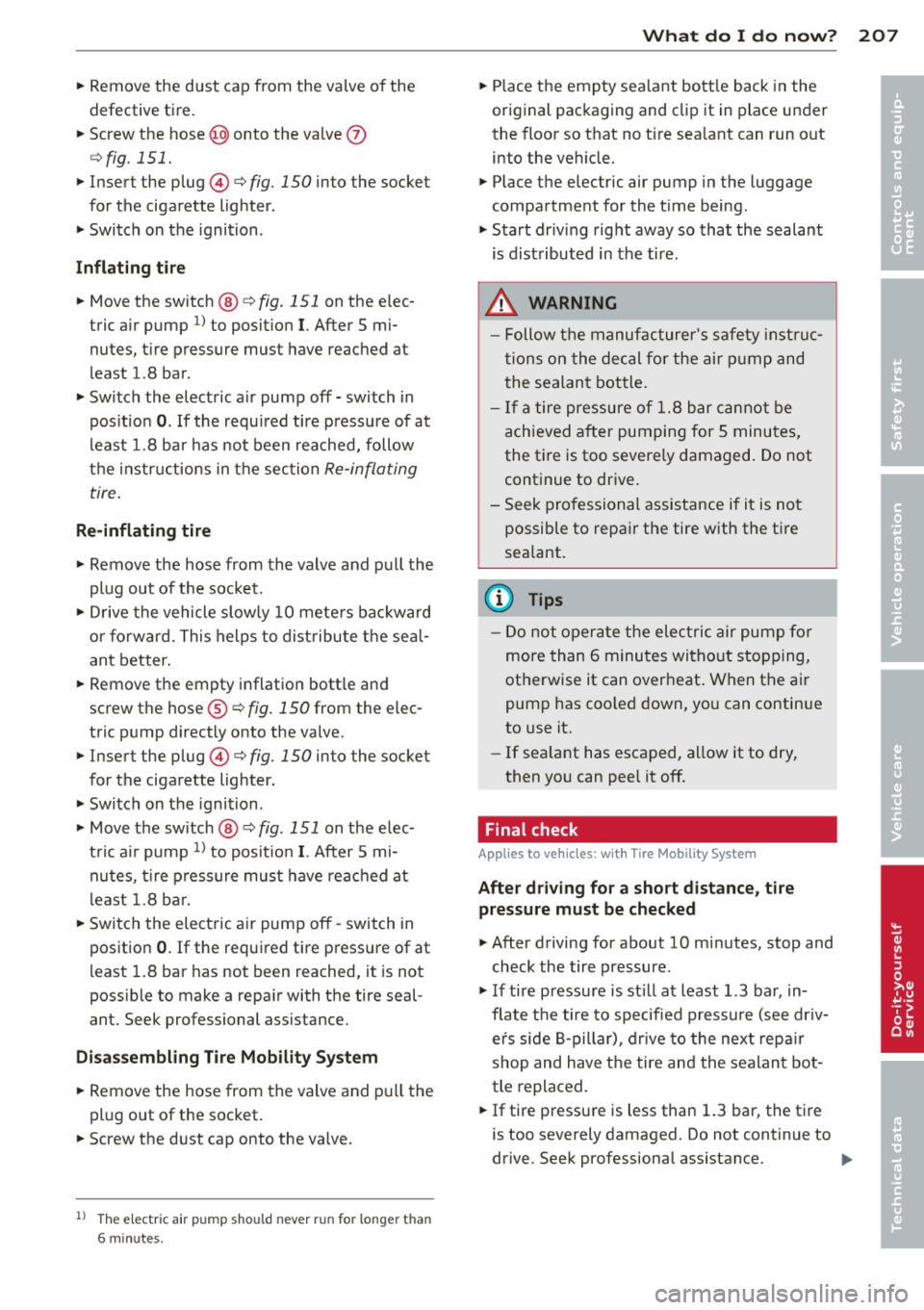

~ Remove the dust cap from the valve of the
defective tire.
~ Screw the hose@) onto the va lve 0
¢ fig . 151.
~ Inser t the plug @¢ fig. 150 into the socket
for the cigarette lighter.
~ Switch on the ignition.
Inflating t ire
~ Move the switch@¢ fig. 151 on the e lec­
tric a ir pump
l ) to posit ion I. After 5 mi­
nutes, t ire pressure must have reached at
least 1.8 bar .
~ Switch the electric a ir pump off -switch in
pos ition
0 . If the requ ired tire pressure of at
least 1.8 bar has not been reached, follow
the i nstructions in the sec tion
Re-inflating
tire.
Re -inflating tire
~ Remove the hose from the valve and pull the
plug out of the socket.
~ Drive the vehicle slow ly 10 mete rs bac kward
or forward. This helps to dist ribu te t he sea l­
ant better .
~ Remove the empty inflation bott le and
screw the hose®¢
fig. 150 from the elec ­
tric pump directly onto the valve.
~ I nsert the plug@¢ fig. 150 into the socket
for the ciga rette lighter.
~ Switch on the ignition .
~ Move the switch @¢ fig. 151 on the elec­
t ric a ir pump
ll to pos it io n I. After 5 mi­
nutes, t ire pressure mus t have reached at
least 1.8 b ar.
~ Switch the electric a ir pump off -switch in
position
0 . If the required tire pressure of at
l east 1.8 bar has not been reached, it is not
poss ib le to make a repa ir with the tire seal­
ant. Seek professional ass istance.
Disas sembling Tire Mobility System
~ Remove the hose from the valve and p ull the
plug out of the soc ket .
~ Screw the d ust cap onto the va lve.
l ) The e lectr ic a ir pu m p sho uld never r un for lo ng er than
6 m in utes.
What do I do now? 207
~ Place the empty sea lant bott le back in the
original packaging and clip it in place under
the floor so that no tire sea lant can run out
into the veh icle.
~ Place the electric air pump in the luggage
compartment for the t ime being .
~ Start driv ing right away so that the sealant
is dist ributed in the tire.
.&_ WARNING
- Follow the manufacturer 's safe ty inst ru c­
tions on the de cal for the ai r pump and
the sealan t bottle .
- If a tire pressure of 1.8 bar cannot be
achieved after pumping for 5 minutes,
the ti re is too severe ly damaged. Do not
continue to drive .
- Seek pro fessional assistance if it is not
possible to repa ir the tire with the t ire
sealant.
(D Tips
- Do not opera te the elec tric air pump fo r
more than 6 minutes without stopping,
otherwise it can overheat . When the ai r
pump has coo led down, you can continue
to use it.
- If sea lant has escaped, allow it to dry,
then yo u can peel it off.
Final check
App lies to vehicles : wi th Tire Mobility Sys tem
After d riv ing for a short d istance , tir e
pressure must be checked
~ After driving for about 10 mi nutes, stop and
check the tire pressure .
~ If tire pressu re is st ill at least 1.3 bar, in­
flate the tire to specified press ure (see dr iv­
er's side B-pillar), drive to the next repa ir
shop and have the tire and the sealant bot­
tle replaced.
~ If tire pressu re is less than 1.3 bar, the t ire
is too severely damaged. Do not continue to
drive . Seek professional assistance. ..,.
•
•

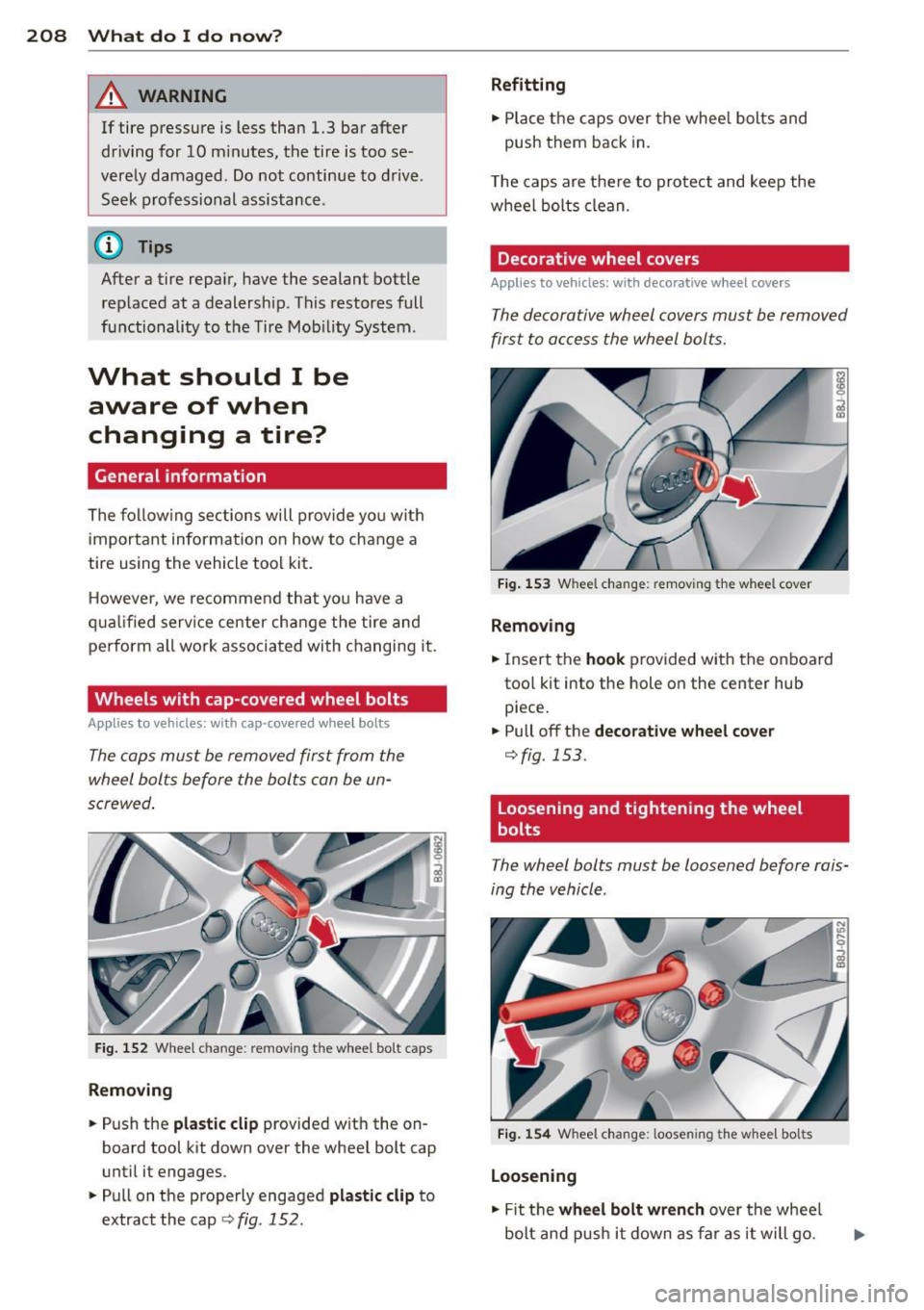

208 What do I do now ?
A WARNING
If tire pressure is less than 1.3 bar after
driving for 10 m inutes, the tire is too se ­
verely damaged . Do not continue to d rive .
Seek professional assistance .
@ Tips
After a tire repair, have the sealant bo ttle
replaced at a dealersh ip. This restores full
functionality to t he Tire Mob ility System .
What should I be
aware of when
changing a tire?
General information
The fo llow ing se ctions will prov ide yo u with
importa nt information o n how to change a
tire using the vehicle tool kit .
H oweve r, we recomme nd that you have a
q uali fied servi ce center change t he tire and
perform all work associated with changi ng it.
Wheels with cap-covered wheel bolts
Applies to vehicles: with cap-covered wheel bolts
The caps must be removed first from the
wheel bolts before the bolt s can be un­
screwed .
Fig. 152 W hee l chan ge: remo ving th e whee l b o lt c aps
R em oving
.. Push the plastic cl ip provided w it h the on ­
bo ard tool k it down over the wheel bolt cap
until i t engages .
.,. Pull on the properly engaged
plastic clip to
extract the cap
r:> fig . 152 .
Refitting
.,. Place the caps over the whee l bolts and
push them back in.
T he caps are the re to protect and keep the
whee l bolts clean .
Decorative wheel covers
Applies to vehicles: with decorative wheel covers
The d ecorative wheel covers must be remov ed
first to acc ess the wheel bolts.
Fi g. 1 53 Wheel c hang e: re moving t he wh eel c over
Removing
.. Insert the hook provided with the o n board
too l kit into the hole on the center hub
piece .
.. Pull off the
decor ative wheel cover
r:>fig.153 .
Loosening and tightening the wheel
bolts
T he wheel bolts mus t be loosened before rais­
ing the vehicle .
Fig . 1 54 Whee l cha nge: loose ning t he whee l bol ts
Loosening
., Fit t he whe el bolt wren ch over the whee l
bolt an d pus h it down as far a s it will go .
