sensor AUDI TT ROADSTER 2016 Owner's Guide

Downloaded from www.Manualslib.com manuals search engine Wheels
A WARNING
Please observe the important safety informa­
tion and notes <=> page 260.
Possible malfunctions
Applies to: vehicles with tyre pressure monitoring system
If the tyre pressure monitoring system is inoper­
ative, the indicator lamp mm will appear in the
instrument cluster display together with the
message Tyre pressure: fault. See owner's man­
ual.
If the indicator lamp mm appears after you have
switched on the ignition or while you are driving
and the indicator lamp[I] flashes for approxi­
mately one minute and then remains lit, there is
a fault in the system. This fault can have the fol­
lowing causes:
- If the display appears at the end of the initiali­
sation process, this means that the system can­
not detect the wheel sensors required to moni­
tor the pressures. This can happen if one or
more of the tyres fitted does not have a sensor
or the sensors are incompatible.
- One of the wheel sensors or another compo­
nent may not be working.
- Snow chains interfere with the signals trans­
mitted by the sensors and can prevent the sys­
tem from functioning properly.
- The tyre pressure monitoring system may be in­
operative due to radio interference.
- Radio systems operating on the same frequen­
cy, such as radio headphones or two-way radios
inside the vehicle, produce strong electromag­
netic fields which cause temporary interfer­
ence.
The indicator lamp mm and the message will
disappear as soon as the tyre pressure monitor­
ing system is available again. If the fault persists
and the indicator lamp mm stays on, you should
drive to a qualified workshop and have the fault
rectified.
262

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) Care
of vehicle and
cleaning
General notes
Regular and careful care helps to maintain the
value of the vehicle. This may also be one of the
requirements for upholding any warranty claims
in the event of corrosion or paint defects.
Qualified workshops carry stocks of suitable car
care materials. Please follow the instructions for
use on the packaging.
A WARNING
- Cleaning products and other materials used
for car care can damage health if misused.
- Car care products can contain toxic substan­
ces and must always be kept in a safe place
out of reach of children.
@ For the sake of the environment
- Please choose care products that are not
harmful to the environment.
- Surplus cleaning materials should not be
disposed of together with ordinary house­
hold waste.
Washing the vehicle
The longer residues are allowed to remain on the
vehicle, the more damage they can do to the
paintwork. High temperatures (for instance in di­
rect sunlight) further intensify the damage.
Before washing, soak heavy dirt with plenty of
water.
Stubborn dirt, such as bird droppings or resinous
tree sap, is best removed with plenty of water
and a micro-fibre cloth.
After the period when salt is put on the roads,
have the underside of the vehicle washed thor­
oughly.
High-pressure cleaners
When cleaning the vehicle with a high-pressure
cleaner, always follow the operating instructions
for the equipment. This applies particularly to Care
of vehicle and cleaning
the operating pressure and the spraying dis­
tance. Do not point the spray jet directly at the
seals on the windows, doors, bonnet or boot lid,
or at the tyres, rubber hoses, insulating material,
sensors* or camera lenses*. Maintain a distance
of at least 40 cm.
Do not use a high-pressure cleaner to remove
snow and ice.
Never use high-pressure cleaners with a round­
jet nozzle or "dirt blasters".
The water must not be hotter than 60 °C.
Automatic car washes
Spray the vehicle with water before washing.
Ensure that the windows are closed and that the
windscreen wipers are switched off. Follow the
car wash operator's rules and recommendations,
especially if any accessories are attached to your
vehicle.
If possible use a brush less car wash.
Washing by hand
Clean the car with a soft sponge or brush, start­
ing on the roof and working down. Use solvent­
free cleaning agents.
Washing matt-painted vehicles by hand
To avoid damaging the paintwork when washing
the car, first remove any dust, sand and grit. In­
sects, grease stains and fingerprints are best re­
moved using a special cleaning agent for matt­
painted surfaces.
Apply the product with a micro-fibre cloth. Do
not apply too much pressure to avoid damaging
the paintwork.
Rinse the car thoroughly with water. Then clean
the car with a neutral shampoo and a soft micro­
fibre cloth.
Rinse the car with Lots of water again and then
let it dry in the air. Remove any water stains with
a chamois.
263

Downloaded from www.Manualslib.com manuals search engine Care
of vehicle and cleaning
.&_ WARNING
- Follow the rules and recommendations of
the car wash operator and do not wash the
vehicle with the ignition switched on -risk
of accident!
- To avoid cutting yourself on sharp metal
parts, always wear suitable protection when
cleaning the underside of the car or inside
the wheel arches.
-After the car has been washed, the full brak­
ing effect can be delayed by moisture (or in
winter by ice) on the discs and brake pads -
risk of accident! The brakes should be dried
by pressing the pedal to restore full braking
effect.
CD CAUTION
- Before washing the vehicle in an automatic
car wash, please make sure to retract the
exterior mirrors and, if necessary, retract
the automatic rear spoiler* to prevent dam­
age. Always use the electrical power control
to fold the mirrors in/out on vehicles with
electrically retractable exterior mirrors*.-
Notes on cleaning and care
For cleaning and care of individual components
on the vehicle, please refer to the tables below.
These are recommendations only. If you have
Cleaning the exterior
Component I Situation
Wiper blades Dirt/deposits
¢page 51 -
Do not wash the vehicle in direct sunlight -
otherwise the paint can be damaged.
- The soft top must not be washed with a
high-pressure cleaner -risk of damage!
- Do not use insect sponges or abrasive
household sponges, etc. -they can damage
the surfaces.
- Matt-painted vehicle parts:
- Do not use polish or wax -otherwise the
paintwork can be damaged.
- Never use car-wash programmes that in­
clude wax coatings. This could spoil the
matt finish.
- Do not attach any stickers or magnet la­
bels to matt-painted parts as these could
damage the paintwork when they are re­
moved.
@ For
the sake of the environment
The car should only be washed in special wash
bays. This prevents oily water from getting in­
to the public drains.
special questions or certain components are not
listed, please ask your qualified workshop. Please
also refer to the notes ¢,&.
Remedy
Headlights/ Dirt/deposits Soft
sponge with mild detergent a
>
rear lights
Sensors/ Dirt/deposits Sensors:
soft cloth with solvent-free cleaning agent
camera lenses Camera lenses: soft cloth with alcohol-free cleaning agent
Snow/ice Small brush/solvent-free de-icer spray
Wheels Road salt Water
Brake dust Acid-free
cleaning agent
Tailpipes Road salt Water;
suitable stainless steel cleaning product if necessa-
ry
Soft top Dirt/deposits
Wash with a soft brush and clean water (add soft top
cleaner as required); follow the grain of the fabric and al-
low to dry naturally.
264

Downloaded from www.Manualslib.com manuals search engine Care
of vehicle and cleaning
Component Situation I
Remedy
Fabrics, Surface
dirt Vacuum
cleaner
leatherette, Water-based stains, e.g. Absorbent cloth and mild detergent a
>
Alcantara coffee, tea, blood, etc.
Fat-based stains, e.g. oil,
Apply mild detergent a
>, dab off dissolved grease or
make-up, etc. colour particles
with absorbent cloth; if necessary
treat with water
Special dirt/stains, e.g. ball- Special stain remover (dab off with absorbent fab-
point pen, nail varnish, dis-ric);
if necessary treat with mild detergent a
>
persion paint, shoe cream,
etc.
Natural leather Fresh
dirt/stains Cotton cloth with mild detergent a
>
Water-based stains, e.g. Fresh
stains: absorbent cloth
coffee, tea, blood, etc. Dried
stains: stain remover suitable for leather
Fat-based stains, e.g. oil, Fresh stains: absorbent cloth and suitable stain re-
make-up, etc. mover for leather
Dried stains: grease removal spray
Special dirt/stains, e.g. ball- Stain remover suitable for leather
point pen, nail varnish, dis-
persion paint, shoe cream,
etc.
Care of vehicle Regularly apply leather-care cream with ultra-violet
protection and impregnating compound; if necessa-
ry use special colour leather cream
Carbon parts Dirt/deposits
Same treatment as plastic parts
al Mild detergent: not more than two tablespoons of pH-neutral detergent to one litre of water
.&_ WARNING
Do not use water-repellent coatings on the
windscreen. In bad visibility conditions such
as light rain, low sun or when driving at night
these coatings can cause increased dazzle,
which is a serious safety hazard. Such coat­
ings can also cause the wiper blades to jud­
der.
CD CAUTION
- Headlights/rear lights
- Never clean the headlights/rear lights
with a dry cloth or sponge.
- Do not use cleaning agents containing al­
cohol. This could cause the glass to crack!
-Wheels
- Do not use paint polish or other abrasive
agents.
266 -
If the protective paint coating on the
wheel rim is scratched or damaged by
stone chips etc., the damaged
area
should
be touched up without delay.
- Sensors/camera lenses
- Never remove snow and ice from the cam-
era lens using warm or hot water -danger
of cracks appearing on the lens.
- Never clean the camera lens with cleaning
agents which are abrasive or contain alco­
hol -danger of scratches and cracks ap­
pearing.
- Soft top
- Remove bird droppings without delay.
- Never use petrol, stain remover, benzene,
paint thinners or other solvents to remove
stains.
-
Windows

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) &,
WARNING
Never attempt to repair a fuse or replace a
blown fuse by fitting a fuse with a higher am­
pere rating. This could damage the electrical
system -risk of fire!
CD CAUTION
If a newly replaced fuse blows again after a
short time, the electrical system must be
checked by a qualified workshop as soon as
possible.
@ Note
- Unassigned fuse locations are not shown in
the tables below.
- Some of the items of equipment listed in
the tables below are only fitted on certain
models or are optional extras.

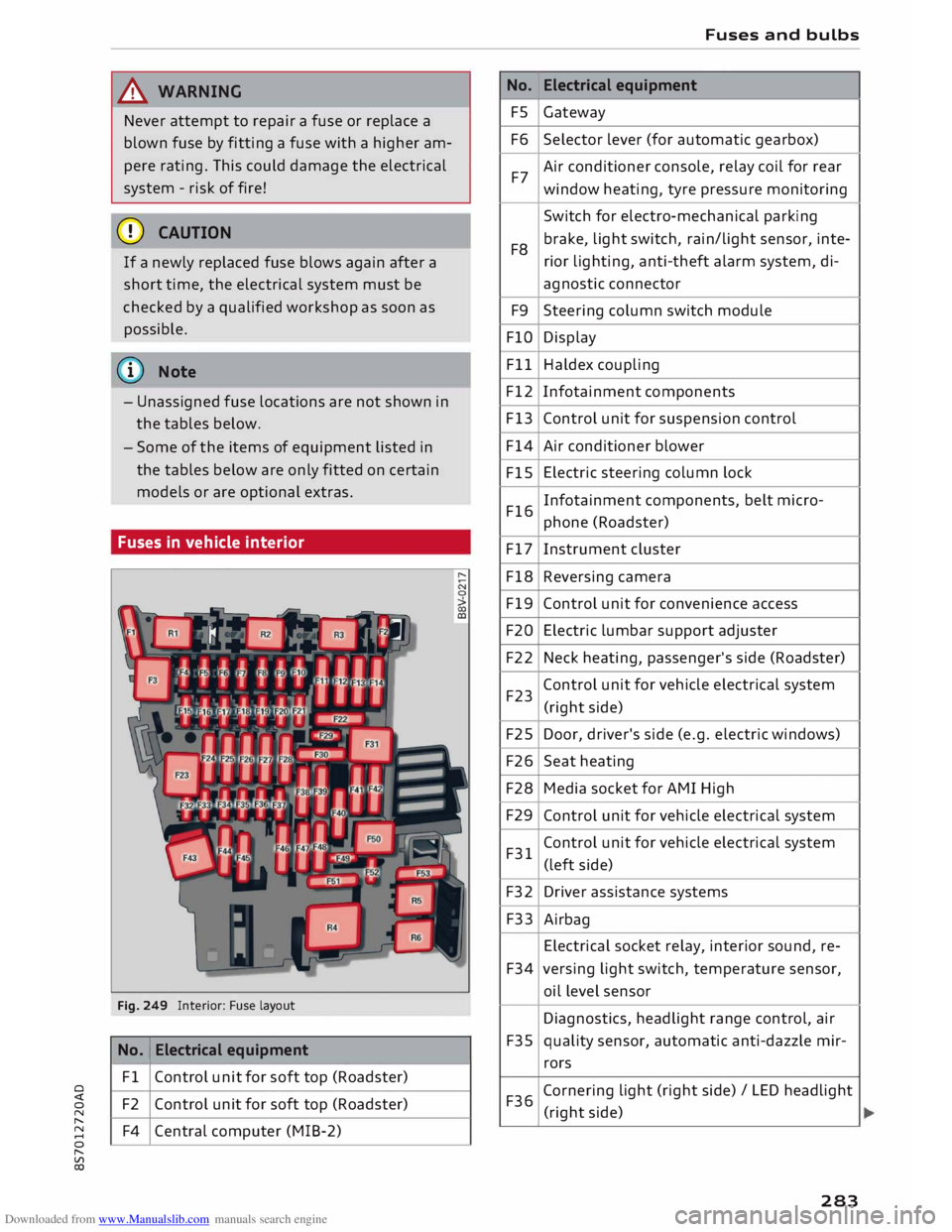

Fuses in vehicle interior
Fig. 249 Interior: Fuse layout
No. 1
Electrical equipment
Fl Control unit for soft top (Roadster)
F2 Control unit for soft top (Roadster)
F4 Central computer (MIB-2) No.
FS
F6
F7
F8 F9
FlO
Fll
F12
F13
F14
FlS
F16
F17
F18
F19
F20
F22
F23
F25
F26
F28
F29
F31
F32
F33
F34
F35
F36 Fuses
and bulbs
Electrical equipment
Gateway
Selector lever (for automatic gearbox)
Air conditioner console, relay coil for rear
window heating, tyre pressure monitoring
Switch for electro-mechanical parking
brake, light switch, rain/light sensor, inte-
rior lighting, anti-theft alarm system, di-
agnostic connector
Steering column switch module
Display
Haldex coupling
Infotainment components
Control unit for suspension control
Air conditioner blower
Electric steering column lock
Infotainment components, belt micro-
phone (Roadster)
Instrument cluster
Reversing camera
Control unit for convenience access
Electric lumbar support adjuster
Neck heating, passenger's side (Roadster)
Control unit for vehicle electrical system
(right side)
Door, driver's side (e.g. electric windows)
Seat heating
Media socket for AMI High
Control unit for vehicle electrical system
Control unit for vehicle electrical system
(left side)
Driver assistance systems
Airbag
Electrical socket relay, interior sound, re-
versing light switch, temperature sensor,
oil level sensor
Diagnostics, headlight range control, air
quality sensor, automatic anti-dazzle mir-
rors
Cornering light (right side)/ LED headlight
(right side)
283

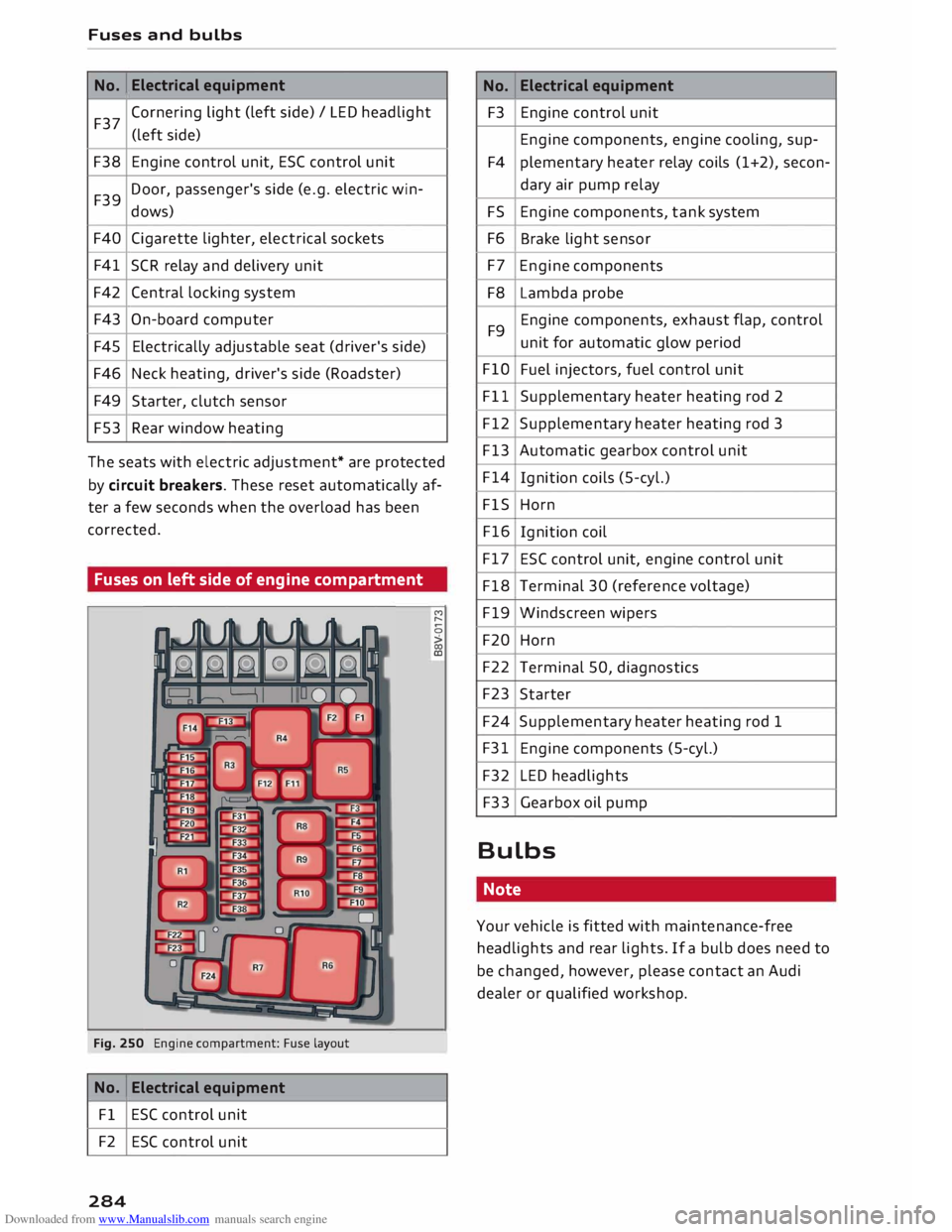

Downloaded from www.Manualslib.com manuals search engine Fuses
and bulbs
No. Electrical
equipment
F37 Cornering
light (left side) / LED headlight
(left side)
F38 Engine control unit, ESC control unit
F39 Door,
passenger's side (e.g. electric win-
dows)
F40 Cigarette lighter, electrical sockets
F41 SCR relay and delivery unit
F42 Central locking system
F43 On-board computer
F45 Electrically adjustable seat (driver's side)
F46 Neck heating, driver's side (Roadster)
F49 Starter, clutch sensor
F53 Rear window heating
The seats with electric adjustment* are protected
by circuit breakers. These reset automatically af­
ter a few seconds when the overload has been
corrected.
Fuses on left side of engine compartment
Fig. 250 Engine compartment: Fuse layout
No. Electrical
equipment
Fl ESC control unit
F2 ESC control unit
284 M
r--
0
> 00
ID No.
Electrical
equipment
F3 Engine control unit
Engine components, engine cooling, sup-
F4 plementary
heater relay coils (1+2), secon-
dary air pump relay
FS Engine components, tank system
F6 Brake light sensor
F7 Engine components
F8 Lambda probe
F9 Engine components,
exhaust flap, control
unit for automatic glow period
FlO Fuel injectors, fuel control unit
Fll Supplementary heater heating rod 2
F12 Supplementary heater heating rod 3
F13 Automatic gearbox control unit
F14 Ignition coils (5-cyl.)
FlS Horn
F16 Ignition coil
F17 ESC control unit, engine control unit
F18 Terminal 30 (reference voltage)
F19 Windscreen wipers
F20 Horn
F22 Terminal 50, diagnostics
F23 Starter
F24 Supplementary heater heating rod 1
F31 Engine components (5-cyl.)
F32 LED headlights
F33 Gearbox oil pump
Bulbs Note
Your vehicle is fitted with maintenance-free
headlights and rear lights. If a bulb does need to
be changed, however, please contact an Audi
dealer or qualified workshop.

Downloaded from www.Manualslib.com manuals search engine Index
Key fob with vehicle code . . . . . . . . . . . . . . 28
Locking and unlocking the vehicle . 29, 30, 32
No key identified . . . . . . . . . . . . . . . . . . . . .
71
Replacement keys . . . . . . . . . . . . . . . . . . . .
27
Replacing the battery . . . . . . . . . . . . . . . . .
29
Kick-down Automatic gearbox . . . . . . . . . . . . . . . . . . .
81
L
Lamp failure (indicator lamp) . . . . . . . . . . . . 18
Lane assist
see Active lane assist . . . . . . . . . . . . . . . . . . 92
Lane change assist feature
see Side assist . . . . . . . . . . . . . . . . . . . . . . .
97
Lane departure warning feature
see Active lane assist . . . . . . . . . . . . . . . . . . 92
Language, setting..................... 212
Lap timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Evaluating lap times . . . . . . . . . . . . . . . . . .
96
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Launch control programme (automatic gear-
box) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
82
Leaving home . . . . . . . . . . . . . . . . . . . . . . . . .
47
Left-hand traffic . . . . . . . . . . . . . . . . . . . . . . .
44
Letters, entering (using the speller) . . . . . .
128
Licence conditions (MMI) . . . . . . . . . . . . . . .
218
Lights Coming/leaving home . . . . . . . . . . . . . . . . . 47
Daytime running lights . . . . . . . . . . . . . . . . 44
Dipped headlights . . . . . . . . . . . . . . . . . . . . 44
Entry/exit lights . . . . . . . . . . . . . . . . . . . . . . 47
Exterior lights . . . . . . . . . . . . . . . . . . . . . . . 44
Front/rear fog lights . . . . . . . . . . . . . . . . . . 44
Headlight flasher . . . . . . . . . . . . . . . . . . . . . 45
Headlight range control . . . . . . . . . . . . . . . 44
Interior/reading lights . . . . . . . . . . . . . . . . 47
Main beam assist . . . . . . . . . . . . . . . . . . . . . 46
Main beam headlights . . . . . . . . . . . . . . . . . 45
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . 45
Right-hand traffic . . . . . . . . . . . . . . . . . . . .
44
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Light sensor/rain sensor
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . .
19
Intermittent wipe (windscreen wipers) . . .
SO
Load-through hatch . . . . . . . . . . . . . . . . . . . . 58
296 Locking/unlocking
By remote control . . . . . . . . . . . . . . . . . . . .
29
With the central locking switch . . . . . . . . .
31
With the convenience key . . . . . . . . . . . . . . 30
With the key . . . . . . . . . . . . . . . . . . . . . . . . . 32
Locking and unlocking the vehicle
Locking/unlocking . . . . . . . . . . . . . . . . . . . . 30
Low-profile tyres . . . . . . . . . . . . . . . . . . . . . 258
Luggage compartment
Ba g
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Fastening rings . . . . . . . . . . . . . . . . . . . . .
228
Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . .
227
Stowing luggage safely . . . . . . . . . . . . . . .
227
Lumbar support . . . . . . . . . . . . . . . . . . . . . . . 54
M
Mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
152
Main beam headlights . . . . . . . . . . . . . . . . . .
45
Main beam assist . . . . . . . . . . . . . . . . . . . . .
46
Maintenance intervals . . . . . . . . . . . . . . . . . 252
Make-up mirrors . . . . . . . . . . . . . . . . . . . . . . . 49
Manual operation
Boot lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32
Soft top . . . . . . . . . . . . . . . . . . . . . . . . . . . .
41
Manual release
Fuel tank flap . . . . . . . . . . . . . . . . . . . . . . . 244
Selector lever . . . . . . . . . . . . . . . . . . . . . 84, 85
Map Functions . . . . . . . . . . . . . . . . . . . . . . . . . . 179
How to use . . . . . . . . . . . . . . . . . . . . . . . . . 178
Map content . . . . . . . . . . . . . . . . . . . . . . . .
178
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . .
180
Update . . . . . . . . . . . . . . . . . . . . . . . . . . . .
169
Matt paintwork, washing . . . . . . . . . . . . . . .
263
Maximum speed . . . . . . . . . . . . . . . . . . . . . .
289
Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
191
Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Media centre . . . . . . . . . . . . . . . . . . . . . . . . . 201
Media drives
Formats supported . . . . . . . . . . . . . . . . . . 206
Memory capacity
Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Jukebox . . . . . . . . . . . . . . . . . . . . . . . . . . . .
193

Downloaded from www.Manualslib.com manuals search engine Index
Paint number 287
Park assist . . . . . . . . . . . . . . . . . . . . . . . . . . .
108
Description . . . . . . . . . . . . . . . . . . . . . . . . .
108
Driver messages . . . . . . . . . . . . . . . . . . . . .
111
Driving out of a parking space . . . . . . . . . . 110
Finding a parking space . . . . . . . . . . . . . . . 109
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . .
110
Parking aid . . . . . . . . . . . . . . . . . . . . . . . . . .
103
Parking aids
360 °
display . . . . . . . . . . . . . . . . . . . . . . . .
104
Adjusting graphic display/warning beeps 112
Cleaning reversing camera . . . . . . . . . . . . 106
Cleaning sensors/camera . . . . . . . . . . . . . 264
Malfunction . . . . . . . . . . . . . . . . . . . . . . . . 112
Park assist . . . . . . . . . . . . . . . . . . . . . . . . . 108
Parking system plus . . . . . . . . . . . . . . . . . . 104
Rear parking aid . . . . . . . . . . . . . . . . . . . . .
104
Reversing camera . . . . . . . . . . . . . . . . . . . .
106
Parking brake Warning lamp . . . . . . . . . . . . . . . . . . . . . . .
13
see also Electro-mechanical parking brake 74
Parking lights . . . . . . . . . . . . . . . . . . . . . . . . .
45
Parking system
see Parking aids . . . . . . . . . . . . . . . . . 104,
106
Parking (automatic
gearbox) . . . . . . . . . . . . . 79
Particulate filter (diesel) . . . . . . . . . . . . . . . 244
Passenger's door, locking manually . . . . . . . 32
Path descriptions in Owner's Manual . . . . .
123
Pause (audio/video file) . . . . . . . . . . . . . 23, 200
Pedals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
226
Pedestrian protection system . . . . . . . . . . . 228
Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Performance (engine) . . . . . . . . . . . . . . . . . . 289
Personal Wi-Fi hotspot . . . . . . . . . . . . . . . . .
161
Petrol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
241
Phone book
see Contacts . . . . . . . . . . . . . . . . . . . . . . . .
153
Picture format (video) . . . . . . . . . . . . . . . . .
203
Playback (media) . . . . . . . . . . . . . . . . . . . . .
200
Playlist . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
203
Point of interest search ................
173
Polishing . . . . . . . . . . . . . . . . . . . . . . . . . . . .
265
Pollen filter
see Pollution filter . . . . . . . . . . . . . . . . . . . .
60
Pollution filter . . . . . . . . . . . . . . . . . . . . . . . .
60
298 Power/torque
display
see Sport displays . . . . . . . . . . . . . . . . . . . . 96
Power management . . . . . . . . . . . . . . . . . . . 118
Power steering
see Electro-mechanical power steering . .
116
Preheating (glow plugs) . . . . . . . . . . . . . . . . . 68
Pressures (tyres) . . . . . . . . . . . . . . . . . . . . . .
256
Pressure (tyres) . . . . . . . . . . . . . . . . . . . . . .
258
Privacy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Programme guide Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
185
Q
quattro (four-wheel drive) . . . . . . . . . . . . . .
116
R
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
185
Radio text . . . . . . . . . . . . . . . . . . . . . . . . . .
186
Station names . . . . . . . . . . . . . . . . . . . . . .
187
Radio-operated remote control
see Remote control keys . . . . . . . . . . . . . . . 2 7
Radio equipment . . . . . . . . . . . . . . . . . . . . . 286
Radio frequency
see Waveband . . . . . . . . . . . . . . . . . . . . . . 185
Radio transmitters . . . . . . . . . . . . . . . . . . . . 286
Rain sensor/light sensor
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . 19
Intermittent wipe (windscreen wipers) . . .
50
Random playback . . . . . . . . . . . . . . . . . . . . . 203
Reading lights . . . . . . . . . . . . . . . . . . . . . . . . . 47
Rear spoiler . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Rear window heating . . . . . . . . . . . . . . . . 61, 63
Recuperation . . . . . . . . . . . . . . . . . . . . . . . . . 25
Refuelling with spare fuel canister . . . . . . . 243
Reminder signal . . . . . . . . . . . . . . . . . . . . . .
212
Remote control keys. . . . . . . . . . . . . . . . . . . .
27
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29
Locking and unlocking the vehicle . . . . . . .
29
Personalising . . . . . . . . . . . . . . . . . . . . . . . . 2 7
Replacing the battery . . . . . . . . . . . . . . . . .
29
Repair kit
Tyre Mobility System (tyre repair kit) . . . .
270
Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
285
Replacement parts . . . . . . . . . . . . . . . . . . . .
285

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) Reset
see Restart (MMI) . . . . . . . . . . . . . . . . . . .
218
Reset button (trip recorder) . . . . . . . . . . . . . . 24
Restart (MMI) . . . . . . . . . . . . . . . . . . . . . . . . 218
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . 10, 24
Reverse gear (automatic gearbox) . . . . . . . . . 77
Reversing camera
see Parking aids . . . . . . . . . . . . . . . . . 104, 106
Rewind (audio/video
file) . . . . . . . . . . . . . . . 200
Rims ............................... 257
Ring tone settings . . . . . . . . . . . . . . . . . . . .
156
Roaming see Data connection . . . . . . . . . . . . . . . . . .
166
Roof load . . . . . . . . . . . . . . . . . . . . . . . . . . . .
288
Rotary pushbutton with joystick function . .
126
Route criteria . . . . . . . . . . . . . . . . . . . . . . . .
176
Route guidance
see Navigation . . . . . . . . . . . . . . . . . . . . . . 169
Running in
New brake pads . . . . . . . . . . . . . . . . . . . . . 115
New engine . . . . . . . . . . . . . . . . . . . . . . . . . 66
New tyres . . . . . . . . . . . . . . . . . . . . . . . . . . 254
s
Safe driving . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Safelock mechanism . . . . . . . . . . . . . . . . . 27, 32
Safety Airbag system . . . . . . . . . . . . . . . . . . . . . .
235
Child seats . . . . . . . . . . . . . . . . . . . . . . . . .
223
Correct sitting position . . . . . . . . . . . . . . . 221
Luggage . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
Pedal area . . . . . . . . . . . . . . . . . . . . . . . . . . 226
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . .
141
Safety features . . . . . . . . . . . . . . . . . . . . . . .
220
Safety systems (warning lamp) . . . . . . . . . . . 16
Saving fuel
Recuperation . . . . . . . . . . . . . . . . . . . . . . . .
25
Screen see Audi virtual cockpit (instrument
cluster) . . . . . . . . . . . . . . . . . . . . . . . . . . 21,
23
Screwdriver . . . . . . . . . . . . . . . . . . . . . . . . . . 270
SD card readers . . . . . . . . . . . . . . . . . . . . . . .
192
SDS see Speech dialogue system . . . . . . . . . . . 132
Search areas (special destination) . . . . . . . . 172 Index
Search function . . . . . . . . . . . . . . . . . . . . . . .
129
Media ............................. 202
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . 170
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
185
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . .
154
Seat belt microphone . . . . . . . . . . . . . . . . . .
157
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . .
230
Adjusting seat belts . . . . . . . . . . . . . . . . . .
233
Belt tensioners . . . . . . . . . . . . . . . . . . . . . .
234
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . .
265
During pregnancy. . . . . . . . . . . . . . . . . . . . 233
Putting on . . . . . . . . . . . . . . . . . . . . . . . . . 232
Securing child seats . . . . . . . . . . . . . . . . . . 226
Taking off . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Warning lamp . . . . . . . . . . . . . . . . . . . . . . .
15
Seat heating . . . . . . . . . . . . . . . . . . . . . . . . . .
63
Seats Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . .
54
Bucket seat adjustment . . . . . . . . . . . . . . . .
55
Correct sitting position . . . . . . . . . . . . . . . 221
Selection menu . . . . . . . . . . . 21, 123, 126, 127
Multi-function steering wheel. . . . . . . . . . . 23
Selective wheel torque control . . . . . . . . . . 113
Selector lever (automatic gearbox)
Manual release . . . . . . . . . . . . . . . . . . . .
84, 85
Positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Self-help . . . . . . . . . . . . . . . . . . . . . . . . . . . . 269
Serial number (IMEi) . . . . . . . . . . . . . . . . . .
156
Service interval display.. . . . . . . . . . . . . . . .
252
Service intervals . . . . . . . . . . . . . . . . . . . . . . 247
Service position
see Wiper blades, changing . . . . . . . . . . . .
51
Settings Directory . . . . . . . . . . . . . . . . . . . . . . . . . . .
156
Map............................... 180
Media ............................. 203
Navigation .. . . . . . . . . . . . . . . . . . . . . . . . 176
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . .
155
Shift light display . . . . . . . . . . . . . . . . . . . . . . 24
Shuffle see Random playback . . . . . . . . . . . . . . . .
203
Side assist . . . . . . . . . . . . . . . . . . . . . . . . . . . .
97
Adjusting brightness . . . . . . . . . . . . . . . . . .
99
Area covered by sensors . . . . . . . . . . . . . . .
98
299

Downloaded from www.Manualslib.com manuals search engine Index
Cleaning sensors . . . . . . . . . . . . . . . . . . . . 264
Switching on and off . . . . . . . . . . . . . . . . . .
99
Side lights . . . . . . . . . . . . . . . . . . . . . . . . . . . .
44
SIM card reader . . . . . . . . . . . . . . . . . . 144, 159
Ski bag............................... 58
Smartphone see Telephone . . . . . . . . . . . . . . . . . . . . . . 141
SMS see Text messages . . . . . . . . . . . . . . . . . . .
150
Snowboard bag . . . . . . . . . . . . . . . . . . . . . . . . 58
Snow chains . . . . . . . . . . . . . . . . . . . . . . . . . 257
Soft top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Closing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Convenience close function . . . . . . . . . . . . . 40
Convenience open function . . . . . . . . . . . . . 40
Driver messages . . . . . . . . . . . . . . . . . . . . . . 40
General notes . . . . . . . . . . . . . . . . . . . . . . . . 39
Malfunction . . . . . . . . . . . . . . . . . . . . . . . . . 40
Manual operation . . . . . . . . . . . . . . . . . . . . . 41
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . .
39
Washing . . . . . . . . . . . . . . . . . . . . . . . . . . . 264
Windbreak . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Software update
see System update (MMI)
Software (MMI)
Licence
Update
Version
sos 216
218
216
216
see Emergency call, making . . . . . . . . . . . 152
Sound settings . . . . . . . . . . . . . . . . . . . . . . .
217
Source overview . . . . . . . . . . . . . . . . . . . . . .
200
Source selection
Multi-function steering wheel . . . . . . . . . . . 23
Spanner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
Spare key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Spare wheel . . . . . . . . . . . . . . . . . . . . . . . . . 276
Special destination . . . . . . . . . . . . . . . . . . . .
172
Speech dialogue system . . . . . . . . . . . . . 23, 133
Commands . . . . . . . . . . . . . . . . . . . . . . . . . 134
External . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Volume ............................ 218
Speed-dependent volume control . . . . . . . .
217
Speed limiter . . . . . . . . . . . . . . . . . . . . . . . . .
88
Changing cut-off speed . . . . . . . . . . . . . . . .
89
Driver message . . . . . . . . . . . . . . . . . . . . . .
89
300 Overriding
cut-off speed . . . . . . . . . . . . . . .
89
Setting cut-off speed . . . . . . . . . . . . . . . . . .
88
Switching off . . . . . . . . . . . . . . . . . . . . . . . .
89
Switching on . . . . . . . . . . . . . . . . . . . . . . . . .
88
Speedometer . . . . . . . . . . . . . . . . . . . . . . 10, 20
Speed warning . . . . . . . . . . . . . . . . . . . . . . . . 86
Speller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Spoken cue . . . . . . . . . . . . . . . . . . . . . . . . . .
177
Sport displays . . . . . . . . . . . . . . . . . . . . . . . . . 96
Sport mode . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Stabilisation program
see Electronic stabilisation control (ES() . 113
Start/stop system . . . . . . . . . . . . . . . . . . . . . .
71
Driver messages . . . . . . . . . . . . . . . . . . . . . .
74
Engine cuts in automatically . . . . . . . . . . . . 72
Engine does not switch off . . . . . . . . . . . . . 72
Indicator lamps . . . . . . . . . . . . . . . . . . . . . .
72
Switching off/on . . . . . . . . . . . . . . . . . . . . . 73
Switching off/starting the engine . . . . . . . .
72
START ENGINE
STOP button . . . . . . . . . . . . .
68
Starting engine . . . . . . . . . . . . . . . . . . . . . . . . 68
Starting with jump leads . . . . . . . . . . . . . . . 277
Station memory
see Favourites ..................... .
188
Steering Electro-mechanical power steering 116
Indicator lamp . . . . . . . . . . . . . . . . . . . . . . 116
Warning lamp
. . . . . . . . . . . . . . . . . . . . . . . 15
Steering wheel
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . .
68
Paddle levers (automatic gearbox) . . . . . . . 81
see also Multi-function steering wheel 21, 23
Steering wheel button . . . . . . . . . . . . . . . . . . 23
Stopover (navigation) . . . . . . . . . . . . . . . . . . 174
Storage compartments . . . . . . . . . . . . . . . . . 57
Streaming see Online media . . . . . . . . . . . . . . . . . . . .
196
S tronic (automatic gearbox) . . . . . . . . . . . . . 76
Subtitles (DVD) . . . . . . . . . . . . . . . . . . . . . . . 203
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Supplementary heater (vehicles with diesel
engine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Suspension control . . . . . . . . . . . . . . . . . . . . 100
Switching between calls . . . . . . . . . . . . . . . . 148
Switching between tabs
see Multi-function steering wheel . . . . 21,
23
