window AUDI TT ROADSTER 2016 Owners Manual

Downloaded from www.Manualslib.com manuals search engine Table
of Contents
Notes on this Owner's Manual 5
Quick reference ................. . 6
6
6
6
6
6
6
6
7
7
FAQs
............................. .
Before you set off ................... .
Breakdowns and emergencies ......... .
Useful functions .................... .
Using the infotainment system ........ .
Communication .................... .
Navigation ........................ .
Entertainment ..................... .
Tips and tricks ..................... .
Controls and displays . . . . . . . . . . . . 8
View of cockpit . . . . . . . . . . . . . . . . . . .
8
Controls at a glance . . . . . . . . . . . . . . . . . .
8
Instruments and warning/
indicator lamps . . . . . . . . . . . . . . . . . . 10
Instruments . . . . . . . . . . . . . . . . . . . . . . . . 10
Warning and indicator lamps . . . . . . . . . . 11
Driver information system . . . . . . 20
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . .
20
Multi-function steering wheel plus...... 21
Multi-function steering wheel . . . . . . . . . . 23
Rev counter . . . . . . . . . . . . . . . . . . . . . . . . 24
Mileage recorder . . . . . . . . . . . . . . . . . . . .
24
On-board computer . . . . . . . . . . . . . . . . . . 25
Sport view . . . . . . . . . . . . . . . . . . . . . . . . . 25
Setting off. . . . . . . . . . . . . . . . . . . . . . . .
27
Doors and windows . . . . . . . . . . . . . . 27
Central locking system . . . . . . . . . . . . . . .
27
Boot lid . . . . . . . . . . . . . . . . . . . . . . . . . . . .
33
Electric windows ................... .
Garage door opener (Homelink) ....... . 34
35
Soft top (folding roof) .......... .
39
39
41
41
Soft
top .......................... .
Windbreak ........................ .
Manual operation of the soft top
Lights and vision ................ .
44
44
47
2 Exterior
lights ..................... .
Interior lights ...................... .
Clear vision . . . . . . . . . . . . . . . . . . . . . . . . .
48 Windscreen
wipers . . . . . . . . . . . . . . . . . .
50
Digital compass . . . . . . . . . . . . . . . . . . . . . 52
Seats and storage . . . . . . . . . . . . . . . .
54
General notes . . . . . . . . . . . . . . . . . . . . . . .
54
Front seats . . . . . . . . . . . . . . . . . . . . . . . . .
54
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Cigarette lighter and electrical socket . . . 56
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Luggage compartment . . . . . . . . . . . . . . . 58
Heating and cooling . . . . . . . . . . . . . 60
Air conditioner . . . . . . . . . . . . . . . . . . . . . .
60
Driving ............................ 66
General notes . . . . . . . . . . . . . . . . . . . . . . .
66
Steering . . . . . . . . . . . . . . . . . . . . . . . . . . .
68
Starting and stopping the engine . . . . . . .
68
Start/stop system . . . . . . . . . . . . . . . . . . .
71
Electro-mechanical parking brake. . . . . . .
74
Moving off. . . . . . . . . . . . . . . . . . . . . . . . .
75
Automatic gearbox . . . . . . . . . . . . . . . . . .
76
Driver assistance . . . . . . . . . . . . . . . . . 86
Driver assist
systems . . . . . . . . . . . . 86
Speed warning function . . . . . . . . . . . . . . .
86
Cruise control system . . . . . . . . . . . . . . . . 86
Speed limiter . . . . . . . . . . . . . . . . . . . . . . .
88
Camera-based traffic sign recognition . . .
90
Audi active Lane assist (Lane departure
warning feature) . . . . . . . . . . . . . . . . . . . .
92
Lap timer . . . . . . . . . . . . . . . . . . . . . . . . . .
94
Sport displays . . . . . . . . . . . . . . . . . . . . . . .
96
Audi side assist (lane change assist
feature) . . . . . . . . . . . . . . . . . . . . . . . . . . .
97
Audi drive select (vehicle set-up
functions) . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Parking aids . . . . . . . . . . . . . . . . . . . . . . 103
General notes . . . . . . . . . . . . . . . . . . . . . . . 103
Rear parking aid . . . . . . . . . . . . . . . . . . . . .
104
Parking system plus . . . . . . . . . . . . . . . . . .
104
Reversing camera . . . . . . . . . . . . . . . . . . . .
106
Park assist with 360°
display . . . . . . . . . .
108

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
......
0
,.....
Vl
CX) -
How do I operate the map functions?
¢page 178.
- How can I display traffic information?
¢page 182.
Entertainment
- How can I listen to the radio? ¢ page 185.
- How can I play media? ¢page 200.
- How can I play music from my mobile phone via
the infotainment system?¢ page 194, Blue­
tooth audio player.
Tips and tricks
- How can I unlock my vehicle from inside to let
passengers in?¢ page 31.
- How can I open all the windows from outside
using the remote control key?¢ page 35,
Convenience open/close function.
- How can I deactivate the passenger's airbag?
¢page 237.
- How do I secure a child seat? ¢ page 225.
- What do I have to be aware of when driving
through an automatic car wash? ¢ page 263.
- How can I drive (more) economically?
¢page 67.
- How can I see when the next service date is?
¢page 252. FAQs
7

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
....
0
,.....
Vl
CX) (D

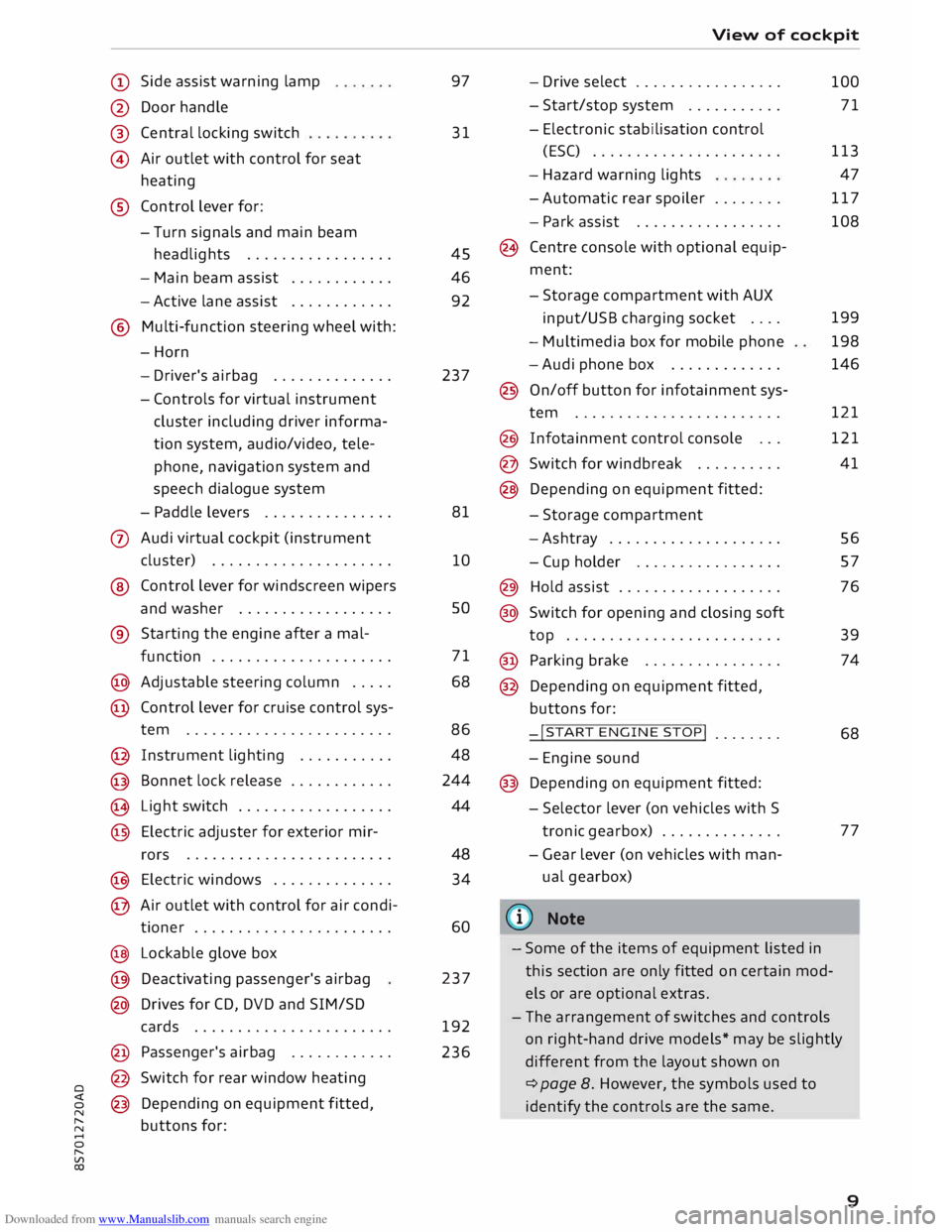

Side assist warning lamp
@ Door handle
®
@ Central
locking switch
Air outlet with control for seat
heating
® Control lever for:
- Turn signals and main beam
headlights ................ .
- Main beam assist ...........
.
- Active lane assist
........... .
@ Multi-function steering wheel with:
-Horn
- Driver's airbag ............. .
- Controls for virtual instrument
cluster including driver informa­
tion system, audio/video, tele­
phone, navigation system and
speech dialogue system
- Paddle levers .............. .
0 Audi virtual cockpit (instrument
cluster) .................... .
® Control lever for windscreen wipers
and washer ................. .
® Starting the
engine
after a mal-
function .................... .
@ Adjustable steering column .... .
@ Control lever for cruise control sys-
tem ....................... .
@ Instrument lighting .......... .
@ Bonnet lock release ........... .
� Light switch ................. .
@ Electric adjuster for exterior mir-
rors .......................
.
@ Electric windows ............. .
@ Air outlet with control for air condi-
tioner ...................... .
@ Lockable glove box
@ Deactivating passenger's airbag
@ Drives for CD, DVD and SIM/SD
cards ...................... .
@ Passenger's airbag ........... .
@ Switch for rear window heating
@ Depending on equipment fitted,
buttons for: 97
31
45
46
92
237
81
10 so
71
68
86 48
244
44
48 34
60
237
192
236 View
of cockpit
- Drive select ................ .
- Start/stop system .......... .
- Electronic stabilisation control
(ESC) ..................... .
- Hazard warning lights
- Automatic rear spoiler ....... .
- Park assist ................ .
(8 Centre console with optional equip­
ment:
- Storage compartment with AUX
input/USB charging socket ....
- Multimedia box for mobile phone
-Audi phone box ............ .
@ On/off button for infotainment sys-
tem ....................... .
@ Infotainment control console .. .
@ Switch for windbreak ......... .
@ Depending on equipment fitted:
- Storage compartment
-Ashtray ................... .
- Cup holder ................ .
@) Hold assist .................. .
@ Switch for opening and closing soft
top ........................ .
@ Parking brake ............... .
@ Depending on equipment fitted,
buttons for:
-!START ENGINE STOP!
....... .
- Engine sound
@ Depending on equipment fitted:
- Selector lever (on vehicles with S
tronic gearbox) ............. .
- Gear lever (on vehicles with man­
ual gearbox)
(© Note 100
71
113 47
117
108
199
198
146
121
121
41
56
57
76
39
74
68
77
- Some of the items of equipment listed in
this section are only fitted on certain mod­
els or are optional extras.
- The arrangement of switches and controls
on right-hand drive models* may be slightly
different from the layout shown on
¢ page 8. However, the symbols used to
identify the controls are the same.
9

Downloaded from www.Manualslib.com manuals search engine Doors
and windows
Central locking system
Description
The vehicle can be locked and unlocked via the
central locking system. You can use any of the
following:
- Remote control key¢ page 29
- Sensors in the door handles* ¢page 30
- Lock on driver's door¢ page 32
- Interior central locking switch ¢page 31
Automatic locking function (Auto Lock)
The Auto Lock function locks the doors and the
boot lid when the vehicle exceeds a speed of
about 15 km/h.
The vehicle is unlocked again immediately when
the unlock button in the central locking switch is
pressed or one of the inside door handles is
pulled. The Auto Lock function can be switched
on and off on the infotainment system
¢page 31.
In the event of an accident in which the airbags
inflate, the doors will be automatically unlocked
to facilitate access and assistance.
Unlocking one side of the vehicle only
When you lock the vehicle, the central locking
system will lock the doors and the boot lid. When
you unlock the vehicle, the central locking system
will unlock either the driver's door only, or all the
locks on the vehicle, depending on the setting
you have selected on the infotainment system
¢page 31.
Turn signals
The turn signals will flash twice when the vehicle
is unlocked and once when the vehicle is locked.
If the turn signals do not flash, one of the doors
or the boot lid is still open or the ignition is still
on.
Accidental lock-out
� To prevent yourself from being locked out, only
� lock
the vehicle when the remote control key is
......
0
"
Vl Doors
and windows
not in the vehicle and all of the doors and the
boot lid are closed.
The central locking system prevents you from be­
ing locked out of the vehicle in the following sit­
uations:
- When the driver's door is open, you cannot lock
the vehicle by pressing the ill! button on the re­
mote control key or touching the locking sen­
sor* on one of the doors.
- The boot lid will be released again automatical­
ly if the convenience key* that was last in use is
detected inside the boot when the boot lid is
closed.
- If the convenience key* that was last in use is
detected in the vehicle, it is not possible to lock
the vehicle from the outside.
(CD) Note
- Never leave any valuable items in the vehi­
cle unattended. Even a locked vehicle is not
a safe.
- When you lock the vehicle, the LED on the
driver's window sill flashes. If the LED is
still on about 30 seconds after the vehicle is
locked, the central locking system is not
working properly. You should have the mal­
function repaired by a qualified workshop.
Set of keys
1
Fig. 14 Keys supplied with the vehicle
(D Remote control key with integrated
emergency key
The remote control key can be used to lock and
unlock the car. An emergency key is integrated in
the remote control key¢ page 28.
.,.
27

Downloaded from www.Manualslib.com manuals search engine Doors
and windows

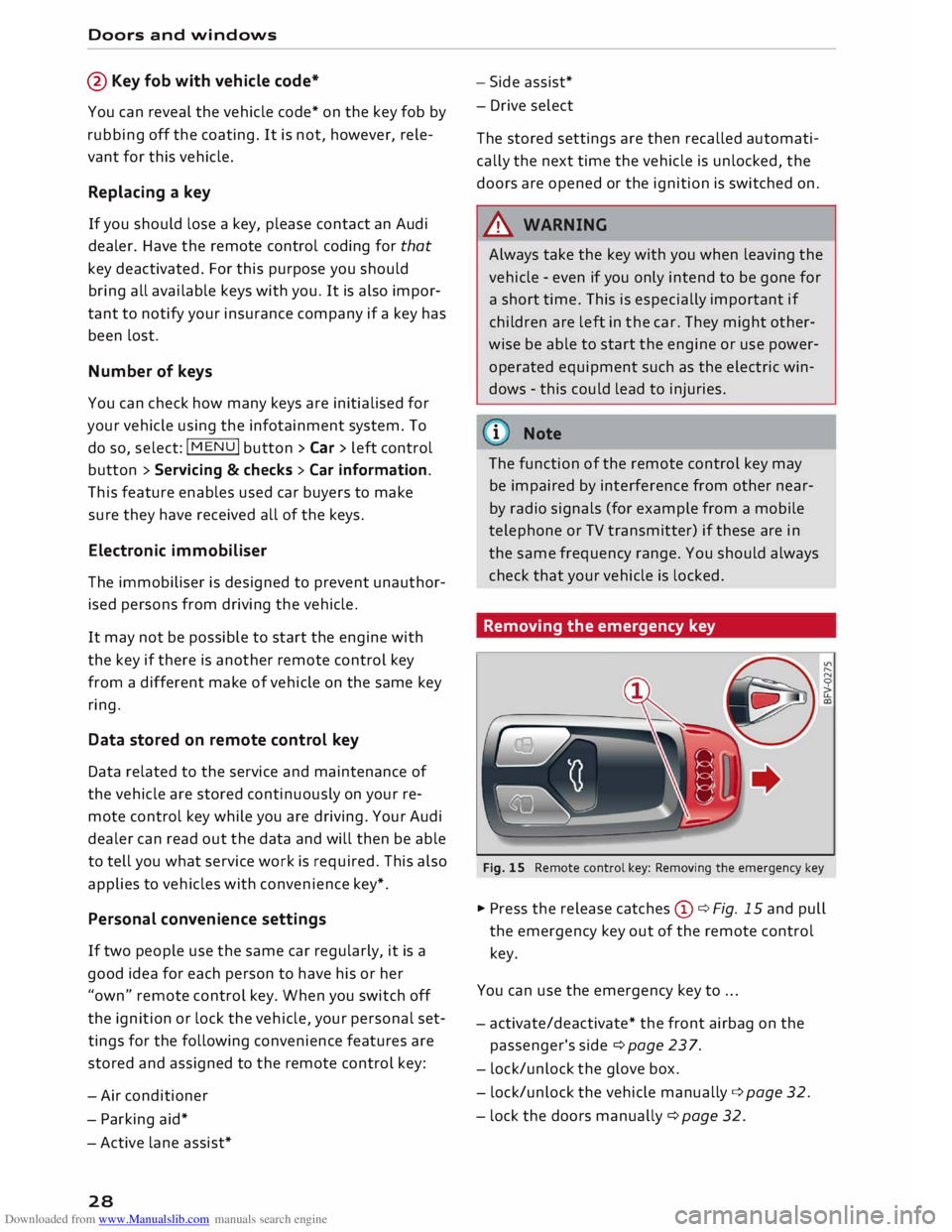

@ Key fob with vehicle code*
You can reveal the vehicle code* on the key fob by
rubbing off the coating. It is not, however, rele­
vant for this vehicle.
Replacing a key
If you should lose a key, please contact an Audi
dealer. Have the remote control coding for that
key deactivated. For this purpose you should
bring all available keys with you. It is also impor­
tant to notify your insurance company if a key has
been lost.
Number of keys
You can check how many keys are initialised for
your vehicle using the infotainment system. To
do so, select: I MENU I button >Car> left control
button > Servicing & checks > Car information.
This feature enables used car buyers to make
sure they have received all of the keys.
Electronic immobiliser
The immobiliser is designed to prevent unauthor­
ised persons from driving the vehicle.
It may not be possible to start the engine with
the key if there is another remote control key
from a different make of vehicle on the same key
ring.
Data stored on remote control key
Data related to the service and maintenance of
the vehicle are stored continuously on your re­
mote control key while you are driving. Your Audi
dealer can read out the data and will then be able
to tell you what service work is required. This also
applies to vehicles with convenience key*.
Personal convenience settings
If two people use the same car regularly, it is a
good idea for each person to have his or her
"own" remote control key. When you switch off
the ignition or lock the vehicle, your personal set­
tings for the following convenience features are
stored and assigned to the remote control key:
- Air conditioner
- Parking aid*
- Active lane assist*
28 -
Side assist*
- Drive select
The stored settings are then recalled automati­
cally the next time the vehicle is unlocked, the
doors are opened or the ignition is switched on.
A WARNING
Always take the key with you when leaving the
vehicle -even if you only intend to be gone for
a short time. This is especially important if
children are left in the car. They might other­
wise be able to start the engine or use power­
operated equipment such as the electric win­
dows -this could lead to injuries.
.
1 Note
The function of the remote control key may
be impaired by interference from other near­
by radio signals (for example from a mobile
telephone or TV transmitter) if these are in
the same frequency range. You should always
check that your vehicle is locked.
Removing the emergency key
Fig. 15 Remote control key: Removing the emergency key
� Press the release catches Cy¢ Fig. 15 and pull
the emergency key out of the remote control
key.
You can use the emergency key to ...
- activate/deactivate* the front airbag on the
passenger's side¢ page 237.
- lock/unlock the glove box.
- lock/unlock the vehicle manually ¢page 32.
- lock the doors manually ¢ page 32.

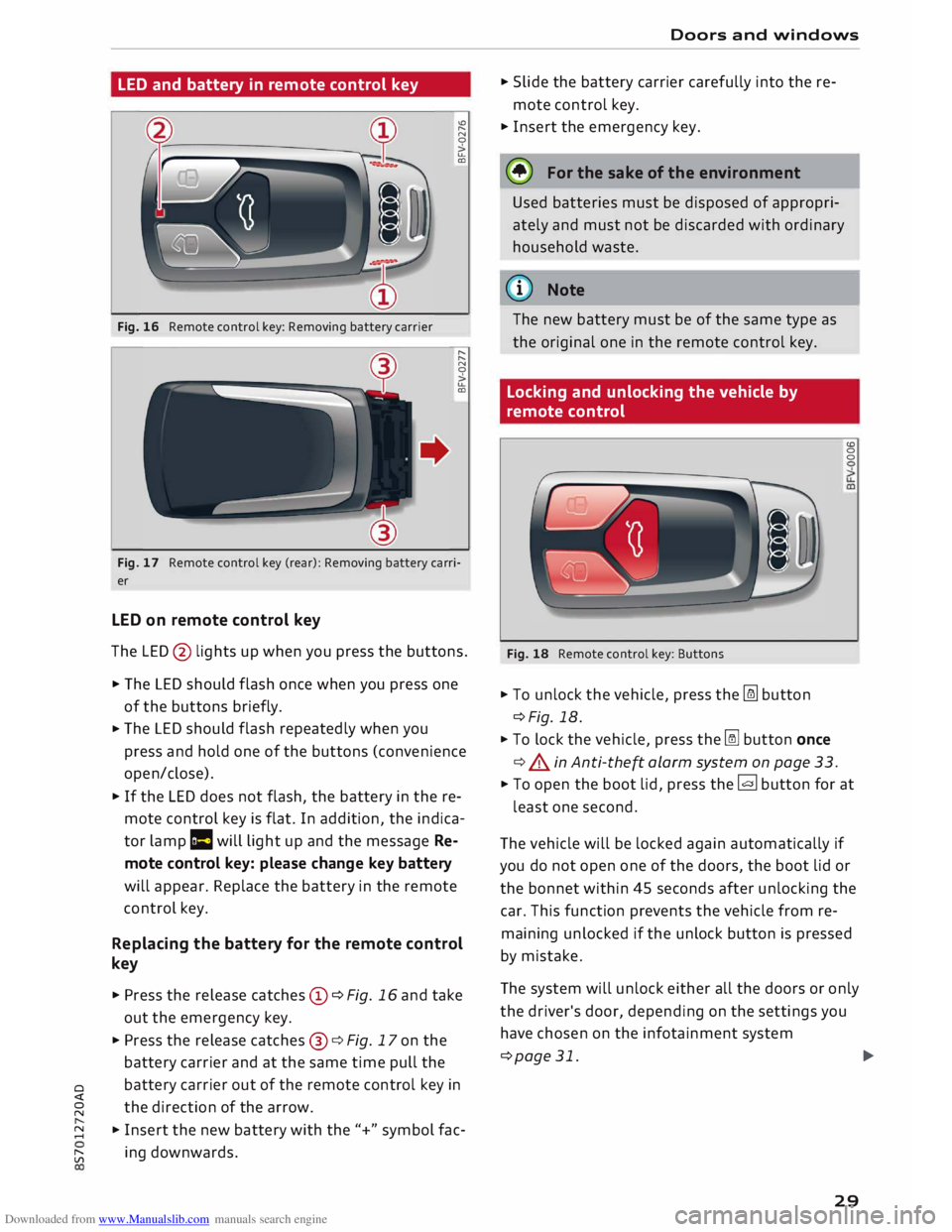

Downloaded from www.Manualslib.com manuals search engine LED
and battery in remote control key
Fig. 16 Remote control key: Removing battery carrier "'
"
N
0
>
u..
CD
"
"
N
0
>
u..
CD
Fig. 17 Remote control key (rear): Removing battery carri­
er
LED on remote control key
The LED @ lights up when you press the buttons.
� The LED should flash once when you press one
of the buttons briefly.
� The
LED should flash repeatedly when you
press and hold one of the buttons (convenience
open/close).
� If
the LED does not flash, the battery in the re­
mote control key is flat. In addition, the indica­
tor lamp la will light up and the message Re­
mote control key: please change key battery
will appear. Replace the battery in the remote
control key.
Replacing the battery for the remote control
key
� Press the release catches© ¢Fig. 16 and take
out the emergency key.
� Press the release catches@¢ Fig. 17 on the
battery carrier and at the same time pull the
o battery
carrier out of the remote control key in
� the
direction of the arrow.
� �
Insert the new battery with the"+" symbol fac-
[;:j ing
downwards. Doors
and windows
� Slide the battery carrier carefully into the re­
mote control key.
� Insert the emergency key.
@ For the sake of the environment
Used batteries must be disposed of appropri­
ately and must not be discarded with ordinary
household waste.
@ Note
The new battery must be of the same type as
the original one in the remote control key.
Locking and unlocking the vehicle by
remote control
Fig. 18 Remote control key: Buttons
� To unlock the vehicle, press the [m button
¢Fig. 18.
� To lock the vehicle, press the� button once
¢ .&. in Anti-the� alarm system on page 33. (0
0
0
� To open the boot lid, press the� button for at
least one second.
The vehicle will be locked again automatically if
you do not open one of the doors, the boot lid or
the bonnet within 45 seconds after unlocking the
car. This function prevents the vehicle from re­
maining unlocked if the unlock button is pressed
by mistake.
The system will unlock either all the doors or only
the driver's door, depending on the settings you
have chosen on the infotainment system
¢page 31.
.,..
29

Downloaded from www.Manualslib.com manuals search engine Doors
and windows
_& WARNING
On vehicles with an anti-theft alarm system*,
do not leave anyone (especially children) in
the car if it is locked from the outside and the
safelock mechanism* is activated: the doors
and windows cannot then be opened from the
inside ¢ page 32. Locked doors could delay
assistance in an emergency, potentially put­
ting lives at risk.
Note
- Do not use the remote control key when the
vehicle is out of sight.
- On vehicles with the convenience key* the
selector lever must be in P, otherwise it will
not be possible to lock the vehicle.
Locking and unlocking the vehicle with the
convenience key
Applies to: vehicles with convenience key
The doors and the boot lid can be locked and un­
locked without handling the remote control key.
Fig. 19 Door handle: Sensor
Unlocking the vehicle
... Take hold of the door handle. The door will be
unlocked automatically.
... To open the door, pull the door handle.
Locking the vehicle r,.
0
0
... Move the selector lever to position P (automat­
ic gearbox); otherwise it will not be possible to
lock the vehicle .
... To lock the vehicle, close the door and touch
the sensor on the door handle once ¢Fig. 19,
¢ .&, . Do not take hold of the door handle
while doing so.
30 The
vehicle can be locked and unlocked from any
of the doors. The remote control key should be
within a range of about 1.5 metres from the door
handle. It does not matter where you carry the
key, for instance whether it is in your jacket pock­
et or in a briefcase.
The locking function may be affected if you grasp
the door handle while the vehicle is being locked.
Once the doors have been locked, they cannot be
opened again immediately. This will enable you
to check that the doors are properly closed.
The system will unlock either all the doors or only
one of the doors, depending on the settings you
have chosen on the infotainment system
¢page 31.
_& WARNING
On vehicles with an anti-theft alarm system*,
do not leave anyone (especially children) in
the car if it is locked from the outside and the
safelock mechanism* is activated: the doors
and windows cannot then be opened from the
inside ¢ page 32. Locked doors could delay
assistance in an emergency, potentially put­
ting lives at risk.
{Q)) Note
Please note the following points if the vehicle
is left parked for long periods:
- To save electrical power, the proximity sen­
sors are switched off after a few days. You
will then need to pull the door handle once
to unlock the vehicle, and a second time to
open it.
- To prevent the vehicle battery from becom­
ing discharged and thus maintain the vehi­
cle's starting ability for as long as possible,
the power management system will gradu­
ally switch off convenience functions that
are not required. In this case you may not
be able to unlock the vehicle with this con­
venience function.

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N
.....
0
,.....
Vl
CX) Central
locking switch
Fig. 20 Driver's door: Central locking switch
� To
lock the vehicle, press the[@] button ¢ .&_ .
� To unlock the vehicle, press the�
button.
Please note the following when you use the cen­
tral locking switch to lock your vehicle:
- The doors and the boot lid cannot be opened
from the outside (for safety reasons, when
stopped at traffic lights, etc.).
- The LED in the central locking switch lights up
when all of the doors are closed and locked.
- You can open the doors individually from the
inside by pulling the inside door handle.
- In the event of an accident in which the airbags
inflate, doors locked from the inside will be au­
tomatically unlocked to facilitate access and as­
sistance.
A WARNING
- The central locking switch is still operative
when the ignition is switched off and will
automatically lock the entire vehicle when
the �
button is pressed.
- The central locking switch inside the vehicle
is not operative if you lock the vehicle from
the outside.
- Locked doors could delay assistance in an
emergency, potentially putting lives at risk.
Do not leave anyone (especially children) in
the vehicle.
ij} Note
The doors and the boot lid are locked auto­
matically when the vehicle reaches a speed of
1} This function is not available on all export versions. Doors
and windows
about 15 km/h (Auto Lock) ¢page 27. You
can unlock the vehicle again via the �
button
in the central locking switch.
Adjusting the settings for the central
locking system
You can use the infotainment system to select
which doors are unlocked by the central Locking
system.
� Select the following on the infotainment sys­
tem: I MENU
I button >Car> left control button
> Vehicle settings.
Unlock doors -You can select whether all doors
or only the driver's door are unlocked by the cen­
tral locking system. The boot lid will also be un­
locked if you select all. If you select driver on
vehicles with convenience key*, only one door will
be unlocked (whichever door you grip by the han­
dle).
When the driver setting is activated, you can still
unlock all the doors and the boot lid by pressing
the �
button on the remote control key twice.
Fold mirrors* -If you select on, the exterior mir­
rors will be folded in automatically when you
press the�
button on the remote control key or
touch the sensor* on the door handle.
Lock when driving 1
)
-Select on if you want the
vehicle to be locked automatically when you are
driving. This will lock all the doors and the boot
lid.
Confirmation tone1
)
-If you select on, an acous­
tic signal will be given when you lock the vehicle.
31

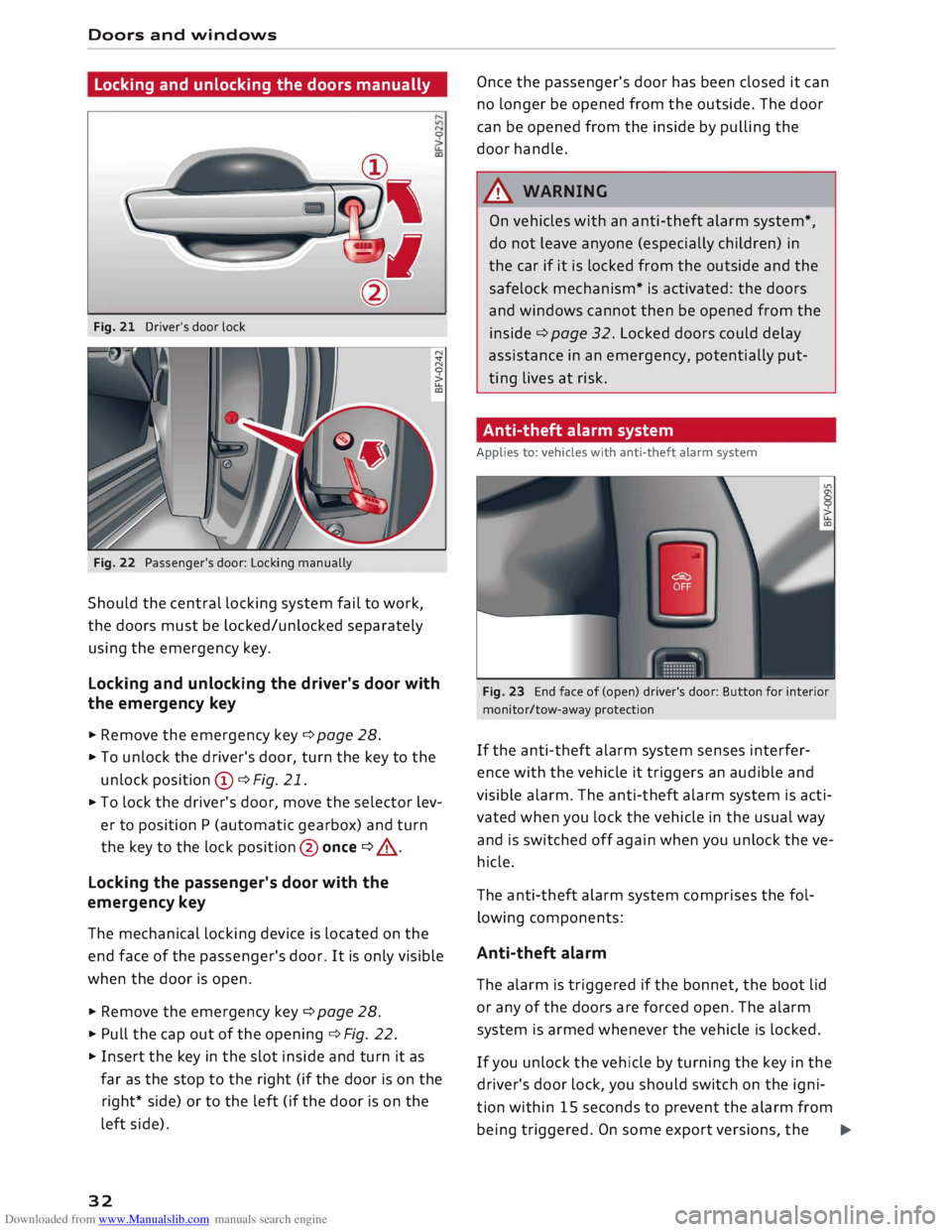

Downloaded from www.Manualslib.com manuals search engine Doors
and windows
Locking and unlocking the doors manually
Fig. 21 Driver's door lock
Fig. 22 Passenger's door: Locking manually
Should the central locking system fail to work,
the doors must be locked/unlocked separately
using the emergency key.
Locking and unlocking the driver's door with
the emergency key
... Remove the emergency key c::> page 28.
.., To unlock the driver's door, turn the key to the
unlock position © c::>Fig. 21.
.., To lock the driver's door, move the selector lev­
er to position P (automatic gearbox) and turn
the key to the lock position @ once c::> .,&. .
Locking the passenger's door with the
emergency key
The mechanical locking device is located on the
end face of the passenger's door. It is only visible
when the door is open.
... Remove the emergency key c::>page 28.
... Pull the cap out of the opening c::>Fig. 22 .
... Insert the key in the slot inside and turn it as
far as the stop to the right (if the door is on the
right* side) or to the left (if the door is on the
left side).
32 Once
the passenger's door has been closed it can
no longer be opened from the outside. The door
can be opened from the inside by pulling the
door handle.
A WARNING
On vehicles with an anti-theft alarm system*,
do not leave anyone (especially children) in
the car if it is locked from the outside and the
safelock mechanism* is activated: the doors
and windows cannot then be opened from the
inside c::> page 32. Locked doors could delay
assistance in an emergency, potentially put­
ting lives at risk.
Anti-theft alarm system
Applies to: vehicles with anti-theft alarm system
Fig. 23 End face of (open) driver's door: Button for interior
monitor/tow-away protection
If the anti-theft alarm system senses interfer­
ence with the vehicle it triggers an audible and
visible alarm. The anti-theft alarm system is acti­
vated when you lock the vehicle in the usual way
and is switched off again when you unlock the ve­
hicle.
The anti-theft alarm system comprises the fol­
lowing components:
Anti-theft alarm
The alarm is triggered if the bonnet, the boot lid
or any of the doors are forced open. The alarm
system is armed whenever the vehicle is locked .
If you unlock the vehicle by turning the key in the
driver's door lock, you should switch on the igni­
tion within 15 seconds to prevent the alarm from
being triggered. On some export versions, the ..,.

Downloaded from www.Manualslib.com manuals search engine 0
0
N
,.....
N alarm
is triggered immediately when you open a
door.
To deactivate the alarm, switch on the ignition or
press the[@] button on the remote control key.
Int erior monitor and tow-away prot ection
When the vehicle is locked, the alarm will be trig­
gered if movements are detected in the interior
(e.g. by animals) or if the vehicle's inclination is
changed (e.g. during transport). You can prevent
the alarm from being triggered accidentally by
switching off the interior monitor and/or tow­
away protection. To do so, proceed as follows:
� Press the� button¢ Fig. 23. The LED in the
button will light up.
� If you now lock the vehicle, the interior monitor
and tow-away protection will remain deactiva­
ted until the vehicle is unlocked again.
Safelo ck1
)
The doors can no longer be opened from the in­
side. This makes it more difficult to break into
the vehicle ¢ A . The message Be aware of door
sa felock. See owner's manual appears on the in­
fotainment display when you switch off the igni­
tion as a reminder that the safelock mechanism*
will be activated. You can switch off the safelock
mechanism* by using one of the following op­
tions:
� Press the� button on the remote control key a
second time within 2 seconds. Or:
� Touch
the sensor on the door handle a second
time within 2 seconds (applies to vehicles with
convenience key). Or:
� Turn the emergency key in the door lock to the
lock position a second time within 2 seconds.
The alarm is triggered if you switch off the safe­
lock mechanism* and a door handle is then oper­
ated. To deactivate the alarm, switch on the igni­
tion or press the� button on the remote control
key.
8 1}This function is not available on all export versions/equip­
,.....
� ment
versions. Doors
and windows
A WARNING
Do not leave anyone (especially children) in
the car if it is locked from the outside and the
safelock mechanism* is activated: the doors
and windows cannot then be opened from the
inside. Locked doors could delay assistance in
an emergency, potentially putting lives at
risk.
CD CAUTION
If you switch off the safe lock mechanism*,
the interior monitor and tow-away protection
are automatically disabled, and vice versa.
This means that your vehicle is no longer
completely protected against theft.
The interior monitor and tow-away protection
will only function as intended if the windows
are closed.
Boot lid
Opening and closing the boot lid
Opening boot lid
� To open the boot lid, press the� button on
the remote control key for at least one second.
Or:
� Pull the boot lid up.
Closing boot lid
� Pull down the boot lid and let it drop into the
latch ¢ A .
A WARNING
- After closing the boot lid, always check that
the catch has engaged properly. The boot lid
could otherwise open suddenly when the ve­
hicle is moving -this could result in an acci-
dent. ..,.
33
