CD changer BMW 3 SERIES 2002 E46 TV Function Retrofit Kit Installation Instruction Manual

EN/12

Retrofit kit No. 65 50 0 143 549
Installation Instructions No. 01 29 0 143 558 Issue date: 03.2002
7. To install and connect the TV function wiring harness; to install the video module

0
0
0
00

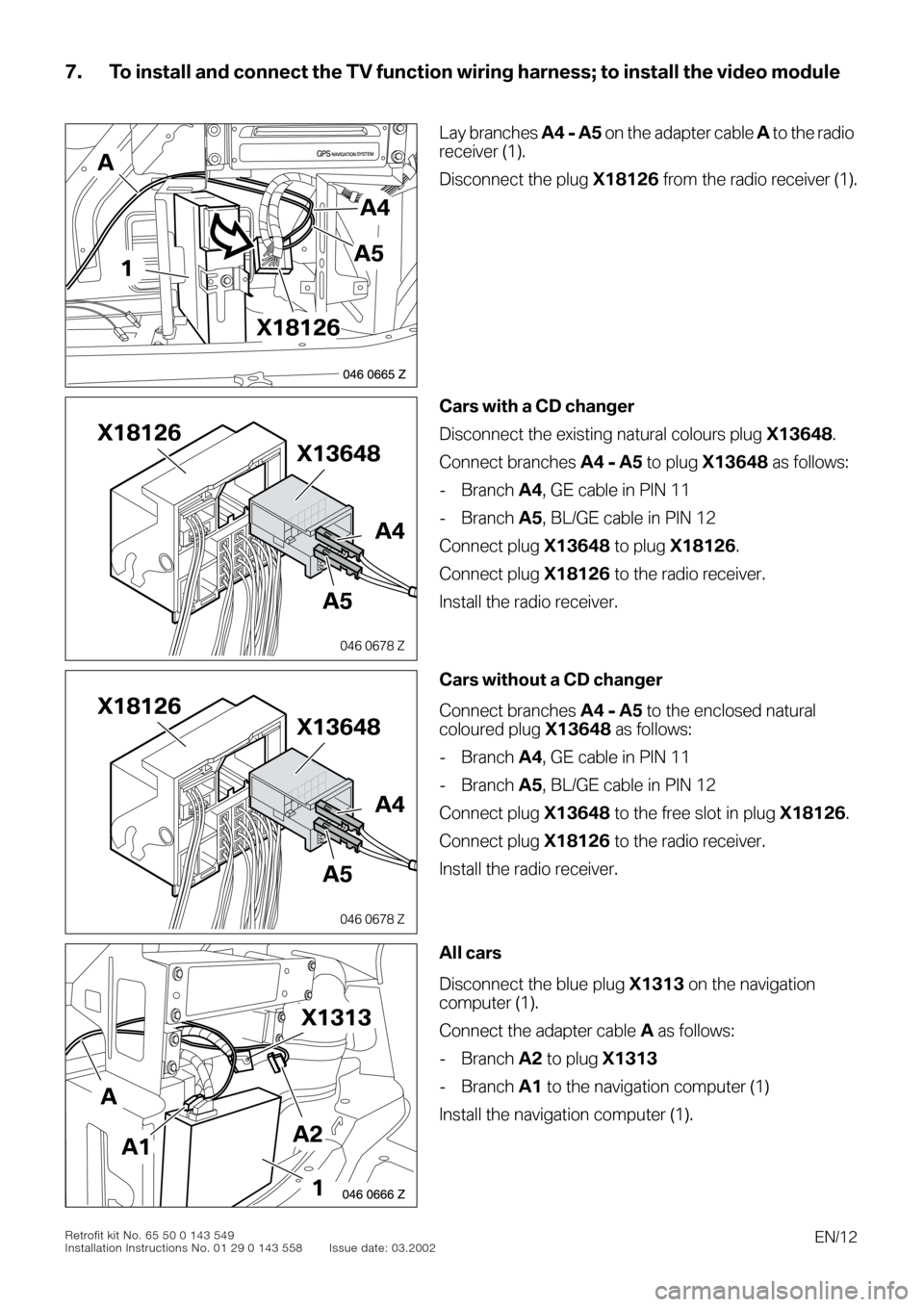

Lay branches

A4 - A5

on the adapter cable

A

to the



radio
receiver (1).
Disconnect the plug

X18126

from the radio receiver (1).

0

Cars with a CD changer

Disconnect the existing natural colours plug

X13648

.
Connect branches

A4 - A5

to plug

X13648

as follows:
- Branch

A4

, GE cable in PIN 11
- Branch

A5

, BL/GE cable in PIN 12
Connect plug

X13648

to plug

X18126

.
Connect plug

X18126

to the radio receiver.
Install the radio receiver.

0Cars without a CD changer
Connect branches A4 - A5 to the enclosed natural
coloured plug X13648 as follows:
- Branch A4, GE cable in PIN 11
- Branch A5, BL/GE cable in PIN 12
Connect plug X13648 to the free slot in plug X18126.
Connect plug X18126 to the radio receiver.
Install the radio receiver.
0All cars
Disconnect the blue plug X1313 on the navigation
computer (1).
Connect the adapter cable A as follows:
- Branch A2 to plug X1313
- Branch A1 to the navigation computer (1)
Install the navigation computer (1).
046 0665 Z
GPSNAVIGATION SYSTEM
A4
A51
X18126
A
046 0678 Z
X18126
A4
X13648
A5
046 0678 Z
X18126
A4
X13648
A5
046 0666 Z
X1313
A2A1
A
1
