BMW 3 SERIES 2011 Owners Manual

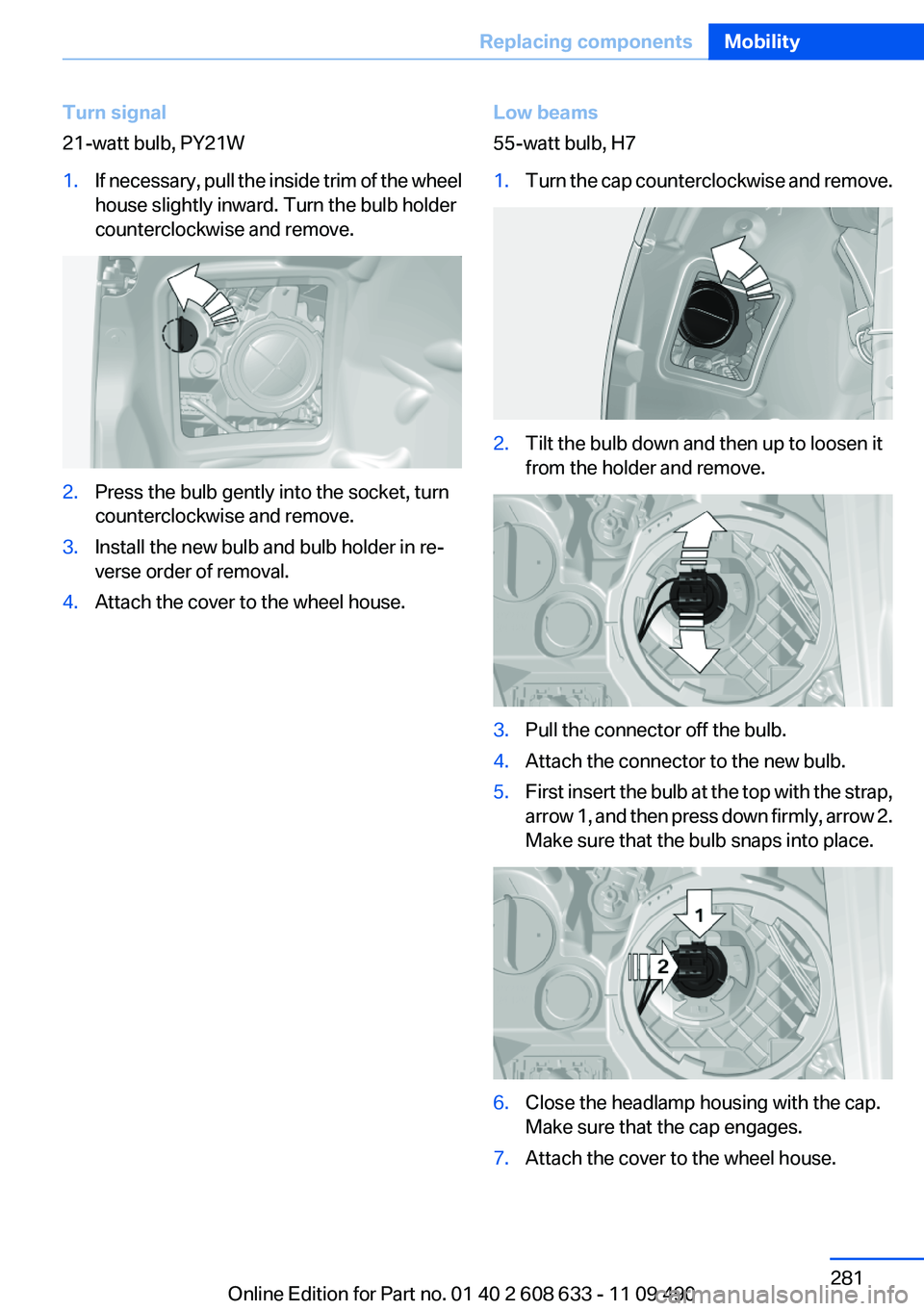

Turn signal
21-watt bulb, PY21W
1.If necessary, pull the inside trim of the wheel
house slightly inward. Turn the bulb holder
counterclockwise and remove.
2.Press the bulb gently into the socket, turn
counterclockwise and remove.
3.Install the new bulb and bulb holder in re‐
verse order of removal.
4.Attach the cover to the wheel house.
Low beams
55-watt bulb, H7
1.Turn the cap counterclockwise and remove.
2.Tilt the bulb down and then up to loosen it
from the holder and remove.
3.Pull the connector off the bulb.
4.Attach the connector to the new bulb.
5.First insert the bulb at the top with the strap,
arrow 1, and then press down firmly, arrow 2.
Make sure that the bulb snaps into place.
6.Close the headlamp housing with the cap.
Make sure that the cap engages.
7.Attach the cover to the wheel house.
Seite 281
Replacing componentsMobility
281Online Edition for Part no. 01 40 2 608 633 - 11 09 490

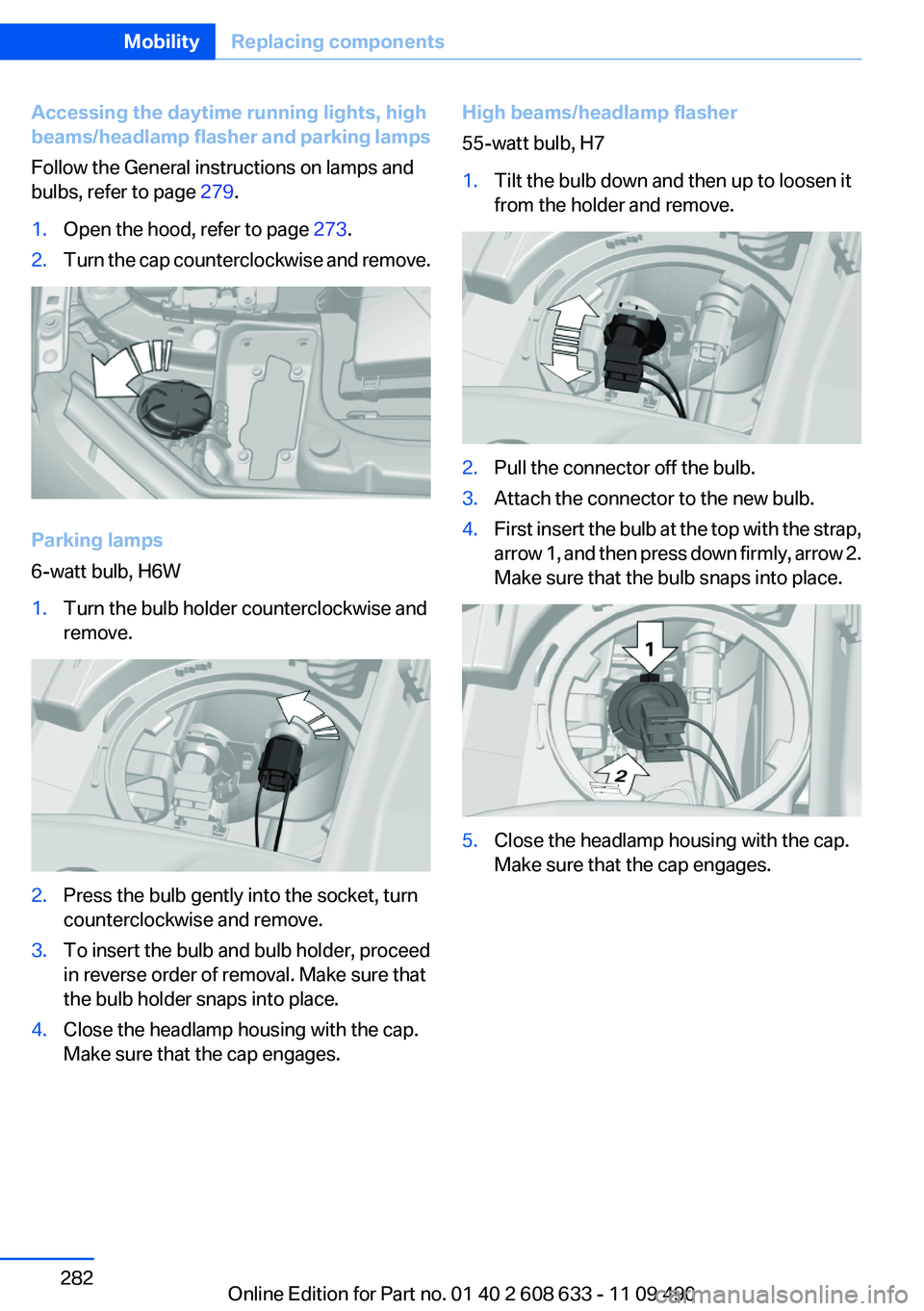

Accessing the daytime running lights, high
beams/headlamp flasher and parking lamps
Follow the General instructions on lamps and
bulbs, refer to page 279.
1.Open the hood, refer to page 273.
2.Turn the cap counterclockwise and remove.
Parking lamps
6-watt bulb, H6W
1.Turn the bulb holder counterclockwise and
remove.
2.Press the bulb gently into the socket, turn
counterclockwise and remove.
3.To insert the bulb and bulb holder, proceed
in reverse order of removal. Make sure that
the bulb holder snaps into place.
4.Close the headlamp housing with the cap.
Make sure that the cap engages.
High beams/headlamp flasher
55-watt bulb, H7
1.Tilt the bulb down and then up to loosen it
from the holder and remove.
2.Pull the connector off the bulb.
3.Attach the connector to the new bulb.
4.First insert the bulb at the top with the strap,
arrow 1, and then press down firmly, arrow 2.
Make sure that the bulb snaps into place.
5.Close the headlamp housing with the cap.
Make sure that the cap engages.
Seite 282
MobilityReplacing components
282Online Edition for Part no. 01 40 2 608 633 - 11 09 490

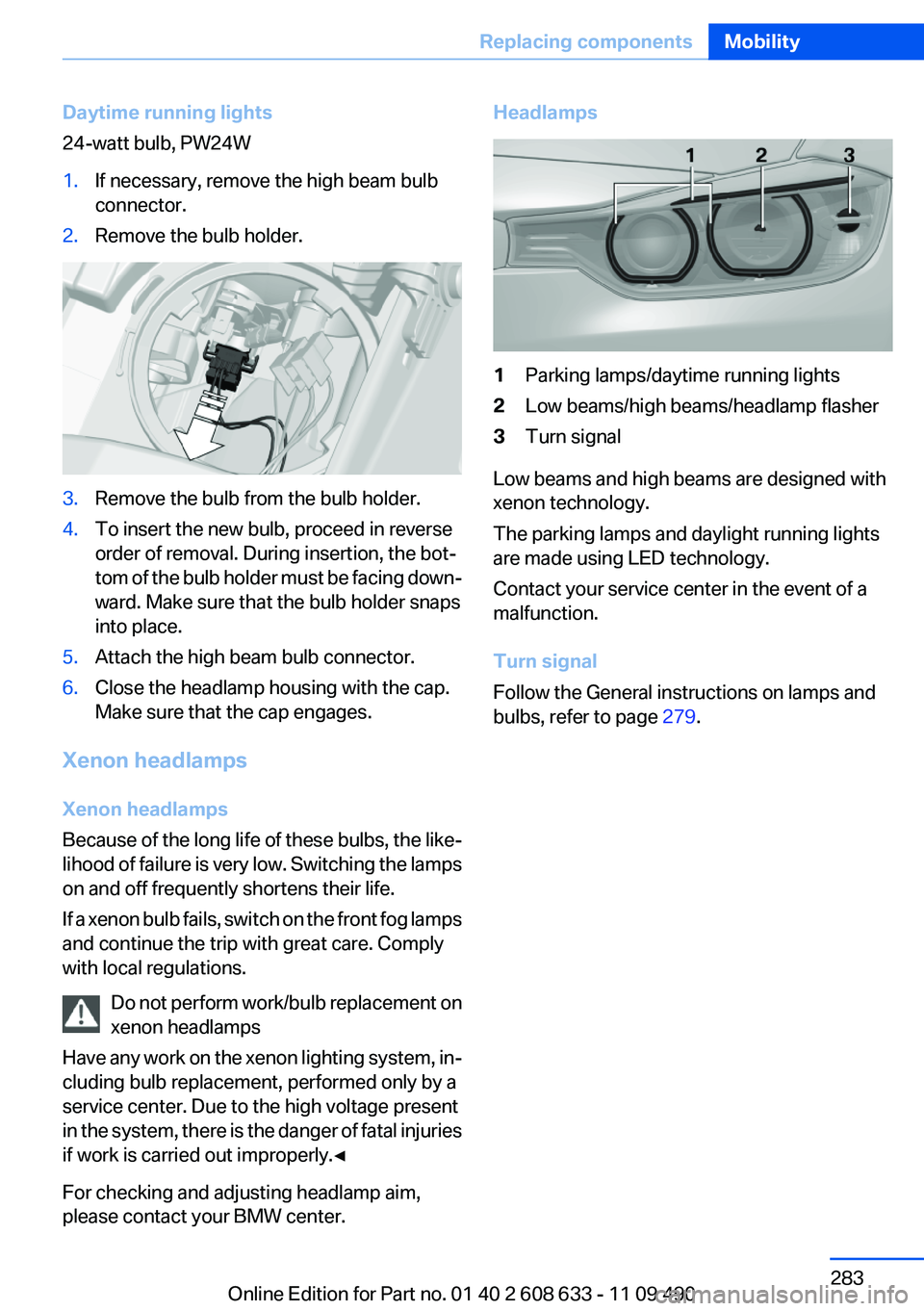

Daytime running lights
24-watt bulb, PW24W
1.If necessary, remove the high beam bulb
connector.
2.Remove the bulb holder.
3.Remove the bulb from the bulb holder.
4.To insert the new bulb, proceed in reverse
order of removal. During insertion, the bot‐
tom of the bulb holder must be facing down‐
ward. Make sure that the bulb holder snaps
into place.
5.Attach the high beam bulb connector.
6.Close the headlamp housing with the cap.
Make sure that the cap engages.
Xenon headlamps
Xenon headlamps
Because of the long life of these bulbs, the like‐
lihood of failure is very low. Switching the lamps
on and off frequently shortens their life.
If a xenon bulb fails, switch on the front fog lamps
and continue the trip with great care. Comply
with local regulations.
Do not perform work/bulb replacement on
xenon headlamps
Have any work on the xenon lighting system, in‐
cluding bulb replacement, performed only by a
service center. Due to the high voltage present
in the system, there is the danger of fatal injuries
if work is carried out improperly.◀
For checking and adjusting headlamp aim,
please contact your BMW center.
Headlamps
1Parking lamps/daytime running lights
2Low beams/high beams/headlamp flasher
3Turn signal
Low beams and high beams are designed with
xenon technology.
The parking lamps and daylight running lights
are made using LED technology.
Contact your service center in the event of a
malfunction.
Turn signal
Follow the General instructions on lamps and
bulbs, refer to page 279.
Seite 283
Replacing componentsMobility
283Online Edition for Part no. 01 40 2 608 633 - 11 09 490

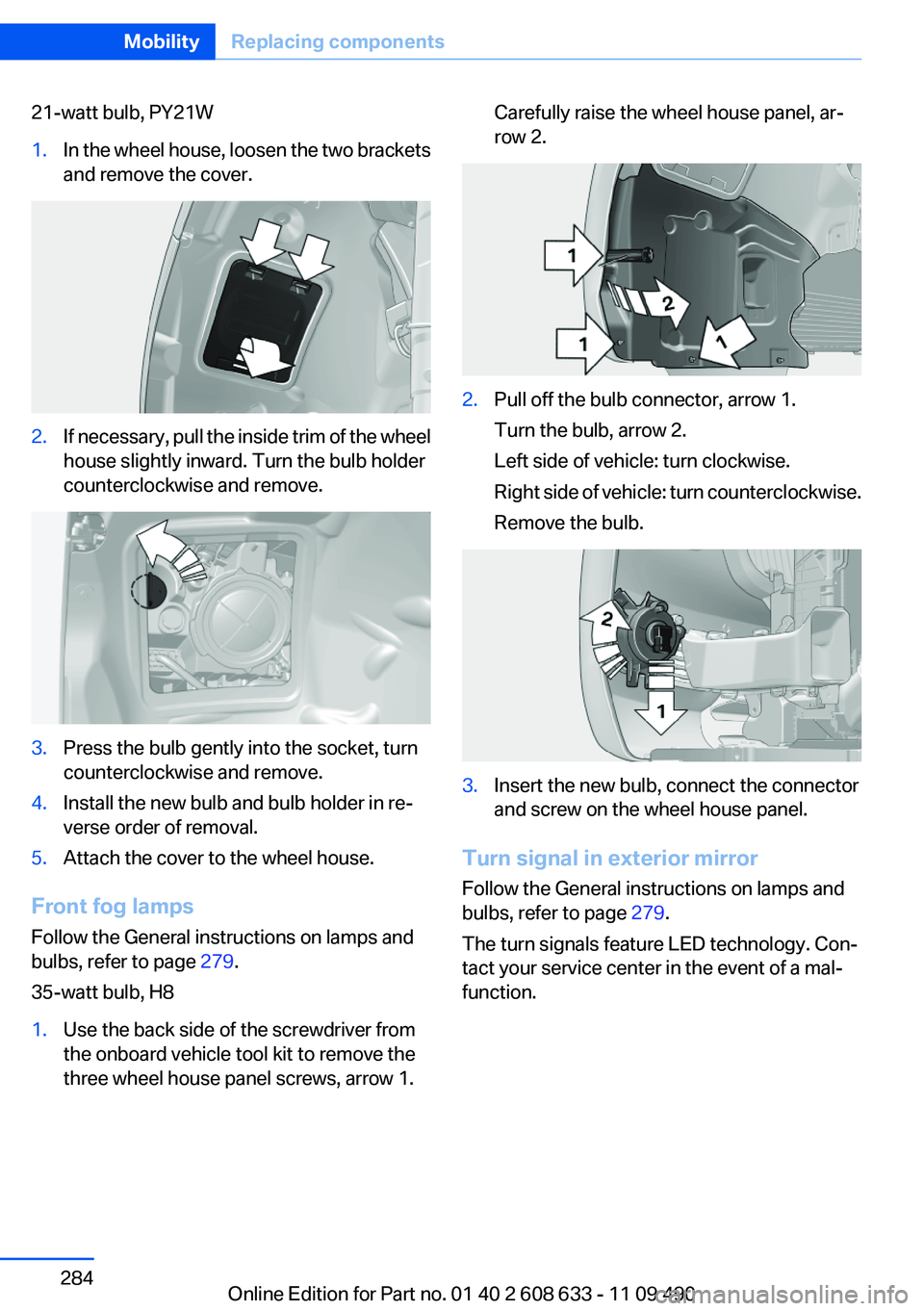

21-watt bulb, PY21W
1.In the wheel house, loosen the two brackets
and remove the cover.
2.If necessary, pull the inside trim of the wheel
house slightly inward. Turn the bulb holder
counterclockwise and remove.
3.Press the bulb gently into the socket, turn
counterclockwise and remove.
4.Install the new bulb and bulb holder in re‐
verse order of removal.
5.Attach the cover to the wheel house.
Front fog lamps
Follow the General instructions on lamps and
bulbs, refer to page 279.
35-watt bulb, H8
1.Use the back side of the screwdriver from
the onboard vehicle tool kit to remove the
three wheel house panel screws, arrow 1.
Carefully raise the wheel house panel, ar‐
row 2.
2.Pull off the bulb connector, arrow 1.
Turn the bulb, arrow 2.
Left side of vehicle: turn clockwise.
Right side of vehicle: turn counterclockwise.
Remove the bulb.
3.Insert the new bulb, connect the connector
and screw on the wheel house panel.
Turn signal in exterior mirror
Follow the General instructions on lamps and
bulbs, refer to page 279.
The turn signals feature LED technology. Con‐
tact your service center in the event of a mal‐
function.
Seite 284
MobilityReplacing components
284Online Edition for Part no. 01 40 2 608 633 - 11 09 490

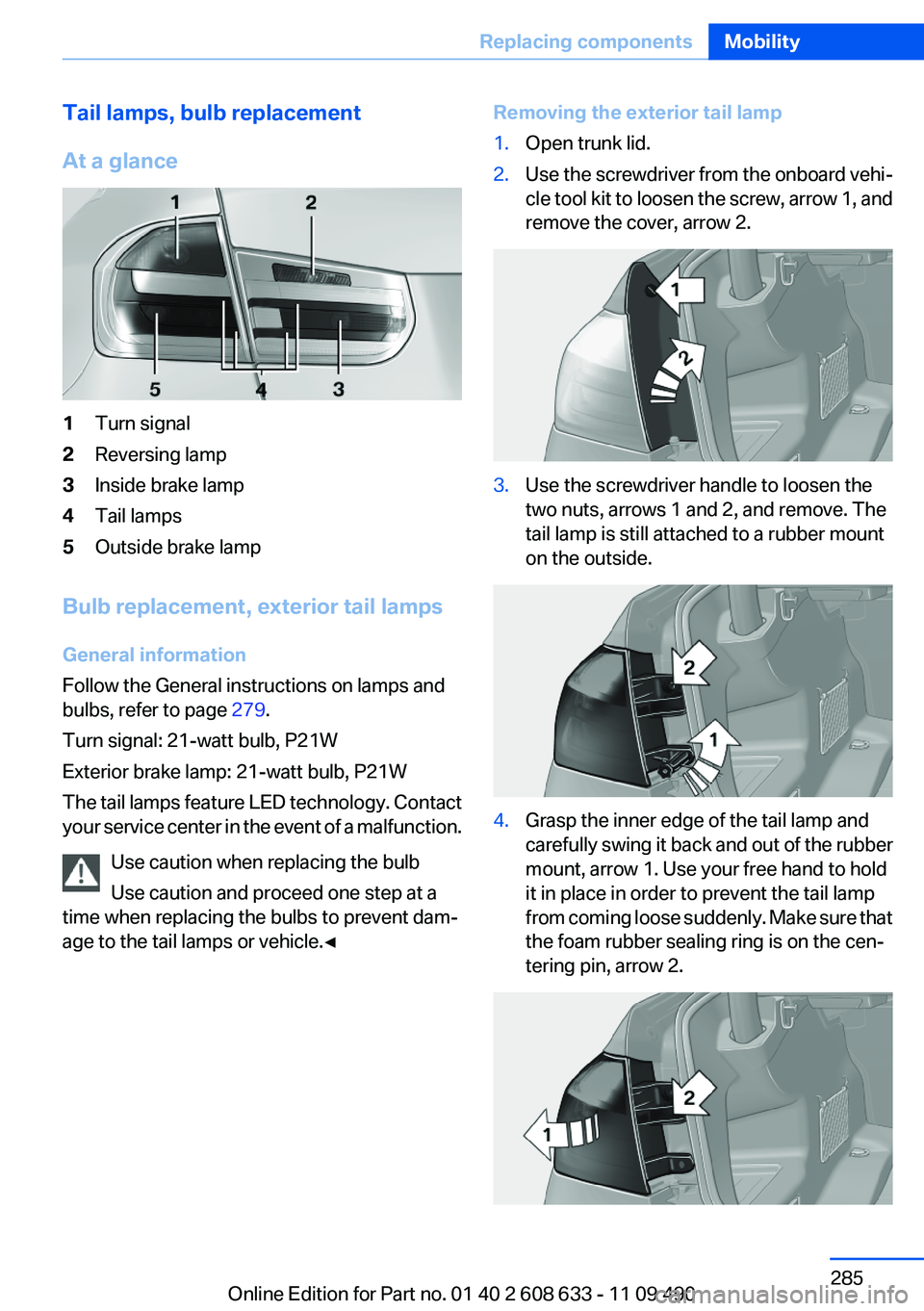

Tail lamps, bulb replacement
At a glance
1Turn signal
2Reversing lamp
3Inside brake lamp
4Tail lamps
5Outside brake lamp
Bulb replacement, exterior tail lamps
General information
Follow the General instructions on lamps and
bulbs, refer to page 279.
Turn signal: 21-watt bulb, P21W
Exterior brake lamp: 21-watt bulb, P21W
The tail lamps feature LED technology. Contact
your service center in the event of a malfunction.
Use caution when replacing the bulb
Use caution and proceed one step at a
time when replacing the bulbs to prevent dam‐
age to the tail lamps or vehicle.◀
Removing the exterior tail lamp
1.Open trunk lid.
2.Use the screwdriver from the onboard vehi‐
cle tool kit to loosen the screw, arrow 1, and
remove the cover, arrow 2.
3.Use the screwdriver handle to loosen the
two nuts, arrows 1 and 2, and remove. The
tail lamp is still attached to a rubber mount
on the outside.
4.Grasp the inner edge of the tail lamp and
carefully swing it back and out of the rubber
mount, arrow 1. Use your free hand to hold
it in place in order to prevent the tail lamp
from coming loose suddenly. Make sure that
the foam rubber sealing ring is on the cen‐
tering pin, arrow 2.
Seite 285
Replacing componentsMobility
285Online Edition for Part no. 01 40 2 608 633 - 11 09 490

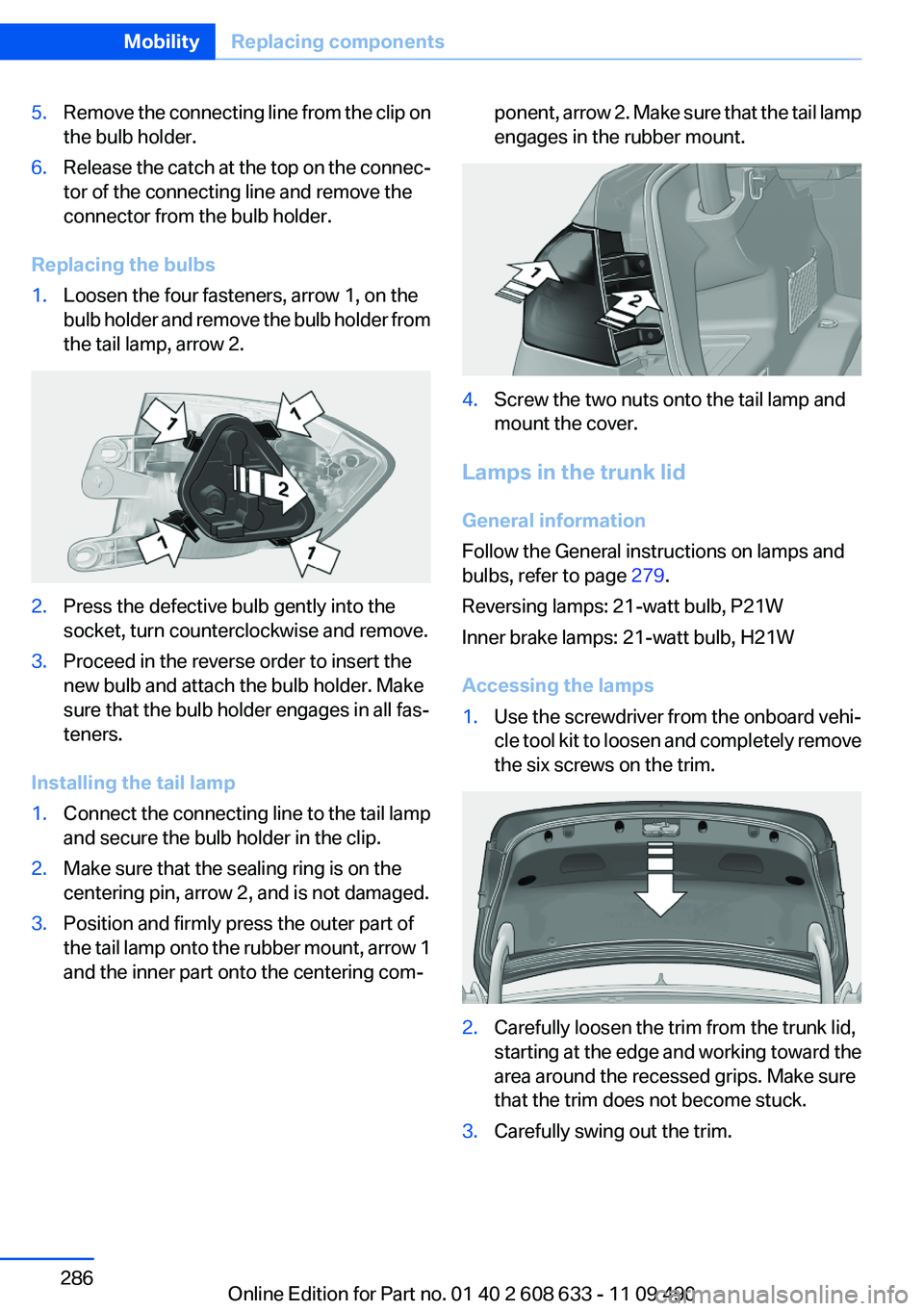

5.Remove the connecting line from the clip on
the bulb holder.
6.Release the catch at the top on the connec‐
tor of the connecting line and remove the
connector from the bulb holder.
Replacing the bulbs
1.Loosen the four fasteners, arrow 1, on the
bulb holder and remove the bulb holder from
the tail lamp, arrow 2.
2.Press the defective bulb gently into the
socket, turn counterclockwise and remove.
3.Proceed in the reverse order to insert the
new bulb and attach the bulb holder. Make
sure that the bulb holder engages in all fas‐
teners.
Installing the tail lamp
1.Connect the connecting line to the tail lamp
and secure the bulb holder in the clip.
2.Make sure that the sealing ring is on the
centering pin, arrow 2, and is not damaged.
3.Position and firmly press the outer part of
the tail lamp onto the rubber mount, arrow 1
and the inner part onto the centering com‐
ponent, arrow 2. Make sure that the tail lamp
engages in the rubber mount.
4.Screw the two nuts onto the tail lamp and
mount the cover.
Lamps in the trunk lid
General information
Follow the General instructions on lamps and
bulbs, refer to page 279.
Reversing lamps: 21-watt bulb, P21W
Inner brake lamps: 21-watt bulb, H21W
Accessing the lamps
1.Use the screwdriver from the onboard vehi‐
cle tool kit to loosen and completely remove
the six screws on the trim.
2.Carefully loosen the trim from the trunk lid,
starting at the edge and working toward the
area around the recessed grips. Make sure
that the trim does not become stuck.
3.Carefully swing out the trim.
Seite 286
MobilityReplacing components
286Online Edition for Part no. 01 40 2 608 633 - 11 09 490

Replacing the reversing lamp and inner
brake lamp
1.Loosen the two fasteners, arrow 1 and pull
down on the lamp holder to remove, arrow 2.
2.Press the defective bulb gently into the
socket, turn counterclockwise and remove.
3.Insert the new bulb.
Installing the bulb holder
1.Slide the bulb holder onto the two guide
pins, arrow 1. Insert the two contacts, ar‐
row 2, into the connections, arrow 3.
2.Press on the bulb holder. Make sure that the
two exterior fasteners latch into place.
3.Swing the trim back onto the trunk lid and
secure.
Tail lamp, license plate lamp and
central brake lamp
Follow the General instructions on lamps and
bulbs, refer to page 279.
The lamps feature LED technology. Contact
your service center in the event of a malfunction.
Changing wheels
Notes
The vehicle equipment does not include a spare
tire.
When using run-flat tires or tire sealants, a tire
does not need to be changed immediately in the
event of pressure loss due to a flat tire.
The tools for changing wheels are available as
accessories from your service center.
Jacking points for the vehicle jack
The jacking points for the vehicle jack are lo‐
cated at the positions shown.
Vehicle battery
Maintenance
The battery is maintenance-free, i.e., the elec‐
trolyte will last for the life of the battery.
Your service center will be glad to advise you on
questions regarding the battery.
Battery replacement
Use approved vehicle batteries only
Only use vehicle batteries that have been
approved for your vehicle by the manufacturer;
otherwise, the vehicle could be damaged and
systems or functions may not be fully availa‐
ble.◀
After a battery replacement, have the battery
registered on the vehicle by your service center
Seite 287
Replacing componentsMobility
287Online Edition for Part no. 01 40 2 608 633 - 11 09 490

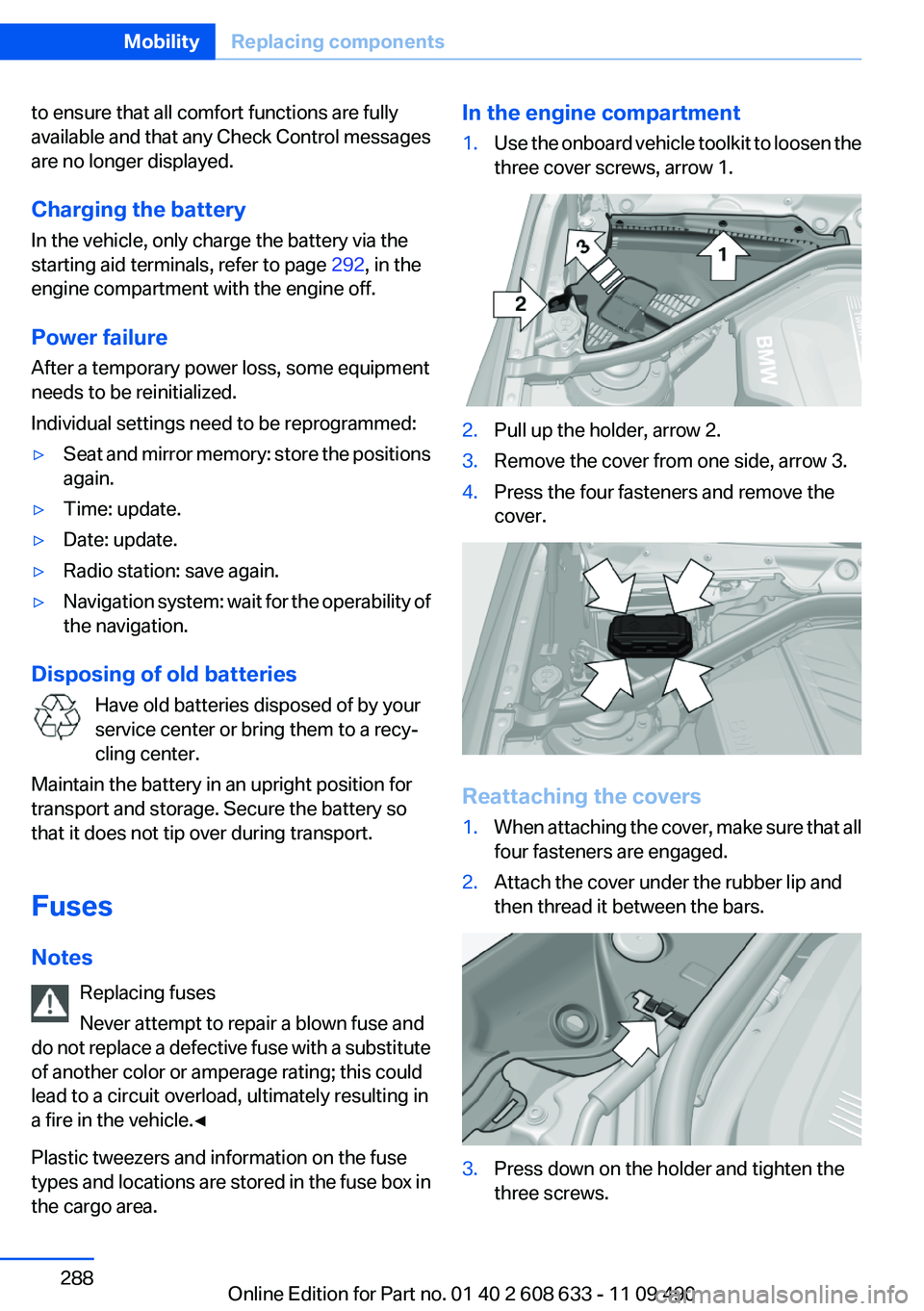

to ensure that all comfort functions are fully
available and that any Check Control messages
are no longer displayed.
Charging the battery
In the vehicle, only charge the battery via the
starting aid terminals, refer to page 292, in the
engine compartment with the engine off.
Power failure
After a temporary power loss, some equipment
needs to be reinitialized.
Individual settings need to be reprogrammed:
▷Seat and mirror memory: store the positions
again.
▷Time: update.
▷Date: update.
▷Radio station: save again.
▷Navigation system: wait for the operability of
the navigation.
Disposing of old batteries
Have old batteries disposed of by your
service center or bring them to a recy‐
cling center.
Maintain the battery in an upright position for
transport and storage. Secure the battery so
that it does not tip over during transport.
Fuses
Notes
Replacing fuses
Never attempt to repair a blown fuse and
do not replace a defective fuse with a substitute
of another color or amperage rating; this could
lead to a circuit overload, ultimately resulting in
a fire in the vehicle.◀

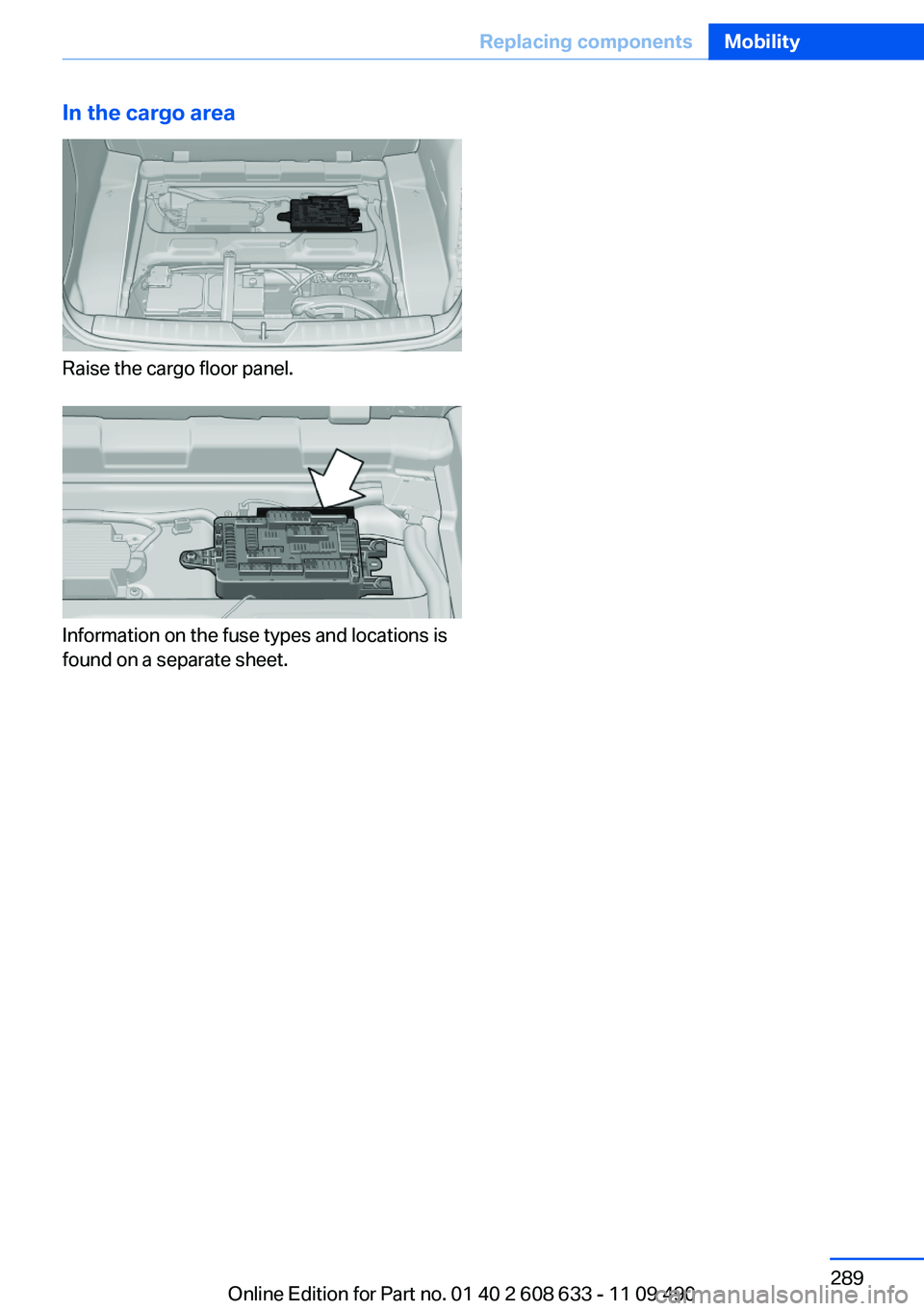

Plastic tweezers and information on the fuse
types and locations are stored in the fuse box in
the cargo area.
In the engine compartment
1.Use the onboard vehicle toolkit to loosen the
three cover screws, arrow 1.
2.Pull up the holder, arrow 2.
3.Remove the cover from one side, arrow 3.
4.Press the four fasteners and remove the
cover.
Reattaching the covers
1.When attaching the cover, make sure that all
four fasteners are engaged.
2.Attach the cover under the rubber lip and
then thread it between the bars.
3.Press down on the holder and tighten the
three screws.
Seite 288
MobilityReplacing components
288Online Edition for Part no. 01 40 2 608 633 - 11 09 490

In the cargo area
Raise the cargo floor panel.
Information on the fuse types and locations is
found on a separate sheet.
Seite 289
Replacing componentsMobility
289Online Edition for Part no. 01 40 2 608 633 - 11 09 490

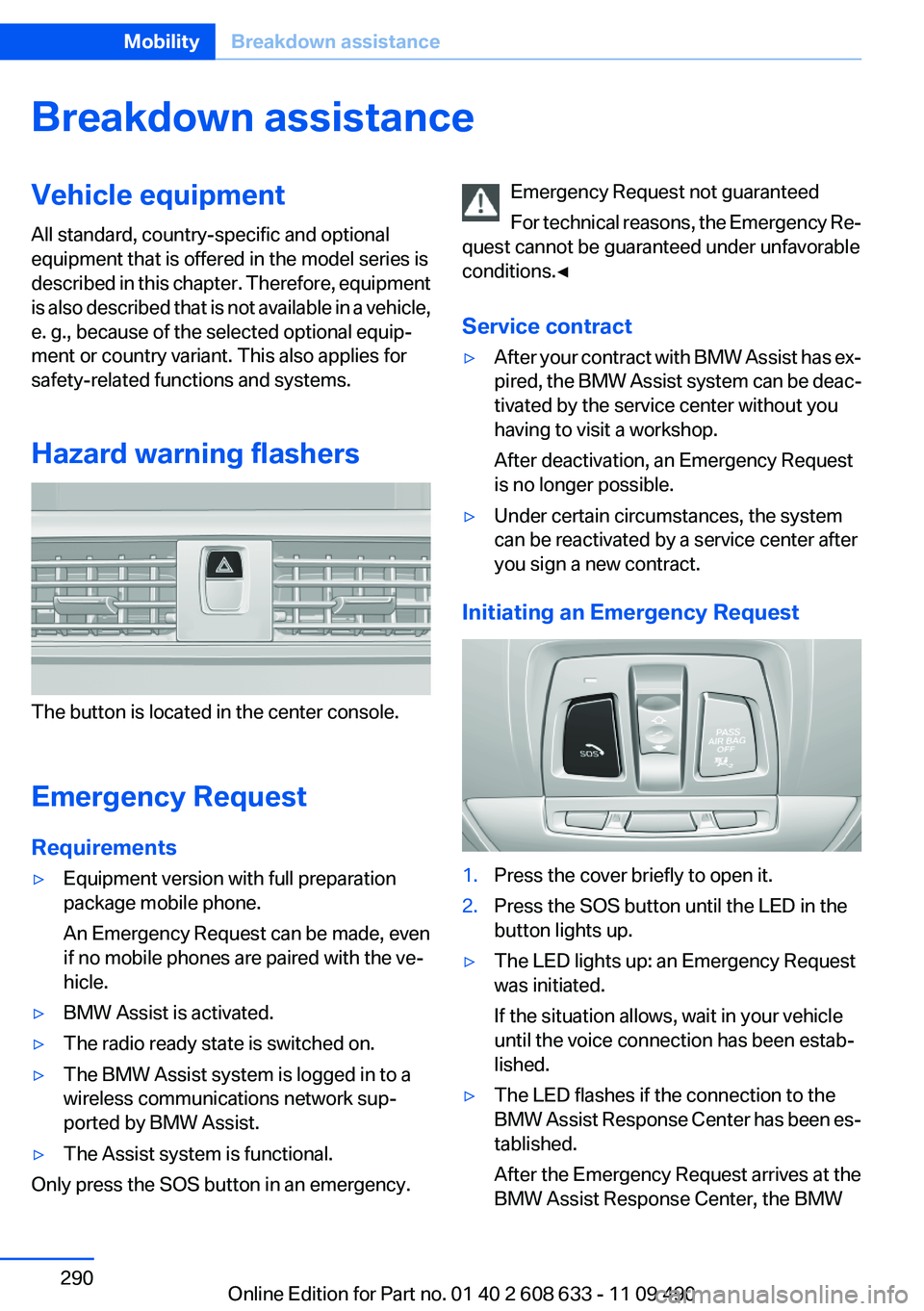

Breakdown assistance
Vehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipment
is also described that is not available in a vehicle,
e. g., because of the selected optional equip‐
ment or country variant. This also applies for
safety-related functions and systems.
Hazard warning flashers
The button is located in the center console.
Emergency Request
Requirements
▷Equipment version with full preparation
package mobile phone.
An Emergency Request can be made, even
if no mobile phones are paired with the ve‐
hicle.
▷BMW Assist is activated.
▷The radio ready state is switched on.
▷The BMW Assist system is logged in to a
wireless communications network sup‐
ported by BMW Assist.
▷The Assist system is functional.
Only press the SOS button in an emergency.
Emergency Request not guaranteed
For technical reasons, the Emergency Re‐
quest cannot be guaranteed under unfavorable
conditions.◀
Service contract
▷After your contract with BMW Assist has ex‐
pired, the BMW Assist system can be deac‐
tivated by the service center without you
having to visit a workshop.
After deactivation, an Emergency Request
is no longer possible.
▷Under certain circumstances, the system
can be reactivated by a service center after
you sign a new contract.
Initiating an Emergency Request
1.Press the cover briefly to open it.
2.Press the SOS button until the LED in the
button lights up.
▷The LED lights up: an Emergency Request
was initiated.
If the situation allows, wait in your vehicle
until the voice connection has been estab‐
lished.
▷The LED flashes if the connection to the
BMW Assist Response Center has been es‐
tablished.
After the Emergency Request arrives at the
BMW Assist Response Center, the BMW
Seite 290
MobilityBreakdown assistance
290Online Edition for Part no. 01 40 2 608 633 - 11 09 490
