BMW 3 SERIES 2011 Owners Manual

Reference
This chapter contains technical data, short
commands for the voice activation system, and an
index that will quickly take you to the information
you need.
Online Edition for Part no. 01 40 2 608 633 - 11 09 490

Technical data
Vehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipment
is also described that is not available in a vehicle,
e. g., because of the selected optional equip‐
ment or country variant. This also applies for
safety-related functions and systems.

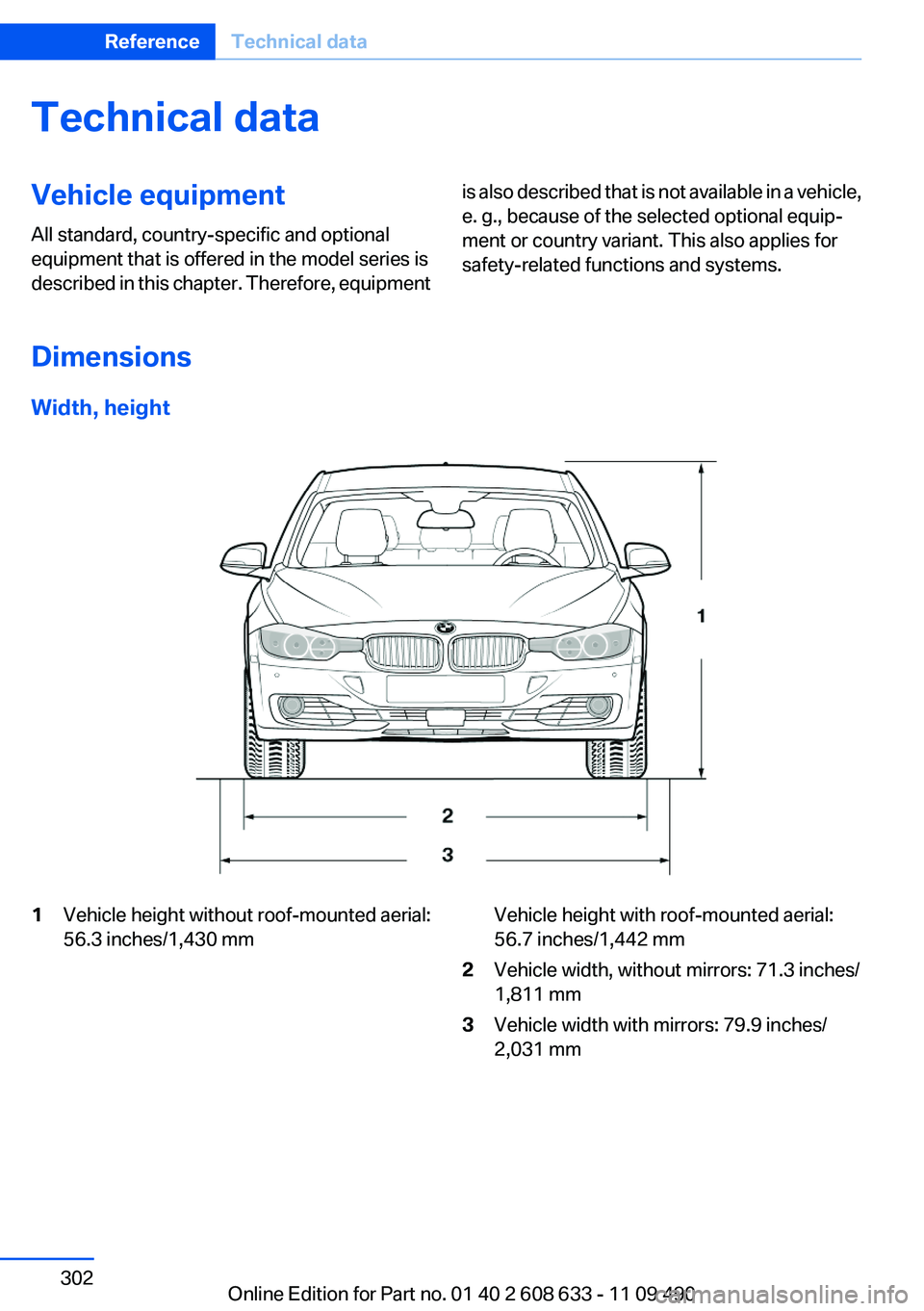

Dimensions
Width, height
1Vehicle height without roof-mounted aerial:
56.3 inches/1,430 mm
Vehicle height with roof-mounted aerial:
56.7 inches/1,442 mm
2Vehicle width, without mirrors: 71.3 inches/
1,811 mm
3Vehicle width with mirrors: 79.9 inches/
2,031 mm
Seite 302
ReferenceTechnical data
302Online Edition for Part no. 01 40 2 608 633 - 11 09 490

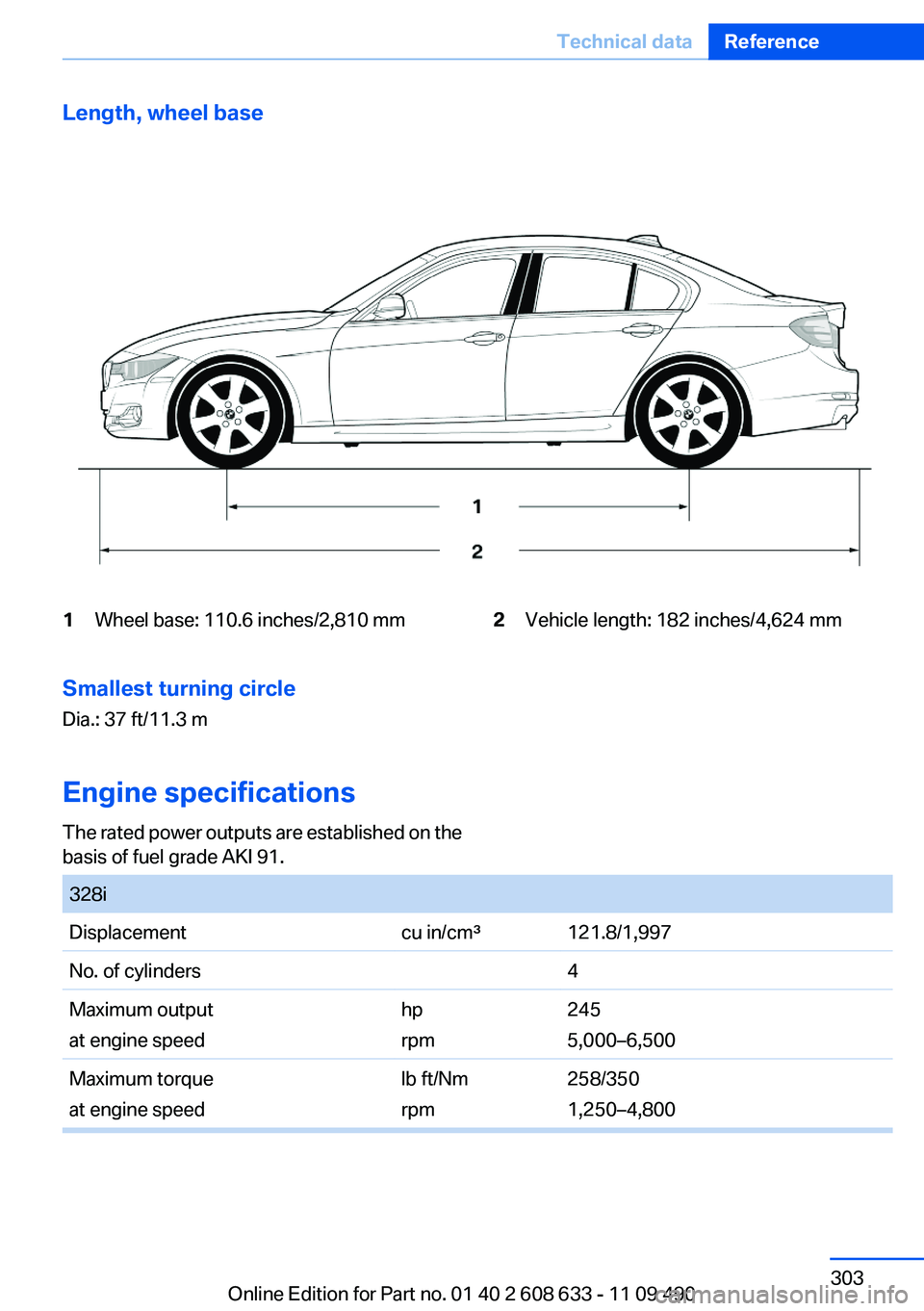

Length, wheel base
1Wheel base: 110.6 inches/2,810 mm2Vehicle length: 182 inches/4,624 mm
Smallest turning circle
Dia.: 37 ft/11.3 m
Engine specifications
The rated power outputs are established on the
basis of fuel grade AKI 91.
328i
Displacementcu in/cm³ 121.8/1,997
No. of cylinders4
Maximum output
at engine speed
hp
rpm
245
5,000–6,500
Maximum torque
at engine speed
lb ft/Nm
rpm
258/350
1,250–4,800
Seite 303
Technical dataReference
303Online Edition for Part no. 01 40 2 608 633 - 11 09 490

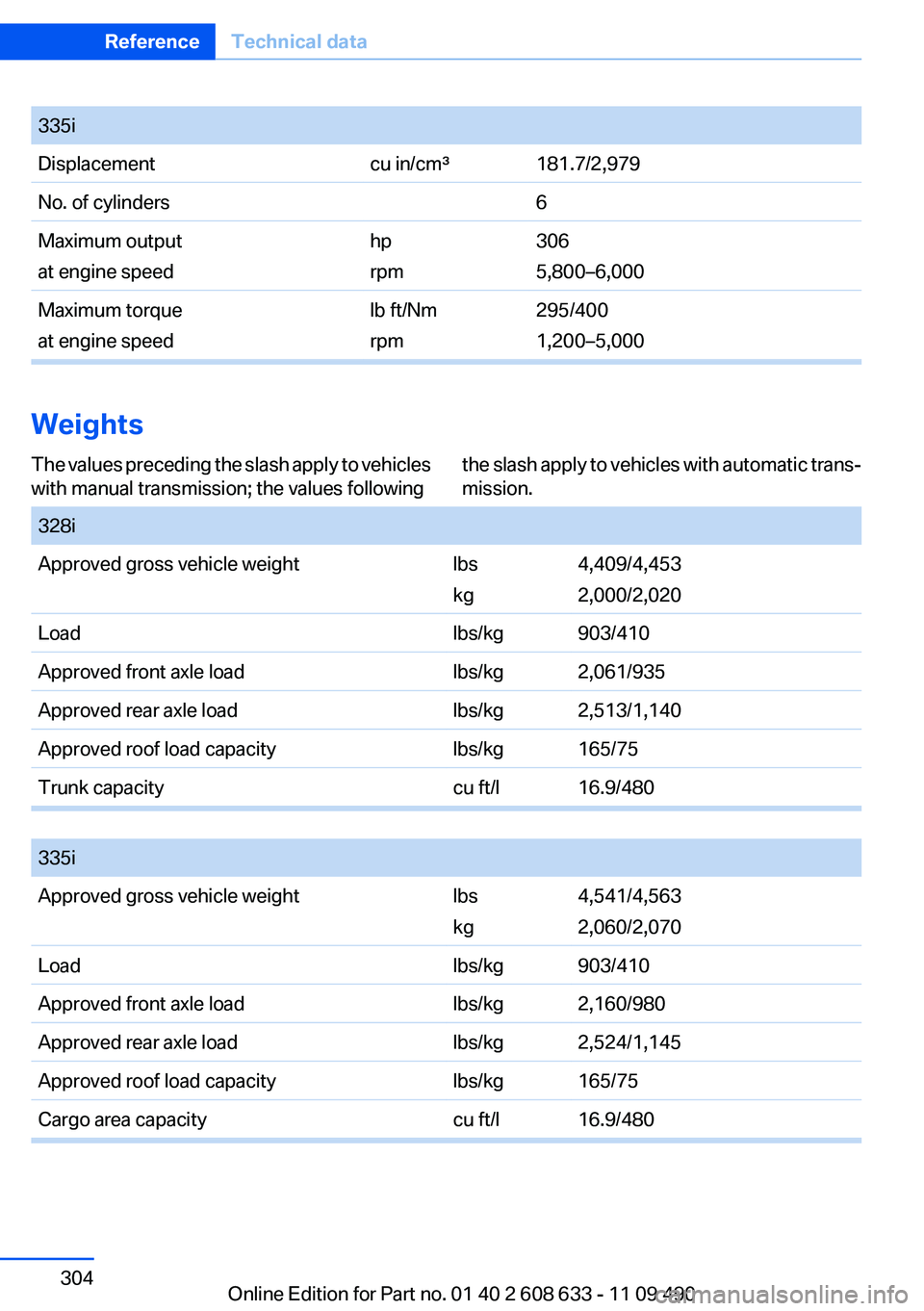

335i
Displacementcu in/cm³ 181.7/2,979
No. of cylinders6
Maximum output
at engine speed
hp
rpm
306
5,800–6,000
Maximum torque
at engine speed
lb ft/Nm
rpm
295/400
1,200–5,000
Weights
The values preceding the slash apply to vehicles
with manual transmission; the values following
the slash apply to vehicles with automatic trans‐
mission.
328i
Approved gross vehicle weightlbs
kg
4,409/4,453
2,000/2,020
Loadlbs/kg 903/410
Approved front axle loadlbs/kg 2,061/935
Approved rear axle loadlbs/kg 2,513/1,140
Approved roof load capacitylbs/kg 165/75
Trunk capacitycu ft/l 16.9/480

335i
Approved gross vehicle weightlbs
kg
4,541/4,563
2,060/2,070
Loadlbs/kg 903/410
Approved front axle loadlbs/kg 2,160/980
Approved rear axle loadlbs/kg 2,524/1,145
Approved roof load capacitylbs/kg 165/75
Cargo area capacitycu ft/l 16.9/480
Seite 304
ReferenceTechnical data
304Online Edition for Part no. 01 40 2 608 633 - 11 09 490

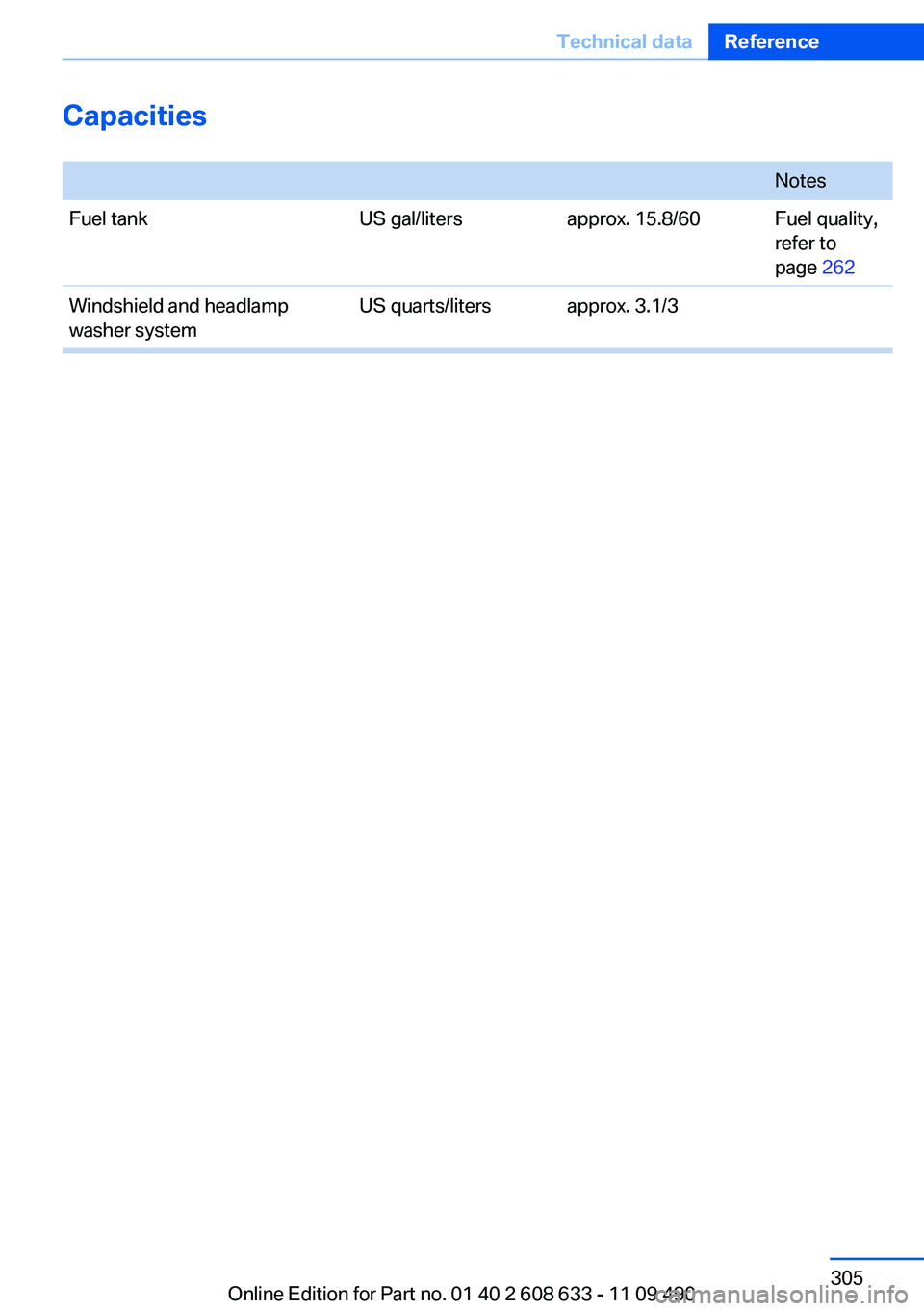

Capacities
Notes
Fuel tankUS gal/litersapprox. 15.8/60 Fuel quality,
refer to
page 262
Windshield and headlamp
washer system
US quarts/liters approx. 3.1/3
Seite 305
Technical dataReference
305Online Edition for Part no. 01 40 2 608 633 - 11 09 490

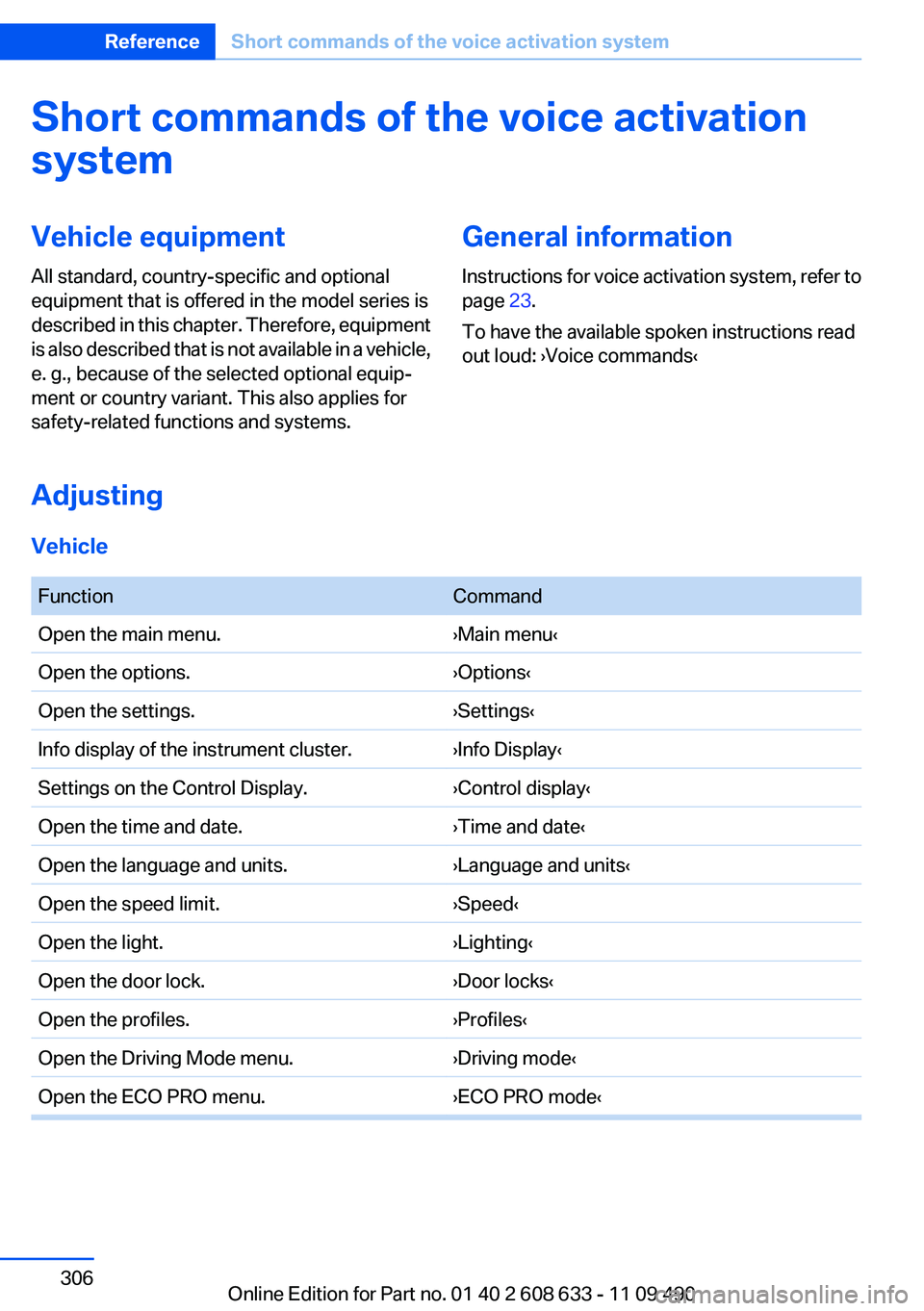

Short commands of the voice activation
system
Vehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipment
is also described that is not available in a vehicle,
e. g., because of the selected optional equip‐
ment or country variant. This also applies for
safety-related functions and systems.
General information
Instructions for voice activation system, refer to
page 23.
To have the available spoken instructions read
out loud: ›Voice commands‹
Adjusting
Vehicle
FunctionCommand
Open the main menu.›Main menu‹
Open the options.›Options‹
Open the settings.›Settings‹
Info display of the instrument cluster.›Info Display‹
Settings on the Control Display.›Control display‹
Open the time and date.›Time and date‹
Open the language and units.›Language and units‹
Open the speed limit.›Speed‹
Open the light.›Lighting‹
Open the door lock.›Door locks‹
Open the profiles.›Profiles‹
Open the Driving Mode menu.›Driving mode‹
Open the ECO PRO menu.›ECO PRO mode‹
Seite 306
ReferenceShort commands of the voice activation system
306Online Edition for Part no. 01 40 2 608 633 - 11 09 490

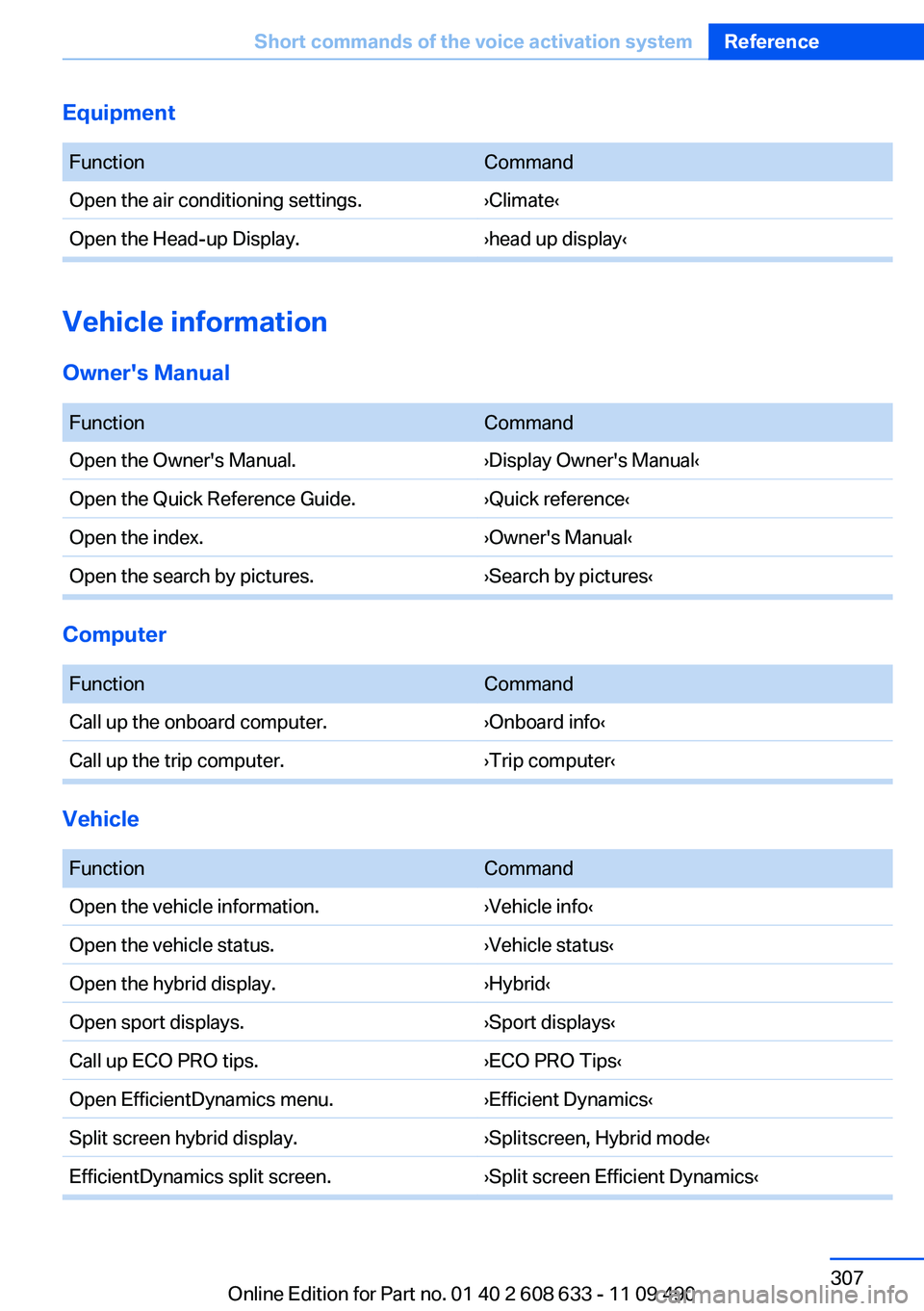

Equipment
FunctionCommand
Open the air conditioning settings.›Climate‹
Open the Head-up Display.›head up display‹
Vehicle information
Owner's Manual
FunctionCommand
Open the Owner's Manual.›Display Owner's Manual‹
Open the Quick Reference Guide.›Quick reference‹
Open the index.›Owner's Manual‹
Open the search by pictures.›Search by pictures‹
Computer
FunctionCommand
Call up the onboard computer.›Onboard info‹
Call up the trip computer.›Trip computer‹
Vehicle
FunctionCommand
Open the vehicle information.›Vehicle info‹
Open the vehicle status.›Vehicle status‹
Open the hybrid display.›Hybrid‹
Open sport displays.›Sport displays‹
Call up ECO PRO tips.›ECO PRO Tips‹
Open EfficientDynamics menu.›Efficient Dynamics‹
Split screen hybrid display.›Splitscreen, Hybrid mode‹
EfficientDynamics split screen.›Split screen Efficient Dynamics‹
Seite 307
Short commands of the voice activation systemReference
307Online Edition for Part no. 01 40 2 608 633 - 11 09 490

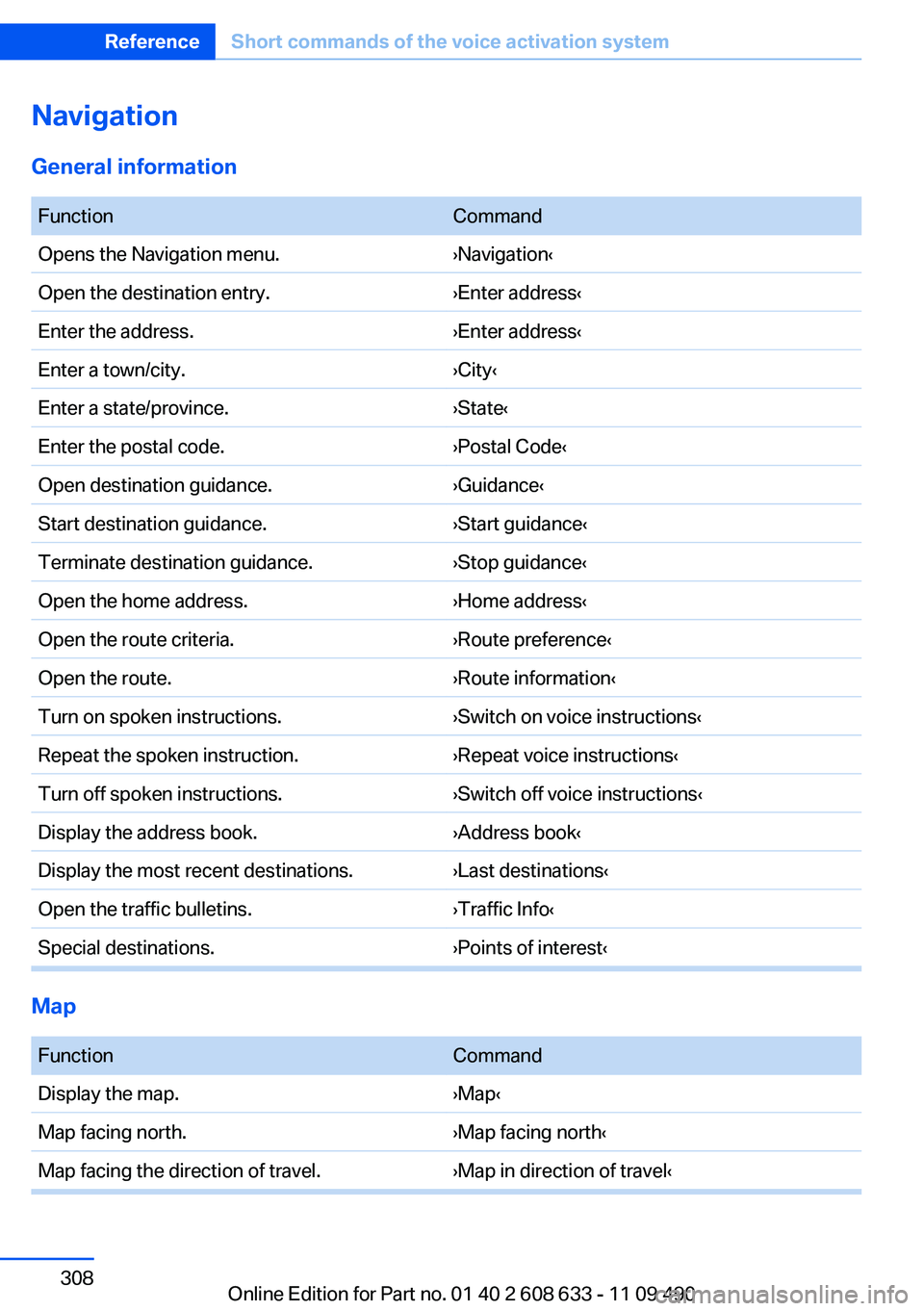

Navigation
General information
FunctionCommand
Opens the Navigation menu.›Navigation‹
Open the destination entry.›Enter address‹
Enter the address.›Enter address‹
Enter a town/city.›City‹
Enter a state/province.›State‹
Enter the postal code.›Postal Code‹
Open destination guidance.›Guidance‹
Start destination guidance.›Start guidance‹
Terminate destination guidance.›Stop guidance‹
Open the home address.›Home address‹
Open the route criteria.›Route preference‹
Open the route.›Route information‹
Turn on spoken instructions.›Switch on voice instructions‹
Repeat the spoken instruction.›Repeat voice instructions‹
Turn off spoken instructions.›Switch off voice instructions‹
Display the address book.›Address book‹
Display the most recent destinations.›Last destinations‹
Open the traffic bulletins.›Traffic Info‹
Special destinations.›Points of interest‹
Map
FunctionCommand
Display the map.›Map‹
Map facing north.›Map facing north‹
Map facing the direction of travel.›Map in direction of travel‹
Seite 308
ReferenceShort commands of the voice activation system
308Online Edition for Part no. 01 40 2 608 633 - 11 09 490

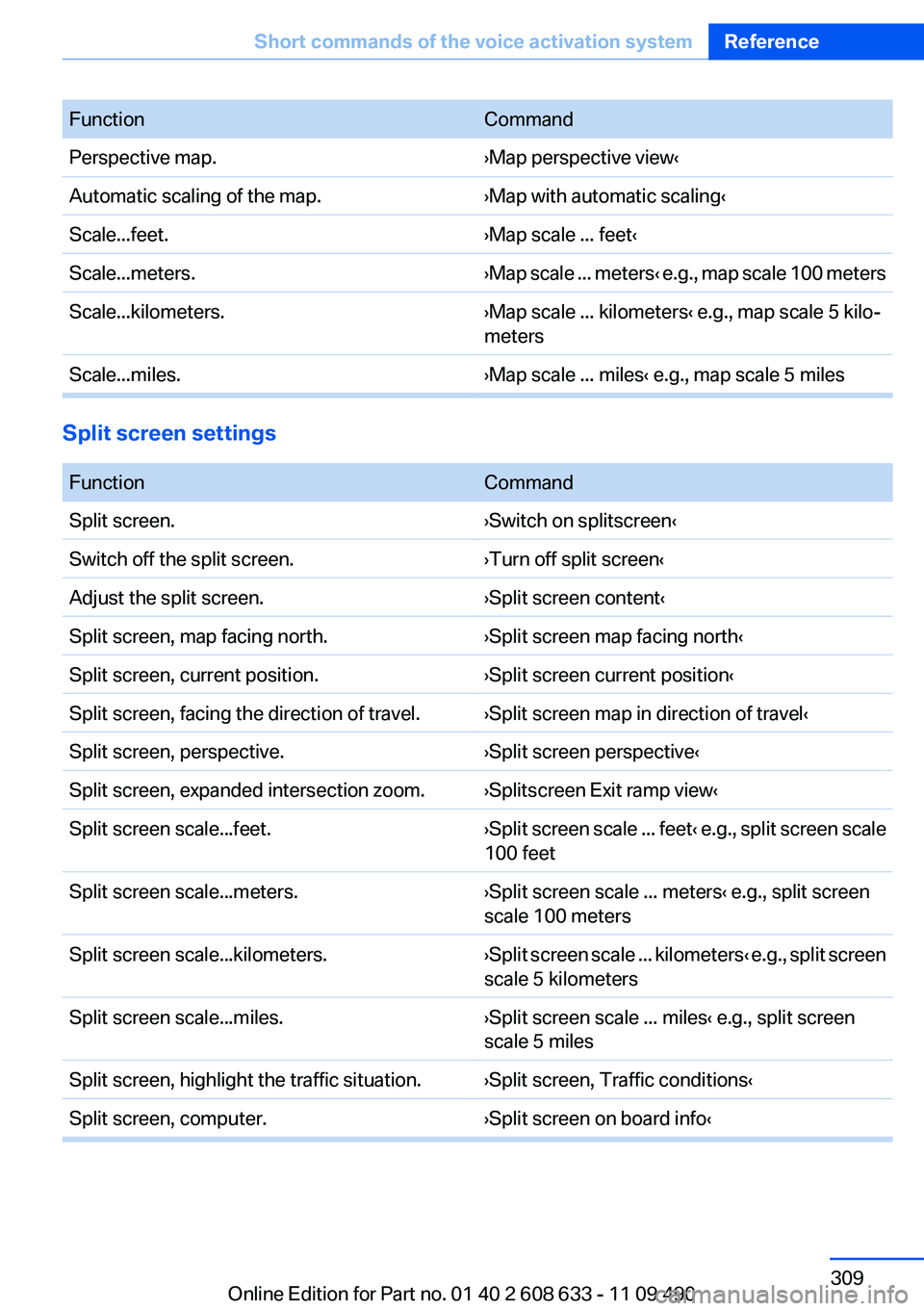

FunctionCommand
Perspective map.›Map perspective view‹
Automatic scaling of the map.›Map with automatic scaling‹
Scale...feet.›Map scale ... feet‹
Scale...meters.›Map scale ... meters‹ e.g., map scale 100 meters
Scale...kilometers.›Map scale ... kilometers‹ e.g., map scale 5 kilo‐
meters
Scale...miles.›Map scale ... miles‹ e.g., map scale 5 miles
Split screen settings
FunctionCommand
Split screen.›Switch on splitscreen‹
Switch off the split screen.›Turn off split screen‹
Adjust the split screen.›Split screen content‹
Split screen, map facing north.›Split screen map facing north‹
Split screen, current position.›Split screen current position‹
Split screen, facing the direction of travel. ›Split screen map in direction of travel‹
Split screen, perspective.›Split screen perspective‹
Split screen, expanded intersection zoom. ›Splitscreen Exit ramp view‹
Split screen scale...feet.›Split screen scale ... feet‹ e.g., split screen scale
100 feet
Split screen scale...meters.›Split screen scale ... meters‹ e.g., split screen
scale 100 meters
Split screen scale...kilometers.›Split screen scale ... kilometers‹ e.g., split screen
scale 5 kilometers
Split screen scale...miles.›Split screen scale ... miles‹ e.g., split screen
scale 5 miles
Split screen, highlight the traffic situation. ›Split screen, Traffic conditions‹
Split screen, computer.›Split screen on board info‹
Seite 309
Short commands of the voice activation systemReference
309Online Edition for Part no. 01 40 2 608 633 - 11 09 490

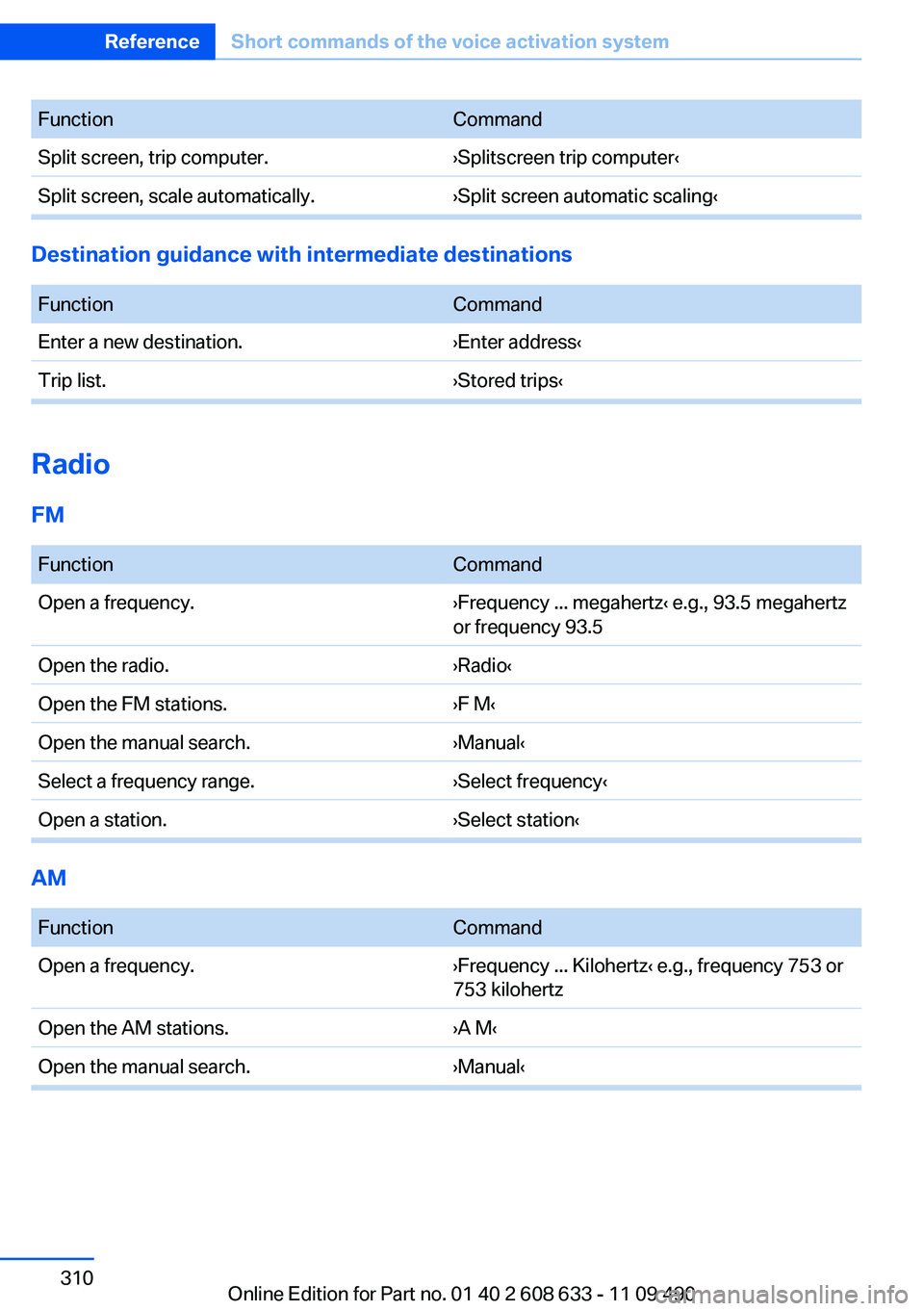

FunctionCommand
Split screen, trip computer.›Splitscreen trip computer‹
Split screen, scale automatically.›Split screen automatic scaling‹
Destination guidance with intermediate destinations
FunctionCommand
Enter a new destination.›Enter address‹
Trip list.›Stored trips‹
Radio
FM
FunctionCommand
Open a frequency.›Frequency ... megahertz‹ e.g., 93.5 megahertz
or frequency 93.5
Open the radio.›Radio‹
Open the FM stations.›F M‹
Open the manual search.›Manual‹
Select a frequency range.›Select frequency‹
Open a station.›Select station‹
AM
FunctionCommand
Open a frequency.›Frequency ... Kilohertz‹ e.g., frequency 753 or
753 kilohertz
Open the AM stations.›A M‹
Open the manual search.›Manual‹
Seite 310
ReferenceShort commands of the voice activation system
310Online Edition for Part no. 01 40 2 608 633 - 11 09 490
