BMW 318ti 1998 E36 Electrical Troubleshooting Manual
Manufacturer: BMW, Model Year: 1998, Model line: 318ti, Model: BMW 318ti 1998 E36Pages: 281, PDF Size: 2.95 MB
Page 211 of 281
COMPONENT LOCATION CHART
:
!
COMP.8500.0 7100.0LOCATION DESCRIPTION
E8 . . . . RIGHT HEADLIGHT . . . . . . . . . . . . . . . . . front RH side of engine compartment
E9 . . . .
REAR DEFOGGER I . . . . . . . . . . . . . . . .
on lift gate
E11 . . . LEFT HIGH BEAM LIGHT . . . . . . . . . . . . near LH headlight assembly
E12 . . RIGHT HIGH BEAM LIGHT . . . . . . . . . . near RH headlight assembly
E13 . .
LEFT LOW BEAM LIGHT . . . . . . . . . . . .
near LH headlight assembly
E14 . .
RIGHT LOW BEAM LIGHT . . . . . . . . . . .
near RH headlight assembly
E15 . . LEFT PARK LIGHT . . . . . . . . . . . . . . . . . . front of vehicle
E19 . . RIGHT PARK LIGHT . . . . . . . . . . . . . . . . front of vehicle
E26 . .
LEFT FOG LIGHT . . . . . . . . . . . . . . . . . . .
under LH front bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
06-2
E27 . . RIGHT FOG LIGHT . . . . . . . . . . . . . . . . . under RH front bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 06-2
E28 . . FRONT CIGAR LIGHTER . . . . . . . . . . . . center console
E29 . . FRONT CIGAR LIGHTER LIGHT . . . . . center console
E32z .
REAR CENTER INTERIOR LIGHT . . . .
in roof panel
E34 . .
FRONT DOME LIGHT/MAP READING
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . .
in roof panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
00-3
E35 . . DRIVER’S MAKE–UP MIRROR LIGHT in sun visor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-1
E36 . .
PASSENGER’S MAKE–UP MIRROR
LIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . .
in sun visor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15-1
E42 . . GLOVE BOX LIGHT . . . . . . . . . . . . . . . . . RH side of glove box
E43 . .
LEFT LICENSE PLATE LIGHT . . . . . . . .
underside of luggage compartment lid, near license plate . . . . . . . . . . . . . .
07-1
E44 . . RIGHT LICENSE PLATE LIGHT . . . . . . underside of luggage compartment lid, near license plate . . . . . . . . . . . . . . 07-1
Page 212 of 281
COMPONENT LOCATION CHART
:
!
COMP.8500.0 7100.0LOCATION DESCRIPTION
E46 . .
LEFT LUGGAGE COMPARTMENT
LIGHT ASSEMBLY . . . . . . . . . . . . . . . .
in LH rear side of luggage compartment
E47 . .
RIGHT LUGGAGE COMPARTMENT
LIGHT ASSEMBLY . . . . . . . . . . . . . . . .
in RH rear side of luggage compartment
E51 . .
LEFT WASHER JET HEATER . . . . . . . .
on underside of engine hood
E52 . . RIGHT WASHER JET HEATER . . . . . . . on underside of engine hood
E56 . . DRIVER’S SEATBACK HEATER . . . . . . in upper LH front seatback
E57 . . DRIVER’S SEAT HEATER . . . . . . . . . . . under LH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-3
E58 . .
PASSENGER’S SEAT HEATER . . . . . . .
underside of RH front seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30-3
E59 . . PASSENGER’S SEATBACK HEATER . in upper RH front seatback
E61 . . LEFT FRONT FOOTWELL LIGHT . . . . . LH footwell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-3
E62 . .
RIGHT FRONT FOOTWELL LIGHT . . .
right footwell
E82 . .
TRANSMISSION POSITION
INDICATOR LIGHT . . . . . . . . . . . . . . . .
center console
E97 . . LIGHT SWITCH ILLUMINATION . . . . . . LH side of dash
E98 . . FOG LIGHT SWITCH ILLUMINATION . center of dash
E103 .
CLIMATE CONTROL SWITCH
ILLUMINATION . . . . . . . . . . . . . . . . . . .
center console
F97 . . .
FUSIBLE LINK . . . . . . . . . . . . . . . . . . . . . .
rear of engine compartment
G1 . . . BATTERY . . . . . . . . . . . . . . . . . . . . . . . . . . rear RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 03-3
G5 . . . DRIVER’S AIR BAG GAS GENERATOR behind steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-1
Page 213 of 281
COMPONENT LOCATION CHART
:
!
COMP.8500.0 7100.0LOCATION DESCRIPTION
G6 . . .
PASSENGER’S AIR BAG GAS
GENERATOR . . . . . . . . . . . . . . . . . . . . .
behind glove box above . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18-3
G12 . .
DRIVER’S SIDE PYROTECHNICAL
BELT TENSIONER . . . . . . . . . . . . . . . .
driver’s seat right
G13 . .
PASSENGER’S SIDE
PYROTECHNICAL BELT
TENSIONER . . . . . . . . . . . . . . . . . . . . .
passenger’s seat left
G14 . .
LEFT SIDE AIR BAG GAS
GENERATOR . . . . . . . . . . . . . . . . . . . . .
in driver’s door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30-1
G15 . .
RIGHT SIDE AIR BAG GAS
GENERATOR . . . . . . . . . . . . . . . . . . . . .
in passenger’s door
G6509
GENERATOR . . . . . . . . . . . . . . . . . . . . . .
front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
03-1
H1w . . ANTI–THEFT HORN (ALPINE) . . . . . . . in RH front bumper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 07-3
H2 . . . LEFT HORN . . . . . . . . . . . . . . . . . . . . . . . . front of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-3
H3 . . . RIGHT HORN . . . . . . . . . . . . . . . . . . . . . . front of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-3
H4 . . .
RIGHT FRONT TURN LIGHT . . . . . . . . .
RH front of vehicle
H5 . . . RIGHT REAR TURN LIGHT . . . . . . . . . . RH side of body rear end
H6 . . . LEFT REAR TURN LIGHT . . . . . . . . . . . LH side of body rear end
H7 . . .
LEFT FRONT TURN LIGHT . . . . . . . . . .
LH front of vehicle
H8 . . .
RIGHT FRONT AUXILIARY TURN
LIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . .
RH front of vehicle
H9 . . . LEFT FRONT AUXILIARY TURN LIGHT LH front of vehicle
H10 . . CHIME MODULE . . . . . . . . . . . . . . . . . . . above LH footwell dash panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-3
Page 214 of 281

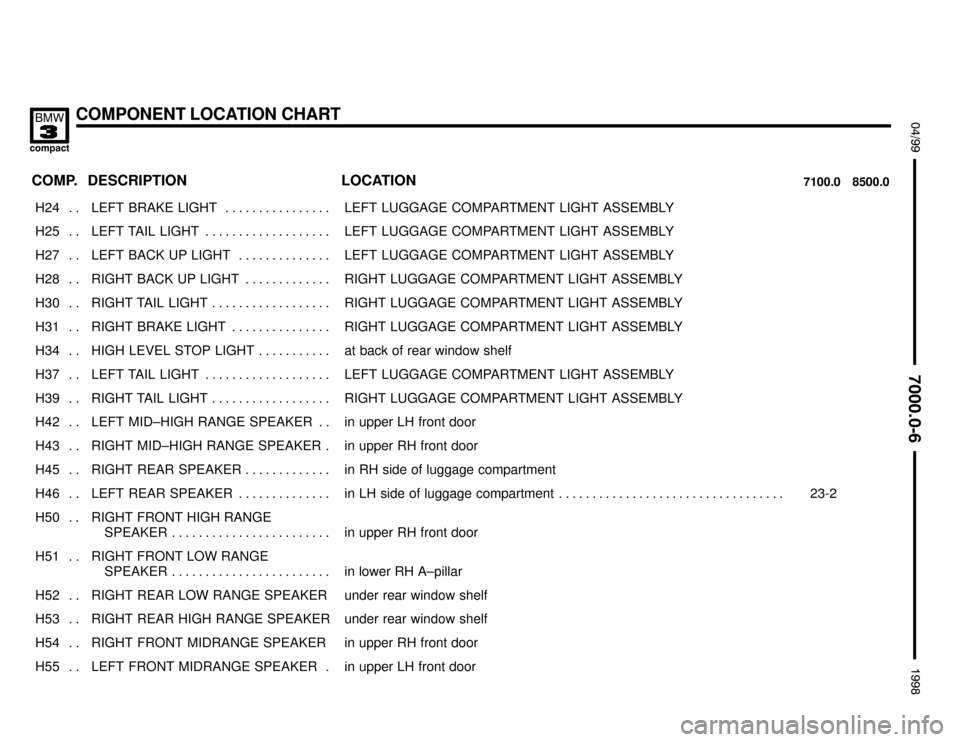

COMPONENT LOCATION CHART
:
!
COMP.8500.0 7100.0LOCATION DESCRIPTION
H24 . . LEFT BRAKE LIGHT . . . . . . . . . . . . . . . . LEFT LUGGAGE COMPARTMENT LIGHT ASSEMBLY
H25 . .
LEFT TAIL LIGHT . . . . . . . . . . . . . . . . . . .
LEFT LUGGAGE COMPARTMENT LIGHT ASSEMBLY
H27 . . LEFT BACK UP LIGHT . . . . . . . . . . . . . . LEFT LUGGAGE COMPARTMENT LIGHT ASSEMBLY
H28 . . RIGHT BACK UP LIGHT . . . . . . . . . . . . . RIGHT LUGGAGE COMPARTMENT LIGHT ASSEMBLY
H30 . .
RIGHT TAIL LIGHT . . . . . . . . . . . . . . . . . .
RIGHT LUGGAGE COMPARTMENT LIGHT ASSEMBLY
H31 . .
RIGHT BRAKE LIGHT . . . . . . . . . . . . . . .
RIGHT LUGGAGE COMPARTMENT LIGHT ASSEMBLY
H34 . . HIGH LEVEL STOP LIGHT . . . . . . . . . . . at back of rear window shelf
H37 . . LEFT TAIL LIGHT . . . . . . . . . . . . . . . . . . . LEFT LUGGAGE COMPARTMENT LIGHT ASSEMBLY
H39 . .
RIGHT TAIL LIGHT . . . . . . . . . . . . . . . . . .
RIGHT LUGGAGE COMPARTMENT LIGHT ASSEMBLY
H42 . . LEFT MID–HIGH RANGE SPEAKER . . in upper LH front door
H43 . . RIGHT MID–HIGH RANGE SPEAKER . in upper RH front door
H45 . . RIGHT REAR SPEAKER . . . . . . . . . . . . . in RH side of luggage compartment
H46 . .
LEFT REAR SPEAKER . . . . . . . . . . . . . .
in LH side of luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23-2
H50 . .
RIGHT FRONT HIGH RANGE
SPEAKER . . . . . . . . . . . . . . . . . . . . . . . .
in upper RH front door
H51 . .
RIGHT FRONT LOW RANGE
SPEAKER . . . . . . . . . . . . . . . . . . . . . . . .
in lower RH A–pillar
H52 . . RIGHT REAR LOW RANGE SPEAKER under rear window shelf
H53 . . RIGHT REAR HIGH RANGE SPEAKER under rear window shelf
H54 . .
RIGHT FRONT MIDRANGE SPEAKER
in upper RH front door
H55 . . LEFT FRONT MIDRANGE SPEAKER . in upper LH front door
Page 215 of 281
COMPONENT LOCATION CHART
:
!
COMP.8500.0 7100.0LOCATION DESCRIPTION
H56 . . LEFT REAR HIGH RANGE SPEAKER . under rear window shelf
H57 . .
LEFT REAR LOW RANGE SPEAKER .
under rear window shelf
H58 . . LEFT FRONT LOW RANGE SPEAKER in lower LH A–pillar
H59 . . LEFT FRONT HIGH RANGE SPEAKER in upper LH front door
H66 . .
SUBWOOFER . . . . . . . . . . . . . . . . . . . . . .
at back of rear window shelf
H91 . .
RIGHT LUGGAGE COMPARTMENT
LIGHT . . . . . . . . . . . . . . . . . . . . . . . . . . .
in luggage compartment right
I1008 . SEAT MAT . . . . . . . . . . . . . . . . . . . . . . . . . in passenger’s seat area
K2 . . . . HORN RELAY . . . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-2
K4 . . . . BLOWER RELAY . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-2
K9 . . . .
UNLOADER RELAY, TERMINAL 15 . . .
below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20-1
K13 . . REAR DEFOGGER RELAY . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-1
K16 . . HAZARD FLASHER RELAY . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-2
K19 . .
COMPRESSOR CONTROL RELAY . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
12-1
K21 . . NORMAL SPEED RELAY . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-1
K22 . . HIGH SPEED RELAY . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-1
K45 . .
FOLDING SUNROOF COMFORT
RELAY . . . . . . . . . . . . . . . . . . . . . . . . . . .
below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18-1
K46 . . HIGH BEAM LIGHT RELAY . . . . . . . . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-1
K46z .
DAY LIGHT RELAY MODULE . . . . . . . .
below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18-1
K47 . . FRONT FOG LIGHT RELAY . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-2
Page 216 of 281
COMPONENT LOCATION CHART
:
!
COMP.8500.0 7100.0LOCATION DESCRIPTION
K48 . . LOW BEAM LIGHT RELAY . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-2
K125 .
ABS PUMP MOTOR RELAY, TIMED . . .
Power Distribution Box rear LH side of engine compartment . . . . . . . . . . . .
12-1
K6300 ENGINE CONTROL MODULE RELAY . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-3
K6301w FUEL PUMP RELAY . . . . . . . . . . . . . . . . rear LH side of engine compartment in Power Distribution Box . . . . . . . . . . 12-3
K6304
SECONDARY AIR PUMP RELAY . . . . .
rear LH side of engine compartment in Power Distribution Box . . . . . . . . . .
12-3
K6326
UNLOADER RELAY, TERMINAL 15 . . .
rear RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27-1
M2 . . . FUEL PUMP . . . . . . . . . . . . . . . . . . . . . . . . below RH side of rear seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-2
M3 . . . WIPER MOTOR . . . . . . . . . . . . . . . . . . . . rear of engine compartment below center of cowl . . . . . . . . . . . . . . . . . . . . . 09-1
M4 . . .
WASHER PUMP . . . . . . . . . . . . . . . . . . . .
front RH side of engine compartment on washer fluid reservoir . . . . . . . . . .
07-3
M7 . . .
HEADLIGHT/FOG LIGHT WASHER
PUMP . . . . . . . . . . . . . . . . . . . . . . . . . . .
front RH side of engine compartment on washer fluid reservoir . . . . . . . . . .
14-3
M9 . . . AUXILIARY FAN MOTOR . . . . . . . . . . . . behind front grille behind trim panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
M12 . . DRIVER’S DOOR LOCK MOTOR . . . . . in lower LH front door behind trim panel
M13 . .
PASSENGER’S DOOR LOCK MOTOR
in lower RH side of front door behind trim panel
M16 . . GAS FILLER LOCK MOTOR . . . . . . . . . in RH rear side of luggage compartment behind trim panel . . . . . . . . . . . . . 29-1
M17 . .
LUGGAGE COMPARTMENT LOCK
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . .
rear side of luggage compartment behind trim panel . . . . . . . . . . . . . . . . . . .
23-1
M21 . . DRIVER’S WINDOW MOTOR . . . . . . . . LH front door behind door panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-1
M23 . . PASSENGER’S WINDOW MOTOR . . . . RH front door behind door panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-2
M24z .
FOLDING SUNROOF MOTOR . . . . . . . .
in roof panel
M25 . .
CRUISE CONTROL ACTUATOR
(TEMPOMAT) . . . . . . . . . . . . . . . . . . . . .
front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
09-3
Page 217 of 281
COMPONENT LOCATION CHART
:
!
COMP.8500.0 7100.0LOCATION DESCRIPTION
M30 . . BLOWER MOTOR . . . . . . . . . . . . . . . . . . rear of engine compartment behind RH fresh air cowl
M50 . .
DRIVER’S SEAT CUSHION TILT
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . .
under driver’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30-3
M51 . .
DRIVER’S SEAT MOVEMENT MOTOR
under driver’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30-3
M52 . . DRIVER’S SEAT HEIGHT MOTOR . . . . under driver’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-3
M53 . .
DRIVER’S SEATBACK RECLINER
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . .
under driver’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30-3
M58 . .
PASSENGER’S SEATBACK RECLINER
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . .
under passenger’s seat
M59 . . PASSENGER’S SEAT HEIGHT MOTOR under passenger’s seat
M60 . .
PASSENGER’S SEAT MOVEMENT
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . .
under passenger’s seat
M61 . .
PASSENGER’S SEAT CUSHION TILT
MOTOR . . . . . . . . . . . . . . . . . . . . . . . . . .
under passenger’s seat
M93 . .
AUXILIARY THROTTLE POSITION
MOTOR (ADS) . . . . . . . . . . . . . . . . . . . .
LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27-3
M111 . FRESH AIR RECIRCULATION MOTOR behind center of dashboard
M6510 STARTER . . . . . . . . . . . . . . . . . . . . . . . . . . rear LH side of engine compartment
N8 . . .
ANTENNA AMPLIFIER AM/FM . . . . . . .
on lift gate
N9 . . . RADIO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . center console
N12w .
ANTI–THEFT CONTROL MODULE
(ALPINE) . . . . . . . . . . . . . . . . . . . . . . . . .
RH side of dash behind glove box
N17 . . CRASH CONTROL MODULE . . . . . . . . . behind instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-1
Page 218 of 281
COMPONENT LOCATION CHART
:
!
COMP.8500.0 7100.0LOCATION DESCRIPTION
N22 . . CD CHANGER . . . . . . . . . . . . . . . . . . . . . . in LH forward side of luggage compartment
P90 . .
FRONT POWER DISTRIBUTION BOX
rear LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
03-2
P95 . . AUXILIARY FUSE BOX . . . . . . . . . . . . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20-1
P97 . . AUXILIARY FUSE BOX . . . . . . . . . . . . . . below LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18-1
R11 . .
BLOWER RESISTORS . . . . . . . . . . . . . .
behind center of dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18-2
R6252
THROTTLE POSITION SENSOR . . . . .
LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10-2
R6255z
THROTTLE POSITION SENSOR
(ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27-2
S2 . . . . IGNITION SWITCH . . . . . . . . . . . . . . . . . . LH side of dash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-3
S3 . . . .
AUTOMATIC TRANSMISSION RANGE
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19-1
S4 . . . .
HORN SWITCH . . . . . . . . . . . . . . . . . . . . .
on steering wheel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16-1
S5 . . . . WIPER/WASHER SWITCH . . . . . . . . . . . LH side of dash RH side of steering column above
S6 . . . . ASC SWITCH . . . . . . . . . . . . . . . . . . . . . . center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30-2
S7 . . . . COMBINATION SWITCH . . . . . . . . . . . . . LH side of dash LH side of steering column above . . . . . . . . . . . . . . . . . . . . 16-3
S8 . . . .
LIGHT SWITCH . . . . . . . . . . . . . . . . . . . . .
LH side of dash
S13 . . PASSENGER’S DOOR JAMB SWITCH RH front door jamb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-1
S14 . . DRIVER’S DOOR JAMB SWITCH . . . . . front LH door pillar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-1
S17 . . MIRROR CONTROL SWITCH . . . . . . . . in upper LH front door
S18 . .
HAZARD SWITCH . . . . . . . . . . . . . . . . . .
below front of console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19-1
S21w . ENGINE HOOD SWITCH . . . . . . . . . . . . front RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-3
Page 219 of 281
COMPONENT LOCATION CHART
:
!
COMP.8500.0 7100.0LOCATION DESCRIPTION
S28 . . CRUISE CONTROL SWITCH . . . . . . . . . LH side of dash RH side of steering column above . . . . . . . . . . . . . . . . . . . . 16-3
S29 . .
BRAKE LIGHT SWITCH . . . . . . . . . . . . .
LH footwell on brake pedal support bracket behind LH footwell trim . . . . . .
15-3
S30 . . BRAKE LIGHT SWITCH . . . . . . . . . . . . . LH footwell on clutch pedal support bracket behind LH footwell trim . . . . . 15-3
S31 . . PARK BRAKE SWITCH . . . . . . . . . . . . . . center console on rear of park brake lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15-2
S32 . .
CLUTCH SWITCH . . . . . . . . . . . . . . . . . .
LH footwell underside of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15-3
S36y .
DOUBLE TEMPERATURE SWITCH . . .
front RH side of engine compartment near RH headlight assembly . . . . . .
08-3
S37 . . GLOVE BOX LIGHT SWITCH . . . . . . . . in glove box
S38z . TILT/SLIDE SUNROOF SWITCH (SHD) in roof panel
S47 . .
DRIVER’S DOOR LOCK SWITCH . . . . .
LH front door in door at key lock assembly
S48 . . DRIVER’S DOOR HANDLE SWITCH . . in driver’s door
S49 . . PASSENGER’S DOOR LOCK SWITCH RH front door in door at key lock assembly
S51 . .
DRIVER’S SEAT, SEAT CONTROL
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
under driver’s seat
S53 . .
DRIVER’S SEAT, SEAT HEATER
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30-2
S54 . .
PASSENGER’S SEAT, SEAT HEATER
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
center console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19-1
S56 . .
PASSENGER’S SEAT, SEAT CONTROL
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
under passenger’s seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19-1
S58 . . DRIVER’S SEAT BELT SWITCH . . . . . . in LH front seat belt buckle
S59 . . PASSENGER’S SEAT BELT SWITCH . in RH front seat belt buckle
Page 220 of 281
COMPONENT LOCATION CHART
:
!
COMP.8500.0 7100.0LOCATION DESCRIPTION
S61y .
LUGGAGE COMPARTMENT LIGHT
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
underside of luggage compartment lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22-2
S75 . . BLOWER SWITCH . . . . . . . . . . . . . . . . . . center of dash
S77 . .
DRIVER’S MAKE–UP MIRROR
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
above LH sun visor in sun visor bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24-1
S78 . .
PASSENGER’S MAKE–UP MIRROR
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
above RH sun visor in sun visor bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15-1
S82y . FOG LIGHT SWITCH . . . . . . . . . . . . . . . . on instrument cluster
S126y DRIVER’S POWER WINDOW SWITCH center console near gearshift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19-2
S127y
PASSENGER’S POWER WINDOW
SWITCH . . . . . . . . . . . . . . . . . . . . . . . . .
center console near gearshift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19-2
S198 .
JET HEATER THERMOSWITCH . . . . . .
front LH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29-2
S218 . REAR DEFOGGER SWITCH . . . . . . . . . center console
S235 . STARTER IMMOBILIZATION SWITCH . LH footwell underside of steering column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23-3
S238 . FOLDING SUNROOF SWITCH . . . . . . . in roof panel
S302 .
CENTRAL LOCKING SWITCH . . . . . . . .
center console near gearshift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19-2
S530 . IHKS CONTROL SWITCH . . . . . . . . . . . . center of dash
S531 . TEMPERATURE WHEEL SWITCH . . . . center of dash
S8503
PROGRAM SWITCH . . . . . . . . . . . . . . . .
center console
S8507 KICK–DOWN SWITCH . . . . . . . . . . . . . . LH footwell
S8511 REVERSING LIGHT SWITCH . . . . . . . . under front of car LH side of transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-3
T6151 CYL. 1 IGNITION COIL . . . . . . . . . . . . . . RH side of engine compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3
