BMW 330i TOURING 2001 E46 User Guide

11n

Controls and features
Maintenance and care

Lamps:

Side lamps/Low beams87
Instrument lighting87
High beams/Parking lamps88
Fog lamps88
Interior lamps88

Controlling the climate
for pleasant driving:

Air conditioner90
Automatic climate control96
Seat heating100

Cabin convenience:

HiFi system101
Glove compartment101
Storage compartments102
Cellular phone103
Ashtray, front104
Cigarette lighter104
Ashtray, rear105
Power outlet105

Loading and transporting:

Ski bag106
Cargo area107
Cargo loading110
Roof-mounted luggage rack111

Special operating instructions:

Break-in procedures114
Driving notes115
Catalytic converter115
Antilock Brake System
(ABS)116
Disc brakes118
Brake system120
Winter operation121
Power steering123
Cellular phone123
Radio reception123

Wheels and tires:

Tire inflation pressure124
Tire condition124
Tire replacement125
Tire rotation126
Wheel and tire
combinations127
Winter tires128
Snow chains128
Approved wheel and tire
specifications129

Under the hood:

Hood130
Engine compartment132
Washer fluids134
Washer nozzles134
Engine oil135
Coolant137
Brake fluid138
Vehicle Identification
Number139

Care and maintenance:

The BMW Maintenance
System140
Caring for your vehicle141
Airbags147
Vehicle storage147

Laws and regulations:

Technical modifications
to the vehicle148
California Proposition
65 Warning148
OBD interface socket149

Contents

Owner service procedures
Advanced technology
Technical data

Replacement procedures:

Onboard tool kit152
Windshield wiper blades152
Lamps and bulbs153
Changing a wheel159
Battery162
Fuses164
Microfilter/Activated-charcoal
filter165

In case of electrical
malfunction:

Fuel filler door166
Sliding/Tilt sunroof166
Tailgate166

Assistance, giving and
receiving:

Jump-starting167
Towing the vehicle168Airbags172
Adaptive Transmission Control
(ATC)173
Automatic Stability Control plus
Traction (ASC+T)/Dynamic
Stability Control (DSC)173
Radio reception174
Four-wheel drive175
Safety belt tensioner175
Interior rearview mirror with
automatic dimmer176
Rain sensor177
Tire Pressure Control (RDC)178
Self-diagnostics179
Xenon lamps180Engine data184
Dimensions185
Weights186
Capacities187
Electrical system188
Drive belts188

13n

Index

Everything from A to Z192
Owner service procedures198

14n

Overview
Controls and features
Operation, care
and maintenance
Owner service procedures
Technical data
Index Advanced technology

15n

Index DataTechnologyRepairs Car care Controls Overview
Cockpit16
Instrument cluster18
Indicator and warning lamps20
Multifunction steering wheel
(MFL)24
Sports steering wheel25
Hazard warning flashers26
Warning triangle26
First-aid kit26
Refueling27
Fuel specifications28
Tire inflation pressure28
Overview

16n
460us298

Cockpit

17n

IndexDataTechnologyRepairsCar careControlsOverview

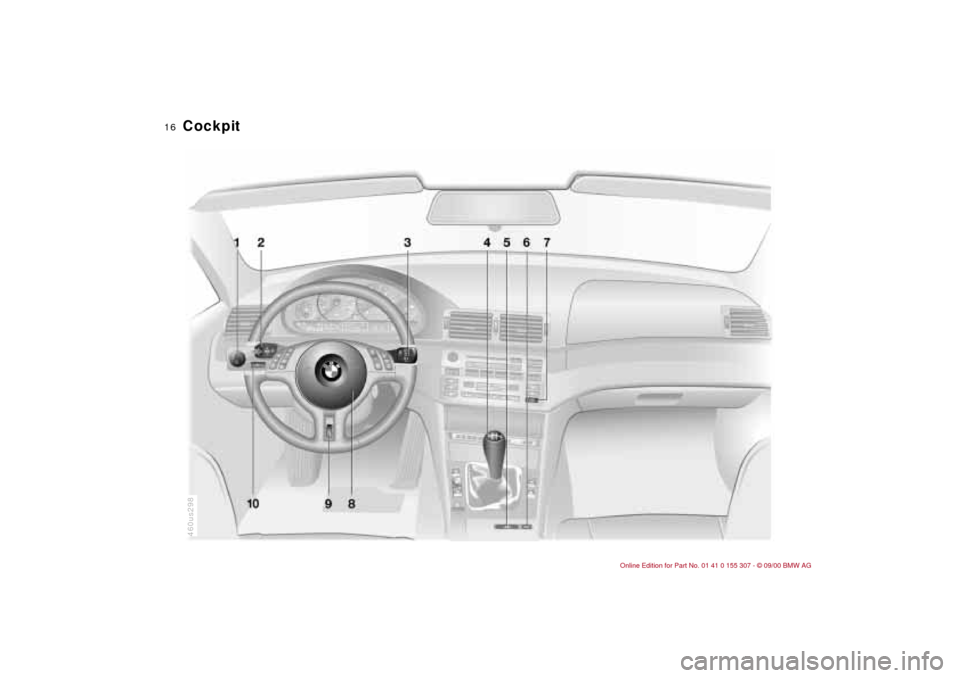

Cockpit

1 Parking lamps/Low beams87
2

d

Turn signal indicator68

>

Parking lamps88

>

High beams88

>

Headlamp flasher68

>

Computer

*
76
3 Washer/Wiper system68
4 Shift lever/Selector lever

*
64
For vehicles equipped with manual
transmission:
To engage reverse gear, press the
lever to the left and overcome the
slight resistance you will encounter
5 Hazard warning flashers26
6 Central locking system34
7 Rear window defroster70
8 Horn sports steering wheel

*
: the
entire surface
9 Adjusting steering wheel50
10 Fog lamps

*
88

18n

Instrument cluster 460us048

19n

IndexDataTechnologyRepairsCar careControlsOverview

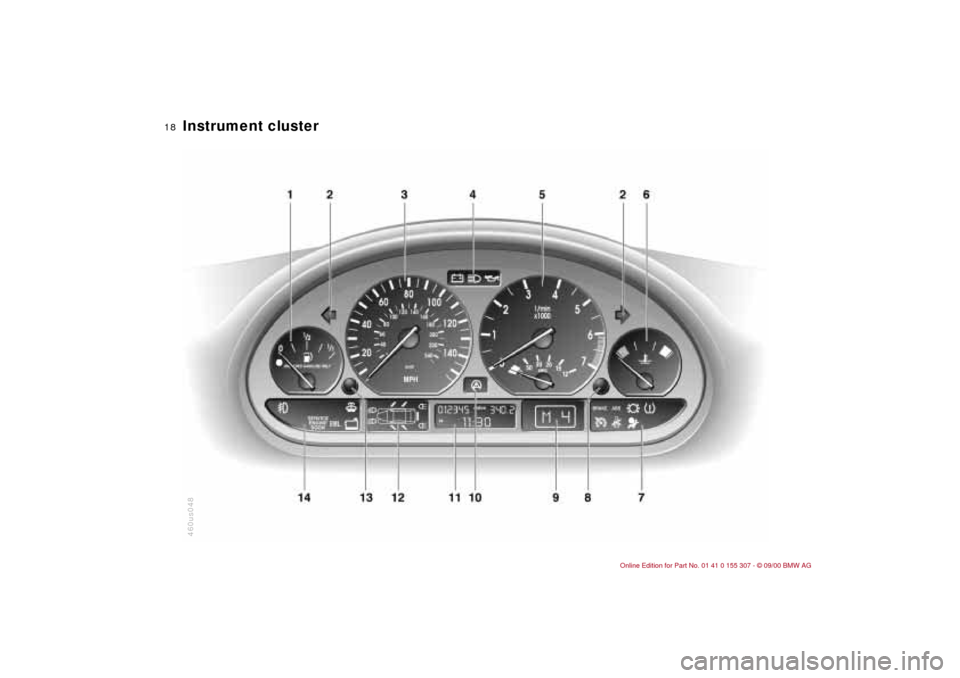

Instrument cluster

1 Fuel gauge with indicator lamp for
fuel reserve74
2 Turn signal indicator23
3 Speedometer
4 Indicator lamp for:

>

Battery charge current20

>

High beams23

>
Engine oil pressure/Engine oil
level20, 22
5 Tachometer and Energy Control73
6 Engine coolant temperature gauge
with "Coolant temperature too high"
indicator74
7 Indicator and warning lamps
(clockwise) for:
> Parking brake/Brake hydraulic
system/Cornering Brake Control
(CBC)/(DBC)20, 21 >
Antilock Brake System (ABS)22
>

Brake pads22

>

Tire Pressure Control
(RDC)20, 22

>

Airbags21

>

Please fasten safety belts21

>

Cruise control

* 23
8 Adjusting knob for the clock759 Program display for automatic
transmission65, 67
Indicator lamp for automatic
transmission21, 65, 67
10 Indicator lamp for Automatic
Stability Control plus Traction
(ASC+T)/Dynamic Stability Control
(DSC) or DSC and
ADB/ADB-X22
11 Indicator for:
>

Odometer73

>

Trip odometer73

>

Clock75

>

Service Interval74
Display for computer, operation
via the turn signal lever, refer to
page 76:

>

Clock

>

Outside temperature

>

Average fuel consumption
> Cruising range >
Average speed
12 Indicator for Check Control75
13 Trip odometer, reset to zero7314 Indicator and warning lamps
(clockwise) for:
>

Fog lamps23

>

Add washer fluid22

>

Coolant level23

>

Electronic Throttle Control
(EML)

*
23

>

Service engine soon23
You can display the outside
temperature and distance driven
in different units of measurement.

<

20n

Indicator and warning lamps

Technology that monitors itself

Many of the systems of your BMW
monitor themselves automatically, both
during engine starts and while you are
driving. Indicator and warning lamps
that are identified by "

l

" are tested for
proper functioning whenever the igni-
tion key is turned. They each light up
once for different periods of time.
If a fault should occur in one of these
systems, the corresponding lamp does
not go out after the engine is started or
it will light up while the vehicle is
moving. You will see how to react to
this below.

Red: stop immediately

Battery charge current

l


The battery is no longer being
charged. There is a malfunction
of the alternator V-belt or in the
charging circuit of the alternator. Please
contact the nearest BMW center.
If the V-belt is defective, do not
continue driving. The engine could
be damaged due to overheating. If the
V-belt is defective, increased steering
effort is also required.

<

Engine oil pressure


l


Stop the vehicle immediately
and switch off the engine. Check
the engine oil level and refill as required.
If the oil level is correct, please contact
the nearest BMW center.
Do not continue driving, otherwise,
the engine could be damaged
because of inadequate lubrication.

<
Tire Pressure Control (RDC) l
In addition, an acoustic signal
will go off: a tire failure has
occurred. Reduce vehicle speed imme-
diately and stop the vehicle. Avoid hard
brake applications. Do not oversteer.
For additional information, refer to
page 85.
Brake warning lamp l
If the lamp comes on when the
parking brake is not engaged,
check the brake fluid level. Before
driving further, be sure to read the
notes on pages 122 and 138.
Brake warning lamp for Cana-
dian models.
