BMW 5 SERIES 2001 E39 Basic handsfree retrokit for updating various mobile phones Instalation Instruction Manual

EN/31Retrofit/Installation kit No. 65 90 0 028 873 84 64 25,805 (others see cover sheet)
Installation Instructions no. 01 29 0 029 541 01 29 0 029 544 Issue date: 04.2001
12. Circuit diagram for the basic wiring harness A in E39 cars
Legend
F1*Floating fuse holder near the left tail light
X001*Socket contact
X002*Black 18-pin plug casing
X003*Socket contact
A1*Console aerial connector
A4*Black 18-pin socket casing
A5*Black 3-pin socket casing; cable compensator
A7*Boot aerial connector
A12*White 12-pin plug casing
A13*White 12-pin socket casing
N9Radio
X13016Cable eyelet, 6 mm in diameter; earth
X13598Black 12-pin plug casing
X181268-pin plug casing
X18507Black 3-pin connection plug; microphone
1)To standard wiring harness
2)To hands-free system wiring harness
The components and X designations marked with an asterisk (*) are only valid for this circuit
diagram.
All the other components and X designations correspond to BMW after-sales circuit diagrams
Colour abbreviations
BL = Blue OR = Orange
BR = Brown OR = Orange
GE = Yellow SW = Black
GN = Green VI = Violet
GR = Grey WS = White

EN/32Retrofit/Installation kit No. 65 90 0 028 873 84 64 25,805 (others see cover sheet)
Installation Instructions no. 01 29 0 029 541 01 29 0 029 544 Issue date: 04.2001
13. Circuit diagram for the basic wiring harness A in E39/2 cars
A5*
130
3TELE ON
231
SCHIRM 0.35
SW
0.35
5AF1*
12RT
1.0
X13016
BR
1.0
A7*1ANTA1*1ANT
SCHIRM
0.5
WS 0.5
A13*
11TELE
3TACHO A
2R
9NF+
10NF-
4I BUS
8TELM
130
558g
B1*
A12*
11TELE
3TACHO A
2R
9NF+
10NF-
4I BUS
8TELM
130
558gGRRT 0.75
RTGN
2.5
VIWS
1.5
WSGN 0.5
SWBR
1.0
SWWS
1.0
WSBR
0.75
WSRT
GE 0.75
SWWS 0.75
13MIK-
4MIK+
3
8 R
5TELNF+
TELNF-
231
18MUTE
1030
1558g
1731
1430
11TELE ON
SWWS 0.35
SWBR
0.35
SWWS
0.35
SWBR
0.35
WSBR
0.35
GRRT
0.35
RT
0.35
VIWS
0.35
X18507 3)N9X18126 X13598
X13598
1MIK+
2MIK-
TELNF+
TELNF-
TELNF+
TELNF-
MUTE
X001*
10MUTE
GRRT 0.75
SWWS 0.35
SWBR
0.35
WSBR 0.35
WSBR
0.35
WSGN 0.35
RTGN
2.5
VIWS 1.5
RTGN
2.5
BR 1.0BR
0.35
BR
0.35
BR
0.5
RT
0.5
RT
0.35
A4* X002*
F 39 1045 B
10
6
612
12
1) 2)
TEL ONWSGN 0.3511
X003*
10WSGN
0.35TEL ON

EN/33Retrofit/Installation kit No. 65 90 0 028 873 84 64 25,805 (others see cover sheet)
Installation Instructions no. 01 29 0 029 541 01 29 0 029 544 Issue date: 04.2001
13. Circuit diagram for the basic wiring harness A in E39/2 cars
Legend
F1*Floating fuse holder near the left tail light
X001*Socket contact
X002*Black 18-pin plug casing
X003*Socket contact
A1*Console aerial connector
A4*Black 18-pin socket casing
A5*Black 3-pin socket casing; cable compensator
A7*Boot aerial connector
A12*White 12-pin plug casing
A13*White 12-pin socket casing
N9Radio
X322Black, 12-pin plug connector; audio hi-fi
X13016Cable eyelet, 6 mm in diameter; earth
X13598Black 12-pin plug casing
X181268-pin plug casing
X18507Black 3-pin connection plug; microphone
1)To power supply wiring harness B
2)To hands-free system wiring harness
3)To be tied back on the standard wiring harness
The components and X designations marked with an asterisk (*) are only valid for this circuit
diagram.
All the other components and X designations correspond to BMW after-sales circuit diagrams
Colour abbreviations
BL = Blue OR = Orange
BR = Brown OR = Orange
GE = Yellow SW = Black
GN = Green VI = Violet
GR = Grey WS = White

EN/34Retrofit/Installation kit No. 65 90 0 028 873 84 64 25,805 (others see cover sheet)
Installation Instructions no. 01 29 0 029 541 01 29 0 029 544 Issue date: 04.2001
14. Circuit diagram for the power supply wiring harness B in E39/2 cars
VIWS 1.5RTGN
2.5GRRT
0.75RTGN
2.5
RTGN
2.5VIWS
1.5
VIWS
1.5
12
58GKL.30 KL.R
KL.R KL.30
5 1 2
21
KL.30
KL.R
1)
1)2)
A12* X325B
B1* B4*
X325S B3*B2*
F 39 1007 B

EN/35Retrofit/Installation kit No. 65 90 0 028 873 84 64 25,805 (others see cover sheet)
Installation Instructions no. 01 29 0 029 541 01 29 0 029 544 Issue date: 04.2001
14. Circuit diagram for the power supply wiring harness B in E39/2 cars
Legend
A12*White 12-pin plug casing
B1*White 12-pin socket casing
B2*Open cable end; connect cable to supply cable X322 PIN5using a 2-way
insulation-piercing connector (1)
B3*Black 2-pin socket casing
B4*Black 2-pin plug casing
X325BBlack 2-pin socket casing
X325SBlack 2-pin plug casing
1)To standard wiring harness
2)To basic wiring harness A
The components and X designations marked with an asterisk (*) are only valid for this circuit
diagram.
All the other components and X designations correspond to BMW after-sales circuit diagrams
Colour abbreviations
BL = Blue OR = Orange
BR = Brown OR = Orange
GE = Yellow SW = Black
GN = Green VI = Violet
GR = Grey WS = White

EN/36Retrofit/Installation kit No. 65 90 0 028 873 84 64 25,805 (others see cover sheet)
Installation Instructions no. 01 29 0 029 541 01 29 0 029 544 Issue date: 04.2001

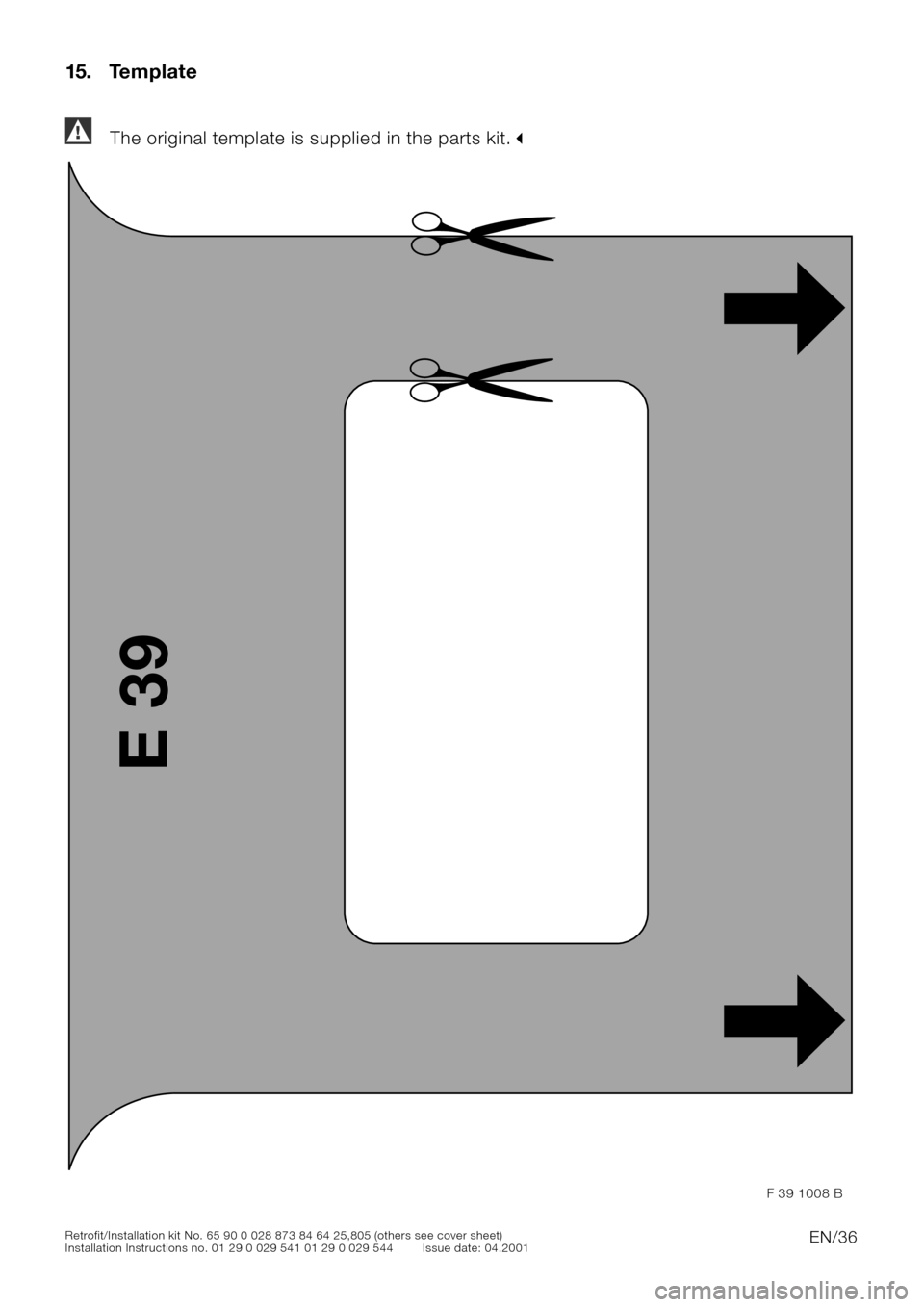

15. Template
The original template is supplied in the parts kit."0!
E 39
F 39 1008 B
