BMW 535I GRAN TURISMO 2012 Owners Manual

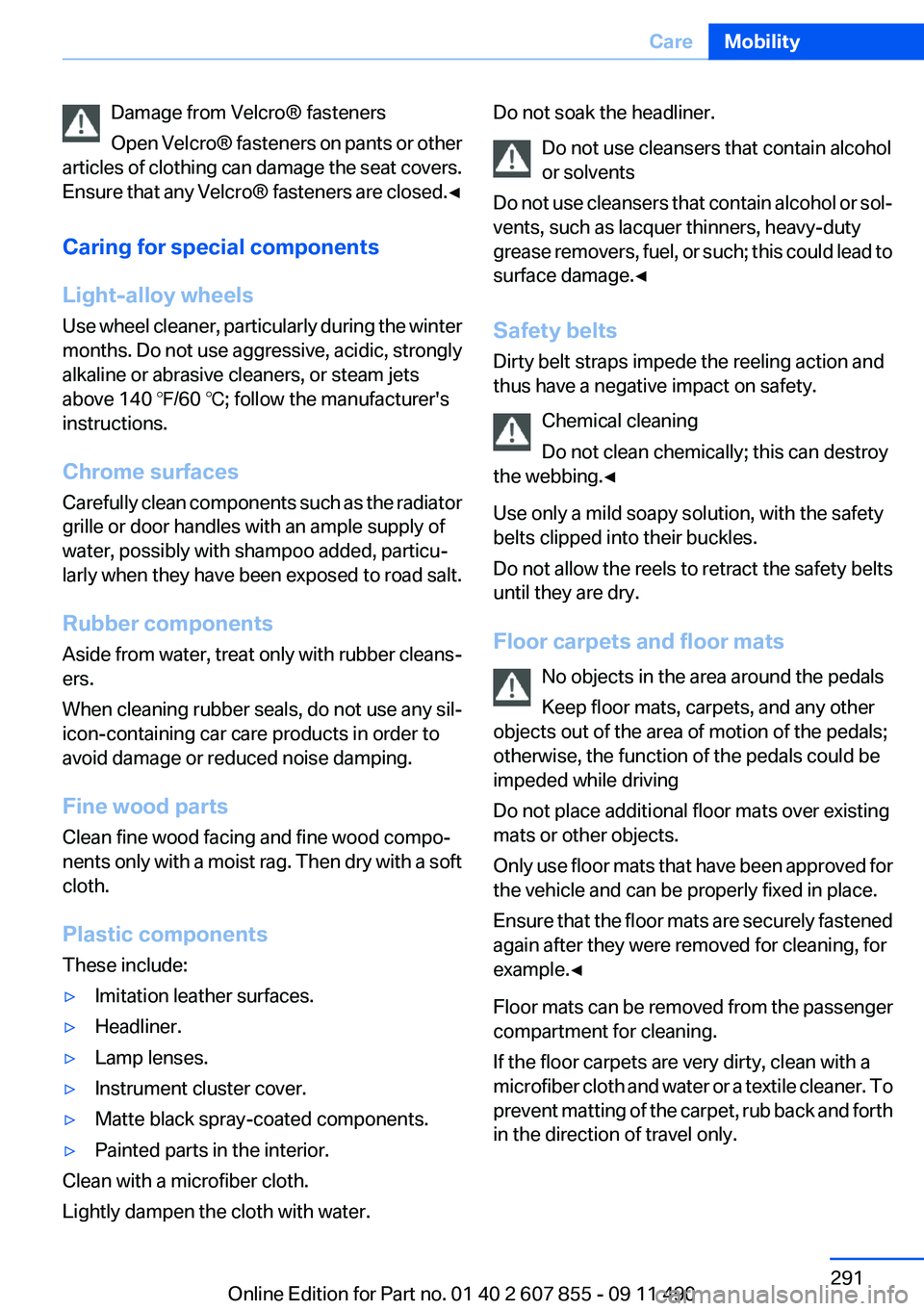

Damage from Velcro® fasteners
Open Velcro® fasteners on pants or other
articles of clothing can damage the seat covers.
Ensure that any Velcro® fasteners are closed. ◀
Caring for special components
Light-alloy wheels
Use wheel cleaner, particularly during the winter
months. Do not use aggressive, acidic, strongly
alkaline or abrasive cleaners, or steam jets
above 140 ℉/60 ℃; follow the manufacturer's
instructions.
Chrome surfaces
Carefully clean components such as the radiator
grille or door handles with an ample supply of
water, possibly with shampoo added, particu‐
larly when they have been exposed to road salt.
Rubber components
Aside from water, treat only with rubber cleans‐
ers.
When cleaning rubber seals, do not use any sil‐
icon-containing car care products in order to
avoid damage or reduced noise damping.
Fine wood parts
Clean fine wood facing and fine wood compo‐
nents only with a moist rag. Then dry with a soft
cloth.
Plastic components
These include:▷Imitation leather surfaces.▷Headliner.▷Lamp lenses.▷Instrument cluster cover.▷Matte black spray-coated components.▷Painted parts in the interior.
Clean with a microfiber cloth.
Lightly dampen the cloth with water.
Do not soak the headliner.
Do not use cleansers that contain alcohol
or solvents
Do not use cleansers that contain alcohol or sol‐
vents, such as lacquer thinners, heavy-duty
grease removers, fuel, or such; this could lead to
surface damage.◀
Safety belts
Dirty belt straps impede the reeling action and
thus have a negative impact on safety.
Chemical cleaning
Do not clean chemically; this can destroy
the webbing.◀
Use only a mild soapy solution, with the safety
belts clipped into their buckles.
Do not allow the reels to retract the safety belts
until they are dry.
Floor carpets and floor mats No objects in the area around the pedals
Keep floor mats, carpets, and any other
objects out of the area of motion of the pedals;
otherwise, the function of the pedals could be
impeded while driving
Do not place additional floor mats over existing
mats or other objects.
Only use floor mats that have been approved for
the vehicle and can be properly fixed in place.
Ensure that the floor mats are securely fastened
again after they were removed for cleaning, for
example.◀
Floor mats can be removed from the passenger
compartment for cleaning.
If the floor carpets are very dirty, clean with a
microfiber cloth and water or a textile cleaner. To
prevent matting of the carpet, rub back and forth
in the direction of travel only.Seite 291CareMobility291
Online Edition for Part no. 01 40 2 607 855 - 09 11 490

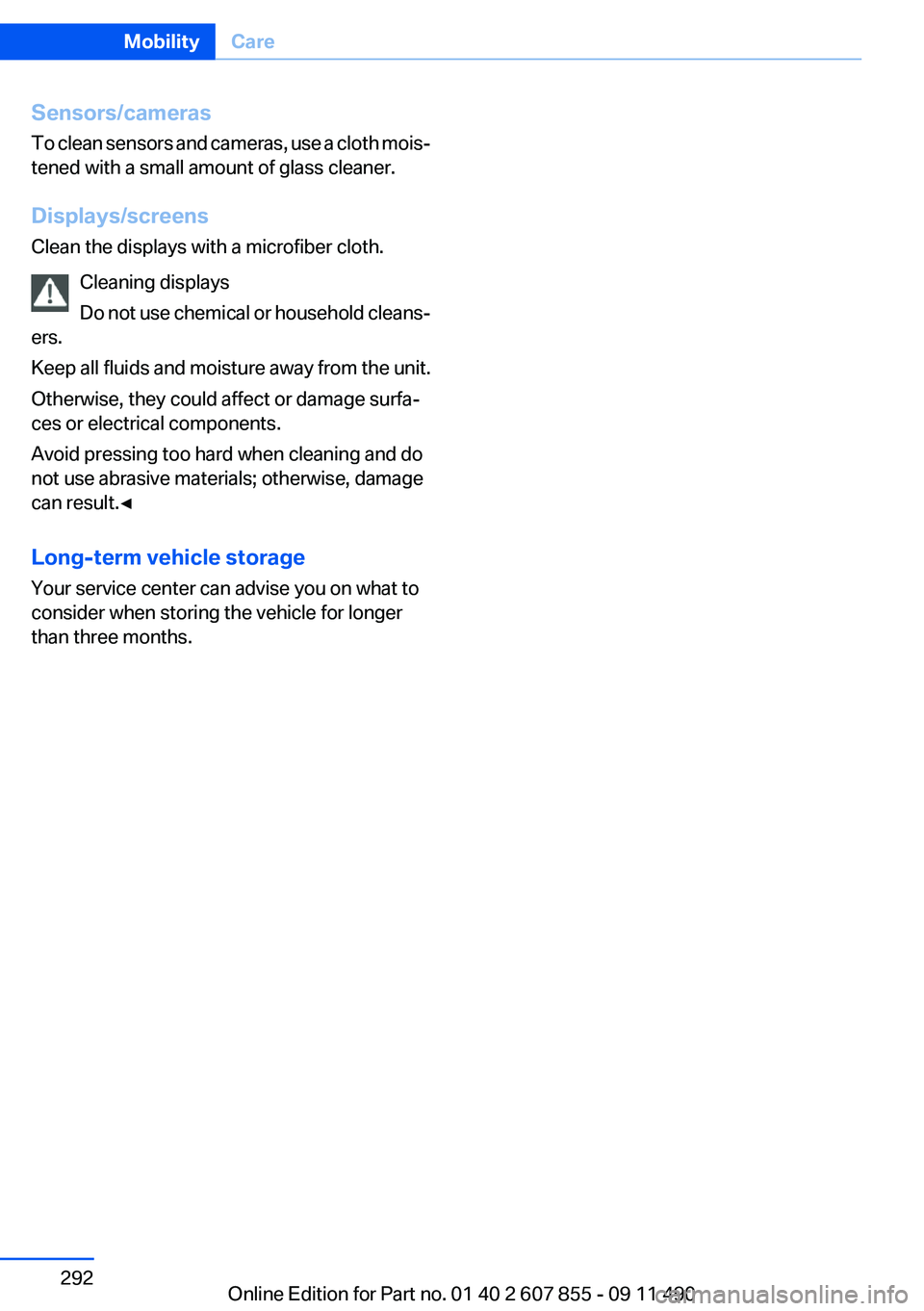

Sensors/cameras
To clean sensors and cameras, use a cloth mois‐
tened with a small amount of glass cleaner.
Displays/screens
Clean the displays with a microfiber cloth.
Cleaning displays
Do not use chemical or household cleans‐
ers.
Keep all fluids and moisture away from the unit.
Otherwise, they could affect or damage surfa‐
ces or electrical components.
Avoid pressing too hard when cleaning and do
not use abrasive materials; otherwise, damage
can result.◀
Long-term vehicle storage
Your service center can advise you on what to
consider when storing the vehicle for longer
than three months.Seite 292MobilityCare292
Online Edition for Part no. 01 40 2 607 855 - 09 11 490

Seite 293CareMobility293
Online Edition for Part no. 01 40 2 607 855 - 09 11 490

Online Edition for Part no. 01 40 2 607 855 - 09 11 490

Reference
This chapter contains technical data, short
commands for the voice activation system, and an index that will quickly take you to the information you need.Online Edition for Part no. 01 40 2 607 855 - 09 11 490

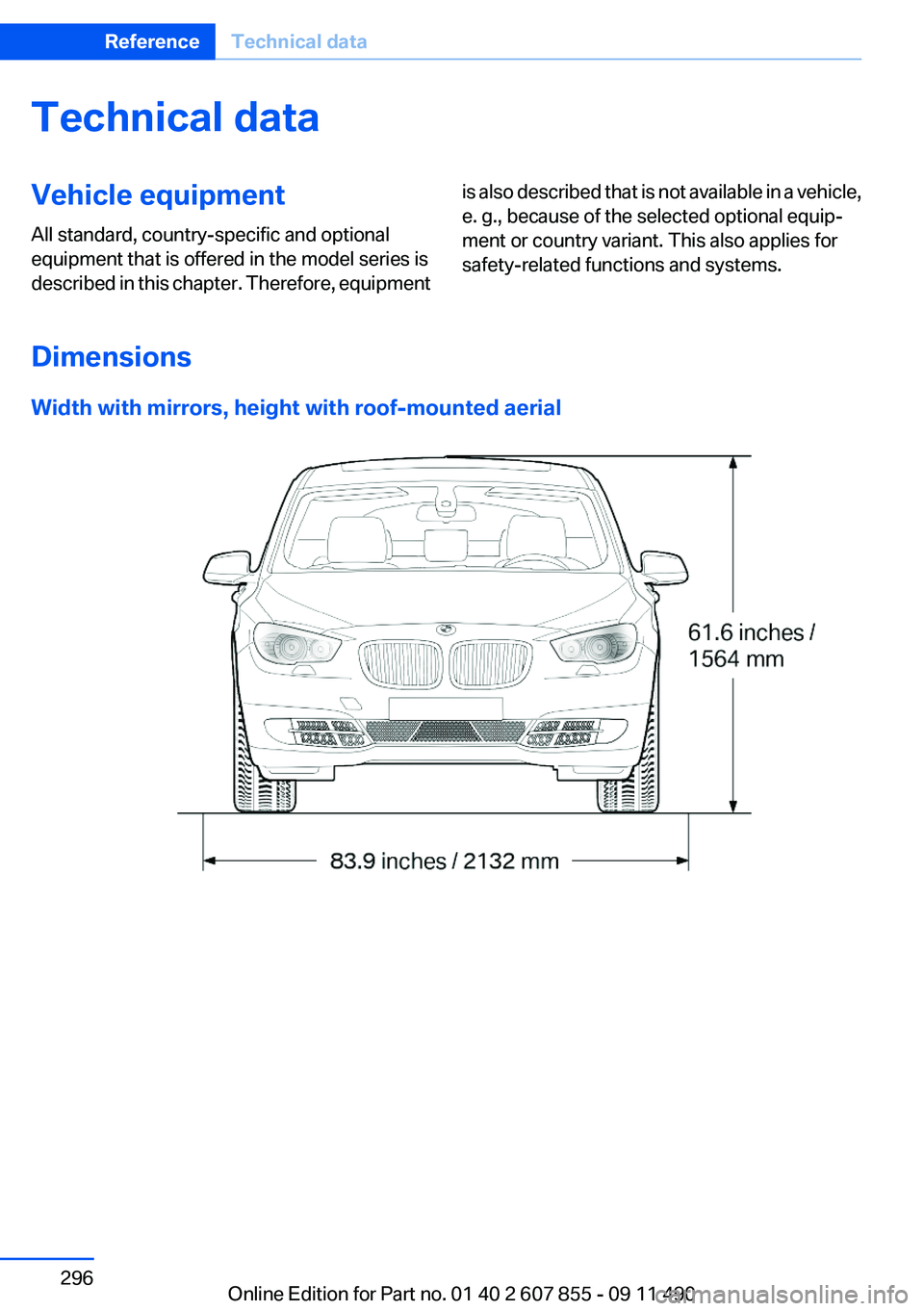

Technical dataVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipmentis also described that is not available in a vehicle,
e. g., because of the selected optional equip‐
ment or country variant. This also applies for
safety-related functions and systems.
Dimensions
Width with mirrors, height with roof-mounted aerial
Seite 296ReferenceTechnical data296
Online Edition for Part no. 01 40 2 607 855 - 09 11 490

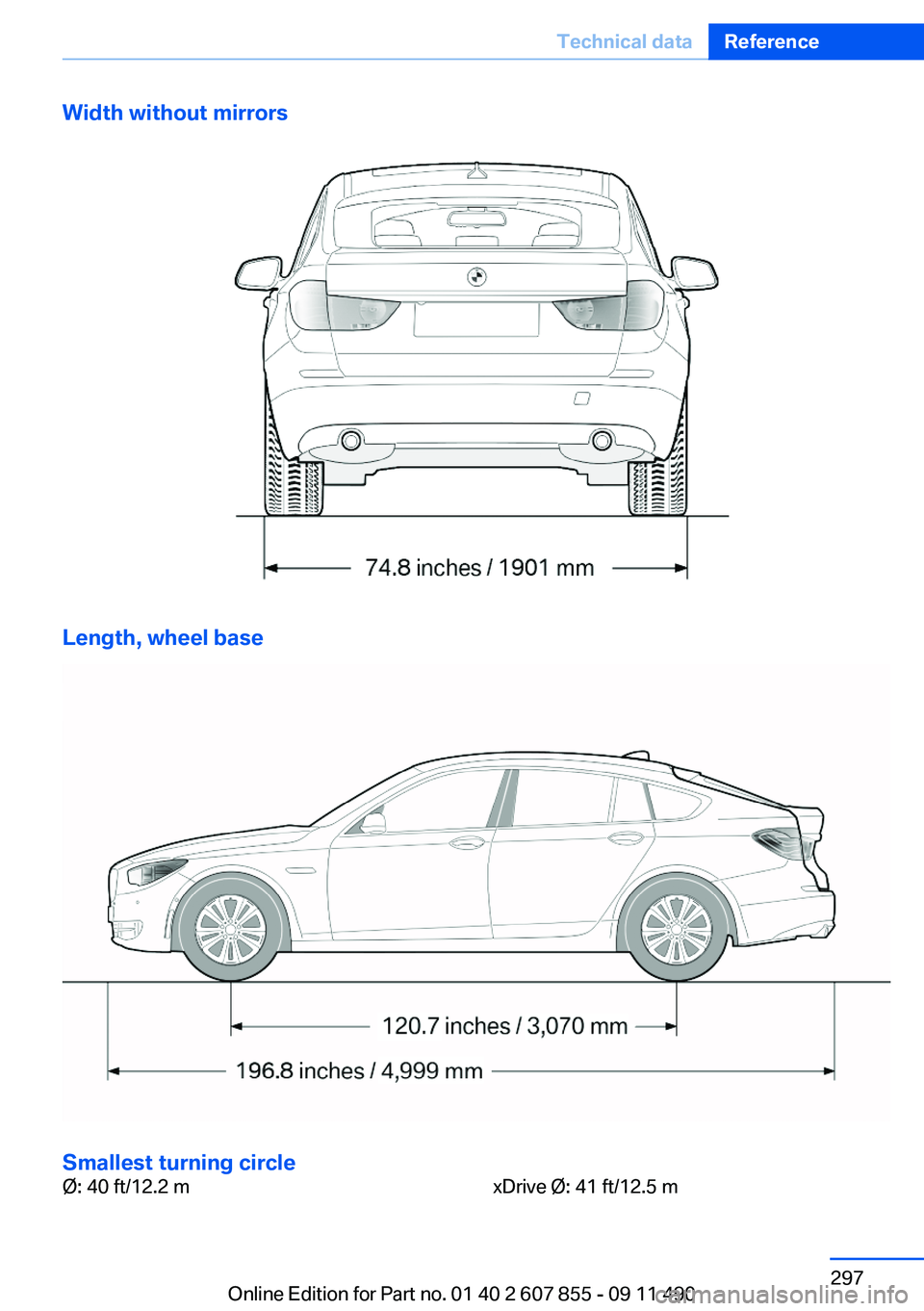

Width without mirrors
Length, wheel base
Smallest turning circle
Ø: 40 ft/12.2 mxDrive Ø: 41 ft/12.5 mSeite 297Technical dataReference297
Online Edition for Part no. 01 40 2 607 855 - 09 11 490

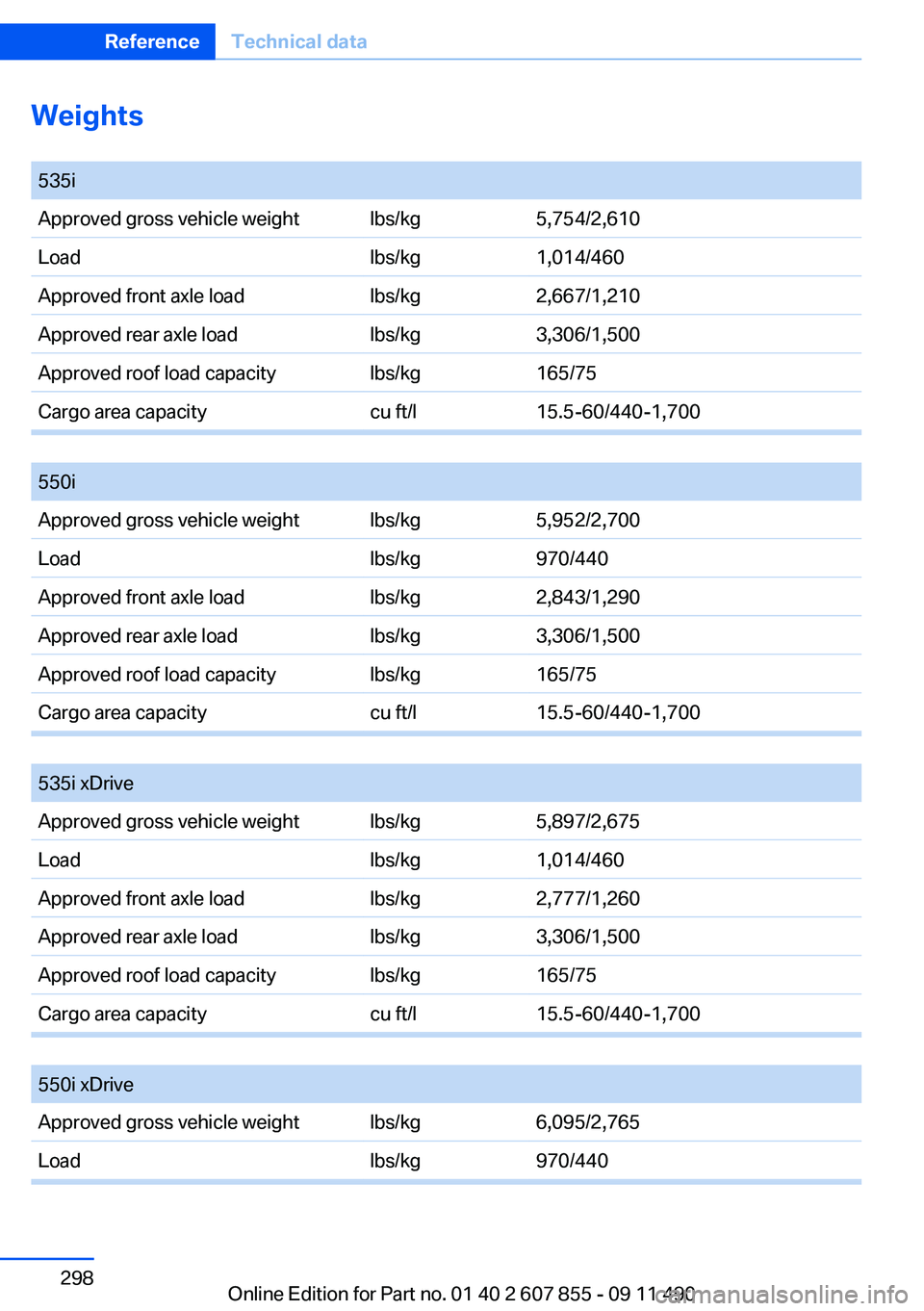

Weights
535iApproved gross vehicle weightlbs/kg5,754/2,610Loadlbs/kg1,014/460Approved front axle loadlbs/kg2,667/1,210Approved rear axle loadlbs/kg3,306/1,500Approved roof load capacitylbs/kg165/75Cargo area capacitycu ft/l15.5-60/440-1,700

550iApproved gross vehicle weightlbs/kg5,952/2,700Loadlbs/kg970/440Approved front axle loadlbs/kg2,843/1,290Approved rear axle loadlbs/kg3,306/1,500Approved roof load capacitylbs/kg165/75Cargo area capacitycu ft/l15.5-60/440-1,700

535i xDriveApproved gross vehicle weightlbs/kg5,897/2,675Loadlbs/kg1,014/460Approved front axle loadlbs/kg2,777/1,260Approved rear axle loadlbs/kg3,306/1,500Approved roof load capacitylbs/kg165/75Cargo area capacitycu ft/l15.5-60/440-1,700

550i xDriveApproved gross vehicle weightlbs/kg6,095/2,765Loadlbs/kg970/440Seite 298ReferenceTechnical data298
Online Edition for Part no. 01 40 2 607 855 - 09 11 490

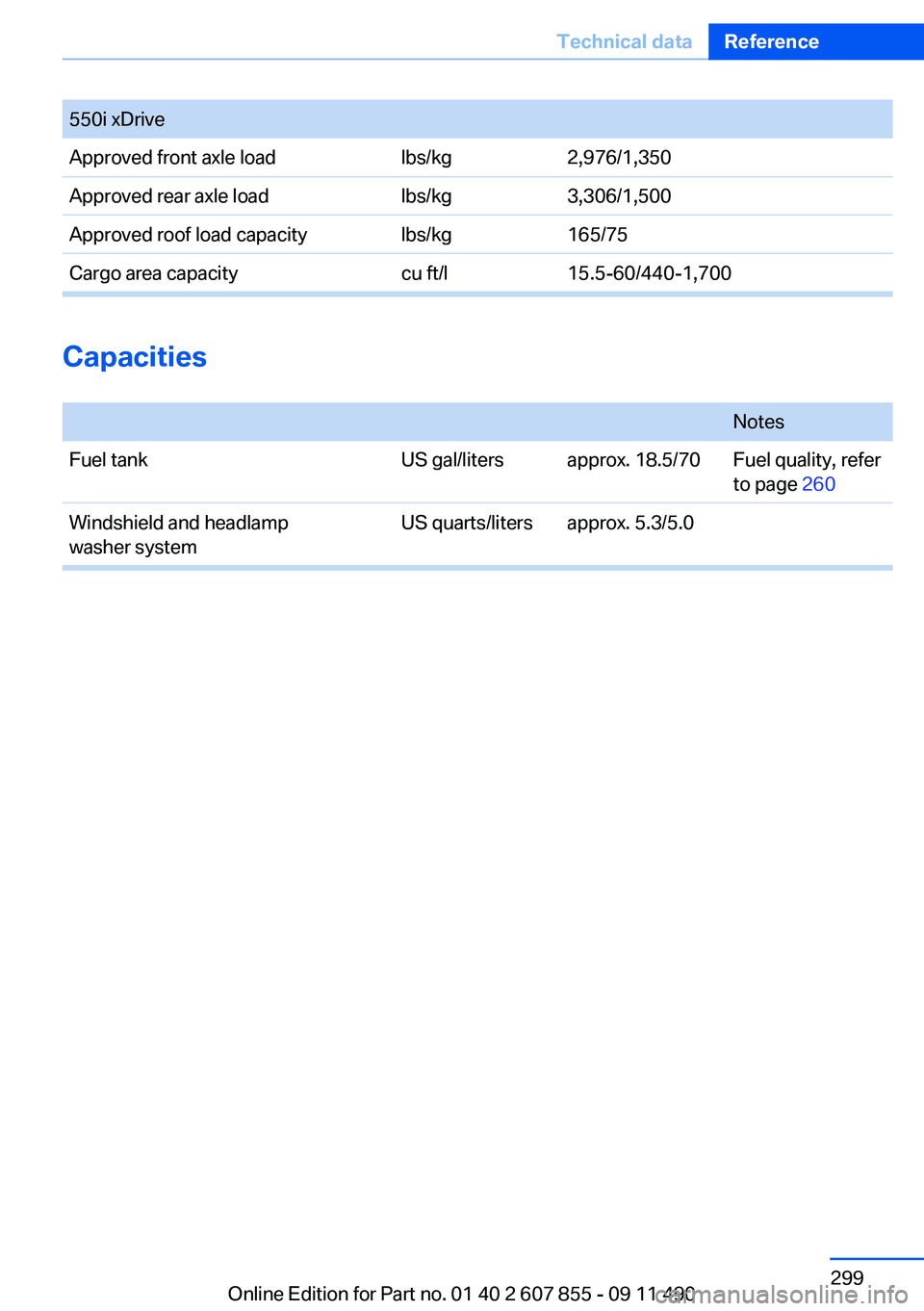

550i xDriveApproved front axle loadlbs/kg2,976/1,350Approved rear axle loadlbs/kg3,306/1,500Approved roof load capacitylbs/kg165/75Cargo area capacitycu ft/l15.5-60/440-1,700
Capacities

NotesFuel tankUS gal/litersapprox. 18.5/70Fuel quality, refer
to page 260Windshield and headlamp
washer systemUS quarts/litersapprox. 5.3/5.0Seite 299Technical dataReference299
Online Edition for Part no. 01 40 2 607 855 - 09 11 490

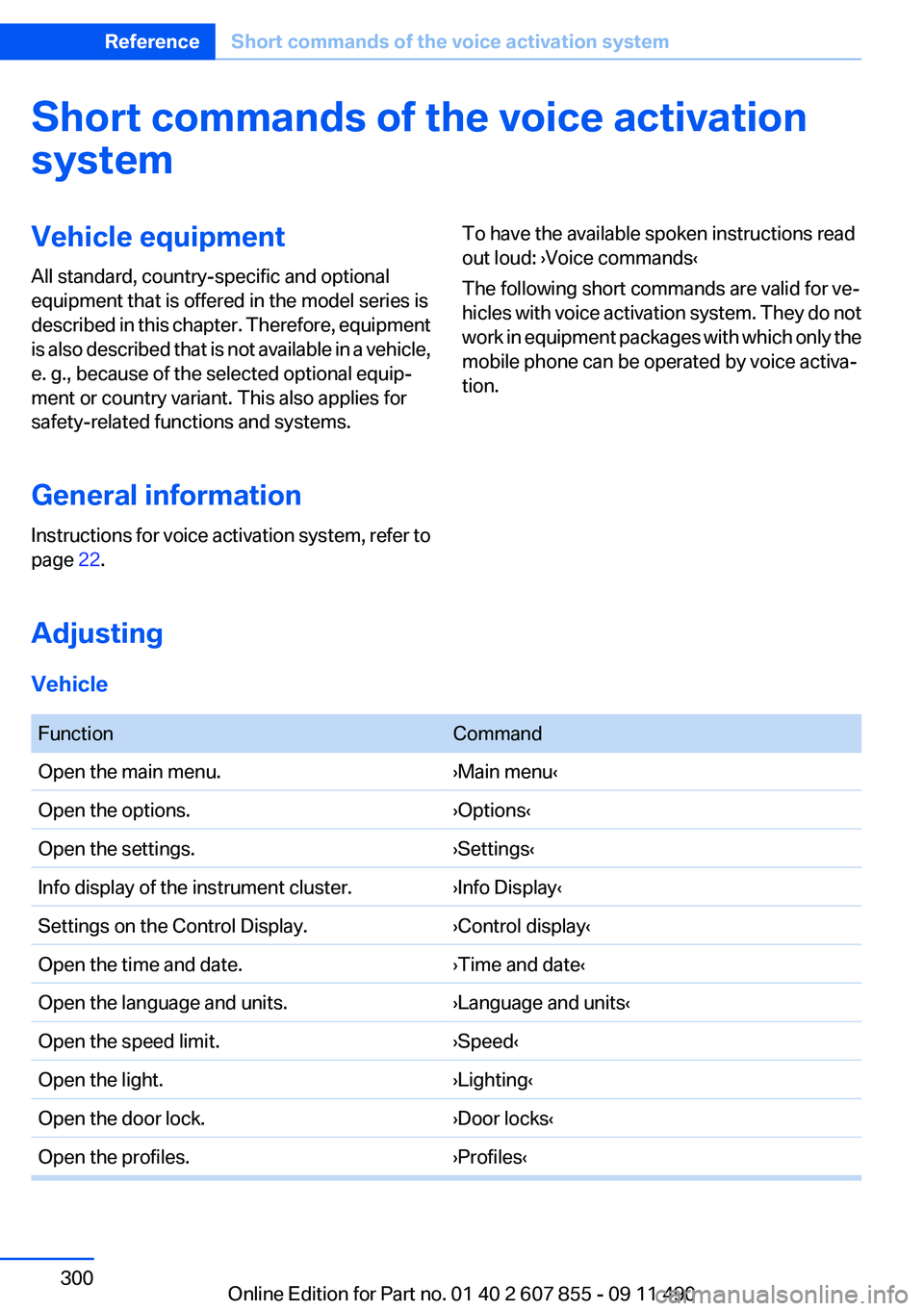

Short commands of the voice activation
systemVehicle equipment
All standard, country-specific and optional
equipment that is offered in the model series is
described in this chapter. Therefore, equipment
is also described that is not available in a vehicle,
e. g., because of the selected optional equip‐
ment or country variant. This also applies for
safety-related functions and systems.
General information
Instructions for voice activation system, refer to
page 22.To have the available spoken instructions read
out loud: ›Voice commands‹
The following short commands are valid for ve‐
hicles with voice activation system. They do not
work in equipment packages with which only the
mobile phone can be operated by voice activa‐
tion.
Adjusting
Vehicle

FunctionCommandOpen the main menu.›Main menu‹Open the options.›Options‹Open the settings.›Settings‹Info display of the instrument cluster.›Info Display‹Settings on the Control Display.›Control display‹Open the time and date.›Time and date‹Open the language and units.›Language and units‹Open the speed limit.›Speed‹Open the light.›Lighting‹Open the door lock.›Door locks‹Open the profiles.›Profiles‹Seite 300ReferenceShort commands of the voice activation system300
