020 Maintenance
General ........................... .02 0.2
Special tools ........................ .02 0.2
Service Interval Indicator (Sll) ........... .02 0.3
Service Interval Indicator (Sll), resetting ... .02 0.3
Inspection I, Inspection 11 ............... .02 0.5
Maintenance Tables ................ .02 0.6
Fluid and Lubricant Specifications .. .02 0.9
Fluids and lubricants ................. .02 0.10
Engine Oil Service ................ .02 0.1 I
Engine oil. checking level ............. .02 0.12
Engine oil and filter. changing .......... .02 0-13
Engine Compartment Maintenance . .02 0.14
Accelerator and linkage ............... .02 0.14
Air filter. replacing ................... .02 0.1 4
Cooling system service ............... .02 0.15
Engine drive belt service .............. .02 0.16
Idlespeed .......................... 020-19
Catalytic converter and oxygen sensors .. .02 0.19
Power steering fluid, checking level ..... .02 0.20
Spark plugs ........................ .02 0.20
Spark plugs, replacing ................ .02 0.21
Interior ventilation microfilter, replacing ... .02 0.22
Other Mechanical Maintenance ..... .02 0.22
Battery, checking. cleaning. and replacing .02 0-22
Brake fluid. replacing ................. .02 0-24
Brake pad 1 rotor wear. checking ........ .02 0.24
Brake system, inspecting ............. .02 0.25
Parking brake. checking ............... 020-25
Clutch fluid. checking ................. 020-26
Differential oil level. checking ........... 020-26
Drive axle joint (CV joint) boots. inspecting 020-27
Exhaust system. inspecting ............ 020-27
Fuel filter. replacing .................. 020-27
Fuel tank and fuel lines. inspecting ...... 020-28
Suspension. front. inspecting ........... 020-29
Suspension. rear. inspecting ........... 020-29
Tires. checking inflation pressure ........ 020-29
Tires. rotating ....................... 020-29
Transmission service. automatic ........ 020-29
Transmission service. manual .......... 020-30
Transmission fluid. checking and filling
(manual transmission)
................ 020-30
Wheels. aligning ..................... 020-30
Body and Interior Maintenance ..... 020-31
Body and hinges. lubricating ........... 020-31
Exterior washing ..................... 020-31
Interior care ........................ 020-31
Leather upholstery and trim ............ 020-31
Polishing ........................... 020-32
Seat belts .......................... 020-32
Special cleaning ..................... 020-32
Washing chassis ..................... 020-32
Waxing ............................ 020-32
Windshield wiper blade maintenance ..... 020-33

Downloaded from www.Manualslib.com manuals search engine
Table b. Inspection I Service (continued)
Checlt transmission and differential for
external lealts.
Check CV joint boots for damage or leaks.
Visually
check fuel tank, fuel lines, and
connections for
leaks.
New parts
Tools Required required
Check condition, position, and mounting
ol
exhaust system. Visually check and adjusl
if necessary.
Check power steering system for lealts.
Check power steering
fluid level and adjust
if necessary.
Check steering racidbox and tie rods for
tightness. Checit condition of front axle
joints, steering
linkage, and steering shaft
joints.
Check overall thickness of front and rear
bralte pads using
BMW special tool. If
replacement is necessary:
Examine brake disc surface.
Clean brake pad contact points in calipers
Grease wheel centering hubs.
Checlt thickness of parking brake linings
only when replacing rear brake shoes.
Checit operation of pariting brake and
adjust as necessary.
Checlt front control arm bushings for
damage or wear.
Check brake system connections and
lines
for leaks, damage, and incorrect
positioning Warm
engine
(~ealer service Irepair , required recommended lnformat~on
Check parking braite actuator. Adjust if
necessary
Check ail tire pressure (including spare)
and correct if necessary.
Checlt condition of tires (outer tread
surface), tread wear pattern: in case of
uneven wear, perform wheel alignment.
inspect entire body according to terms of
rust oerforation limited warrantv. (Must be
*:
4:
2 ~ perfdrmed at least every two years). I
Read out on-board diagnostic (OBD 11) fault
codes.
Checkengine coolant
system1 heater hose
connections for
leaks.
Checit coolant level and antifreeze
protection level. Add coolant as necessary.
* 100113010BD
I
170

Downloaded from www.Manualslib.com manuals search engine
020-1 1
Maintenance
Table g. Differential oil
(Lifetime fluid; no fluid change required)
Differential
/Approximate. capaclty (in~t~al fill) I Spec~f~cat~on , , .
G 1.6 liter
(1.7 US
at) I
188 Compact I .O liter BMW SAF-XO
(1 .I US ql) synthetic oil
1.4
liler 220 1215 Compact US qt) I
Table h. Engine Coolant
Year, model
latent heater:
V-8 13.5 liter
1997:
6-cylinder
V-8
Table
i. Brake fluid
Bralte system fiuld BMW hlgh
performance, DOT 4
Approximate
capacity
9.9 liter (10.5 US qt)
11.4 liter (12.0 US qt)
With the introduction of synthetic oil and extended oil change
intervals, a new oil filterwith improved filter paper design was
introduced. The new filter paper resists deterioration caused
by high oil temperatures over an extended time.
Specification
Use BMW specified oil to top off the engine oil level between
oil changes.
BMW recommends the following engine oils:
Table
j. Engine Oil Specification
Years
IOii description I BMW part no.
1999 and later mineral
oil
BMW
HP 5W-30
svnthetic oil 07
51 0 017 866

Downloaded from www.Manualslib.com manuals search engine
020-26
Maintenance
NOTE-
The parking brake may lose some of its effectiveness if it is
not used frequently This is due to corrosion build-up on the
parking brake drum. To remove corrosion, apply the parking
brake just until it begins to grip, then pull the lever up one
more stop (click). Drive the car approximately 400 meters
(1,300
ft.) and release the brake. To recheck the adjustment
of the parking brake see
340 Brakes.
Clutch fluid, checking
In cars equipped with manual transmission and clutch, the hy-
draulic clutch and the brake system share the same reservoir
and the same bralte fluid. Clutch fluid level and brake fluid lev-
el are checked at the same time.
NOTE-
* See 340 Brakes for more information.
See
210 Clutch for information on the clutch and the
hydraulic clutch operating system.
Differential oil level, checking
The E39 differential is filled with lifetime oil that ordinarily
does not need to be changed.
BMW recommends using only
a specially formulated synthetic gear oil
(SAF-XO) that is
available through an authorized
BM\N dealer parts depart-
ment. For additional information on this lubricant and any
other lubricants that may be compatible, contact an
authorized
BMW dealer service department.
< Check rear differential oil level at filler plug (arrow).
- Check lubricant level with car on a level surface:
Level is correct when fluid just reaches edge of filler hole.
If necessary, top up fluid.
Replace filler plug sealing ring.
Install and tighten oil filler plug when oil level is correct.
NOTE-
Use either a 14 mm or 17 mm Allen socket to remove the
drain plug.
If the car is raised in the air, it should be level when
checking or filling final drive fluid level.
Tightening torque
Filler plug to final drive housing 70 Nrn (52 it-lb)

Downloaded from www.Manualslib.com manuals search engine
Maintenance
Suspension, front, inspecting
Inspection of the front suspension and steering includes a
check of all moving parts
forwear and excessive play. Inspect
ball joint and tie-rod rubber seals and boots for cracks
ortears
that could allow the entry of dirt, water, and other
contaminants. See
310 Front Suspension.
Suspension, rear, inspecting
Differential and rear drive axle service consists of checking
and changing the gear oil, inspecting for leaks, and checking
the drive axle
CV joint boots for damage.
The areas where
lealts are most likely to occurare around the
drive shaft and drive axle mounting flanges. For more infor-
mation on identifying oil leaks and theircauses, see
330 Rear
Suspension and
331 Final Drive.
Tires, checking inflation pressure
Correct tire pressures are important to handling and stability,
fuel economy, and tire wear. Tire pressures change with tem-
perature. Pressures should be
checked oRen during season-
al temperature changes. Correct inflation pressures can be
found on the driver's door pillar and in the owner's manual.
Note that tire pressures should be higher when the car is
more heavily loaded.
WARNING-
Do not inflate any tire to a pressure higher than the tire's max-
imum inflation pressure listedon the sidewall. Use care when
adding air to warm tires. Warm tire pressures can increase as
much as
4 psi (0.3 bar) over their coldpressures.
Tires, rotating
BMW does not recommend tire rotation. Due to the car's sus-
pension design, the front tires begin to wear first at the outer
shoulder and the reartires begin to wearfirst at the middle of
the tread or inner shoulder. Rotating the tires may adversely
affect road handling and tire grip.
Transmission service, automatic
The automatic transmissions installed in E39 models are
filled with special automatic transmission fluid. The transmis-
sion lubricant type can be found on the "type-plate" on the
side of the transmission. The recommended lubricants are
listed earlier in this repair group. See Fluids and lubricants.
If in doubt, consult an authorized BMW dealer for alternate

Downloaded from www.Manualslib.com manuals search engine
--.

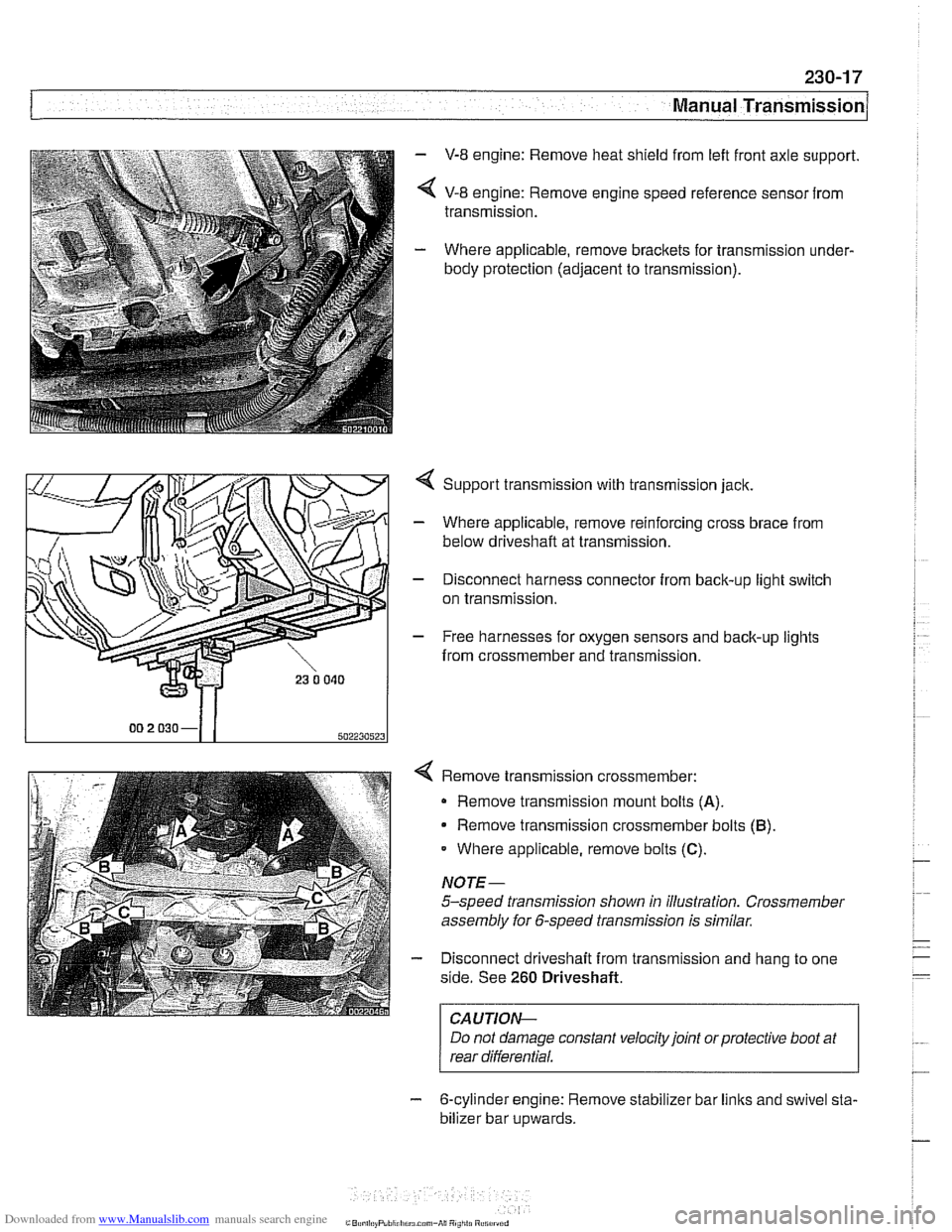

- - Manual Transmission
- V-8 engine: Remove heat shield from left front axle support.
< V-8 engine: Remove engine speed reference sensor from
transmission.
- Where applicable, remove brackets for transmission under-
body protection (adjacent to transmission).
4 Support transmission with transmission jack.
- Where applicable, remove reinforcing cross brace from
below driveshaft at transmission.
- Disconnect harness connector from back-up light switch
on transmission.
- Free harnesses for oxygen sensors and back-up lights
from crossmember and transmission.
Remove transmission crossmember: Remove transmission mount bolts
(A).
Remove transmission crossmember bolts (B)
Where applicable, remove bolts (C).
NOTE-
5-speed transmission shown in illustration. Crossmember
assembly for 6-speed transmission is similar.
Disconnect driveshaft from transmission and hang to one
side. See
260 Driveshaft.
I CAUTION- I
Do not damage constant velocity joint orprotective boot at
rear differential.
- 6-cylinder engine: Remove stabilizer bar links and swivel sta-
bilizer bar
u~wards.

Downloaded from www.Manualslib.com manuals search engine

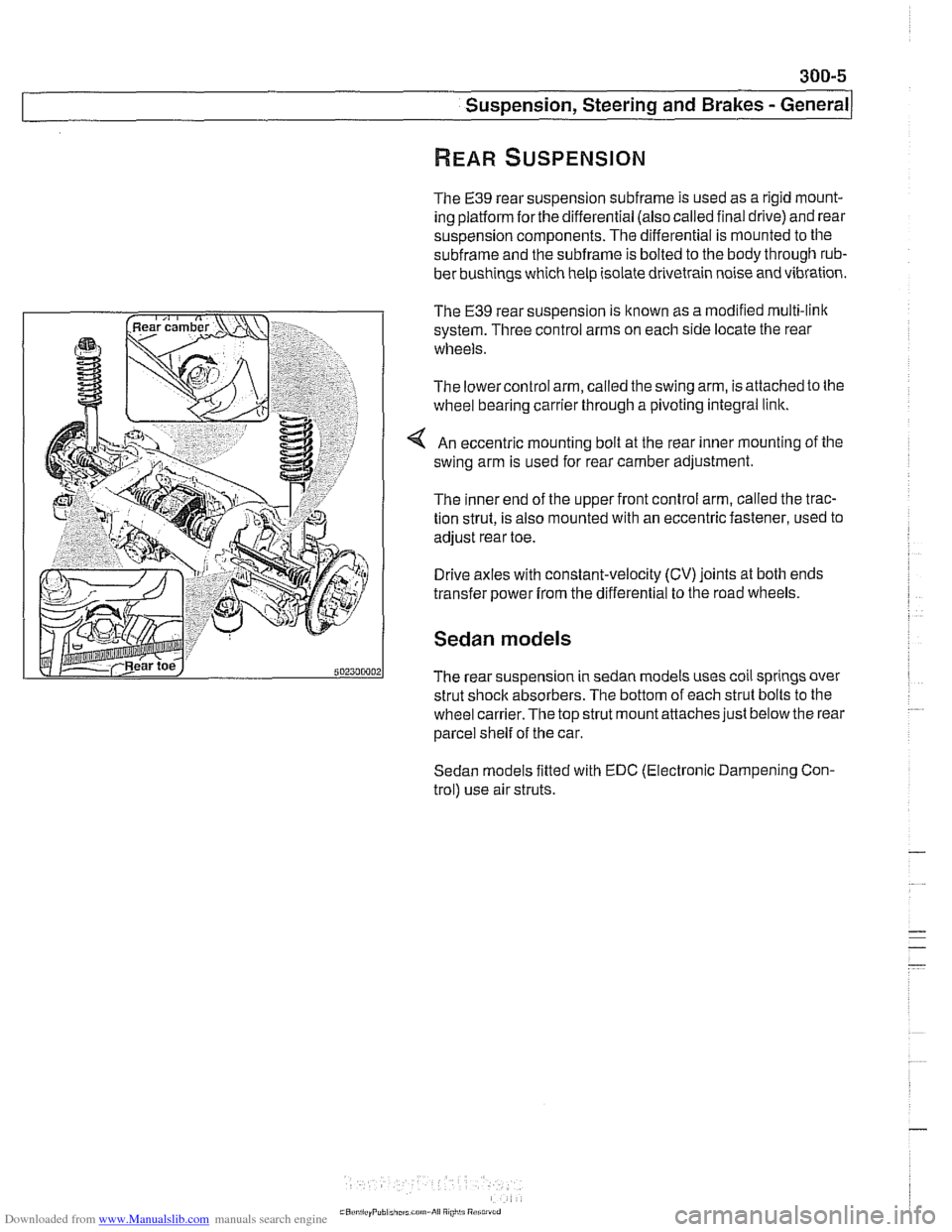

300-5
Suspension, Steering and Brakes - ~enerall
The E39 rear suspension subframe is used as a rigid mount-
ing platform
forthe differential (also called final drive) and rear
suspension components. The differential is mounted to the
subframe and the subframe is bolted to the body through rub-
ber bushings which help isolate drivetrain noise and vibration.
The
€39 rear suspension is known as a modified multi-link
system. Three control arms on each side locate the rear
wheels.
The lowercontrol arm, called the swing arm, is attached to the
wheel bearing carrier through a pivoting integral link.
An eccentric mounting bolt at the rear inner mounting of the
swing arm is used for rear camber adjustment.
The inner end of the upper front control arm, called the trac-
tion strut, is also mounted with an eccentric fastener, used to
adjust rear toe.
Drive axles with constant-velocity (CV) joints at both ends
transfer power
from the differential to the road wheels.
Sedan models
The rear suspension in sedan models uses coil springs over
strut shock absorbers. The bottom of each strut bolts to the
wheel
carrier.The top strut mount attaches just below the rear
parcel shelf of the car.
Sedan models fitted with EDC (Electronic Dampening Con-
trol) use air struts.

Downloaded from www.Manualslib.com manuals search engine

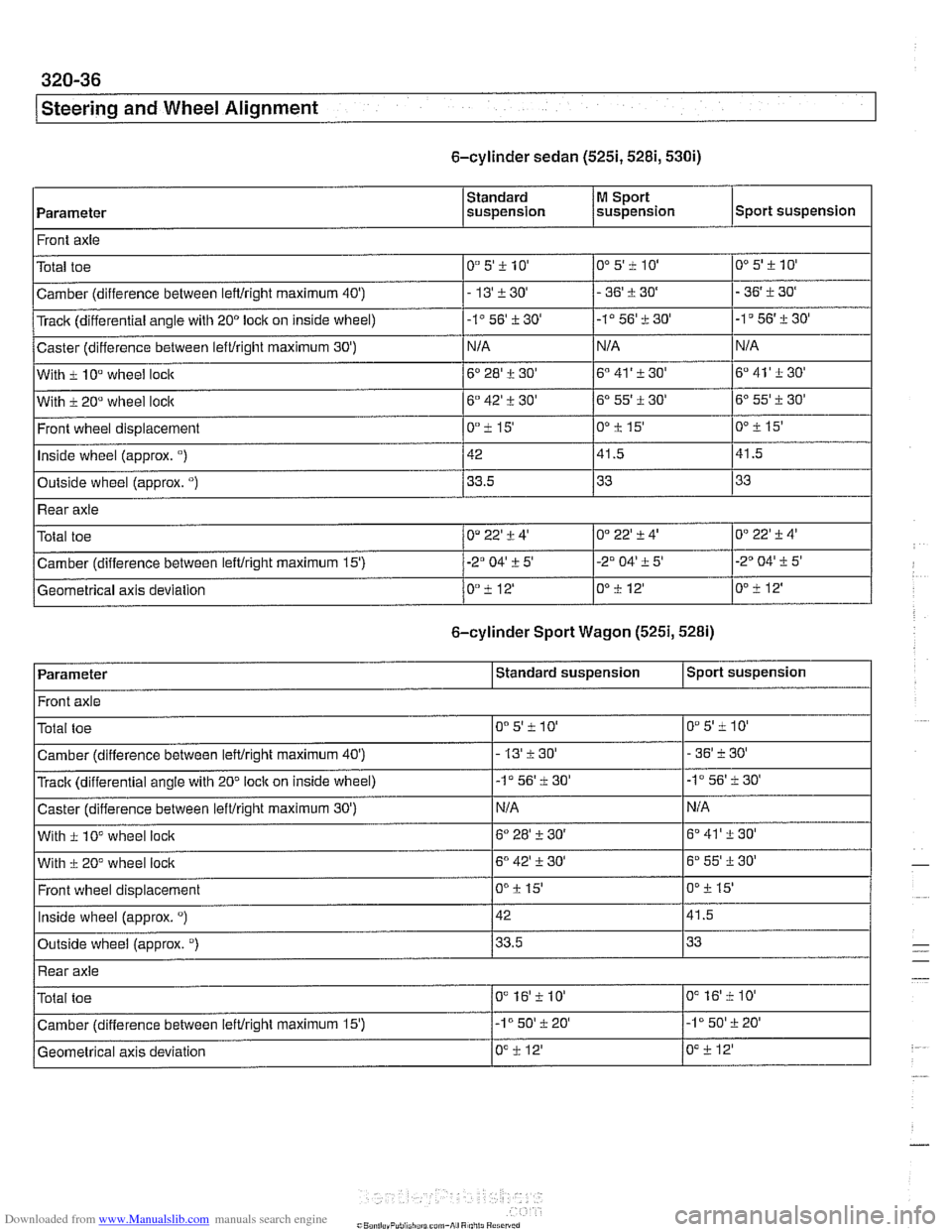

Isteering and Wheel Alignment
6-cylinder sedan (5251,5281,530i)
Parameter
Front axle
. .. I I I
Outside wheel (approx. ") / 33.5 133 133
M Sport
suspension
Standard
suspension
With
i 20" wheel loclc
Front wheel displacement
Inside wheel
(approx. ")
Sport suspension
O0 5' i 10'
- 36' i 30'
-ID56'-t30'
N/A
6" 41' i 30'
Total toe
Camber (difference between lefffright maximum
40')
Track (differential angle with 20" lock on inside wheel)
Caster (difference between lefffright maximum
30')
With i 10" wheel locic
6" 42' i 30'
0°i15'
42
. .. I I I
Rear axle
6-cylinder Sport Wagon (5251,5281)
0"5'il0'
-13'+30'
-1" 56' -t 30'
N/A
6" 28' i 30'
OD5'i10'
- 36' i 30'
-1" 56' i 30'
N/A
6" 41' i 30'
6" 55'
i 30'
0'2 15'
41.5
0" 22'
-t 4'
0" i 12' Geometrical axis deviation
6' 55' i 30'
0"
i 15'
41.5
0°22'i4' Total toe 0" 22' i 4'
Camber (difference between leitlright maximum 15') 1-20 04' ?- 5' 1-2" 04' i 5'
O"i12'
Sport suspension
Parameter
- I I
. .. I I
Outside wheal (approx. ") 133.5 133
-2' 04' -t 5'
OO-t 12'
Standard suspension
Wlth i 10" wheel lock
I I
Front axle
With
i 20" wheel lock 16" 42' i 30' 16" 55'i30'
6" 28' i- 30'
0"
i 15' Front wheel displacement
. .. I I
Rear axle
D"5'iIO'
- 36' i 30'
-I056'i30'
NIA
Total toe
Camber (difference between
IeWright maximum 40')
Track (differential angle with 20" lock on inside wheel)
Caster (difference between
lefffrioht maximum 30') 6" 41'
+ 30'
Inside wheel (approx. ") 142 141.5
OOi 15'
0"5'i10'
- 13'i30'
-1" 56' i 30'
N/A
0" 16'i 10' Total toe
0" i 12' Geometrical axis deviation
Camber (difference
between iefffright maximum
15') /-lo 50' i 20' 1-1" 50'i20'
0" 16'f 10'
0" il2'

Downloaded from www.Manualslib.com manuals search engine

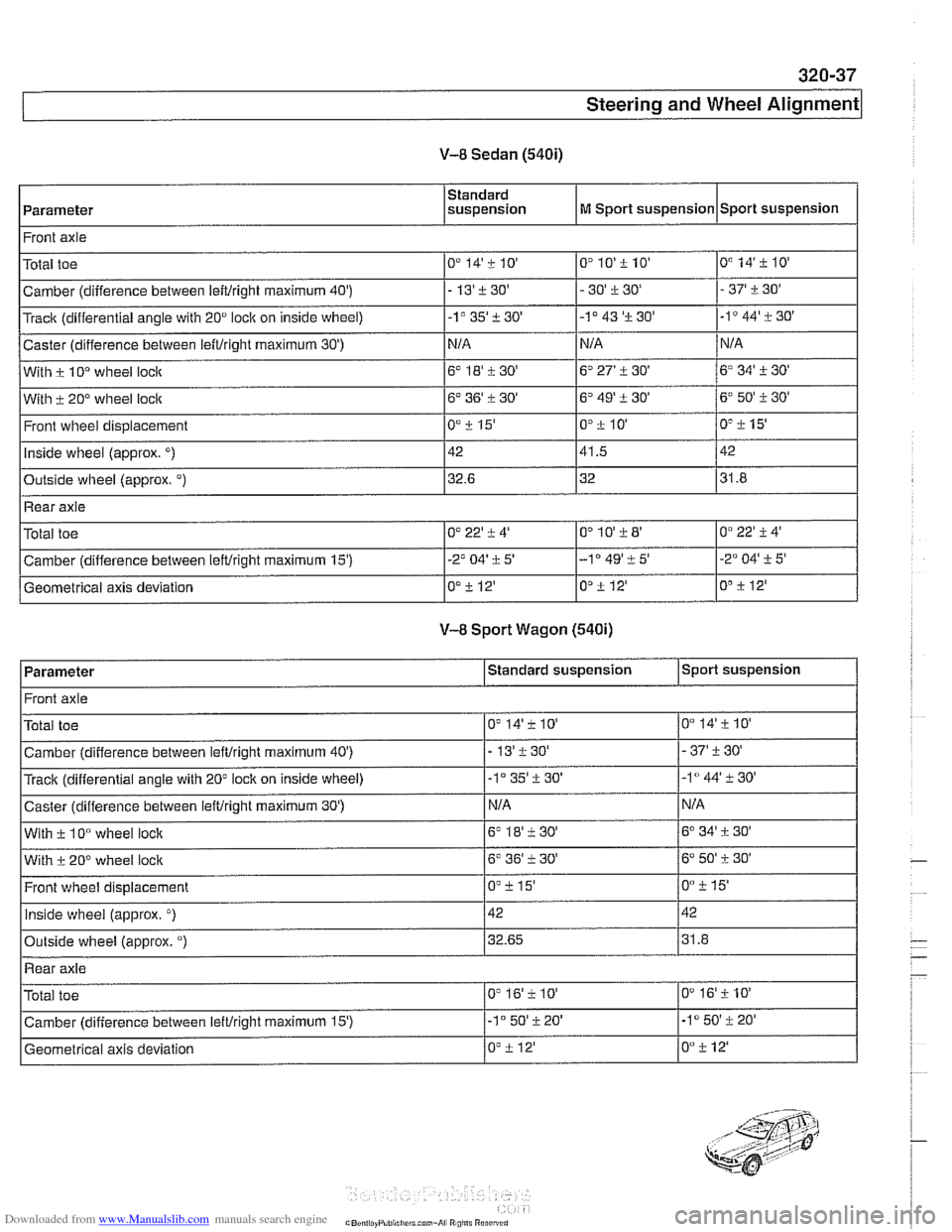

Steering and Wheel Alignment
V-8 Sedan (540i)
I Front axle I
Parameter Standard
suspension
Total toe
.
Track (differential angle with 20" ioclc on inside wheel)
Caster (difference between
leftiright maximum 30')
With i 10° wheel loclc
With i 20" wheel lock
Front
wheel displacement
Inside
wheel (approx. ")
Outside wheel (approx. ")
M Sport suspension
Camber (difference between
leitiright maximum 40') 1- 13'i30' 1- 30' i 30' 1- 37' i 30'
0" 10'i 10' 0" 14'ilO'
Sport suspension
0" 14'i 10'
Rear axie
-1°35'i30'
N/A
6" 18'+30'
6' 36' i 30'
0"
i 15'
42
32.6
Total toe
Camber (difference between
IeWright maximum 15')
Geometrical axis deviation ~~
V-8 Sport Wagon (540i)
O"10'iW
-lo 49' i 5'
O"i12'
0" 22' i 4'
-2' 04' i 5'
0"
i 12'
Parameter
-1 " 43 'i 30'
NIA
6" 27'
i 30'
6"49'i30'
Pilo'
41.5
32
0°22'i4'
-2" 04' i 5'
O"i 12'
-ID 44' i 30'
N/A
6" 34' i 30'
6' 50' 130'
0" i 15'
42
31.8
Standard suspension Sport suspension
Front axie
0" 14'210'
-37i30'
-la44'+30'
N/A
6" 34' i 30'
6' 50' i 30'
O0i15'
42
31.8
0"
16'2 10'
-I050'i20'
0" i 12'
Total toe
Camber (difference between
ieftiright maximum 40')
Track (differential angle
with 20" loclc on inside wheel)
Caster (difference between
leftiright maximum 30')
With i 10" wheel lock
With i 20° wheel lock
Front wheel displacement
Inside wheel (approx.
")
Outside wheel (approx. ")
0" 14'i 10'
-13'i30'
-1" 35' i 30'
N/A
6' lS'i30'
6' 36' i 30'
On+ 15'
42 32.65
Rear axle
Total toe
Camber (difference between
lettiright maximum 15')
Geometrical axis deviation
0" 16'i 10'
-I050'i20'
0" i 12'

Downloaded from www.Manualslib.com manuals search engine

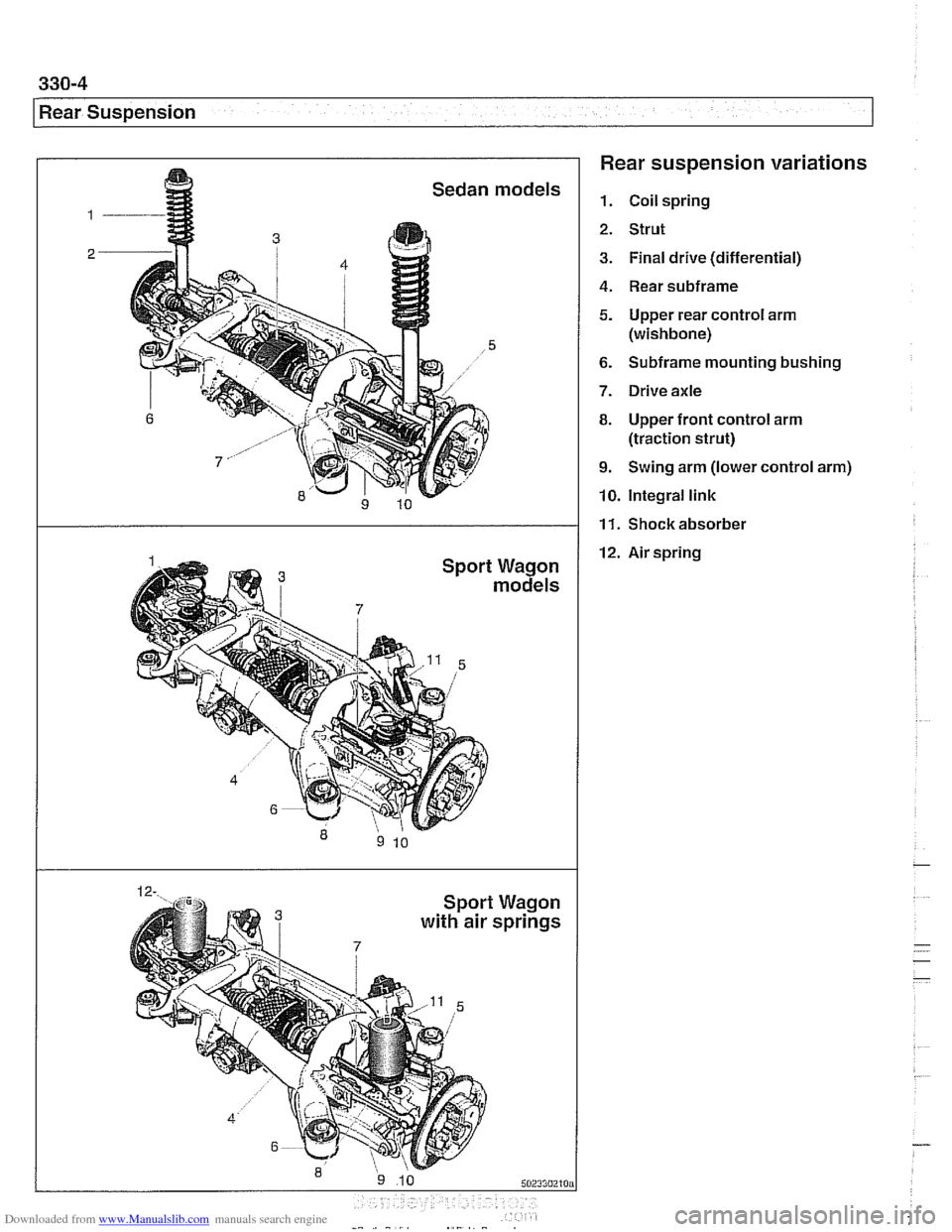

330-4
Rear Suspension Rear suspension variations
1. Coil spring
2. Strut
3. Final drive (differential)
4. Rear subframe
5. Upper rear control arm
(wishbone)
6. Subframe mounting bushing
7. Drive axle
8. Upper front control arm
(traction strut)
9. Swing arm (lower control arm)
10. Integral link
12. Air spring
I
Waaon
11. Shockabsorber
a m3 withair s~riias
