Overview
Controls and features
Operation, maintenance
Owner service procedures
Index Technical data

Overview

14n

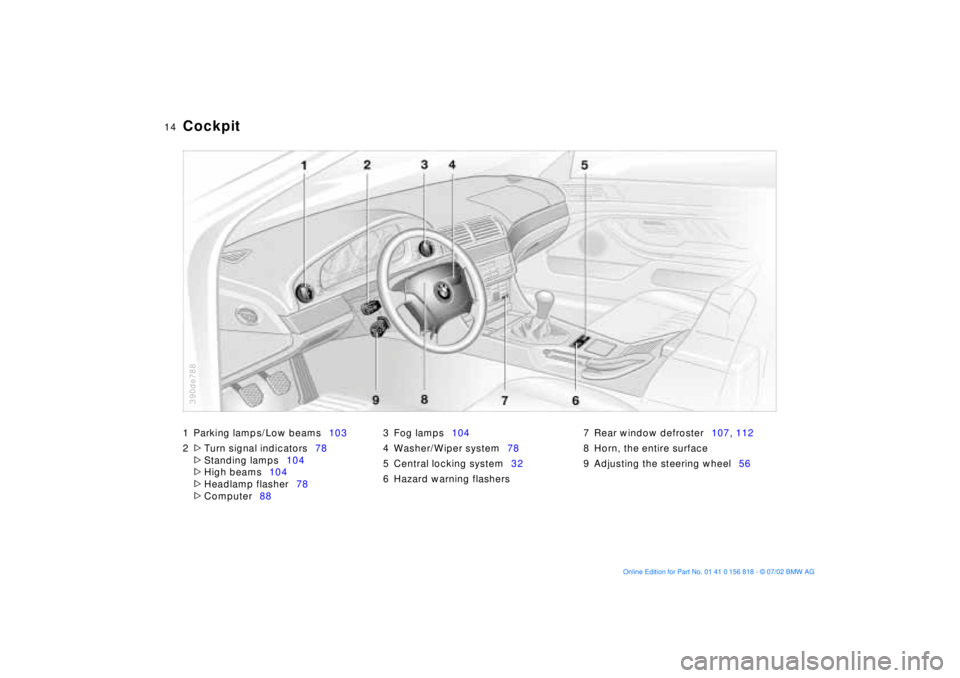

1 Parking lamps/Low beams103
2

>

Turn signal indicators78

>

Standing lamps104

>

High beams104

>

Headlamp flasher78

>

Computer883 Fog lamps104
4 Washer/Wiper system78
5 Central locking system32
6 Hazard warning flashers7 Rear window defroster107, 112
8 Horn, the entire surface
9 Adjusting the steering wheel56

Cockpit
390de788

15n

OverviewControlsMaintenanceRepairsDataIndex

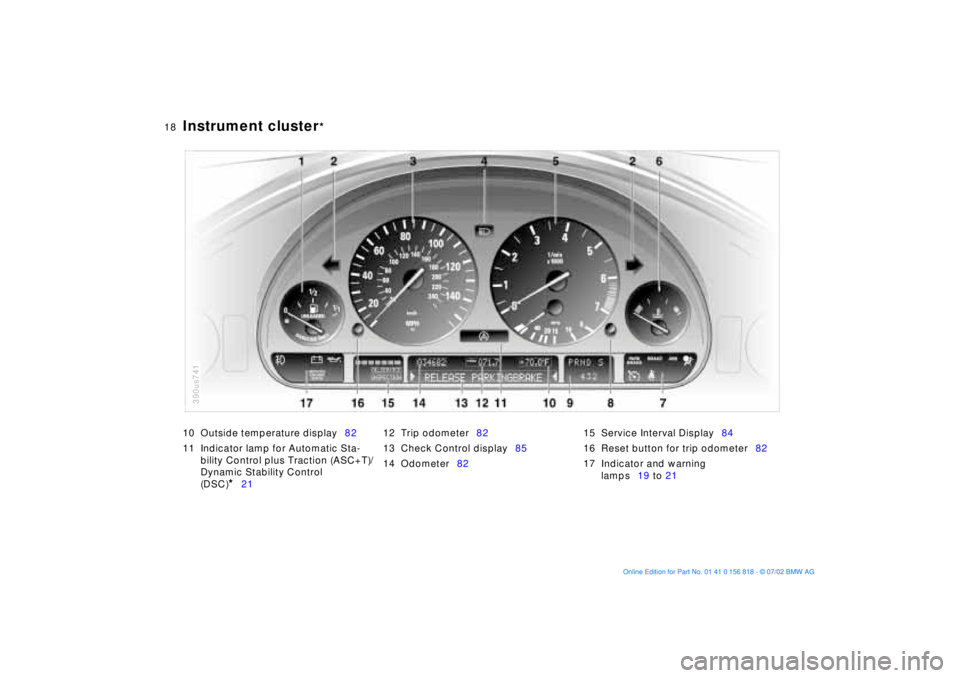

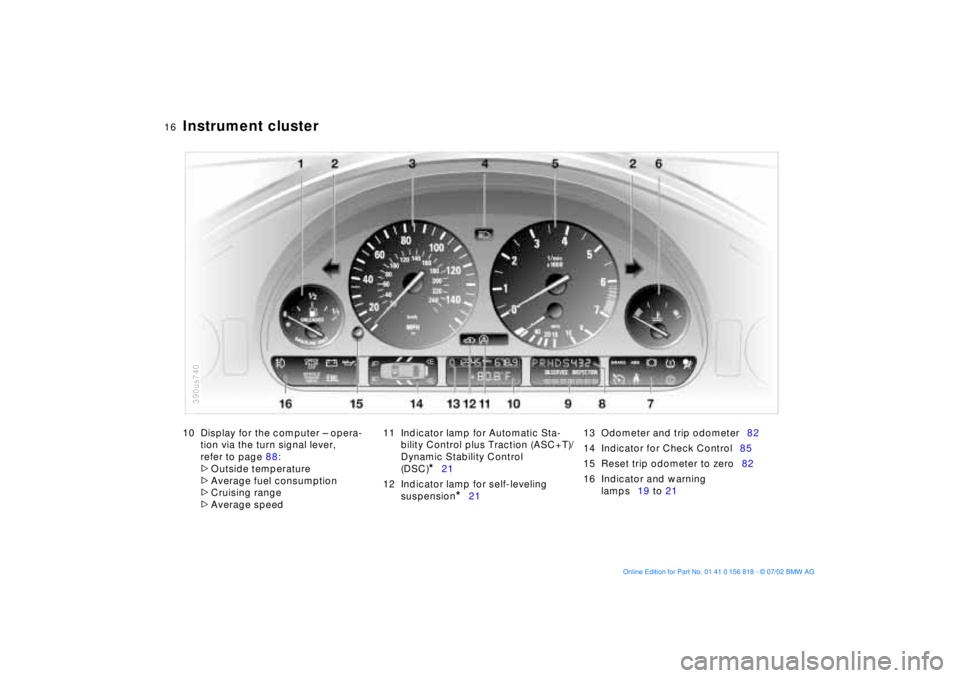

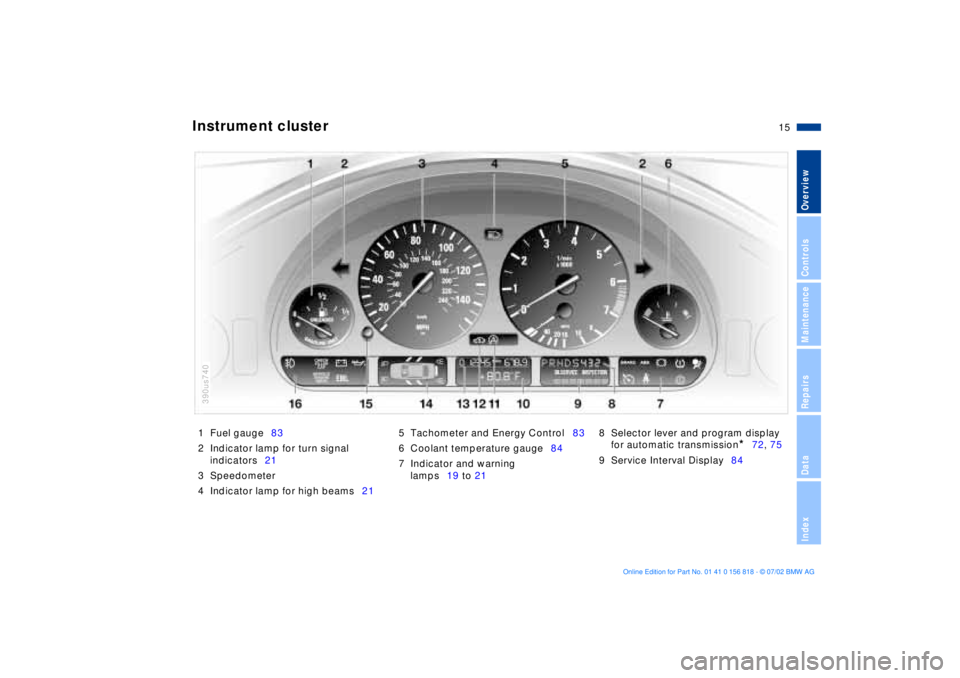

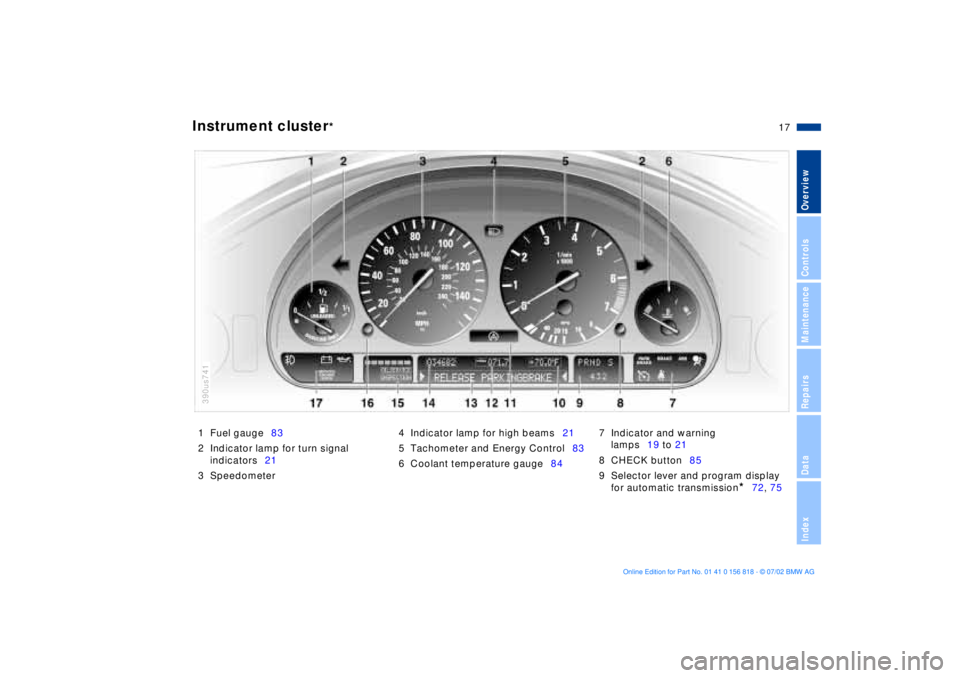

1 Fuel gauge83
2 Indicator lamp for turn signal
indicators21
3 Speedometer
4 Indicator lamp for high beams215 Tachometer and Energy Control83
6 Coolant temperature gauge84
7 Indicator and warning
lamps19 to 218 Selector lever and program display
for automatic transmission

*
72, 75
9 Service Interval Display84

Instrument cluster
390us740

16n

Instrument cluster

10 Display for the computer Ð opera-
tion via the turn signal lever,
refer to page 88:

>

Outside temperature

>

Average fuel consumption

>

Cruising range

>

Average speed11 Indicator lamp for Automatic Sta-
bility Control plus Traction (ASC+T)/
Dynamic Stability Control
(DSC)

*
21
12 Indicator lamp for self-leveling
suspension

*
2113 Odometer and trip odometer82
14 Indicator for Check Control85
15 Reset trip odometer to zero82
16 Indicator and warning
lamps19 to 21
390us740

17n

OverviewControlsMaintenanceRepairsDataIndex

Instrument cluster

*
1 Fuel gauge83
2 Indicator lamp for turn signal
indicators21
3 Speedometer4 Indicator lamp for high beams21
5 Tachometer and Energy Control83
6 Coolant temperature gauge847 Indicator and warning
lamps19 to 21
8 CHECK button85
9 Selector lever and program display
for automatic transmission

*
72, 75
390us741

18n

Instrument cluster

*
10 Outside temperature display82
11 Indicator lamp for Automatic Sta-
bility Control plus Traction (ASC+T)/
Dynamic Stability Control
(DSC)

*
2112 Trip odometer82
13 Check Control display85
14 Odometer8215 Service Interval Display84
16 Reset button for trip odometer82
17 Indicator and warning
lamps19 to 21
390us741

19n

OverviewControlsMaintenanceRepairsDataIndex

Indicator and warning lamps

Technology that monitors itself

The system runs a check on the
warning and indicator lamps marked
by "

l

" each time you switch on the
ignition. They each light up once for dif-
ferent periods of time.
If a fault should occur in one of these
systems, the corresponding lamp does
not go out after the engine is started or
it lights up while the vehicle is moving.
The following section describes how
you should respond.

Red: stop immediately

Battery charge current

l

The battery is no longer being
charged. This indicates a defect
in the alternator drive belt or in the
charging circuit of the alternator. Please
contact the nearest BMW center.
You should never attempt to con-
tinue driving with a defective drive
belt, as the engine could overheat and
sustain serious damage. If the drive belt
is defective, increased steering effort is
also required.

<


Engine oil pressure

l

May be accompanied by the
message "STOP!ENGINE OIL-
PRESS" in the Check Control

*
: stop the
vehicle immediately and switch off the
engine. Check the engine oil level; top
up as required. If the oil level is correct:
please contact the nearest BMW
center.
Do not continue driving, as the
engine could sustain serious
damage from inadequate lubrication.

<



Tire Pressure Monitor (RDC)

*


l

Accompanied by an acoustic
warning signal: a flat tire has
occurred. Reduce vehicle speed imme-
diately and stop the vehicle. Avoid hard
brake applications. Do not oversteer.
For additional information: refer to
page 101
Parking brake

*
/Brake system
hydraulic circuits

l

Comes on when you engage the
parking brake.
For additional information: refer to
page 70
Comes on although the parking brake
is released: have the brake fluid level
checked. Before continuing your
journey, be sure to read the notes on
pages 134 and 145
Also comes on with the message
"CHECK BRAKE LININGS" in the
Check Control.
Parking brake warning lamp

*
/
Brake system hydraulic circuits
for Canadian models.

20n

Indicator and warning lamps

Red: as important reminder

Parking brake

*
Comes on when you engage the
parking brake.
For additional information: refer to
page 70
Parking brake warning lamp

*
for
Canadian models.
Please fasten safety belts

l

Accompanied by warning tone
and message

*
in the Check
Control. Remains on until the safety
belts are fastened.
For additional information on safety
belts: refer to page 53
Airbags

l

Please have the system
inspected by your BMW center.
For additional information: refer to
page 59

Yellow: please have checked at
your earliest opportunity

Antilock Brake System (ABS)

l

ABS has been deactivated in
response to system malfunction.
Conventional braking efficiency is avail-
able without limitations. Please have
the system inspected by your BMW
center.
For additional information: refer to
page 133
Antilock Brake System (ABS)
warning lamp for Canadian
models.
Engine oil level

*
Comes on while driving: the
engine oil level has fallen to the
absolute minimum; refill as soon as
possible. Do not drive more than
approx. 30 miles (50 km) until you do.
For additional information: refer to
page 142
Engine oil level

*
Comes on after the engine has
been switched off: add engine
oil at your earliest opportunity (when
you stop to refuel).
For additional information: refer to
page 142

Automatic transmission

*
Because of a malfunction, the
automatic transmission shifts
only in the emergency program. Please
consult the nearest BMW center.
For additional information: refer to
pages 74 and 77
Brake pads

*


l

Have the brake pads checked.
For additional information: refer
to page 134

Dynamic Brake Control (DBC)

*

l


Malfunction in DBC system.
Conventional braking efficiency
is available without limitations.
Have the system repaired by your BMW
center at the earliest possible opportu-
nity.
For additional information: refer to
page 100
Dynamic Brake Control (DBC)
warning lamp for Canadian
models.
Tire Pressure Monitor (RDC)

*
l
Check the tire inflation pressure:
refer to pages 26, 101
