night vision BMW 6 SERIES CONVERTIBLE 2014 F12 Owner's Manual

CockpitVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are notnecessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems.
All around the steering wheel
1Opening and closing the rear win‐
dow   462Open and close side windows and rear
window together   463Power windows  454Exterior mirror operation   625Driver assistance systemsActive Blind Spot Detec‐
tion   129Intelligent Safety   115Lane departure warning   127Night Vision  124Head-up Display   986LightsFront fog lights  104Parking lights  101Seite 14At a glanceCockpit14
Online Edition for Part no. 01 40 2 956 336 - X/14

▷Unlocking and locking.▷Lights.▷Climate control.▷Radio.▷Instrument cluster.▷Programmable memory buttons.▷Volumes, tone.▷Control Display.▷Navigation.▷TV.▷Park Distance Control PDC.▷Rearview camera▷Side View.▷Head-up Display.▷Driving Dynamics Control.▷Driver's seat position, exterior mirror posi‐
tion, steering wheel position.▷Cruise control.▷Intelligent Safety.▷Active Blind Spot Detection.▷Night vision.

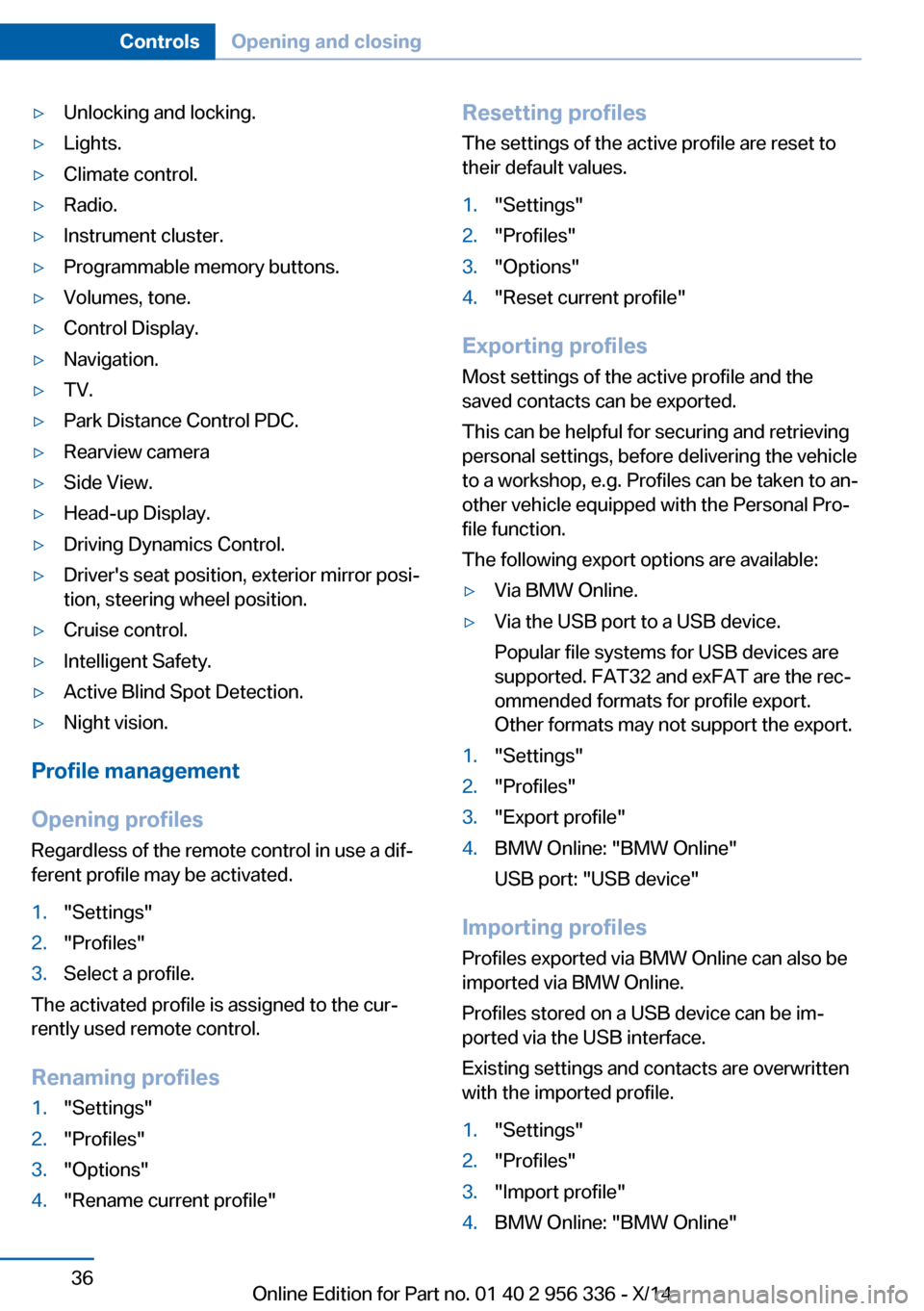

Profile management
Opening profiles Regardless of the remote control in use a dif‐
ferent profile may be activated.
1."Settings"2."Profiles"3.Select a profile.
The activated profile is assigned to the cur‐
rently used remote control.
Renaming profiles
1."Settings"2."Profiles"3."Options"4."Rename current profile"Resetting profiles The settings of the active profile are reset to
their default values.1."Settings"2."Profiles"3."Options"4."Reset current profile"
Exporting profiles
Most settings of the active profile and the
saved contacts can be exported.
This can be helpful for securing and retrieving
personal settings, before delivering the vehicle
to a workshop, e.g. Profiles can be taken to an‐
other vehicle equipped with the Personal Pro‐
file function.
The following export options are available:
▷Via BMW Online.▷Via the USB port to a USB device.
Popular file systems for USB devices are
supported. FAT32 and exFAT are the rec‐
ommended formats for profile export.
Other formats may not support the export.1."Settings"2."Profiles"3."Export profile"4.BMW Online: "BMW Online"
USB port: "USB device"
Importing profiles
Profiles exported via BMW Online can also be
imported via BMW Online.
Profiles stored on a USB device can be im‐
ported via the USB interface.
Existing settings and contacts are overwritten
with the imported profile.
1."Settings"2."Profiles"3."Import profile"4.BMW Online: "BMW Online"Seite 36ControlsOpening and closing36
Online Edition for Part no. 01 40 2 956 336 - X/14

▷If, depending on the vehicle equipment
version, the field of view of the camera in
the mirror or the radar sensor is dirty or ob‐
scured.▷Up to 10 seconds after the start of the en‐
gine, via the Start/Stop knob.▷During calibration of the camera immedi‐
ately after vehicle shipment.▷If there is constant blinding effects be‐
cause of oncoming light, e.g., from the sun
low in the sky.
Warning sensitivity
The more sensitive the warning settings are,
the more warnings are displayed. However,
there may also be an excess of false warnings.
Pedestrian warning
Depending on how the vehicle is equipped, the
function warns of an imminent collision with
pedestrians during daytime or nighttime.
The function is subdivided into the following
systems:
▷During daytime: Pedestrian warning with
city braking function, refer to page 122▷At night: Night vision, refer to page 124
Pedestrian warning with city
braking function
The concept The ystem can help prevent accidents with pe‐
destrians.
The system issues a warning in the city driving
speed area if there is imminent danger of a col‐
lision with pedestrians and includes a braking
function.
The camera in the area of the rearview mirror
controls the system.
Note
Personal responsibility
The system does not serve as a substi‐
tute for the driver's personal judgment of the
traffic situation.
Be aware of the traffic situation and the vehi‐
cle's surroundings at all times, otherwise acci‐
dents are still possible despite all warnings.◀
General information In daylight the system warns of possible colli‐
sions with pedestrians at speeds from about
6 mph/10 km/h to about 35 mph/60 km/h
shortly before a collision the system supports you with a braking intervention.
Under those circumstances it reacts to people
who are within the detection range of the sys‐
tem.
Detection range
The detection area in front of the vehicle is div‐
ided into two areas.
▷Central area, arrow 1, directly in front of the
vehicle.▷Expanded area, arrow 2, to the right and
left.
A collision is imminent if pedestrians are lo‐
cated within the central area. A warning is is‐
sued about pedestrians who are located within
the extended area only if they are moving in
the direction of the central area.
Seite 122ControlsSafety122
Online Edition for Part no. 01 40 2 956 336 - X/14

Tow-starting and towing
For towing the vehicle turn, switch off the
Intelligent Safety systems; otherwise malfunc‐
tions of the individual braking systems might
lead to accidents.◀
System limits Be alert
Due to system limitations, warnings may
be not issued at all, or may be issued late or
improperly. Therefore, always be alert and
ready to intervene; otherwise, there is the risk
of an accident.◀
Detection range
The detection potential of the camera is lim‐
ited.
Thus a warning might not be issued or be is‐
sued late.
E. g. the following situations may not be de‐
tected:▷Partially covered pedestrians.▷Pedestrians that are not detected as such
because of the viewing angle or contour.▷Pedestrians outside of the detection range.▷Pedestrians having a body size less than
32 in/80 cm.
Functional limitations
The system may not be fully functional or may
not be available in the following situations:
▷In heavy fog, rain, sprayed water or snow‐
fall.▷In tight curves.▷If the driving stability control systems are
deactivated, e.g. DSC OFF.▷If the camera viewing field or the front
windshield are dirty or covered.▷Up to 10 seconds after the start of the en‐
gine, via the Start/Stop knob.▷During calibration of the camera immedi‐
ately after vehicle shipment.▷If there is constant blinding effects be‐
cause of oncoming light, e.g., from the sun
low in the sky.▷When it is dark outside.
Night Vision with Pedestrian
and Animal Detection
The concept Night Vision with pedestrian and animal detec‐
tion is a night vision system.
An infrared camera scans the area in front of
the vehicle and issues a warning if it detects
pedestrians and animals on the street. Warm
objects that are similar in shape to human be‐
ings or animals are detected by the system. If necessary, the heat image can be displayed on
the Control Display.
Heat image
The image shows the heat radiated by objects
in the field of view of the camera.
Warm objects have a light appearance and
cold objects, a dark appearance.
The ability to detect an object depends on the
temperature difference between the object
and the background and on the level of heat
radiation emitted by the object. Objects that
are similar in temperature to the environment
or that radiate very little heat are difficult to de‐
tect.
Seite 124ControlsSafety124
Online Edition for Part no. 01 40 2 956 336 - X/14

For safety reasons, when driving at speeds
above approx. 3 mph/5 km/h and in low ambi‐
ent light, the image is only displayed when the
low beams are activated.
A still image is displayed at regular intervals for
a fraction of a second.
Pedestrian and animal detection
Object detection and warning only functions in
darkness.
Warm objects that are similar in shape to hu‐
man beings are detected by the system.
In addition, the system also detects animals
above a certain minimum size, e.g., deer.
With heat image activated on the Control Dis‐
play:
People detected by the system are displayed
with a slight yellow hue.
Animals detected by the system are displayed
in a darker yellow.
Under good ambient conditions, the object de‐
tection operates within the following distance
ranges:
▷Pedestrian detection: up to approx.
330 ft/100 m▷Detection of large animals: up to approx.
490 ft/150 m▷Detection of medium animals: up to ap‐
prox. 230 ft/70 m
Environmental influences can limit the availa‐
bility of object detection.
If the vehicle systems detect that the vehicle is
located in a residential area, the animal detec‐
tion is temporarily switched off.
Hints Personal responsibility
Night Vision cannot replace the driver's
personal judgment of the visibility conditions
and the traffic situation. The view ahead and
the actual visibility conditions must always be
the basis on which the vehicle speed is ad‐
justed; otherwise, there is a risk to road
safety.◀
At a glance
Buttons in the vehicle
Intelligent Safety button
Switch on/reel off heat image
Camera
The camera is automatically heated when the
external temperatures are low.
Seite 125SafetyControls125
Online Edition for Part no. 01 40 2 956 336 - X/14

The camera is automatically cleaned together
with the headlights.
Switching on/off
Switching on automatically When it is dark outside, the system is automat‐
ically active after every driving-off.
Switch off The system is only switched off until the next
time the engine is started with the Start/Stop
button.
Press button.
The LED goes out.
Switching on heat image additionally The heat image from the Night Vision camera
can also be displayed on the Control Display.
This function has no effect on object detec‐
tion.
Press button.
The image from the camera is displayed on the
Control Display.
Adjustments via the iDrive With heat image switched on:1.Press the controller.2.Select brightness or contrast.▷ Select the symbol.▷ Select the symbol.3.Turn the controller until the desired setting
is reached, and press the controller.
Display
Warning of people or animals in
danger
If a collision with a person or an animal de‐
tected in this way is imminent, a warning sym‐
bol appears on the instrument cluster and in
the Head-up Display.
Although both the shape and the heat radiation
are analyzed, false warnings cannot be ruled
out.
Warning area in front of the vehicle
The warning area for the pedestrian warning
consists of two parts:
▷Central area, arrow 1, directly in front of the
vehicle.▷Expanded area, arrow 2, to the right and
left.
With animal warnings, no distinction is made
between the central or expanded area.
The entire area moves along with the vehicle in
the direction of the steering angle and changes
with the vehicle speed. As the vehicle speed
increases, the area becomes longer and wider,
e.g.
Prewarning The yellow symbol is displayed when aperson is detected in the central area,
arrow 1, immediately in front of the ve‐
hicle.
The yellow symbol is displayed when a person
in the extended area, arrow 2, is moving from
the right or left towards the central area.
The displayed symbol can vary with the people
detected.
Intervene actively by braking or make an eva‐
sive maneuver.
Seite 126ControlsSafety126
Online Edition for Part no. 01 40 2 956 336 - X/14

Everything from A to Z
IndexA ABS, Antilock Brake Sys‐ tem 133
ACC, Active Cruise Control with Stop & Go 141
Acceleration Assistant, refer to Launch Control 80
Activated-charcoal filter 164
Active Blind Spot Detec‐ tion 129
Active Cruise Control with Stop & Go, ACC 141
Active Protection 131
Active seat, front 57
Active seat ventilation, front 57
Active Steering, integral 137
Adaptive brake assistant 133
Adaptive brake lights, refer to Brake force display 130
Adaptive drive 136
Adaptive Light Control 102
Additives, oil 211
Adjusting, steering wheel 64
Adjustments, seats/head re‐ straints 55
After washing vehicle 229
Airbags 106
Airbags, indicator/warning light 107
Air circulation, refer to Recir‐ culated-air mode 163
Air, dehumidifying, refer to Cooling function 163
Air distribution, manual 162
Air flow, automatic climate control 163
Air outlets, see ventila‐ tion 165
Air pressure, tires 196 Alarm system 44
Alarm, unintentional 45
All around the center con‐ sole 16
All around the interior rear‐ view mirror 17
All around the steering wheel 14
All-season tires, refer to Win‐ ter tires 205
All-wheel-drive 135
Alternating-code hand-held transmitter 169
Alternative oil types 212
Ambient light 104
Animal detection, see Night Vision 124
Antifreeze, washer fluid 76
Antilock Brake System, ABS 133
Anti-slip control, refer to DSC 133
Approved axle load 237
Approved engine oils 212
Armrest, refer to Front center armrest 174
Arrival time 96
Ashtray 170
Assistance, Roadside Assis‐ tance 224
Assistance when driving off 133
Attentiveness assistant 131
AUTO H button 72
AUTO H button, refer to Au‐ tomatic Hold 72
AUTO intensity 162
Automatic car wash 228
Automatic Cruise Control with Stop & Go 141
Automatic Curb Monitor 62 Automatic deactivation, front-
seat passenger airbags 108
Automatic headlight con‐ trol 102
Automatic Hold 72
Automatic locking 43
Automatic recirculated-air control 163
Automatic Soft Closing, doors 40
Automatic transmission, see Steptronic transmission 77
AUTO program, automatic cli‐ mate control 162
AUTO program, intensity 162
Auto Start/Stop function 70
Average fuel consumption 95
Average speed 95
Axle loads, weights 237
B Backrest curvature, refer to Lumbar support 56
Backrest, seats 55
Backrest, width 56
Band-aids, refer to First aid kit 224
Bar for tow-starting/ towing 226
Battery replacement, remote control for parked-car heat‐
ing/ventilation 167
Battery replacement, vehicle battery 221
Battery replacement, vehicle remote control 34
Battery, vehicle 221
Belts, safety belts 58
Beverage holder, cu‐ pholder 175 Seite 240ReferenceEverything from A to Z240
Online Edition for Part no. 01 40 2 956 336 - X/14

Length, vehicle 236
Letters and numbers, enter‐ ing 24
License plate lamp, bulb re‐ placement 219
Light alloy wheels, care 231
Light control 102
Light-emitting diodes, LEDs 218
Lighting 101
Lighting, speaker 105
Lighting via remote con‐ trol 38
Light reel 101
Lights 101
Lights and bulbs 217
Load 182
Loading 181
Lock, door 39
Locking/unlocking via door lock 39
Locking/unlocking with re‐ mote control 37
Locking, automatic 43
Locking, settings 43
Locking via trunk lid 41
Low beams 101
Low beams, automatic, refer to High-beam Assistant 103
Lower back support 56
Lumbar support 56
M
Maintenance 215
Maintenance require‐ ments 215
Maintenance, service require‐ ments 92
Maintenance system, BMW 215
Make-up mirror 170
Malfunction displays, see Check Control 86
Manual air distribution 162
Manual air flow 163 Manual brake, refer to Parking
brake 71
Manual mode, Steptronic transmission 78
Manual operation, door lock 39
Manual operation, exterior mirrors 62
Manual operation, fuel filler flap 192
Manual operation, Park Dis‐ tance Control PDC 151
Manual operation, rearview camera 153
Manual operation, Side View 155
Manual operation, Top View 157
Marking on approved tires 205
Marking, run-flat tires 206
Massage seat, front 57
Master key, refer to Remote control 34
Maximum cooling 163
Maximum speed, display 93
Maximum speed, winter tires 205
Measure, units of 98
Medical kit 224
Memory for seat, mirrors, steering wheel 61
Menu, EfficientDynamics 186
Menu in instrument clus‐ ter 94
Menus, operating, iDrive 18
Menus, refer to iDrive operat‐ ing concept 19
Messages, see Check Con‐ trol 86
Microfilter 164
Minimum tread, tires 204
Mirror 62
Mirror memory 61
Mobile communication devi‐ ces in the vehicle 179 Modifications, technical, refer
to Safety 7
Moisture in headlight 218
Monitor, refer to Control Dis‐ play 18
Mounting of child restraint systems 65
Multifunctional instrument display 83
Multifunction steering wheel, buttons 14
N
Navigation, see user's manual for Navigation, Entertain‐
ment and Communication
Neck restraints, front, refer to Head restraints 59
Neutral cleaner, see wheel cleaner 231
New wheels and tires 204
Night Vision 124
Night Vision device, see Night Vision 124
Nylon rope for tow-starting/ towing 226
O OBD Onboard Diagnosis 215
OBD, see OBD Onboard Di‐ agnosis 215
Object detection, see Night Vision 124
Obstacle marking, rearview camera 154
Octane rating, refer to Rec‐ ommended fuel grade 194
Odometer 90
Office, see user's manual for Navigation, Entertainment
and Communication
Oil 210
Oil, adding 211
Oil additives 211 Seite 245Everything from A to ZReference245
Online Edition for Part no. 01 40 2 956 336 - X/14

Oil change 212
Oil change interval, service requirements 92
Oil filler neck 211
Oil types, alternative 212
Oil types, approved 212
Old batteries, disposal 221
Onboard monitor, refer to Control Display 18
Onboard vehicle tool kit 217
Opening/closing via door lock 39
Opening and closing 34
Opening and closing, without remote control 39
Opening and closing, with re‐ mote control 37
Operating concept, iDrive 18
Optional equipment, standard equipment 6
Outside air, refer to Auto‐ matic recirculated-air con‐
trol 163
Overheating of engine, refer to Coolant temperature 90
P Paint, vehicle 229
Parallel parking assistant 158
Park Distance Control PDC 150
Parked vehicle, condensa‐ tion 180
Parking aid, refer to PDC 150
Parking assistant 158
Parking brake 71
Parking lights 101
Parking lights and roadside parking lights, refer to Light-
emitting diodes, LEDs 219
Parking with Automatic Hold 72
Passenger side mirror, tilting downward 62 Pathway lines, rearview cam‐
era 153
PDC Park Distance Con‐ trol 150
Pedestrian detection, see Night Vision 124
Pedestrian warning with city braking function 122
Personal Profile 35
Personal Profile, exporting profiles 36
Pinch protection system, win‐ dows 46
Plastic, care 231
Power failure 221
Power windows 45
Pressure, tire air pres‐ sure 196
Pressure warning FTM, tires 113
Profile, refer to Personal Pro‐ file 35
Programmable memory but‐ tons, iDrive 23
Protective function, win‐ dows 46
Push-and-turn reel, refer to Controller 18
R Radiator fluid 213
Radio-operated key, refer to Remote control 34
Radio ready state 68
Radio, see user's manual for Navigation, Entertainment
and Communication
Rain sensor 75
Rear axle steering 137
Rear lights 219
Rearview camera 152
Rearview mirror 62
Rear window defroster 164
Recirculated-air mode 163 Recommended fuel
grade 194
Recommended tire brands 205
Refueling 192
Remaining range 91
Remote control/key 34
Remote control, malfunc‐ tion 39
Remote control, parked-car heating/ventilation 166
Remote control, univer‐ sal 168
Replacement fuse 221
Replacing bulbs, see Lamp replacement 217
Replacing parts 217
Replacing wheels/tires 204
Reporting safety defects 9
RES button 144
RES button, see Active Cruise Control, ACC 141
RES button, see Cruise con‐ trol 148
Reserve warning, refer to Range 91
Reset, Tire Pressure Monitor TPM 111
Residual heat, automatic cli‐ mate control 164
Retaining straps, securing cargo 182
Retreaded tires 205
Reversing lamp, bulb replace‐ ment 220
Roadside parking lights 102
Rollover protection sys‐ tem 109
Roll stabilization, refer to Adaptive Drive 136
Roll stabilization, refer to Dy‐ namic Drive 136
RON recommended fuel grade 194
Rope for tow-starting/ towing 226 Seite 246ReferenceEverything from A to Z246
Online Edition for Part no. 01 40 2 956 336 - X/14

Symbols in the status field 22
SYNC program, automatic cli‐ mate control 164
T Tachometer 90
Tail and brake lights 219
Tail lights 219
Tail lights, bulb replace‐ ment 219
Technical changes, refer to Safety 7
Technical data 236
Telephone, see user's manual for Navigation, Entertain‐
ment and Communication
Temperature, automatic cli‐ mate control 162
Temperature display for ex‐ ternal temperature 90
Temperature, engine oil 90
Terminal, starting aid 225
Text message, supplemen‐ tary 89
Theft alarm system, refer to Alarm system 44
Thermal camera, see Night Vision 124
Thigh support 56
Tilt alarm sensor 45
Tilt, seats 55
Time of arrival 96
Tire damage 204
Tire identification marks 202
Tire inflation pressure 196
Tire inflation pressure moni‐ tor, refer to FTM 113
Tire Pressure Monitor TPM 110
Tires, changing 204
Tires, everything on wheels and tires 196
Tires, run-flat tires 206
Tire tread 203 Tone, see user's manual for
Navigation, Entertainment
and Communication
Tool 217
Top View 156
Total vehicle weight 237
Touchpad 21
Tow fitting 227
Towing 226
Tow lug, see tow fitting 227
Tow-starting 226
TPM Tire Pressure Moni‐ tor 110
Traction control 134
TRACTION, driving dynam‐ ics 134
TRACTION program, Dy‐ namic Driving Control 138
Transmission lock, electronic unlocking 80
Transmission, see Steptronic transmission 77
Transporting children safely 65
Tread, tires 203
Trip computer 96
Triple turn signal activa‐ tion 74
Trip odometer 90
Trunk, cargo area partition 50
Trunk lid closing 41
Trunk lid, emergency unlock‐ ing 41
Trunk lid, hotel function 41
Trunk lid opening 40
Trunk lid via remote con‐ trol 38
Turning circle 236
Turning circle lines, rearview camera 154
Turn signals, operation 74
Turn signals, rear, bulb re‐ placement 219 U
Unintentional alarm 45
Units of measure 98
Universal remote control 168
Unlock button, Steptronic transmission 78
Unlocking/locking via door lock 39
Unlocking/locking with re‐ mote control 37
Unlocking, settings 43
Updates made after the edito‐ rial deadline 6
Upholstery care 230
USB interface 173
V
Vanity mirror 170
Variable steering, Integral Ac‐ tive Steering 137
Vehicle battery 221
Vehicle battery, replac‐ ing 221
Vehicle, break-in 178
Vehicle care 229
Vehicle features and op‐ tions 6
Vehicle identification num‐ ber 9
Vehicle jack 220
Vehicle paint 229
Vehicle storage 232
Vehicle wash 228
Ventilation 165
Venting, see ventilation 165
Vent, see ventilation 165
VIN, see vehicle identification number 9
Voice activation system 26
W Warning and indicator lamps, see Check Control 86 Seite 248ReferenceEverything from A to Z248
Online Edition for Part no. 01 40 2 956 336 - X/14
