BMW M3 2008 User Guide

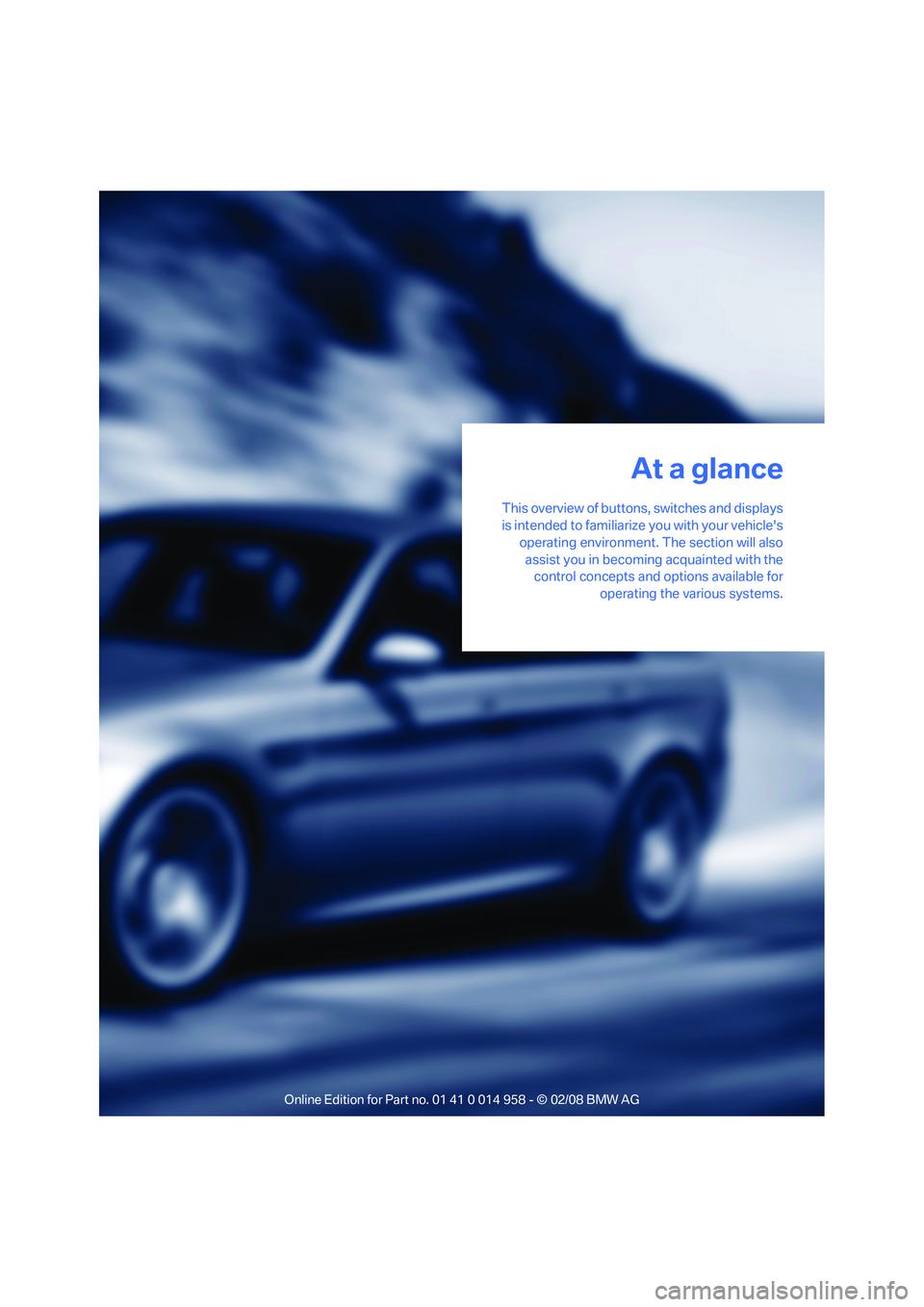

At a glance
This overview of buttons, switches and displays
is intended to familiarize you with your vehicle's
operating environment. The section will also
assist you in becoming acquainted with the
control concepts and options available for
operating the various systems.
At a glance

Cockpit
10

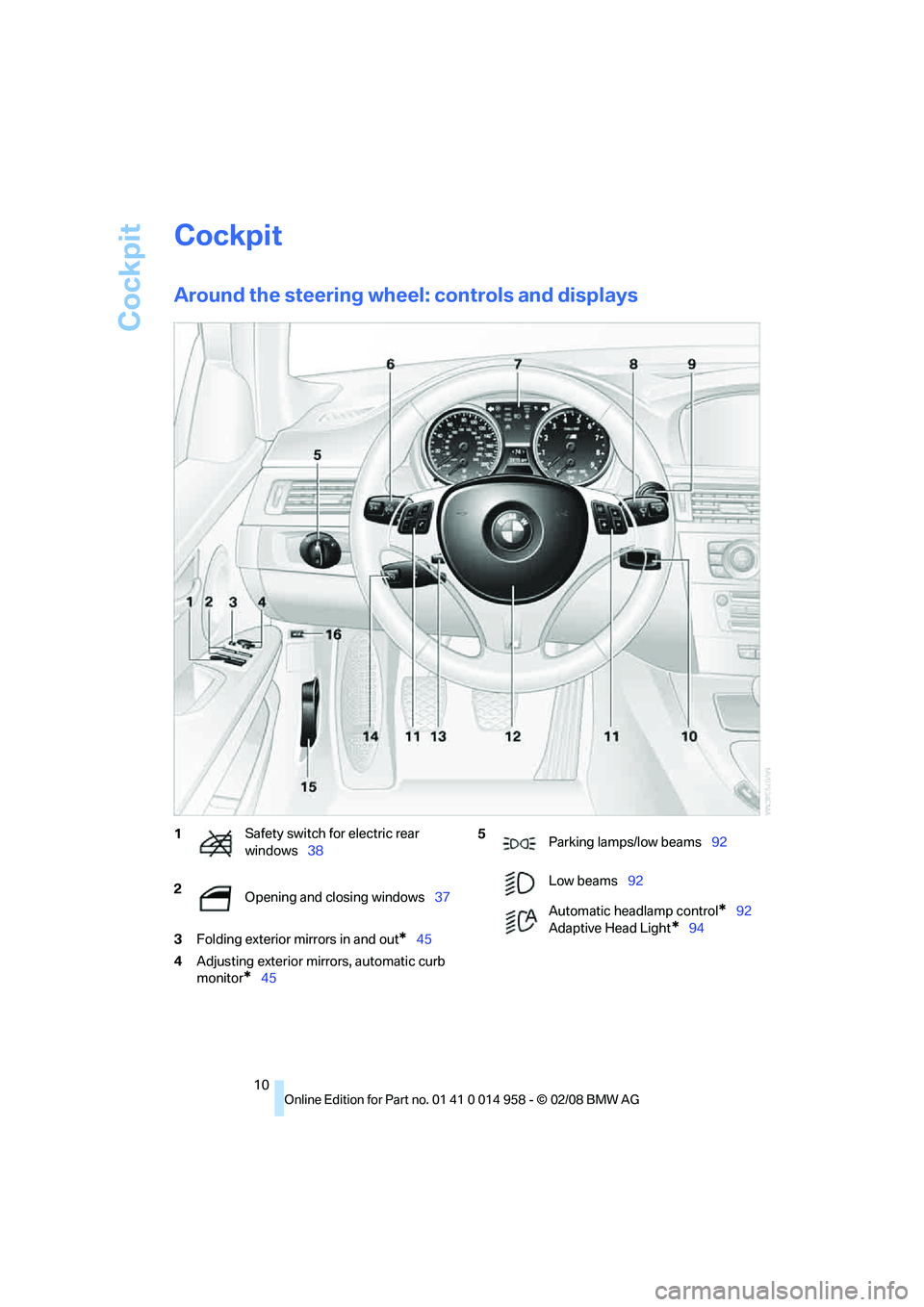

Cockpit
Around the steering wheel: controls and displays
3Folding exterior mirrors in and out*45
4Adjusting exterior mirrors, automatic curb
monitor
*45
1Safety switch for electric rear
windows38
2
Opening and closing windows37 5
Parking lamps/low beams92
Low beams92
Automatic headlamp control
*92
Adaptive Head Light
*94

At a glance
11Reference
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
7Instrument cluster12
10Ignition lock54
11Buttons on the steering wheel12Horn: the entire surface
13Adjusting the steering wheel46
15Releasing the hood218
16Opening the luggage compartment lid33 6
Turn signals63
High beams, headlamp flasher94
Roadside parking lamps
*94
Computer68
Settings and information about the
vehicle71
Instrument lighting94
8
Windshield wipers64
Rain sensor
*64
9Switching the ignition on/off and
starting/stopping the engine54
Telephone
*:
>Press: accepting and ending a
call, starting dialing
* selected
phone numbers. Redialing if
no phone number is selected
>Press longer: redialing
Volume
Activating/deactivating voice com-
mand system
*23
Changing radio station
Selecting music track
Scrolling through phone book and
lists with stored phone numbers
MDrive*, calling up individual
settings47
Individually programmable
*47
Individually programmable47
14
Cruise control65

Cockpit
12

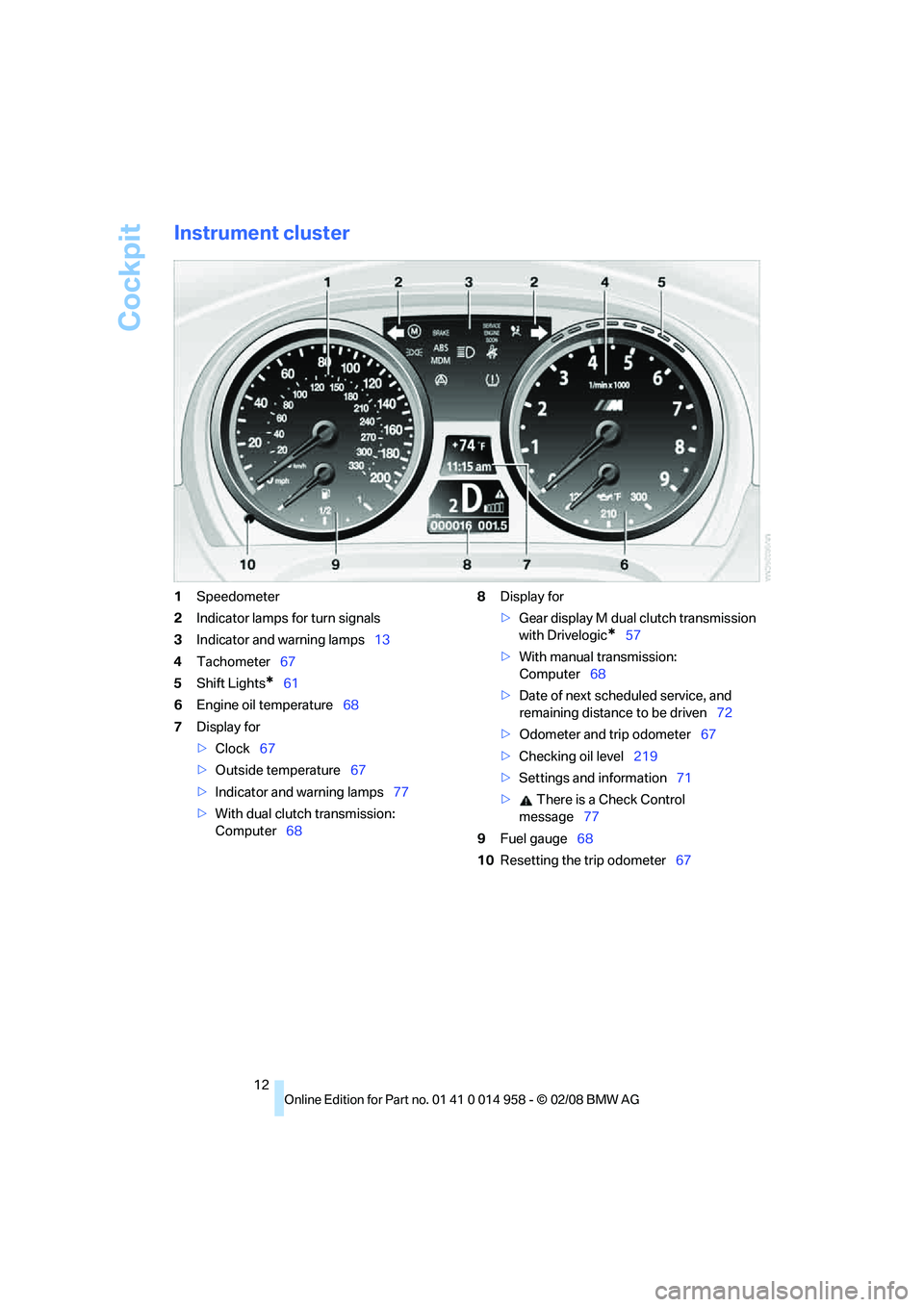

Instrument cluster
1Speedometer
2Indicator lamps for turn signals
3Indicator and warning lamps13
4Tachometer67
5Shift Lights
*61
6Engine oil temperature68
7Display for
>Clock67
>Outside temperature67
>Indicator and warning lamps77
>With dual clutch transmission:
Computer688Display for
>Gear display M dual clutch transmission
with Drivelogic
*57
>With manual transmission:
Computer68
>Date of next scheduled service, and
remaining distance to be driven72
>Odometer and trip odometer67
>Checking oil level219
>Settings and information71
> There is a Check Control
message77
9Fuel gauge68
10Resetting the trip odometer67

At a glance
13Reference
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Indicator and warning lamps
The concept
Indicator and warning lamps can light up in a
variety of combinations and colors.
Some lamps are checked for proper functioning
and thus come on briefly when the engine is
started or the ignition is switched on.
Explanatory text messages
Text messages at the lower edge of the Control
Display explain the meaning of the displayed
indicator and warning lamps.
You can call up more information, e.g. on the
cause of a malfunction and on how to respond,
via Check Control, refer to page77.
In urgent cases, this information will be shown
as soon as the corresponding lamp comes on.
Indicator lamps without text messages
The following indicator lamps notify you that
certain functions are active:
Parking lamps/low beams92
High beams/headlamp flasher94
Parking brake applied56
MDrive
*48
M Dynamic Mode
*82
Lamp flashes:
DSC is regulating the drive forces in
order to maintain driving stability82
Engine malfunction with adverse
effect on exhaust emissions213
Canada: engine malfunction with
adverse effect on exhaust
emissions213

Cockpit
14

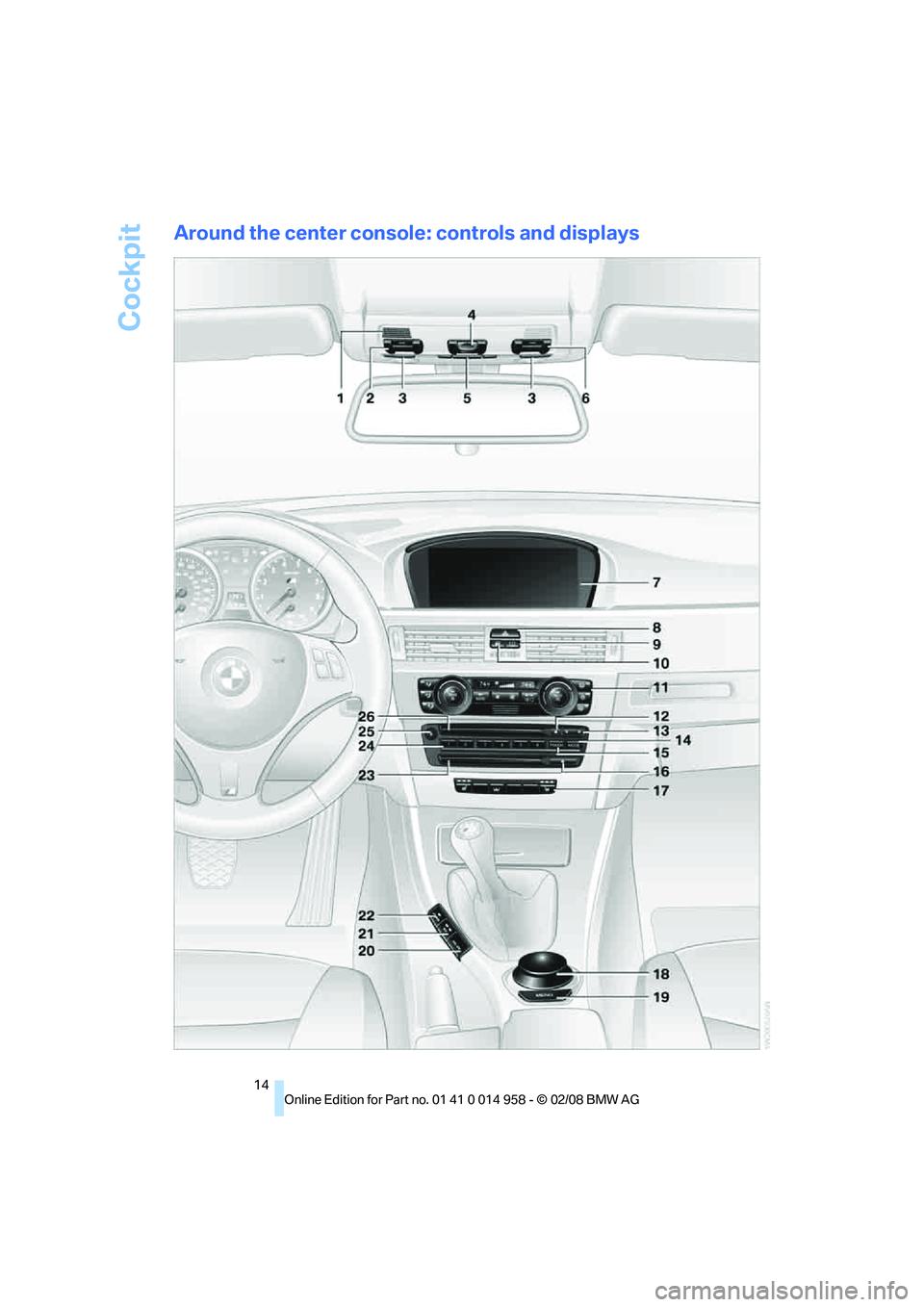

Around the center console: controls and displays

At a glance
15Reference
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
1Microphone for voice command system*
and for telephone in hands-free mode*
2SOS: initiating an Emergency Request
call
*230
3Reading lamps95
4Glass roof, electric
*38
5Interior lamps95
6Passenger airbag status lamp
*90
7Control Display16
8Hazard warning flashers
9Flat Tire Monitor FTM
*84
Tire Pressure Monitor TPM
*86
10Central locking system32
11Automatic climate control
12Ejecting audio CD15213Changing
>Radio station156
>Track166
14Selecting radio, CD and CD changer
15Selecting AM or FM waveband
16Ejecting navigation DVD124
18Controller16
Can be turned, pressed, or moved horizon-
tally in four directions
19Opening start menu on Control Display17
20Dynamic Stability Control DSC82
21Electronic Damper Control EDC
*84
22M Engine Dynamics Control POWER63
23Drive for navigation DVD124
24Programmable memory keys21
25Switching audio sources on/off and adjust-
ing volume152
26Drive for audio CD152 Air distribution to the
windshield97
Air distribution to the upper body
area97
Air distribution to the footwell97
Automatic air distribution and flow
rate98
Cooling function99
Automatic recirculated-air control
AUC98
Recirculated-air mode98
Maximum cooling98
Residual heat mode99
Air flow rate98
Defrosting windows99
Rear window defroster99
17
Heated seats*43
Roller sun blind
*105

iDrive
16
iDrive
iDrive integrates the functions of a large num-
ber of switches. This allows these functions to
be operated from a single central position. The
following section provides an introduction to basic menu navigation. The control of the indi-
vidual functions is described in connection with
the relevant equipment.
Controls
1Control Display
2 button
Opening start menu
3Controller
The controller can be used to select menu
items and to adjust settings:
>Move in four directions, arrow 4
>Turn, arrow 5
>Push, arrow 6Operate the controller only when traffic
and road conditions allow this, to avoid
endangering the car's occupants and other
road users by being distracted.<

At a glance
17Reference
Controls
Driving tips
Communications
Navigation
Entertainment
Mobility
Menu overview
Communication
>Telephone*
>BMW Assist* or BMW TeleServices*
Navigation
>Navigation system*
>Onboard information, e.g. for displaying the
average fuel consumption
Entertainment
>Radio
>CD player and CD changer
*
>AUX-In port, USB-audio interface* for
external audio device
Climate
>Vent settings
>Automatic programs
>Parked car operation
menu
>Switching off Control Display
>Tone and display settings
>M settings
>Settings for your vehicle, e.g. for the central
locking system
>Display of service requirements and dates
for statutory inspections
>Settings for telephone
Operating principle
As of radio readiness, the following message
appears on the Control Display:
To hide the message:
Press the controller.
The start menu is displayed.
The message is automatically hidden after
approx. 10 seconds.
Start menu
All iDrive functions can be called up via five
menu items.
Opening start menu
Press the button.
To open the start menu from the menu:
Press the button twice.

iDrive
18
Calling up menu items in the start menu
As of radio readiness, refer to page54:
Via the start menu you can call up the four menu
items of Communication, Navigation, Entertain-
ment and Climate by moving the controller for-
wards, backwards, to the left or to the right.
You can call up the menu by pressing the con-
troller.
Convenient call-up of menu items
The convenient call-up function enables you to:
>Call up a menu item from the start menu in
the view last displayed
>Switch directly between Communication,
Navigation, Entertainment and Climate
without having to press the button
To do so, move the controller in the corre-
sponding direction and hold it for more than
approx. 2 seconds.
Displays in menu
1Each menu is subdivided into fields. The
active field is highlighted.
2A symbol indicates the start menu item last
selected.
1Menu items are usually grouped in horizon-
tal or vertical lists.
2In these lists, arrows indicate the possibility
of accessing other menu items that are not
currently visible.
3Settings are represented graphically or as
numerical values.
Communication
Navigation or onboard information
Entertainment
Climate
menu
