BMW M3 CONVERTIBLE 2001 E46 User Guide

11n

Controls and features
Operation, care and maintenance

Lamps:

Side lamps/Low beam
headlamps84
Instrument lighting84
High beams/Parking lamps85
Fog lamps85
Interior lamps86
Reading lamps86

Controlling the climate
for pleasant driving:

Automatic climate control88
Heated seats93

Interior conveniences:

Glove compartment94
Storage compartments95
Cellular phone96
Ashtray, front96
Cigarette lighter97
Ashtray, rear97

Loading and transporting:

Ski bag98
Cargo loading100
Roof-mounted luggage rack for
the hardtop101

Special operating instructions:

Break-in procedures104
Driving notes105
Catalytic converter105
Antilock Brake System
(ABS)106
Disc brakes108
Brake system109
Winter operation110
Power steering112
Cellular phone112
Radio reception112
Hardtop113

Wheels and tires:

Tire inflation pressures115
Tire condition115
Tire replacement116
Tire rotation117
Wheel and tire
combinations118
Special features of winter
tires119
Snow chains119
Approved wheel and tire
specifications120

Under the hood:

Hood121
Engine compartment124
Washer fluids126
Washer nozzles126
Engine oil127
Coolant129
Brake fluid130
Vehicle Identification130

Care and maintenance:

The BMW Maintenance
System131
Caring for your vehicle132
Cleaning and caring for the
convertible top137
Airbags139
Storing your vehicle140

Laws and regulations:

Technical modifications141
California Proposition 65
Warning141
OBD connector142

Contents

Owner service procedures
Advanced technology
Technical data

Replacement procedures:

Onboard tool kit146
Windshield wiper blades146
Lamps and bulbs146
Repairing a flat tire153
Battery157
Fuses160
Replacing microfilter and
activated-charcoal filter161

In case of electrical
malfunction:

Fuel filler door161
Convertible top162

Assistance, giving and
receiving:

Jump-starting164
Towing the vehicle165Airbags168
Radio reception169
Dynamic Stability Control
(DSC)170
Safety belt tensioner170
M3 Engine concept171
Rain sensor172
Interior rearview mirror with
automatic dimming
feature173
Xenon lamps174
Rollover protection system175Engine data178
Dimensions179
Weights180
Capacities181
Electrical system182
Drive belts182

13n

Index

Everything from A to Z186

14n

Overview
Controls and features
Operation, care
and maintenance
Owner service procedures
Technical data
Index Advanced technology

15n

IndexDataTechnologyRepairsCar careControlsOverview
Cockpit16
Instrument cluster18
Indicator and warning lamps20
Multifunction steering wheel
(MFL)24
Hazard warning flashers25
Warning triangle25
Refueling26
Fuel specifications27
Tire inflation pressures27
Overview

16n

Cockpit

17n

IndexDataTechnologyRepairsCar careControlsOverview

Cockpit

1 Side lamps/Low beam
headlamps84
2

d

Turn signal indicator69

>

Parking lamps85

>

High beams85

>

Headlamp flasher69

>

Computer77
3 Washer/Wiper system69
4 Hazard warning flashers25
5 Shift lever68
6 Rear window defroster71
7 Central locking system33
8 Adjusting steering wheel55
9 Horn: the entire surface
10 Fog lamps85

18n

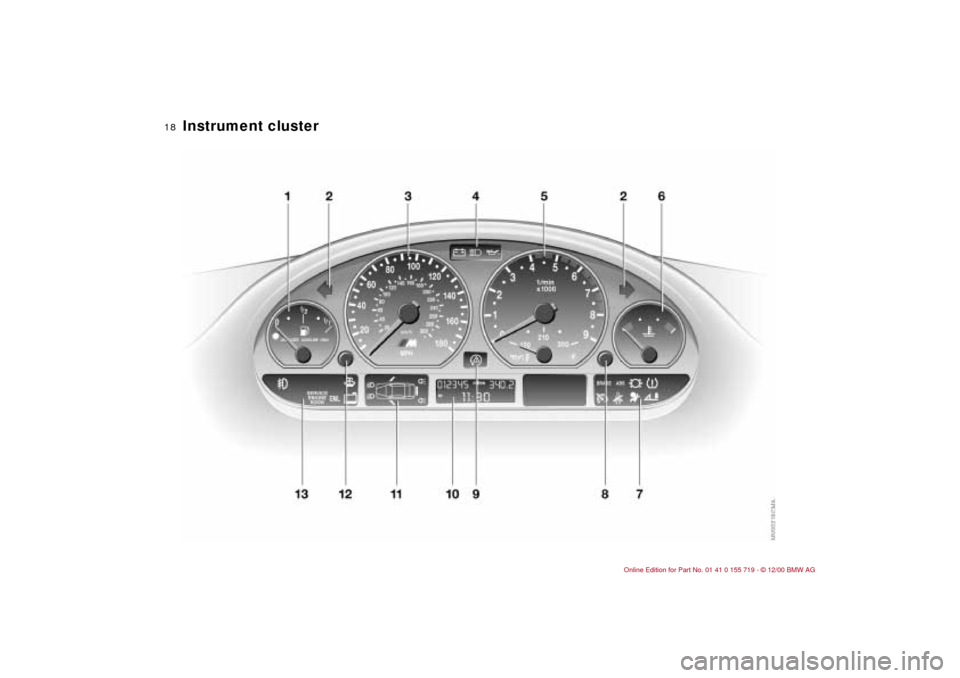

Instrument cluster

19n

IndexDataTechnologyRepairsCar careControlsOverview

Instrument cluster

1 Fuel gauge with indicator lamp for
fuel reserve74
2 Turn signal indicator23
3 Speedometer
4 Indicator lamp for

>

Battery charge current20

>

High beams23

>

Engine oil pressure/Engine oil
level20, 21
5 Tachometer and engine oil temper-
ature gauge73
6 Engine coolant temperature gauge
with "Coolant temperature too high"
indicator74
7 Indicator and warning lamps (clock-
wise) for

>

Parking brake/Brake system
hydraulic circuits/Cornering
Brake Control (CBC)20, 21

>

Antilock Brake System (ABS)21

>

Brake pads22

>

Tire Pressure Warning
(RDW)20, 22

>

Rollover protection system22

>

Airbags21

>

Please fasten safety belts, lock
backrest21

>

Cruise control238 Reset button for

>

Clock76

>

Unit of measure for outside
temperature display77
9 Indicator lamp for Dynamic Stability
Control (DSC)22
10 Display panel for

>

Odometer73

>

Trip odometer73

>

Clock76

>

Service Interval75
Computer display, using the turn
signal lever to operate, refer to
page 77:

>

Clock

>

Outside temperature

>

Average fuel consumption

>

Cruising range

>

Average speed
11 Check Control display76
12 Trip odometer, reset to zero7313 Indicator and warning lamps (clock-
wise) for

>

Fog lamps23

>

Add washer fluid22

>

Coolant level22

>

Electronic Engine Power Control
(EML)22

>

Service Engine Soon22
You can have the outside temper-
ature and distance traveled shown
in other units of measurement.

<

20n

Indicator and warning lamps

Technology
that monitors itself

Many of the systems in your BMW
monitor themselves automatically, both
during engine starts and while you are
driving. Indicator and warning lamps
identified by "

l

" are tested for proper
operation whenever the ignition key is
turned. They each light up once for
different periods of time.
If a fault should occur in one of these
systems, the corresponding lamp does
not go out after the engine is started, or
it lights up while the vehicle is moving.
You will see how to react to this below.

Red: stop immediately

Battery charge current

l

The battery is no longer being
charged. Indicates a problem
with the alternator's drive belt or a
defect in the charging circuit. Please
contact the nearest BMW center.
Never attempt to continue driving
with a defective alternator drive
belt, as this could result in overheating
and serious engine damage. A defec-
tive belt also leads to a substantial
increase in the amount of effort
required to steer the vehicle.

<


Engine oil pressure

l

Stop vehicle immediately and
switch off engine. Check the
engine oil and top up as required. If the
oil level is correct: please contact the
nearest BMW center.
Do not attempt to continue
driving, as lack of adequate lubri-
cation can lead to serious engine
damage.

<
Tire Pressure Warning (RDW)
This display is accompanied by
an audible warning signal: the
vehicle has a flat tire. Reduce your
speed immediately and avoid all abrupt
braking or steering maneuvers as you
bring the vehicle to a halt.
For additional information, refer to
page 81.
Brake warning lamp l
If the lamp comes on when the
parking brake is not engaged:
Check the brake fluid level. Before
driving further, be sure to comply with
the information on pages 109 and 130.
Brake warning lamp for Cana-
dian models.
