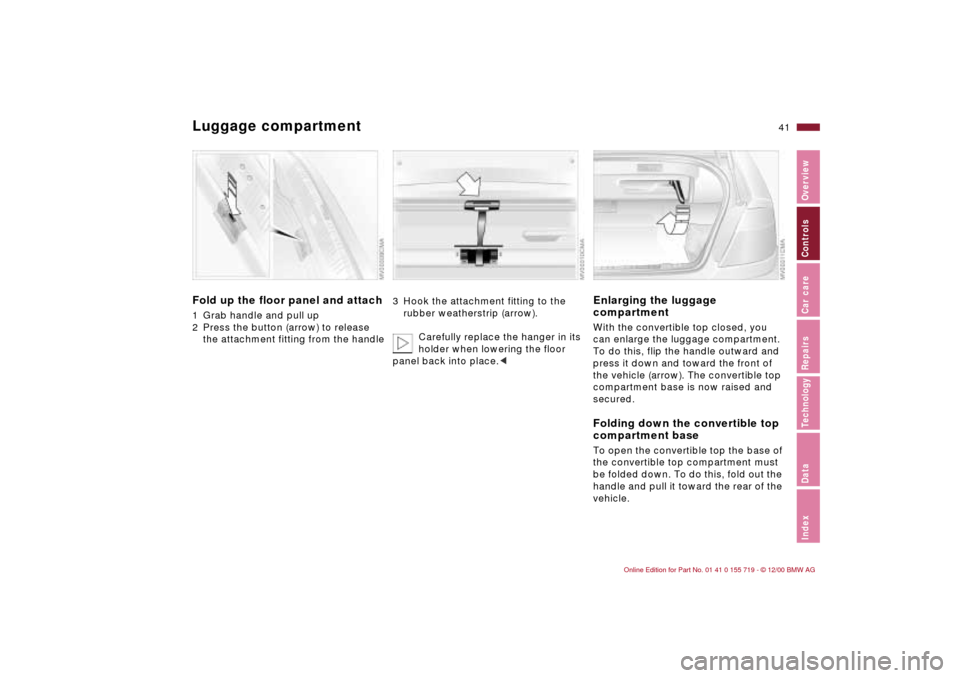

Luggage compartment Fold up the floor panel and attach1 Grab handle and pull up
2 Press the button (arrow) to release
the attachment fitting from the handle
3 Hook the attachment fitting to the
rubber weatherstrip (arrow).
Carefully replace the hanger in its
holder when lowering the floor
panel back into place.<
Enlarging the luggage
compartmentWith the convertible top closed, you
can enlarge the luggage compartment.
To do this, flip the handle outward and
press it down and toward the front of
the vehicle (arrow). The convertible top
compartment base is now raised and
secured.Folding down the convertible top
compartment baseTo open the convertible top the base of
the convertible top compartment must
be folded down. To do this, fold out the
handle and pull it toward the rear of the
vehicle.

42n
Luggage compartment Alarm system
*
When opening the convertible top,
refer to page 45, make sure that
the luggage compartment is set up
properly, as otherwise damage may
occur.<
The conceptThe vehicle alarm system responds:
>When a door, the hood or the
luggage compartment lid is opened
>To movement inside the vehicle (inte-
rior motion sensor)
>Altering the vehicle tilt angle, e. g. as
would occur while attempting to steal
the wheels or tow the vehicle (tilt
alarm sensor)
>To interruption of battery voltage.
The system responds to unauthorized
vehicle entry and attempted theft by
simultaneously activating the following:
>Sounding an acoustical alarm for
30 seconds
>The hazard warning flashers are acti-
vated for approx. five minutes
>The high beams flash on and off in
the same rhythm.
To activate and deactivate the
alarm systemWhen the vehicle is locked or unlocked
by using a key or with the remote
control, the alarm system is also simul-
taneously armed or disarmed.
The interior motion sensor is activated
approx. 30 seconds after you have
locked the vehicle.
If the alarm system has been armed
correctly, the hazard warning flashers
flash once.
You can have a signal set as
acknowledgment for both setting
and deactivating the alarm.<
You can also open the luggage
compartment lid when the system is
armed by pressing button 3 of the
remote control (refer to page 37). When
it is closed, the lid is once again
secured.

43n
IndexDataTechnologyRepairsCar careControlsOverview
Alarm system
*
Indicator lamp displaysThe indicator lamp is located under the
interior rearview mirror.
>When the indicator lamp flashes
continuously: the system is armed
>If the indicator lamp flashes while the
system is being set: the door(s), the
hood or luggage compartment lid are
not completely closed. Even if you do
not close the alerted area, the
remaining areas are deadlocked, and
the indicator lamp flashes continu-
ously after 10 seconds. However, the
interior motion sensor is not activated
>If the indicator lamp goes out when
the system is disarmed: no manipula-
tion or attempted intrusions have
been detected in the period since the
system was armed
>If the indicator lamp flashes for
10 seconds when the system is
disarmed: an attempted entry has
been detected in the period since the
system was armed.
Following triggering of an alarm, the
indicator lamp will flash continuously.Avoiding unintentional alarms The tilt alarm sensor and interior motion
sensor may be switched off at the same
time. You can do this to prevent any
unwanted alarm, e. g. in garages with
elevator ramps or when the vehicle is
being transported on car trains:
Lock the vehicle twice (= setting the
alarm): press button 2 on the remote
control twice in succession or lock the
vehicle twice with the key. Refer to
page 36.
The indicator lamp lights up briefly and
then flashes continuously. The tilt alarm
sensor and the interior motion sensor
are deactivated as long as the system is
armed. Reset the alarm to reactivate
the tilt alarm sensor and the interior
motion sensor.
Interior motion sensorTransmitter and receiver for the interior
motion sensor are located in the front
part of the center console, invisible to
the driver, and in the back part of the
center console under a rack.
However, be sure to deactivate the
interior motion sensor (see previous
column) if children or animals are to
remain in the vehicle.

44n
Alarm system
*
Electric power windows
For US owners onlyThe transmitter and receiver units
comply with part 15 of the FCC (Federal
Communication Commission) regula-
tions. Operation is governed by the
following:
FCC ID: LTQSDR2G5
Compliance statement:
This device complies with part 15 of the
FCC Rules. Operation is subject to the
following two conditions:
>This device may not cause harmful
interference, and
>this device must accept any interfer-
ence received, including interference
that may cause undesired operation.
Any unauthorized modifications to
these devices could void the
user's authority to operate the equip-
ment.<

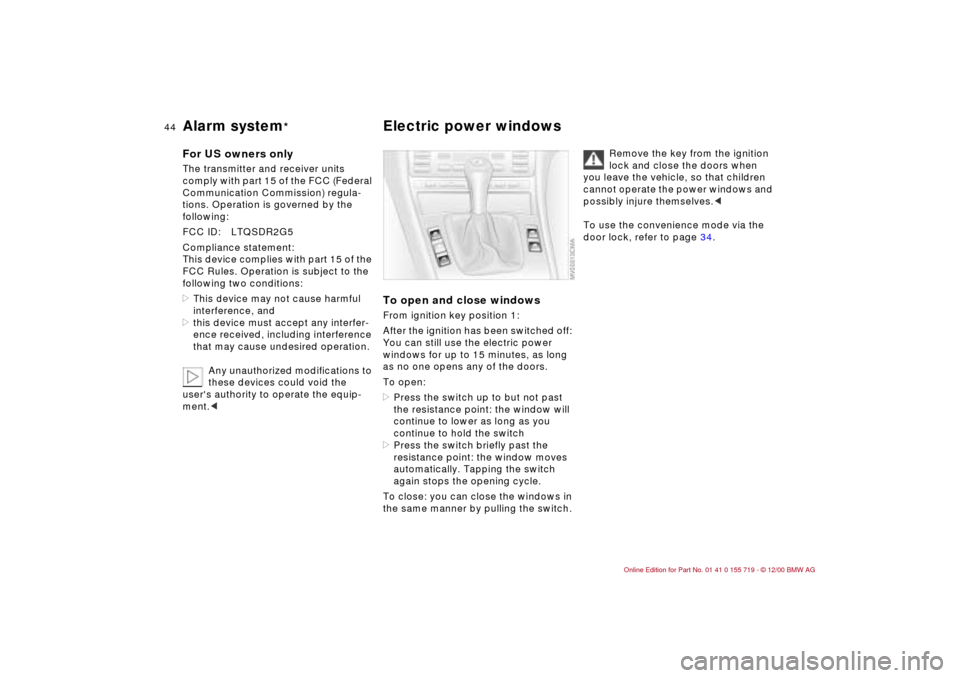

To open and close windowsFrom ignition key position 1:
After the ignition has been switched off:
You can still use the electric power
windows for up to 15 minutes, as long
as no one opens any of the doors.
To open:
>Press the switch up to but not past
the resistance point: the window will
continue to lower as long as you
continue to hold the switch
>Press the switch briefly past the
resistance point: the window moves
automatically. Tapping the switch
again stops the opening cycle.
To close: you can close the windows in
the same manner by pulling the switch.
Remove the key from the ignition
lock and close the doors when
you leave the vehicle, so that children
cannot operate the power windows and
possibly injure themselves.<
To use the convenience mode via the
door lock, refer to page 34.

45n
IndexDataTechnologyRepairsCar careControlsOverview

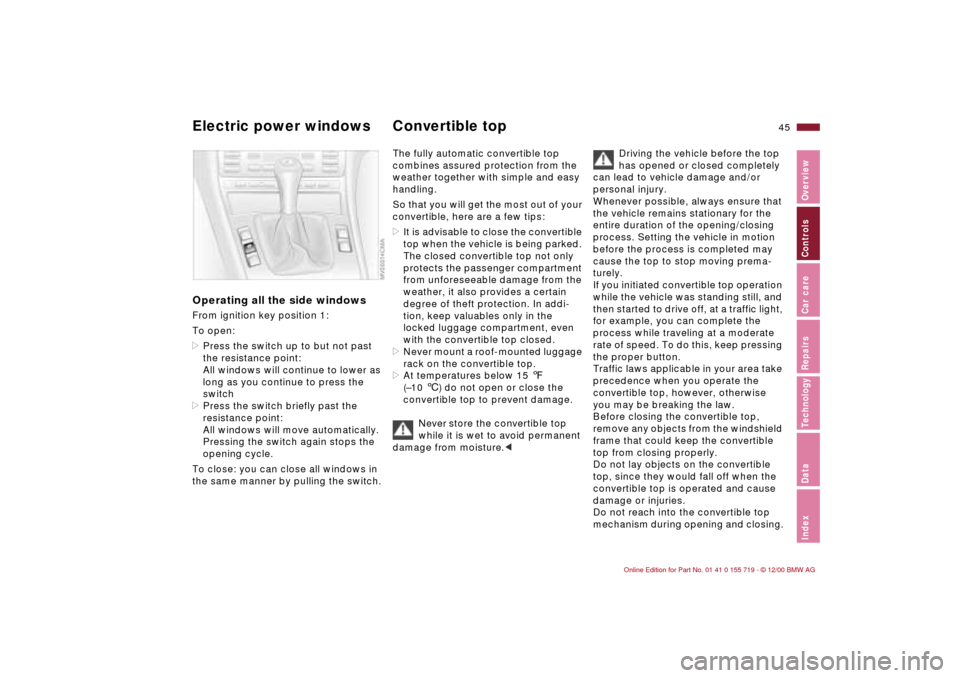

Electric power windows Convertible top Operating all the side windowsFrom ignition key position 1:
To open:
>Press the switch up to but not past
the resistance point:
All windows will continue to lower as
long as you continue to press the
switch
>Press the switch briefly past the
resistance point:
All windows will move automatically.
Pressing the switch again stops the
opening cycle.
To close: you can close all windows in
the same manner by pulling the switch.
The fully automatic convertible top
combines assured protection from the
weather together with simple and easy
handling.
So that you will get the most out of your
convertible, here are a few tips:
>It is advisable to close the convertible
top when the vehicle is being parked.
The closed convertible top not only
protects the passenger compartment
from unforeseeable damage from the
weather, it also provides a certain
degree of theft protection. In addi-
tion, keep valuables only in the
locked luggage compartment, even
with the convertible top closed.
>Never mount a roof-mounted luggage
rack on the convertible top.
>At temperatures below 15 7
(–10 6) do not open or close the
convertible top to prevent damage.
Never store the convertible top
while it is wet to avoid permanent
damage from moisture.<
Driving the vehicle before the top
has opened or closed completely
can lead to vehicle damage and/or
personal injury.
Whenever possible, always ensure that
the vehicle remains stationary for the
entire duration of the opening/closing
process. Setting the vehicle in motion
before the process is completed may
cause the top to stop moving prema-
turely.
If you initiated convertible top operation
while the vehicle was standing still, and
then started to drive off, at a traffic light,
for example, you can complete the
process while traveling at a moderate
rate of speed. To do this, keep pressing
the proper button.
Traffic laws applicable in your area take
precedence when you operate the
convertible top, however, otherwise
you may be breaking the law.
Before closing the convertible top,
remove any objects from the windshield
frame that could keep the convertible
top from closing properly.
Do not lay objects on the convertible
top, since they would fall off when the
convertible top is operated and cause
damage or injuries.
Do not reach into the convertible top
mechanism during opening and closing.

46n
Convertible topKeep children away from the travel path
of the convertible top while it is in
motion.<
To close the electric power
windows while driving, always be
sure to first close either the rear
windows, or all 4 windows at the same
time, otherwise, at high speed, the
windows may not close tightly.<
At higher speeds, the ensuing
vacuum in the passenger
compartment can cause the convertible
top to begin fluttering. Increase the air
supply via the ventilation controls so
that a vacuum does not occur in the
vehicle.<

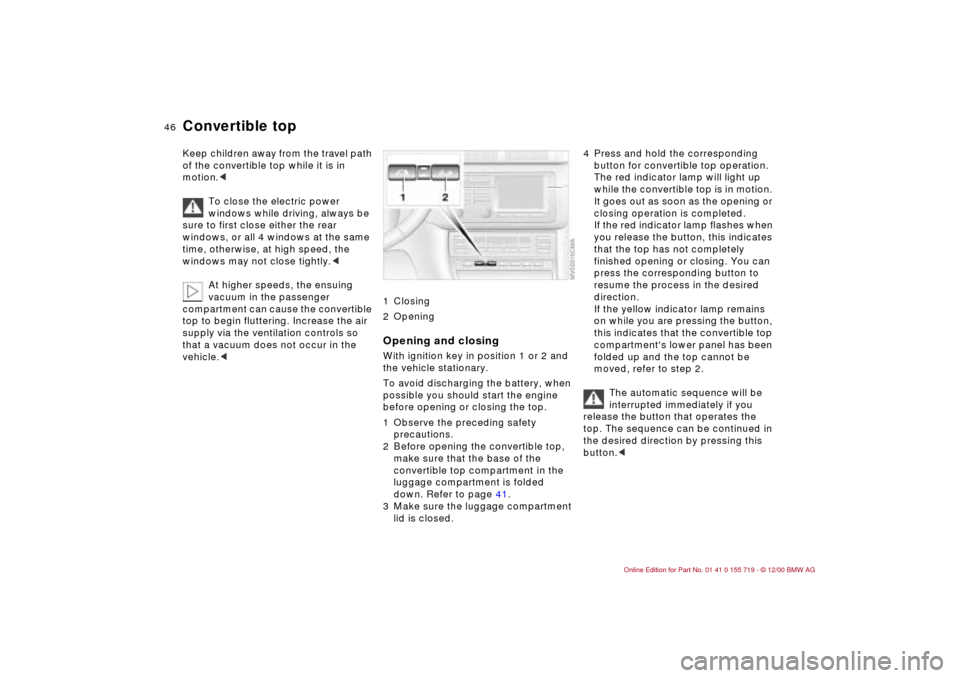

1 Closing
2 OpeningOpening and closingWith ignition key in position 1 or 2 and
the vehicle stationary.
To avoid discharging the battery, when
possible you should start the engine
before opening or closing the top.
1 Observe the preceding safety
precautions.
2 Before opening the convertible top,
make sure that the base of the
convertible top compartment in the
luggage compartment is folded
down. Refer to page 41.
3 Make sure the luggage compartment
lid is closed.
4 Press and hold the corresponding
button for convertible top operation.
The red indicator lamp will light up
while the convertible top is in motion.
It goes out as soon as the opening or
closing operation is completed.
If the red indicator lamp flashes when
you release the button, this indicates
that the top has not completely
finished opening or closing. You can
press the corresponding button to
resume the process in the desired
direction.
If the yellow indicator lamp remains
on while you are pressing the button,
this indicates that the convertible top
compartment's lower panel has been
folded up and the top cannot be
moved, refer to step 2.
The automatic sequence will be
interrupted immediately if you
release the button that operates the
top. The sequence can be continued in
the desired direction by pressing this
button.<

47n
IndexDataTechnologyRepairsCar careControlsOverview
Convertible top
During convertible top operation
the rear window moves toward the
passenger compartment and presses
the heads of the rear passengers
slightly forward. As a rule, this is not
dangerous. To avoid possibly being
pinched, passengers in the back seat
should lean their heads slightly forward
while the convertible top is in motion.<
The side windows move downward
somewhat when the button for convert-
ible top operation is pressed, and then
up again after the opening or closing
operation is completed if you continue
to hold the button for longer than
2 seconds after the indicator lamp goes
out.
During convertible top operation the
luggage compartment lid cannot be
opened.
Do not close the side power
windows using the buttons if the
convertible top has been interrupted
while in motion. <
If the convertible top has been
stored in the convertible top
compartment for longer periods, e.g.
during the winter months while the
hardtop is being used, it may be neces-
sary to manually support the first auto-
matic closing operation: if the
convertible top should halt just before
the closing phase is completed, press
against the front part of the convertible
top frame from the outside to help the
closing process along. Keep pressing
the button while doing so until the top
starts up again on its own.<
If the opening or closing operation
is interrupted, the convertible top
remains in the respective position for
15 minutes, and the process can be
continued in the desired direction with
the button. Then the convertible top
can be moved and operated manually,
refer to page 162. This is also possible
in ignition key position 0.
In certain cases, the luggage compart-
ment lid cannot be opened if the
opening or closing operation has been
interrupted.<
One-touch operation from the
driver side door lockRefer to page 34.

48n
For your personal safety when adjusting
the seat position, please follow the
instructions below carefully:
Never try to adjust your seat while
driving the vehicle. The seat could
respond with an unexpected move-
ment, and the ensuing loss of vehicle
control could lead to an accident.
Be sure that the safety belt remains
firmly against your body at all times. In
the event of a frontal impact, a loose lap
belt could slide over the hips, leading to
abdominal injury. In addition, the safety
belt's restraint effectiveness is reduced
if the belt is worn loosely.
Never ride with the backrest reclined to
an extreme angle (especially important
for the front passenger to remember). If
you do so, there is a risk that you will
slide under the safety belt in an acci-
dent, thus reducing the protection
provided by the safety belt.<
Correct sitting posture To reduce strain on the spinal column,
sit all the way back in the seat and rest
your back fully against the backrest.
The ideal sitting posture is achieved
with your head extending from your
spine in a straight line.
For long-distance driving, you may wish
to increase the backrest tilt angle
slightly to reduce muscular tension. You
should be able to grasp the steering
wheel at its highest point with your
arms slightly bent.

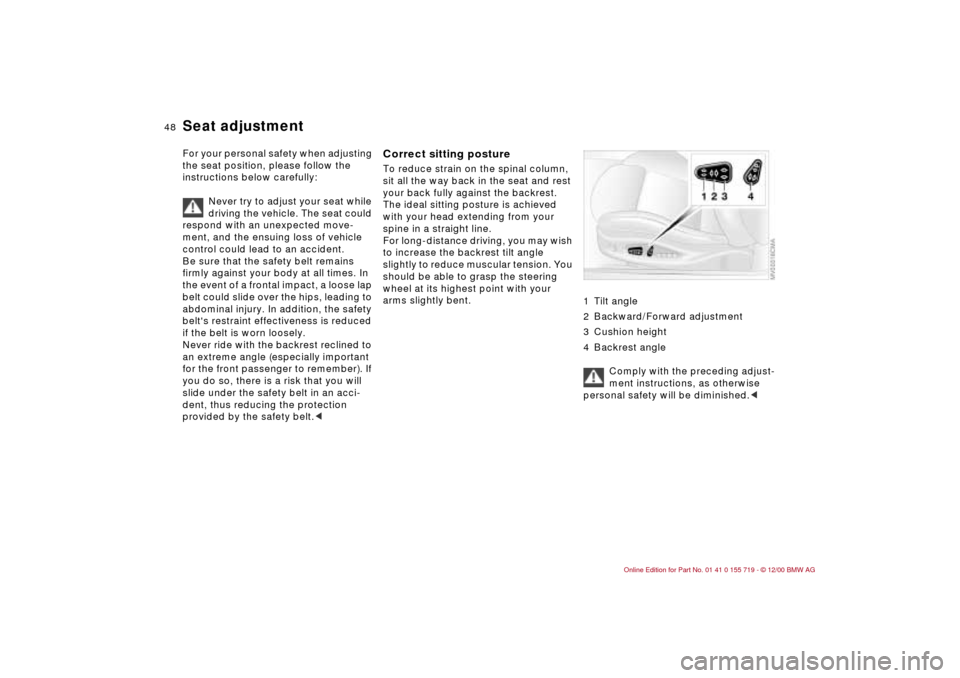

1 Tilt angle
2 Backward/Forward adjustment
3 Cushion height
4 Backrest angle
Comply with the preceding adjust-
ment instructions, as otherwise
personal safety will be diminished.<
Seat adjustment

49n
IndexDataTechnologyRepairsCar careControlsOverview

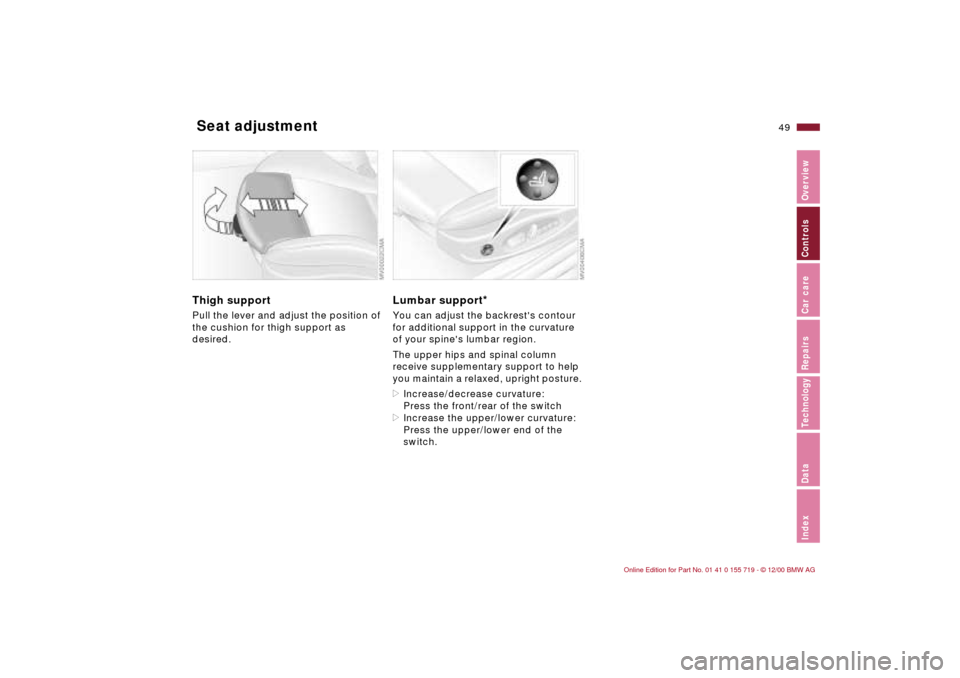

Seat adjustmentThigh support Pull the lever and adjust the position of
the cushion for thigh support as
desired.
Lumbar support
*
You can adjust the backrest's contour
for additional support in the curvature
of your spine's lumbar region.
The upper hips and spinal column
receive supplementary support to help
you maintain a relaxed, upright posture.
>Increase/decrease curvature:
Press the front/rear of the switch
>Increase the upper/lower curvature:
Press the upper/lower end of the
switch.

50n
Head restraintsHead restraints – front1 Height
Head restraints can reduce the
risk of injury to the neck and spinal
column in the event of an accident.
Adjust the head restraint so that its
center is approximately at the height of
your ears.
To guard against injuries, avoid placing
your hands and fingers between the
head restraint and the backrest while
adjusting.<
2 Tilt angle
Position the head restraint in the
preferred position.
Head restraints – rear
The rear head restraints may only
be lowered when there are no
passengers in the rear, as otherwise
laws may be violated. Raise the rear
head restraints before taking on any
passengers in the back.<
To completely lower the rear head
restraints:

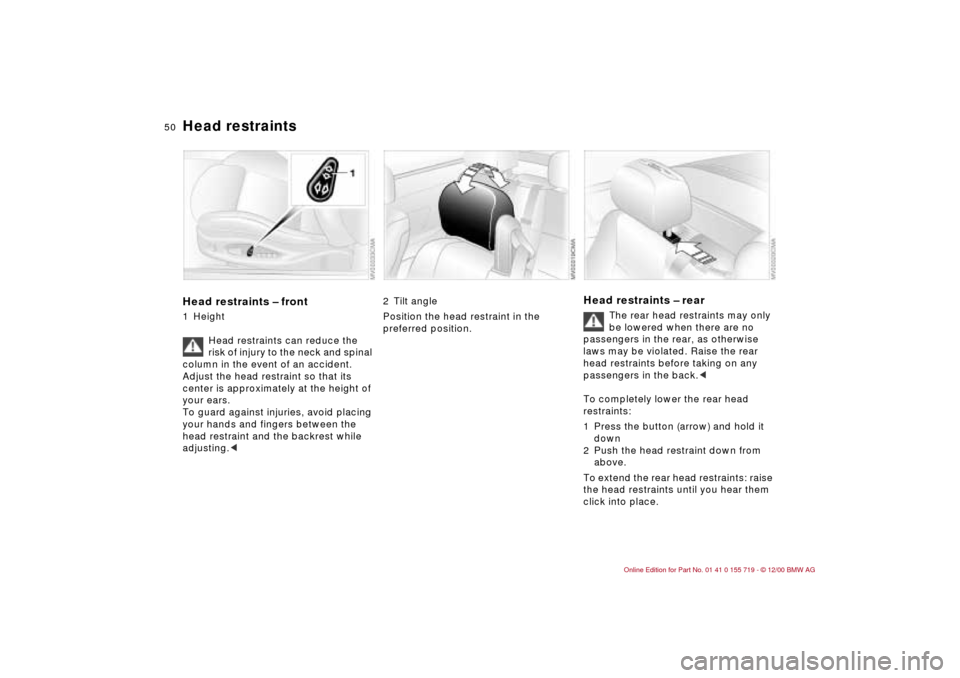

1 Press the button (arrow) and hold it
down
2 Push the head restraint down from
above.
To extend the rear head restraints: raise
the head restraints until you hear them
click into place.
