11n
Controls and features
Operation, care and maintenance
Lamps:
Side lamps/Low beams81
Instrument lightning81
High beams/Parking lamps82
Fog lamps82
Interior lamps82
Reading lamps83
Controlling the climate
for pleasant driving:
Automatic climate control84
Heated seats89
Roller sun blind89
Interior conveniences:
HiFi system90
Glove compartment90
Storage compartments91
Cellular phone92
Ashtray, front92
Cigarette lighter93
Ashtray, rear93
Clothes hooks94
Loading and transporting:
Through-loading system95
Ski bag96
Cargo loading97
Roof-mounted luggage rack98
Special operating instructions:
Break-in procedures102
Driving notes103
Catalytic converter103
Antilock Brake System
(ABS)104
Disk brakes106
Brake system107
Winter operation108
Power steering110
Cellular phones110
Radio reception110
Wheels and tires:
Tire inflation pressure111
Tire condition111
Tire replacement112
Tire rotation113
Wheel and tire
combinations114
Winter tires115
Snow chains115
Approved wheel and tire
specifications116
Under the hood:
Hood118
Engine compartment120
Washer fluids122
Washer nozzles122
Engine oil123
Coolant125
Brake fluid126
Vehicle Identification
Number126
Care and maintenance:
The BMW Maintenance
System127
Caring for your vehicle128
Airbags133
Vehicle storage133
Laws and regulations:
Technical modifications134
California Proposition
65 Warning134
OBD connector135
Page 12 of 183
Contents
Owner service procedures
Advanced technology
Technical data
Replacement procedures:
Onboard tool kit138
Windshield wiper blades138
Lamps and bulbs138
Repairing a flat tire145
Battery148
Fuses151
Microfilter/Activated charcoal
filter152
In case of
electrical malfunction:
Fuel filler door152
Sliding/tilt sunroof153
Giving and receiving
assistance:
Jump-starting154
Towing155Airbags158
Radio reception158
Dynamic Stability Control
(DSC)159
Safety belt tensioner159
M3 Engine concept160
Rain sensor160
Interior rearview mirror with
automatic dimming
feature161
Self-diagnostics162
Xenon lamps163Engine data166
Dimensions167
Weights168
Capacities169
Electrical system170
Drive belts170
Page 13 of 183
13n
Index
Everything from A to Z174
Page 14 of 183
14n
Page 15 of 183
Overview
Controls and features
Operation, care
and maintenance
Owner service procedures
Technical data
Index Advanced technology
15n
IndexDataTechnologyRepairsCar careControlsOverview
Cockpit16
Instrument cluster18
Indicator and warning lamps20
Multifunction steering wheel
(MFL)23
Hazard warning flashers24
Warning triangle24
First-aid kit24
Refueling25
Fuel specifications26
Tire inflation pressure26
Overview
Page 16 of 183
16n

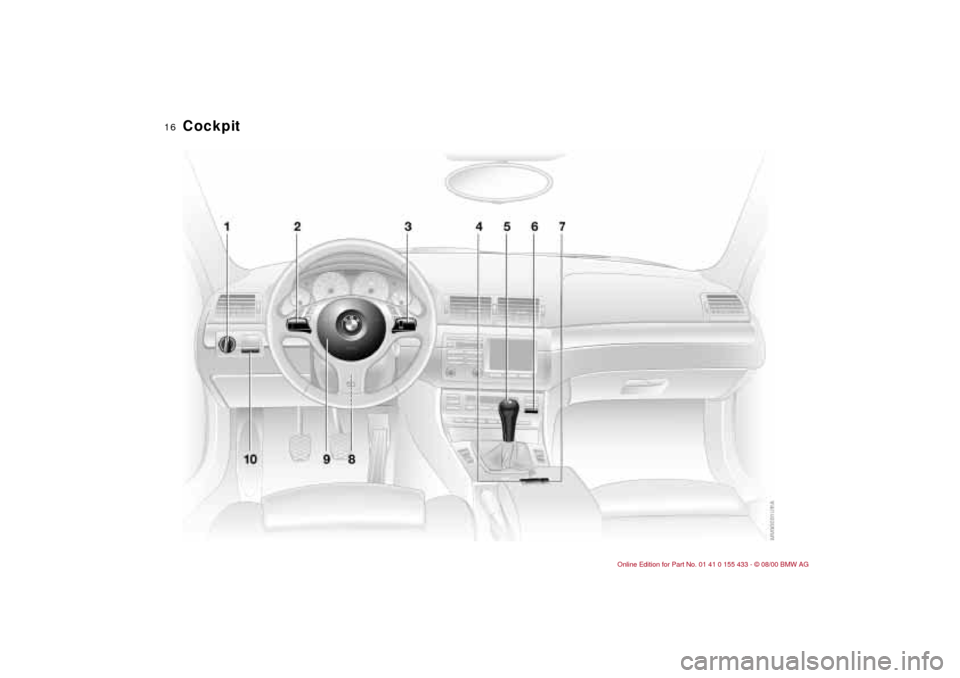

Cockpit
Page 17 of 183
17n
IndexDataTechnologyRepairsCar careControlsOverview
Cockpit
1 Side lamps/Low beams81
2
d
Turn signal indicator65
>
Parking lamp82
>
High beams82
>
Headlamp flasher65
>
Computer72
3 Washer/Wiper system65
4 Hazard warning flashers24
5 Shift lever64
6 Rear window defroster67
7 Central locking system31
8 Adjusting steering wheel52
9 Horn, entire surface
10 Fog lamps82
Page 18 of 183
18n

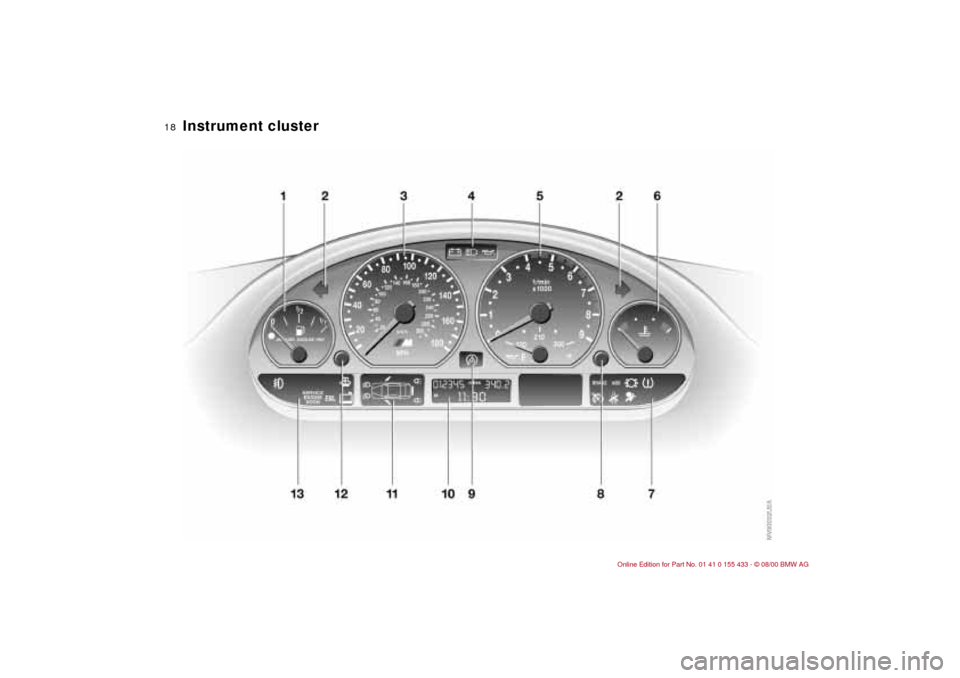

Instrument cluster
Page 19 of 183
19n
IndexDataTechnologyRepairsCar careControlsOverview
Instrument cluster
1 Fuel gauge with indicator lamp for
fuel reserve70
2 Turn signal indicator22
3 Speedometer
4 Indicator lamp for:
>
Battery charge current20
>
High beams22
>
Engine oil pressure/Engine oil
level20, 21
5 Tachometer and engine oil
temperature gauge69, 69
6 Engine coolant temperature gauge
with "Coolant temperature too high"
indicator70
7 Indicator and warning lamps
(clockwise) for:
>
Parking brake/Brake hydraulic
system/Cornering Brake Control
(CBC)20
>
Antilock Brake System
(ABS)21
>
Brake pads21
>
Tire Pressure Warning
(RDW)20, 22
>
Airbags21
>
Please fasten safety belts21
>
Cruise control22
8 Set button for the clock73
9 Indicator lamp for Dynamic Stability
Control (DSC)2210 Indicator for:
>
Odometer69
>
Trip odometer69
>
Clock73
>
Service Interval71
Indicator for computer, operation
using the turn signal lever, refer to
page 72:
>
Clock
>
Outside temperature
>
Average fuel consumption
>
Crusing range
>
Average speed
11 Indicator for Check Control72
12 Trip odometer, reset to zero6913 Indicator and warning lamps
(clockwise) for:
>
Fog lamps22
>
Add washer fluid22
>
Coolant level22
>
Electronic Throttle Control
(EML)22
>
Service engine soon22
You can have the outside temper-
ature and distance traveled shown
in other units of measurement.
<
Page 20 of 183
20n

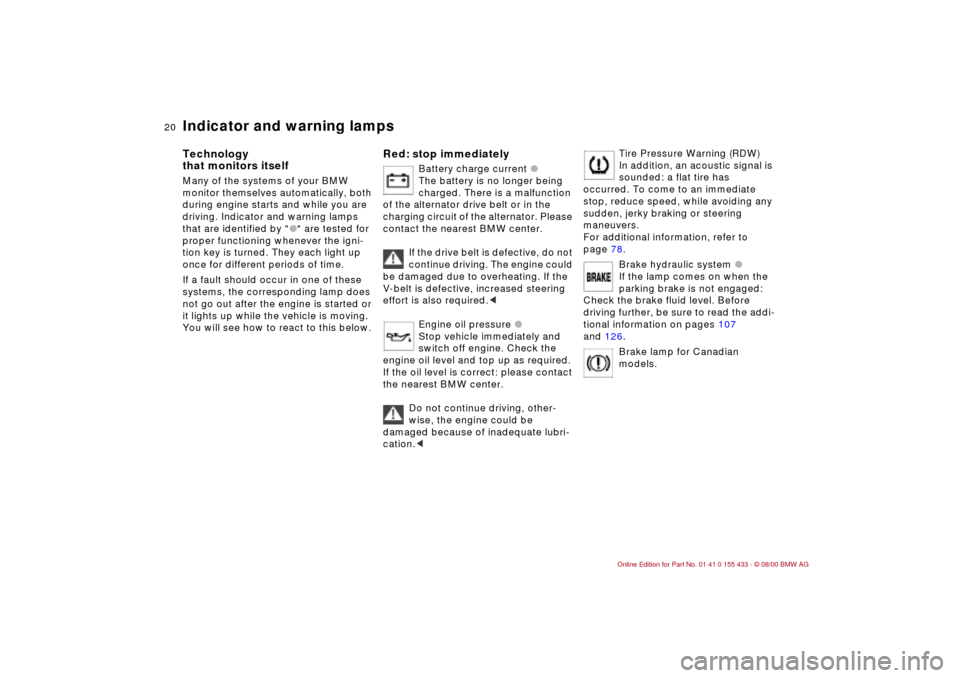

Indicator and warning lamps
Technology
that monitors itself
Many of the systems of your BMW
monitor themselves automatically, both
during engine starts and while you are
driving. Indicator and warning lamps
that are identified by "
l
" are tested for
proper functioning whenever the igni-
tion key is turned. They each light up
once for different periods of time.
If a fault should occur in one of these
systems, the corresponding lamp does
not go out after the engine is started or
it lights up while the vehicle is moving.
You will see how to react to this below.
Red: stop immediately
Battery charge current
l
The battery is no longer being
charged. There is a malfunction
of the alternator drive belt or in the
charging circuit of the alternator. Please
contact the nearest BMW center.
If the drive belt is defective, do not
continue driving. The engine could
be damaged due to overheating. If the
V-belt is defective, increased steering
effort is also required.
<
Engine oil pressure
l
Stop vehicle immediately and
switch off engine. Check the
engine oil level and top up as required.
If the oil level is correct: please contact
the nearest BMW center.
Do not continue driving, other-
wise, the engine could be
damaged because of inadequate lubri-
cation.
<
Tire Pressure Warning (RDW)
In addition, an acoustic signal is
sounded: a flat tire has
occurred. To come to an immediate
stop, reduce speed, while avoiding any
sudden, jerky braking or steering
maneuvers.
For additional information, refer to
page 78.
Brake hydraulic system
l
If the lamp comes on when the
parking brake is not engaged:
Check the brake fluid level. Before
driving further, be sure to read the addi-
tional information on pages 107
and 126.
Brake lamp for Canadian
models.
