BMW MOTORRAD C1 2000 Rider's Manual (in English)

33

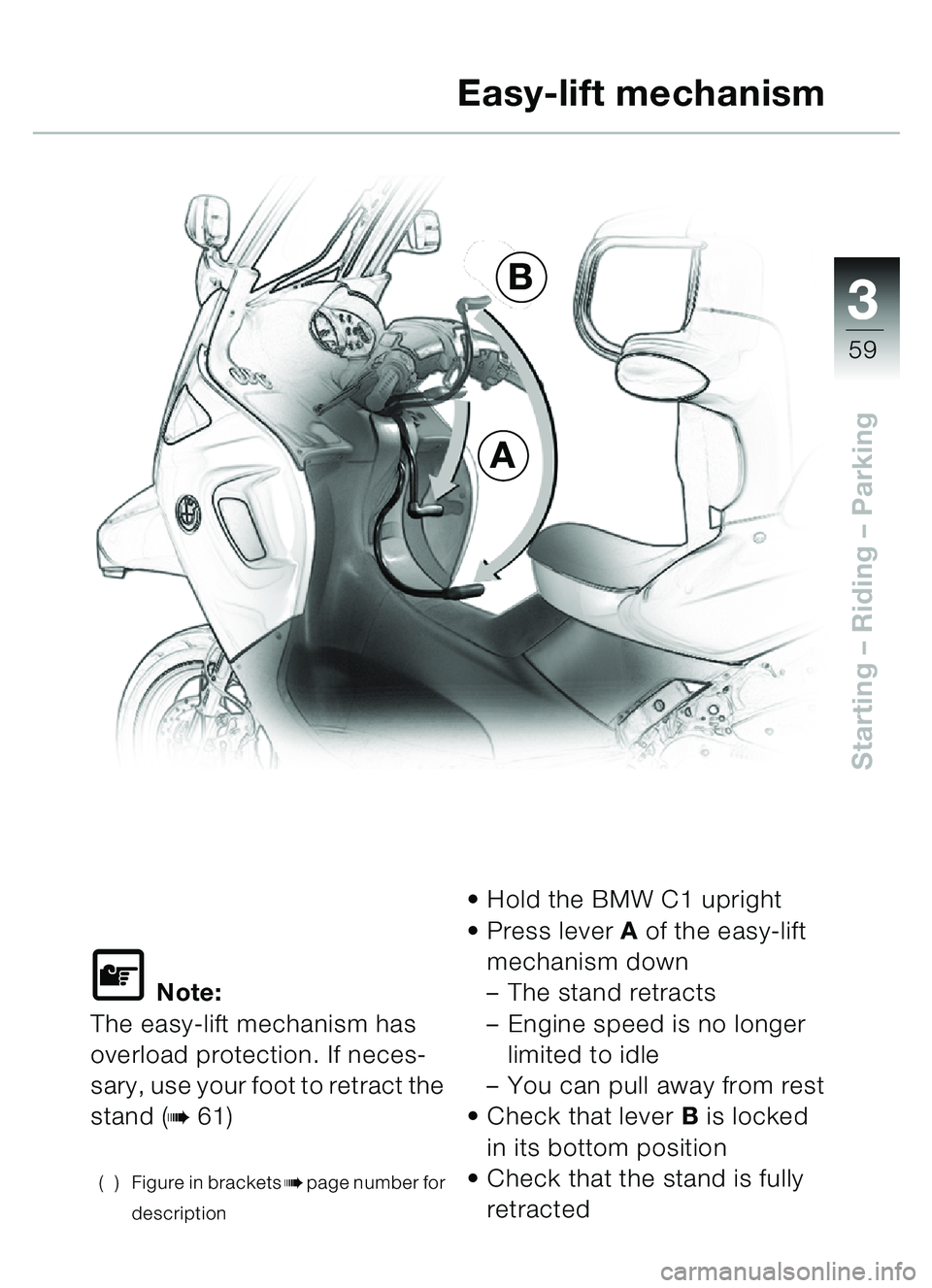

59
Starting – Riding – Parking
\f Note:
The easy-lift mechanism has
overload protection. If neces-
sary, use your foot to retract the
stand (
b61)
( ) Figure in bracketsbpage number for
description
 Hold the BMW C1 upright
 Press lever A of the easy-lift
mechanism down
– The stand retracts
– Engine speed is no longer
limited to idle
– You can pull away from rest
 Check that lever B is locked
in its bottom position
 Check that the stand is fully
retracted
Easy-lift mechanism
A
B


33
60
Starting – Riding – Parking
A
B

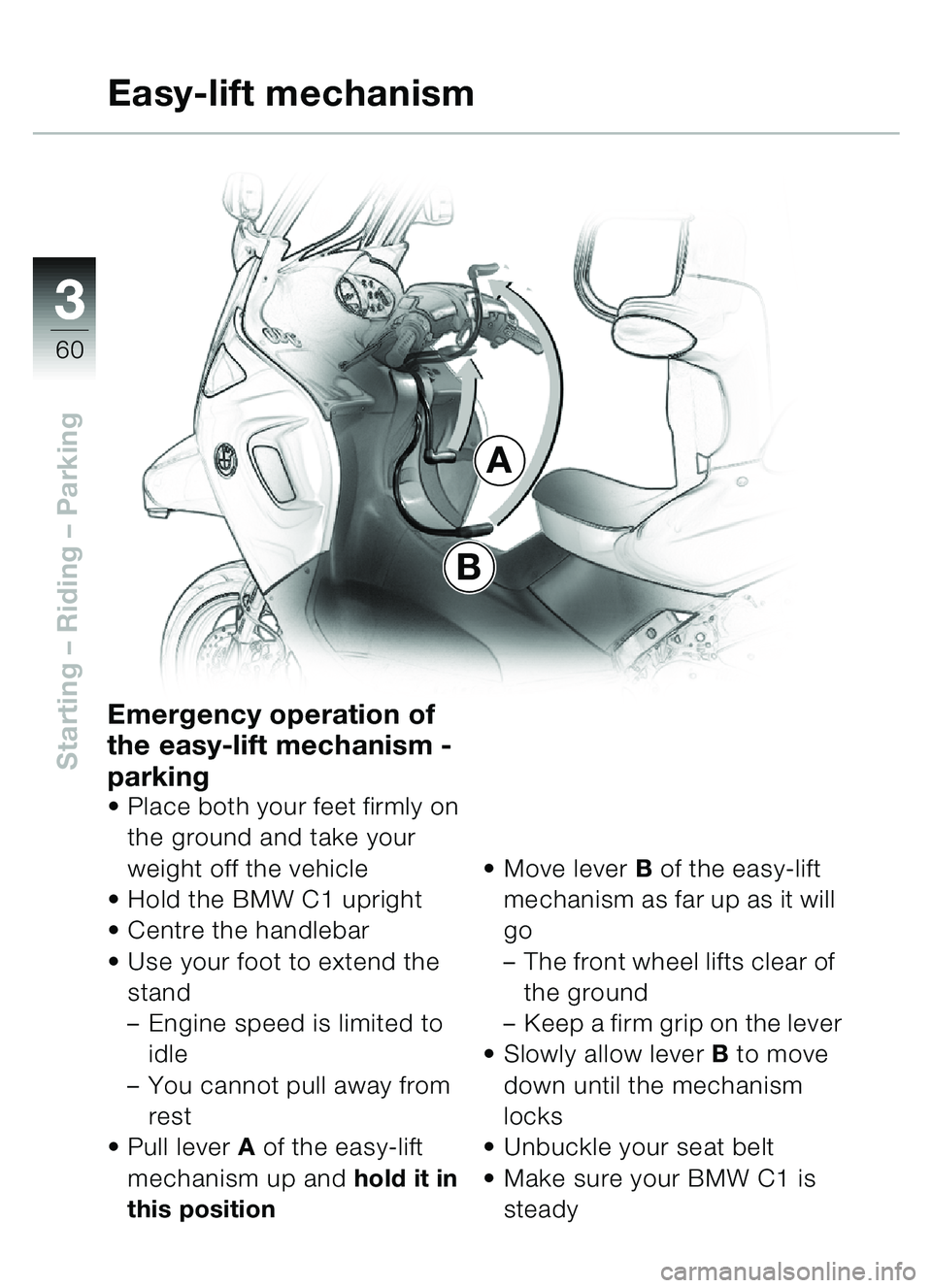

Easy-lift mechanism
Emergency operation of
the easy-lift mechanism -
parking
• Place both your feet firmly on
the ground and take your
weight off the vehicle
 Hold the BMW C1 upright
 Centre the handlebar
 Use your foot to extend the stand
– Engine speed is limited to idle
– You cannot pull away from
rest
 Pull lever A of the easy-lift
mechanism up and hold it in
this position Move lever B
of the easy-lift
mechanism as far up as it will
go
– The front wheel lifts clear of the ground
– Keep a firm grip on the lever
 Slowly allow lever B to move
down until the mechanism
locks
 Unbuckle your seat belt
Make sure your BMWC1 is steady


33

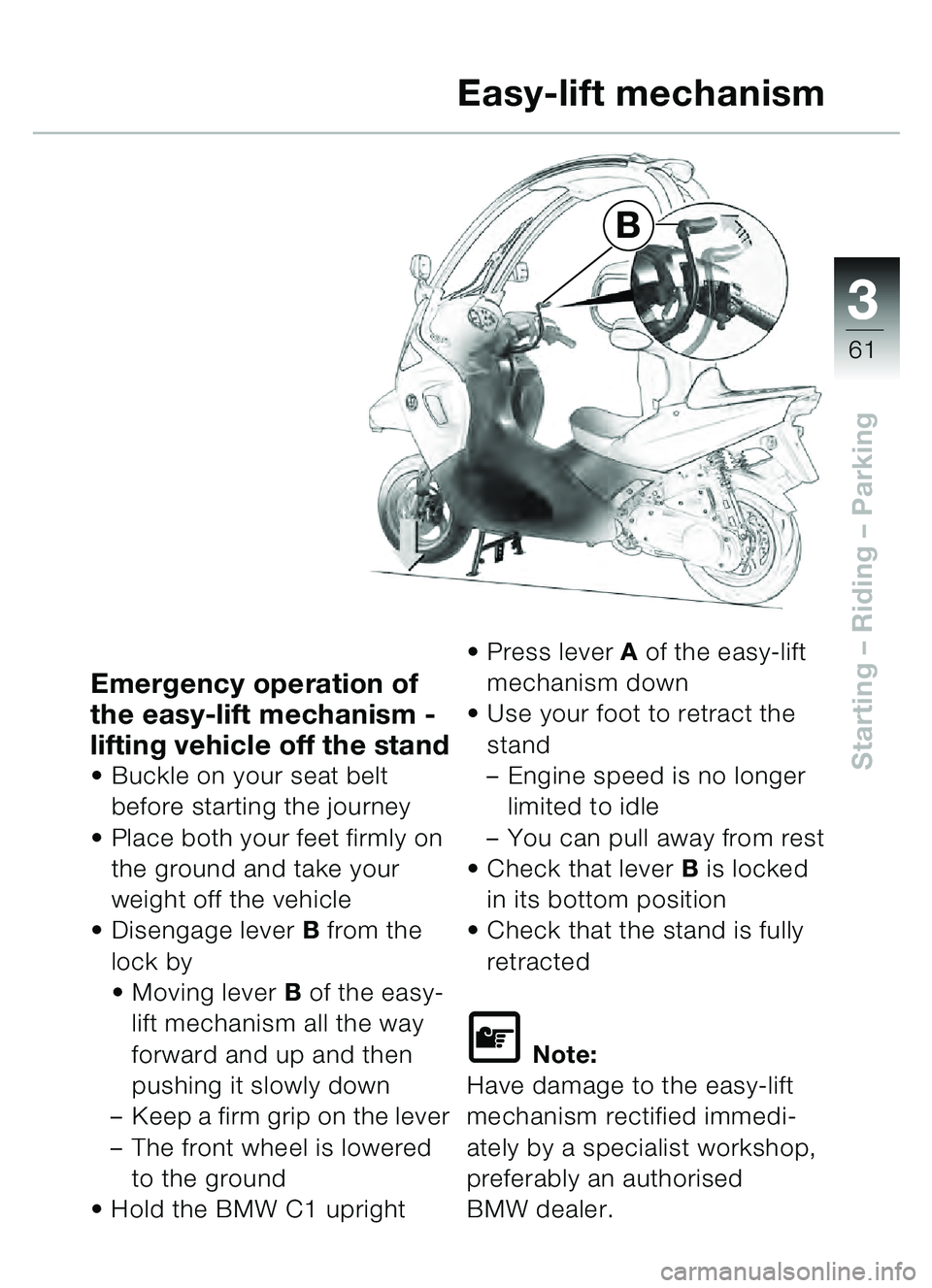

61
Starting – Riding – Parking
B
Easy-lift mechanism
Emergency operation of
the easy-lift mechanism -
lifting vehicle off the stand

Buckle on your seat belt
before starting the journey
 Place both your feet firmly on
the ground and take your
weight off the vehicle
 Disengage lever B from the
lock by
 Moving lever B of the easy-
lift mechanism all the way
forward and up and then
pushing it slowly down
– Keep a firm grip on the lever
– The front wheel is lowered
to the ground
 Hold the BMW C1 upright
Press lever A of the easy-lift
mechanism down
 Use your foot to retract the
stand
–Engine speed is no longer
limited to idle
– You can pull away from rest
 Check that lever B is locked
in its bottom position
 Check that the stand is fully
retracted
\f Note:
Have damage to the easy-lift
mechanism rectified immedi-
ately by a specialist workshop,
preferably an authorised
BMW dealer.


33
62
Starting – Riding – Parking

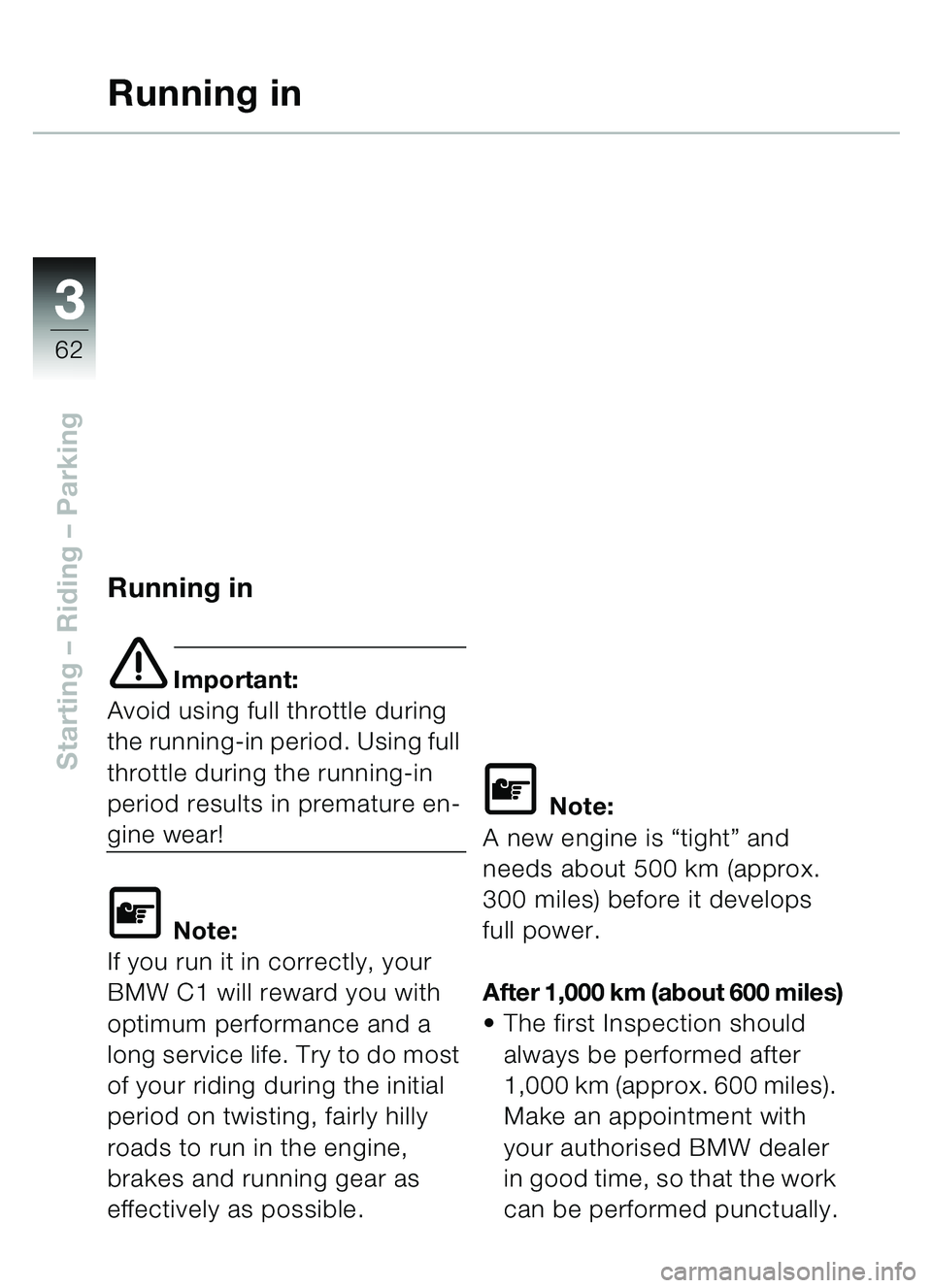

Running in
Running in
e Important:
Avoid using full throttle during
the running-in period. Using full
throttle during the running-in
period results in premature en-
gine wear!
\f Note:
If you run it in correctly, your
BMW C1 will reward you with
optimum performance and a
long service life. Try to do most
of your riding during the initial
period on twisting, fairly hilly
roads to run in the engine,
brakes and running gear as
effectively as possible.
\f Note:
A new engine is “tight ” and
needs about 500 km (approx.
300 miles) before it develops
full power.
After 1,000 km (about 600 miles)
 The first Inspection should
always be performed after
1,000 km (approx. 600 miles).
Make an appointment with
your authorised BMW dealer
in good time, so that the work
can be performed punctually.


33

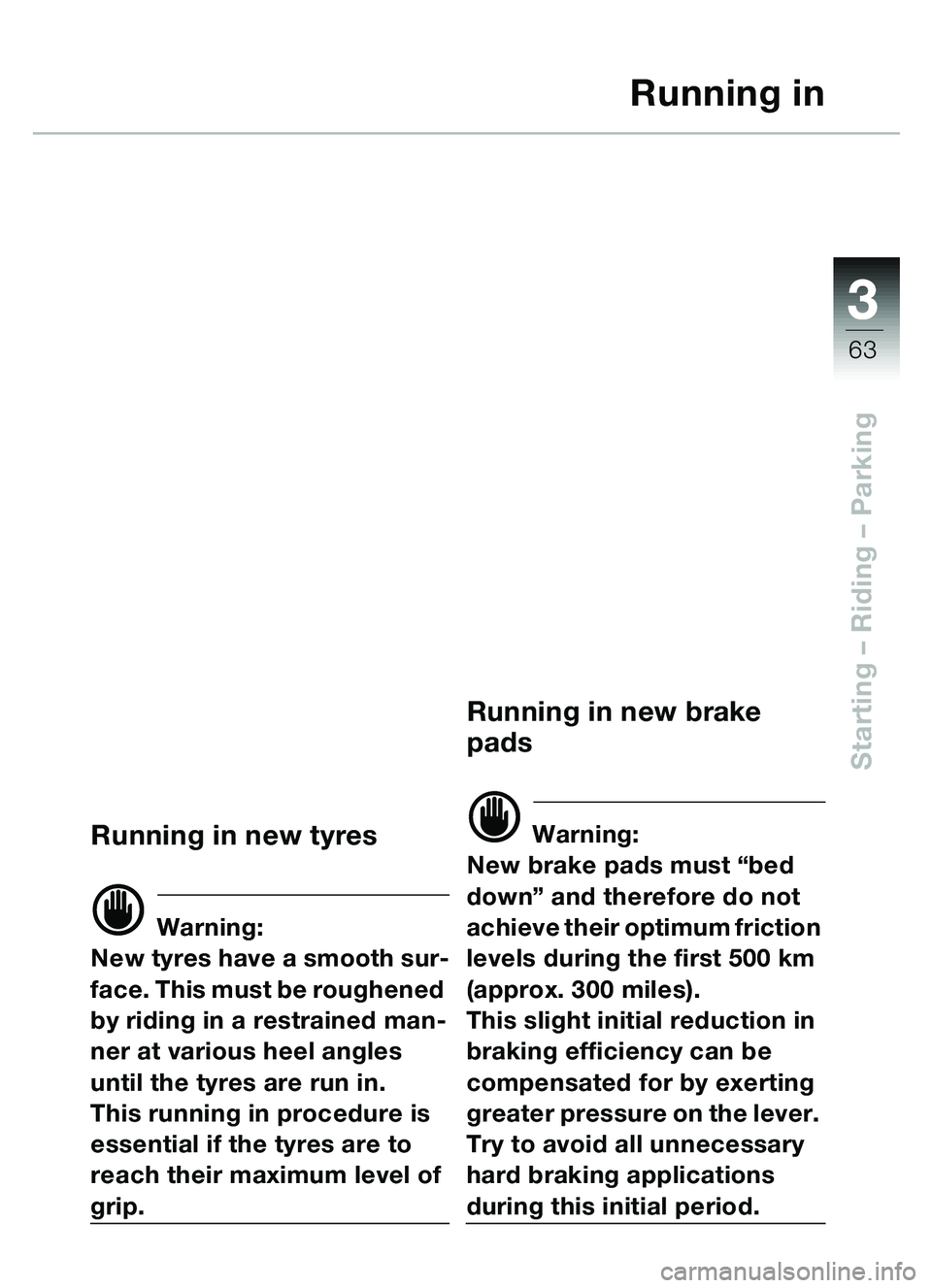

63
Starting – Riding – Parking
Running in
Running in new tyres
d Warning:
New tyres have a smooth sur-
face. This must be roughened
by riding in a restrained man-
ner at various heel angles
until the tyres are run in.
This running in procedure is
essential if the tyres are to
reach their maximum level of
grip.
Running in new brake
pads
d Warning:
New brake pads must “bed
down” and therefore do not
achieve their optimum friction
levels during the first 500 km
(approx. 300 miles).
This slight initial reduction in
braking efficiency can be
compensated for by exerting
greater pressure on the lever.
Try to avoid all unnecessary
hard braking applications
during this initial period.
gg ,

33

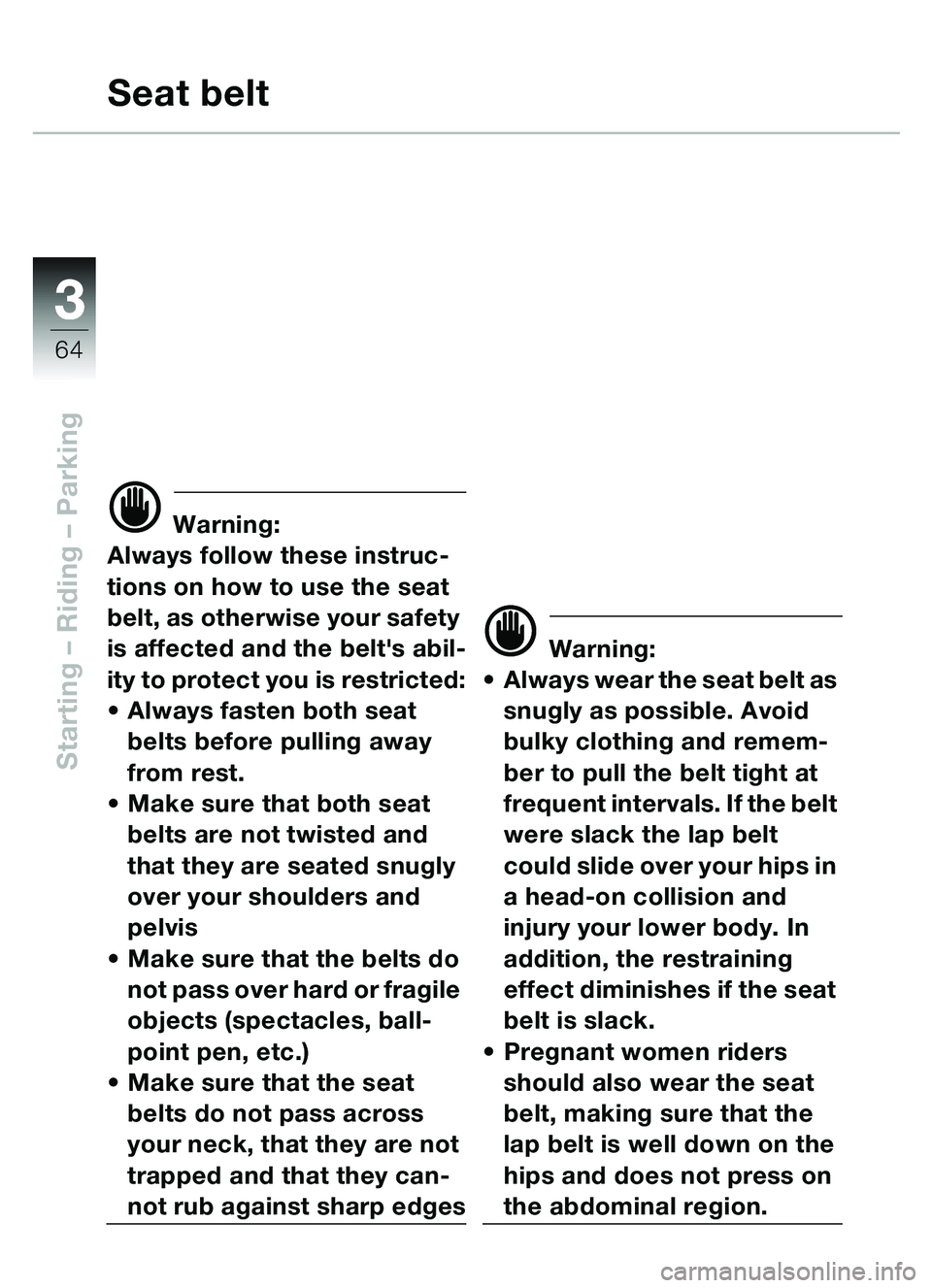

64
Starting – Riding – Parking
Seat belt
d Warning:
Always follow these instruc-
tions on how to use the seat
belt, as otherwise your safety
is affected and the belt's abil-
ity to protect you is restricted:
 Always fasten both seat
belts before pulling away
from rest.
 Make sure that both seat
belts are not twisted and
that they are seated snugly
over your shoulders and
pelvis
 Make sure that the belts do
not pass over hard or fragile
objects (spectacles, ball-
point pen, etc.)
 Make sure that the seat
belts do not pass across
your neck, that they are not
trapped and that they can-
not rub against sharp edges
d Warning:
 Always wear the seat belt as
snugly as possible. Avoid
bulky clothing and remem-
ber to pull the belt tight at
frequent intervals. If the belt
were slack the lap belt
could slide over your hips in
a head-on collision and
injury your lower body. In
addition, the restraining
effect diminishes if the seat
belt is slack.
 Pregnant women riders
should also wear the seat
belt, making sure that the
lap belt is well down on the
hips and does not press on
the abdominal region.


33

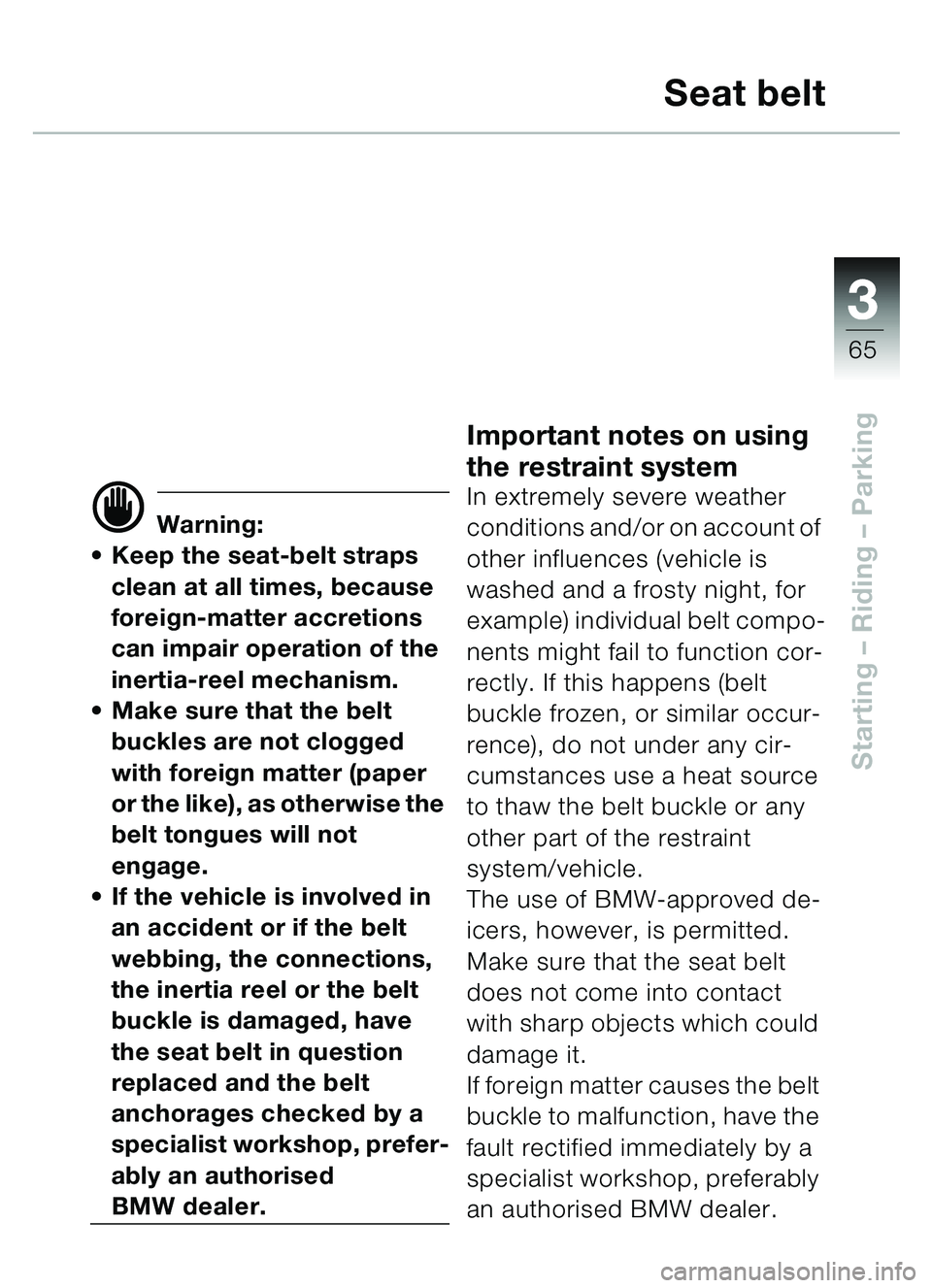

65
Starting – Riding – Parking
Seat belt
d Warning:
 Keep the seat-belt straps
clean at all times, because
foreign-matter accretions
can impair operation of the
inertia-reel mechanism.
 Make sure that the belt
buckles are not clogged
with foreign matter (paper
or the like), as otherwise the
belt tongues will not
engage.
 If the vehicle is involved in
an accident or if the belt
webbing, the connections,
the inertia reel or the belt
buckle is damaged, have
the seat belt in question
replaced and the belt
anchorages checked by a
specialist workshop, prefer-
ably an authorised
BMW dealer.
Important notes on using
the restraint system
In extremely severe weather
conditions and/or on account of
other influences (vehicle is
washed and a frosty night, for
example) individual belt compo-
nents might fail to function cor-
rectly. If this happens (belt
buckle frozen, or similar occur-
rence), do not under any cir-
cumstances use a heat source
to thaw the belt buckle or any
other part of the restraint
system/vehicle.
The use of BMW-approved de-
icers, however, is permitted.
Make sure that the seat belt
does not come into contact
with sharp objects which could
damage it.
If foreign matter causes the belt
buckle to malfunction, have the
fault rectified immediately by a
specialist workshop, preferably
an authorised BMW dealer.


33

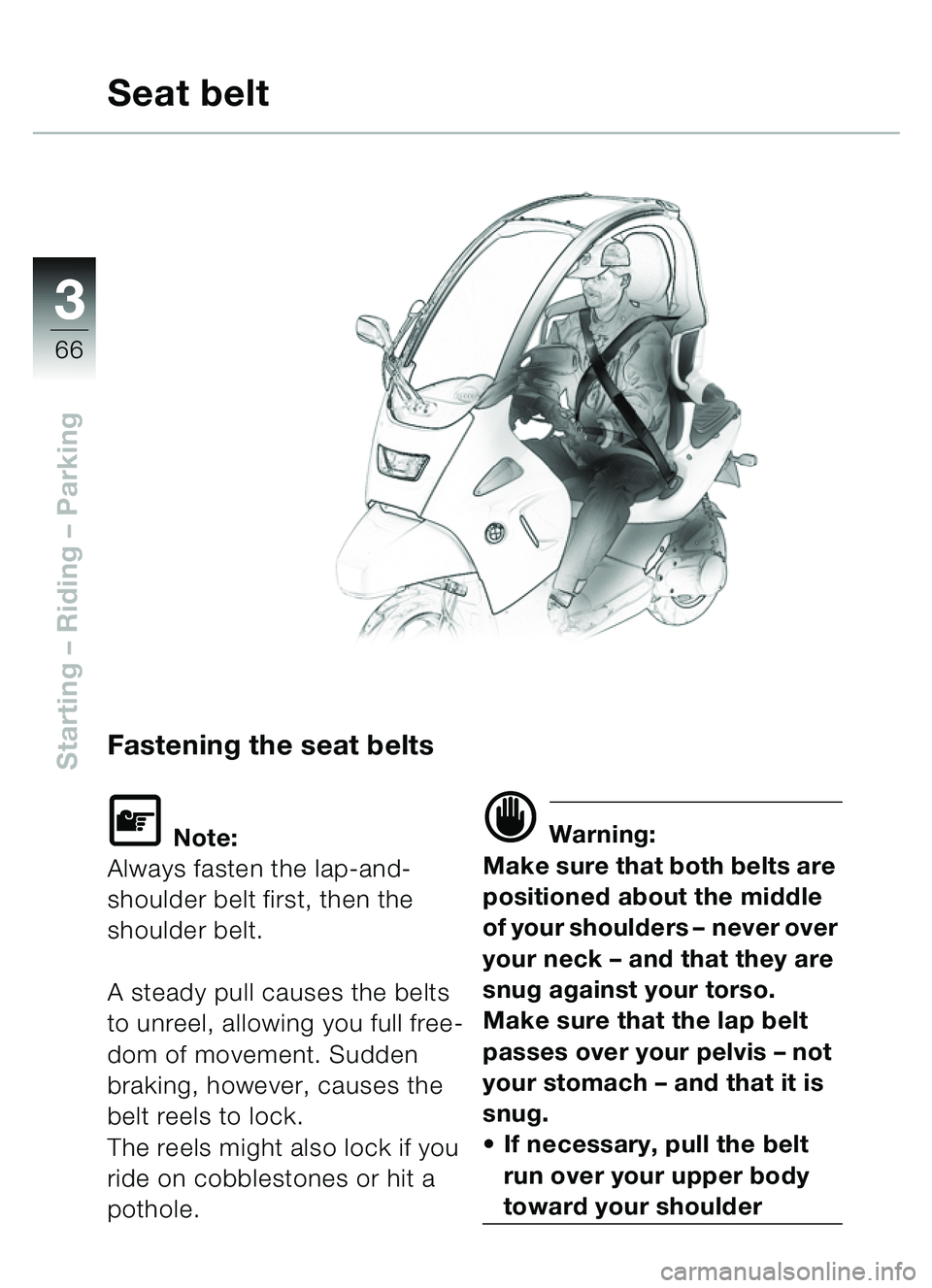

66
Starting – Riding – ParkingFastening the seat belts
\f Note:
Always fasten the lap-and-
shoulder belt first, then the
shoulder belt.
A steady pull causes the belts
to unreel, allowing you full free-
dom of movement. Sudden
braking, however, causes the
belt reels to lock.
The reels might also lock if you
ride on cobblestones or hit a
pothole.d Warning:
Make sure that both belts are
positioned about the middle
of your shoulders – never over
your neck – and that they are
snug against your torso.
Make sure that the lap belt
passes over your pelvis – not
your stomach – and that it is
snug.
 If necessary, pull the belt
run over your upper body
toward your shoulder
Seat belt


33

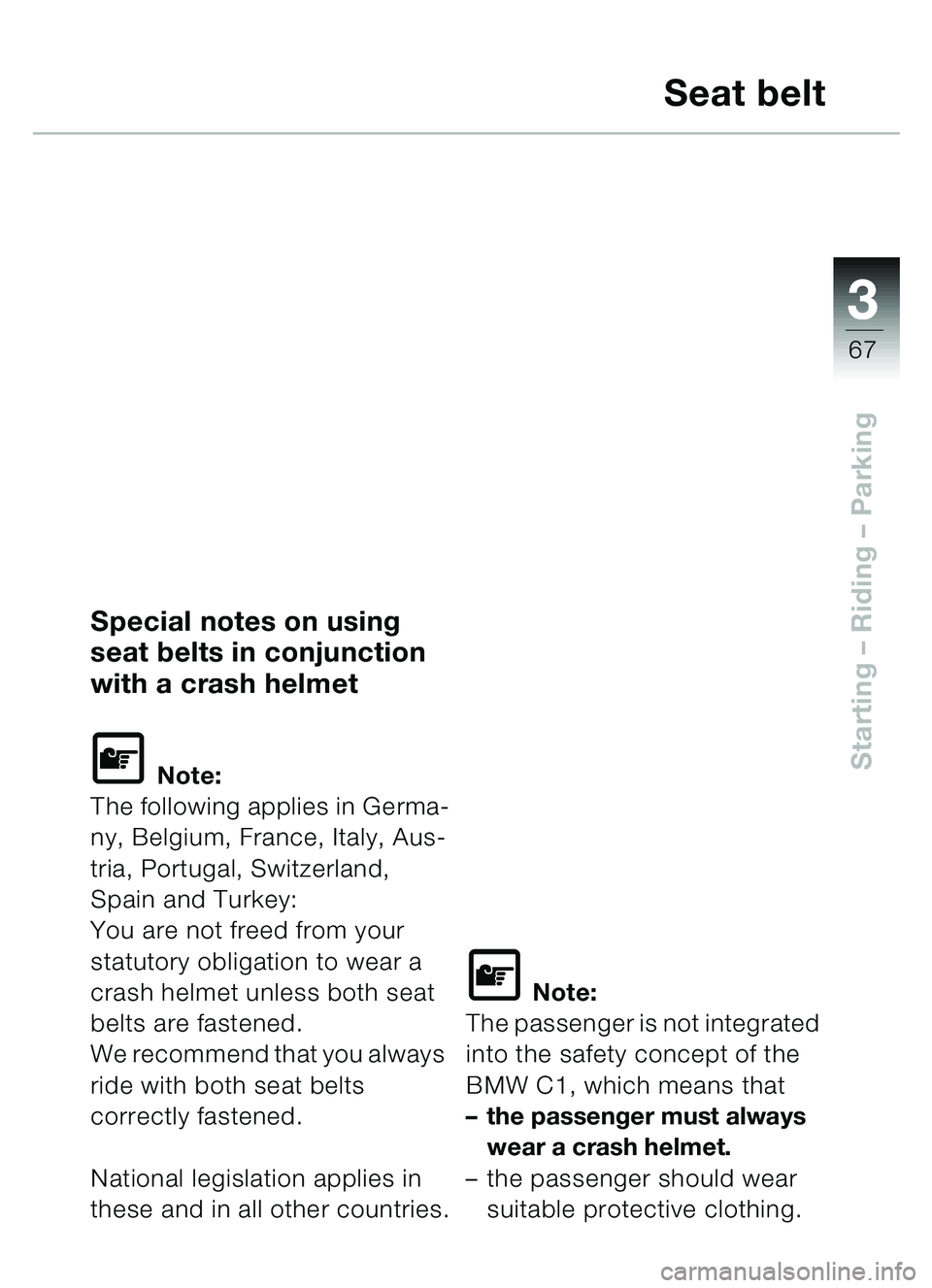

67
Starting – Riding – Parking
Seat belt
Special notes on using
seat belts in conjunction
with a crash helmet
L Note:
The following applies in Germa-
ny, Belgium, France, Italy, Aus-
tria, Portugal, Switzerland,
Spain and Turkey:
You are not freed from your
statutory obligation to wear a
crash helmet unless both seat
belts are fastened.
We recommend that you always
ride with both seat belts
correctly fastened.
National legislation applies in
these and in all other countries.
L Note:
The passenger is not integrated
into the safety concept of the
BMW C1, which means that
– the passenger must always wear a crash helmet.
– the passenger should wear suitable protective clothing.


33

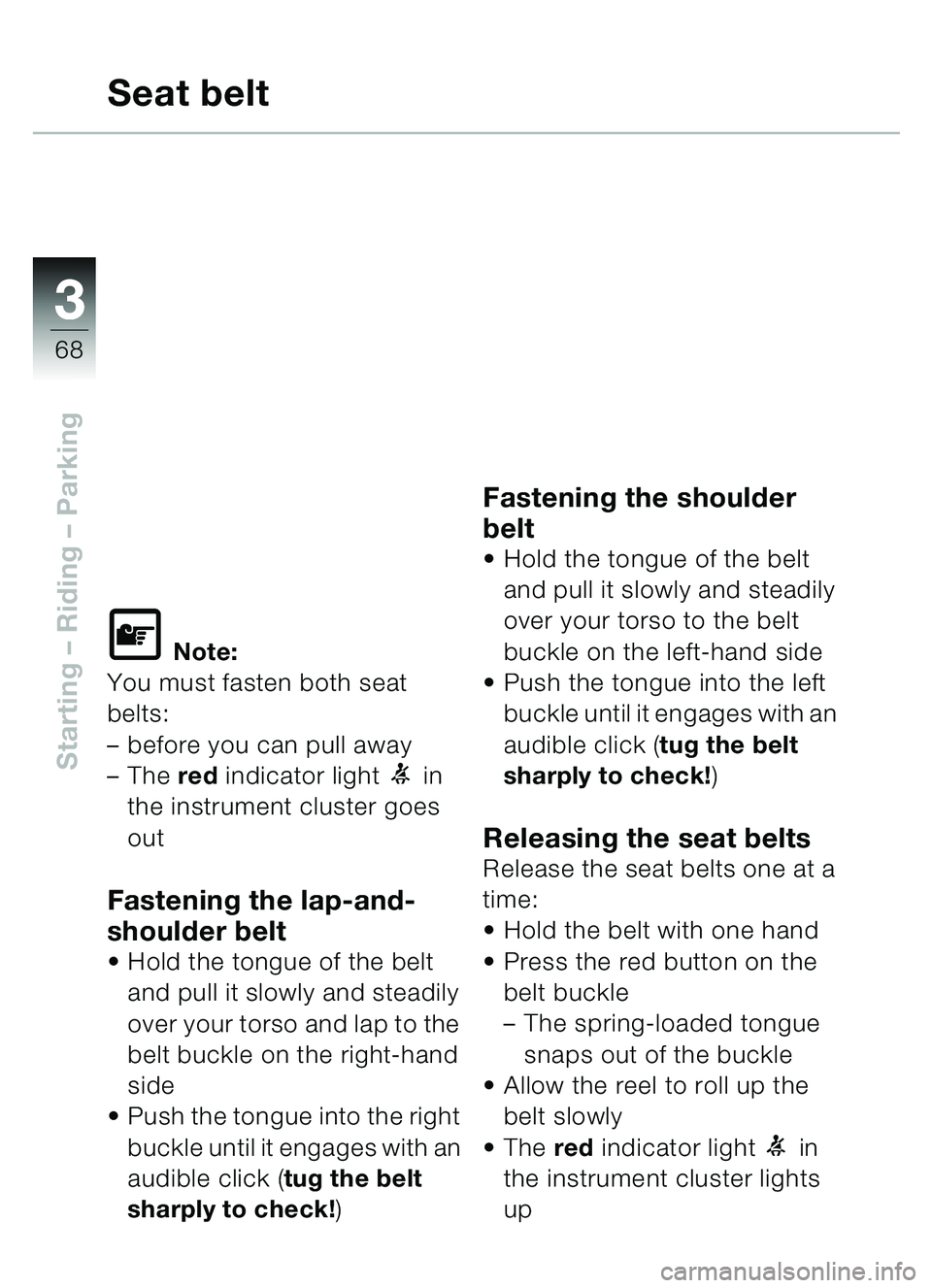

68
Starting – Riding – Parking
Seat belt
\f Note:
You must fasten both seat
belts:
– before you can pull away
– The red indicator light
1 in
the instrument cluster goes
out
Fastening the lap-and-
shoulder belt
 Hold the tongue of the belt
and pull it slowly and steadily
over your torso and lap to the
belt buckle on the right-hand
side
 Push the tongue into the right
buckle until it engages with an
audible click ( tug the belt
sharply to check! )
Fastening the shoulder
belt
Hold the tongue of the belt
and pull it slowly and steadily
over your torso to the belt
buckle on the left-hand side
 Push the tongue into the left
buckle until it engages with an
audible click ( tug the belt
sharply to check! )
Releasing the seat beltsRelease the seat belts one at a
time:
Hold the belt with one hand
 Press the red button on the
belt buckle
– The spring-loaded tongue
snaps out of the buckle
 Allow the reel to roll up the
belt slowly
 The red indicator light
1 in
the instrument cluster lights
up
