BMW MOTORRAD F 650 GS DAKAR 2003 Rider's Manual (in English)

111
19
General information and controls
B
2
3
1
A
B
A

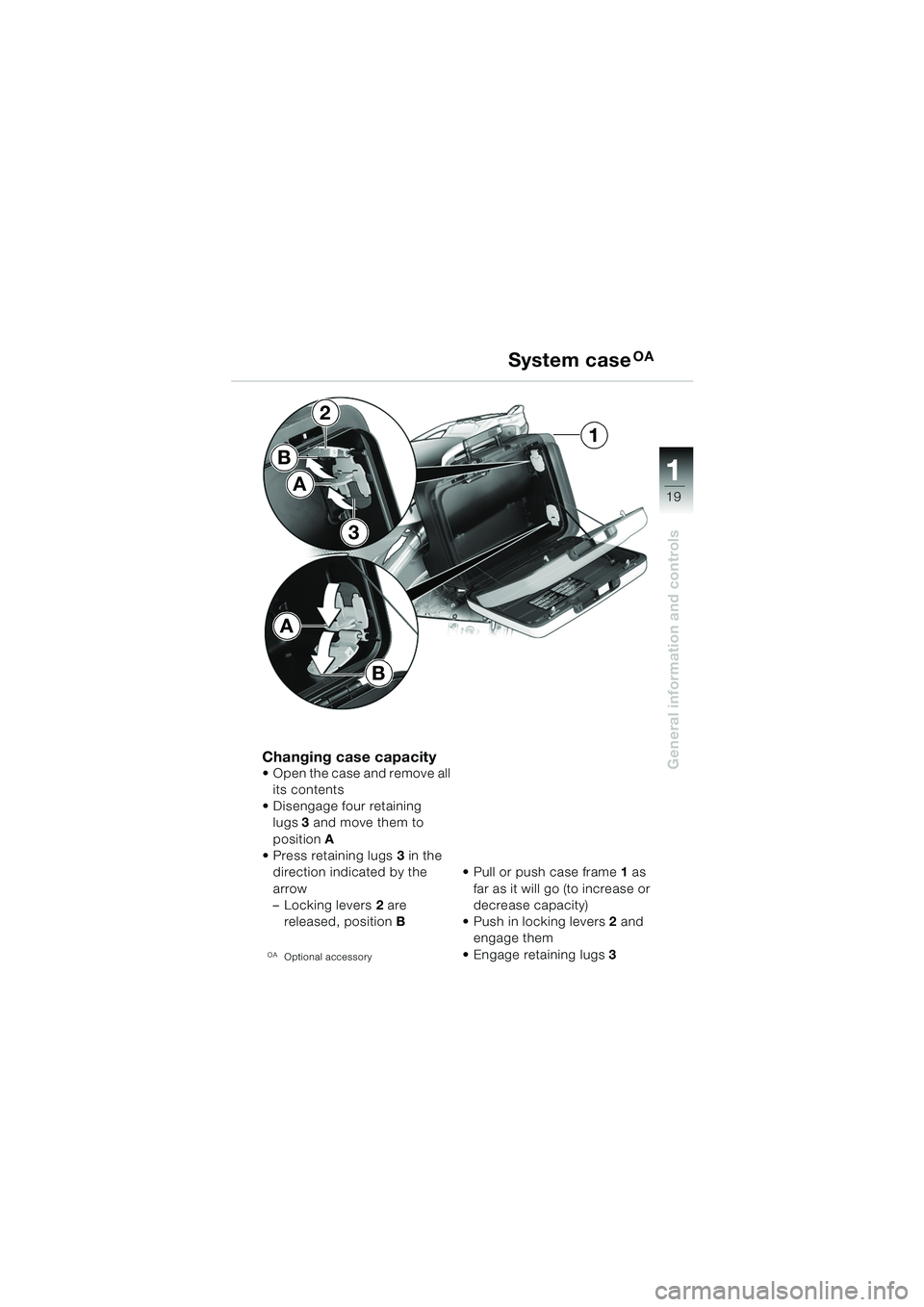

Changing case capacity Open the case and remove all its contents
 Disengage four retaining lugs 3 and move them to
position A
 Press retaining lugs 3 in the
direction indicated by the
arrow
– Locking levers 2 are
released, position B
OAOptional accessory
 Pull or push case frame 1 as
far as it will go (to increase or
decrease capacity)
 Push in locking levers 2 and
engage them
 Engage retaining lugs 3
System caseOA
10R13bkg4.book Seite 19 Montag, 22. September 2003 4:26 16

11
20
General information and controls
System caseOA

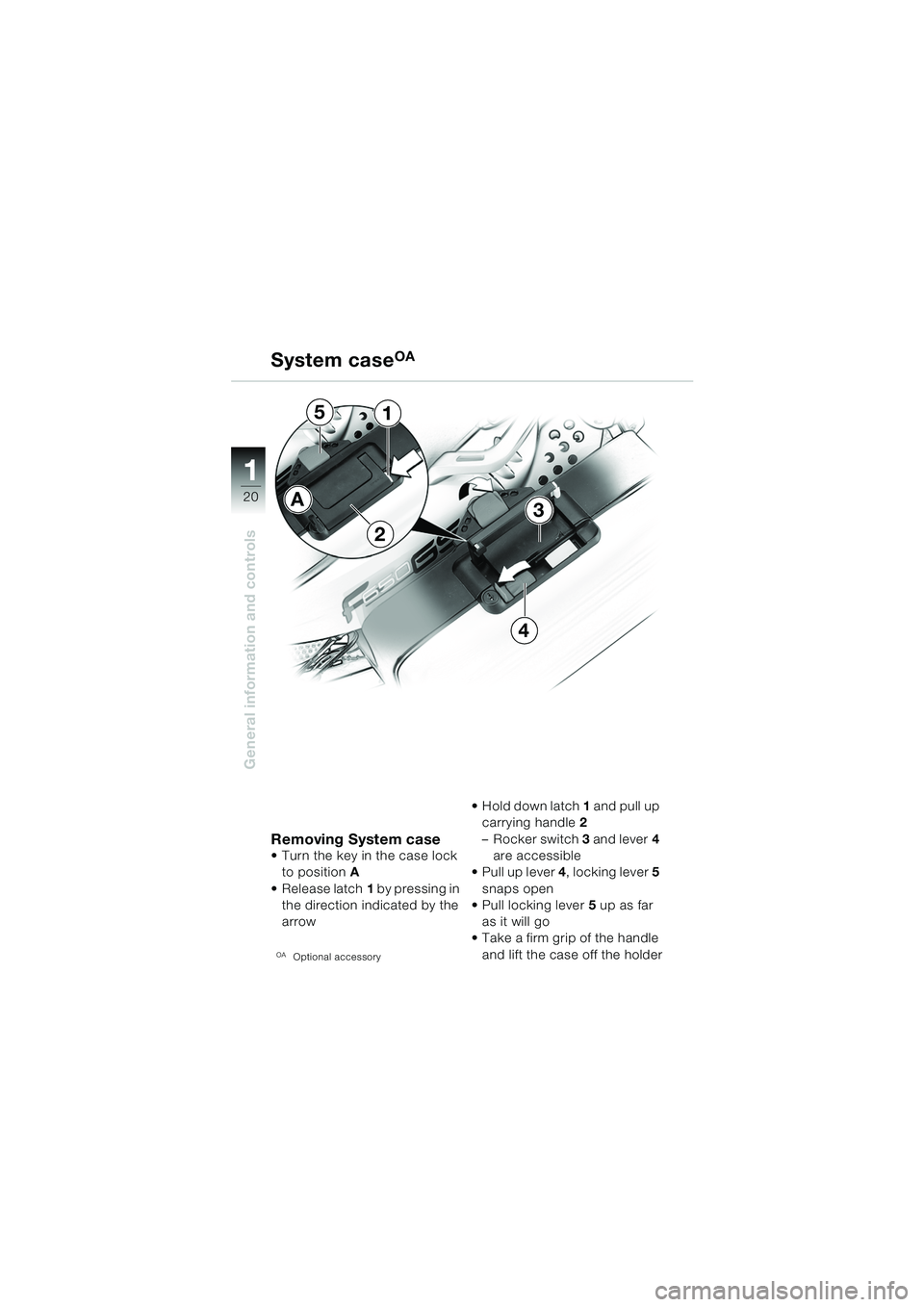

Removing System case
• Turn the key in the case lock to position A
 Release latch 1 by pressing in
the direction indicated by the
arrow
OAOptional accessory
 Hold down latch 1 and pull up
carrying handle 2
– Rocker switch 3 and lever 4
are accessible
 Pull up lever 4, locking lever 5
snaps open
 Pull locking lever 5 up as far
as it will go
 Take a firm grip of the handle
and lift the case off the holder
3
4
5
A
1
2
10r1301g4.fm Seite 20 Dienstag, 30. September 2003 1:39 13

111
21
General information and controls
System caseOA

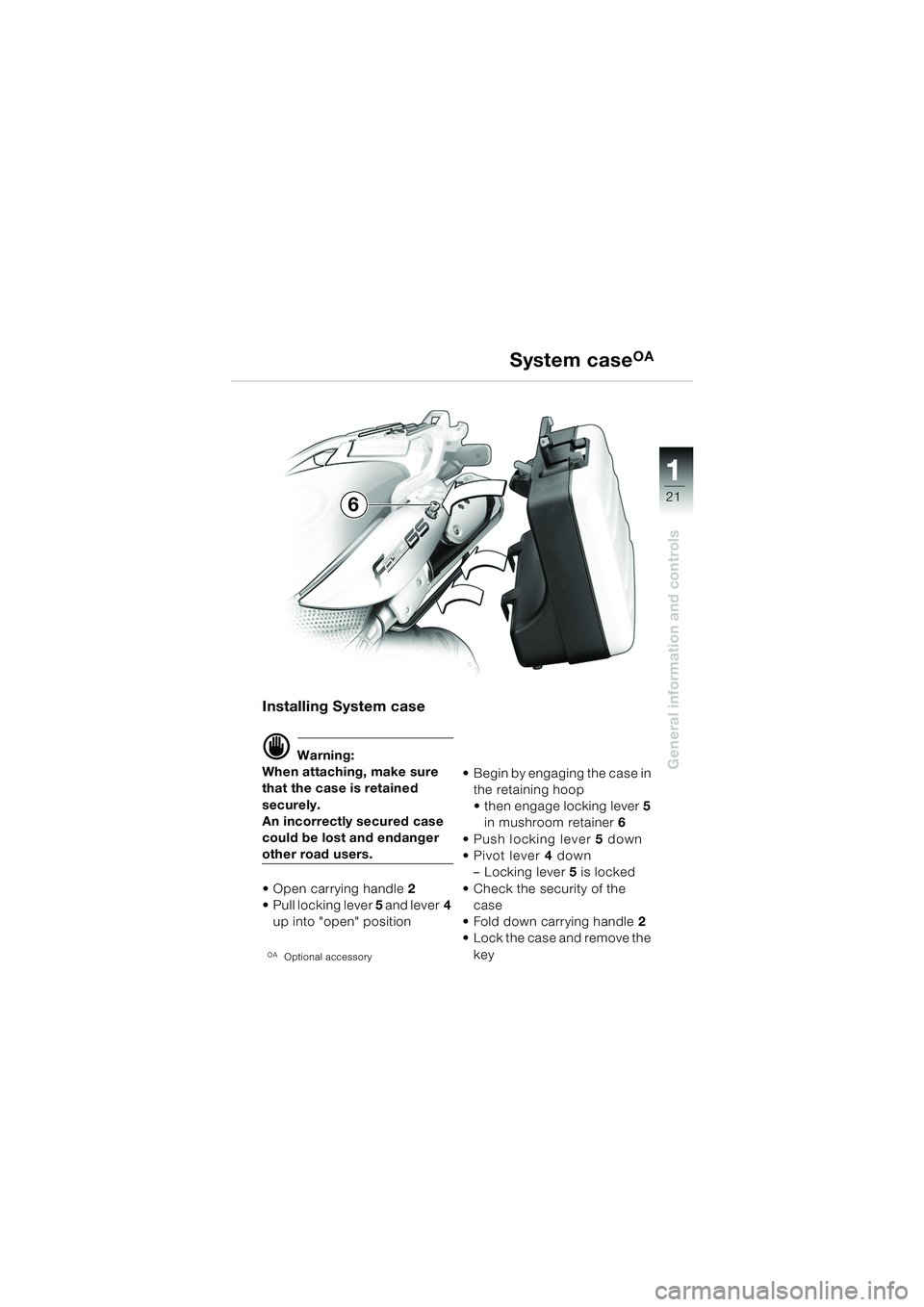

Installing System case
d Warning:
When attaching, make sure
that the case is retained
securely.
An incorrectly secured case
could be lost and endanger
other road users.
• Open carrying handle 2
 Pull locking lever 5 and lever 4
up into "open" position
OAOptional accessory
 Begin by engaging the case in the retaining hoop
 then engage locking lever 5
in mushroom retainer 6
 Push locking lever 5 down
 Pivot lever 4 down
– Locking lever 5 is locked
 Check the security of the case
 Fold down carrying handle 2
 Lock the case and remove the
key
6
10r1301g4.fm Seite 21 Dienstag, 30. September 2003 1:41 13

22
Safety check
2

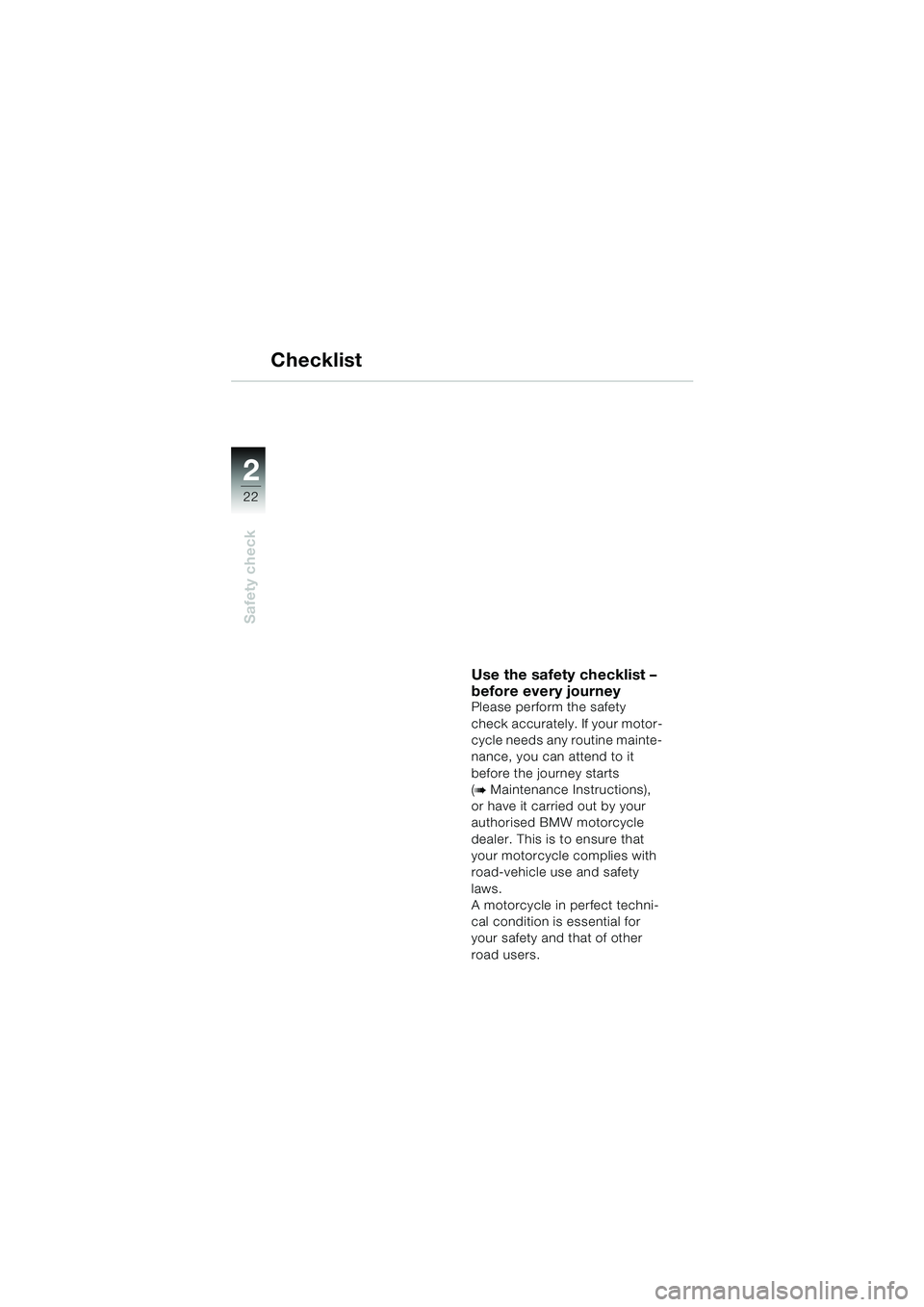

Use the safety checklist –
before every journey
Please perform the safety
check accurately. If your motor-
cycle needs any routine mainte-
nance, you can attend to it
before the journey starts
(
b Maintenance Instructions),
or have it carried out by your
authorised BMW motorcycle
dealer. This is to ensure that
your motorcycle complies with
road-vehicle use and safety
laws.
A motorcycle in perfect techni-
cal condition is essential for
your safety and that of other
road users.
Checklist
10R13bkg4.book Seite 22 Montag, 22. September 2003 4:26 16

1
23
Safety check
2
Checklist
For this reason, check the
details in the following sections
before you start the journey:
– Fuel level
– Clutch-lever play
–Brake pressure
– Brake fluid levels (front and rear)
– Operation of the ABS warning
light
–Drive chain
– Shock-absorber setting and
spring preload
– Wheel rim and tyre condition,
spokes, tread depth and tyre
pressures
–Loading
– Coolant level
–Lights – Check regularly (every time
you stop for fuel), on the basis
of the following section:
– Engine oil level
(every second stop for fuel)
– Brake pads
If you encounter any problems
or difficulties, please contact
your BMW motorcycle dealer.
He will provide the necessary
advice and assistance.
10R13bkg4.book Seite 23 Montag, 22. September 2003 4:26 16

24
Safety check
2
Engine oil
Checking oil level
e Attention:
The red warning light
p (b7)
for engine oil pressure indicates
that the oil pump is delivering
very little oil or none at all: do
not regard this light as an oil
level indicator. Oil pressure
builds up after1-2 seconds and
the warning light goes out – the
red engine oil pressure warning
light
p should remain off when
the engine is running. Check
the oil level regularly, each time
you stop for fuel (or every sec-
ond time at the latest).
The oil level might be low if the
motorcycle has not been in use
for an extended period of time.
Under these circumstances top
up the oil level only after meas-
uring the oil level in accordance
with the instructions.
Always check engine oil level
with the engine at its regular op-
erating temperature.
Checking the oil level when the
engine is cold, just after the en-
gine has been run briefly or
when it is not properly warm will
falsify the reading, and could
lead to the engine being operat-
ed with the wrong quantity of oil
in the system.
L Note:
The oil temperature affects the
reading. The warmer the oil, the
higher the oil level in the sump.
Check the oil after a run, in or-
der to avoid overfilling.
 Hold the motorcycle upright – Make sure the ground is level and firm.
– Check the oil when the engine is at operating temperature
(after the motorcycle has
been ridden, or else allow the
engine to idle until the fan
switches on)
 Allow the engine to idle for at least 1 minute
 Switch off the engine
 Use the spark plug wrench to remove plug 1
10R13bkg4.book Seite 24 Montag, 22. September 2003 4:26 16

1
25
Safety check
2
e Attention:
To avoid damage to the engine:
– never exceed the maximum oil level.
– However, always keep the oil
level above the minimum
mark.
 Wipe off oil dipstick 2, using a
clean, lint-free cloth
 To check the oil level, reinsert plug 1 with oil dipstick 2 into
its bore, but do not engage
the threads  Check oil level against marks
on dipstick:
MAX Maximum level
MIN Minimum level
The difference is equivalent to
approx. 0.4 litre (approx. 0.7 Imp. pint)
 If necessary, add oil through
filler neck 3 until the level
reaches middle mark A
 Reinstall plug 1
 Repeat the warm-up proce- dure and recheck the oil level
as described above
1
Engine oil
MAX
A
MIN
BMW recommends Castrol
2
3
10R13bkg4.book Seite 25 Montag, 22. September 2003 4:26 16

26
Safety check
2
Refuelling
d Warning:
Fuel is flammable and explo-
sive. Do not smoke. Never
bring a naked flame near the
fuel tank.
Fuel expands when hot (for
instance if the fuel tank is in
the sun). For this reason, only
fill as far as the lower edge of
the filler neck.
e Attention:
Leaded fuel will destroy the cat-
alytic converter.
Do not run the fuel tank dry or
you may damage the engine or
catalytic converter.
Wipe off plastic parts immedi-
ately if they are wetted with fuel.
Fuel
10R13bkg4.book Seite 26 Montag, 22. September 2003 4:26 16

1

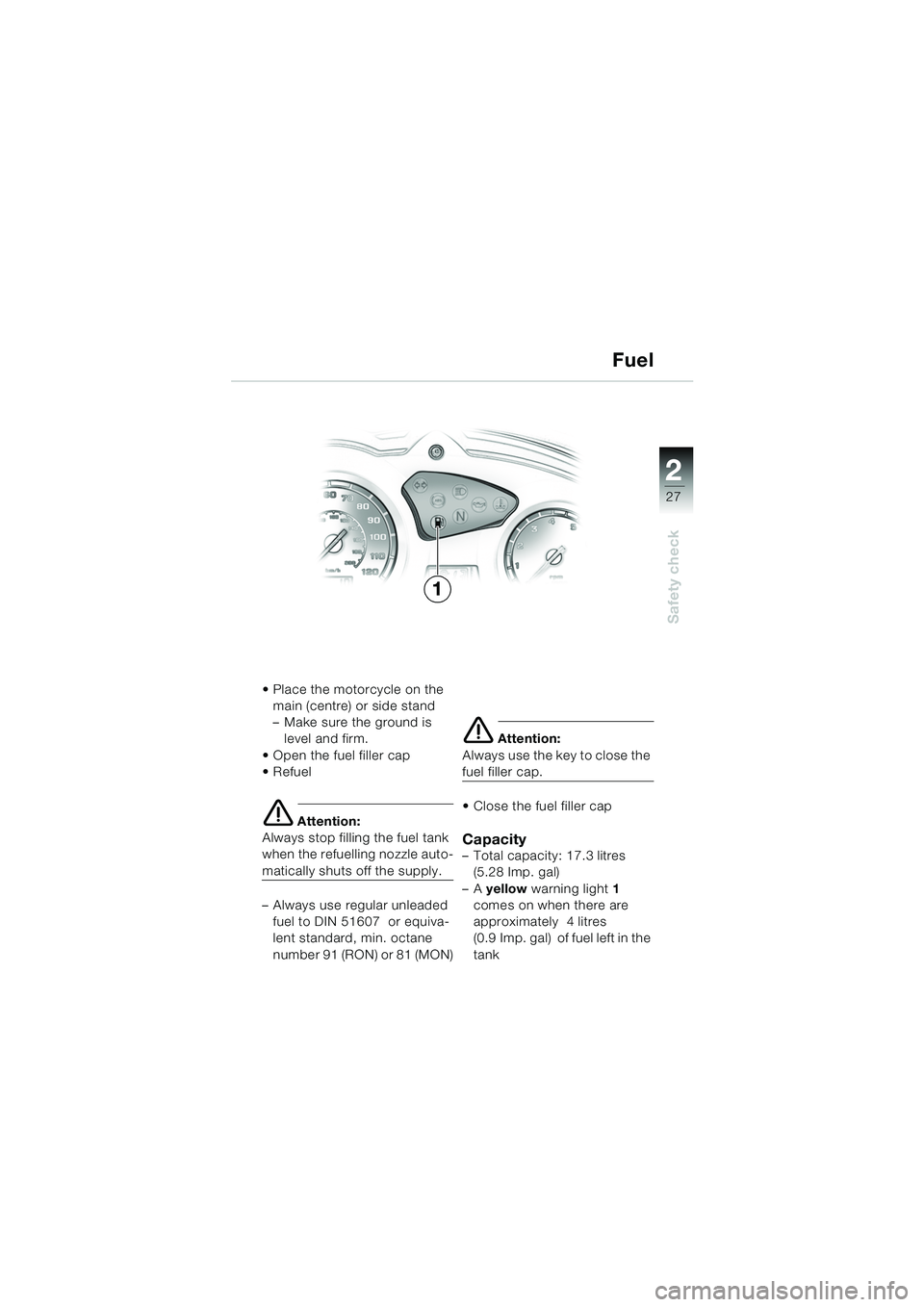

27
Safety check
2
 Place the motorcycle on the main (centre) or side stand
– Make sure the ground is level and firm.
 Open the fuel filler cap
Refuel
e Attention:
Always stop filling the fuel tank
when the refuelling nozzle auto-
matically shuts off the supply.
– Always use regular unleaded fuel to DIN 51607 or equiva-
lent standard, min. octane
number 91 (RON) or 81 (MON)
e Attention:
Always use the key to close the
fuel filler cap.
 Close the fuel filler cap
Capacity
– Total capacity: 17.3 litres (5.28 Imp. gal)
–A yellow warning light 1
comes on when there are
approximately 4 litres
(0.9 Imp. gal) of fuel left in the
tank
1 Fuel
10R13bkg4.book Seite 27 Montag, 22. September 2003 4:26 16

28
Safety check
2
13
6
54
A

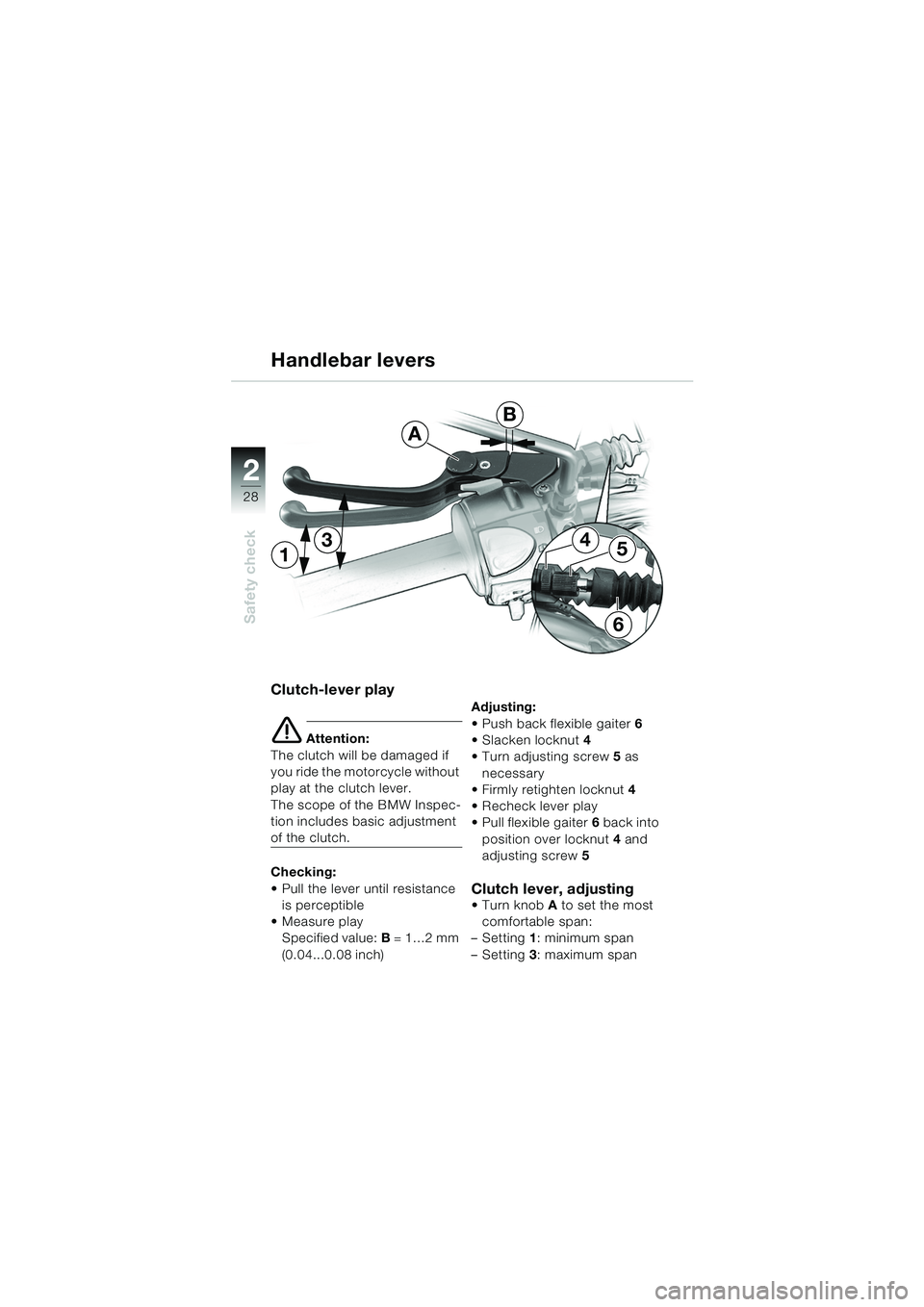

Clutch-lever play
e Attention:
The clutch will be damaged if
you ride the motorcycle without
play at the clutch lever.
The scope of the BMW Inspec-
tion includes basic adjustment
of the clutch.
Checking:
 Pull the lever until resistance is perceptible
Measure play Specified value: B = 1…2 mm
(0.04...0.08 inch) Adjusting:
 Push back flexible gaiter
6
 Slacken locknut 4
 Turn adjusting screw 5 as
necessary
 Firmly retighten locknut 4
Recheck lever play
 Pull flexible gaiter 6 back into
position over locknut 4 and
adjusting screw 5
Clutch lever, adjustingTurn knob A to set the most
comfortable span:
–Setting 1: minimum span
–Setting 3: maximum span
Handlebar levers
B
