Starting – Riding – Parking

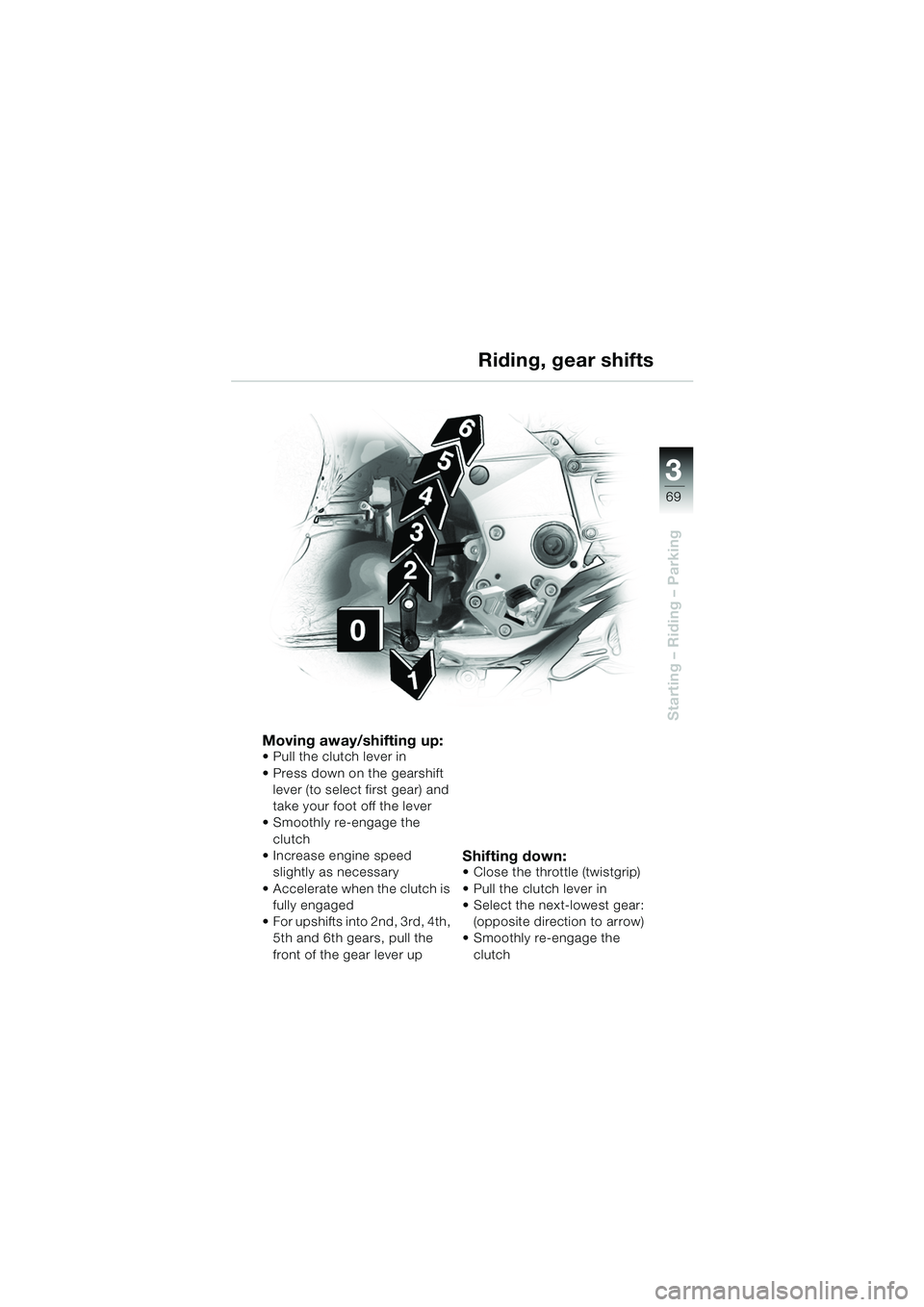

Riding, gear shifts
Moving away/shifting up: Pull the clutch lever in
 Press down on the gearshift lever (to select first gear) and
take your foot off the lever
 Smoothly re-engage the
clutch
 Increase engine speed slightly as necessary
 Accelerate when the clutch is fully engaged
 For upshifts into 2nd, 3rd, 4th, 5th and 6th gears, pull the
front of the gear lever up
Shifting down: Close the throttle (twistgrip)
 Pull the clutch lever in
 Select the next-lowest gear:
(opposite direction to arrow)
 Smoothly re-engage the
clutch
10k41bkg2.book Seite 69 Donnerstag, 24. Juli 2003 9:17 09

70
Starting – Riding – Parking
3
Brake system - general

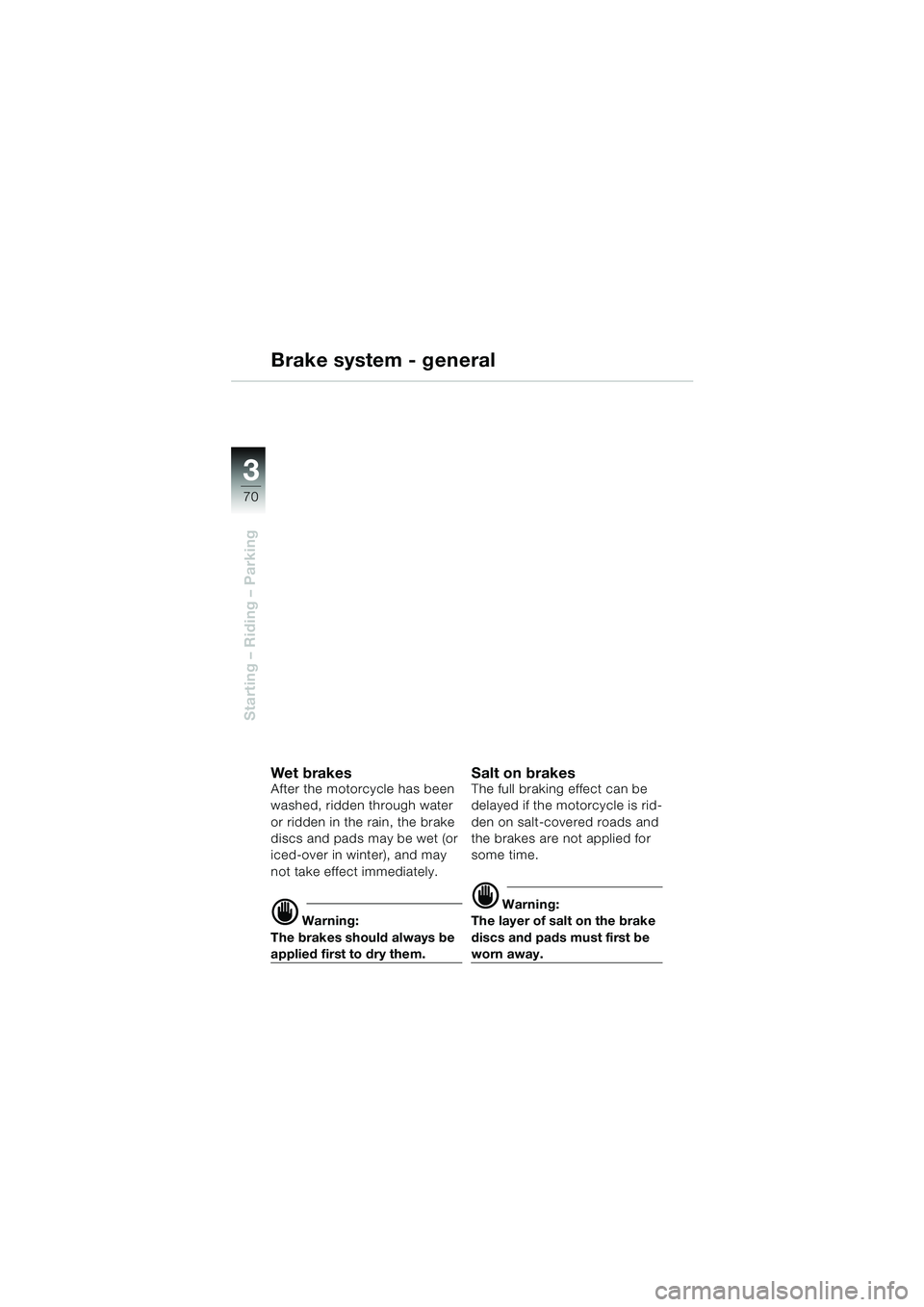

Wet bra kesAfter the motorcycle has been
washed, ridden through water
or ridden in the rain, the brake
discs and pads may be wet (or
iced-over in winter), and may
not take effect immediately.
d Warning:
The brakes should always be
applied first to dry them.
Salt on brakesThe full braking effect can be
delayed if the motorcycle is rid-
den on salt-covered roads and
the brakes are not applied for
some time.
d Warning:
The layer of salt on the brake
discs and pads must first be
worn away.
10k41bkg2.book Seite 70 Donnerstag, 24. Juli 2003 9:17 09

3
71
Starting – Riding – Parking
Brake system - general

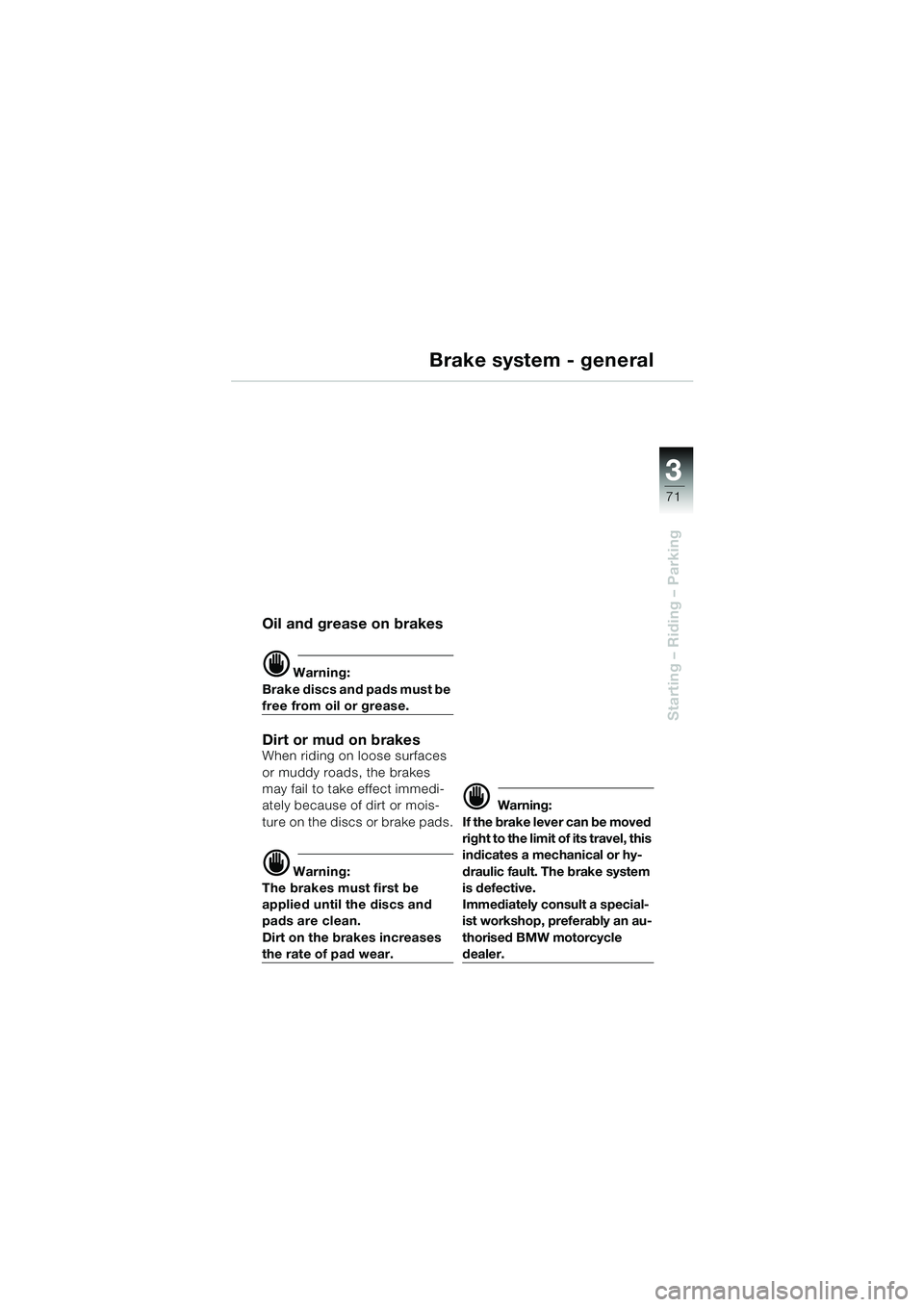

Oil and grease on brakes
d Warning:
Brake discs and pads must be
free from oil or grease.
Dirt or mud on brakesWhen riding on loose surfaces
or muddy roads, the brakes
may fail to take effect immedi-
ately because of dirt or mois-
ture on the discs or brake pads.
d Warning:
The brakes must first be
applied until the discs and
pads are clean.
Dirt on the brakes increases
the rate of pad wear.
d Warning:
If the brake lever can be moved
right to the limit of its travel, this
indicates a mechanical or hy-
draulic fault. The brake system
is defective.
Immediately consult a special-
ist workshop, preferably an au-
thorised BMW motorcycle
dealer.
10k41bkg2.book Seite 71 Donnerstag, 24. Juli 2003 9:17 09

72
Starting – Riding – Parking
3
Brake system - with BMW Integral ABS

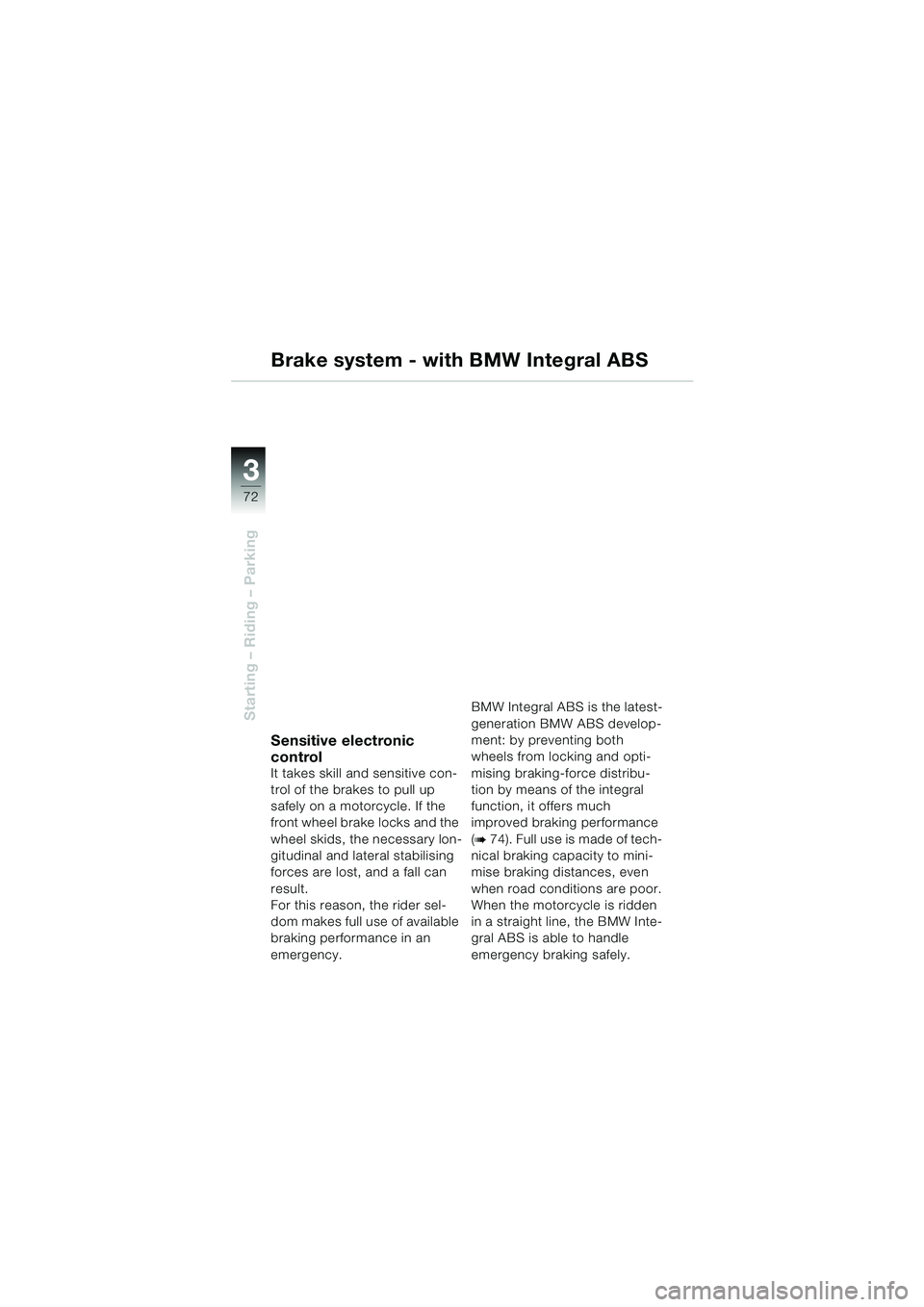

Sensitive electronic
control
It takes skill and sensitive con-
trol of the brakes to pull up
safely on a motorcycle. If the
front wheel brake locks and the
wheel skids, the necessary lon-
gitudinal and lateral stabilising
forces are lost, and a fall can
result.
For this reason, the rider sel-
dom makes full use of available
braking performance in an
emergency. BMW Integral ABS is the latest-
generation BMW ABS develop-
ment: by preventing both
wheels from locking and opti-
mising braking-force distribu-
tion by means of the integral
function, it offers much
improved braking performance
(
b 74). Full use is made of tech-
nical braking capacity to mini-
mise braking distances, even
when road conditions are poor.
When the motorcycle is ridden
in a straight line, the BMW Inte-
gral ABS is able to handle
emergency braking safely.
10k41bkg2.book Seite 72 Donnerstag, 24. Juli 2003 9:17 09

3
73
Starting – Riding – Parking
Brake system - with BMW Integral ABS

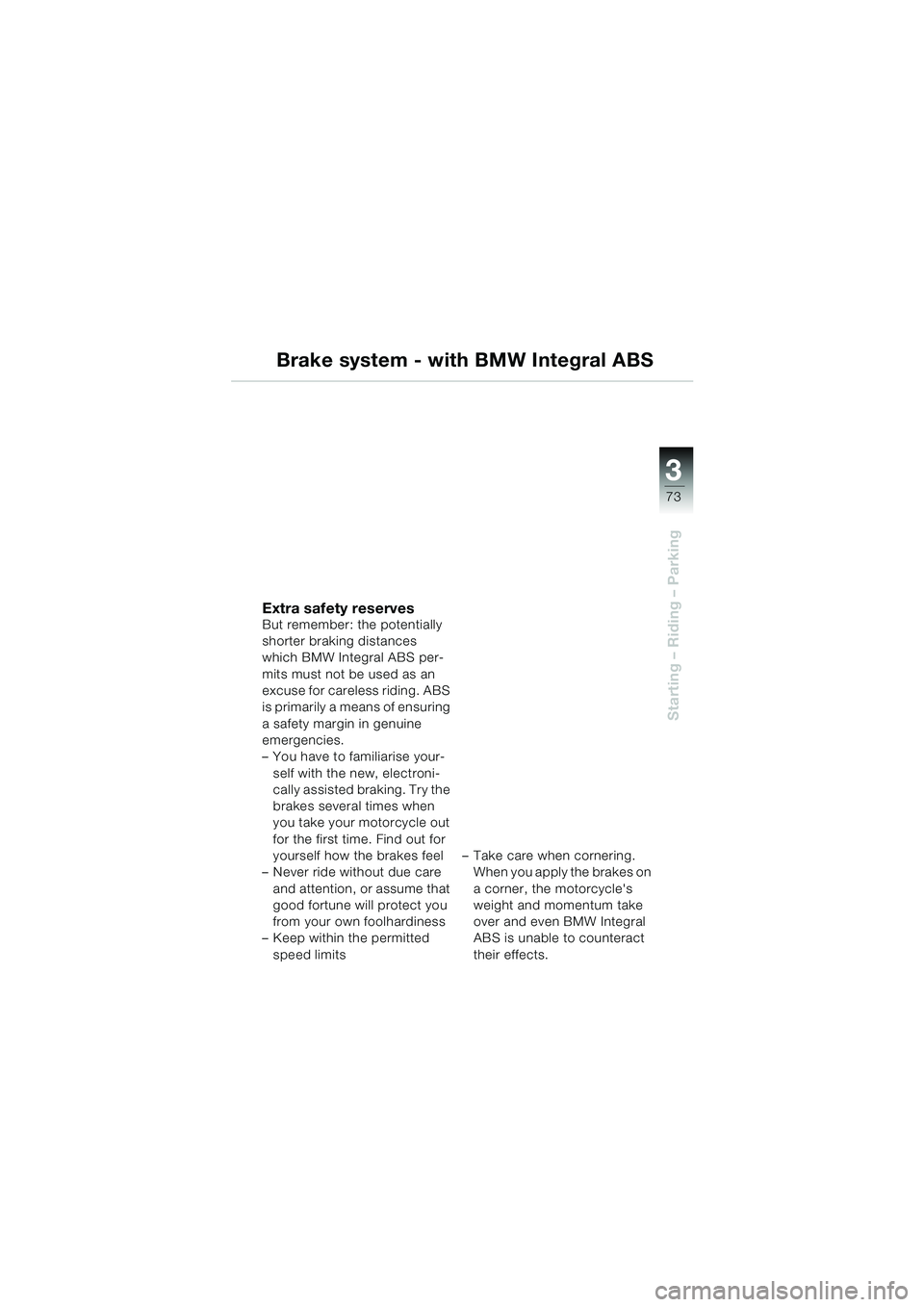

Extra safety reservesBut remember: the potentially
shorter braking distances
which BMW Integral ABS per-
mits must not be used as an
excuse for careless riding. ABS
is primarily a means of ensuring
a safety margin in genuine
emergencies.
– You have to familiarise your-self with the new, electroni-
cally assisted braking. Try the
brakes several times when
you take your motorcycle out
for the first time. Find out for
yourself how the brakes feel
– Never ride without due care
and attention, or assume that
good fortune will protect you
from your own foolhardiness
– Keep within the permitted
speed limits – Take care when cornering.
When you apply the brakes on
a corner, the motorcycle's
weight and momentum take
over and even BMW Integral
ABS is unable to counteract
their effects.
10k41bkg2.book Seite 73 Donnerstag, 24. Juli 2003 9:17 09

74
Starting – Riding – Parking
3
Brake system - with BMW Integral ABS

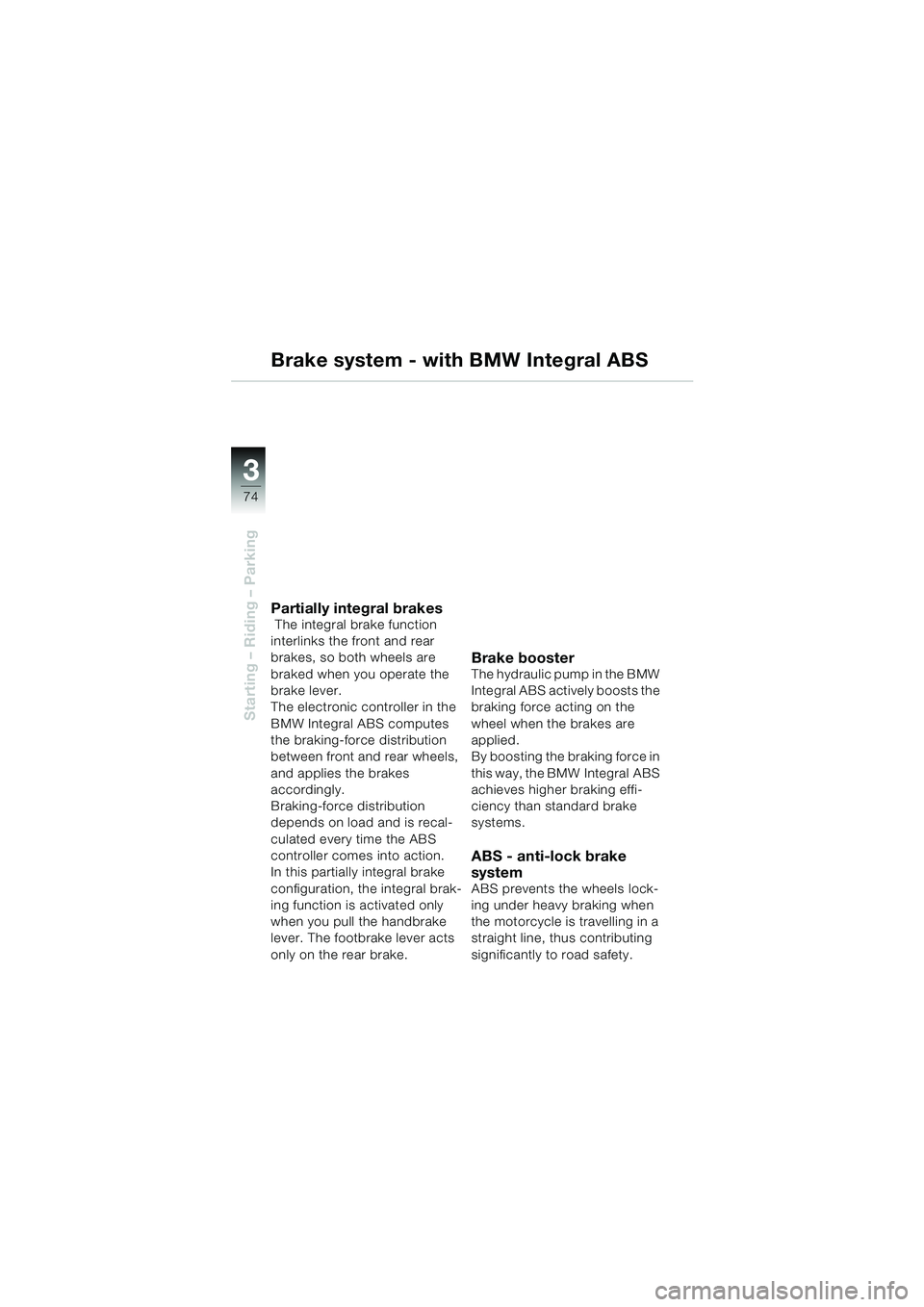

Partially integral brakes The integral brake function
interlinks the front and rear
brakes, so both wheels are
braked when you operate the
brake lever.
The electronic controller in the
BMW Integral ABS computes
the braking-force distribution
between front and rear wheels,
and applies the brakes
accordingly.
Braking-force distribution
depends on load and is recal-
culated every time the ABS
controller comes into action.
In this partially integral brake
configuration, the integral brak-
ing function is activated only
when you pull the handbrake
lever. The footbrake lever acts
only on the rear brake.
Brake boosterThe hydraulic pump in the BMW
Integral ABS actively boosts the
braking force acting on the
wheel when the brakes are
applied.
By boosting the braking force in
this way, the BMW Integral ABS
achieves higher braking effi-
ciency than standard brake
systems.
ABS - anti-lock brake
system
ABS prevents the wheels lock-
ing under heavy braking when
the motorcycle is travelling in a
straight line, thus contributing
significantly to road safety.
10k41bkg2.book Seite 74 Donnerstag, 24. Juli 2003 9:17 09

3
75
Starting – Riding – Parking
Brake system - with BMW Integral ABS

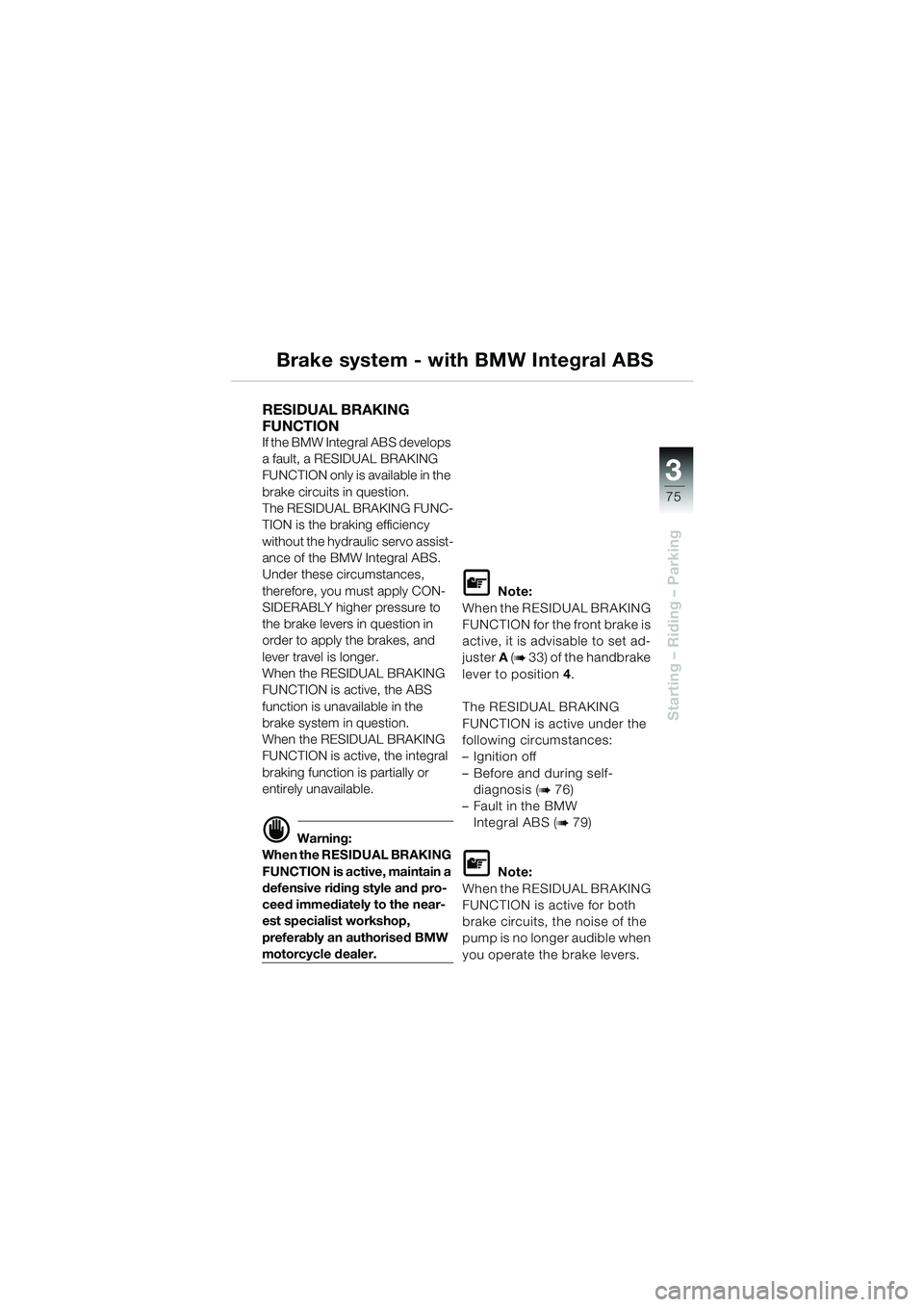

RESIDUAL BRAKING
FUNCTION
If the BMW Integral ABS develops
a fault, a RESIDUAL BRAKING
FUNCTION only is available in the
brake circuits in question.
The RESIDUAL BRAKING FUNC-
TION is the braking efficiency
without the hydraulic servo assist-
ance of the BMW Integral ABS.
Under these circumstances,
therefore, you must apply CON-
SIDERABLY higher pressure to
the brake levers in question in
order to apply the brakes, and
lever travel is longer.
When the RESIDUAL BRAKING
FUNCTION is active, the ABS
function is unavailable in the
brake system in question.
When the RESIDUAL BRAKING
FUNCTION is active, the integral
braking function is partially or
entirely unavailable.
d Warning:
When the RESIDUAL BRAKING
FUNCTION is active, maintain a
defensive riding style and pro-
ceed immediately to the near-
est specialist workshop,
preferably an authorised BMW
motorcycle dealer.
L Note:
When the RESIDUAL BRAKING
FUNCTION for the front brake is
active, it is advisable to set ad-
juster A (
b 33) of the handbrake
lever to position 4.
The RESIDUAL BRAKING
FUNCTION is active under the
following circumstances:
– Ignition off
– Before and during self- diagnosis (
b 76)
– Fault in the BMW Integral ABS (
b 79)
L Note:
When the RESIDUAL BRAKING
FUNCTION is active for both
brake circuits, the noise of the
pump is no longer audible when
you operate the brake levers.
10k41bkg2.book Seite 75 Donnerstag, 24. Juli 2003 9:17 09

76
Starting – Riding – Parking
3

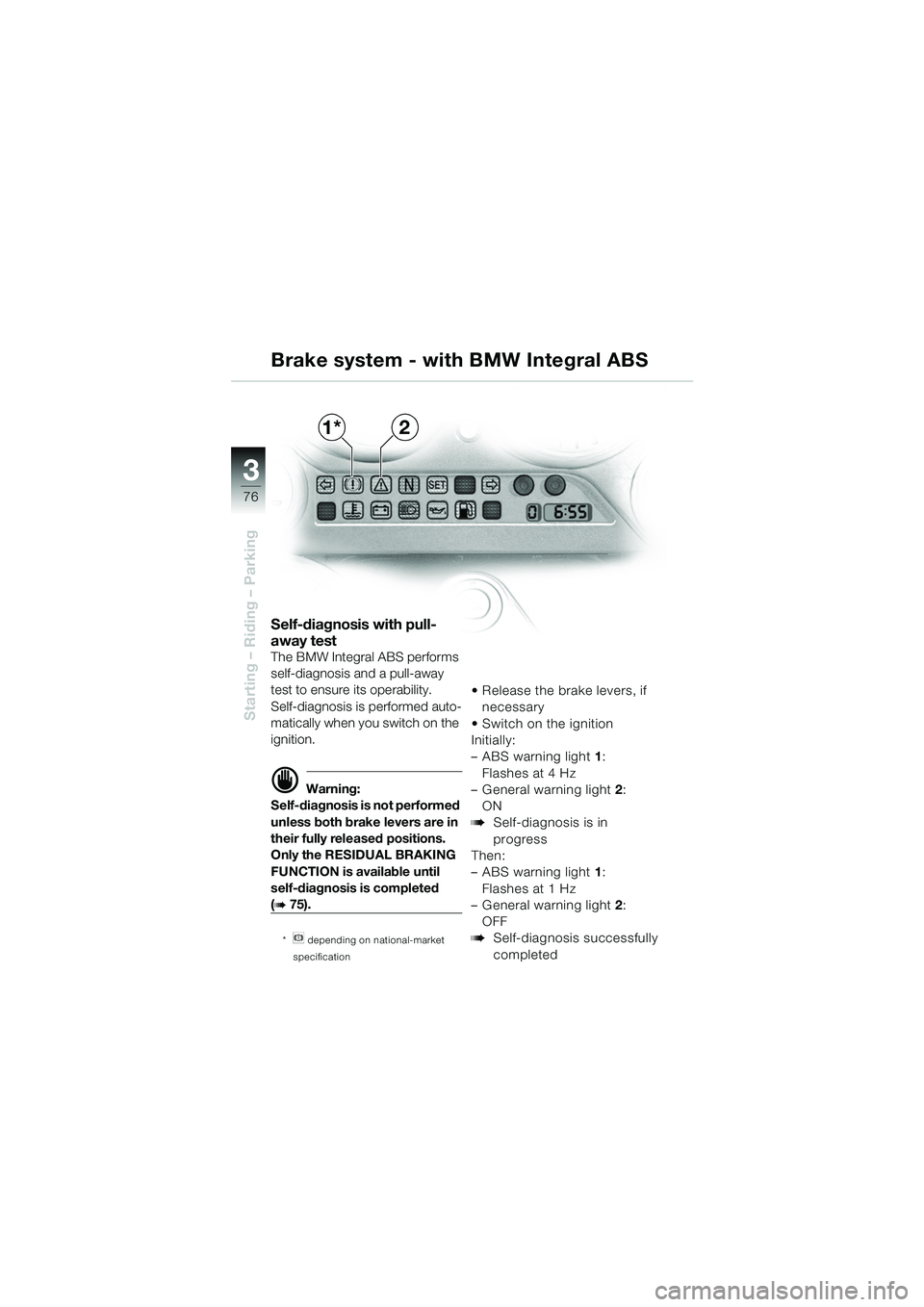

Self-diagnosis with pull-
away test
The BMW Integral ABS performs
self-diagnosis and a pull-away
test to ensure its operability.
Self-diagnosis is performed auto-
matically when you switch on the
ignition.
d Warning:
Self-diagnosis is not performed
unless both brake levers are in
their fully released positions.
Only the RESIDUAL BRAKING
FUNCTION is available until
self-diagnosis is completed
(b 75).
*n depending on national-market
specification
• Release the brake levers, if necessary
 Switch on the ignition
Initially:
– ABS warning light 1:
Flashes at 4 Hz
– General warning light 2:
ON
bSelf-diagnosis is in
progress
Then:
– ABS warning light 1:
Flashes at 1 Hz
– General warning light 2:
OFF
bSelf-diagnosis successfully
completed
Brake system - with BMW Integral ABS
1*2
10k4103g2.fm Seite 76 Montag, 4. August 2003 2:32 14

3
77
Starting – Riding – ParkingStart the engine.
 Move off
– ABS warning light1:
OFF (as of approx. 5 km/h
(3 mph) road speed)
bPull-away test successfully
completed
bBMW Integral ABS is
available

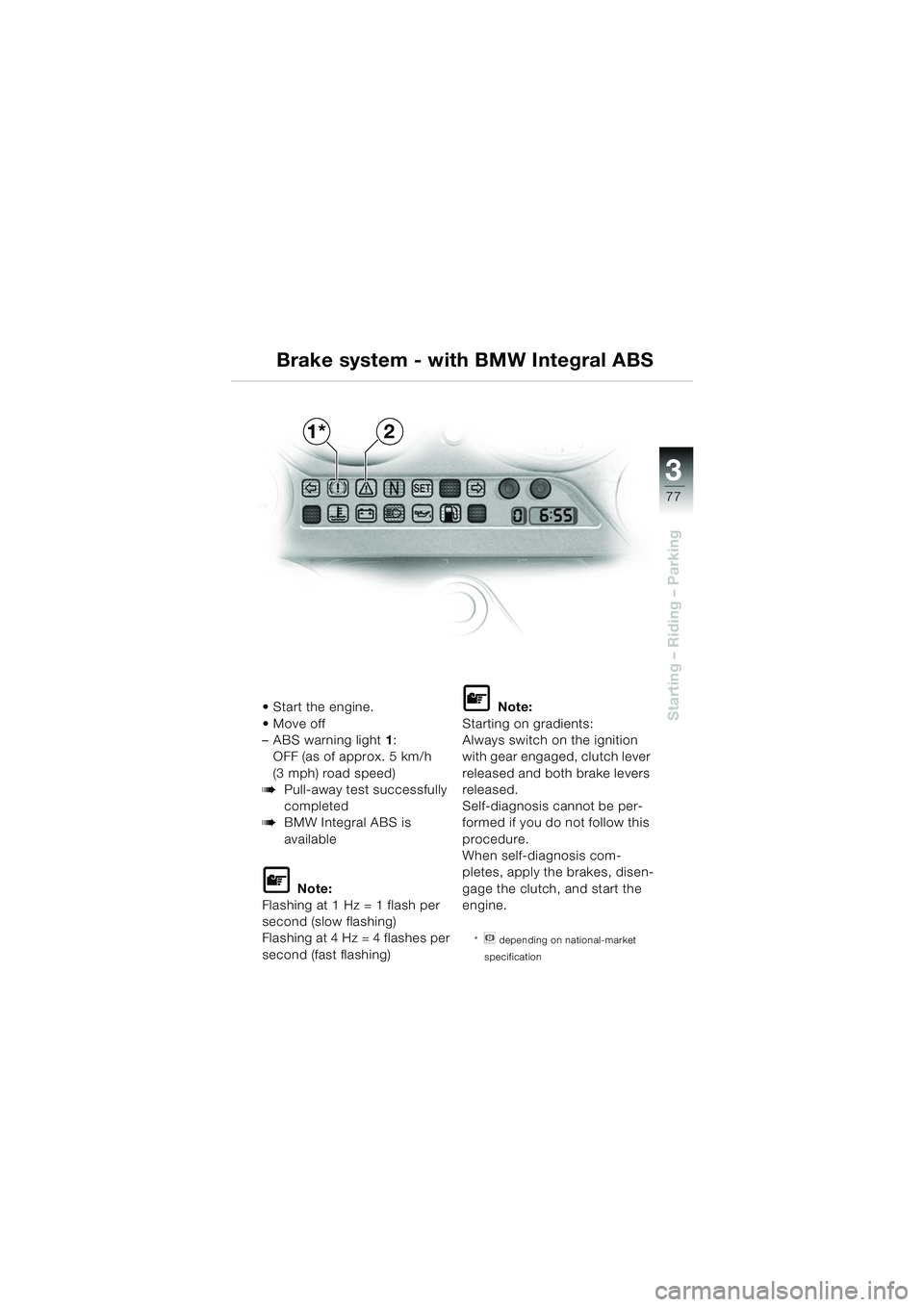

L Note:
Flashing at 1 Hz = 1 flash per
second (slow flashing)
Flashing at 4 Hz = 4 flashes per
second (fast flashing)
L Note:
Starting on gradients:
Always switch on the ignition
with gear engaged, clutch lever
released and both brake levers
released.
Self-diagnosis cannot be per-
formed if you do not follow this
procedure.
When self-diagnosis com-
pletes, apply the brakes, disen-
gage the clutch, and start the
engine.
*n depending on national-market
specification
1*2
Brake system - with BMW Integral ABS
10k41bkg2.book Seite 77 Donnerstag, 24. Juli 2003 9:17 09

78
Starting – Riding – Parking
3

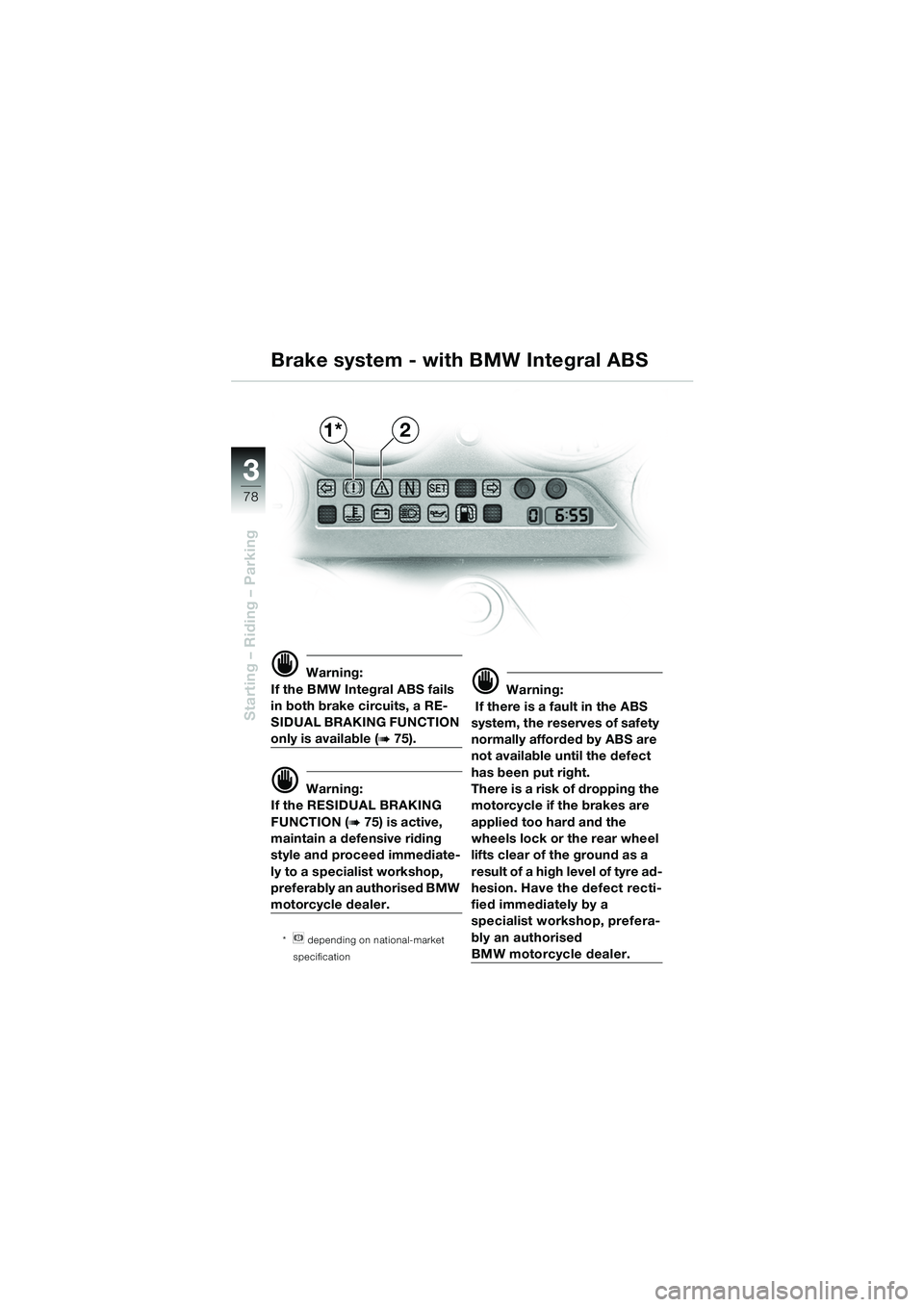

d Warning:
If the BMW Integral ABS fails
in both brake circuits, a RE-
SIDUAL BRAKING FUNCTION
only is available (b 75).
d Warning:
If the RESIDUAL BRAKING
FUNCTION (
b 75) is active,
maintain a defensive riding
style and proceed immediate-
ly to a specialist workshop,
preferably an authorised BMW
motorcycle dealer.
*n depending on national-market
specification
d Warning:
If there is a fault in the ABS
system, the reserves of safety
normally afforded by ABS are
not available until the defect
has been put right.
There is a risk of dropping the
motorcycle if the brakes are
applied too hard and the
wheels lock or the rear wheel
lifts clear of the ground as a
r e su l t o f a h i g h le v e l o f t yr e ad -
hesion. Have the defect recti-
fied immediately by a
specialist workshop, prefera-
bly an authorised
BMW motorcycle dealer.
1*2
Brake system - with
BMW Integral ABS
