3
69
Starting – Riding – Parking

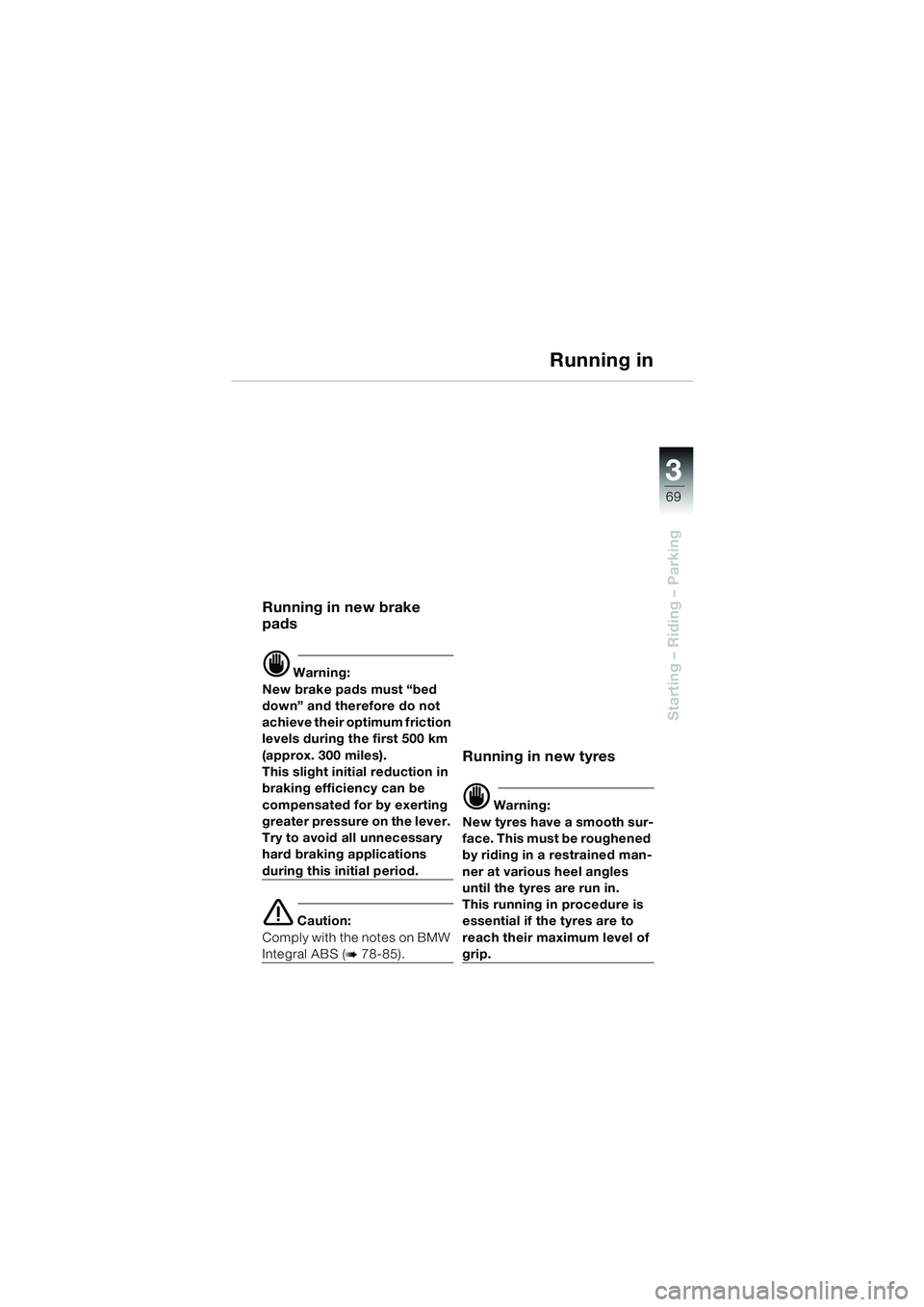

Running in
Running in new brake
pads
d Warning:
New brake pads must “bed
down” and therefore do not
achieve their optimum friction
levels during the first 500 km
(approx. 300 miles).
This slight initial reduction in
braking efficiency can be
compensated for by exerting
greater pressure on the lever.
Try to avoid all unnecessary
hard braking applications
during this initial period.
e Caution:
Comply with the notes on BMW
Integral ABS (b 78-85).
Running in new tyres
d Warning:
New tyres have a smooth sur-
face. This must be roughened
by riding in a restrained man-
ner at various heel angles
until the tyres are run in.
This running in procedure is
essential if the tyres are to
reach their maximum level of
grip.
10LTbkg4.bk Seite 69 Dienstag, 27. August 2002 8:28 08

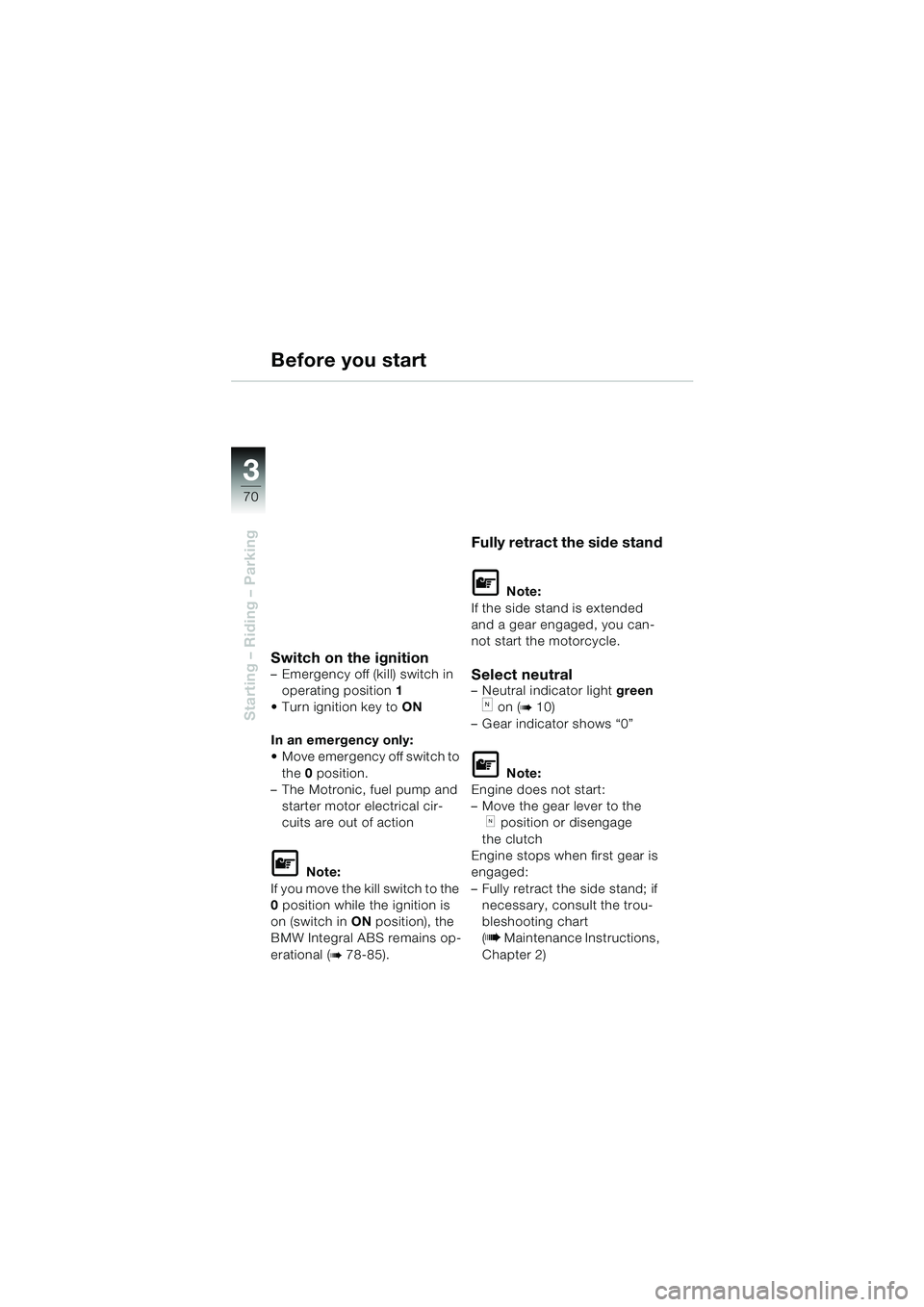

70
Starting – Riding – Parking
3
Before you start
Switch on the ignition–Emergency off (kill) switch in
operating position1
Turn ignition key toON
In an emergency only:
Move emergency off switch to
the 0 position.
–The Motronic, fuel pump and
starter motor electrical cir-
cuits are out of action
L Note:
If you move the kill switch to the
0 position while the ignition is
on (switch in ON position), the
BMW Integral ABS remains op-
erational (
b 78-85).
Fully retract the side stand
L Note:
If the side stand is extended
and a gear engaged, you can-
not start the motorcycle.
Select neutral–Neutral indicator light green
k on (b 10)
–Gear indicator shows “0”
L Note:
Engine does not start:
–Move the gear lever to the
k position or disengage
the clutch
Engine stops when first gear is
engaged:
–Fully retract the side stand; if
necessary, consult the trou-
bleshooting chart
(b Maintenance Instructions,
Chapter 2)
10LTbkg4.bk Seite 70 Dienstag, 27. August 2002 8:28 08

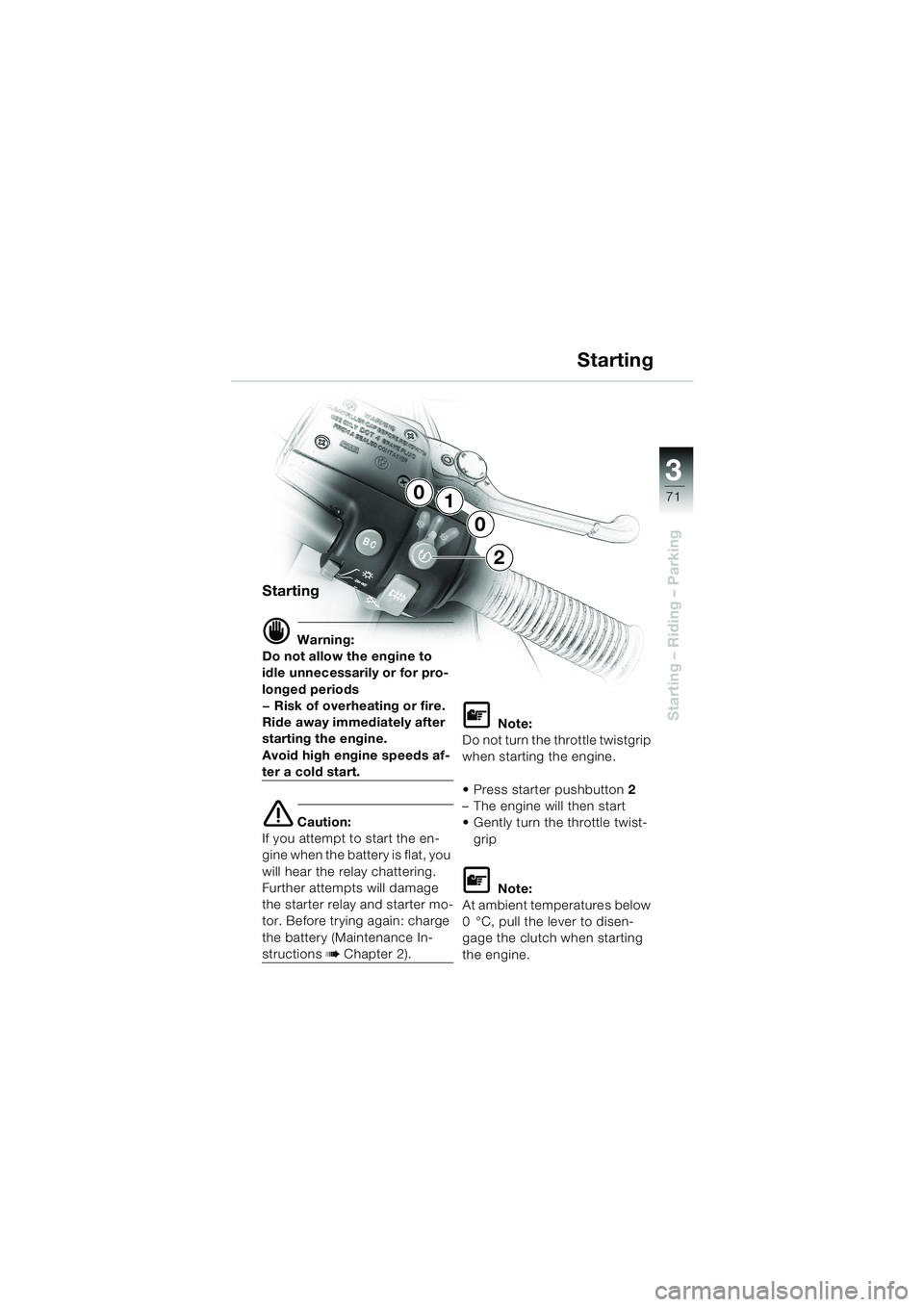

3
71
Starting – Riding – Parking
Starting
d Warning:
Do not allow the engine to
idle unnecessarily or for pro-
longed periods
— Risk of overheating or fire.
Ride away immediately after
starting the engine.
Avoid high engine speeds af-
ter a cold start.
e Caution:
If you attempt to start the en-
gine when the battery is flat, you
will hear the relay chattering.
Further attempts will damage
the starter relay and starter mo-
tor. Before trying again: charge
the battery (Maintenance In-
structions b Chapter 2).
L Note:
Do not turn the throttle twistgrip
when starting the engine.
Press starter pushbutton2
–The engine will then start
Gently turn the throttle twist-
grip
L Note:
At ambient temperatures below
0°C, pull the lever to disen-
gage the clutch when starting
the engine.
Starting
1
0
0
2
10LTbkg4.bk Seite 71 Dienstag, 27. August 2002 8:28 08

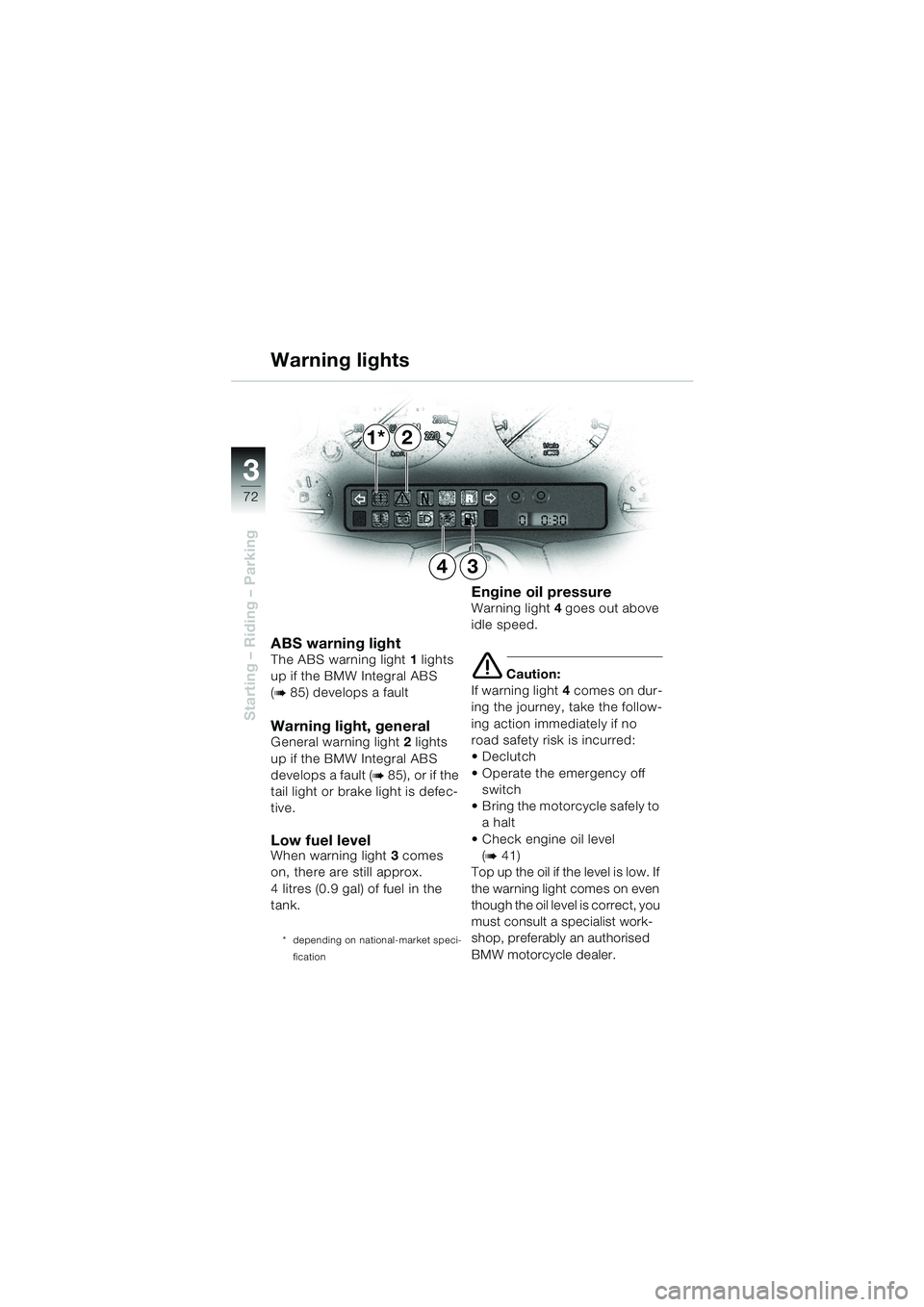

72
Starting – Riding – Parking
3
2
34 Warning lights
ABS warning lightThe ABS warning light 1 lights
up if the BMW Integral ABS
(
b 85) develops a fault
Warning light, general General warning light 2 lights
up if the BMW Integral ABS
develops a fault (
b 85), or if the
tail light or brake light is defec-
tive.
Low fuel levelWhen warning light3 comes
on, there are still approx.
4 litres (0.9 gal) of fuel in the
tank.
* depending on national-market speci-
fication
Engine oil pressureWarning light4 goes out above
idle speed.
e Caution:
If warning light4 comes on dur-
ing the journey, take the follow-
ing action immediately if no
road safety risk is incurred:
Declutch
Operate the emergency off
switch
Bring the motorcycle safely to
a halt
Check engine oil level
(
b 41)
Top up the oil if the level is low. If
the warning light comes on even
though the oil level is correct, you
must consult a specialist work-
shop, preferably an authorised
BMW motorcycle dealer.
1*
10LTbkg4.bk Seite 72 Dienstag, 27. August 2002 8:28 08

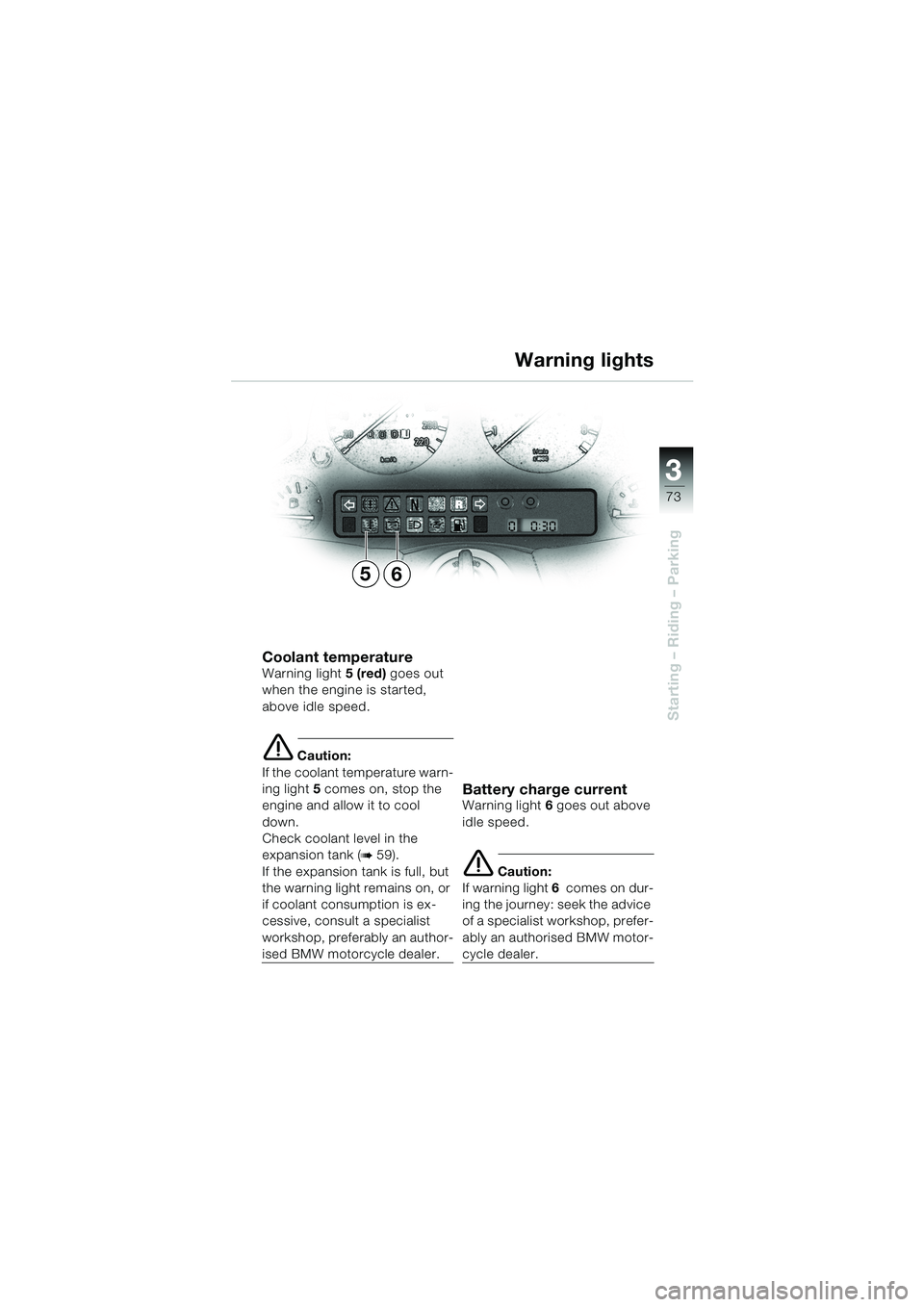

3
73
Starting – Riding – Parking
56Warning lights
Coolant temperature
Warning light5 (red) goes out
when the engine is started,
above idle speed.
e Caution:
If the coolant temperature warn-
ing light 5 comes on, stop the
engine and allow it to cool
down.
Check coolant level in the
expansion tank (
b 59).
If the expansion tank is full, but
the warning light remains on, or
if coolant consumption is ex-
cessive, consult a specialist
workshop, preferably an author-
ised BMW motorcycle dealer.
Battery charge currentWarning light6 goes out above
idle speed.
e Caution:
If warning light 6 comes on dur-
ing the journey: seek the advice
of a specialist workshop, prefer-
ably an authorised BMW motor-
cycle dealer.
10LTbkg4.bk Seite 73 Dienstag, 27. August 2002 8:28 08

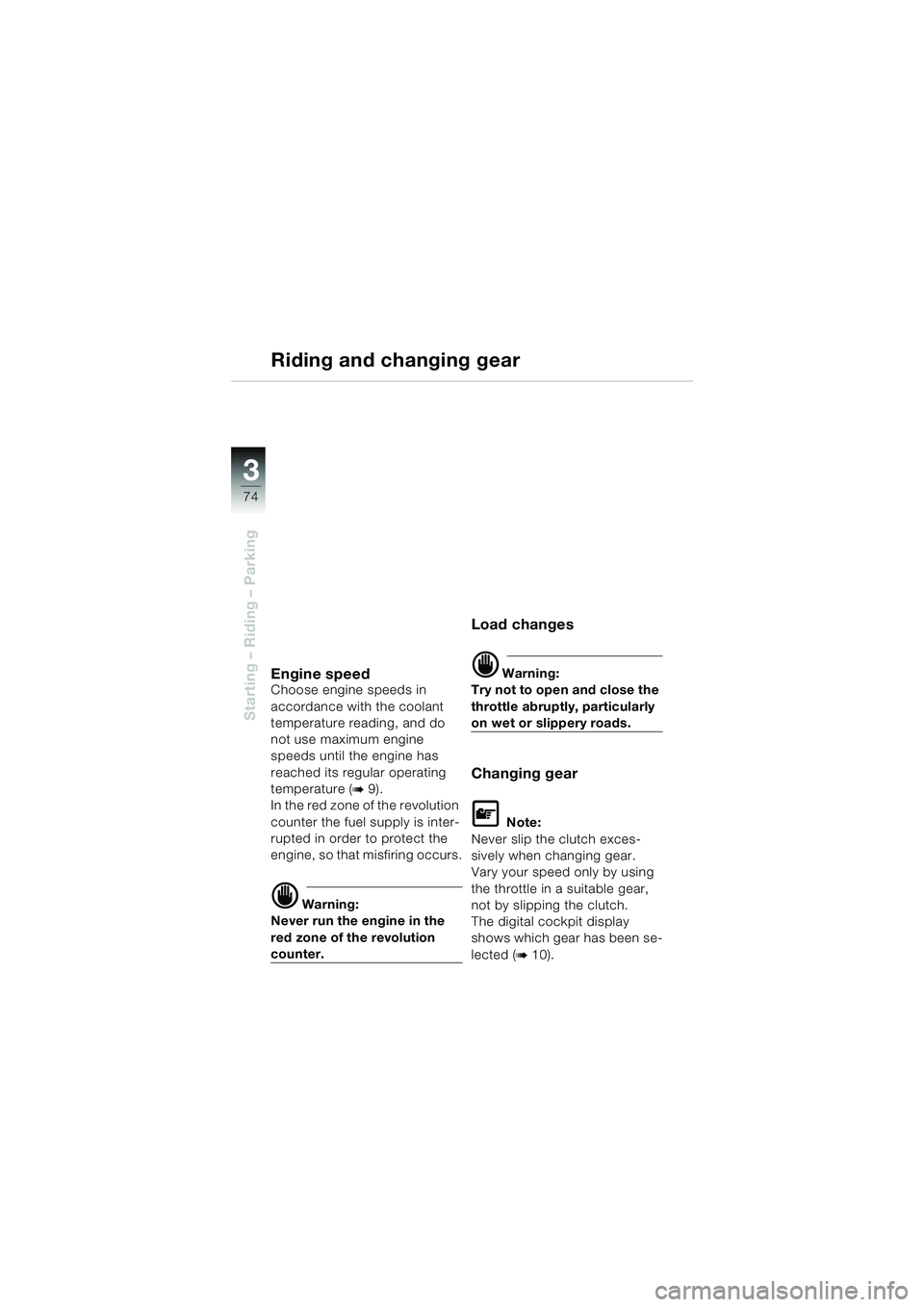

74
Starting – Riding – Parking
3
Riding and changing gear
Engine speedChoose engine speeds in
accordance with the coolant
temperature reading, and do
not use maximum engine
speeds until the engine has
reached its regular operating
temperature (
b 9).
In the red zone of the revolution
counter the fuel supply is inter-
rupted in order to protect the
engine, so that misfiring occurs.
d Warning:
Never run the engine in the
red zone of the revolution
counter.
Load changes
d Warning:
Try not to open and close the
throttle abruptly, particularly
on wet or slippery roads.
Changing gear
L Note:
Never slip the clutch exces-
sively when changing gear.
Vary your speed only by using
the throttle in a suitable gear,
not by slipping the clutch.
The digital cockpit display
shows which gear has been se-
lected (
b 10).
10LTbkg4.bk Seite 74 Dienstag, 27. August 2002 8:28 08

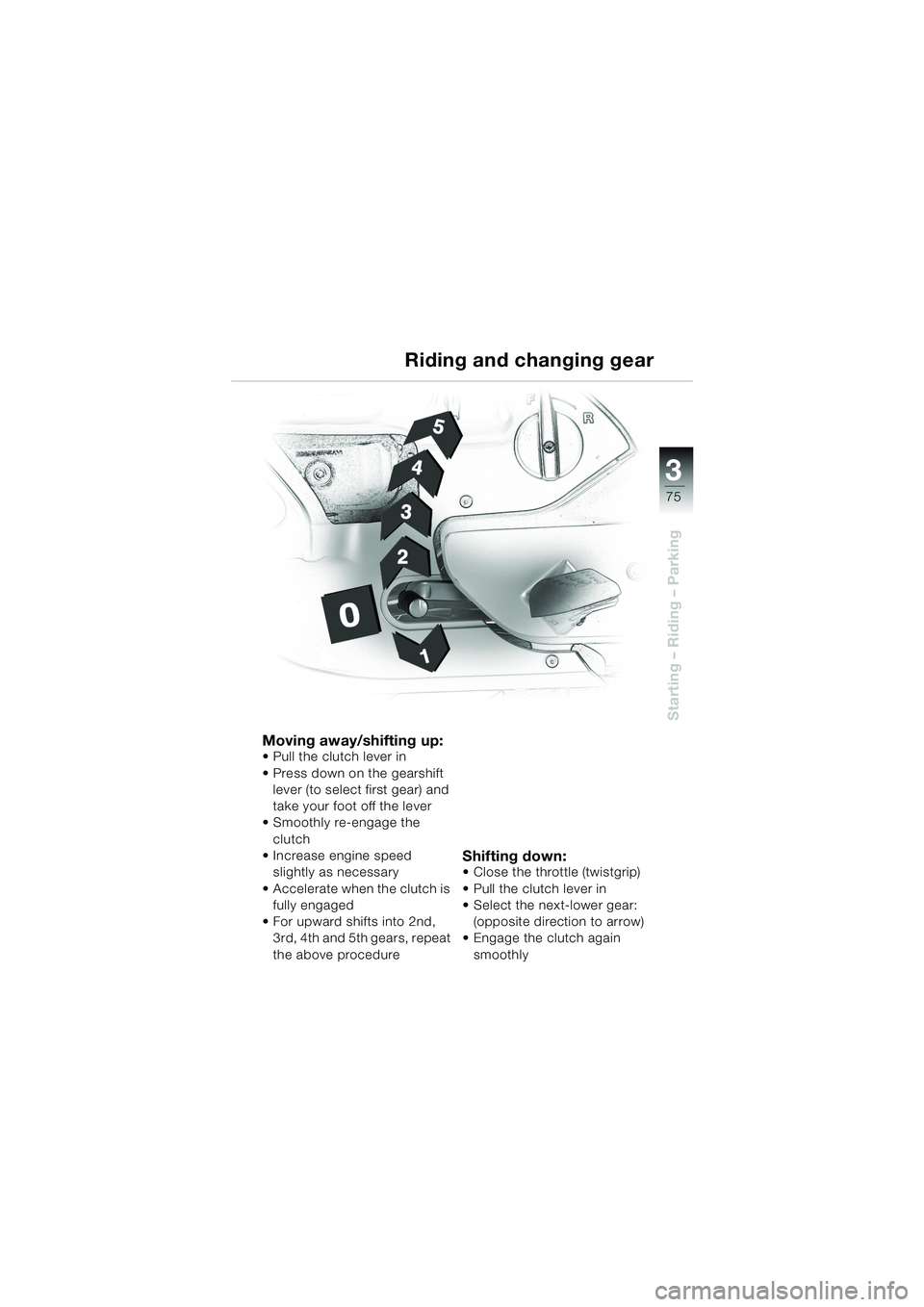

3
75
Starting – Riding – Parking
Riding and changing gear
Moving away/shifting up:Pull the clutch lever in
Press down on the gearshift
lever (to select first gear) and
take your foot off the lever
Smoothly re-engage the
clutch
Increase engine speed
slightly as necessary
Accelerate when the clutch is
fully engaged
For upward shifts into 2nd,
3rd, 4th and 5th gears, repeat
the above procedure
Shifting down:Close the throttle (twistgrip)
Pull the clutch lever in
Select the next-lower gear:
(opposite direction to arrow)
Engage the clutch again
smoothly
10LTbkg4.bk Seite 75 Dienstag, 27. August 2002 8:28 08

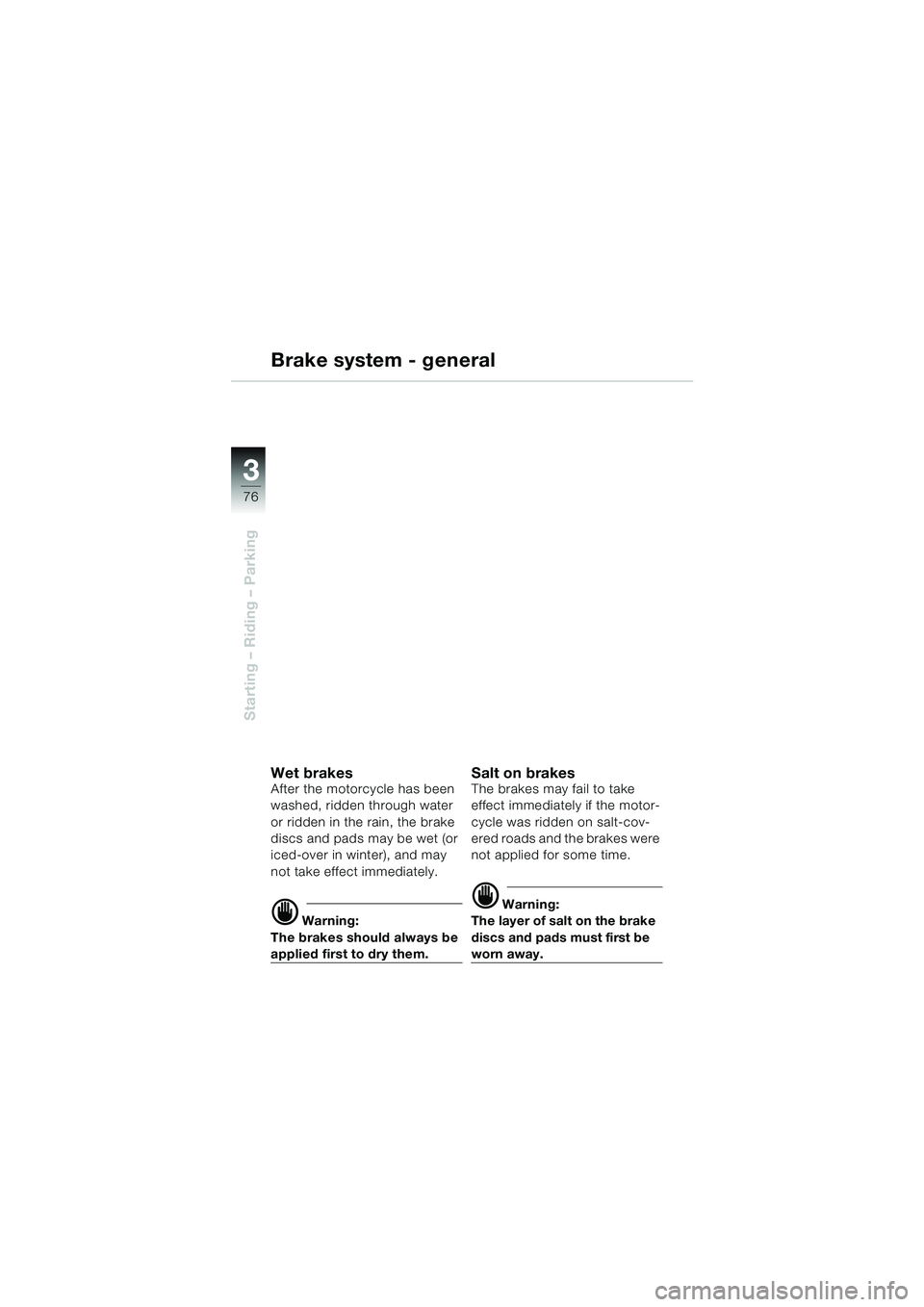

76
Starting – Riding – Parking
3
Brake system - general
Wet brakesAfter the motorcycle has been
washed, ridden through water
or ridden in the rain, the brake
discs and pads may be wet (or
iced-over in winter), and may
not take effect immediately.
d Warning:
The brakes should always be
applied first to dry them.
Salt on brakesThe brakes may fail to take
effect immediately if the motor-
cycle was ridden on salt-cov-
ered roads and the brakes were
not applied for some time.
d Warning:
The layer of salt on the brake
discs and pads must first be
worn away.
10LTbkg4.bk Seite 76 Dienstag, 27. August 2002 8:28 08

3
77
Starting – Riding – Parking

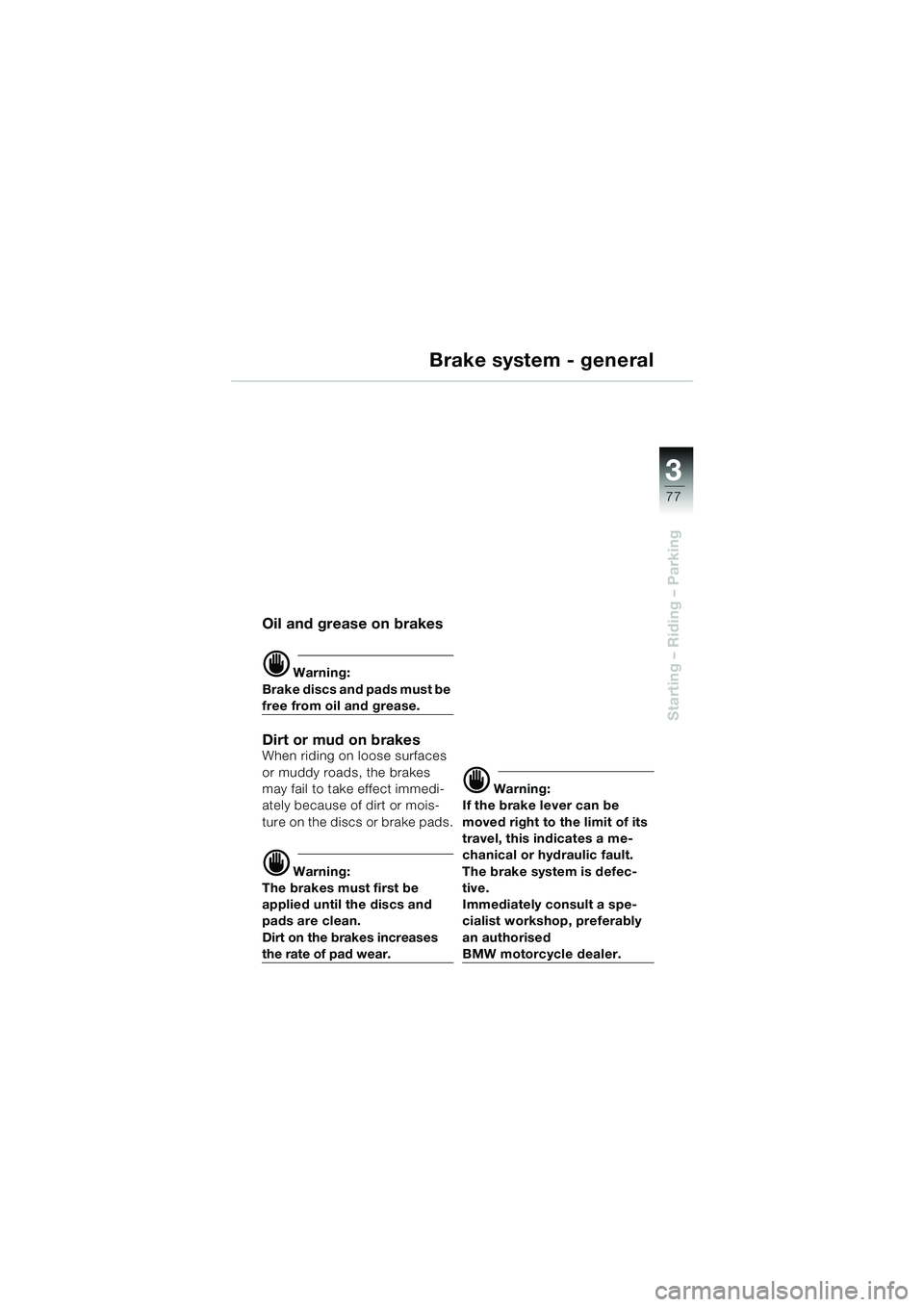

Brake system - general
Oil and grease on brakes
d Warning:
Brake discs and pads must be
free from oil and grease.
Dirt or mud on brakesWhen riding on loose surfaces
or muddy roads, the brakes
may fail to take effect immedi-
ately because of dirt or mois-
ture on the discs or brake pads.
d Warning:
The brakes must first be
applied until the discs and
pads are clean.
Dirt on the brakes increases
the rate of pad wear.
d Warning:
If the brake lever can be
moved right to the limit of its
travel, this indicates a me-
chanical or hydraulic fault.
The brake system is defec-
tive.
Immediately consult a spe-
cialist workshop, preferably
an authorised
BMW motorcycle dealer.
10LTbkg4.bk Seite 77 Dienstag, 27. August 2002 8:28 08

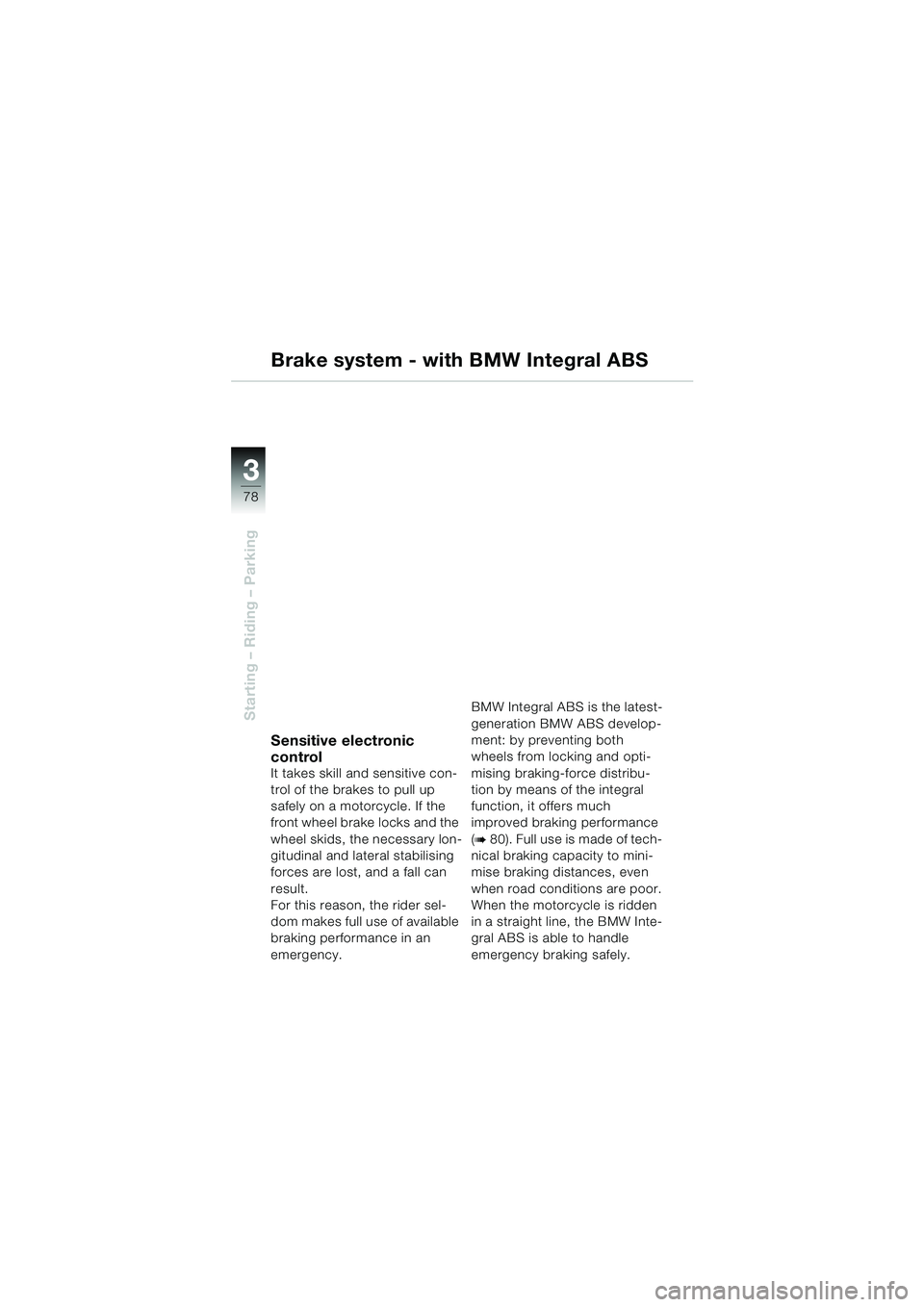

78
Starting – Riding – Parking
3
Brake system - with BMW Integral ABS
Sensitive electronic
control
It takes skill and sensitive con-
trol of the brakes to pull up
safely on a motorcycle. If the
front wheel brake locks and the
wheel skids, the necessary lon-
gitudinal and lateral stabilising
forces are lost, and a fall can
result.
For this reason, the rider sel-
dom makes full use of available
braking performance in an
emergency.BMW Integral ABS is the latest-
generation BMW ABS develop-
ment: by preventing both
wheels from locking and opti-
mising braking-force distribu-
tion by means of the integral
function, it offers much
improved braking performance
(
b 80). Full use is made of tech-
nical braking capacity to mini-
mise braking distances, even
when road conditions are poor.
When the motorcycle is ridden
in a straight line, the BMW Inte-
gral ABS is able to handle
emergency braking safely.
