BMW MOTORRAD K 1200 R 2006 Rider's Manual (in English)

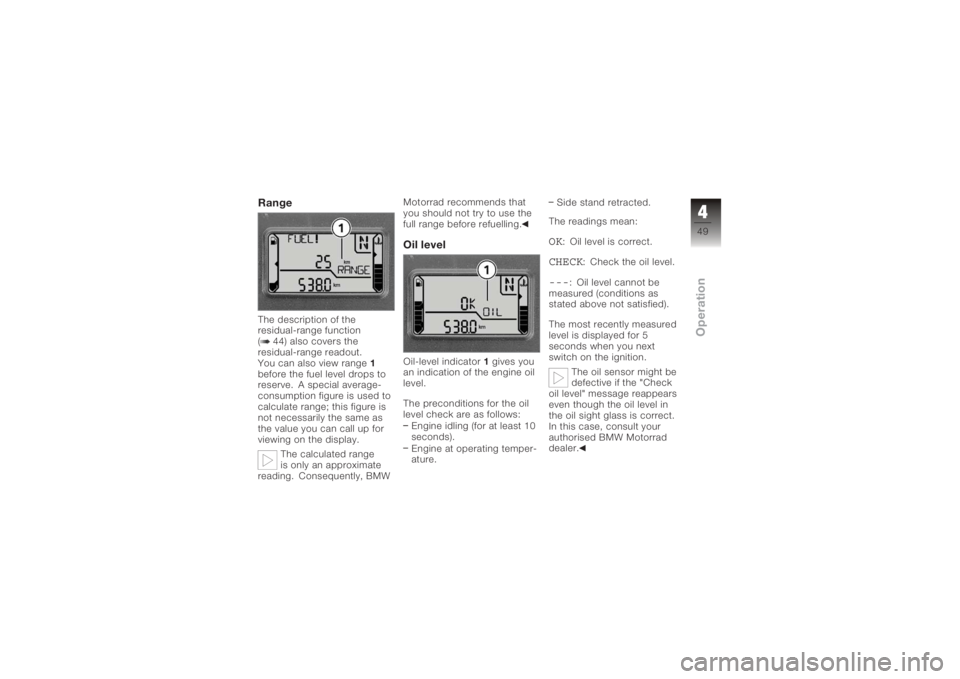

RangeThe description of the
residual-range function
( 44) also covers the
residual-range readout.
You can also view range1
before the fuel level drops to
reserve. A special average-
consumption figure is used to
calculate range; this figure is
not necessarily the same as
the value you can call up for
viewing on the display.
The calculated range
is only an approximate
reading. Consequently, BMW Motorrad recommends that
you should not try to use the
full range before refuelling.
Oil levelOil-level indicator
1gives you
an indication of the engine oil
level.
The preconditions for the oil
level check are as follows:
Engine idling (for at least 10
seconds).
Engine at operating temper-
ature. Side stand retracted.
The readings mean:
OK
: Oil level is correct.
CHECK
: Check the oil level.
---
: Oil level cannot be
measured (conditions as
stated above not satisfied).
The most recently measured
level is displayed for 5
seconds when you next
switch on the ignition.
The oil sensor might be
defective if the "Check
oil level" message reappears
even though the oil level in
the oil sight glass is correct.
In this case, consult your
authorised BMW Motorrad
dealer.
449zOperation

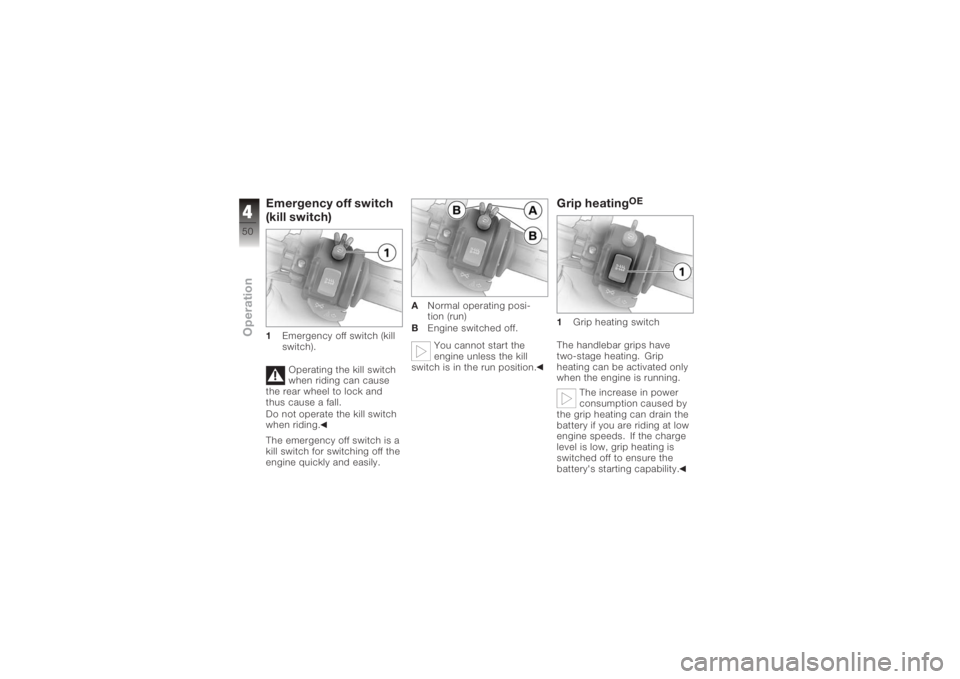

Emergency off switch
(kill switch)1Emergency off switch (kill
switch).
Operating the kill switch
when riding can cause
the rear wheel to lock and
thus cause a fall.
Do not operate the kill switch
when riding.
The emergency off switch is a
kill switch for switching off the
engine quickly and easily. A
Normal operating posi-
tion (run)
B Engine switched off.
You cannot start the
engine unless the kill
switch is in the run position.
Grip heating
OE
1 Grip heating switch
The handlebar grips have
two-stage heating. Grip
heating can be activated only
when the engine is running. The increase in power
consumption caused by
the grip heating can drain the
battery if you are riding at low
engine speeds. If the charge
level is low, grip heating is
switched off to ensure the
battery's starting capability.
450zOperation

2Heating off.
3 50 % heat output (one
dot visible).
4 100 % heat output (three

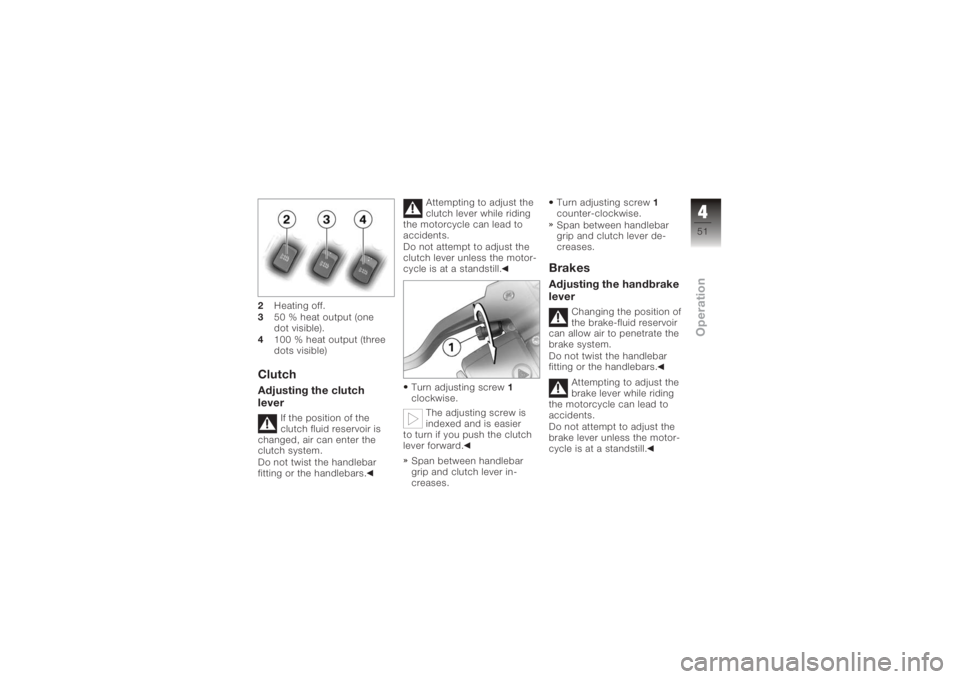

dots visible)ClutchAdjusting the clutch
lever
If the position of the
clutch fluid reservoir is
changed, air can enter the
clutch system.
Do not twist the handlebar
fitting or the handlebars. Attempting to adjust the
clutch lever while riding
the motorcycle can lead to
accidents.
Do not attempt to adjust the
clutch lever unless the motor-
cycle is at a standstill.
Turn adjusting screw 1
clockwise.
The adjusting screw is
indexed and is easier
to turn if you push the clutch
lever forward.
Span between handlebar
grip and clutch lever in-
creases. Turn adjusting screw
1
counter-clockwise.
Span between handlebar
grip and clutch lever de-
creases.
BrakesAdjusting the handbrake
lever
Changing the position of
the brake-fluid reservoir
can allow air to penetrate the
brake system.
Do not twist the handlebar
fitting or the handlebars.
Attempting to adjust the
brake lever while riding
the motorcycle can lead to
accidents.
Do not attempt to adjust the
brake lever unless the motor-
cycle is at a standstill.
451zOperation

Turn adjusting screw1
clockwise.
The adjusting screw is
indexed and is easier
to turn if you push the hand-
brake lever forward.
Span between handlebar
grip and handbrake lever
increases.
Turn adjusting screw 1
counter-clockwise.
Span between handlebar
grip and handlebar lever de-
creases.
LightsSwitching on the side
lightsThe side lights switch on
automatically when the
ignition is switched on.
The side lights place a
strain on the battery.
Do not switch the ignition
on for longer than absolutely
necessary.Switching on the low-
beam headlightThe low-beam headlight
switches on automatically
when you start the engine.
When the engine is not
running you can switch
on the lights by switching on
the ignition and either switch-
ing on the high-beam head-
light or operating the head-
light flasher.
Switch on the high-beam
headlightPress the top part of
switch 1for the high-beam
headlight.
High-beam headlight
switched on.
Move switch 1for the high-
beam headlight to the
centre position.
High-beam headlight
switched off.
Press the bottom part of
switch 1for the high-beam
headlight.
452zOperation

The high-beam headlight
is switched on until you re-
lease the button (headlight
flasher).Switching on parking
lightsSwitch off the ignition.You can switch on the
parking lights only imme-
diately after switching off the
ignition.

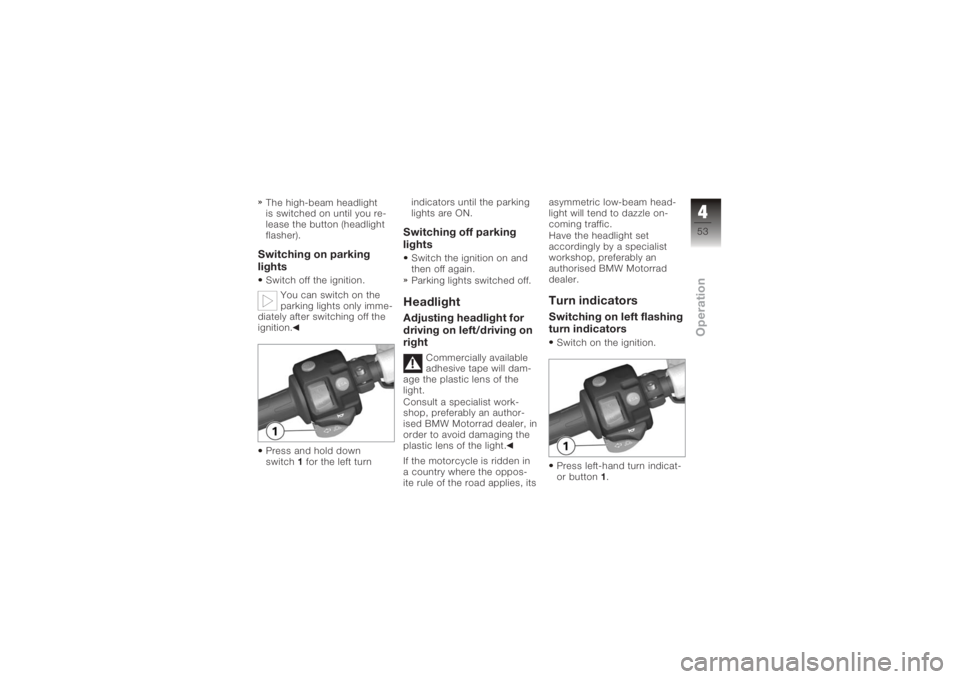

Press and hold down
switch 1for the left turn indicators until the parking
lights are ON.
Switching off parking
lightsSwitch the ignition on and
then off again.
Parking lights switched off.HeadlightAdjusting headlight for
driving on left/driving on
right
Commercially available
adhesive tape will dam-
age the plastic lens of the
light.
Consult a specialist work-
shop, preferably an author-
ised BMW Motorrad dealer, in
order to avoid damaging the
plastic lens of the light.
If the motorcycle is ridden in
a country where the oppos-
ite rule of the road applies, its asymmetric low-beam head-
light will tend to dazzle on-
coming traffic.
Have the headlight set
accordingly by a specialist
workshop, preferably an
authorised BMW Motorrad
dealer.

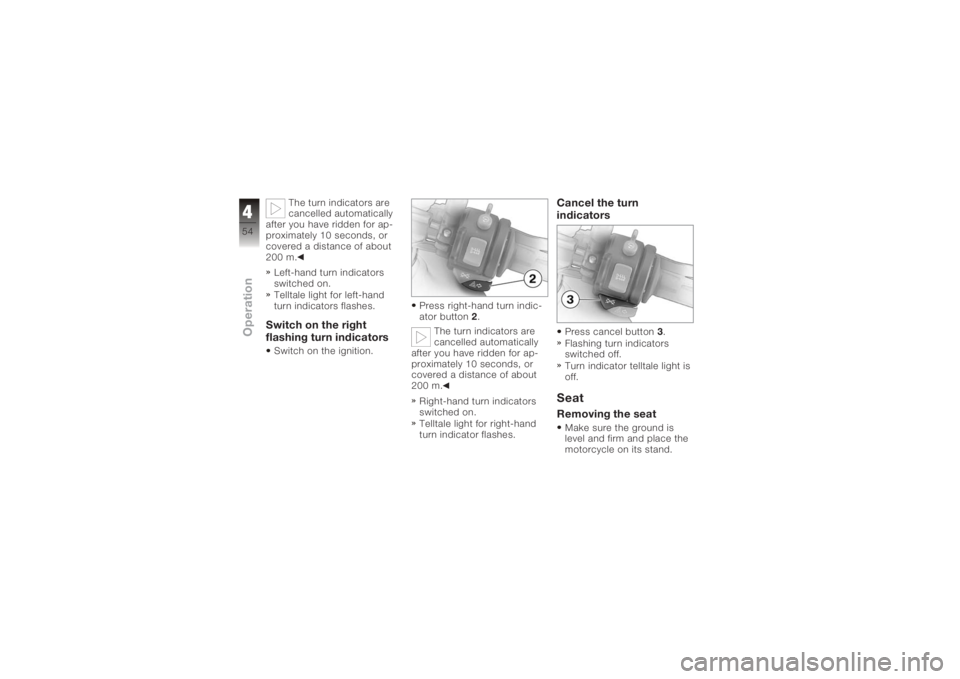

Turn indicatorsSwitching on left flashing
turn indicatorsSwitch on the ignition.
Press left-hand turn indicat-
or button
1.
453zOperation

The turn indicators are
cancelled automatically
after you have ridden for ap-
proximately 10 seconds, or
covered a distance of about
200 m.
Left-hand turn indicators
switched on.
Telltale light for left-hand
turn indicators flashes.
Switch on the right
flashing turn indicatorsSwitch on the ignition. Press right-hand turn indic-
ator button
2.
The turn indicators are
cancelled automatically
after you have ridden for ap-
proximately 10 seconds, or
covered a distance of about
200 m.
Right-hand turn indicators
switched on.
Telltale light for right-hand
turn indicator flashes.
Cancel the turn
indicatorsPress cancel button 3.
Flashing turn indicators
switched off.
Turn indicator telltale light is
off.SeatRemoving the seatMake sure the ground is
level and firm and place the
motorcycle on its stand.
454zOperation

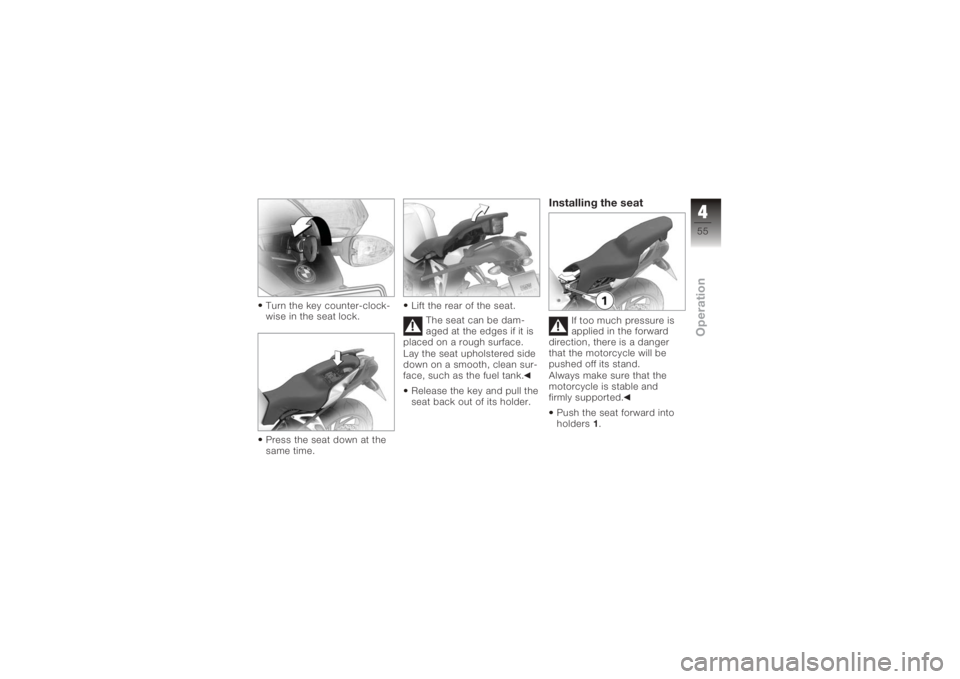

Turn the key counter-clock-
wise in the seat lock.
Press the seat down at the
same time.Lift the rear of the seat.
The seat can be dam-
aged at the edges if it is
placed on a rough surface.
Lay the seat upholstered side
down on a smooth, clean sur-
face, such as the fuel tank.
Release the key and pull the
seat back out of its holder.
Installing the seat
If too much pressure is
applied in the forward
direction, there is a danger
that the motorcycle will be
pushed off its stand.
Always make sure that the
motorcycle is stable and
firmly supported.
Push the seat forward into
holders 1.
455zOperation

Push down firmly on the
seat, applying pressure to
the point above the latch.
The seat engages with an
audible click.
Helmet holderHelmet holder
underneath seatHelmet holder1is underneath
the seat.
A motorcycle helmet with chin
strap can be attached to the
helmet holder. If cases are
fitted or if the chin strap is
too short, a steel cable can
be used to secure the motor-
cycle helmet.

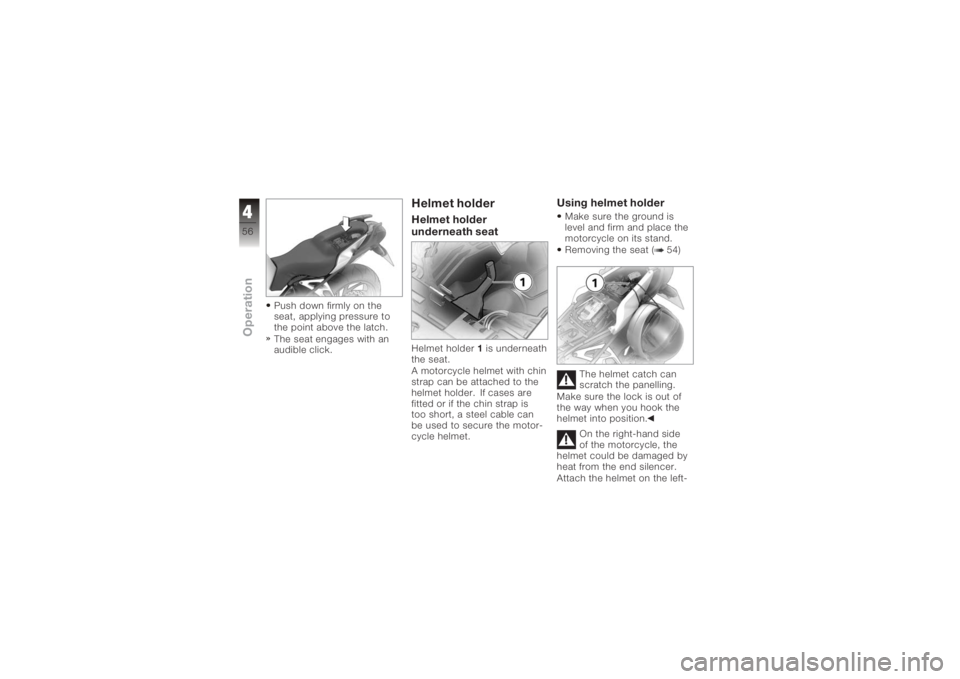

Using helmet holderMake sure the ground is
level and firm and place the
motorcycle on its stand.
Removing the seat ( 54)
The helmet catch can
scratch the panelling.
Make sure the lock is out of
the way when you hook the
helmet into position.
On the right-hand side
of the motorcycle, the
helmet could be damaged by
heat from the end silencer.
Attach the helmet on the left-
456zOperation

hand side of the motorcycle
only.Use the wire rope available
as an optional extra to se-
cure the helmet to helmet

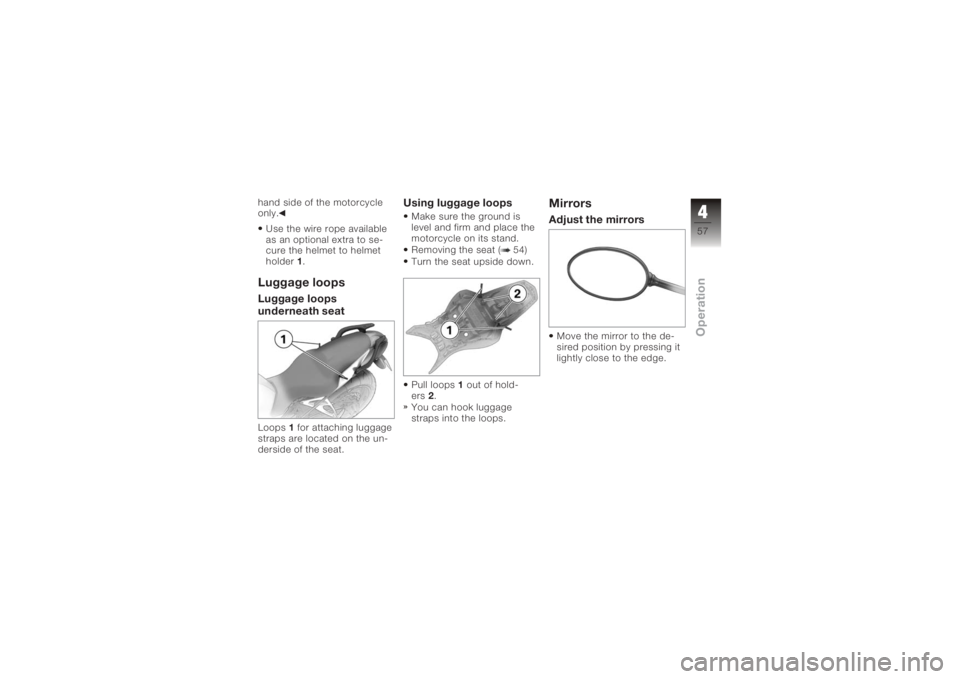

holder 1.Luggage loopsLuggage loops
underneath seatLoops 1for attaching luggage
straps are located on the un-
derside of the seat.
Using luggage loopsMake sure the ground is
level and firm and place the
motorcycle on its stand.
Removing the seat ( 54)
Turn the seat upside down.
Pull loops 1out of hold-
ers 2.
You can hook luggage
straps into the loops.
MirrorsAdjust the mirrorsMove the mirror to the de-
sired position by pressing it
lightly close to the edge.
457zOperation

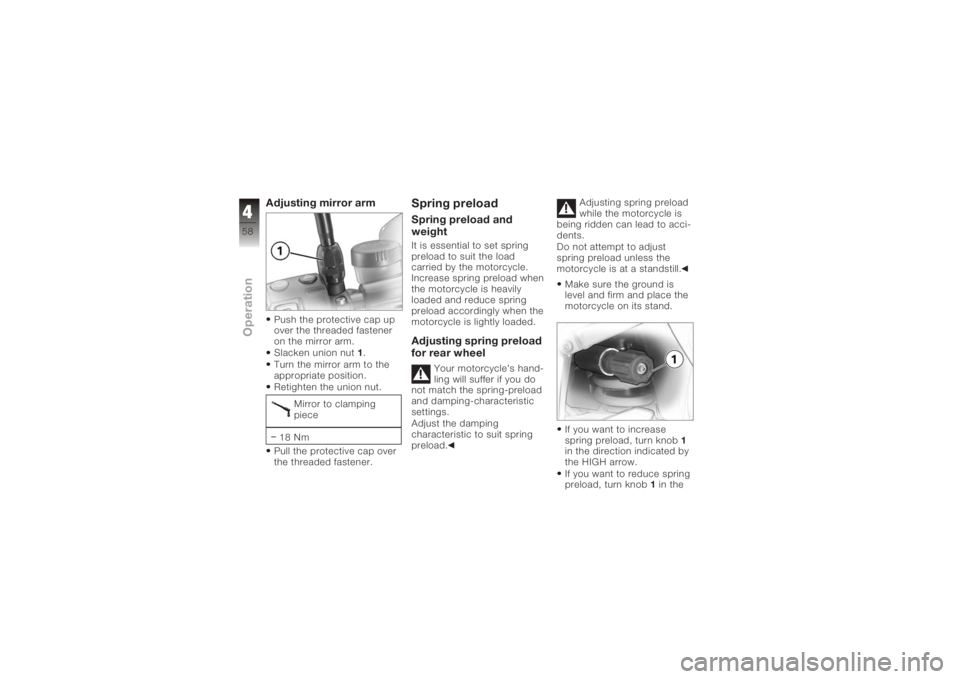

Adjusting mirror armPush the protective cap up
over the threaded fastener
on the mirror arm.
Slacken union nut1.
Turn the mirror arm to the
appropriate position.
Retighten the union nut.
Mirror to clamping
piece
18 Nm
Pull the protective cap over
the threaded fastener.
Spring preloadSpring preload and
weightIt is essential to set spring
preload to suit the load
carried by the motorcycle.
Increase spring preload when
the motorcycle is heavily
loaded and reduce spring
preload accordingly when the
motorcycle is lightly loaded.Adjusting spring preload
for rear wheel
Your motorcycle's hand-
ling will suffer if you do
not match the spring-preload
and damping-characteristic
settings.
Adjust the damping
characteristic to suit spring
preload. Adjusting spring preload
while the motorcycle is
being ridden can lead to acci-
dents.
Do not attempt to adjust
spring preload unless the
motorcycle is at a standstill.
Make sure the ground is
level and firm and place the
motorcycle on its stand.
If you want to increase
spring preload, turn knob 1
in the direction indicated by
the HIGH arrow.
If you want to reduce spring
preload, turn knob 1in the
458zOperation
